USER MANUAL D25940K DEWALT

Line drawings of a hand holding a pen and a cable, with no text or symbols present

B2

19 mm 7 6 8 5

C

Technical diagram illustrating mechanical assembly with labeled components and directional arrows indicating motion or flow.

D

Technical diagram of a flashlight with labeled parts including handle, base, and connector X

NEDRIVNINGSHAMMER D25940K

Tillykke!

	D25940K
L_pA	dB(A)* 91,0

	D25940K
L_pA	dB(A)* 91,0

DEMOLITION HAMMER D25940K

Congratulations!

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical data

	D25940K
Voltage V 220-240
(U.K. & Ireland only) V 230/115
Frequency Hz 50
Current A 8.9/15.8
Power input W 1,600
Impact rate min	^-1 1,620
Impact energy J 30.6
Tool holder 19 mm hex
Chisel positions 12
Weight kg 12.9

Fuses:

Europe 230 V tools 10 Amperes, mains

U.K. & Ireland 230 V tools 13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

EC-Declaration of conformity

D25940K

DEWALT declares that these power tools have been designed in compliance with: 98/37/EEC, 89/336/EEC, 73/23/EEC, 2000/14/EC-Annex VI, EN 50144, EN 55014-1, EN 55014-2, EN 61000-3-2 & EN 61000-3-3.

For more information, please contact DEWALT at the address below, or refer to the back of the manual.

Level of acoustic power according to 2000/14/EC (Article 12, Annex III No. 10; m 15 kg):

D25940K

LWA(measured) dB(A) 104.5

LWA(guaranteed) dB(A) 107.0

Laboratory report 21100881 001

Notified body, delivering the certificate Société Nationale de Certification et d’Homologation

Certificate No. e13*2000/14*0178*00

Date 2/4/2002

Level of sound pressure according to 86/188/EEC & 98/37/EEC, measured according to EN 50144:

	D25940K
L_pA	dB(A)* 91.0

* at the operator's ear

Take appropriate measures for the protection of hearing.

Weighted root mean square acceleration value:

	D25940K
Measured under typical working conditions 11.8 m/s	^2
Measured according to EN 50144-1 & EN 50144-2-6 14.3 m/s	^2

Director Engineering and Product Development Horst Großmann

X. fopman

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product. Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of flammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children or visitors come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

10 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

11 Do not overreach

Keep proper footing and balance at all times.

12 Avoid unintentional starting

Do not carry the plugged-in tool with a finger on the switch. Be sure that the switch is released when plugging in.

13 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function.

Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed.

Do not use the tool if the switch is defective. Have the switch replaced by an authorized DEWALT repair agent.

20 Have your tool repaired by an authorized DEWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Additional safety instructions for demolition hammers

• Ensure the chisel is secured in place before operating the tool.
• In cold-weather conditions or when the tool has not been used for a longer period of time, let the tool run with no load for several minutes before use.
• Always hold the tool firmly with both hands and ensure a secure stance. Always operate the tool with the side handle properly mounted.
• When working above ground level ensure the area below is clear.
• To prevent electric shock, check the working area for live wires before operation.
• Do not touch the chisel or the parts close to the chisel immediately after operation, as they may be extremely hot and cause burns to the skin.
• Always direct the power cable to the rear, away from the chisel.

Package contents

The package contains:

1 Demolition hammer
1 Side handle
1 Pointed chisel
1 Plastic case
1 Tube of chisel lubricant
1 Instruction manual
1 Exploded drawing

- Check for damage to the tool, parts or accessories which may have occurred during transport.

- Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your D25940K demolition hammer has been designed for professional heavy duty demolition, chipping and chasing applications in concrete, brick, stone and other masonry materials.

1 On/off switch
2 Rear handle
3 Side handle
4 Chisel position index collar
5 Tool holder

Soft start feature

The soft start feature allows the impact rate to build up more slowly, thus preventing the chisel or point from “bouncing” around on the masonry when starting up.

Active vibration control

The active vibration control neutralises rebound vibration from the hammer mechanism. Lowering hand and arm vibration, it allows more comfortable use for longer periods of time and extends the life of the unit.

Electrical safety

The electric motor has been designed for a limited voltage range. Always check that the power supply falls within the voltage range on the rating plate.

Your DEWALT tool is double insulated in accordance with EN 50144; therefore no earth wire is required.

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below).

Brown is for Live (L) (2) and Blue is for Neutral (N) (4).

- Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

Technical diagram of a mechanical or electrical component with numbered parts labeled 1, 2, 3, and 4.

Never use a light socket.

Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12

For 115 V units with a power rating exceeding 1500 W, we recommend to fit a plug to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm^2 .

When using a cable reel, always unwind the cable completely.

Also refer to the table below.

Conductor size ( mm^2 ) Cable rating (Amperes)

0.75 6

1.00 10

1.50 15

2.50 20

4.00 25

Cable length (m)
7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
1	1	5	0	-	2	.	0	6	6
		2.1	-	3.4	6	6	6	6	15
		3.5	-	5.0	6	6	10	15	20
		5.1	-	7.0	10	10	15	20	20
		7.1	-	12.0	15	15	20	25	25
		12.1	-	20.0	20	20	25	-	-
230		0	-	2.0	6	6	6	6	6
		2.1	-	3.4	6	6	6	6	6

	3.5 - 5.0	6 6	6 6 10 15
	5.1 - 7.0	10 10 10	10 15 15
	7.1 - 12.0	15 15 15	15 20 20
	12.1 - 20.0	20 20	20 20	20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

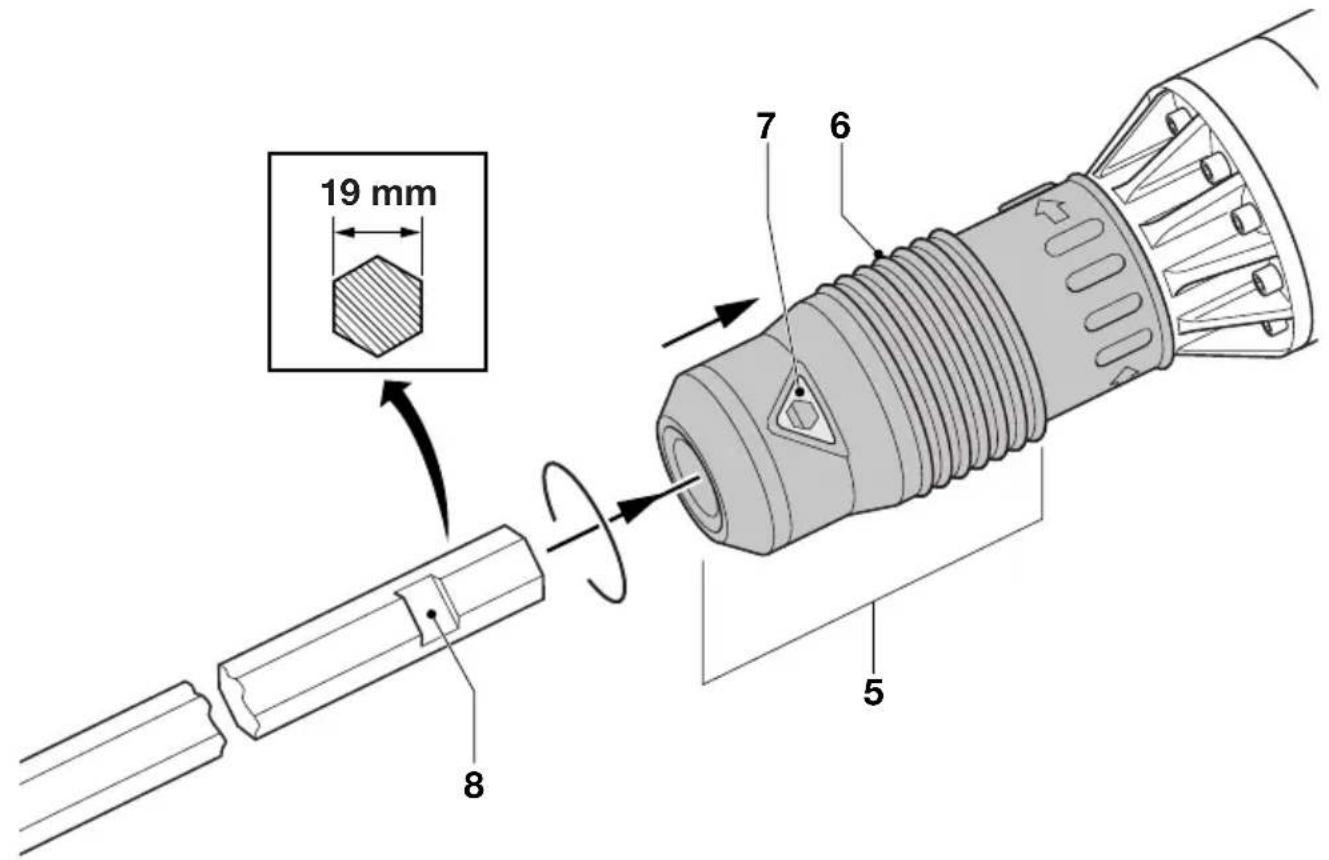

Inserting and removing 19 mm hex. accessories (fig. B1 & B2)

This machine uses chisels with a 19 mm hex. shank (refer to the inset in fig. B2 for a cross-section of a chisel shank).

We recommend to use professional accessories only.

- Clean and grease the chisel shank.

Do not apply lubricant to the machine.

- Pull back the locking sleeve (6), align the groove (8) with the yellow marker (7) and insert the chisel shank into the tool holder (5). Release the locking sleeve.

- Pull on the chisel to check if it is properly locked. The hammering function requires the chisel to be able to move axially several centimetres when locked in the tool holder.

- To remove a chisel pull back the tool holder locking sleeve (6) and pull the chisel out of the tool holder.

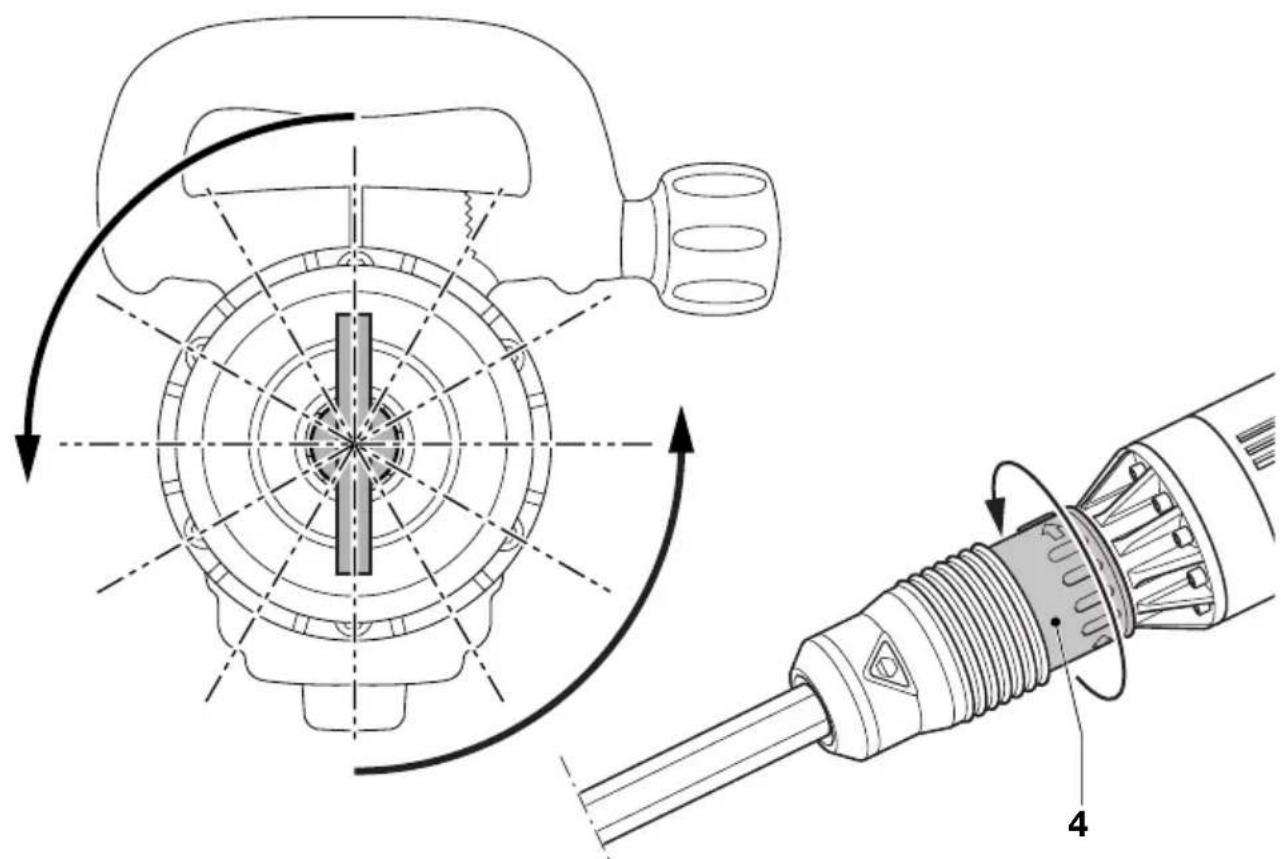

Indexing the chisel position (fig. C)

The chisel can be indexed and locked into 12 different positions.

- Insert the chisel as described above.

- Rotate the collar (4) in the direction of the arrow until the chisel is in the desired position.

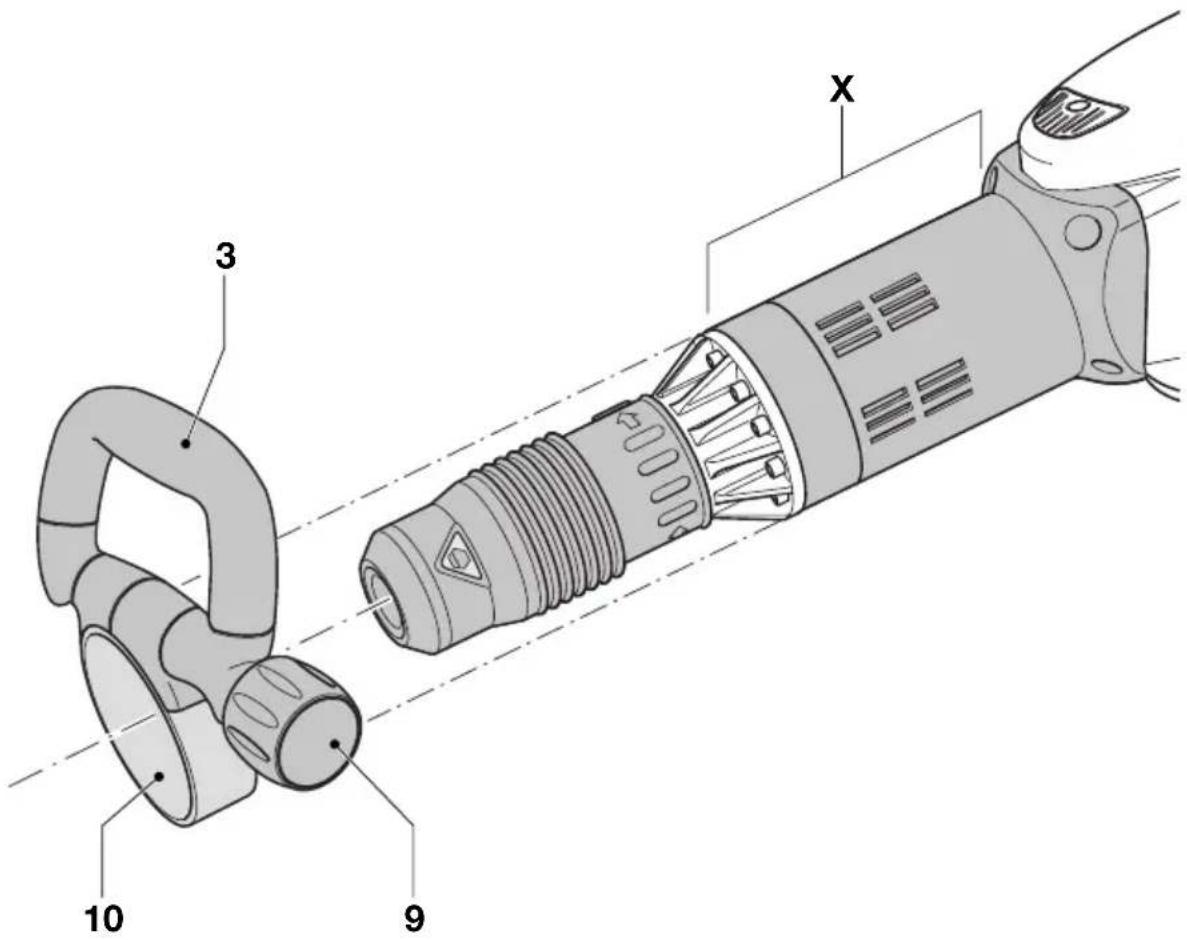

Fitting and adjusting the side handle (fig. D)

The side handle (3) can be mounted on the front of the machine to suit both RH- and LH-users.

Always operate the machine with the side handle properly mounted.

• Unscrew the side handle clamp knob (9).
• Slide the side handle assembly onto the machine locating the steel ring (10) in the mounting area (X).
• Adjust the side handle (3) to the desired angle.
• Slide and rotate the side handle to the desired position.
• Lock the side handle in place by tightening the clamp knob (9).

Instructions for use

• Always observe the safety instructions and applicable regulations.
- Be aware of the location of pipework and wiring.
- Apply a pressure of approx. 20 - 30 kg to the tool. Excessive force does not speed up chiselling but decreases tool performance and may shorten tool life.

Switching on and off (fig. A)

• Switching on: set the on/off switch (1) to position 1.
• Switching off: set the on/off switch (1) to position 0.

Demolition, chasing and channelling (fig. A)

• Select the appropriate chisel, and clean and grease its shank.
• Insert the chisel and check whether it is properly locked.
• Fit and adjust the side handle (3) and make sure it is firmly tightened.
• Hold of the tool at both handles (2 & 3) and switch on. The tool now runs in continuous operation.
• Always switch off the tool when work is finished and before unplugging.

Various types of 19 mm hex. chisels are available as an option.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

- This machine is not user-serviceable. Take the tool to an authorised DEWALT repair agent after approximately 200 hours of use. If problems occur before this time contact an authorised DEWALT repair agent.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Accessory maintenance

Accessory maintenance at the right time guarantees optimal results in application and a long and efficient accessory life.

Unwanted tools and the environment

Take your tool to an authorized DeWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at

www.2helpU.com.

Director Engineering and Product Development Horst Großmann

X. fopmann

	D25940K
L_pA	dB(A)* 91,0

L'emballage contient:

1 Marteau piqueur

1 Poignée latérale

(Isolation double) - outils

	D25940K
L_pA	dB(A)* 91,0

	D25940K
L_pA	dB(A)* 91,0

* op de werkplek

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Duitsland

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Sikkerhetsforskrifter

Director Engineering and Product Development Horst Großmann

X. fopmann

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Alemanha

Director Engineering and Product Development Horst Großmann

X. fopmann

BRYTNINGSHAMMARE D25940K

Vi gratulerar!

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Säkerhetsinstruktioner

	D25940K
L_pA	dB(A)* 91,0

Calpe House Rock Hill

Black Rock, Co. Dublin

Tel: [phone]

Fax: [phone]

Italia DEWALT

DeWALT

Viale Elvezia 2

20052 Monza (Mi)

Tel: [phone]

Fax: [phone]

Nederland DEWALT

DeWALT

Florijnstraat 10

4879 AH Etten-Leur

Tel: [phone]

Fax: [phone]

www.dewalt.benelux.com

United Kingdom DEWALT

DEWALT

210 Bath Road

Slough, Berks SL1 3YD

Tel: [phone]

Fax: [phone]
