Product type	Cordless paint mixer
Brand	Metabo
Model	RW 18 LTX 120
Battery voltage	18 V (Li-Ion, CAS system)
No-load speed	0 – 1200 rpm
Maximum mixing capacity	120 L (depending on consistency)
Whisk diameter	120 mm
Weight (without battery)	2.5 kg
Dimensions (L x W x H)	300 x 100 x 180 mm
Sound level (LPA)	85 dB(A)
Vibrations (hand-arm)	< 2.5 m/s²
Recommended battery type	Metabo 18V Li-Ion (2.0 – 10.0 Ah)
Typical charging time	30 – 60 min (depending on charger)
Average runtime per charge	Up to 60 min (battery 4.0 Ah)
Electronic function	Electronic speed variation, motor brake
Motor protection	Overload and overheating protection
Battery charge indicator	Yes, on Metabo battery
Maintenance and cleaning	Clean the whisk with water after use; check carbon brushes every 50 h
Safety	Circuit breaker, class II insulation, switch lock
Spare parts	Replacement whisk (ref. 625770000), carbon brushes (ref. 344074010)
Repairability	2-year warranty, Metabo authorized service center; repairability score: 8.0/10
General information	Professional use, compatible with all Metabo 18V CAS chargers

Frequently Asked Questions - RW 18 LTX 120 METABO

What is the whisk diameter of the Metabo RW 18 LTX 120?

The whisk diameter is 120 mm, suitable for mixing up to 120 liters of paint or mortar.

Which battery should be used with this mixer?

Use a Metabo 18V Li-Ion battery from the CAS (Cordless Alliance System), with a capacity of 2.0 to 10.0 Ah.

Is the speed adjustable?

Yes, the speed is electronically variable from 0 to 1200 rpm via the trigger. Ideal for adapting the mixture to the consistency.

Can I mix mortar with this device?

Yes, it is suitable for mortars, adhesives, paints and other fluid materials. Respect the maximum capacity of 120 liters.

How to clean the whisk after use?

Clean the whisk with clean water immediately after use. Wipe it dry and store it in a dry place. Never immerse the tool in water.

Does the mixer have a motor brake?

Yes, it is equipped with a motor brake for quick stop of the whisk, improving safety.

What is the runtime with a 4 Ah battery?

With a 4 Ah battery, the runtime is approximately 60 minutes under moderate use. This varies depending on load and speed.

How to replace the carbon brushes?

The carbon brushes should be checked every 50 hours. Replacement is possible by unscrewing the side caps; refer to the manual.

Is the product under warranty?

Yes, the warranty is 2 years (subject to Metabo conditions). Keep the invoice and register online for extension.

Where to find spare parts?

Spare parts are available from Metabo dealers or on the official website. The replacement whisk part number is 625770000.

USER MANUAL RW 18 LTX 120 METABO

Two Metabo brand thermocouple units (no visible text or symbols on the devices themselves)

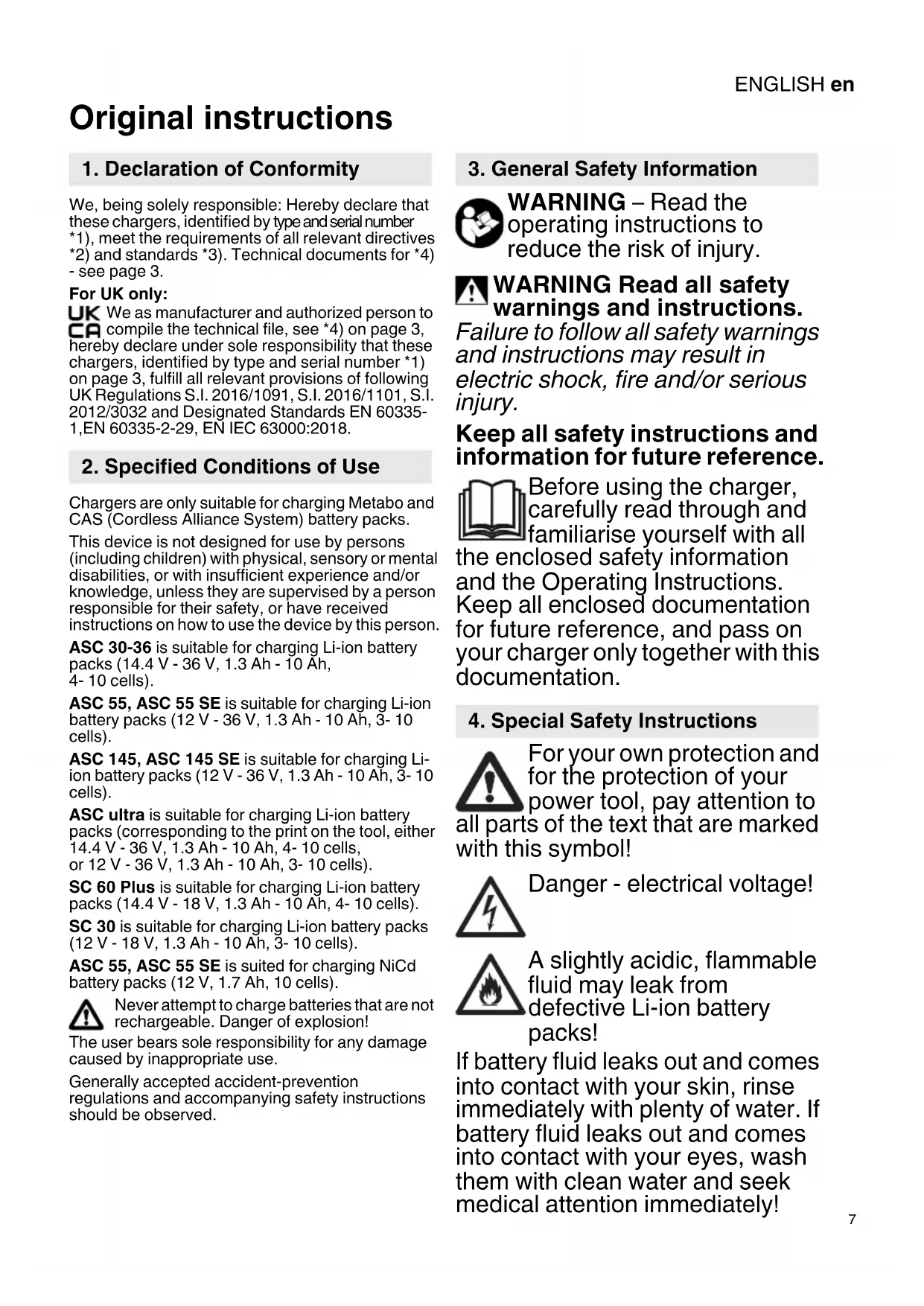

Original instructions

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these chargers, identified by type and serial number *1), meet the requirements of all relevant directives *2) and standards *3). Technical documents for *4) - see page 3.

For UK only:

UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these chargers, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2016/1101, S.I. 2012/3032 and Designated Standards EN 60335-1, EN 60335-2-29, EN IEC 63000:2018.

2. Specified Conditions of Use

Chargers are only suitable for charging Metabo and CAS (Cordless Alliance System) battery packs.

This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the device by this person.

ASC 30-36 is suitable for charging Li-ion battery packs (14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells).

ASC 55, ASC 55 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 145, ASC 145 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC ultra is suitable for charging Li-ion battery packs (corresponding to the print on the tool, either 14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells, or 12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

SC 60 Plus is suitable for charging Li-ion battery packs (14.4 V - 18 V, 1.3 Ah - 10 Ah, 4-10 cells).

SC 30 is suitable for charging Li-ion battery packs (12 V - 18 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 55, ASC 55 SE is suited for charging NiCd battery packs (12 V, 1.7 Ah, 10 cells).

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.

3. General Safety Information

WARNING – Read the operating instructions to reduce the risk of injury.

WARNING Read all safety warnings and instructions.

Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the charger, carefully read through and familiarise yourself with all closed safety information e Operating Instructions.

Keep all enclosed documentation for future reference, and pass on your charger only together with this documentation.

4. Special Safety Instructions

For your own protection and for the protection of your power tool, pay attention to its of the text that are marked is symbol!

Danger - electrical voltage!

A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!

ENGLISHen

Do not recharge a fully charged battery pack!

Only for use in indoor rooms.

Protect the charger from moisture.

Never allow children to use the device.

Children should be supervised to ensure that they do not play with the tool.

Keep children away from the battery charger and the working area!

Keep your battery charger out of reach of children!

Pull out the mains plug immediately if the battery charger starts to smoke or flames emerge!

Do not insert objects into the ventilation slots on the battery charger – there is a danger of electric shocks and short circuits!

Do not use faulty battery packs. In areas with high metal dust exposure do not charge any battery packs with AIR COOLED chargers.

5. Overview

See page 2. The illustrations are regarded as exemplary for all devices.

1 Battery pack (not in scope of delivery)
2 Sliding seat
3 Operation display
4 Warning display

6. Initial Operation

Before commissioning, check that the rated mains voltage and mains frequency stated on the type plate match your power supply.

Devices like these that generate direct current can influence simple earth leakage protection devices. Use a type F or better, with a release current of max. 30 mA.

Before commissioning the charger, ensure that the air slots are free. Minimum distance to other objects is 5 cm!

6.1 Self-test

Plug in.

The warning display (4) and the operating indicator (3) light up one after the other for approx. 1 second and the installed fan runs for approx. 5 seconds.

7. Use

7.1 Charging battery pack

Push the battery pack completely to the stop on the sliding seat (2).

The operating indicator (3) flashes.

Note: To have the charge level displayed on Li-ion battery packs, first take the battery pack out of the charger and then press the button on the battery pack.

7.2 Conservation charge

Once the charging process has finished, the battery charger automatically switches to conservation mode.

The battery pack can remain in the battery charger and is therefore always ready for use.

The operating display (3) lights up continuously.

8. Faults

8.1 Warning display (4) lights up continuously

Battery pack is not charged. Excessive/insufficient temperature. When the temperature of the battery pack is between 0 °C and 50 °C, the charging process begins automatically.

8.2 Warning display (4) flashes

• Battery pack is defective. Remove the battery pack immediately from the charger.
• The battery pack was not pushed correctly onto the sliding seat (2). See chapter 7.1.

9. Repairs

Repairs to the charger must only be carried out by qualified electricians.

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer

or the Customer Service department of the manufacturer or a similarly qualified person to prevent endangering personnel and property.

If you have Metabo charges that require repairs, please contact your Metabo service centre. See www.metabo.com for addresses.

10. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Only for EU countries: never dispose of power tools in your household waste! According to European Directive 2012/19/EU

on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner.

11. Technical Specifications

See page 3.

U = voltage ranges of the battery packs
C = battery pack capacity
l_C = charging current
t = charging time

^1) Depending on the residual capacity and the temperature of the battery pack, real charging times may deviate from the specifications.

Recommended ambient temperature when charging: 0 °C to 40 °C

Changes due to technological progress reserved.

Device of protection class II

\~ AC Power

FRANÇAISfr

Notice originale

C = accupack-capaciteit

I_C = laadstroom

t = laadtijd

Uju wtuwlyh wupftpp, npn6f qt6tpwg6m1d t6 hwnwnwnm6 hwnw6f, lwpnn t6 mqnltL yhi6ptpt6ghwL mwqwhnl1s ufswnnty5kph dpu: Yhpwnld F wkwnlp, lquw wnwnlljwqnclip 30 dJU, wfswnndwl hwnwlfnl wejwnwnn daqtkp:

^1 npdwnphnufgh wwng hwnqultf, np onwnphnufng mfgftpupgmfumd st6: Nmhqnukl wnfu[mq6 5 nd hlwni]npapjni6 wjl wnwnphwukph ghwundwdp:

6.1 Ummiqnli

hynngwlq shmgfkl hnuw6f h ympnwlqhi:

UqqnW6cmW6Jh6 (4) h wcjwnwnGfH h6nhlhwwnnpGtph lmjutpp (3) ymnjnu6 t6 hwgnpnpwpw dwnwnlpwnwtu 1 yph. empuftmuh, gtpumppfjmd hnlmgfdh hndwlmpqq mcjwnmmuf k dum. 5 yph. empuftmuh:

7. Чршннід

C = Uwpunlqngh hqnpncpjnufp

IC = lhglw|npduwhnuwlf

t = 1,hgfu|npduw|duufulw|

1) qubqud hghduwupuuhg le yapuwuhfuuh wujuwukphg hghwunpufu hpulwduwuhp lwpn k uwpptpkl fclud duwuhwhwniuwdutphg:

Ighfuwapufu duwufuw ouunfuw ykpudwnuhfu^ hg uhyu 40 ^:

Bcpwqk T ynhnfowg wkjgghwqg pwpkwnfwd Gquwwwnql:

□ II ηωυρ υωσωνωθιρμηδ

\~ Φnμnμmμg hnuugf

№ ЕАЭС RU C-DE.ГБ09.B.00131/20, qnpδnul t, ulquw 10.02.2020 άh624 09.02.2025 pp., mpjbl t, «'Ukqwllhuflwjuw έfwnlρωnhqμ» UΩC' wpnnwnpwufh hwlpwwnnwqpndwi δmpd6h lqn6hg, hwugl (hpwnlwpwnfuql w qnpδnflklnpjw6) ' 115280, θnclwwnnw6, fuwruf U'nuljlu, φnngg Ιθθhghuwjuw U1pnnu, ct6f 19, 2-pn hwph, ut6jwh6tp ' 21w8, 21w9, 21w10, 21w11: Ztnwnpu ' [phone]; ηL. φnwnuh hwugt' [e-mail]: Znwllwwnnwqpndwi άhwaqhp No POCC RU.0001.11ГБ09 wn 09.09.2014 p.:

Zwduuununluwufprjwh hwnunupwquhp ' No EA3C N RU Д-DE.ГБ09.B.00348/20, qnpdnif k ulquw 04.03.2020 üh6h 26.02.2025 pp., qpugqltl k «Ukqullhuhwju fuwtpwnhqw» UNC' wpmwnpw6f hwnwnwnqpw6 dmpd6h hnpd6g, hwugt (hpwnlpw6mhw6 h qnpdnftm pwr6f)' 115280, fnuuunwnfu, fuqnuf Unalhu, qhnng lLghfuhwju Ulnpnnw, ct6f 19, 2-pn hwph, utgjwl6tp '21w8, 21w9, 21w10, 21w11: Zbwnlwnn' [phone]; lL. qwnwl hwugt' [e-mail]: Zwluunwnqpw6 g lqwjmqhp No POCC RU.0001.11ГБ09 mm 09.09.2014 p.:

Upumnprufng kphhp' Qfghwnwnfg, qjkwngm Upumnprunq "Metabowerke GmbH", Utkwnpnwnlbjk 1, D-72622 Ujnpuhfiqfg, qkpufmfgm Ukpufmdnq fncnuunnwnfgmud "Utkwnpn bilpuuIm" UfC Pouuunnwnfg, 127273, Unuqlu Φ. ftpjnqnqlwju wltw, umt6 5 a, chg.-6 7, qpwtgjwlq 106 htn.' [phone]

Upwnnpudw wduwpplp gcalmd k Lhgfwlpudw uwpfh qpm Tnpdft h dwnwnmpjwhi dmuhtpw 7 uwpfh k: hnphmprn sh wpfnd wnuhfg hwiofwqm hi nuuqdwfi oquwnqpdkl qnpdftp wpwnnpudw wduwpllg uhumd 5 umph cmpnfdmh wjh wpnhctwnmqlaplg hkma (wpwnnpudw wduwphlp mlu whunwl h lpu):

Shukhupjuli qianpnh huiup.

Zwduwwwnwnu]vwGnIpJw6 hwylwwwnwqh.
