USER MANUAL 525P5S HUSQVARNA

EN Operator's manual 2-27

Transportation, storage and disposal.... 23

Technical data.... 24

Accessories.... 25

EC Declaration of Conformity.... 27

Introduction

Intended use

The product is used for cutting branches and twigs.

Note: National regulations can set limit to the operation of the product.

Only use the product with accessories that are approved by the manufacturer. Refer to Accessories on page 25.

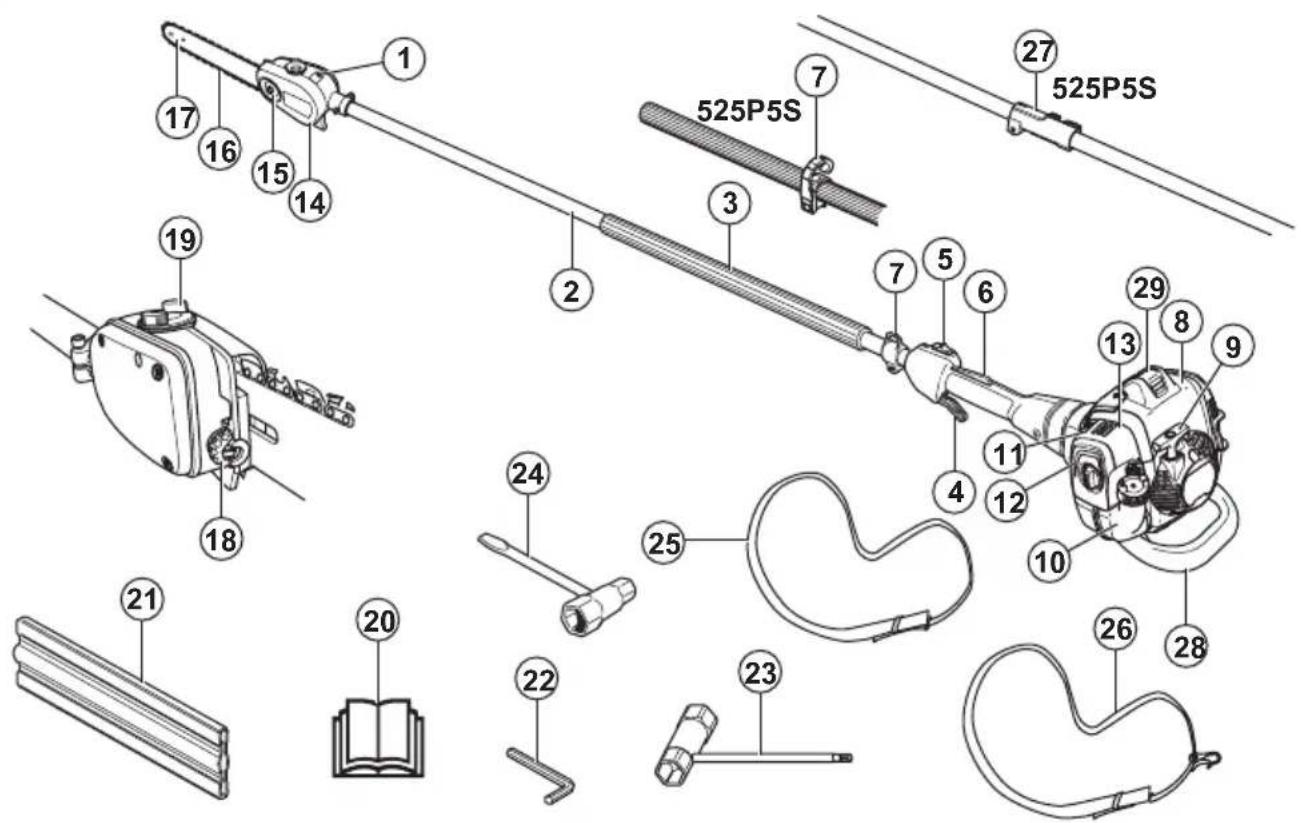

Product overview

Technical diagram of a mechanical assembly with numbered parts for identification and assembly reference.

1. Chain lubrication adjustment screw
2. Shaft
3. Front handle
4. Throttle trigger
5. Stop switch
6. Throttle trigger lockout
7. Harness support hook
8. Cylinder cover

9. Starter handle

10. Fuel tank

11. Choke control
12. Air purge
13. Air filter cover
14. Protective guard for saw chain
15. Bar nut
16. Saw chain
17. Guide bar

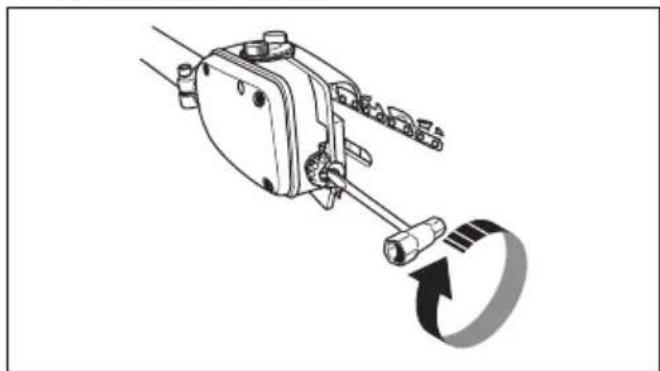

18. Chain tensioning screw

19. Chain oil tank

20. Operator's manual
21. Transport guard, bar
22. Hex key
23. Combination wrench
24. Combination wrench, chain tensioner
25. Harness 525P5S
26. Harness 525P4S
27. Shaft coupling

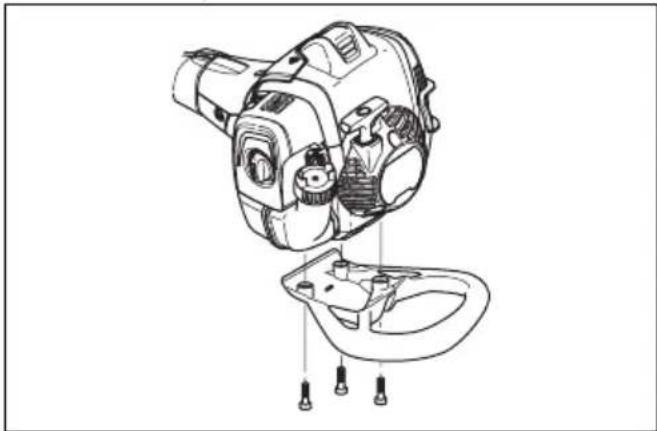

28. Impact guard
29. Spark plug cap and spark plug

Symbols on the product

WARNING! This product is dangerous. Injury or death can occur to the operator or bystanders if the product is not used carefully and correctly. To prevent injury to the operator or bystanders, read and obey all safety instructions in the operator's manual.

Please read the operator's manual carefully and make sure that you understand the instructions before use.

Use a protective helmet in locations where objects can fall on you. Use approved hearing protection. Use approved eye protection.

Use approved protective gloves.

Use heavy-duty slip-resistant boots.

5m (30ft) 15m (50m)

This product is not electrically insulated. If the product touches or comes close to high-voltage power lines it could lead to death or serious injury. Electricity can jump from one point to another by arcing. The higher the voltage, the greater the distance electricity can jump. Electricity can also travel through branches and other objects, especially if they are wet. Always keep a distance of at least 10 m between the machine and high-voltage power lines and/or any objects that are touching them. If you have to work within this safe distance you should always contact the relevant power company to make sure the power is switched off before you start work.

The operator of the product must ensure, while working, that no persons or animals come closer than 15 meters.

Note: Other symbols/decals on the product refer to certification requirements for other commercial areas.

Fuel.

Chain oil.

Adjustment of the oil flow.

Direction of rotation, saw chain.

Primer bulb.

Choke.

The product agrees with the applicable EC directives.

yyyyMMddxxxx

The rating plate shows the serial number. yyyy is the production year, ww is the production week and xxxx is the sequential number.

WARNING: Tampering with the engine voids the EU type-approval of this product.

Product liability

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
- the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
- the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.
• This product is a dangerous tool if you are not careful or if you use the product incorrectly. This product can cause serious injury or death to the operator or others.
• It is very important that you read and understand the contents of this operator's manual. If you feel uncertainty about a work situation or the operating procedures after you read the operator's manual, speak to a service agent before you continue.
• Under no circumstances may the design of the product be modified without the permission of the manufacturer. Do not use a product that appears to have been modified by others and only use

accessories recommended for this product. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others.

- Do a check of the product before use. Refer to Safety devices on the product on page 6 and To check before starting on page 11. Do not use a defective product. Do the safety checks, maintenance and service instructions described in this manual.

Safety instructions for assembly

WARNING: Read, understand and obey these instructions carefully before you use the product.

• The complete clutch cover and shaft must be fitted before the machine is started, otherwise the clutch can come loose and cause personal injury.
• The only accessories you can operate with this product are the cutting attachments we recommend. Refer to Accessories on page 25.
• Use approved protective gloves.
• Make sure that you assemble the protective cover and shaft correctly before you start the engine.
  • To operate the product safely and prevent injury to the operator or other persons, the product must always be attached correctly to the harness.

Safety instructions for operation

WARNING: Read the warning instructions that follow before you do maintenance on the product.

• Use personal protective equipment, refer to Personal protective equipment on page 5.
• This product is not electrically insulated. If the product touches or comes close to high-voltage power lines it could lead to death or serious bodily injury. Electricity can jump from one point to another by arcing. The higher the voltage, the greater the distance electricity can jump. Electricity can also travel through branches and other objects, especially if they are wet. Always keep a distance of at least 10

m between the product and high-voltage power lines and/or any objects that are touching them. If have to work within this safe distance you should always contact the relevant power company to make sure the power is switched off before you start work.

• Overexposure to vibration can lead to circulatory damage or nerve damage in persons who have poor circulation. Speak to your physician if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms usually show in the fingers, hands or wrists. The risk increases at low temperatures.

- The inside of the muffler contain chemicals that may be carcinogenic. Avoid contact with these elements in the event of a damaged muffler. Long term inhalation of the engine's exhaust fumes, chain oil mist and sawdust can represent a health risk.

- Never use the machine indoors or in spaces lacking proper ventilation. Exhaust fumes contain carbon monoxide, an odourless, poisonous and highly dangerous gas.

- Do not operate a product without a muffler or with a defective muffler. A defective muffler can increase the noise level and the risk of fire. Keep fire extinguishing tools near. If you must have a spark arrestor mesh in your area, do not use the product without or with a broken spark arrestor mesh.

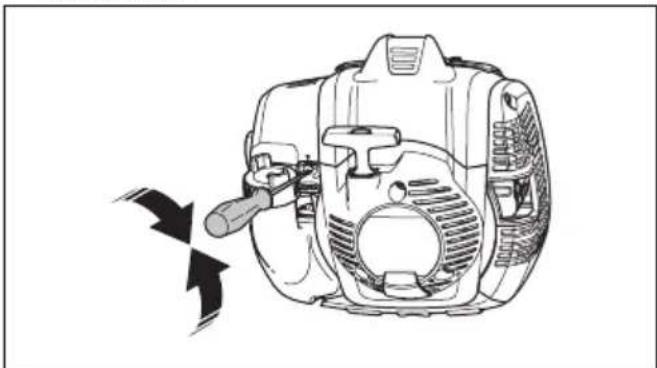

- If the saw chain does not stop when idling, adjust the idle speed. Refer to To adjust the idle speed on page 16. Do not use the product until it is correctly adjusted or repaired.

- This product has a long reach. Make sure that no people or animals come closer than 15 m when the product is running. Always look behind you before you turn around with the product. Stop the product immediately if a person or animal enters the 15 m safety zone. If more than one operator does work in the same area, keep a safety distance of a minimum of 15 m.

- Observe the applicable safety regulations for work in the vicinity of overhead power lines. Also falling branches can result in short-circuiting.

- Never stand directly underneath a branch that is being cut. This could lead to serious or even fatal personal injury.

- Watch out for stumps of branches that can be thrown out when you cut. Do not cut too close to the ground where stones and other objects can be thrown out.

- Do not operate the product in bad weather, such as dense fog, heavy rain, strong wind and intense cold. To operate in bad weather can make you tired and add risks, such as icy ground and unpredictable felling direction.

- Do not use the product if you are tired, ill, or under the influence of alcohol, drugs or medicine, as this has a negative effect on your vision, alertness, coordination and judgment.

• Make sure that you can move safely and have a safe stance. Examine the area around you for obstacles such as roots, rocks, branch and ditches. Be careful during work on slopes.
• Do not remove the cut material, or let other persons remove cut material, while the engine is on or the cutting equipment rotates, as this can result in serious injury.
• Do not overreach. Keep a stable position of the feet and a good balance at all times.

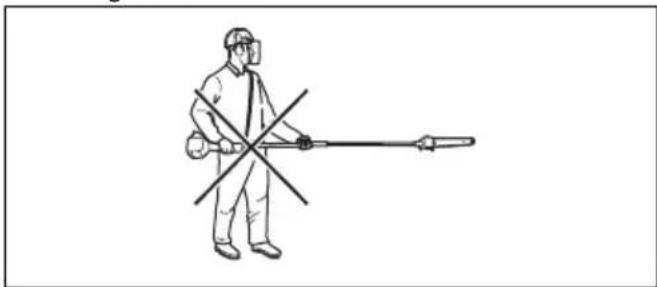

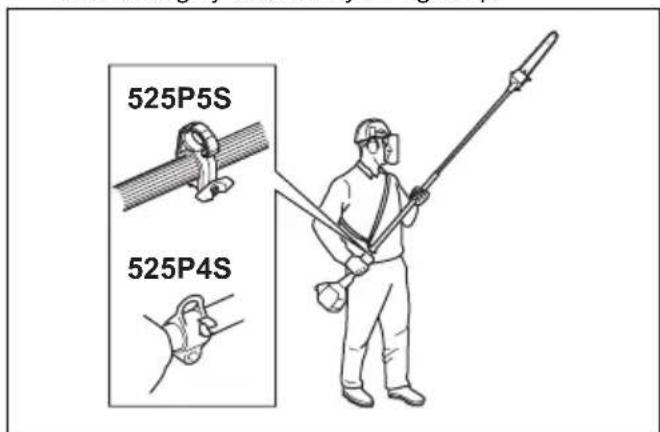

  • Always hold the product with both hands. Hold the product on the right side of your body.

Line drawing of a person in full protective gear holding a long pole (no text or symbols)

• Keep your hands and feet away from the saw chain until it has stopped completely when the product is deactivated.
• Never work from a ladder, stool or any other raised position that is not fully secured.
• Do not put the product down with the engine on unless you have it in clear view.
• Listen for warning signals and loud voices when you use hearing protection. Always remove your hearing protection when the engine stops.
• Stop the engine before you move to a new work area. Always attach the transport guard before you move the equipment.
• Never allow children to use or be in the vicinity of the product. Remove the spark plug cap when the product is not under close supervision.

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Always use approved personal protective equipment when you use the product. Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.

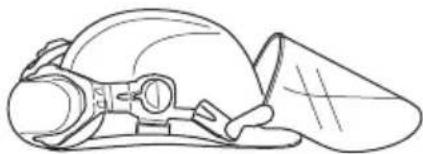

- Use a protective helmet where there is a risk of falling objects.

Line drawing of a helmet with a visor and a triangular cap (no text or symbols)

- Use approved hearing protection that provides adequate noise reduction. Long-term exposure to noise can result in permanent hearing impairment.

Line drawing of a mechanical component or device with no visible text or symbols

- Use approved eye protection. If you use a visor, you must also use approved protective goggles. Approved protective goggles must comply with the ANSI Z87.1 standard in the USA or EN 166 in EU countries.

Line drawing of a mechanical component or device (no text or symbols)

- Use gloves when necessary, for example when you attach, examine or clean the cutting equipment.

- Use sturdy non-slip boots.

Line drawing of a pair of boots with visible tread pattern and sole clasp (no text or symbols)

- Use clothing made of a strong fabric. Always use heavy, long pants and long sleeves. Do not use loose clothing that can catch on twigs and branches. Do not wear jewelry, short pants, sandals or go with

bare feet. Put your hair up safely above shoulder level.

- Keep first aid equipment close at hand.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. Refer to Maintenance schedule on page 15.
• If the safety devices are defective, speak to your Husqvarna servicing dealer.

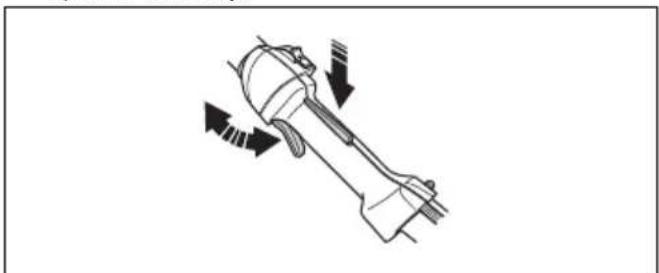

To do a check of the throttle trigger lockout

The throttle trigger lockout prevents accidental operation of the throttle control.

1. Push the throttle trigger lockout (A) and make sure that the throttle control is released (B). When you release the handle, the throttle control and the throttle trigger lockout move back to their initial positions.

Technical diagram of a mechanical device with labeled parts A and B, showing directional arrows indicating movement or force.

1. Release the throttle trigger lockout and make sure that the throttle control is locked at idle speed.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. Push the throttle trigger lockout and make sure that it goes back to its initial position when you release it.

Line drawing of a mechanical component with an arrow indicating motion direction (no text or symbols)

1. Make sure that the throttle control and throttle trigger lockout move freely and that the return springs operate correctly.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

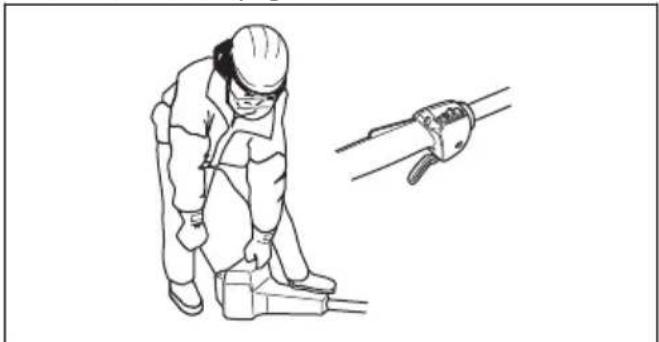

1. Start the product and apply full throttle. Refer to To start the product on page 14.

2. Release the throttle control and make sure that the cutting attachment stops. If the cutting attachment rotates with the throttle in the idle position, do a check of the carburetor adjustments. Refer to Maintenance on page 15.

Line drawing of a worker in protective gear using a tool, with no visible text or symbols

To do a check of the stop switch

1. Start the engine.

2. Move the stop switch to the stop position and make sure that the engine stops.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

To do a check of the vibration damping system

The vibration damping system decreases vibration in the handles to a minimum which makes the operation

easier. The vibration damping system of the product decreases the transfer of vibration between the engine unit and the shaft unit of the product.

1. Stop the engine.
2. Do a visual check for deformation and damage, for example cracks.

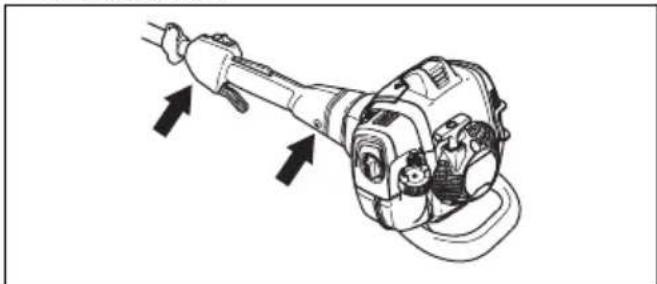

Technical line drawing of a mechanical device with directional arrows indicating motion or force (no text or symbols)

1. Make sure you attach the elements of the vibration damping system correctly.

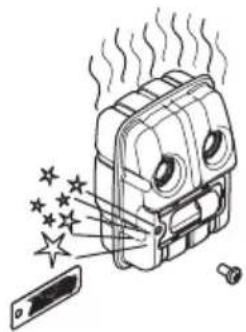

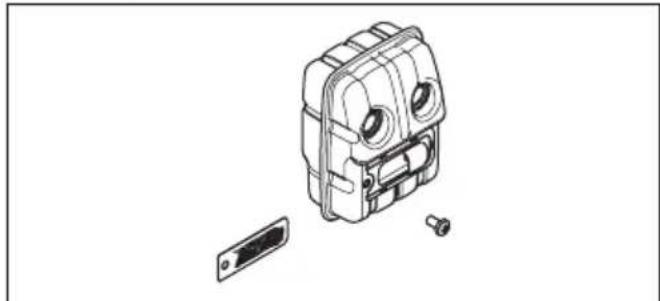

To do a check of the muffler

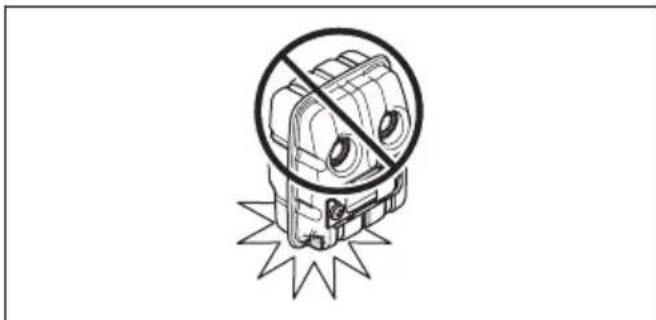

Illustration of a stylized robot with a crossed-out circular section, surrounded by a starburst (no text or symbols)

The muffler keeps noise levels to a minimum and directs exhaust fumes away from the operator. In areas with a hot, dry weather there is a high risk of fire. Obey local regulations and maintenance instructions

Isometric line drawing of a mechanical component with circular eyes and internal components (no text or symbols)

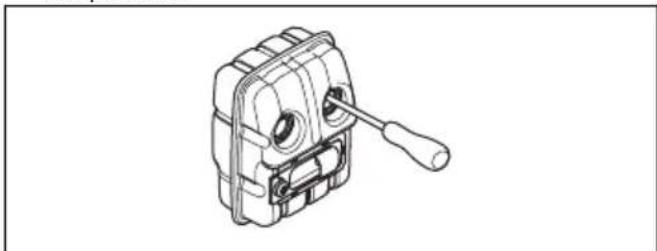

• Do a visual check for damage and deformation.
• Make sure that the muffler is correctly attached to the product.

Technical line drawing of a mechanical device with a wrench and circular components (no text or symbols)

- Do a visual check on the spark arrestor mesh.

Exploded view diagram of a mechanical device showing internal components and a separate housing (no text or labels)

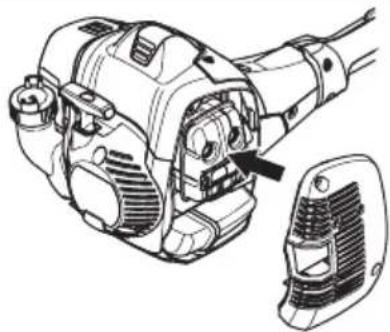

Refer to To do maintenance on the muffler on page 16.

Fuel safety

WARNING: Read the warning instructions that follow before you use the product.

• Do not mix the fuel indoor or near a heat source.
• Do not start the product if there is fuel or engine oil on the product. Remove the unwanted fuel/oil and let the product dry. Remove unwanted fuel from the product.
• If you spill fuel on your clothing, change clothing immediately.
• Do not get fuel on your body, it can cause injury. If you get fuel on your body, use a soap and water to remove the fuel.
• Do not start the engine if you spill oil or fuel on the product or on your body.
• Do not start the product if the engine has a leak. Examine the engine for leaks regularly.
• Be careful with fuel. Fuel is flammable and the fumes are explosive and can cause injuries or death.
• Do not breathe in the fuel fumes, it can cause injury. Make sure that there is sufficient airflow.
• Do not smoke near the fuel or the engine.
• Do not put warm objects near the fuel or the engine.
• Do not add the fuel when the engine is on.
  • Make sure that the engine is cool before you refuel.
• Before you refuel, open the fuel tank cap slowly and release the pressure carefully.
• Make sure there are sufficient airflow when refueling and mixing fuel (petrol and two-stroke oil) or draining the fuel tank.
• Fuel and fuel vapor are highly flammable and can cause serious injury when inhaled or allowed to come into contact with the skin. For this reason, observe caution when handling fuel and make sure there is sufficient airflow.
• Tighten the fuel tank cap carefully or a fire can occur.

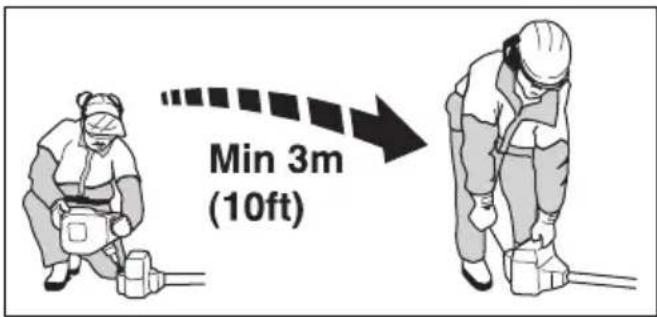

• Move the product at a minimum of 3 m (10 ft) from the position where you filled the tank before a start.
• Do not put too much fuel in the fuel tank.

• Make sure that a leak cannot occur when you move the product or fuel container.

• Do not put the product or a fuel container where there is an open flame, spark or pilot light. Make sure that the storage area does not contain an open flame.

• Only use approved containers when you move the fuel or put the fuel into storage.
• Empty the fuel tank before long-term storage. Obey the local law on where to dispose fuel.
• Clean the product before long-term storage.
• Remove the spark plug cap before you put the product into storage to make sure that the engine does not start accidentally.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you do maintenance on the product.

• Do only the maintenance and servicing given in this operator's manual. Let professional servicing personnel do all other servicing and repairs.
• Regularly do the safety checks, maintenance and service instructions given in this manual. Regular maintenance increases the life of the product and decreases the risk of accidents. Refer to Maintenance on page 15 for instructions.
• If the safety checks in this operator's manual is not approved after you do maintenance, speak to your servicing dealer. We guarantee that there are professional repairs and servicing available for your product.

Safety instructions for the cutting equipment

WARNING: Read the warning instructions that follow before you use the product.

• Only use the guide bar/saw chain combinations and filing equipment that we recommend. Refer to Accessories on page 25 for instructions.
• Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.

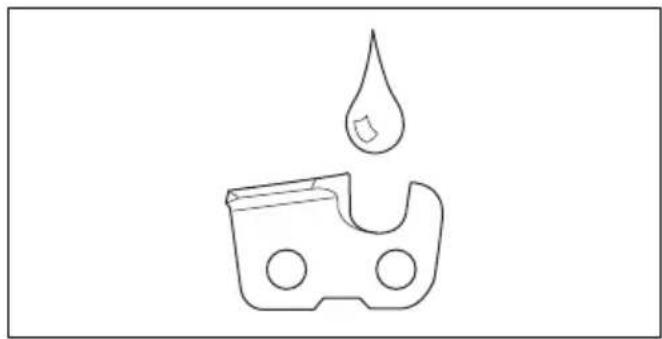

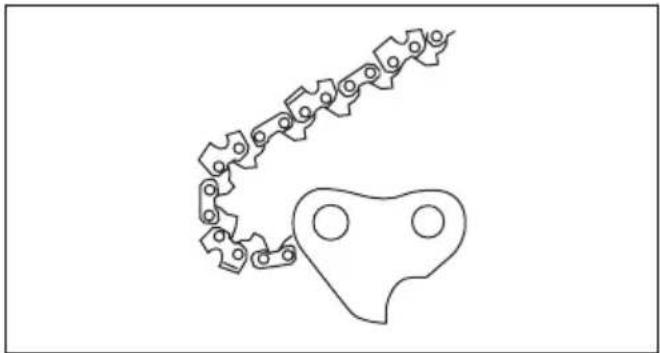

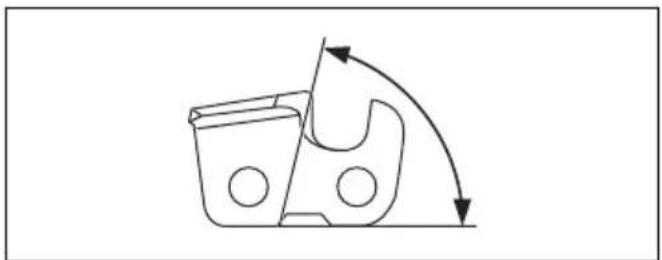

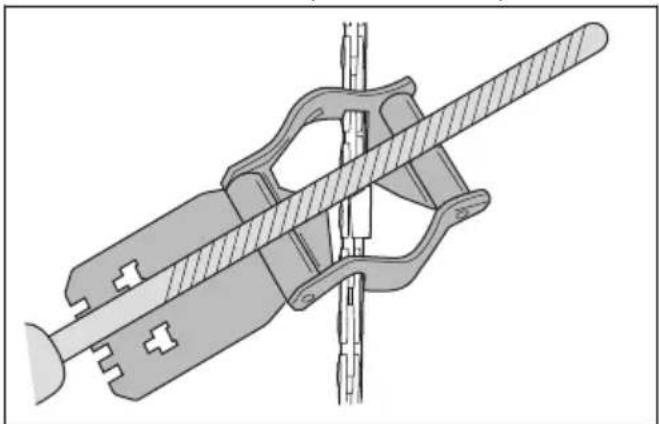

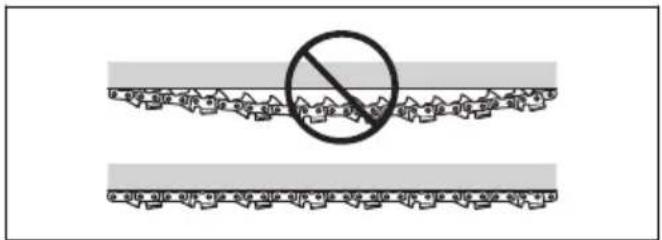

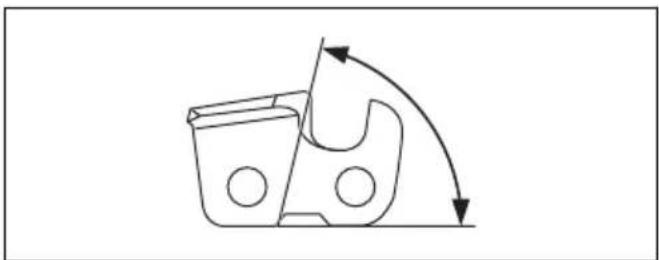

• Keep the cutting teeth correctly sharpened. Obey the instructions and use the recommended file gauge. A saw chain that is damaged or incorrectly sharpened increases the risk of accidents.

Simple line drawing of a device with a starburst effect (no text or symbols)

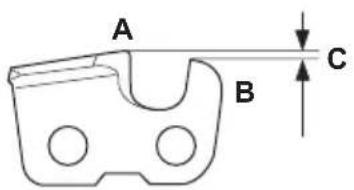

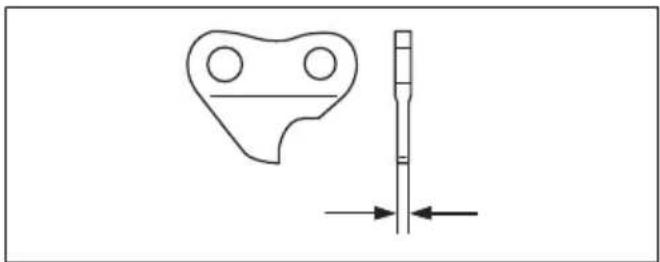

- Keep the correct depth gauge setting. Obey the instructions and use the recommended depth gauge setting.

Technical line drawing of a mechanical component with a U-shaped groove and circular holes, showing a dimension arrow (no text or symbols)

- Make sure that the saw chain has the correct tension. If the saw chain is not tight against the guide bar, the saw chain can derail. An incorrect saw chain tension increases wear on the guide bar, saw chain and chain drive sprocket. Refer to To tension the chain on page 21.

- Do maintenance on the cutting equipment regularly and keep it correctly lubricated. If the saw chain is not correctly lubricated, the risk of wear on the guide bar, saw chain and chain drive sprocket increases.

Simple line drawing of a droplet falling into a container with circular ports (no text or symbols)

9 010 010 010 010 010 010 010 010 010 010 010 010 010 010 9 010 010 010 010 010 010 010 010 010 010 010 010 9 010 010 010 010 010 010 010 010 010 010 010 9 010 010 010 010 010 010 010 010 010 010 9 010 010 010 010 010 010 010 010 010 9 010 010 010 010 010 010 010 010 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 325 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 9 625 875 875 875 875 875 875 875 875 875 875 875 875

Assembly

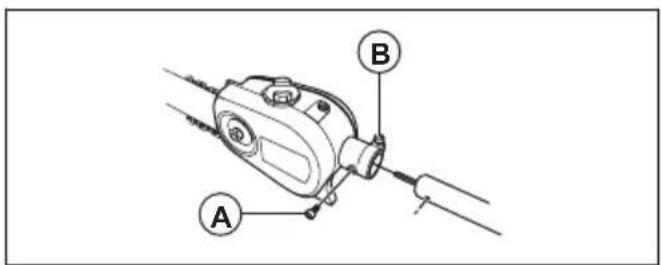

To assemble the cutting head

CAUTION: Make sure that the drive shaft inside the shaft engages with the cut-out in the cutting head.

Diagram of a handheld device with labeled parts A and B, likely illustrating a mechanical or electrical component.

1. Loosen the screw on the cutting head, (A)
2. Fit the cutting head on the shaft so that the screw (A) is aligned with the hole in the shaft as shown.
3. Finger tighten the screw (A). Make sure that screw (A) fits into the hole in the shaft.
4. Tighten screw (A).
5. Tighten screw (B).

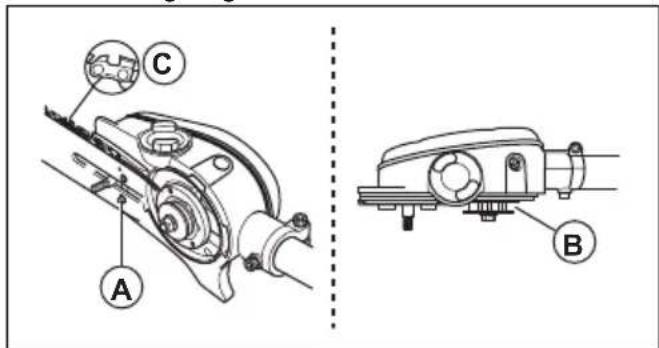

To assemble the bar and chain

1. Unscrew the bar nut and remove the protective cover.

2. Fit the bar over the bar bolt. Place the bar in its rearmost position. Place the chain over the drive sprocket and in the groove on the bar. Begin on the top side of the bar.

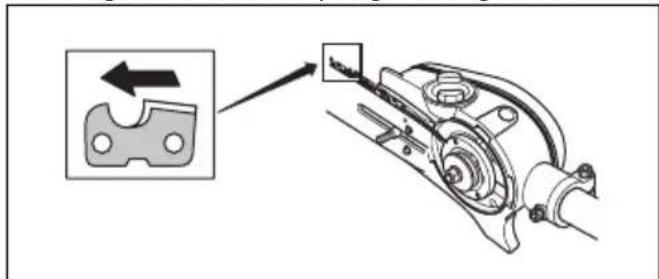

3. Make sure that the edges of the cutting links are facing forward on the top edge of the guide bar.

Mechanical assembly diagram showing a bracket with a close-up inset of a component (no text or symbols)

1. Fit the cover and locate the chain adjuster pin (A) in the hole in the bar. Check that the drive links of the chain fit correctly on the drive sprocket (B) and that the chain is in the groove in the bar (C). Tighten the bar nut finger-tight.

Technical diagram showing mechanical assembly with labeled parts A, B, and C, including a dashed line indicating a reference or alignment.

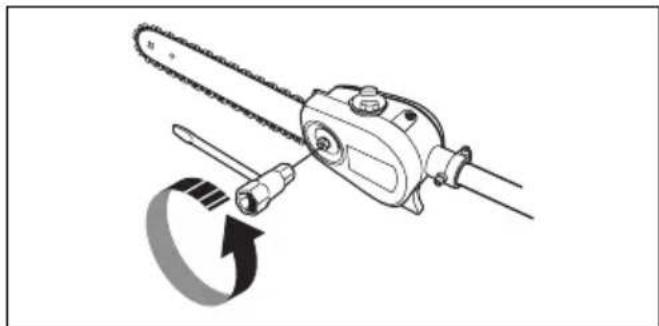

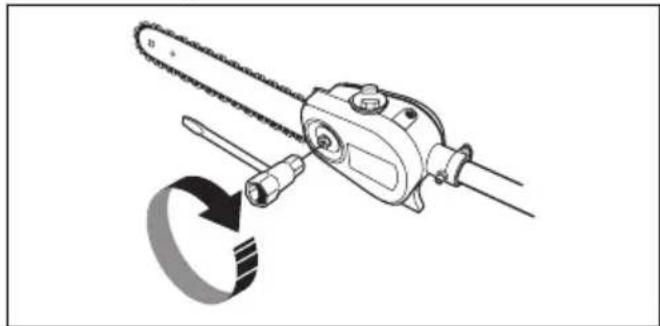

1. Tension the chain by turning the chain tensioning screw clockwise using the combination spanner. The chain should be tensioned until it does not sag from the underside of the bar.

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

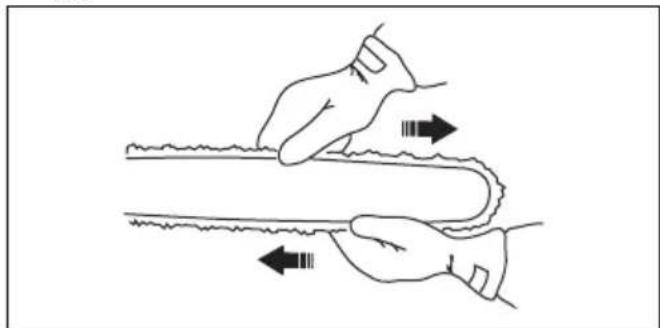

1. The chain is correctly tensioned when it does not sag from the underside of the bar, but can still be turned easily by hand. Hold up the bar tip and tighten the bar nuts with the combination spanner.

Illustration of hands using a chain tag to handle a mechanical component (no text or symbols)

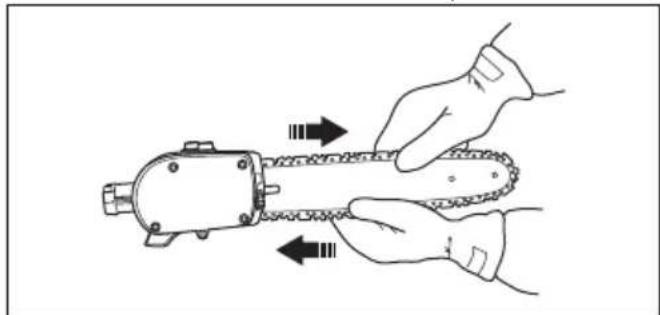

1. When fitting a new chain, the chain tension has to be checked frequently until the chain is run-in. Check the chain tension regularly. A correctly tensioned chain ensures good cutting performance and long life.

To adjust the harness

You should always use the harness with the machine to give maximum control over the machine and reduce the risk of fatigue in your arms and back.

1. Put on the harness.
2. Hook the machine onto the harness support hook.
3. Adjust the length of the harness so that the support hook is roughly level with your right hip.

525P5S 525P4S

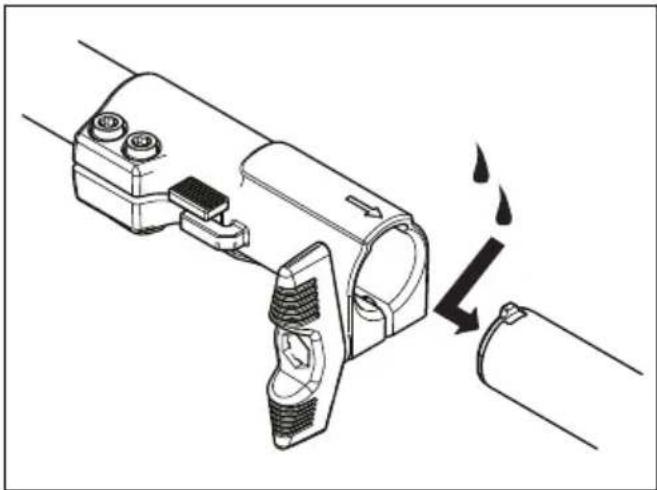

To assemble the two-piece shaft 525P5S

1. Turn the knob to loosen the coupling.

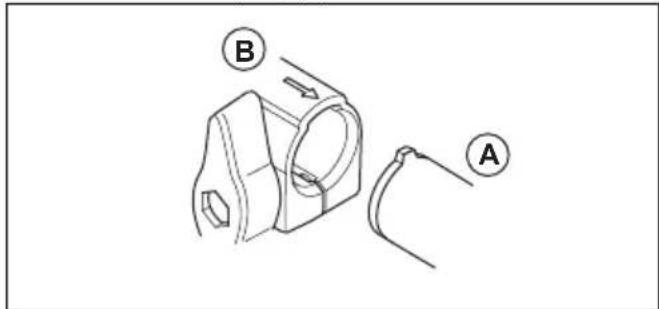

2. Align the tab of the cutting attachment (A) with the arrow of the coupling (B).

Technical diagram showing a mechanical component with labeled parts A and B, likely illustrating a cable or clamp assembly.

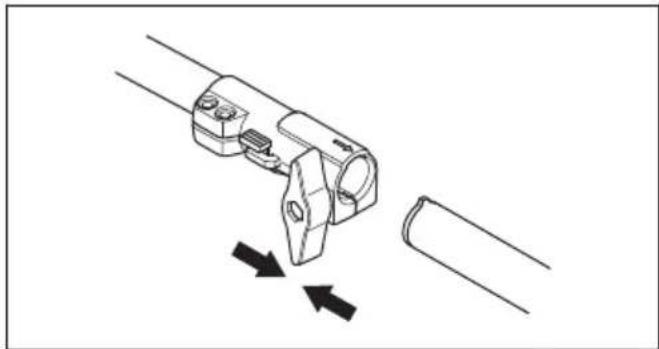

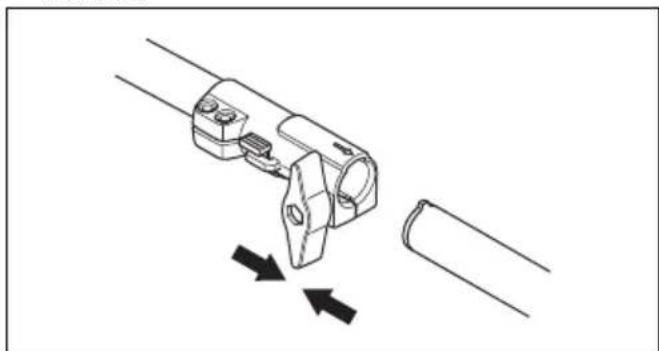

1. Carefully push the shaft into the coupling until you hear a click.

Technical line drawing of a mechanical clamp or connector with two arrows indicating movement (no text or symbols)

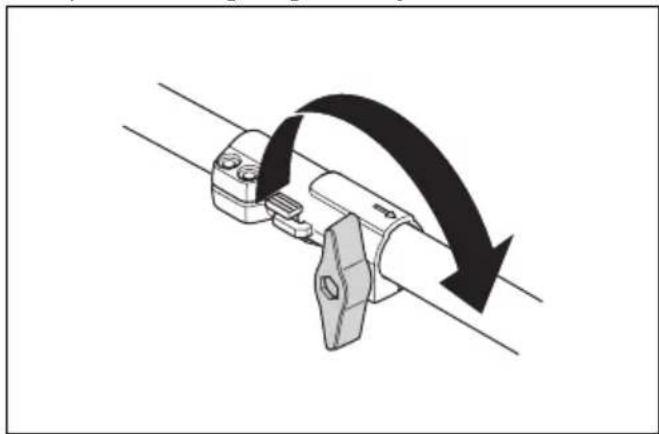

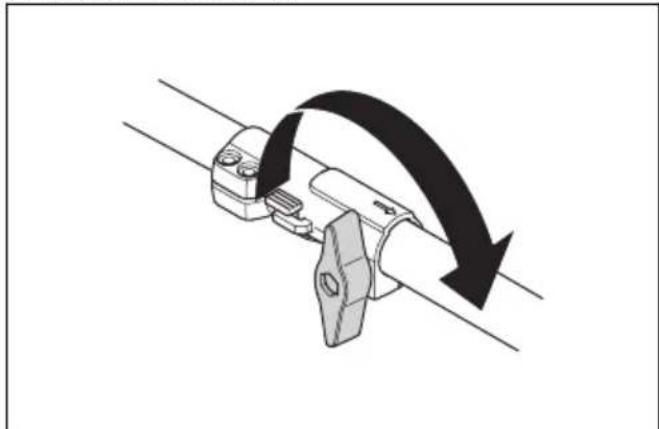

1. Tighten the knob fully.

Mechanical component diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

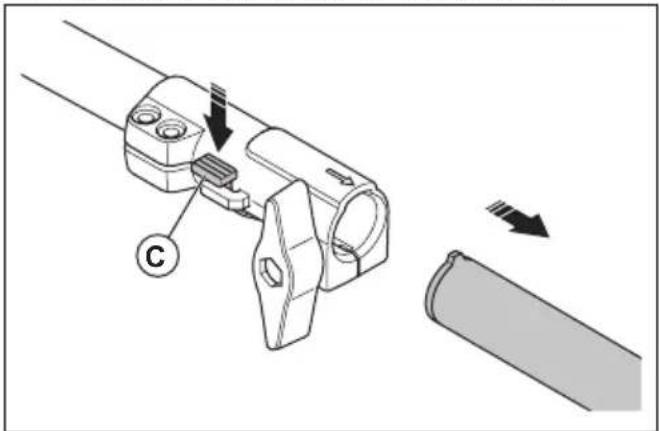

To disassemble the two-piece shaft 525P5S

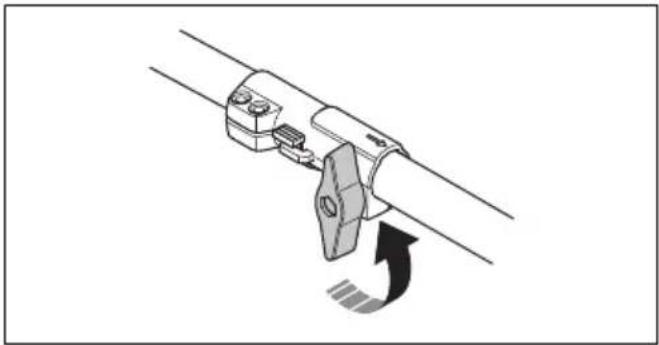

1. Turn the knob 3 turns or more to loosen the coupling.

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

1. Push and hold the button (C).
2. Hold tight in the end of the shaft that the engine is attached to.
3. Pull the attachment straight out of the coupling.

Mechanical assembly diagram showing a connector with arrows indicating motion, no text or symbols present

To assemble the impact guard

1. Assemble the guard with 3 screws.

Technical line drawing of a mechanical device with internal components and mounting points (no text or symbols)

1. Tighten the screws to 30 ft/lbs (4 Nm).
2. Tighten the screws again when the product has been in use for about 20 hours.

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

To check before starting

1. Inspect the working area. Remove any objects that could be thrown out.
2. Check the saw chain. Never use blunt, cracked or damaged equipment.
3. Check that the product is in perfect working order.
4. Check that all nuts and screws are tight.
5. Make sure the chain is adequately lubricated, refer to To check the chain lubrication on page 22.
6. Check that the saw chain always stops when the engine is idling.

7. Only use the product for the purpose it was intended for.

8. Make sure the handle and safety features are in order. Never use a machine that has any parts missing or has been modified in relation to the specification.

Fuel

This product has a two-stroke engine.

CAUTION: Incorrect type of fuel can result in engine damage. Use a mixture of gasoline and two-stroke oil.

Premixed fuel

- Use Husqvarna premixed alkylate fuel for best performance and extension of the engine life. This fuel contains less harmful chemicals compared to regular fuel, which decreases harmful exhaust fumes. The quantity of remains after combustion is lower with this fuel, which keeps the components of the engine more clean.

To mix fuel

Gasoline

CAUTION: Do not use gasoline with an octane number less than 90 RON (87 AKI). This can cause damage to the product.

CAUTION: Do not use gasoline with more than 10% ethanol concentration (E10). This can cause damage to the product.

CAUTION: Do not use leaded gasoline. This can cause damage to the product.

• Always use new unleaded gasoline with a minimum octane number of 90 RON (87 AKI) and with less than 10% ethanol concentration (E10).
- Use gasoline with a higher octane number if you frequently use the product at continuously high engine speed.
• Always use a good quality unleaded gasoline/oil mixture.

Two-stroke oil

• For best results and performance use Husqvarna two-stroke oil.
• If Husqvarna two-stroke oil is not available, use a two-stroke oil of good quality for air-cooled engines. Speak to your servicing dealer to select the correct oil.

CAUTION: Do not use two-stroke oil for water-cooled outboard engines, also referred to as outboard oil. Do not use oil for four-stroke engines.

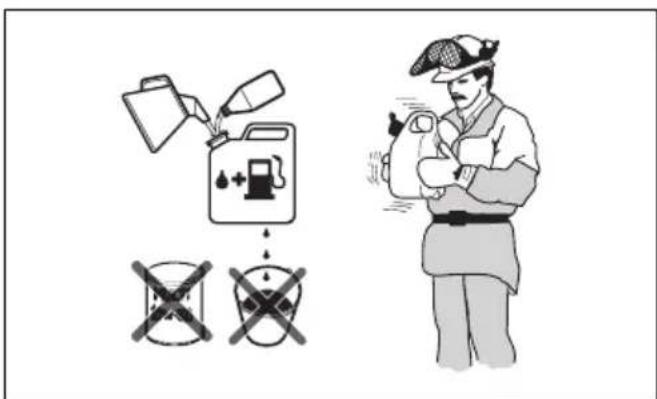

To mix gasoline and two-stroke oil

Gasoline, liter	Two-stroke oil, liter
	2% (50:1)
5 0.10
10 0.20
15 0.30
20 0.40

CAUTION: Small errors can influence the ratio of the mixture drastically when you mix small quantities of fuel. Measure the

quantity of oil carefully and make sure that you get the correct mixture.

Safety warning illustration showing fuel injection and hazard symbols with a worker holding a first aid kit

1. Fill half the quantity of gasoline in a clean container for fuel.
2. Add the full quantity of oil.
3. Shake the fuel mixture.
4. Add the remaining quantity of gasoline to the container.
5. Carefully shake the fuel mixture.

CAUTION: Do not mix fuel for more than 1 month at a time.

To fill the fuel tank

1. Clean the area around the fuel tank cap.
2. Shake the container and make sure that the fuel is fully mixed. Use a fuel container with an anti-spill valve.
3. Fill the fuel tank.
4. Tighten the fuel tank cap carefully.
5. Move the product 3 m (10 ft) or more away from the refueling area and fuel source before starting.

Min 3m (10ft)

CAUTION: Contamination in the tanks causes malfunction. Clean the fuel tank and chain oil tank regularly and replace the fuel filter one time a year or more.

To do a run-in

- During the first 10 hours of operation, do not apply full throttle without load for extended periods.

To use the correct chain oil

WARNING: Do not use waste oil, which can cause injury to you and the environment. Waste oil also causes damage to the oil pump, the guide bar and the saw chain.

WARNING: The saw chain can break if the lubrication of the cutting equipment is not sufficient. Risk of serious injury or death to the operator.

WARNING: This product has a function that lets the fuel run out before the chain oil. Use the correct chain oil for this safety function to operate correctly. Speak to your servicing dealer when you select your chain oil.

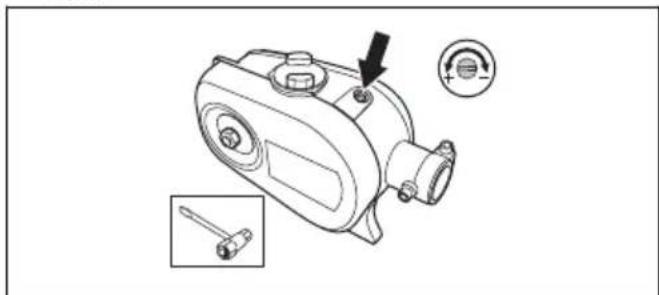

Note: This product has an automatic chain lubrication system. You can also adjust the oil flow. Refer to To adjust chain lubrication on page 22.

• Use Husqvarna chain oil for maximum saw chain life and to minimise environmental damage. If Husqvarna chain oil is not available, we recommend you to use a standard chain oil.
• Use a chain oil with good adherence to the saw chain.
• Use a chain oil with correct viscosity range that agrees with the air temperature.

CAUTION: If the oil is too thin, it runs out before the fuel. In temperatures below 0°C/32°F some chain oils become too thick, which can cause damage to the oil pump components.

- Use the recommended cutting equipment. Refer to Accessories on page 25

To use the product

• Hold the product as close to your body as possible to get the best balance. Use the harness to support the weight of the machine and make it easier to handle.
• Make sure that the tip does not touch the ground.
• Do not rush the work, but work steadily until all the branches have been cut back cleanly.
  • Always slow the engine to idle speed after each working operation. Long periods at full throttle without any load on the engine can lead to serious engine damage.
  • Always work at full throttle.

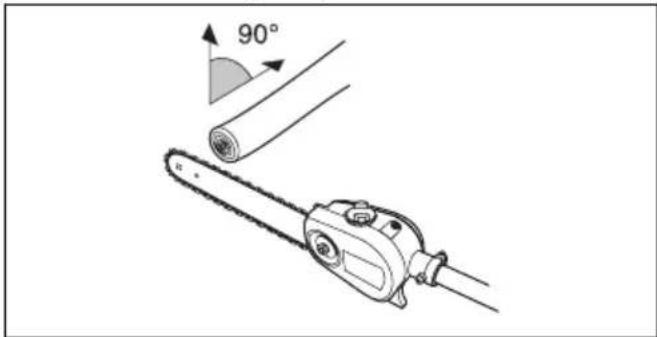

- Whenever possible position yourself so that you can make the cut at right angles to the branch.

Technical illustration of a chain saw cutting a cylindrical part with a 90-degree angle indicator (no text or symbols present)

- Do not work with the shaft held straight out in front of you as this increases the apparent weight of the cutting attachment.

Line drawing of a person in full protective gear spraying a long tool (no text or symbols)

- Cut large branches in sections so that you have better control over where they fall.

Simple line drawing of a human knee joint with a connecting rod and attached bone (no text or symbols)

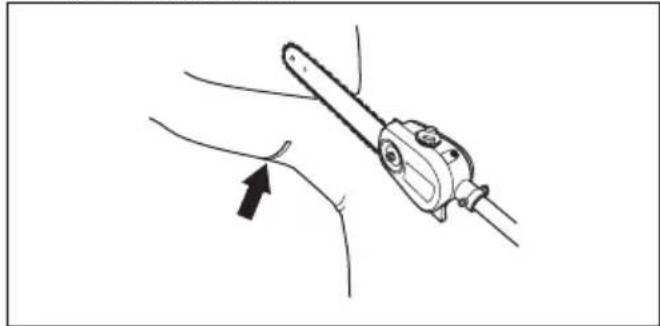

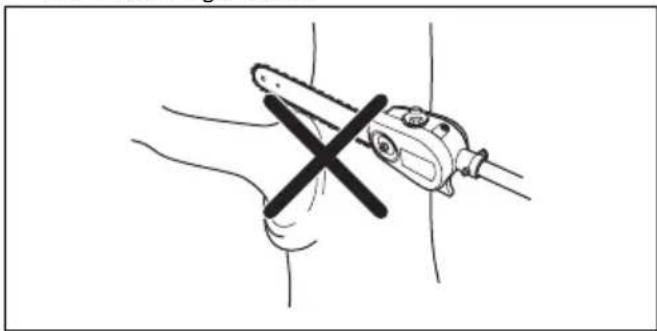

- Never cut through the swelling at the root of the branch as this will slow down healing and increase the risk of fungal attack.

Illustration of a hand holding a tool with a cross mark, no text or symbols present

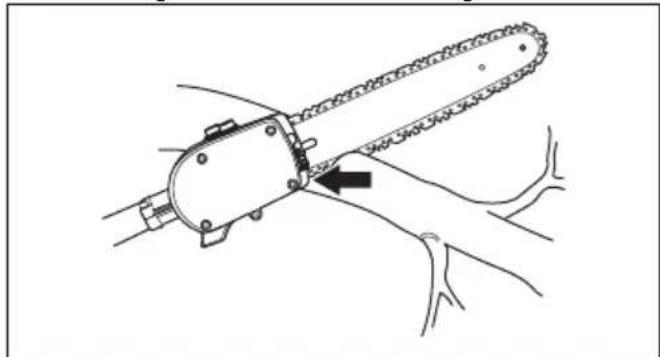

- Use the stop at the base of the cutting head to provide support during cutting. This will help prevent the cutting attachment from bouncing on the branch.

Line drawing of a chain saw cutting down a piece, showing blade and handle (no text or symbols)

- Make an initial cut on the underside of the branch before cutting through the branch. This will prevent tearing of the bark, which could lead to slow healing and cause permanent damage to the tree. The cut should not be deeper than 13 of the branch thickness to prevent jamming. Keep the chain running while you withdraw the cutting attachment from the branch to prevent it jamming.

Line drawing of a medical or surgical tool with an arrow pointing to a specific instrument (no text or symbols present)

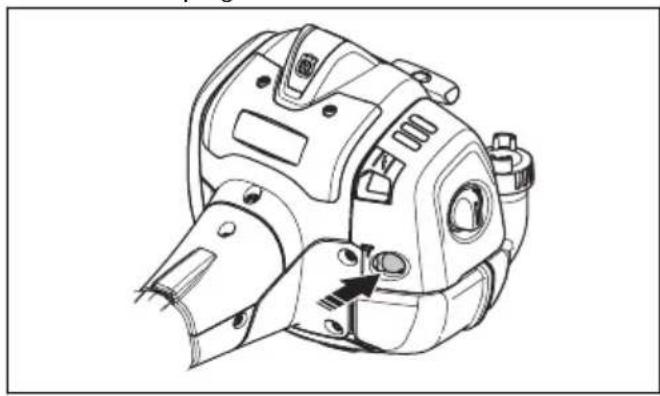

To prepare the product for start

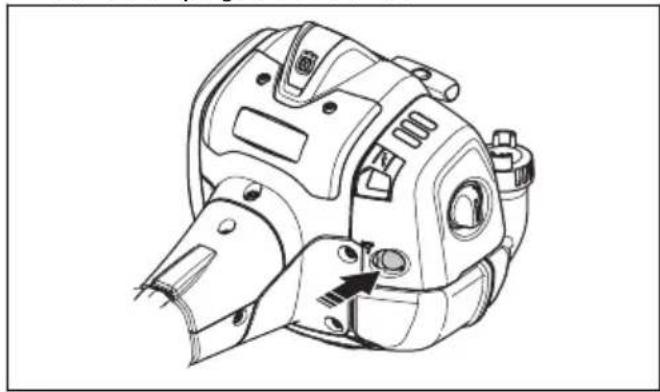

1. Push the air purge bulb 10 times.

Technical line drawing of a mechanical device with no visible text or symbols

Note: It is not necessary to fully fill the bulb.

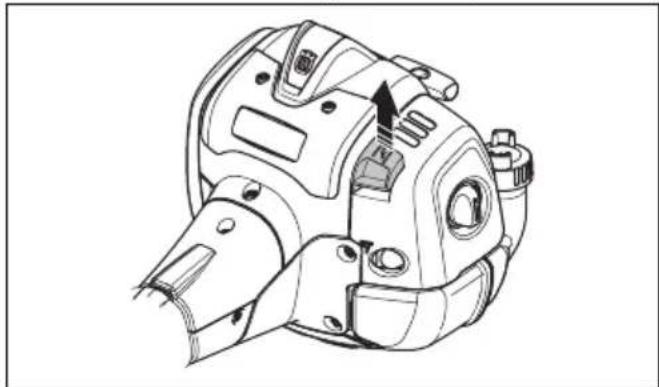

1. Move the choke control up into choke position.

Technical line drawing of a mechanical component with no visible text or symbols

WARNING: The saw chain will start to rotate immediately when you start the engine with the choke.

To start the product

WARNING: Read the warning instructions in the safety chapter before you start the product (refer to Safety on page 4).

1. Use protective gloves.
2. Hold the body of the product on the ground with your left hand.

CAUTION: Do not use your feet!

1. Hold the starter rope handle with your right hand.
2. Slowly pull out the starter rope with your right hand until you feel some resistance (the starter pawls grip).

WARNING: Do not twist the starter rope around your hand.

1. Pull the cord quickly and with power.

CAUTION: Do not pull the starter rope all the way out and do not let go off the starter rope handle when the starter rope is fully extended. This can cause damage to the product.

1. Pull the starter rope until the engine starts or for a maximum of 5 times.
2. Reset the choke when the engine starts or after you pull the starter rope 5 times.
3. If it is necessary, pull the starter rope again and again until the engine starts.
4. Let the engine run for 10 seconds.
5. Operate the throttle gradually.
6. Make sure the engine runs smoothly.

Note: If the engine stops, do the procedure again.

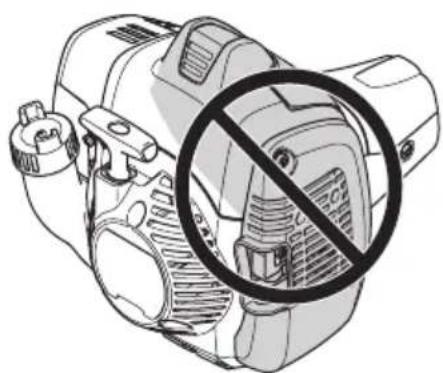

About the surface

WARNING: Do not put parts of your body in the grey marked area. If you touch the grey marked area it can result in burns to the skin. It can also cause electrical shock if the spark plug cap has been damaged. Do not use a product with a damaged spark plug cap.

Diagram of a mechanical device with a prohibition symbol overlay (no text or labels)

To stop the product

1. Move the stop switch into the stop position to stop the engine.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

CAUTION: The stop switch automatically goes back to its initial position. In order to prevent accidental starting, the spark plug cap must be removed from the spark plug when assembling, checking and/or maintenance is done.

Maintenance

Introduction

Below you will find some general maintenance instructions. If you need further information please contact your service workshop.

Note: The user must only carry out the maintenance and service work described in this operator's manual. More extensive work must be carried out by an authorized service workshop.

Maintenance schedule

The following is a list of the maintenance steps that must be performed on the product. Most of the items are described later in this chapter.

Maintenance Daily Weekly Monthly
Clean the external surface. X
Make sure that the throttle trigger lock and the throttle works correctly. X
Do a check of the stop switch to make sure that it works correctly. X
Make sure that the saw chain does not rotate at idle speed. X
Clean the air filter. Replace if necessary. X
Check the saw chain with regard to visible cracks in the rivets and links, whether the saw chain is stiff or whether the rivets and links are abnormally worn.	X
Clean the area under the protective cover. X
Make sure that the screws and nuts are tight. X
Examine the engine, the fuel tank and the fuel lines for leaks. X

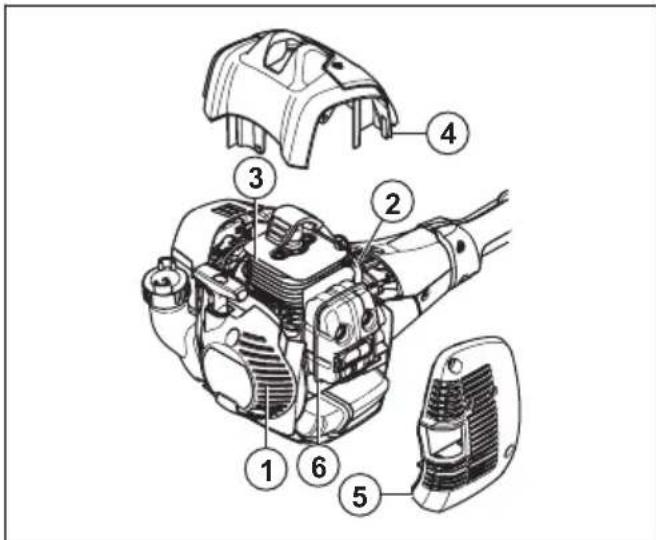

Clean the cooling system. X
Examine the starter and the starter rope for damages. X
Examine the vibration damping elements for damages and cracks. X
Clean the outside of the spark plug. Remove it and do a check of the electrode gap. Adjust the gap to the correct distance (refer to To examine the spark plug on page 17) or replace the spark plug. Make sure that the spark plug is fitted with a suppressor.		X
Clean the outside of the carburetor and the space around it. X
File off any burrs from the edges of the bar. X
Clean or replace the spark arrestor screen on the muffler. X
Clean the fuel tank. X
Do a check of the fuel filter for contamination and the fuel hose for cracks or other defects. Replace if necessary.			X
Do a check of all cables and connections. X
Do a check of the clutch, clutch springs and the clutch drum for wear. Replace if necessary by an authorized service workshop.			X
Examine the spark plug. Replace the spark plug if it is necessary. X
Do an inspection of the dielectric shaft for worn and damaged areas. Do not use the product if the dielectric shaft has worn or damaged areas. Refer to OSHA 1910.269 for more information.	X

To adjust the idle speed

1. Make sure that the air filter is clean and the air filter cover is attached before you adjust the idle speed.
2. Start the product. Refer to To start the product on page 14
3. Adjust the idle speed with the idle adjustment screw T which is identified with "T" mark. Turn the idle adjustment screw clockwise until the saw chain starts to turn.

Line drawing of a mechanical device with a hammer and screwdriver, showing internal components without any text or symbols.

1. Turn the idle adjustment screw counterclockwise until the saw chain stops.

The idle speed is correct when the engine operates smoothly in all positions. The idle speed must be below the speed when the saw chain starts to turn.

WARNING: If the saw chain does not stop when you adjust the idle speed, turn to your nearest servicing dealer. Do not use the product until it is correctly adjusted or repaired.

Note: Refer to Technical data on page 24 for the recommended idle speed.

To do maintenance on the muffler

The muffler decreases the noise level and directs the exhaust gases away from the operator.

WARNING: Mufflers that have catalytic converters get very hot during operation and will stay hot for some time after you stop the product. This also applies at idle speed. If you touch the product it can result in burns to the skin. Think about of the risk of fire.

1. Stop the product and let it cool down.

2. Remove the cover to the muffler.

Technical line drawing of a mechanical device with a highlighted component (no text or symbols)

1. Remove the screw holding the spark arrestor mesh.

Illustration of a device emitting steam and stars, with a smartphone partially visible (no text or symbols)

1. Clean the spark arrestor mesh if it is blocked or replace it if it is damaged.

CAUTION: The spark arrestor mesh must be replaced if it is damaged. Do not use a product if the spark arrestor mesh on the muffler is missing or defective.

CAUTION: If the spark arrestor mesh is frequently blocked it can be a sign that performance of the catalytic converter is decreased. Turn to your servicing dealer to examine the muffler. A blocked spark arrestor mesh will cause overheating and result in damage to the cylinder and piston.

Cooling system

The product has a cooling system to keep the operation temperature as low as possible.

Clean the components of the cooling system with a brush weekly or more frequently in rougher conditions. A dirty or blocked cooling system makes the product too hot which causes damage to the piston and cylinder.

The cooling system has the following components:

1. Air intake on the starter.
2. Fins on the flywheel.
3. Cooling fins on the cylinder.
4. Cylinder cover.
5. Muffler cover.
6. Muffler plate.

Technical diagram of a robotic device with numbered components for identification

To examine the spark plug

CAUTION: Always use the recommended spark plug type, refer to Technical data on page 24. Incorrect spark plug type can cause damage to the product.

• Examine the spark plug if the engine is low on power, is not easy to start or does not operate correctly at idle speed.
  • To decrease the risk of unwanted material on the spark plug electrodes, obey these instructions:
  a) Make sure that the idle speed is correctly adjusted.
  b) Make sure that the fuel mixture is correct.
  c) Make sure that the air filter is clean.
• If the spark plug is dirty, clean it and make sure that the electrode gap is correct, refer to Technical data on page 24.

Technical line drawing of an engine component with a side-view detail (no text or symbols)

- Replace the spark plug if it is necessary.

Air filter

Remove dust and dirt from the air filter to keep it clean and prevent these problems:

• Carburetor malfunctions.
- Problems when you start the product.
- Loss of engine power.
- Increased wear to engine parts.
- Too much fuel consumption.

To clean the air filter

CAUTION: An air filter that is damaged, very dirty, or soaked with fuel must always be replaced.

Clean the air filter from dirt and dust regularly. This prevents carburetor malfunctions, starting problems, loss of engine power, wear to engine parts and more fuel consumption than usual.

If you use an air filter for a long time, it cannot be fully cleaned. Replace the air filter with a new one at regular intervals. Refer to Maintenance schedule on page 15.

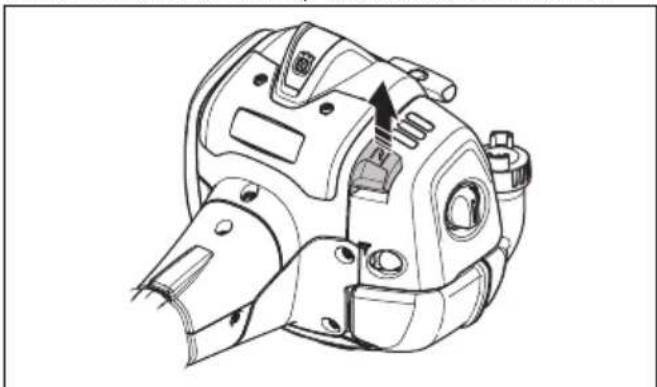

1. Move the choke lever up to close the choke valve.

Technical line drawing of a mechanical device with no visible text or symbols

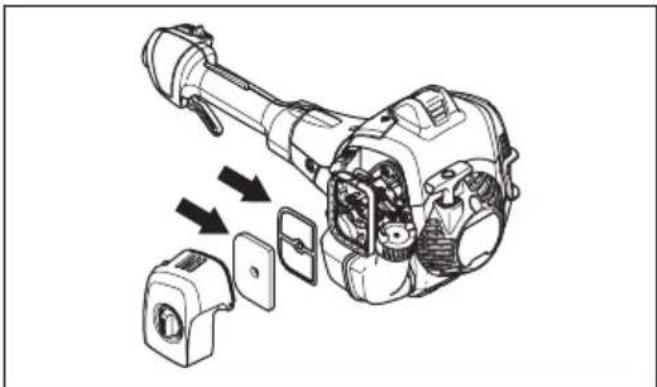

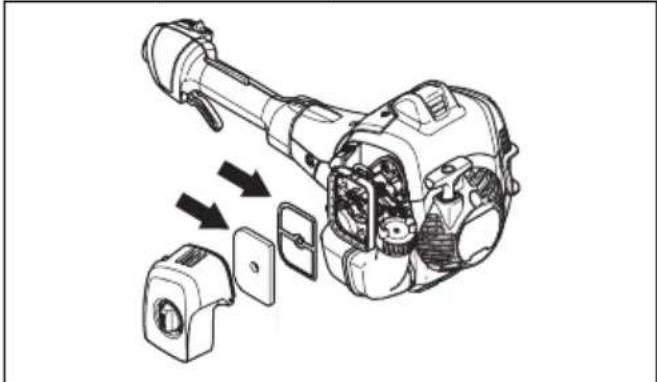

1. Remove the air filter cover and the air filters.

Technical illustration of a mechanical device with exploded view and internal components (no text or symbols)

1. Clean the air filters with warm soap water.

2. Replace the air filters if they cannot be fully cleaned. Always replace a damaged air filter.

3. Clean the inner surface of the air filter cover. Use compressed air or a brush.

4. Do a check of the rubber seal on the air filter. Replace the air filter if the rubber seal is damaged.

5. Make sure that the air filter is dry before you install it.

Two piece-shaft

Apply grease to the end of the drive shaft after each 30 hours of operation. There is a risk that the drive shaft ends (splined coupling) on models with two-piece shafts will seize if they are not lubricated regularly.

Technical illustration of a mechanical device with a close-up view showing a drop and flame (no text or symbols)

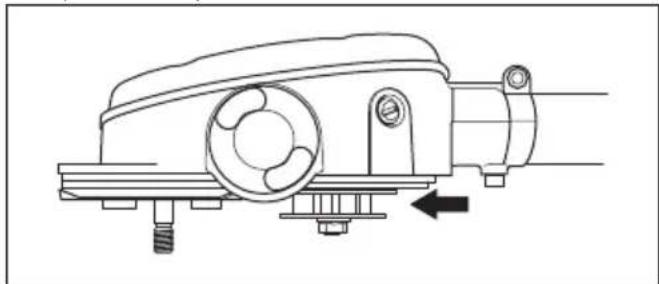

To check the chain drive sprocket

1. Regularly check the degree of wear on the drive sprocket. Replace if wear is excessive.

Technical line drawing of a mechanical device with no visible text or symbols

To examine the cutting equipment

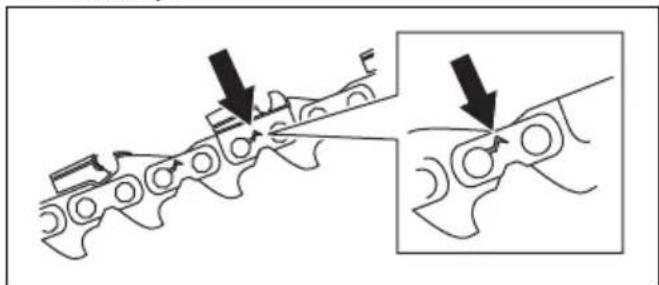

1. Make sure that there are no cracks in rivets and links and that no rivets are loose. Replace if it is necessary.

Diagram showing mechanical assembly with arrows indicating force direction (no text or symbols)

1. Make sure that the saw chain is easy to bend. Replace the saw chain if it is rigid.

2. Compare the saw chain with a new saw chain to examine if the rivets and links are worn.

3. Replace the saw chain when the longest part of the cutting tooth is less than 4 mm/0.16 in. Also replace the saw chain if there are cracks on the cutters.

Pure technical line drawing of a mechanical part with no text or symbols

To do a check of the guide bar

1. Make sure that the oil channel is not blocked. Clean if it is necessary.

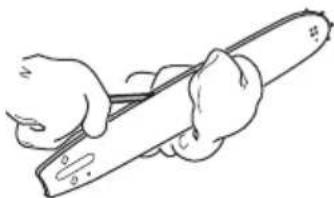

1. Examine if there are burrs on the edges of the guide bar. Remove the burrs using a file.

Illustration of a pair of sawes with a magnified inset showing a blade and handle (no text or symbols)

1. Clean the groove in the guide bar.

Line drawing of hands using a tool to cut a cylindrical object (no text or symbols)

1. Examine the groove in the guide bar for wear. Replace the guide bar if it is necessary.

Two abstract geometric symbols: a vertical line with 'M' and a crossed-out X, likely representing stylized letters or symbols.

1. Examine if the guide bar tip is rough or very worn.

Simple line drawing of a tool with two crossed arrows indicating direction (no text or symbols)

1. Make sure that the bar tip sprocket turns freely and that the lubricating hole in the bar tip sprocket is not blocked. Clean and lubricate if it is necessary.

Illustration of a hand holding a tool with a circular arrow indicating rotation (no text or symbols)

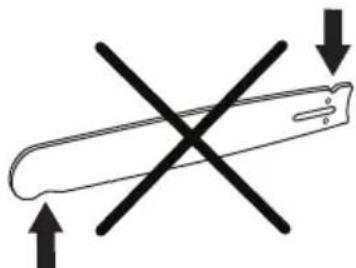

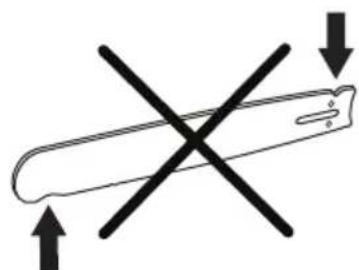

1. Turn the guide bar daily to extend its life cycle.

Diagram showing a tool or probe with an arrow indicating direction, labeled with pressure symbols (ρ1, ρ2, ρ3).

To sharpen the saw chain

Information about the guide bar and saw chain

WARNING: Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.

Replace a worn or damaged guide bar or saw chain with the guide bar and saw chain combination recommended by Husqvarna. This is necessary to keep the safety functions of the product. Refer to Accessories on page 25, for a list of replacement bar and chain combinations that we recommend.

- Guide bar length, in/cm. Information about the guide bar length can usually be found on the rear end of the guide bar.

Simple diagram of a curved object with a downward arrow and two small circles inside, no text or symbols present.

• Number of teeth on bar tip sprocket (T).

- Chain pitch, in. The distance between the drive links of the saw chain must align with the distance of the teeth on the bar tip sprocket and drive sprocket.

PITCH = D/2 D

• Number of drive links. The number of drive links is decided by the type of guide bar.

Pure mechanical linkage diagram without any text, numbers, or symbols

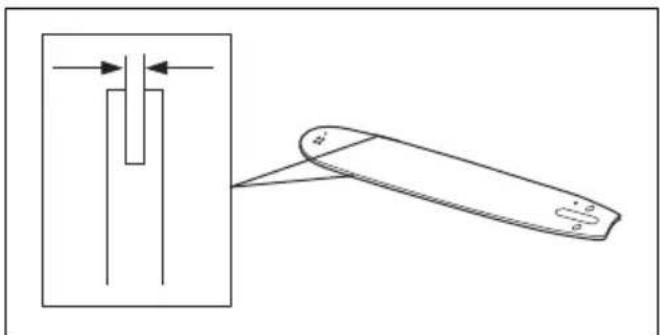

- Bar groove width, in/mm. The groove width in guide bar must be the same as the chain drive links width.

Diagram showing a mechanical component with a shaft and a folded part, no text or symbols present

- Chain oil hole and hole for chain tensioner. The guide bar must align with product.

Pure diagram of a mechanical component with arrows indicating direction (no text or symbols)

- Drive link width, mm/in.

Technical line drawing of a mechanical part with a vertical dimension line and directional arrows (no text or symbols)

General information about how to sharpen the cutters

Do not use a blunt saw chain. If the saw chain is blunt, you must apply more pressure to push the guide bar through the wood. If the saw chain is very blunt, there will be no wood chips but sawdust.

A sharp saw chain eats through the wood and the wood chips becomes long and thick.

The cutting tooth (A) and the depth gauge (B) together makes the cutting part of the saw chain, the cutter. The

difference in height between the two gives the cutting depth (depth gauge setting).

A B

When you sharpen the cutter, think about the following:

- Filing angle.

Technical line drawing of a mechanical component with an arrow indicating rotation and a handle-like tool (no text or symbols)

- Cutting angle.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

- File position.

Line drawing of a screwdriver holding a lever with a central knob (no text or symbols)

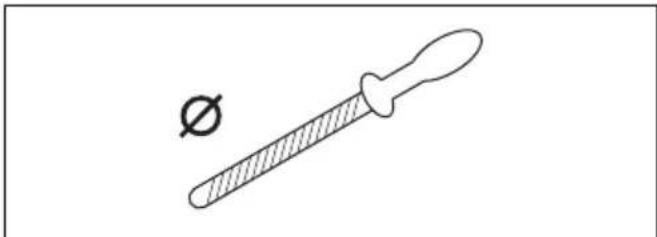

- Round file diameter.

Simple line drawing of a dropper with a small symbol (no text or labels)

It is not easy to sharpen a saw chain correctly without the correct equipment. Use Husqvarna file gauge. This will help you to keep maximum cutting performance.

Note: Refer to To sharpen the cutters on page 21 for information about sharpening of the saw chain.

To sharpen the cutters

1. Use a round file and a file gauge to sharpen the cutting teeth.

Three technical illustrations of mechanical components: a pipette, a plastic component, and a tool (no text or symbols)

Note: Refer to Filing equipment and filing angles on page 25 for information about which file and gauge that Husqvarna recommends for your saw chain.

1. Apply the file gauge correctly on to the cutter. Refer to the instruction supplied with the file gauge.
2. Move the file from the inner side of the cutting teeth and out. Decrease the pressure on the pull stroke.

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols)

1. Remove material from one side of all the cutting teeth.
2. Turn the product around and remove material on the other side.
3. Make sure that all cutting teeth are the same length.

General information about how to adjust the depth gauge setting

The depth gauge setting (C) decreases when you sharpen the cutting tooth (A). To keep maximum cutting performance you must remove filing material from the depth gauge (B) to receive the recommended depth gauge setting. Refer to Technical data on page 24 for instructions about how to receive the correct depth gauge setting for your saw chain.

A B C

To adjust the depth gauge setting

Before you adjust the depth gauge setting or sharpen the cutters, refer to General information about how to sharpen the cutters on page 20, for instructions. We recommend you to adjust the depth gauge setting after each third operation that you sharpen the cutting teeth.

We recommend that you use our depth gauge tool to receive the correct depth gauge setting and bevel for the depth gauge.

Two mechanical tools: a tool with a textured handle and a clamped device (no text or symbols visible)

1. Use a flat file and a depth gauge tool to adjust the depth gauge setting. Only use Husqvarna depth gauge tool to get the correct depth gauge setting and bevel for the depth gauge.
2. Put the depth gauge tool on the saw chain.

Note: See the package of the depth gauge tool for more information about how to use the tool.

1. Use the flat file to remove the part of the depth gauge that extends through the depth gauge tool.

Technical line drawing of a mechanical component with no visible text or symbols

To tension the chain

WARNING: A saw chain with an incorrect tension can derail from the guide bar and cause serious injury or death.

A saw chain becomes longer when you use it. Adjust the saw chain regularly.

1. Loosen the bar nut that hold the clutch cover/chain brake. Use a wrench.

Diagram of a chain saw tool with a circular arrow indicating rotational motion (no text or symbols)

1. Tighten the bar nuts by hand as tightly as you can.

2. Lift the front of the guide bar and turn the chain tensioning screw. Use a wrench.

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

1. Tighten the saw chain until it is tight against the guide bar but still can move easily.

2. Tighten the bar nuts using the wrench and lift the front of the guide bar at the same time.

Diagram of a chain-linking tool with a circular arrow indicating rotation (no text or symbols)

1. Make sure you can pull the saw chain around freely by hand and that it does not hang from the guide bar.

Illustration of two hands performing a physical maneuver with directional arrows indicating motion (no text or symbols)

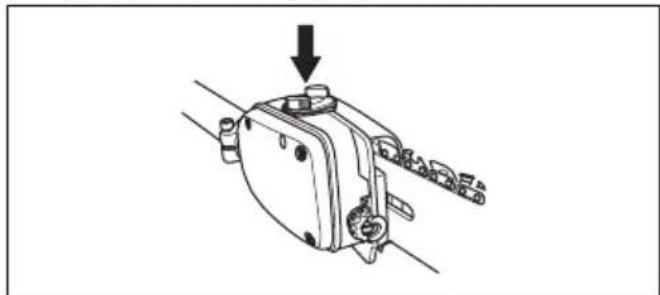

To fill with chain oil

1. Open the oil cap on top of the bar head.

Mechanical assembly diagram showing a bracket with a downward arrow indicating force or direction (no text or symbols present)

1. Fill with Husqvarna saw chain oil.

2. Attach the cap again.

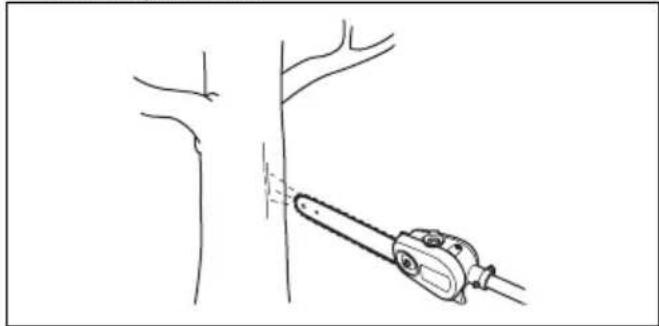

To check the chain lubrication

1. Check the chain lubrication each time you refuel. Aim the tip of the bar at a light coloured surface about 20 cm (8 inches) away. After 1 minute running at 75 % throttle you should see a distinct line of oil on the light surface.

Line drawing of a tool interacting with a tree branch (no text or symbols)

1. If the saw chain lubrication does not operate correctly, do a check of the guide bar. Refer to To do a check of the guide bar on page 19 for instructions. Speak to your servicing dealer if the maintenance steps does not help.

To adjust chain lubrication

WARNING: Stop the engine before you make adjustments to the oil pump.

Turn the adjustment screw for the oil pump. Use a screwdriver or combination wrench.

- Turn the adjuster screw clockwise to decrease the oil flow.

Technical line drawing of a mechanical device with an arrow pointing to a component, plus a circular indicator showing '+' and '−' (no text or symbols on the device itself)

- Turn the adjuster screw counterclockwise to increase the oil flow.

Troubleshooting

The engine does not start

Check Possible cause Procedure
Stop switch. The stop switch is in the stop position.	stop position.	Let an approved service agent replace the stop switch.
Fuel tank. Incorrect fuel type. Drain the fuel tank and fill with cor-rect fuel.	fuel tank and fill with cor-rect fuel.
Spark plug and cylinder. The spark plug is dirty or wet. Make sure that the spark plug is dry and clean.	The spark plug electrode gap is incorrect.	Clean the spark plug. Make sure that the electrode gap is correct, refer to Technical data on page 24. Make sure that the spark plug has a suppressor.
	The spark plug is loose. Tighten the spark plug.
	Engine is flooded because of repeated starts with full choke after ignition.	Remove and clean the spark plug. Put the product on its side with the spark plug hole away from you. Pull the starter rope handle 6-8 times. Assemble the spark plug and start the product. Refer to To start the product on page 14.

The engine starts but stops again

Check	Possible cause Procedure
Fuel tank Incorrect fuel	type. Empty the fuel tank and fill it with correct	fuel.
Air filter The air filter is	clogged. Clean the air filter.

Transportation, storage and disposal

Transportation and storage

• For storage and transportation of the product and fuel, make sure that there are no leaks or fumes. Sparks or open flames, for example from electrical devices or boilers, can start a fire.
  • Always use approved containers for storage and transportation of fuel.

• Empty the fuel and chain oil tanks before transportation or before long-term storage. Discard the fuel and chain oil at an applicable disposal location.

• Use the transportation guard on the product to prevent injuries or damage to the product. A saw chain that does not move can also cause serious injuries.

• Remove the spark plug cap from the spark plug.
• Attach the product safely during transportation.

To prepare your product for long-term storage

1. Stop the product and let it become cool before you disassemble it.

2. Disassemble and clean the saw chain and the groove in the guide bar.

CAUTION: If the saw chain and guide bar are not cleaned, they can become rigid or blocked.

1. Attach the transportation guard.
2. Clean the product. Refer to Maintenance on page 15 for instructions.
3. Do a complete servicing of the product.

Technical data

Technical data

	525P4S 525P5S
Engine
Cylinder displacement, cm3	25.4 25.4
Cylinder bore, mm 34 34
Stroke, mm 28 28
Recommended max. speed, rpm 11000-12000 11000-12000
Idle speed, rpm 2800-3000 2800-3000
Max. engine output, according to ISO 8893, kW/rpm 1.0/8500 1.0/8500
Catalytic converter muffler Yes Yes
Speed-regulated ignition system Yes Yes
Ignition system
Spark plug NGK BPMR8Y NGK BPMR8Y
Electrode gap, mm	0.65 0.65
Fuel and lubrication system
Fuel tank capacity, litre/cm3	0.5/500	0.5/500
Oil tank capacity, litre/cm3	0.2/200	0.2/200
Weight
Without fuel, cutting attachment and guard, kg	5.3	6.4
Noise emissions 1
Sound power level, measured according to ISO 22868, dB (A)	107	107
Sound levels 2
Equivalent sound pressure level at the operator's ear, measured according to ISO 22868, dB(A):
Equipped with approved accessory (original)	91 90
Vibration levels 3
Equivalent vibration levels ( a_hv,eq ) at handles, measured according to ISO 22867, m/s ^2 :
Equipped with approved accessory (original), front/rear 3.6/3.5 3.6/3.5

Accessories

Guidebar and saw chain combinations

Recommended guide bar and saw chain combination.

Guide bar Saw chain
Length, in/cm Pitch, in Gauge, in/mm Type Length, drive links, no.
10/25	3/8 0.050/1.3 Husqvarna H37			40
12/31 45
10/25	3/8 0.050/1.3 Husqvarna S93G			40
12/31 45

Filing equipment and filing angles

Using Husqvarna file gauge will give you the correct filing angles. We recommend you to always use a Husqvarna file gauge to restore the sharpness of the

saw chain. The part numbers are given in the table below.

If you do not know which saw chain you have on your product, turn to your servicing dealer.

H37 5/32 in	/ 4.0 mm 80° 30°				0.025 in / 0.65 mm	580 24 37-01
S93G 5/32 in	/ 4.0 mm 60° 30°				0.025 in / 0.65 mm	587 80 90-01

EC Declaration of Conformity

EC Declaration of Conformity

Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declares that the pole saws Husqvarna 525P4S and 525P5S with serial numbers dating from 2016 onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL'S DIRECTIVE:

• of May 17, 2006 "relating to machinery" 2006/42/EC
- of February 26, 2014 "relating to electromagnetic compatibility" 2014/30/EU
- of June 8, 2011 "on the restriction of the use of certain hazardous substances in electrical and electronic equipment" 2011/65/EU

The following standards have been applied:

EN ISO 12100:2010, EN ISO 11680-1:2011, ISO 14982:2009, CISPR 12:2009, EN 50581:2012.

RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden, has carried out EC type examination in accordance with the machinery directive's (2006/42/EC) article 12, point 3b. The certificate for EC type examination in accordance with annex IV, has the number: 0404/15/2438

In addition, 0404, RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden, has certified conformity with annex V of the Council's Directive of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

Huskvarna, 2016-03-30

P.M.d.u=

Pär Martinsson, Development Manager (Authorized representative for Husqvarna AB and responsible for technical documentation.)

Inhalt

Exploded view diagram of a mechanical assembly with numbered parts for identification

15m (30ft) 15m (50ft)

Line drawing of a person in protective gear holding a long pole (no text or symbols)

Line drawing of a helmet and helmet with a pair of glasses (no text or symbols)

Line drawing of a pelvic bone structure (no text or labels)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of two gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Diagram of a mechanical device with labeled parts A and B, showing directional arrows indicating motion or force.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Illustration of a worker in protective gear using a tool, with a close-up of the tool's tip (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical tool with directional arrows indicating movement or force (no text or symbols)

Illustration of a stylized helmet with a diagonal line crossing through it, surrounded by sparkles (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a device with a starburst effect (no text or symbols)

Technical line drawing of a mechanical component with a U-shaped groove and circular holes, no text or symbols present.

Simple line drawing of a droplet falling into a container with two circular ports (no text or symbols)

Montage

Diagram of a handheld device with labeled parts A and B, showing wiring connections.

Mechanical assembly diagram showing a bracket component being inserted into a housing (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts A, B, and C, including a dashed line indicating a reference or alignment.

Mechanical device with rotating arrow and connector (no text or symbols)

Illustration of hands using a chain tag to handle a mechanical component (no text or symbols)

Technical diagram showing a mechanical component labeled A and B with directional arrows indicating movement or force.

Technical line drawing of a mechanical clamp or bracket assembly with two arrows indicating movement (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a clamp and rotating component (no text or symbols)

Mechanical assembly diagram showing a connector with arrows indicating motion, no text or symbols present

Technical line drawing of a mechanical device with exploded view and mounting points (no text or symbols)

Diagram illustrating fuel injection and discharge process with labeled components and prohibition symbols

Illustration of a person in historical attire holding an object, no text or symbols present

Diagram of a chain saw cutting through a cylindrical part, with a 90-degree angle indicator (no text or symbols present)

Line drawing of a person in full protective suit disinfecting a lever (no text or symbols)

Simple line drawing of a human knee joint with a medical device attached to the joint (no text or symbols)

Illustration of a medical procedure with a hand holding a tool and a cross mark (no text or symbols)

Line drawing of a chain saw cutting down a piece, showing blade and handle (no text or symbols)

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of an electric motor with a prohibition symbol overlay (no text or labels)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a tool inserted, showing internal components and a lightning bolt symbol (no text or labels)

Technical line drawing of a mechanical device with a highlighted component (no text or symbols)

Illustration of a device emitting smoke or vapor, with a smartphone partially visible and stars emerging (no text or symbols)

Technical diagram of a mechanical assembly with numbered parts for identification

Technical line drawing of a mechanical component with a separate schematic view showing a threaded component and a close-up of its internal structure (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Exploded view diagram of a mechanical device showing internal components and assembly (no text or labels)

Technical illustration of a mechanical device with a close-up view showing a drop and adjustment mechanism (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram showing mechanical assembly with arrows indicating process direction (no text or symbols)

Pure geometric diagram showing a rectangular shape with an adjacent curved shape, no text or symbols present.

Illustration of a pair of sawes with different blade shapes, one showing a magnified view of the blade (no text or symbols)

Line drawing of hands using a tool to cut a cylindrical object (no text or symbols)

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or plunger with an arrow indicating direction (no text or symbols)

Simple line drawing of a test tube with a downward arrow indicating compression or dislocation (no text or symbols)

Simple line drawing of a chain with a central gear-like structure (no text or symbols)

PITCH = D/2 D

Diagram showing a mechanical component with directional arrows and a separate view of a curved component (no text or symbols)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Pure technical diagram showing a mechanical part and a vertical rod with directional arrows (no text or symbols)

Technical line drawing of a mechanical tool with an arrow indicating rotation and a textured handle (no text or symbols)

- Schnittwinkel.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

- Schärfposition.

Line drawing of a screwdriver holding a lever and pin (no text or symbols)

Simple line drawing of a dropper with a small symbol (no text or labels)

Three technical illustrations of mechanical components: a dropper, a gear-like component, and a clamp-like device (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols visible)

Two mechanical tools: a radial tool and a clamped tool (no text or symbols visible)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Diagram of a chain-linking device with a circular arrow indicating rotational motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

Diagram of a mechanical tool resembling a chain or saw, with no visible text or symbols

Illustration of two hands holding a curved object with directional arrows indicating movement (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Line drawing of a manual tool cutting a tree trunk, no text or symbols present

Technical line drawing of a mechanical device with an arrow indicating a component, plus and minus symbols (no text or labels)

Technical diagram of a mechanical assembly with numbered parts for identification and assembly reference.

15m (30ft) 15m (50ft)

Line drawing of a person in full protective gear holding a long pole (no text or symbols)

Line drawing of a helmet and safety goggles (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of two human gloves with bandages and shaded areas (no text or symbols)

Line drawing of a boots with visible tread pattern and buckle (no text or symbols)

Diagram of a mechanical device with labeled parts A and B, showing directional arrows and components.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a lightning bolt indicating force or motion (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Illustration of a worker in safety gear using a tool, with a close-up of the tool's handle (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical tool with directional arrows indicating motion (no text or symbols)

Illustration of a mechanical device with a crosshair overlay and explosion sparks (no text or symbols)

Technical line drawing of a mechanical component with two circular eyes and internal brackets (no text or symbols)

Technical line drawing of a mechanical switch or actuator component (no text or symbols)

Exploded view diagram of a mechanical device showing internal components and a separate housing (no text or symbols)

Simple line drawing of a stylized mask with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Diagram showing a prohibition symbol over layered material structure with labeled layers and layer numbers

Simple line drawing of a droplet falling from a container with two circular holes (no text or symbols)

Montage

Technical diagram of a mechanical device with labeled parts A and B, likely for assembly or maintenance instructions.

Technical diagram showing mechanical assembly with a highlighted component and directional arrow indicating motion or assembly.

Technical diagram showing mechanical assembly with labeled parts A, B, and C, including a dashed line indicating a reference or alignment.

Mechanical device with rotating arrow and connecting rod (no text or symbols)

Illustration of hands using a chain tag to handle a mechanical component (no text or symbols)

Technical diagram showing labeled parts A and B, likely illustrating a mechanical or electrical component assembly.

Technical line drawing of a mechanical clamp or connector with two arrows indicating movement (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a connector with arrows indicating motion, no text or symbols present

Pour assembler la protection antichocs

Technical line drawing of a mechanical device with exploded view showing internal components (no text or labels)

Safety warning illustration showing fuel injection, nozzles, and a worker holding a bottle

Diagram of a chain-linking tool with a 90-degree angle indicator (no text or symbols on the diagram itself)

Illustration of a person in protective gear spraying a long tool (no text or symbols)

Simple line drawing of a human knee joint with a bone and a plant branch (no text or symbols)

Illustration of a hand holding a medical device with a cross mark, no text or symbols present

Line drawing of a chain saw cutting down a piece, showing blade and handle (no text or symbols)

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

AVERTISSEMENT: La scie

Diagram of a mechanical device with a circular prohibition symbol (no text or labels)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a tool inserted, showing internal components and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a separate component (no text or symbols present)

Illustration of a cartoon-style device emitting smoke or vapor, with stars and a small object nearby (no text or symbols)

Technical diagram of a mechanical device with numbered parts for identification

Technical line drawing of a mechanical component with a separate schematic view showing a bolted joint and a close-up of its internal structure (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Exploded view diagram of a mechanical device showing internal components and assembly (no text or labels)

Technical line drawing of a mechanical device with a spring and lever mechanism, showing motion arrows (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram showing mechanical assembly with arrows indicating force or movement, no text or symbols present

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Simple line drawing of a switch mechanism with a black arrow pointing to the button (no text or symbols)

Illustration of a knife and a ruler with a magnified inset showing a vertical tool (no text or symbols)

Line drawing of a hand holding a long-handled tool or ruler (no text or symbols present)

Two abstract geometric symbols: a V-shaped line and a crossed-out X symbol, likely representing stylized letters or symbols.

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Diagram showing a curved arrow labeled with pressure symbols P1 and P2, indicating force direction on a rectangular object.

Simple diagram showing a horizontal bar with a downward arrow and a small oval shape inside, no text or symbols present.

PITCH = D/2 D

Diagram showing a vertical pipe with directional arrows and a schematic of a device with a handle (no text or symbols)

Pure diagram of a mechanical or electrical component with two arrows indicating direction (no text or symbols)

Pure technical diagram showing a mechanical part and a vertical rod with directional arrows (no text or symbols)

Technical line drawing of a mechanical tool with an arrow indicating rotation and a separate disassembled part (no text or symbols)

• L'angle d'impact.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

• La position de la lime.

Simple line drawing of a tool with a handle and lever (no text or symbols)

Simple line drawing of a dropper with a small symbol (no text or labels)

Three technical line drawings of mechanical components: a dropper, a bracket, and a clamp-like device (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of two tools: a radial tool and a mechanical device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a chain saw cutting a tool with a circular arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

Diagram of a chain-linking tool with a circular component, no text or symbols present

Illustration of two hands performing a physical maneuver with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a bracket with a downward arrow indicating force or direction (no text or symbols present)

Line drawing of a hand holding a tool near a tree branch (no text or symbols)

Technical line drawing of a mechanical device with an arrow pointing to a component, accompanied by two inset views (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Rotatierichting, zaagketting.

5m (30m) 15m (50m)

Line drawing of a person in full protective gear holding a long pole (no text or symbols)

Line drawing of a helmet with a visor and blade, no text or symbols present

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a pair of boots with visible tread and buckles (no text or symbols)

Diagram of a mechanical device with labeled parts A and B, showing directional arrows indicating motion or force.

Technical line drawing of a mechanical device with a lever and pointer (no text or symbols)

Line drawing of a mechanical tool or device with an arrow indicating motion direction (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Illustration of a worker in protective gear using a tool, with a close-up of the tool's tip (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Trillingsdempingssysteem controleren

Technical line drawing of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Illustration of a device with a circular crosshair overlay and explosion sparks (no text or symbols)

Technical line drawing of a mechanical component with circular features and internal brackets (no text or symbols)

Technical line drawing of a mechanical device with a handle and circular components (no text or symbols)

Exploded view diagram of a mechanical device showing internal components and a separate housing (no text or symbols)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Pure technical diagram of a mechanical component with no text or symbols

Simple line drawing of a droplet falling from a container with two circular holes (no text or symbols)

Montage

De zaagkop monteren

Diagram of a mechanical device with labeled parts A and B, showing wiring connections.

Mechanical assembly diagram showing a bracket component being inserted into a housing (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts A and C, showing components like gears and linkages.

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotational motion (no text or symbols present)

Illustration of hands using a chain-linking tool to interact with a chain (no text or symbols present)

Technical diagram showing labeled parts A and B with directional arrows and a curved line, likely illustrating a mechanical or electrical component.

Technical line drawing of a mechanical clamp or bracket assembly with two arrows indicating movement (no text or symbols)

Mechanical component diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

Deelbare steel demonteren 525P5S

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a cylindrical component, with arrows indicating motion direction (no text or symbols present)

De stootbescherming monteren

Technical line drawing of a mechanical device with internal components and mounting points (no text or symbols)

Safety warning illustration showing fuel injection and discharge symbols with a person holding a bag

Diagram of a chain saw cutting a cylindrical object with a 90-degree angle indicator (no text or symbols present)

Illustration of a person in protective gear holding a long tool, crossed out by two crossed lines (no text or symbols)

Simple line drawing of a human knee joint with a surgical instrument attached (no text or symbols)

Illustration of a hand holding a tool with a cross mark, no text or symbols present

Line drawing of a chain saw cutting down a piece, showing blade and handle (no text or symbols)

Line drawing of a mechanical device with an arrow pointing to a joint (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with a black prohibition symbol overlaid (no text or labels)

Product stoppen

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a mechanical device with a lever and arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a highlighted component (no text or symbols)

Illustration of a cartoon-style device emitting steam and stars, with a smartphone nearby (no text or symbols)

Technical diagram of a mechanical assembly with numbered parts for identification

Bougie controleren

Technical line drawing of an engine component with a side-view detail (no text or symbols)

• Vervang de bougie indien nodig.

Luchtfilter

Technical line drawing of a mechanical device with no visible text or symbols

Technical illustration of a mechanical assembly with exploded view and component details (no text or symbols)

Technical line drawing of a mechanical clamp or connector with a spring and adjustment lever (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Snijuitrusting controleren

Mechanical assembly diagram showing two stages of tooling or machining process (no text or symbols)

Pure geometric diagram showing a rectangular shape with a curved cutout and a dimension line (no text or symbols)

Simple line drawing of a switch mechanism with a black arrow indicating the direction (no text or symbols)

Diagram showing a tool interacting with a vertical bar and a cutting tool, with no visible text or symbols.

Line drawing of a hand using a tool to cut a cylindrical object (no text or symbols)

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or blade with an arrow indicating direction (no text or symbols)

Zaagketting slijpen

Simple diagram with a downward arrow and a horizontal line inside a rounded rectangle (no text or symbols)

PITCH = D/2 D

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Pure diagram of a mechanical component with two arrows indicating direction (no text or symbols)

Pure technical diagram showing a mechanical part and a vertical rod with directional arrows (no text or symbols)

Technical line drawing of a mechanical tool with an arrow indicating rotation and a diagonal bar (no text or symbols)

- Snijhoek.

Pure mechanical diagram showing a gear or cam mechanism with rotational arrows (no text or symbols)

• Vijlpositie.

Line drawing of a tool with a handle and lever, no text or symbols present

Simple line drawing of a dropper with a small symbol (no text or labels)

Line drawings of three mechanical tools: a dropper, a bracket, and a clamp (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of two mechanical tools: a radial tool and a clamped tool (no text or symbols)

Technical line drawing of a mechanical tool or drill bit with no visible text or symbols

De ketting spannen

Diagram of a chain saw cutting a tool with a circular arrow indicating rotation (no text or symbols)

Mechanical device with rotating arrow and connecting rod (no text or symbols)

Diagram of a chain-linking tool with a circular arrow indicating rotation (no text or symbols)

Illustration of two hands performing a physical maneuver with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a bracket with a downward arrow indicating force or direction (no text or symbols present)

Line drawing of a tool cutting through a tree trunk (no text or symbols)

Technical line drawing of a mechanical pump assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a mechanical assembly with numbered parts for identification and assembly reference.

5m (30ft) 15m (50ft)

Line drawing of a person in protective gear holding a long pole (no text or symbols)

Line drawing of a helmet and gear assembly (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of two human gloves with bandages and shaded areas (no text or symbols)

- Nosite trpežno obutev, ki ne drsi.

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical diagram of a mechanical component with labeled parts A and B, showing directional arrows indicating movement or force.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical tool with a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of a worker in protective gear using a tool, with a close-up of the tool's tip (no text or symbols present)

Pure mechanical component diagram without any text, numbers, or symbols

Preverjanje sistema za dušenje tresljajev

Technical line drawing of a mechanical tool with directional arrows indicating motion (no text or symbols)

1. Elemente sistema za dušenje tresljajev morate pravilno namestiti.

Preverjanje dušilnika

Symbolic illustration of a stylized robot with a crossed-out circle and starburst background (no text or symbols)

Technical line drawing of a mechanical device with a wrench and circular components (no text or symbols)

• Vizualno preverite lovilec isker.

Exploded view diagram of a mechanical device showing internal components and a separate housing (no text or labels)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Technical line drawing of a mechanical component with a U-shaped groove and circular holes, no text or symbols present.

Simple line drawing of a device with a droplet above it and a container (no text or symbols)

Montaža

Technical diagram showing a mechanical component with an inset highlighting a specific part and directional arrow.

Technical diagram showing mechanical assembly with labeled parts A, B, and C, including a dashed line indicating a reference or alignment.

1. Verigo napnite tako, da vijak napenjalca verige s kombiniranim ključem obrnete v smeri vrtenja urinih kazalcev. Verigo je treba toliko napeti, da na spodnji strani meča ni povešena.

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

Illustration of hands operating a chain drive tool with arrows indicating motion (no text or symbols)

1. Po namestitvi nove verige je treba napetost verige redno preverjati, dokler se ta ne uteče. Redno preverjajte napetost verige. Pravilno napeta veriga nudi dobro učinkovitost rezanja in dolgo življenjsko dobo.

Nastavitev oprtnika

Technical diagram showing two labeled parts (A and B) with arrows indicating direction of movement or force.

1. Previdno potisnite gred v spojko, da se slišno zaskoči.

Technical line drawing of a mechanical clamp or bracket assembly with two arrows indicating movement (no text or symbols)

1. Popolnoma zategnite gumbni vijak.

Diagram of a mechanical clamp or bracket with a curved arrow indicating rotational motion (no text or symbols)

Razstavljanje dvodelne gredi 525P5S

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

1. Pritisnite in pridržite gumb (C).
2. Trdno držite konec gredi, na katero je pritrjen motor.
3. Priključek izvlecite naravnost iz spojke.

Mechanical assembly diagram showing a connector with arrows indicating motion, no text or symbols present

Technical line drawing of a mechanical device with internal components and mounting points (no text or symbols)

1. Vijake zategnite z momentom 30 ft/lbs (4 Nm).
2. Po približno 20 urah uporabe izdelka vijake znova zategnite.

Delovanje

Uvod

OPOZORILO: Pred uporabo izdelka morate prebrati in razumeti poglavje o varnosti.

Pregled pred vžigom

Diagram illustrating fuel injection and discharge process with labeled components and prohibition symbols

Illustration of a person in uniform holding an object, no text or symbols present

1. Dolijte polovico bencina v čisto posodo za gorivo.
2. Dodajte celotno količino olja.
3. Pretresite mešanico goriva.
4. V posodo dodajte še preostalo količino bencina.
5. Temeljito pretresite mešanico goriva.

Diagram of a chain-linking tool with a 90-degree angle indicator (no text or symbols on the diagram itself)

Illustration of a person in full protective gear spraying a tool with a cross mark (no text or symbols)

Simple line drawing of a human knee joint with a branch and leafy branches (no text or symbols)

Illustration of a hand holding a tool with a cross mark, no text or symbols present

Line drawing of a hand using a chain-linking tool to cut a tree branch (no text or symbols)

Line drawing of a medical or surgical tool with an arrow pointing to a specific instrument (no text or symbols present)

To prepare the product for start

1. Push the air purge bulb 10 times.

Technical line drawing of a mechanical component with no visible text or symbols

Opomba: It is not necessary to fully fill the bulb.

1. Move the choke control up into choke position.

Technical line drawing of a mechanical component with no visible text or symbols

OPOZORILO: The saw chain will start to rotate immediately when you start the engine with the choke.

Zagon izdelka

Diagram of an electric motor with a prohibition symbol overlay (no text or labels)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a lever and gear mechanism, showing internal components without any text or symbols.

1. Vijak za prilagajanje v prostem teku obračajte v nasprotni smeri urinega kazalca, dokler se veriga ne ustavi.

Technical line drawing of a mechanical device with a highlighted component (no text or symbols)

1. Odstranite vijak, s katerim je pritrjen lovilnik isker.

Illustration of a device emitting steam and stars, with a smartphone partially visible (no text or symbols)

Technical diagram of a robotic device with numbered components for identification

Pregled svečke

Technical line drawing of a mechanical component with a separate schematic view showing a threaded bolt and a close-up of its internal structure (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

1. Odstranite pokrov zračnega filtra in zračne filtre.

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

Technical line drawing of a mechanical clamp or connector with a spring, showing no text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing two stages of a chain with arrows indicating motion direction (no text or labels)

1. Prepričajte se, da je verigo mogoče preprosto zviti. Če je veriga toga, jo zamenjajte.

2. Verigo primerjajte z novo verigo, da ugotovite, će so kovice in členi obrabljeni.

3. Zamenjajte verigo, ko je najdaljši del rezalnega zoba krajši od 4 mm/0,16 palca. Verigo prav tako zamenjajte, će so na rezilih razpoke.

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Preverjanje meča

1. Prepričajte se, da oljni kanal ni zamašen. Po potrebi ga očistite.

1. Preglejte, ali so na robovih meča grobi ostanki. S pilo odstranite grobe ostanke.

Illustration of a pair of sawes with a magnified inset showing a blade and handle (no text or symbols)

1. Očistite utor v meču.

Line drawing of a hand holding a tool, no text or symbols present

1. Preverite, ali je utor v meču obrabljen. Po potrebi zamenjajte meč.

Two abstract geometric symbols: a stylized 'M' and a crossed-out 'X', likely representing stylized letters or symbols.

1. Preverite, ali je konica meča groba ali zelo obrabljena.

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a pen with an arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or plunger with an arrow indicating direction (no text or symbols)

Brušenje verige

Simple diagram of a pen-like object with a downward arrow and two circular ends (no text or symbols)

PITCH = D/2 D

Diagram showing a mechanical component with a vertical rod and a curved handle, connected to a rectangular block (no text or symbols present)

Pure diagram of a mechanical component with two arrows indicating direction (no text or symbols)

- Širina gonilnega člena v mm/palcih.

Technical line drawing of a mechanical part with a vertical shaft and dimension arrows (no text or symbols)

Splošne informacije o brušenju rezil

Technical line drawing of a mechanical tool with a curved component and a diagonal blade (no text or symbols)

- Kot rezanja.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

- Položaj pile.

Line drawing of a screwdriver holding a lever with a central knob (no text or symbols)

- Premer okrogle pile.

Simple line drawing of a dropper with a small symbol (no text or labels)

Three line drawings of mechanical parts: a tuning fork, a plastic bag, and a textured container (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a bracket and shaft (no text or symbols)

Two mechanical tools: a flat tool and a clamped tool (no text or symbols visible)

Technical line drawing of a mechanical tool or component with no visible text or symbols

Napenjanje verige

Diagram of a chain saw cutting a tool with a circular arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

Diagram of a chain-linking tool with a circular arrow indicating rotation (no text or symbols)

Illustration of two hands performing a rope or cable manipulation technique with directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a bracket with a downward arrow indicating force or direction (no text or symbols present)

1. Izdelek Husqvarna napolnite z verižnim oljem.

2. Znova namestite pokrovček.

Kontrola mazanja verige

Line drawing of a hand holding a tool near a tree branch (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating a component, plus a circular dial indicator (no text or symbols present)

- Za povečanje pretoka olja zavrtite nastavitveni vijak v nasprotni smeri vrtenja urinega kazalca.

Odpravljanje težav

Original instructions

Originalanweisungen

Black and white barcode image with vertical lines and a small number '1' at the bottom left.
