USER MANUAL CCTOS 245WH CANDY

Line drawing of a room interior with a bed, sink, and mouse (no text or symbols)

Line drawing of a refrigerator cabinet with shelves and doors (no text or symbols)

Pure technical line drawing of two identical mechanical or architectural components with no text, numbers, or symbols.

Technical line drawing of a mechanical assembly with mounting holes and a downward arrow (no text or symbols)

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent usage or other owners. This product solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B & B)
• For catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

The refrigerator contains a refrigerant gas (R600a: isobutene) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable.

We recommend that you follow the following regulations so as to avoid situations dangerous to you:

Before performing any operation, unplug the power cord from the power socket.

•The refrigeration system positioned behind and inside the appliance contains refrigerant. Therefore, avoid damaging the tubes.
•If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.
- Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.
- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
- Do not install the appliance near heaters or inflammable materials.
- Do not use extension cords or adapters.
- Do not excessively pull or fold the power cord or touch the plug with wet hands.
- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
- It is recommended to keep the plug clean, any excessive dust

residues on the plug can be the cause fire.

• Do not use mechanical devices or other equipment to hasten the defrosting process.
• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Do not use or store inflammable sprays, such as spray paint, near the appliance, it could cause an explosion or fire.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
• Do not store medicine or research materials in the appliance. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Do not place objects and/or containers filled with water on the top of the appliance.
• Do not perform repairs on this appliance. All interventions must be performed solely by qualified personnel.
• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.
• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision

SCRAPPING OLD APPLIANCE

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have

WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

CE Conformity

By placing the European safety for this product.

mark on this product, we are confirming compliance to all relevant and environmental requirements which are applicable in legislation (1) 本报告期，公司与关联方发生的交易金额在30万元以下的关联交易事项发生。

ENERGY SAVINGS

For better energy savings, we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice (see DEFROSTING) to facilitate the transfer of cold.
  • In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible
• Avoid adjusting the thermostat to temperatures too cold.
• Remove dust present on the rear of the appliance (see CLEANING).

- Total no frost Audy( with display on door): remove all the baskets in freezer compartment;

- Total no frost (with internal user interface for fridge and knob for freezer): remove other baskets in freezer compartment but keep bottom drawer in its position.

- Frost free model: remove other baskets in freezer compartment but keep bottom drawer in its position.

- All normal static models: remove all drawers in freezer compartment.

CORRECTLY POSITIONING

Well Ventilating

There is need of good ventilation around the refrigerator for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space should be need around the refrigerator. Its back is at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height from over its top is not less than 200mm. A clear space should be left to open its doors to 160°.

Power Supply

The refrigerator is only applied with power supply of single phase alternating current of (220-240)V\~/50Hz;230V\~/60Hz. If fluctuation of voltage in the district user is of so large that the voltage exceeds the above scope, for safety sake, be sure to apply a.c. automatic voltage regulator to the refrigerator. The refrigerator must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Power Line Cord

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord is kept close onto the compressor at the back of the refrigerator, the surface temperature of which is quite high when operating. Touching with it would deactivate the insulation or cause leakage for electricity.

Protection from Moisture

Avoiding placing the refrigerator in a place where heavy moisture is present so as to minimize possibility of rusty for its metal parts. Still more, the refrigerator is forbidden to be directly sprayed by water, otherwise, poor insulation and current leakage would occur.

Protection from Heat

The refrigerator should be far away from any heat source or direct sunshine.

Fixing Stable

Floor on which refrigerator will be placed must be flat and solid.

It should not be laid on any soft material such as foam plastic, etc. If the refrigerator is not on the same level, adjust the screws suitably. the refrigerator should not be placed near anything which may echo.

Keep Away from Danger

It is inadvisable that the refrigerator is placed near any volatilizable or combustible such as gas, petrol, alcohol, lacquer and banana oil, etc. The above-mentioned objects can not be stored in the refrigerator.

Moving

When fixed or moved, the refrigerator can not be set horizontally or declinet to more than 45^ or upside-down.

Cautions

• Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside, It will weaken the refrigerator when the frost is thick, while it is more than 2mm thick, you should defrost.
• Defrosting in freezer chamber is operated manually. Before defrosting, take the food, the ice tray and the shelf out into the cold storing chamber temporarily then set the knob of the temperature regulator to position "0" (where the compressor will stop working) and leave the door open until ice and frost dissolve thoroughly deposited at the bottom of the freezer chamber, wipe off the water with soft cloth. In the case of speeding up the defrosting, you may put a bowl of warm water (about 50 C) into the freezer chamber, and be sure to set the knob of the temperature regulator to original position after defrosting.
• It's inadvisable to heat the freezer chamber directly with hot water or hair dryer while defrosting to prevent deformation of the inner case.
• It's also inadvisable to scrape of ice and frost or separate food from the containers which have been congealed together with the food with sharp tool or wooden bars, so as not to damage the inner casing or the surface of the evaporator.
• If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

Care and maintenance

When there is a LED lamp, please note:

This LED lamp has a longlife time. Once it is broken, it is mandatory to call aftersales center to get a new one.

A replacement made by unqualified people without supervision from electrical engineer would result in electrical shock and injury.

Troubleshooting

1. WHEN THE REFRIGERATOR DOES NOT WORK

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

2. WHEN THE REFRIGERATOR IS COOLING EXCESSIVELY

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily.

This does not indicate a malfunction.

3. WHEN THE REFRIGERATOR IS NOT COOLING SUFFICIENTLY

The food may be packed too tightly together which will block the flow of cool air.

You may have put something hot or a lot of foodstuffs into the refrigerator.

The door may not have been closed properly.

The door gaskets may be damaged.

The refrigerator may not be ventilated.

There may be insufficient clearance between the refrigerator and the surfaces

Immediately both sides and above.

The temperature control dial may not be set properly

4. WHEN THE DEFROSTING WATER OVERFLOWS INSIDE THE REFRIGERATOR AND ONTO THE FLOOR.

Check that the drain pipe and the drain hose are not clogged.

Check that the drain pan is housed properly.

5. WHEN CONDENSATION FORM ON THE OUTSIDE OF THE REFRIGERATOR

Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.

6. WHEN YOU HEAR A SOUND LIKE WATER FLOWING

A sound like water flowing is the refrigerant flowing. It does not Indicate a malfunction.

7. WHEN THE CABINET'S SIDE PANEL HEATS UP

The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature, In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

Technical specifications

*For the detailed technical specifications, please refer to the nameplate at the back of the refrigerator.

*Specifications are subject to change without prior notice.

FRIDGE

Wait at least two hours before switching the appliance on, in order to ensure that the refrigerant circuit is fully efficient.

CONTROL PANEL

Line drawing of a computer room interior with monitor and keyboard (no text or symbols)

The thermostat box to control the appliance is located inside the fridge compartment on the top right. To check whether the appliance is functioning, make sure that the thermostat knob is not set on "0".

DEFROSTING and FREEZING

The rating plate states the maximum quantity of foods that can be frozen, (see "gure 2). Freezing is guaranteed with any knob setting.

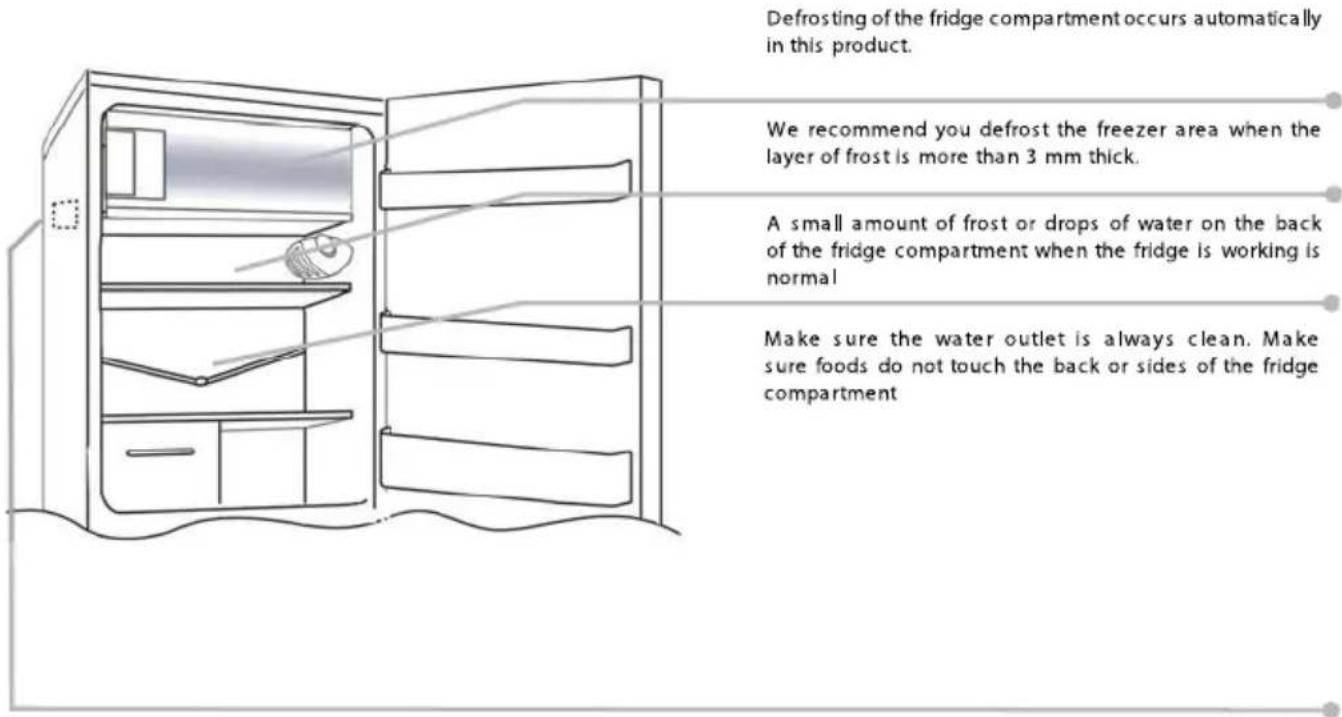

Defrosting of the fridge compartment occurs automatically in this product. We recommend you defrost the freezer area when the layer of frost is more than 3 mm thick. A small amount of frost or drops of water on the back of the fridge compartment when the fridge is working is normal Make sure the water outlet is always clean. Make sure foods do not touch the back or sides of the fridge compartment

NB. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

Important: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the back of the fridge compartment. In this case, turn the knob to lower settings (1-2).

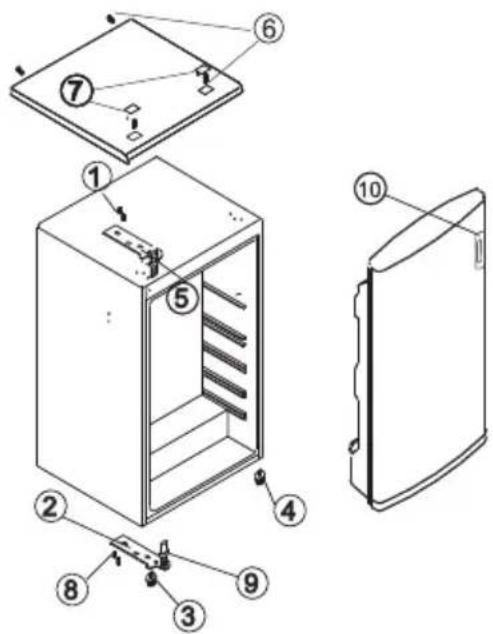

REVERSING THE OPENING OF THE DOORS

In order to reverse the opening of the doors, follow the indications in relation to the insert and hinge type your product is made up of.

A

Place or tilt the fridge at a 45° angle, since it is necessary to work on the bottom of the appliance

1

45°

Remove the bottom hinge by removing the screws, the plug and washers, then remove the bottom door

2

Pure technical line drawing of two identical mechanical or architectural components with no text, numbers, or symbols.

Remove the middle screw and remove the top door

3

Technical line drawing of a mechanical assembly with mounting holes and a downward arrow (no text or symbols)

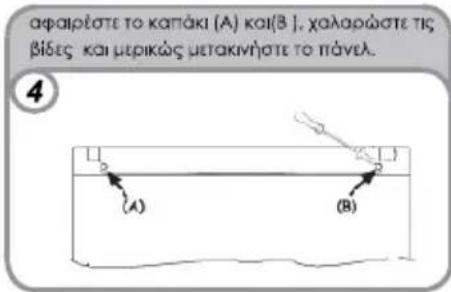

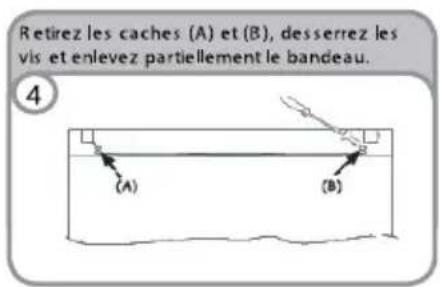

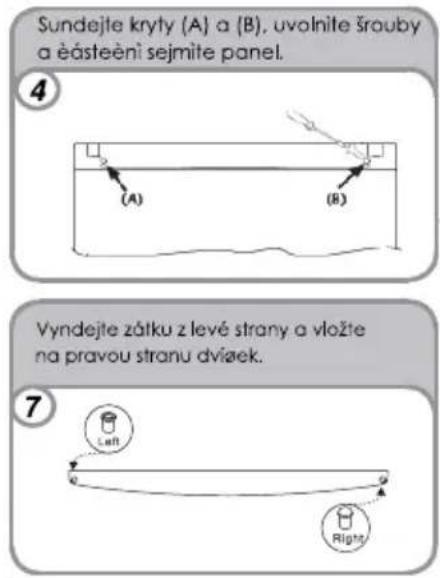

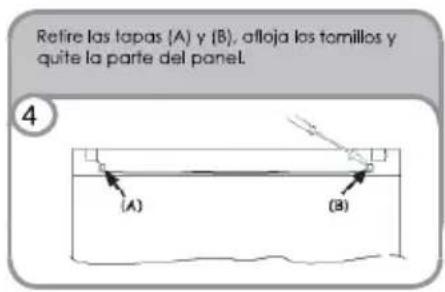

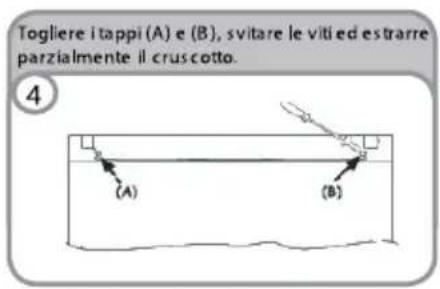

Remove the caps (A) and (B), loosen the screws and partially remove the panel.

4

(A) (B)

Unscrew the right hinge

5

Simple line drawing of a mechanical clamp or bracket with a handle and base (no text or symbols)

Before reassemble the hinge to the left side, reverse the direction of the hinge.

6

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Remove the plug on the left-hand side and insert it on the right hand-side of the door.

7

Left Right

Reassemble the hinges and doors working from bottom to top, 1 ☐ 2 ☐ 3

8

③ ② ①

Line drawing of a room interior with a computer monitor and mouse (no text or symbols)

Line drawing of a refrigerator cabinet with doors open and shelves closed (no text or symbols)

Simple line drawing of a door with a handle and screwdriver, no text or symbols present

Technical line drawing of a mechanical assembly with mounting holes and a downward arrow (no text or symbols)

Line drawing of a room interior with a door, window, and mouse (no text or symbols)

Line drawing of a refrigerator with shelves and door, no text or symbols present

Pure technical line drawing of two vertical panels with no text, numbers, or symbols

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Pure technical line drawing of a mechanical assembly (no text or symbols)

Simple line drawing of a curved object with two circular markers, no text or symbols present

Simple line drawing of a rectangular frame with a horizontal base and small corner markers (no text or symbols)

Line drawing of a refrigerator with a mouse inside, showing no text or symbols

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a downward arrow (no text or symbols)

Line drawing of a refrigerator with a mouse inside, no text or symbols present

Line drawing of a refrigerator with open doors and shelves, no text or symbols present

Simple line drawing of a door frame with a tool and base, no text or symbols present

Technical line drawing of a mechanical assembly with two mounting holes and a downward arrow indicating motion (no text or symbols)

Retire as tampas (A) e (B), desaperte os parafusos e remova parcialmente o painel.

4

(A) (B)

Simple line drawing of a mechanical component or bracket with no text or symbols

Pure technical line drawing of a mechanical clamp or bracket assembly without any text, numbers, or symbols

Left Right

Line drawing of a room interior with a door, window, and mouse (no text or symbols)

Simple line drawing of a cabinet or shelf with a handle and base, no text or symbols present

Technical line drawing of a mechanical assembly with mounting holes and a downward arrow (no text or symbols)

Line drawing of a room interior with a computer mouse and a door, no text or symbols present

Technical line drawing of a mechanical assembly with two mounting holes and a downward arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

Simple line drawing of a mechanical assembly with no text or symbols

Left Right

7. KDYŽ SE HŘEJÍ STĚNY CHLADNIČKY:

Line drawing of a room interior with a door, window, and mouse (no text or symbols)

Two identical line drawings of a cabinet or shelf with handles and legs, no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

- in Bed and Breakfasts (B & B)

Line drawing of a refrigerator with a mouse inside, no text or symbols present

Line drawing of an open refrigerator with shelves and door (no text or symbols)

Technical line drawing of a mechanical assembly with two mounting holes and a downward arrow indicating motion (no text or symbols)

(4) (A) (B)

Line drawing of a refrigerator with a mouse inside, showing no text or symbols

Line drawing of an open refrigerator with shelves and door (no text or symbols)

Two identical line drawings of a mechanical or architectural component with no text, numbers, or symbols.

Technical line drawing of a mechanical assembly with mounting holes and a downward arrow (no text or symbols)

Simple line drawing of a mechanical component or bracket with a handle and base (no text or symbols)

Left Right

Pure technical line drawing of two mechanical components without any text, numbers, or symbols

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Simple line drawing of a mechanical setup with a lever and base (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with screws and bolts (no text or symbols)

Simple line drawing of a horizontal beam with two circular markers at endpoints (no text or symbols)

Line drawing of a refrigerator with a mouse inside, no text or symbols present

Technical line drawing of a mechanical assembly with two bolts and a downward arrow (no text or symbols)

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Left Right

AFSKAFFELSE AF GAMLE APPARATER

Line drawing of a room interior with a computer monitor and a mouse, no text or symbols present

Gumb termostata za kontrolu temperature ređaja nalazi se u unutarnjem prostoru ladnjaka s gornje desne strane. Da rovjerite da li uređaj funkcionira, budite igurni da gumb termostata nije postavljen a položaj "0".

ZALEĐIVANJE I ODLEĐIVANJE

Na pločici s tehničkim podacima navedena je maksimalna količina hrane koja se može zalediti (pogledajte sliku 2). Zaleđivanja je zajamčeno na bilo kojem položaju gumba termostata.

(slika 2)

Line drawing of a refrigerator with shelves and doors, no text or symbols present

Na ovom modelu, odleđivanje hladnjaka zvodi se automatski.

Preporučujemo da ledenicu odledite kada je sloj inja na unutarnjim stijenkama ledenice deblji od 3 mm.

Pure technical line drawing of two vertical panels with base and corner features, no text or symbols present

Uklonite kapice A i B, odvijte vijke i privremeno uklonite masku.

3

(A) (B)

Simple line drawing of a mechanical component or bracket with no text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a horizontal beam with two circular end points and curved ends, no text or symbols present.

Technical diagram of an open refrigerator with numbered parts for identification

Cartoon illustration of a smiling book character with arms and legs, accompanied by a thought bubble showing electrical circuit symbols (no text or labels)

Zaščita pred vlago

Cartoon illustration of a document character with arms and legs, holding an umbrella (no text or symbols)

Cartoon illustration of a smiling pot with a sprout and legs, no text or symbols present

Stabilnost

Hladilnik postavite na trdna, ravna tla.

Cartoon illustration of a smiling computer monitor with arms and legs (no text or symbols)

Cartoon illustration of a smiling document character holding a book (no text or symbols)

Selitev

Cartoon illustration of a character holding a rectangular object with arms and legs, no text or symbols present

Opozorila

Technical diagram showing exploded view of a refrigerator with numbered components for assembly or maintenance.

SLIKA 1
SLIKA 2

Technical diagram of an open refrigerator with numbered parts for identification

Cartoon illustration of a smiling rectangular character waving, with arms and legs (no text or symbols)

Napá anie

Cartoon illustration of a book character with arms and legs, accompanied by a magnifying glass showing a battery and a resistor (no text or symbols)

Ochrana voči vlhkosti

Cartoon illustration of a document character with arms and legs, holding an umbrella and raindrops (no text or symbols)

Ochrana pred teplom

Cartoon illustration of a smiling pot with steam rising from its head (no text or symbols)

Vyváženie

Cartoon illustration of a smiling computer monitor with arms and legs (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, holding a small object (no text or symbols)

Premiestňovanie

Cartoon illustration of a person carrying a large rectangular object with a 45° angle标注 (no text or symbols on the object itself)

)POZORNENIA

Exploded view diagram of a refrigerator with numbered parts for identification

OBRÁZOK 1

Exploded view diagram of a refrigerator with numbered parts for identification

OBRÁZOK 2

OBRÁZOT 1 - PREDSTAVUSE POZÍCIU COMPONENTOV PRED VaMENOU.

OBRÁZOT 2 - PREDSTAVUSE POZÍCIU COMPONENTOV PO VaMENE DVIEROT.

Line drawing of a room interior with a computer mouse inside (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a downward arrow (no text or symbols)

Line drawing of a room interior with a bed, sink, and blanket (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical clamp or bracket with no text or symbols

