USER MANUAL DCR-TRV8E SONY

Digital Video Camera Recorder Mini DV Digital Video Cassette

Operating Instructions

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

Illustration of a DCR-TRV10E camera with no visible text or symbols on the device itself

Digital Handycam

InfoLITHIUM M

C111 Cassette Memory i

MEMORY STICK

DCR-TRV8E/TRV10E

English

Welcome!

Congratulations on your purchase of this Sony Digital Handycam camcorder. With your Digital Handycam, you can capture life's precious moments with superior picture and sound quality.

Your Digital Handycam is loaded with advanced features, but at the same time it is very easy to use. You will soon be producing home video that you can enjoy for years to come.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

NOTICE ON THE SUPPLIED AC POWER ADAPTOR FOR CUSTOMERS IN THE UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI to BS1362 (i.e., marked with ◆ or ♥ mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

ATTENTION

The electromagnetic fields at the specific frequencies may influence the picture and sound of this digital camcorder.

For the customers in Germany

Directive: EMC Directive 89/336/EEC. 92/31/EEC

This equipment complies with the EMC regulations when used under the following circumstances:

• Residential area
• Business district
  • Light-industry district (This equipment complies with the EMC standard regulations EN55022 Class B.)

Русский

Добро пожаловать!

Step 1 Preparing the power supply ...... 12

Installing the battery pack 12

Charging the battery pack 13

Connecting to the mains 18

Step 2 Inserting a cassette .... 19

Recording - Basics

Recording a picture 20

Shooting backlit subjects (BACK LIGHT) 27

Shooting in the dark (NightShot) 28

Checking the recording - END SEARCH / EDITSEARCH / Rec Review ...... 31

Playback - Basics

Playing back a tape 33

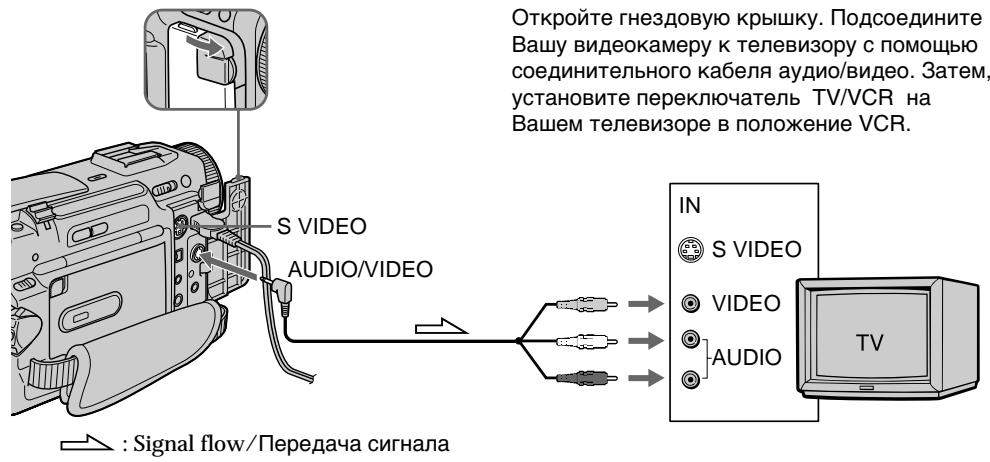

Viewing the recording on TV 38

Advanced Recording Operations

Photo recording 41

Using the wide mode 44

Using the fader function 46

Using special effects - Picture effect .... 49

Using special effects - Digital effect 51

Adjusting the white balance manually 54

Using the PROGRAM AE function 56

Adjusting the exposure manually 59

Focusing manually 60

Advanced Playback Operations

Playing back a tape with picture effects ...... 62

Playing back a tape with digital effects ...... 63

Quickly locating a scene using the zero set memory function 65

Searching a recording by date – Date search ..... 66

Searching the boundaries of recorded tape by title – Title search 68

Searching for a photo – Photo search/Photo scan 69

Editing

Dubbing a tape 71

Editing partially on a DV tape - DV synchro-editing (DCR-TRV10E only) ..... 74

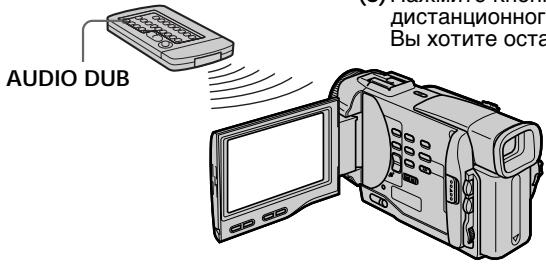

Audio dubbing 76

Superimposing a title 79

Making your own titles 83

Labeling a cassette 85

Customizing Your Camcorder

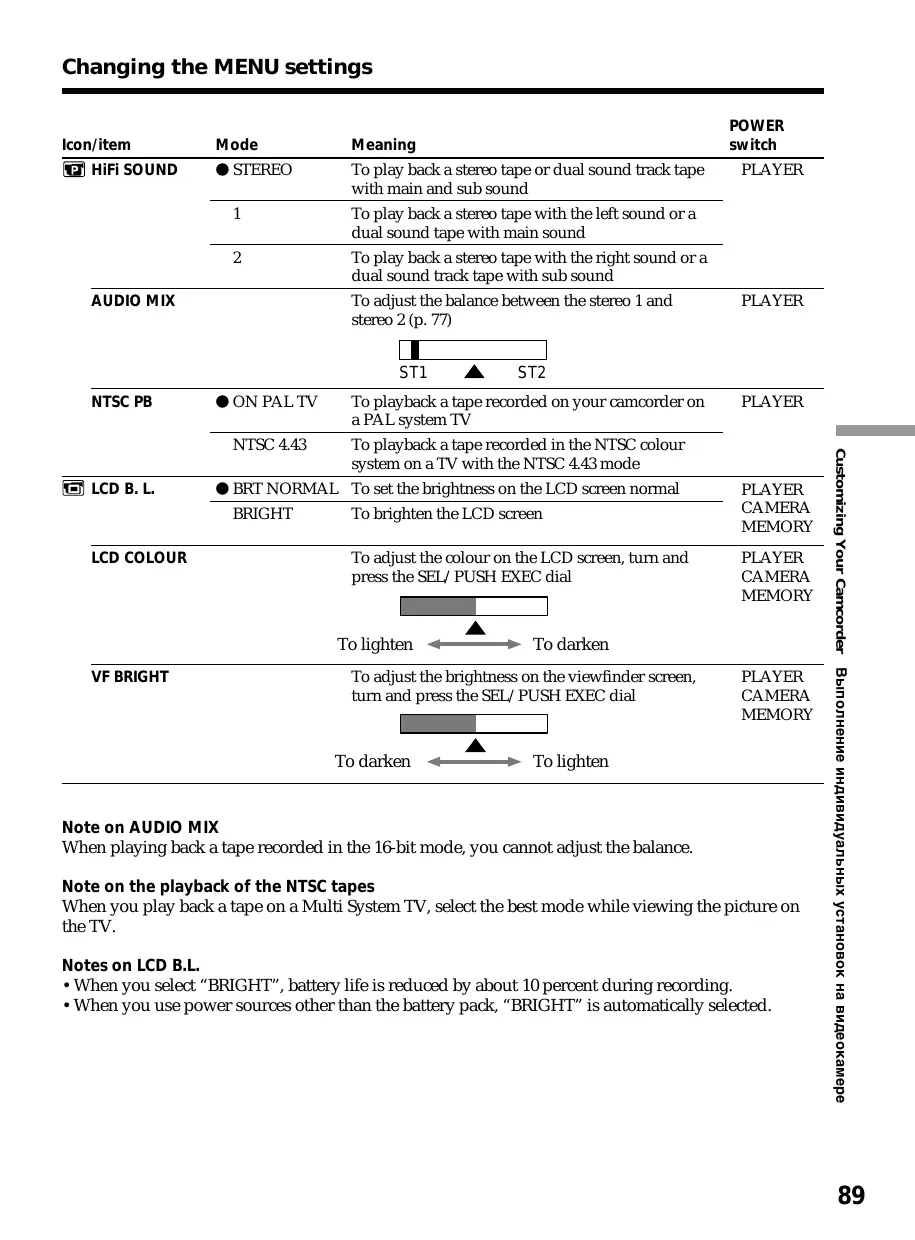

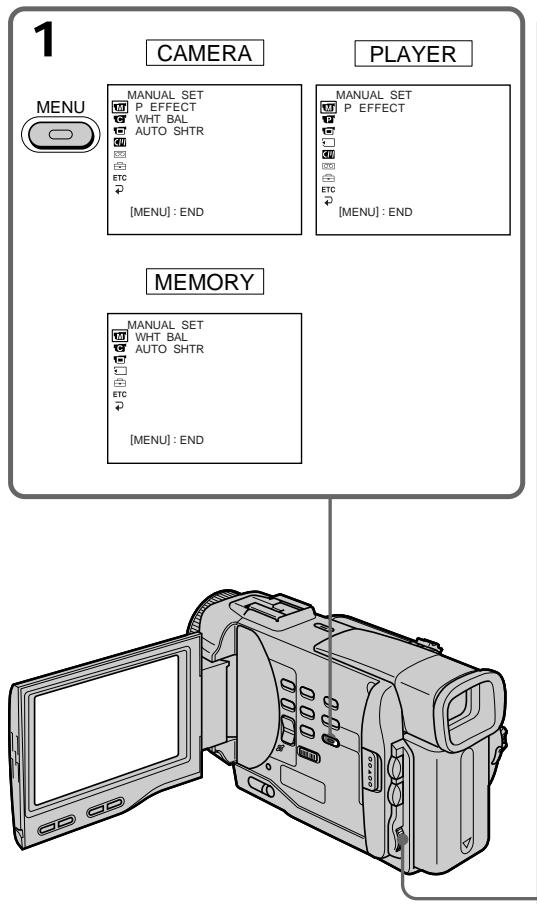

Changing the MENU settings 87

Resetting the date and time 98

Memory Stick operations (DCR-TRV10E only)

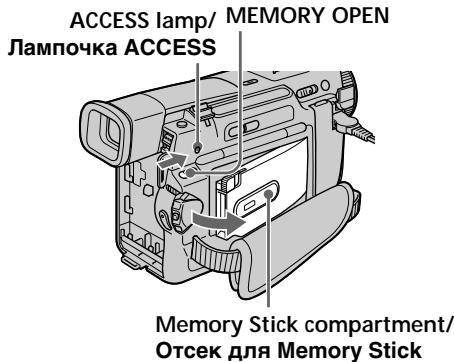

Using a Memory Stick-introduction.... 100

Recording still images on Memory Sticks - Memory photo recording .... 106

Recording an image from a mini DV tape as a still image 110

Copying still images from a mini DV tape - Photo save 112

Viewing a still picture – Memory photo playback 114

Superimposing a still picture in a Memory Stick on a moving picture – M. CHROM/M. LUMI/C. CHROM.... 118

Preventing accidental erasure - Image protection .... 121

Writing a print mark - PRINT MARK ...... 123

Deleting images 124

Playing back images in a continuous loop - SLIDE SHOW .... 127

Additional Information

Usable cassettes 129

Troubleshooting.... 132

Self-diagnosis display 137

Warning indicators and messages 138

Using your camcorder abroad 148

Maintenance information and precautions..... 149

Specifications 154

Quick Reference

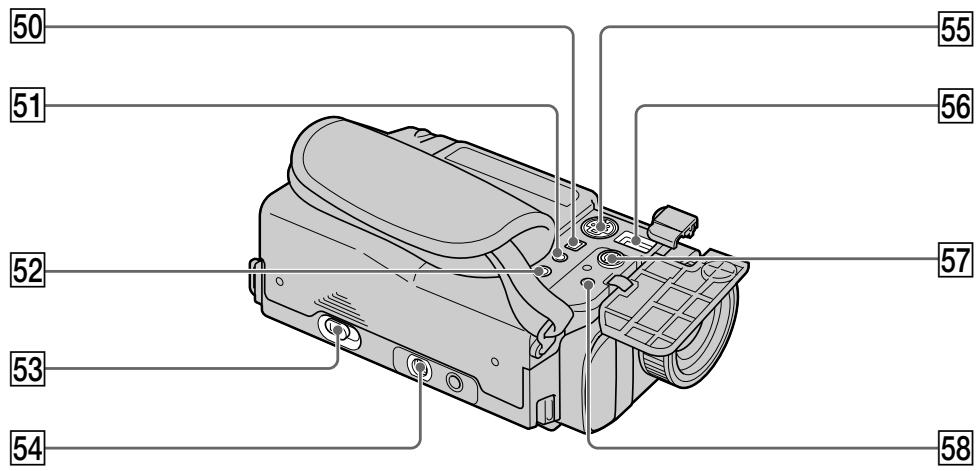

Identifying the parts and controls 156

Quick Function Guide 168

Index 170

- Windows is registered trademarks licensed to Microsoft Corporation, registered in the U.S.A. and other countries.

- All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.

Furthermore, “TM” and “®” are not mentioned in each case in this manual.

Checking supplied accessories

Make sure that the following accessories are supplied with your camcorder.

1 Wireless Remote Commander (1) (p. 164)
RMT-812: DCR-TRV10E
RMT-809: DCR-TRV8E
② AC-L10A/L10B/L10C AC power adaptor (1), Mains lead (1) (p. 13)
3 NP-FM50 battery pack (1) (p. 12, 13)
4 R6 (size AA) battery for Remote Commander (2) (p. 165)

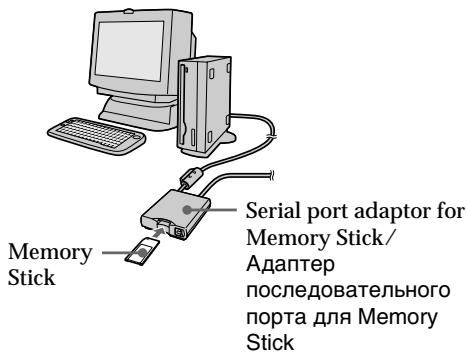

5 Serial port adaptor for Memory Stick (1), PC serial cable (1), AC power adaptor for Serial port adaptor (1) (p. 117) DCR-TRV10E only
⑥ Memory Stick (1) (p. 100) DCR-TRV10E only
7 A/V connecting cable (1) (p. 38, 71)
8 Shoulder strap (1) (p. 160)
9 Lens cap (1) (p. 20)
10 21-pin adaptor (1) (p. 39)
11 Application software: PictureGear 3.2Lite (CD ROM) (1) (p. 117) DCR-TRV10E only

Illustration of a person using a vintage camera (no text or symbols visible)

This chapter introduces you to the basic features of your camcorder. See the page in parentheses “( )” for more information.

1 Connecting the mains lead (p. 18)

Use the battery pack when using your camcorder outdoors (p. 12).

2 Inserting a cassette (p. 19)

1 Slide ▲ OPEN/EJECT in the direction of the arrow and open the lid.

2 Push the middle portion of the back of the cassette to insert.
3 Close the cassette compartment by pressing the PUSH mark on the cassette compartment.

4 After the cassette compartment going down completely, close the lid until it clicks.

Illustration of a digital camera with cable and adjustment knobs (no text or symbols)

Illustration of a camera module with a downward arrow indicating compression or disassembly (no text or symbols present)

1 Remove the lens cap.
2 Set the POWER switch to CAMERA while pressing the small green button. The picture appears on the LCD screen.

Illustration of a digital camera with an open screen and hand interacting with the camera (no text or symbols visible)

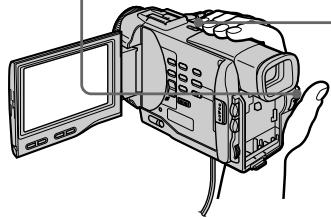

4 Press START/STOP. Your camcorder starts recording. To stop recording, press START/STOP again.

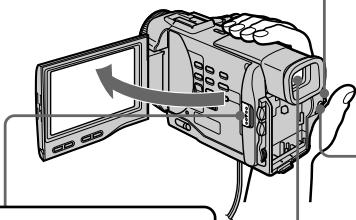

3 Slide OPEN in the direction of the ▶ mark. Then, open the LCD panel.

Viewfinder

When the LCD panel is closed, use the viewfinder placing your eye against its eyecup.

4 Monitoring the playback picture on the LCD screen (p. 33)

1 Set the POWER switch to

PLAYER while pressing the small green button.

② Press ◀◀ to rewind the tape.

③ Press ▶ to start playback.

Line drawing of a digital camera with open screen and hand gesture (no text or symbols)

NOTE

Do not pick up your camcorder by holding the viewfinder, the LCD panel or the battery pack.

Illustration of a vintage-style video camera with smoke and a 'X' symbol above it (no text or symbols on the device itself)

Illustration of a hand holding a mechanical device with a 'X' symbol above (no text or labels)

Illustration of a handheld video camera with a 'X' mark indicating cancellation or disconnection (no text or symbols present)

Illustration of a person using a vintage camera (no text or symbols present)

Illustration of a digital camera with cable and adjustment knobs (no text or symbols)

Illustration of a camera module with a downward arrow indicating motion or signal direction (no text or symbols present)

Line drawing of a digital camera with an open screen and hand interacting with the camera (no text or symbols)

Line drawing of a digital camera with open screen and hand gesture (no text or symbols)

ПРИМЕЧАНИЕ

Illustration of a vintage-style video camera with smoke and a 'X' symbol above it (no text or symbols on the device itself)

Illustration of a hand holding a mechanical device with a 'X' symbol above (no text or labels)

Illustration of a handheld video camera with a 'X' mark indicating cancellation or disconnection (no text or symbols present)

Using this manual

The instructions in this manual are for the two models listed in the table below. Before you start reading this manual and operating your camcorder, check the model number by looking at the bottom of your camcorder. The DCR-TRV10E is the model used for illustration purposes. Otherwise, the model name is indicated in the illustrations. Any differences in operation are clearly indicated in the text, for example, “DCR-TRV10E only.”

As you read through this manual, buttons and settings on your camcorder are shown in capital letters.

e.g. Set the POWER switch to CAMERA.

When you carry out an operation, you can hear a beep sound to indicate that the operation is being carried out.

Types of differences

DCR-	TRV8E	TRV10E
DV synchro-editing	—	●
MEMORY mark*(on the POWER switch)	—	●

● Provided

— Not provided

* The model with MEMORY marked on the POWER switch is provided with memory functions. See page 100 for details.

Note on Cassette Memory

Your camcorder is based on the DV format. You can only use mini DV cassettes with your camcorder. We recommend you to use a tape with cassette memory CIII.

The functions which depend on whether the tape has the cassette memory or not are:

• End search (p. 31, 37)
- Searching a recording by date – date search (p. 66)
- Photo search (p. 69).

The functions you can operate only with the cassette memory are:

• Searching the boundaries of recorded tape by title – title search (p. 68)
  • Superimposing a title (p. 79)

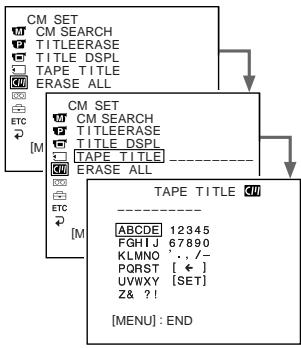

• Making your own titles (p. 83)
• Labeling a cassette (p. 85).

For details, see page 129.

You see this mark in the introduction of the features that operate only with cassette memory.

Tapes with cassette memory are marked by CIII (Cassette Memory).

Note on TV colour systems

TV colour systems differ from country to country. To view your recordings on a TV, you need a PAL system-based TV.

Copyright precautions

Television programmes, films, video tapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provision of the copyright laws.

Precautions on camcorder care

• The LCD screen and/or the colour viewfinder are manufactured using high-precision technology. However, there may be some tiny black spots and/or bright spots (red, blue or green in colour) that constantly appear on the LCD screen and/or in the colour viewfinder. These spots occur normally in the manufacturing process and do not affect the recorded picture in any way. Effective number of pixels is 99.99% or more.
• Do not let your camcorder get wet. Keep your camcorder away from rain and sea water. Letting your camcorder get wet may cause your camcorder to malfunction. Sometimes this malfunction cannot be repaired [a].
• Never leave your camcorder exposed to temperatures above 60^ (140°F), such as in a car parked in the sun or under direct sunlight [b].
• Do not place your camcorder so as to point the viewfinder or the LCD screen toward the sun. The inside of the viewfinder or LCD screen may be damaged [c].

[a]

Illustration of a boat navigating rough seas with a cross symbol (no text or symbols present)

[b]

Simple line drawing of a sun and a cross symbol (no text or labels)

Contents of the recording cannot be compensated if recording or playback is not made due to a malfunction of the camcorder, video tape, etc.

Step 1 Preparing the power supply

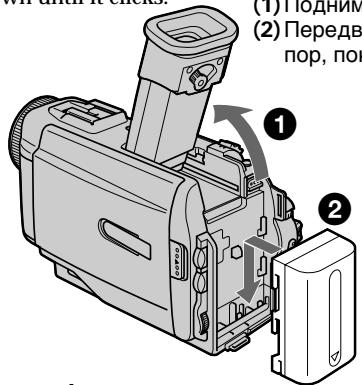

Installing the battery pack

Install the battery pack to use your camcorder outdoors.

(1) Lift up the viewfinder.
(2) Slide the battery pack down until it clicks.

To remove the battery pack

Lift up the viewfinder. Slide the battery pack out in the direction of the arrow while pressing BATT down.

After installing the battery pack

Do not carry your camcorder by holding the battery pack. If you do so, the battery pack may slide off your camcorder unintentionally, damaging your camcorder.

If you use the large capacity battery pack If you install the NP-FM70/FM90 battery pack on your camcorder, extend its viewfinder. Take care not to pinch your finger when lifting the viewfinder up and down.

Illustration of a digital camera with no visible text or symbols

Charging the battery pack

Use the battery pack after charging it for your camcorder.

Your camcorder operates only with the "InfoLITHIUM" battery pack (M series).

“InfoLITHIUM” is a trademark of Sony Corporation.

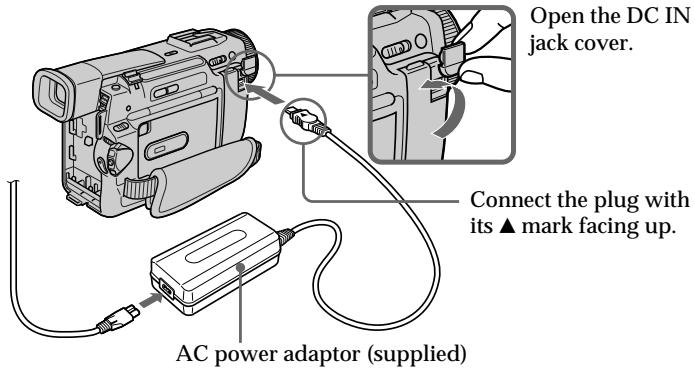

(1) Open the DC IN jack cover and connect the AC power adaptor supplied with your camcorder to the DC IN jack with the plug's ▲ mark facing up.
(2) Connect the mains lead to the AC power adaptor.
(3) Connect the mains lead to the mains.
(4) Set the POWER switch to OFF. Charging begins. The remaining battery time is indicated in minutes on the display window. When the remaining battery indicator changes to □, normal charge is completed. To fully charge the battery (full charge), leave the battery pack attached for about 1 hour after normal charge is completed until FULL appears in the display window. Fully charging the battery allows you to use the battery longer than usual.

Step 1 Preparing the power supply

Note

Prevent metallic objects from coming into contact with the metal parts of the DC plug of the AC power adaptor. This may cause a short-circuit, damaging the AC power adaptor.

Remaining battery time indicator

The remaining battery time indicator in the display window roughly indicates the recording time.

Until your camcorder calculates the actual remaining battery time

“-- - min” appears in the display window.

If there is a slight difference in shape between the plug of mains lead and the terminal of AC power adaptor

It is ignorable for their mutual connection and power supply.

Plug the mains lead deeply

Be sure to plug the mains lead deeply into the terminal of AC power adaptor so that it is firmly locked. If there is a gap between the plug of mains lead and the terminal of AC power adaptor, it does not affect the efficiency of the AC power adaptor.

While charging the battery pack, no indicator appears or the indicator flashes in the display window in the following cases

• The battery pack is not installed correctly.
• The AC power adaptor is disconnected.
• Something is wrong with the battery pack.

Approximate number of minutes to charge an empty battery pack

Approximate number of minutes when you use a fully charged battery

Numbers in parentheses “( )” indicate the time using a normally charged battery.

* Approximate continuous recording time at 25^ C ( 77^ F). The battery life will be shorter if you use your camcorder in a cold environment.
** Approximate number of minutes when recording while you repeat recording start/stop, zooming and turning the power on/off. The actual battery life may be shorter.

Approximate number of minutes when you use a fully charged battery

Numbers in parentheses “( )” indicate the time using a normally charged battery. The battery life will be shorter if you use your camcorder in a cold environment.

Step 1 Preparing the power supply

After charging the battery pack

Disconnect the AC power adaptor from the DC IN jack on your camcorder.

Note on the remaining battery time indicator during recording

The indicator may not be correct, depending on the conditions in which you are recording. When you close the LCD panel and open it again, it takes about 1 minute for the correct remaining battery time to be displayed.

What is "InfoLITHIUM"?

The “InfoLITHIUM” is a lithium ion battery pack which can exchange data such as battery consumption with compatible video equipment. This unit is compatible with the “InfoLITHIUM” battery pack (M series). Your camcorder operates only with the “InfoLITHIUM” battery.

"InfoLITHIUM" M series battery packs have the InfoLITHIUM mark.

“InfoLITHIUM” is a trademark of Sony Corporation.

Step 1 Preparing the power supply

Connecting to the mains

When you use your camcorder for a long time, we recommend that you power it from the mains using the AC power adaptor.

(1) Open the DC IN jack cover, pulling the cover out a little and rotating it. Connect the AC power adaptor to the DC IN jack on your camcorder with the plug's ▲ mark facing up.
(2) Connect the mains lead to the AC power adaptor.
(3) Connect the mains lead to the mains.

Illustration of a digital camera with cable being inserted, showing internal components and a close-up view of the cable (no text or symbols present)

2, 3

Diagram of a USB cable being inserted into an electronic device (no text or symbols present)

WARNING

The mains lead must only be changed at a qualified service shop.

PRECAUTION

The set is not disconnected from the AC power source (the mains) as long as it is connected to the mains, even if the set itself has been turned off.

Notes

• The AC power adaptor can supply power even if the battery pack is attached to your camcorder.
• The DC IN jack has “source priority”. This means that the battery pack cannot supply any power if the mains lead is connected to the DC IN jack, even when the mains lead is not plugged into the mains.
• Keep the AC power adaptor away from your camcorder if the picture is disturbed.

Using a car battery

Use Sony DC Adaptor/Charger (not supplied).

ВНИМАНИЕ

(1) Slide ▲ OPEN/EJECT in the direction of the arrow and open the lid. The cassette compartment automatically lifts up and opens.
(2) Push the middle portion of the back of the cassette to insert. Insert the cassette in a straight line deeply into the cassette compartment with the window facing out.
(3) Close the cassette compartment by pressing the PUSH mark on the cassette compartment. The cassette compartment automatically goes down.
(4) After the cassette compartment going down completely, close the lid until it clicks.

To eject a cassette

Follow the procedure above and in step 2, take out the cassette.

Notes

• Do not press the cassette compartment down. Doing so may cause malfunction.
• The cassette compartment may not be closed when you press any part of the lid other than the PUSH mark.

When you use mini DV cassette with cassette memory

Read the instruction about cassette memory to use this function properly (p. 129).

To prevent misoperation of your camcorder Set the POWER switch to OFF when you insert and eject a cassette.

To prevent accidental erasure

Slide the write-protect tab on the cassette to expose the red mark.

Diagram of a device with an arrow pointing to a component, no text or symbols present

Recording a picture

Your camcorder automatically focuses for you.

(1) Remove the lens cap by pressing both knobs on its sides and attach the lens cap to the grip strap.
(2) Install the power source and insert a cassette. See “Step 1” and “Step 2” for more information (p. 12 to p. 19).
(3) Set the POWER switch to CAMERA while pressing the small green button. Your camcorder is set to the standby mode.
(4) Slide OPEN in the direction of the ▶ mark. Then, open the LCD panel. The viewfinder automatically turns off.
(5) Press START/STOP. Your camcorder starts recording. The “REC” indicator appears. The camera recording lamp located on the front of your camcorder lights up. To stop recording, press START/STOP again.

Запись изображения

Fasten the grip strap firmly. Do not touch the built-in microphone during recording.

Note on Recording mode

Your camcorder records and plays back in the SP (standard play) mode and in the LP (long play) mode. Select SP or LP in the MENU settings. In the LP mode, you can record 1.5 times as long as in the SP mode.

When you record a tape in the LP mode on your camcorder, we recommend playing the tape on your camcorder.

Note on the lock (DCR-TRV10E only)

When you slide the lock to the right, the POWER switch can no longer be set to MEMORY accidentally. The lock is set to the left before your camcorder leaves the factory.

To enable smooth transition

Transition between the last scene you recorded and the next scene is smooth as long as you do not eject the cassette even if you turn off your camcorder. When you change the battery pack, set the POWER switch to OFF. When you use a tape with cassette memory, however, you can make the transition smooth even after ejecting the cassette if you use the END SEARCH function (p. 31).

If you leave your camcorder in the standby mode for 5 minutes while the cassette is inserted

Your camcorder automatically turns off. This is to save battery power and to prevent battery and tape wear. To resume the standby mode, set the POWER switch to OFF, and to CAMERA again.

When you record in the SP and LP modes on one tape or you record some scenes in the LP mode

The playback picture may be distorted or the time code may not be written properly between scenes.

Примечания

Adjusting the LCD screen

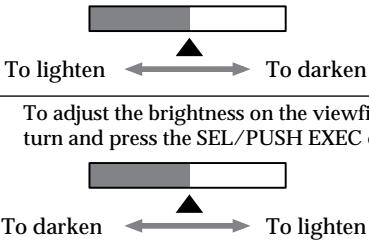

To adjust the brightness of the LCD screen, press either of the two buttons on LCD BRIGHT.

The LCD panel moves about 90 degrees to the viewfinder side and about 180 degrees to the lens side.

If you turn the LCD panel over so that it faces the other way, the 😊 indicator appears in the viewfinder and on the LCD screen (Mirror mode).

When closing the LCD panel, set it vertically until it clicks, and swing it into the camcorder body.

When using the LCD screen except in the mirror mode, the viewfinder automatically turns off.

When you use the LCD screen outdoors in direct sunlight

The LCD screen may be difficult to see. If this happens, we recommend that you use the viewfinder.

LCD screen backlight

You can change the brightness of the backlight. Select LCD B.L. in the MENU settings.

Even if you adjust the LCD screen backlight or brightness of the LCD screen

The recorded picture will not be affected.

Picture in the mirror mode

The picture on the LCD is a mirror-image. However, the picture will be normal when recorded.

During recording in the mirror mode

ZERO SET MEMORY on the Remote Commander does not work.

Indicators in the mirror mode

The STBY indicator appears as Ⅱ and REC as

●. Some of the other indicators appear mirror-reversed and others are not displayed.

After recording

(1) Set the POWER switch to OFF.
(2) Close the LCD panel.
(3) Eject the cassette.

Примечание

To record pictures with the viewfinder - adjusting the viewfinder

If you record pictures with the LCD panel closed, check the picture with the viewfinder. Adjust the viewfinder lens to your eyesight so that the indicators in the viewfinder come into sharp focus.

Lift up the viewfinder and move the viewfinder lens adjustment lever.

Technical illustration of a digital camera with an external component, showing internal components and a close-up view (no text or symbols)

Using the zoom feature

Move the power zoom lever a little for a slower zoom. Move it further for a faster zoom.

Using the zoom function sparingly results in better-looking recordings.

“T” side: for telephoto (subject appears closer)

“W” side: for wide-angle (subject appears farther away)

Line drawing of a digital video camera with no visible text or symbols

Zoom greater than 10× is performed digitally, if you set D ZOOM to ON in the MENU settings. The digital zoom function is set to OFF at the factory. (p. 87)

The right side of the bar shows the digital zooming zone.

When you shoot close to a subject

If you cannot get a sharp focus, move the power zoom lever to the “W” side until the focus is sharp. You can shoot a subject that is at least about 80 cm (about 2 feet 5/8 inch) away from the lens surface in the telephoto position, or about 1 cm (about 1/2 inch) away in the wide-angle position.

Notes on digital zoom

• Digital zoom starts to function when zoom exceeds 10 × .
• The picture quality deteriorates as you go toward the “T” side. Set D ZOOM to OFF in the MENU settings. Otherwise the digital zoom activates without notice (p. 87).

Recording starts when you press START/STOP, and stops when you press it again (factory setting).

ANTI GROUND SHOOTING ↓: Your camcorder records only while you press START/STOP. Use this mode to avoid recording unnecessary scenes.

5SEC: When you press use this mode to START/STOP, your camcorder records for 5 seconds and then stops automatically.

Установка START/STOP MODE

• You cannot use the fader function in the 5SEC or ↓ mode.
• The time code does not appear in the 5SEC mode.

To extend the recording time in the 5SEC mode

Five dots (●●●●●) appear, and then disappear at a rate of one per second. To extend the recording time, press START/STOP again before all the dots disappear. Recording continues for about 5 seconds from the moment you press START/STOP.

Примечания

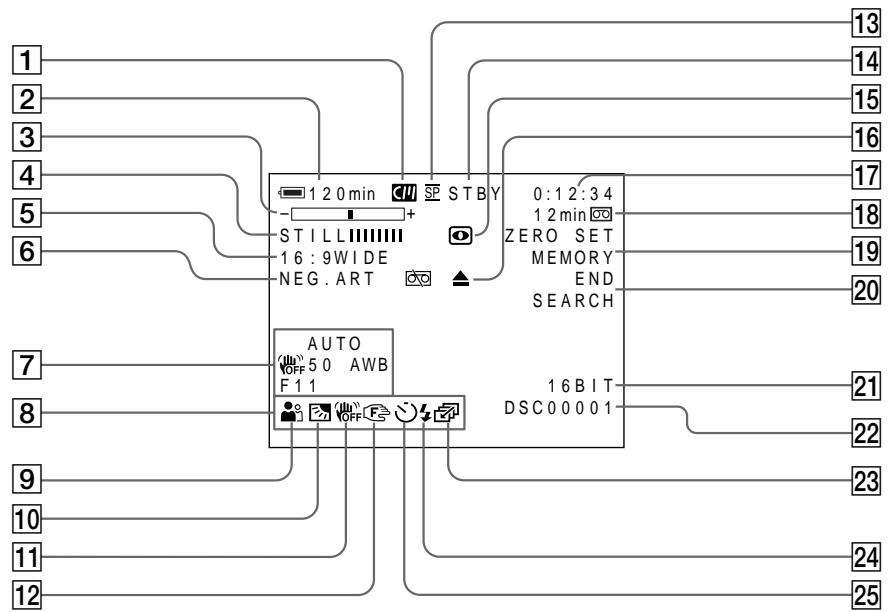

Indicators displayed in the recording mode

The indicators are not recorded on tape.

The time code indicates the recording or playback time, “0:00:00” (hours : minutes : seconds) in CAMERA mode and “0:00:00:00” (hours : minutes : seconds : frames) in PLAYER mode. You cannot rewrite only the time code.

Remaining tape indicator

The indicator may not be displayed accurately depending on the tape.

Код времени

When you shoot a subject with the light source behind the subject or a subject with a light background, use the backlight function.

Press BACK LIGHT in the recording or standby mode.

The ☑ indicator appears in the viewfinder or on the LCD screen.

To cancel, press BACK LIGHT again.

Line drawing of a video camera device (no text or symbols)

BACK LIGHT

If you press EXPOSURE when shooting backlit subjects

The backlight function will be canceled.

Shooting in the dark (NightShot)

The NightShot function enables you to shoot a subject in a dark place. For example, you can satisfactorily record the environment of nocturnal animals for observation when you use this function.

(1) While your camcorder is in the standby mode, slide NIGHTSHOT to ON.
(2) Press START/STOP to start recording. ☐ and “NIGHTSHOT” indicators flash on the LCD screen or in the viewfinder. To cancel the NightShot function, slide NIGHTSHOT to OFF.

The NightShot +Slow shutter mode makes subjects more than four times brighter than those recorded in the NightShot mode.

(1) Slide NIGHTSHOT to ON in the standby or recording mode. Ⓞ indicator appears.
(2) Press +SLOW SHTR until the desired NIGHTSHOT indicator flashes.
The indicator changes as follows:
☐ (NIGHTSHOT) → ☐1 (NIGHTSHOT1) →
☐2 (NIGHTSHOT2) → ☐ (NIGHTSHOT)
To cancel the NightShot + Slow shutter mode, slide NIGHTSHOT to OFF.

Using the NightShot Light

The picture will be clearer with the NightShot Light on. To enable NightShot Light, set N.S.LIGHT to ON in the MENU settings (p. 87).

• Do not use the NightShot function in bright places (ex. outdoors in the daytime). This may cause your camcorder to malfunction.
• When you keep NIGHTSHOT set to ON in normal recording, the picture may be recorded in incorrect or unnatural colours.
• If focusing is difficult with the autofocus mode when using the NightShot function, focus manually.

While using the NightShot function, you cannot use the following functions:

• Exposure
• PROGRAM AE
• White balance
• Fader*
• Digital effect*

* You cannot use these functions only in the NightShot +Slow shutter mode.

Shutter speed in the NightShot + Slow shutter mode

Indicator	Shutter speed
1 (NIGHTSHOT1)	1/12
2 (NIGHTSHOT2)	1/3

The +SLOW SHTR button does not work:

• while the fader function is set or in use
• while the digital effect function is in use
• when NIGHTSHOT is set to OFF
• in the MEMORY mode (DCR-TRV10E only)

NightShot Light

NightShot Light rays are infrared and so are invisible. The maximum shooting distance using the NightShot Light is about 3 m (10 feet). The shooting distance will be twice or more in the NightShot + Slow shutter mode.

Примечания

Self-timer recording

You can make a recording with the self-timer. This mode is useful when you want to record yourself.

(1) Press SELFTIMER in the standby mode. The ⭕ (self-timer) indicator appears on the LCD screen or in the viewfinder.
(2) Press START/STOP. Self-timer starts counting down from 10 with a beep sound. In the last two seconds of the countdown, the beep sound gets faster, then recording starts automatically.

To stop the self-timer during recording

Press START/STOP.

Use the Remote Commander for convenience.

To record still pictures using the self-timer

Press PHOTO in step 2.

To cancel self-timer recording

Press SELFTIMER so that the ⏻ indicator disappears from the LCD or viewfinder screen while your camcorder is in the standby mode.

Note

The self-timer recording mode is automatically cancelled when

– Self-timer recording is finished.
- The POWER switch is set to OFF or PLAYER.

Checking the recording

- END SEARCH / EDITSEARCH / Rec Review

You can use these buttons to check the recorded picture or shoot so that the transition between the last recorded scene and the next scene you record is smooth.

Проверка записи

- END SEARCH/EDITSEARCH/

Просмотр записи

You can go to the end of the recorded section after you record.

Press END SEARCH in the standby mode. The last 5 seconds of the recorded section are played back and playback stops. You can monitor the sound from the speaker or headphones.

EDITSEARCH

You can search for the next recording start point.

Hold down the + / - side of EDITSEARCH in the standby mode. The recorded section is played back.

+: to go forward
- : to go backward

Release EDITSEARCH to stop playback. If you press START/STOP, re-recording begins from the point you released EDITSEARCH. You cannot monitor the sound.

END SEARCH

Checking the recording - END SEARCH / EDITSEARCH / Rec Review

Rec Review

You can check the last recorded section.

Press the - side of EDITSEARCH momentarily in the standby mode.

The last few seconds of the recorded section are played back. You can monitor the sound from the speaker or headphones.

End search function

When you use a tape without cassette memory, the end search function does not work once you eject the cassette after you have recorded on the tape. If you use a tape with cassette memory, the end search function works even once you eject the cassette.

If there is a blank portion in the recorded portion, the end search function may not work correctly. (p. 129)

You can monitor the playback picture on the LCD screen. If you close the LCD panel, you can monitor the playback picture in the viewfinder. You can control playback using the Remote Commander supplied with your camcorder.

(1) Install the power source and insert the recorded tape.
(2) Set the POWER switch to PLAYER while pressing the small green button. The video control buttons light up.
(3) Slide OPEN. Then, open the LCD panel.
(4) Press ◀◀ to rewind the tape.
(5) Press ▶ to start playback.
(6) To adjust the volume, press either of the two buttons on VOLUME. The speaker on your camcorder is silent when the LCD panel is closed.

When monitoring on the LCD screen

You can turn the LCD panel over and move it back to the camcorder body with the LCD screen facing out.

Press DISPLAY on your camcorder or the Remote Commander supplied with your camcorder.

The indicators appear on the LCD screen. To make the indicators disappear, press DISPLAY again.

Your camcorder automatically records not only images on the tape but also the recording data (date/time or various settings when recorded) (Data code). Data code is not displayed during recording. You can only operate with the Remote Commander.

Press DATA CODE on the Remote Commander in the playback mode.

The display changes as follows: date/time → various settings (SteadyShot, white balance, gain, shutter speed, aperture value) → no indicator

Not to display various settings

Set DATA CODE to DATE in the MENU settings (p. 87).

The display changes as follows: date/time → no indicator

The pictures taken on the Memory Stick are not recorded with various settings.

Recording data

Recording data is your camcorder's information when you have recorded. In the recording mode, the recording data will not be displayed.

When you use data code function, bars (-- -- --) appear if:

• A blank section of the tape is being played back.
• The tape is unreadable due to tape damage or noise.
• The tape was recorded by a camcorder without the date and time set.

Data code

The data code is displayed on the TV screen if you connect your camcorder to the TV (p. 38).

Примечание

Various playback modes

To operate control buttons, set the POWER switch to PLAYER.

To view a still picture ( playback pause)

Press || during playback. To resume playback, press || or ▶.

To advance the tape

Press ▶▶ in the stop mode. To resume normal playback, press ▶.

To rewind the tape

Press ◀◀ in the stop mode. To resume normal playback, press ▶.

To change the playback direction

Press < on the Remote Commander during playback to reverse the playback direction. To resume normal playback, press ▶.

To locate a scene monitoring the picture (picture search)

Keep pressing ◀◀ or ▶▶ during playback. To resume normal playback, release the button.

To monitor the high-speed picture while advancing or rewinding the tape (skip scan)

Keep pressing ◀◀ while rewinding or ▶▶ while advancing the tape. To resume rewinding or advancing, release the button.

To view the picture at slow speed (slow playback)

Press ▶ on the Remote Commander during playback. For slow playback in the reverse direction, press <, then press ▶ on the Remote Commander. To resume normal playback, press ▶.

To view the picture at double speed Press ×2 on the Remote Commander during playback. For double speed playback in the reverse direction, press <, then press ×2 on the Remote Commander. To resume normal playback, press ▶.

To view the picture frame-by-frame Press ▪▶ on the Remote Commander in the playback pause mode. For frame-by-frame playback in the reverse direction, press ◀II. To resume normal playback, press ▶.

To search the last scene recorded (END SEARCH)

Press END SEARCH in the stop mode. The last 5 seconds of the recorded section plays back and stops.

End Search

When you use a tape without cassette memory, the end search function does not work once you eject the cassette after you have recorded on the tape.

When you use a tape with cassette memory, the end search function works even once you eject the cassette.

In the various playback modes

Sound is muted.

When the playback pause mode lasts for 5 minutes

Your camcorder automatically enters the stop mode. To resume playback, press ▶.

Slow playback

The slow playback can be performed smoothly on your camcorder; however, this function does not work for an output signal from the DV OUT jack.

When you play back a tape in reverse

Horizontal noise appears at the centre or top and bottom of the screen. This is not a malfunction.

Viewing the recording on TV

Connect your camcorder to your TV or VCR with the A/V connecting cable supplied with your camcorder to watch the playback picture on the TV screen. You can operate the playback control buttons in the same way as when you monitor playback pictures on the LCD screen. When monitoring the playback picture on the TV screen, we recommend that you power your camcorder from the mains using the AC power adaptor (p. 18). Refer to the operating instructions of your TV or VCR.

Open the jack cover. Connect your camcorder to the TV using the A/V connecting cable. Then, set the TV/VCR selector on the TV to VCR.

If your TV is already connected to a VCR

Connect your camcorder to the LINE IN input on the VCR by using the A/V connecting cable supplied with your camcorder. Set the input selector on the VCR to LINE.

If your TV or VCR is a monaural type

Connect the yellow plug of the A/V connecting cable to the video input jack and the white or the red plug to the audio input jack on the VCR or the TV. If you connect the white plug, the sound is L (left) signal. If you connect the red plug, the sound is R (right) signal.

If your TV/VCR has a 21-pin connector (EUROCONNECTOR)

Use the 21-pin adaptor supplied with your camcorder.

If your TV or VCR has an S video jack Connect using an S video cable (not supplied) to obtain high-quality pictures. With this connection, you do not need to connect the yellow (video) plug of the A/V connecting cable. Connect the S video cable (not supplied) to the S video jacks on both your camcorder and the TV or the VCR.

Refer to the operating instructions of your TV. This connection produces higher quality DV format pictures.

Using the AV cordless IR receiver

Once you connect the AV cordless IR receiver (not supplied) to your TV or VCR, you can easily view the picture on your TV. For details, refer to the operating instructions of the AV cordless IR receiver.

Line drawing of a video camera with lens and control buttons (no text or symbols)

(1) After connecting your TV and AV cordless IR receiver, set the POWER switch on the AV cordless IR receiver to ON.
(2) Turn the TV on and set the TV/VCR selector on the TV to VCR.
(3) Press LASER LINK. The lamp of LASER LINK lights up.
(4) Press ▶ on your camcorder to start playback.
(5) Point the LASER LINK emitter at the AV cordless IR receiver. Adjust the position of your camcorder and the AV cordless IR receiver to obtain clear playback pictures.

Illustration of a camera connected to a TV with an attached cable (no text or symbols)

To cancel the laser link function

Press LASER LINK. The lamp on the LASER LINK button goes out.

If you turn the power off

Laser link turns off automatically.

Note

When laser link is activated (the LASER LINK button is lit), your camcorder consumes power. Press LASER LINK to turn off the laser link function when it is not needed.

You can record a still picture like a photograph. This mode is useful when you want to record a picture such as a photograph or when you print a picture using a video printer (not supplied).

You can record about 510 pictures in the SP mode and about 765 pictures in the LP mode on a 60-minute tape.

Besides the operation described here, your camcorder can record still pictures on Memory Sticks (p. 106) (DCR-TRV10E only).

(1) Set the POWER switch to CAMERA.
(2) In the standby mode, keep pressing PHOTO lightly until a still picture appears. The CAPTURE indicator appears. Recording does not start yet.

To change the still picture, release PHOTO, select a still picture again, and then press and hold PHOTO lightly.

(3) Press PHOTO deeper.

The still picture in the viewfinder or on the LCD screen is recorded for about seven seconds. The sound during those seven seconds is also recorded.

During recording, the still image you are shooting appears in the viewfinder or on the LCD screen.

Фотосъемка

• During photo recording, you cannot change the mode or setting.
• During photo recording, you cannot turn your camcorder off or press the PHOTO button.
• When recording a still picture, do not shake your camcorder. The picture may fluctuate.
• The photo recording function does not work:
• while the fader function is set or in use
• while the digital effect function is set or in use
• When flashes, the appropriate brightness may not be obtained.
• When you start photo recording, from normal CAMERA recording, the video flash light (not supplied) does not work ( does not appear).

If you record a moving subject with photo recording function

When you play back the still picture on other equipment, the picture may fluctuate.

To use the photo recording function using the Remote Commander

Press PHOTO on the Remote Commander. Your camcorder records a picture on the LCD screen or in the viewfinder immediately.

To use the photo recording function during normal CAMERA recording

Press PHOTO deeper. The still picture is then recorded for about seven seconds and your camcorder returns to the standby mode. You cannot select another still picture.

Примечания

Printing the still picture

You can print a still picture by using the video printer (not supplied). Connect the video printer using the A/V connecting cable supplied with your camcorder.

Connect it to the AUDIO/VIDEO jack and connect the yellow plug of the cable to the video input of the video printer. Refer to the operating instructions of the video printer as well.

If the video printer is equipped with S video input

Use the S video connecting cable (not supplied). Connect it to the S VIDEO jack and the S video input of the video printer.

You can record a 16:9 wide picture to watch on the 16:9 wide-screen TV (16:9WIDE). Black bands appear on the screen during recording in 16:9WIDE mode [a]. The picture during playing back on a normal TV [b] or a wide -screen TV [c] are compressed in the widthwise direction. If you set the screen mode of the wide-screen TV to the full mode, you can watch pictures of normal images [d].

In the standby mode, set 16:9WIDE to ON in the MENU settings (p. 87).

To cancel the wide mode

Set 16:9WIDE to OFF in the MENU settings.

You cannot select the old movie function with DIGITAL EFFECT and the bounce function with FADER.

During recording

You cannot select or cancel the wide mode. When you cancel the wide mode, set your camcorder to the standby mode and then set 16:9WIDE to OFF.

You can fade in or out to give your recording a professional appearance.

When fading in, the picture gradually changes from black-and-white to colour.

When fading out the picture gradually changes from colour to black-and-white.

* You cannot use this function when D ZOOM is set to ON in the MENU settings.

MONOTONE

(1) When fading in [a]

In the standby mode, press FADER until the desired fader indicator flashes.

When fading out [b]

In the recording mode, press FADER until the desired fader indicator flashes.

The indicator changes as follows:

FADER → M.FADER → BOUNCE →

MONOTONE → OVERLAP →

no indicator

The last selected fader mode is indicated first of all.

(2) Press START/STOP. The fader indicator stops flashing.

After the fade in/out is carried out: Your camcorder automatically returns to the normal mode.

Before the fade in/out is carried out: Before pressing START/STOP, press FADER until the indicator disappears.

You cannot use the following functions while using the fader function. Also, you cannot use the fader function while using the following functions.

• Digital effect
• NightShot +Slow shutter
• Photo recording

- Low lux mode of PROGRAM AE (Overlap function only)

When the OVERLAP indicator appears

Your camcorder automatically stores the image recorded on a tape. As the image is being stored, the OVERLAP indicator flashes fast, and the playback picture is displayed. At this stage, the picture may not be recorded clearly, depending on the tape condition.

When START/STOP MODE is set to ↓ or 5SEC You cannot use the fader function.

While using the bounce function, you cannot use the following functions:

• Exposure
• Focus
• Zoom
  – Picture effect

Note on the bounce function

The BOUNCE indicator does not appear in the following mode or functions:

• D ZOOM is set to ON in the MENU settings
• Wide mode
• Picture effect
• PROGRAM AE

Using special effects - Picture effect

You can digitally process images to obtain special effects like those in films or on the TV.

NEG. ART [a]: The colour and brightness of the picture is reversed.

SEPIA : The picture is sepia.

B&W : The picture is monochrome (black-and-white).

SOLARIZE [b]: The light intensity is clearer, and the picture looks like an illustration.

SLIM [c]: The picture expands vertically.

STRETCH [d]: The picture expands horizontally.

PASTEL [e] : The contrast of the picture is emphasized, and the picture looks like an animated cartoon.

MOSAIC [f]: The picture is mosaic.

Select the desired picture effect mode in the MENU settings (p. 87).

To turn the picture effect function off

Set P EFFECT to OFF in the MENU settings.

During playback, you can process a scene using the picture effect function

The available picture effects are NEG. ART, SOLARIZE, SEPIA and B&W.

While using the picture effect function You cannot select the old movie mode with DIGITAL EFFECT.

When you turn the power off Your camcorder automatically returns to the normal mode.

If you select the picture effect mode in the recording mode Pictures processed by the picture effect function will be recorded.

When the POWER switch is set to PLAYER The SLIM, STRETCH, PASTEL and MOSAIC indicators do not appear in the MENU settings.

Using special effects - Digital effect

You can add special effects to recorded pictures using the various digital functions. The sound is recorded normally.

STILL

You can record a still picture so that it is superimposed on a moving picture.

FLASH (FLASH MOTION)

You can record still pictures successively at constant intervals.

LUMI. (LUMINANCEKEY)

You can swap a brighter area in a still picture with a moving picture.

TRAIL

You can record the picture so that an incidental image like a trail is left.

SLOW SHTR (SLOW SHUTTER)

You can slow down the shutter speed. The slow shutter mode is good for recording dark pictures more brightly. However, the picture may be less clear.

OLD MOVIE

You can add an old movie type atmosphere to pictures. Your camcorder automatically sets the wide mode to ON, picture effect to SEPIA, and the appropriate shutter speed.

(1) While your camcorder is in the standby or recording mode, press DIGITAL EFFECT. The digital effect indicator appears.
(2) Turn the SEL/PUSH EXEC dial to select the desired digital effect mode. The indicator changes as follows: STILL ↔ FLASH ↔ LUMI. ↔ TRAIL ↔ SLOW SHTR ↔ OLD MOVIE
(3) Press the SEL/PUSH EXEC dial. The indicator lights up and the bars appear. In the STILL and LUMI. modes, the still picture is stored in memory.
(4) Turn the SEL/PUSH EXEC dial to adjust the effect.

Items to adjust

STILL	The rate of the still picture you want to superimpose on the moving picture
FLASH	The interval of flash motion
LUMI.	The colour scheme of the area in the still picture which is to be swapped with a moving picture
TRAIL	The vanishing time of the incidental image
SLOW SHTR	Shutter speed. The larger the shutter speed number, the slower the shutter speed.
OLD MOVIE	No adjustment necessary

The more bars there are on screen, the stronger the digital effect. The bars appear in the following modes: STILL, FLASH, LUMI. and TRAIL.

To cancel the digital effect

Press DIGITAL EFFECT. The digital effect indicator disappears.

Notes

• The following functions do not work during digital effect:
• Fader
• Low lux mode of PROGRAM AE
• Photo recording
• NightShot +Slow shutter
• The following function does not work in the slow shutter mode:
• PROGRAM AE
• The following functions do not work in the old movie mode:
• Wide mode
• Picture effect
• PROGRAM AE

When you turn the power off

The digital effect will be automatically canceled.

When recording in the slow shutter mode

Auto focus may not be effective. Focus manually using a tripod.

Shutter speed

Shutter speed number	Shutter speed
SLOW SHTR 1	1/25
SLOW SHTR 2	1/12
SLOW SHTR 3	1/6
SLOW SHTR 4	1/3

Adjusting the white balance manually

You can manually adjust and set the white balance. This adjustment makes white subjects look white and allows more natural colour balance. Normally white balance is automatically adjusted.

In the standby or recording mode, select the desired white balance mode in the MENU settings. (p. 87)

The selected white balance indicator appears.

AUTO (Automatic white balance mode) : no indication

HOLD (Hold mode) : HOLD

OUTDOOR (Outdoor mode) :

To return to the automatic white balance mode

Set WHT BAL to AUTO in the MENU settings.

Cases that you can obtain better results by adjusting the white balance manually

Examples of picture-taking conditions	White balance indicator
If the lighting conditions, like those at a party, are changing.If the picture is being taken in a studio lit by TV lighting.If the subject is being lit by sodium- or mercury-vapor lamps.	(ezzel)
At night-time with neon or fireworks in the pictureAt sunrise or sunsetUnder daytime-fluorescent light	(freecl)
If the subject or background is all the same colour.	HOLD

Adjusting the white balance manually

If the picture is being taken in a studio lit by TV lighting

We recommend you to record in the indoor mode.

When you record under fluorescent lighting Use the automatic white balance or hold mode. Your camcorder may not adjust the white balance correctly in the indoor mode.

To record when lighting conditions change

• When you move from indoors to outdoors, or vice versa, or detach the battery for replacement while recording in the automatic white balance mode, point your camcorder at a white subject for about 10 seconds after setting the POWER switch to CAMERA.
• When you move from indoors to outdoors, or vice versa, or change the PROGRAM AE mode while recording in the hold mode, set the white balance to AUTO and reset to HOLD after few seconds.

You can select PROGRAM AE (Auto Exposure) mode to suit your specific shooting requirements.

Spotlight mode

This mode prevents people's faces, for example, from appearing excessively white when shooting subjects lit by strong light at weddings or in the theatre.

Soft portrait mode

This mode brings out the subject while creating a soft background for subjects such as people or flowers, and faithfully reproduces skin colour.

Sports lesson mode

This mode minimizes shake on fast-moving subjects such as in tennis or golf.

Beach & ski mode

This mode prevents people's faces from appearing dark in strong light or reflected light, such as at a beach in midsummer or on a ski slope.

Sunset & moon mode

This mode allows you to maintain atmosphere when you are recording sunsets, general night views, fireworks displays and neon signs.

Landscape mode

This mode is for when you are recording distant subjects such as mountains and prevents your camcorder from focusing on glass or metal mesh in windows when you are recording a subject behind glass or a screen.

Low lux mode

This mode makes subjects brighter in insufficient light.

Black-and-white photo of a person holding an object, with a small icon in the corner (no text or symbols)

Portrait of a person with a small icon in the corner (no text or symbols visible)

Black-and-white beach scene with palm trees and a small palm tree silhouette (no text or symbols)

Black-and-white photo of a bridge over a river with trees and hills in the background (no visible text or symbols)

Close-up of a mechanical component with blurred background and no visible text or symbols

Using the PROGRAM AE function

(1) Press PROGRAM AE in the standby mode. The PROGRAM AE indicator appears.
(2) Turn the SEL/PUSH EXEC dial to select the desired PROGRAM AE mode.

The indicator changes as follows:

• In the spotlight, sports lesson and beach & ski modes, you cannot take close-ups. This is because your camcorder is set to focus only on subjects in the middle to far distance.
• In the sunset & moon and landscape modes, your camcorder is set to focus only on distant subjects.
• The following functions do not work in the PROGRAM AE mode:
• Slow shutter
• Old movie
• Bounce
• The following functions do not work in the low lux mode:
• Digital effect
• Overlap
• If you press PROGRAM AE when using the NightShot function, the PROGRAM AE indicator flashes and the PROGRAM AE function does not work.

While WHT BAL is set to AUTO in the MENU settings

The white balance is adjusted even if the PROGRAM AE function is selected.

Even if the PROGRAM AE function is selected You can adjust the exposure.

If you are recording under a discharge tube such as a fluorescent lamp, sodium lamp or mercury lamp

Flickering or changes in colour may occur in the following modes. If this happens, turn the PROGRAM AE function off.

- Soft portrait mode

– Sports lesson mode

Примечания

Adjusting the exposure manually

You can manually adjust and set the exposure. Adjust the exposure manually in the following cases:

• The subject is backlit
- Bright subject and dark background
• To record dark pictures (e.g. night scenes) faithfully

(1) Press EXPOSURE in the standby or recording mode.
The exposure indicator appears.
(2) Turn the SEL/PUSH EXEC dial to adjust the brightness.

To return to the automatic exposure mode

Press EXPOSURE again.

Note

When you adjust the exposure manually, the backlight function does not work.

If you change the PROGRAM AE mode or slide NIGHTSHOT to ON

Your camcorder automatically returns to the automatic exposure mode.

You can gain better results by manually adjusting the focus in the following cases:

• The autofocus mode is not effective when shooting
  – subjects through glass coated with water droplets
• horizontal stripes
  – subjects with little contrast with backgrounds such as walls and sky
• When you want to change the focus from a subject in the foreground to a subject in the background
• Shooting a stationary subject when using a tripod

Фокусировка вручную

Two black-and-white photos showing a person holding flowers, with no visible text or symbols.

(1) Set FOCUS to MANUAL in the standby or recording mode. The F indicator appears.
(2) Turn the focus ring to sharpen focus.

To return to the autofocus mode

Set FOCUS to AUTO.

To record distant subjects

When you press FOCUS down to INFINITY. The lens focuses on and ▲ indicator appears. When you release FOCUS, your camcorder returns to the manual focus mode. Use this mode when your camcorder focuses on near objects even though you are trying to shoot a distant object.

Not to make subjects out of focus when using zoom function

Focus after forcusing at the “T” (telephoto) position.

It will be harder to focus on when using digital zoom function.

Shooting in relatively dark places or shooting fast-moving subjects in relatively bright places

Shoot at the “W” (wide-angle) position after focusing at the “T” (telephoto) position.

When you shoot close to the subject

Focus at the end of the “W” (wide-angle) position.

The following indicators may appear

▲ when recording a distant subject.

when the subject is too close to focus on.

Playing back a tape with picture effects

During playback, you can process a scene using the picture effect functions: NEG.ART, SOLARIZE, SEPIA and B&W.

During playback, select the desired picture effect mode in the MENU settings (p. 87).

For details of each picture effect function, see page 49.

To cancel the picture effect function

Set P EFFECT to OFF in the MENU settings.

Notes

• You cannot process externally input scenes using the picture effect function.
• To record pictures that you have processed using the picture effect function, record the pictures on the VCR using your camcorder as a player.

Pictures processed by the picture effect function

Pictures processed by the picture effect function are not output through the i DV OUT jack.

When you set the POWER switch to OFF or stop playing back

The picture effect function is automatically canceled.

Playing back a tape with digital effects

During playback, you can process a scene using the digital effect functions: STILL, FLASH, LUMI. and TRAIL.

(1) During playback, press DIGITAL EFFECT and turn the SEL/PUSH EXEC dial until the desired digital effect indicator (STILL, FLASH, LUMI. or TRAIL) flashes.
(2) Press the SEL/PUSH EXEC dial. The digital effect indicator lights up and the bars appear. In the STILL or LUMI. mode, the picture where you press the SEL/PUSH EXEC dial is stored in memory as a still picture.
(3) Turn the SEL/PUSH EXEC dial to adjust the effect. For details of each digital effect function, see page 51.

Playing back a tape with digital effects

Notes

• You cannot process externally input scenes using the digital effect function.
  • To record pictures that you have processed using the digital effect, record the pictures on the VCR using your camcorder as a player.

Pictures processed by the digital effect function

Pictures processed by the digital effect function are not output through the i DV OUT jack.

When you set the POWER switch to OFF or stop playing back

The digital effect function is automatically canceled.

Quickly locating a scene using the zero set memory function

Your camcorder goes forward or backward to automatically stop at a desired scene having a tape counter value of “0:00:00”. You can do this with the Remote Commander.

Use this function, for example, to view a desired scene later on during playback.

(1) In the playback mode, press DISPLAY.
(2) Press ZERO SET MEMORY at the point you want to locate later. The tape counter shows "0:00:00" and the ZERO SET MEMORY indicator flashes.
(3) Press ■ when you want to stop playback.
(4) Press ◀◀ to rewind the tape to the tape counter's zero point. The tape stops automatically when the tape counter reaches approximately zero. The ZERO SET MEMORY indicator disappears and the time code appears.
(5) Press ▶. Playback starts.

Notes

• When you press ZERO SET MEMORY before rewinding the tape, the zero set memory function will be canceled.
• There may be a discrepancy of several seconds from the time code.
• The zero set memory function may not work when there is a blank portion between pictures on a tape.

ZERO SET MEMORY functions also in the recording standby mode

When you insert a scene in the middle of a recorded tape, press ZERO SET MEMORY at the point you want to end the insertion. Rewind the tape to the insert start point, and start recording. Recording stops automatically at the tape counter zero point. Your camcorder returns to the standby mode.

Примечания

Searching a recording by date - Date search

You can automatically search for the point where the recording date changes and start playback from that point (Date search). Use a tape with cassette memory for convenience. You can do this with the Remote Commander.

Use this function to check where recording dates change or to edit the tape at each recording date.

Searching for the date by using cassette memory

You can use this function only when playing back a tape with cassette memory (p. 129).

(1) Set the POWER switch to PLAYER.
(2) Set CM SEARCH in ☐ to ON in the MENU settings (p. 87). Factory setting is ON.
(3) Press SEARCH MODE repeatedly, until the date search indicator appears.
The indicator changes as follows: TITLE SEARCH → DATE SEARCH → PHOTO SEARCH → PHOTO SCAN → no indicator
(4) Press ◀◀◀ or ▶▶◀ to select the date for playback.
Your camcorder automatically starts playback at the beginning of the selected date.

Searching for the date without using cassette memory

(1) Set the POWER switch to PLAYER.
(2) Set CM SEARCH in [CIV] to OFF in the MENU settings (p. 87).
(3) Press SEARCH MODE repeatedly, until the date search indicator appears.
The indicator changes as follows: DATE SEARCH → PHOTO SEARCH → PHOTO SCAN → no indicator
(4) Press ◀◀◀ to search for the previous date or press ▶▶◀ to search for the next date. Your camcorder automatically starts playback at the point where the date changes. Each time you press ◀◀◀ or ▶▶◀, your camcorder searches for the previous or next date.

To stop searching

Press ■.

Notes

• If one day's recording is less than two minutes, your camcorder may not accurately find the point where the recording date changes.
• The cursor in the mark indicates the present point on the tape.

If a tape has a blank portion between recorded portions

The date search function may not work correctly.

Cassette memory

The tape cassette memory can hold six recording date data.

Searching the boundaries of recorded tape by title - Title search

CM only

If you use a tape with cassette memory, you can search for the boundaries of recorded tape by title (Title search). Use the Remote Commander for this operation.

(1) Set the POWER switch to PLAYER.
(2) Set CM SEARCH in ☐ to ON in the MENU settings (p. 87). Factory setting is ON.
(3) Press SEARCH MODE repeatedly, until the title search indicator appears.
(4) Press ◀◀◀ or ▶▶◀ to select the title for playback.

Your camcorder automatically starts playback of the scene having the title that you selected.

If you use a tape without cassette memory You cannot superimpose or search a title.

To superimpose a title

See page 79.

If a tape has a blank portion between recorded portions

The title search function may not work correctly.

Searching for a photo - Photo search/Photo scan

You can search for a still picture you have recorded on a mini DV tape (photo search). You can also search for still pictures one after another and display each picture for five seconds automatically regardless of cassette memory (photo scan). Use the Remote Commander for these operations. Use this function to check or edit still pictures.

Searching for a photo by using cassette memory

You can use this function only when playing back a tape with cassette memory (p. 129).

(1) Set the POWER switch to PLAYER.
(2) Set CM SEARCH in [CIII] to ON in the MENU settings (p. 87). Factory setting is ON.
(3) Press SEARCH MODE repeatedly, until the photo search indicator appears. The indicator changes as follows: TITLE SEARCH → DATE SEARCH → PHOTO SEARCH → PHOTO SCAN → no indicator

(4) Press ◀◀◀ or ▶▶◀ to select the date for playback. Your camcorder automatically starts playback of the photo having the date that you selected.

If a tape has a blank portion between recorded portions

The photo search function may not work correctly.

Searching for a photo without using cassette memory

(1) Set the POWER switch to PLAYER.
(2) Set CM SEARCH in [CIII] to OFF in the MENU settings (p. 87).
(3) Press SEARCH MODE repeatedly, until the photo search indicator appears.
(4) Press ◀◀◀ or ▶▶◀ to select the photo for playback. Each time you press ◀◀◀ or ▶▶◀, your camcorder searches for the previous or next photo.
Your camcorder automatically starts playback of the photo.

To stop searching

Press ■.

Scanning photo

(1) Set the POWER switch to PLAYER.
(2) Press SEARCH MODE repeatedly, until the photo scan indicator appears.
(3) Press ◀◀ or ▶▶.
Each photo is played back for about 5 seconds automatically.

Using the A/V connecting cable

Connect your camcorder to the VCR using the A/V connecting cable supplied with your camcorder.

Set the input selector on the VCR to LINE, if available.

(1) Insert a blank tape (or a tape you want to record over) into the VCR, and insert the recorded tape into your camcorder.
(2) Set the POWER switch to PLAYER.
(3) Play back the recorded tape on your camcorder.
(4) Start recording on the VCR.

Перезапись ленты

When you have finished dubbing a tape

Press ■ on both your camcorder and the VCR.

If you have displayed the screen indicators on the TV

Make the indicators disappear by pressing SEARCH MODE or DATA CODE on the Remote Commander or DISPLAY so that they will not be superimposed on the edited tape.

You can edit on VCRs that support the following systems

8 8 mm, Hi8 Hi8, Digital8, VHS VHS, SVHS S-VHS, VHSC VHSC, SVHSC S-VHSC, Betamax, MiniDV mini DV or DV DV

If your VCR is a monaural type

Connect the yellow plug of the A/V connecting cable to the video input jack and the white or the red plug to the audio input jack on the VCR or the TV. When the white plug is connected, the left channel audio is output, and the red plug is connected, the right channel audio is output.

Connect using an S video cable (not supplied) to obtain high-quality pictures

With this connection, you do not need to connect the yellow (video) plug of the A/V connecting cable.

Connect an S video cable (not supplied) to the S video jacks of both your camcorder and the VCR. This connection produces higher quality DV format pictures.

Using the i.LINK cable (DV connecting cable)

Simply connect the VMC-IL4435/2DV/4DV i.LINK cable (DV connecting cable) (not supplied) to DV OUT and to DV IN of the DV products. With digital-to-digital connection, video and audio signals are transmitted in digital form for high-quality editing. You cannot dub the titles, display indicators or the contents of cassette memory.

(1) Insert a blank tape (or a tape you want to record over) into the VCR, and insert the recorded tape into your camcorder.
(2) Set the POWER switch to PLAYER.
(3) Play back the recorded tape on your camcorder.
(4) Start recording on the VCR.

When you have finished dubbing a tape

Press ■ (STOP) on both your camcorder and the VCR.

You can connect one VCR only using the i.LINK cable (DV connecting cable).

During digital editing

You cannot use DIGITAL EFFECT button functions.

If you record playback pause picture with the DV OUT jack

The recorded picture becomes rough. And when you play back the picture using the other video equipment, the picture may jitter.

To perform a more precise editing (DCR-TRV10E only)

Use DV synchro-editing function (p. 74).

Editing partially on a DV tape - DV synchro-editing (DCR-TRV10E only)

By simply selecting the scenes to edit, you can duplicate the desired portion on a tape, using other equipment connected with an i.LINK cable (DV connecting cable). The scenes can be selected by frame. Since your camcorder exchanges digital signals, you can edit with little audio and video deterioration.

You cannot duplicate titles, display indicators, or the contents of cassette memory.

The connection is the same as on page 73.

(1) Insert a recorded tape into your camcorder and insert a blank tape (or a tape you want to record over) into the DV product.
(2) Set the POWER switch of your camcorder to PLAYER.
(3) Set the input selector to DV input on the DV product. If the DV product is another DV camcorder, set its POWER switch to VTR.
(4) Press MENU to display the menu.
(5) Turn the SEL/PUSH EXEC dial to select ETC, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select DV EDITING, then press the dial.
(7) Using the video control buttons, locate the point where you want to start editing, then press Ⅲ to set your camcorder in the playback pause mode (p. 161).
(8) Press the SEL/PUSH EXEC dial or MARK on the Remote Commander to set DV EDITING IN.
(9) Using the video control buttons, locate the point where you want to end editing, then press Ⅱ to set your camcorder in the playback pause mode.
(10) Press the SEL/PUSH EXEC dial or MARK on the Remote Commander to set DV EDITING OUT. The editing process starts. When the process ends, your camcorder and the DV product automatically set to pause mode.

• If you use other than Sony equipment with the
  i. DV jack, you cannot perform DV synchro-editing.
• If a tape has a blank portion between recorded portions, DV synchro-editing may not work correctly.

Errors in duplicating

If you connect your camcorder to Sony equipment with DV jack, the range of errors is within +/-5 frames. The range may become wider in the following conditions.

• The interval between DV EDITING IN and OUT is less than five seconds.
• DV EDITING IN or OUT is set at the beginning of the tape.

If you do not make connections with i.LINK cable (DV connecting cable)

The screen shows NOT READY, and you cannot select DV EDITING.

On a blank portion of the tape

You cannot set DV EDITING IN or OUT.

Примечания

You can record an audio sound to add to the original sound on a tape by connecting audio equipment or a microphone. If you connect the audio equipment, you can add sound to your recorded tape by specifying starting and ending points. The original sound will not be erased. Use the Remote Commander for this operation.

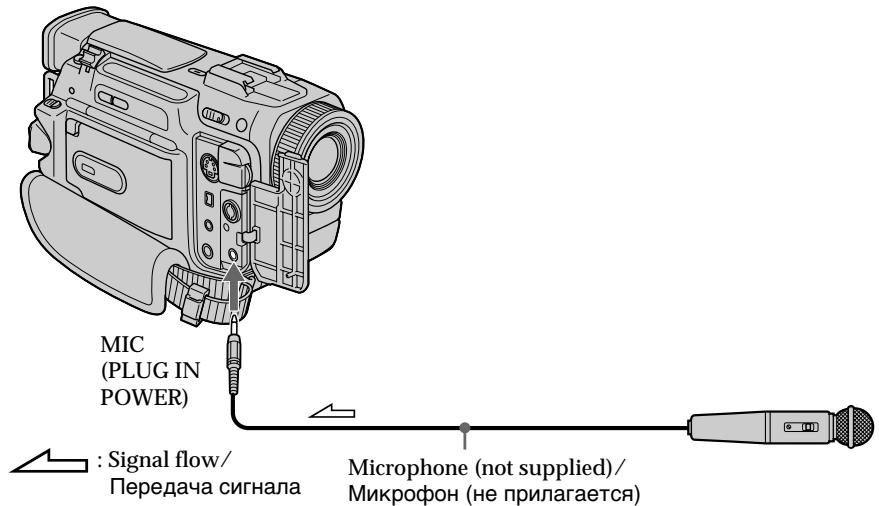

Connecting the microphone with the MIC jack

You can check the recorded picture and sound by connecting the AUDIO/VIDEO jack to a TV. The recorded sound is not output from a speaker. Check the sound by using the TV or headphones.

Connecting the microphone with the intelligent accessory shoe

Аудиоперезапись

Illustration of a video camera with attached cable, shown from front and side views (no text or symbols)

Dubbing with the built-in microphones

No connection is necessary.

Note

The picture is not output from the AUDIO/VIDEO jack. Check the recorded picture on the LCD screen or in the viewfinder, as well as check the recorded sound by using a speaker or headphones.

Adding an audio sound on a recorded tape

(1) Insert your recorded tape into your camcorder.
(2) Set the POWER switch of your camcorder to PLAYER.
(3) Locate the recording start point by pressing ▶. Then press ▶ at the point where you want to start recording to set your camcorder to playback pause mode.
(4) Press AUDIO DUB on the Remote Commander.
(5) Press ■ on the Remote Commander and at the same time start playing back the audio you want to record. The new sound is recorded in stereo 2 (ST2) during playback.
(6) Press ■ on the Remote Commander at the point where you want to stop recording.

Monitoring the new recorded sound

To play back the sound

Adjust the balance between the original sound (ST1) and the new sound (ST2) by selecting AUDIO MIX in the MENU settings (p. 87).

Аудиоперезапись

Five minutes after when you disconnect the power source or remove the battery pack, the setting of AUDIO MIX returns to the original sound (ST1) only. The factory setting is original sound only.

Notes

• New sound cannot be recorded on a tape already recorded in the 16-bit mode (32 kHz, 44.1 kHz or 48 kHz) (p. 91).
• When an external microphone is not connected, the recording will be made through the built-in microphone of your camcorder.
• New sound cannot be recorded on a tape already recorded in the LP mode.
• You cannot add audio with the AV OUT nor i, DV OUT jack.

If you make all the connections

The audio input to be recorded will take precedence over others in the following order.

• MIC (PLUG IN POWER) jack

- Intelligent accessory shoe

• Built-in microphone

If the A/V connecting cable or i.LINK cable (DV connecting cable) is connected to your camcorder

You cannot add a sound to a recorded tape.

To add new sound more precisely

Press ZERO SET MEMORY at the point where you want to stop recording later in the playback mode.

Carry out steps 3 to 5. Recording automatically stops at the point where ZERO SET MEMORY was pressed.

We recommend you to add new sound on a tape recorded with your camcorder

If you add new sound on a tape recorded with another camcorder (including DCR-TRV8E/TRV10E), the sound quality may become worse.

Superimposing a title

CM only

If you use a tape with cassette memory, you can superimpose the title while recording or after recording. When you play back the tape, the title is displayed for five seconds from the point where you superimposed it.

You can select one of eight preset titles and two custom titles (p. 83). You can also select the colour, size and position of titles.

Наложение титра

CM only

(1) Press TITLE to display the title menu.
(2) Turn the SEL/PUSH EXEC dial to select □, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select the desired title, then press the dial. The title is flashing.
(4) Change the colour, size, or position, if necessary.
① Turn the SEL/PUSH EXEC dial to select the colour, size, or position, then press the dial. The item appears.
② Turn the SEL/PUSH EXEC dial to select the desired item, then press the dial.
③ Repeat steps ① and ② until the title is laid out as desired.
(5) Press the SEL/PUSH EXEC dial again to complete the setting.
In the playback, playback pause or recording mode:
The “TITLE SAVE” indicator appears on the screen for 5 seconds and the title is set.
In the standby mode:
The “TITLE” indicator appears. And when you press START/STOP to start recording, “TITLE SAVE” appears on the screen for 5 seconds and the title is set.

If you use a cassette set to prevent accidental erasure

You cannot superimpose or erase the title. Slide the write-protect tab so that the red portion is not visible.

To use the custom title

If you want to use the custom title, select ☐ in step 2.

If you have not made any custom title,

“----...” appears on the display.

Title setting

• The title colour changes as follows : WHITE ↔ YELLOW ↔ VIOLET ↔ RED ↔ CYAN ↔ GREEN ↔ BLUE
• The title size changes as follows :

SMALL ↔ LARGE

If you input 13 characters or more for a LARGE title, the title is automatically reduced in size after its position is set.

• The title position changes as follows :

$$ 1 \longleftrightarrow 2 \longleftrightarrow 3 \longleftrightarrow 4 \longleftrightarrow 5 \longleftrightarrow 6 \longleftrightarrow 7 \longleftrightarrow 8 \longleftrightarrow 9 $$

The larger the position number, the lower the title is positioned.

When you select the title size “LARGE”, you cannot choose position 9.

One cassette can have up to about 26 titles, if one title consists of 5 characters

However, if the cassette memory is full with date, photo and cassette label data, one cassette can have only up to about 15 titles with 5 characters each.

Cassette memory capacity is as follows:

• 6 date data (maximum)
  • 12 photo data (maximum)
  • 1 cassette label (maximum)

(1) Set the POWER switch to PLAYER.
(2) Press MENU to display the menu.
(3) Turn the SEL/PUSH EXEC dial to select ☐, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select TITLEERASE, then press the dial. Title erase display appears.
(5) Turn the SEL/PUSH EXEC dial to select the title you want to erase, then press the dial. "ERASE OK?" indicator appears.
(6) Make sure the title is the one you want to erase, and turn the SEL/PUSH EXEC dial to select ERASE, then press the dial.

Стирание титра

Diagram showing a 3D object transforming into a 2D object, with no text or symbols present.

5,6

Diagram showing a 3D object transforming into a 2D view, with no text or symbols present.

To erase the menu display

Press MENU.

Making your own titles

CM only

You can make up to two titles and store them in the cassette memory. Each title can have up to 20 characters.

(1) Press TITLE in the standby or PLAYER mode.
(2) Turn the SEL/PUSH EXEC dial to select , then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select the first line (CUSTOM1) or second line (CUSTOM2), then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select the column of the desired character, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the desired character, then press the dial.
(6) Repeat steps 4 and 5 until you have selected all characters and completed the title.
(7) To finish making your own titles, turn the SEL/PUSH EXEC dial to select [SET], then press the dial. The title is stored in memory.
(8) Press TITLE to make the title menu disappear.

4
1

2

3

4

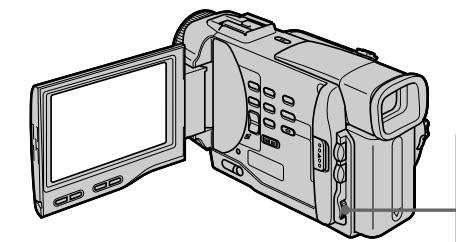

To change a title you have stored

In step 3, select CUSTOM1 or CUSTOM2, depending on which title you want to change, then press the SEL/PUSH EXEC dial. Turn the SEL/PUSH EXEC dial to select [←], then press the dial to delete the title. The last character is erased. Enter the new title as desired.

If you take 5 minutes or longer to enter characters in the standby mode while a cassette is in your camcorder

The power automatically goes off. The characters you have entered remain stored in memory. Set the POWER switch to OFF once and then to CAMERA again, then proceed from step 1. We recommend setting the POWER switch to PLAYER or removing the cassette so that your camcorder does not automatically turn off while you are entering title characters.

To delete the title

Select [←]. The last character is erased.

If you use a tape with cassette memory, you can label a cassette. The label can consist of up to 10 characters and is stored in cassette memory. When you insert the labeled cassette and turn the power on, the label is displayed on the LCD screen, in the viewfinder, or on the TV screen.

(1) Insert the cassette you want to label.
(2) Set the POWER switch to PLAYER.
(3) Press MENU to make the menu display appear.
(4) Turn the SEL/PUSH EXEC dial to select ☐, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select TAPE TITLE, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select the column of the desired character, then press the dial.
(7) Turn the SEL/PUSH EXEC dial to select the desired character, then press the dial.
(8) Repeat steps 6 and 7 until you finish the label.
(9) Turn the SEL/PUSH EXEC dial to select [SET], then press the dial.
The label is stored in memory.

Line drawing of a digital camera with open screen and multiple buttons (no text or symbols)

4,5

Маркировка кассеты

CM only

To erase a character

In step 6 turn the SEL/PUSH EXEC dial to select [←], then press the dial. The last character is erased.

To change the label you have made

Insert the cassette to change the label, and operate in the same way to make a new label.

If you use a cassette set to prevent accidental erasure

You cannot label it. Slide the write-protect tab so that the red portion is not visible.

If the ⬇ mark appears in step 5

The cassette memory is full. If you erase the title in the cassette, you can label it.

If you have superimposed titles in the cassette When the label is displayed, up to 4 titles also appear.

When the “----” indicator has fewer than 10 spaces

The cassette memory is full.

The “----” indicates the number of characters you can select for the label.

Changing the MENU settings

To change the mode settings in the MENU settings, select the menu items with the SEL/PUSH EXEC dial. The factory settings can be partially changed. First, select the icon, then the menu item and then the mode.

(1) In the standby or PLAYER mode, press MENU.
(2) Turn the SEL/PUSH EXEC dial to select the desired icon, then press the dial to set.
(3) Turn the SEL/PUSH EXEC dial to select the desired item, then press the dial to set.
(4) Turn the SEL/PUSH EXEC dial to select the desired mode, and press the dial to set.
(5) If you want to change other items, select ➕ RETURN and press the dial, then repeat steps from 2 to 4.

For details, see “Selecting the mode setting of each item” (p. 88).

Changing the MENU settings

To make the MENU display disappear Press MENU.

Menu items are displayed as the following icons:

TM MANUAL SET
CAMERA SET
PLAYER SET
LCD/VF SET
MEMORY SET (DCR-TRV10E only)
CM SET
TAPE SET
SETUP MENU
ETC OTHERS

English

Selecting the mode setting of each item ● is the factory setting.

Menu items differ depending on the position of the POWER switch.

Icon/item	Mode	Meaning	POWER switch
M P EFFECT		To add special effects like those in films or on the TV to images (p. 49)	CAMERA PLAYER
WHT BAL		To adjust the white balance (p. 54)	CAMERA MEMORY
AUTO SHTR	● ON	To automatically activate the electronic shutter when shooting in bright conditions	CAMERA MEMORY
	OFF	To not automatically activate the electronic shutter even when shooting in bright conditions
C D ZOOM	ON	To activate digital zoom. More than 10× to 40× zoom is performed digitally (p. 24)	CAMERA MEMORY
	● OFF	To deactivate digital zoom. Up to 10× zoom is carried out.
16:9WIDE	● OFF	—	CAMERA
	ON	To record a 16:9 wide picture (p. 44)
STEADYSHOT	● ON	To compensate for camera-shake	CAMERA MEMORY
	OFF	To cancel the SteadyShot function. Natural pictures are produced when shooting a stationary object with a tripod.
N.S. LIGHT	● ON	To use the NightShot Light function (p. 28)	CAMERA MEMORY
	OFF	To cancel the NightShot Light function

Notes on the SteadyShot function

• The SteadyShot function will not correct excessive camera-shake.
• Attachment of a conversion lens (not supplied) may influence the SteadyShot function.

If you cancel the SteadyShot function

The SteadyShot off indicator "ψ" appears. Your camcorder prevents excessive compensation for camera-shake.

Icon/item	Mode	Meaning	POWER switch
HiFi SOUND	● STEREO	To play back a stereo tape or dual sound track tape with main and sub sound	PLAYER
	1	To play back a stereo tape with the left sound or a dual sound tape with main sound
	2	To play back a stereo tape with the right sound or a dual sound track tape with sub sound
AUDIO MIX		To adjust the balance between the stereo 1 and stereo 2 (p. 77)	PLAYER
NTSC PB	● ON PAL TV	To playback a tape recorded on your camcorder on a PAL system TV	PLAYER
	NTSC 4.43	To playback a tape recorded in the NTSC colour system on a TV with the NTSC 4.43 mode
LCD B. L.	● BRT NORMAL	To set the brightness on the LCD screen normal	PLAYER CAMERA MEMORY
	BRIGHT	To brighten the LCD screen
LCD COLOUR		To adjust the colour on the LCD screen, turn and press the SEL/PUSH EXEC dial	PLAYER CAMERA MEMORY
VF BRIGHT			PLAYER CAMERA MEMORY

Note on AUDIO MIX

When playing back a tape recorded in the 16-bit mode, you cannot adjust the balance.

Note on the playback of the NTSC tapes

When you play back a tape on a Multi System TV, select the best mode while viewing the picture on the TV.

Notes on LCD B.L.

• When you select “BRIGHT”, battery life is reduced by about 10 percent during recording.
• When you use power sources other than the battery pack, “BRIGHT” is automatically selected.

Icon/item	Mode	Meaning	POWER switch
CONTINUOUS (DCR-TRV10E only)	● OFF	Not to record continuously	MEMORY
	ON	To record 3 or 4 pictures continuously (p. 107)
	MULTI SCRN	To record 9 picutures continuously (p. 107)
QUALITY (DCR-TRV10E only)	● FINE	To record still pictures in the fine image quality mode, using the Memory Stick	PLAYER MEMORY
	STANDARD	To record still pictures in the standard image quality mode, using the Memory Stick
FLD./FRAME (DCR-TRV10E only)	● FIELD	To record moving subjects	MEMORY
	FRAME	To record stopping subjects in high quality
PRINT MARK (DCR-TRV10E only)	ON	To write a print mark on the recorded still images you want to print out later	PLAYER MEMORY
	● OFF	Not to write print marks on still pictures
PROTECT (DCR-TRV10E only)	ON	To protect selected still pictures against accidental erasure (p. 121)	PLAYER MEMORY
	● OFF	Not to protect still pictures
SLIDE SHOW (DCR-TRV10E only)		To play back images in a continuous loop (p. 127)	MEMORY
DELETE ALL (DCR-TRV10E only)		To delete all the images (p. 124)	MEMORY
FORMAT (DCR-TRV10E only)		To format Memory Sticks	MEMORY
PHOTO SAVE (DCR-TRV10E only)		To duplicate still pictures (p. 112)	PLAYER
CM SEARCH	● ON	To search using cassette memory (p. 66)	PLAYER
	OFF	To search without using cassette memory
TITLEERASE		To erase the title you have superimposed (p. 82)	PLAYER CAMERA
TITLE DSPL	● ON	To display the title you have superimposed	PLAYER
	OFF	Not to display the title
TAPE TITLE		To label a cassette (p. 85)	PLAYER CAMERA
ERASE ALL		To erase all the data in cassette memory	PLAYER CAMERA
REC MODE	● SP	To record in the SP (Standard Play) mode	CAMERA
	LP	To increase the recording time to 1.5 times the SP mode
AUDIO MODE	● 12BIT	To record in the 12-bit mode (two stereo sounds)	PLAYER CAMERA
	16BIT	To record in the 16-bit mode (the one stereo sound with high quality)
REMAIN	● AUTO	To display the remaining tape bar:• for about 8 seconds after your camcorder is turned on and calculates the remaining amount of tape• for about 8 seconds after a cassette is inserted and your camcorder calculates the remaining amount of tape• for about 8 seconds after ▶ is pressed in PLAYER mode• for about 8 seconds after DISPLAY is pressed to display the screen indicators• for the period of tape rewinding, forwarding or picture search in the PLAYER mode	PLAYER CAMERA
	ON	To always display the remaining tape indicator
DATA CODE	● DATE/CAM	To display date, time and various settings during playback	PLAYER
	DATE	To display date and time during playback

Notes on the LP mode

• When you record a tape in the LP mode on your camcorder, we recommend playing the tape on your camcorder. When you play back the tape on other camcorders or VCRs, noise may occur in pictures or sound.
• When you record in the LP mode, we recommend using a Sony Excellence/Master mini DV cassette so that you can get the most out of your camcorder.
• You cannot make audio dubbing on a tape recorded in the LP mode. Use the SP mode for the tape to be audio dubbed.
• When you record in the SP and LP modes on one tape or you record some scenes in the LP mode, the playback picture may be distorted or the time code may not be written properly between scenes.

Notes on AUDIO MODE

• You cannot dub audio sound on a tape recorded in the 16BIT mode.
• When playing back a tape recorded in the 16-bit mode, you cannot adjust the balance in AUDIO MIX.

Icon/item	Mode	Meaning	POWER switch
CLOCK SET		To reset the date or time (p. 98)	CAMERA MEMORY
LTR SIZE	●NORMAL	To display selected menu items in normal size	PLAYER CAMERA MEMORY
	2×	To display selected menu items at twice the normal size
DEMO MODE	●ON	To make the demonstration appear	CAMERA
	OFF	To cancel the demonstration mode
WORLD TIME		To set the clock to the local time. Turn the SEL/PUSH EXEC dial to set a time difference. The clock changes by the time difference you set here. If you set the time difference to 0, the clock returns to the originally set time.	CAMERA MEMORY
BEEP	●MELODY	To output the melody when you start/stop recording or when an unusual condition occurs on your camcorder	PLAYER CAMERA MEMORY
	NORMAL	To output the beep instead of the melody
	OFF	To cancel the melody and beep sound
COMMANDER	●ON	To activate the Remote Commander supplied with your camcorder	PLAYER CAMERA MEMORY
	OFF	To deactivate the Remote Commander to avoid remote control misoperation caused by other VCR's remote control
DISPLAY	●LCD	To show the display on the LCD screen and viewfinder	PLAYER CAMERA MEMORY
	V-OUT/LCD	To show the display on the TV screen, LCD screen and viewfinder
REC LAMP	●ON	To light up the camera recording lamp at the front of your camcorder	CAMERA MEMORY
	OFF	To turn the camera recording lamp off so that the subject is not aware of the recording
DV EDITING (DCR-TRV10E only)		To duplicate the desired portion on a tape by simply selecting the scenes to edit, using other equipment connected with an i.LINK cable (DV connecting cable) (p. 74)	PLAYER

Notes on DEMO MODE

• You cannot select DEMO MODE when a cassette is inserted in your camcorder.
• DEMO MODE is set to STBY (Standby) at the factory and the demonstration starts about 10 minutes after you have set the POWER switch to CAMERA without a cassette inserted.
  Note that you cannot select STBY of DEMO MODE in the MENU settings.
• When NIGHTSHOT is set to ON, the NIGHTSHOT indicator appears in the viewfinder or on the LCD screen and you cannot select DEMO MODE in the MENU settings.

In more than 5 minutes after removing the power source

The “AUDIO MIX”, “COMMANDER” and “HiFi SOUND” items are returned to their factory settings. The other menu items are held in memory even when the battery is removed.

Русский

Resetting the date and time

The clock is set at the factory to London time for United Kingdom to Paris time for the other European countries.

If you do not use your camcorder for about a half year, the date and time settings may be released (bars may appear) because the vanadium-lithium battery installed in your camcorder will have been discharged.

First, set the year, then the month, the day, the hour and then the minute.

(1) While your camcorder is in the standby mode, press MENU to display the MENU settings.
(2) Turn the SEL/PUSH EXEC dial to select ☐, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select CLOCK SET, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to adjust the desired year, then press the dial.
(5) Set the month, day and hour by turning the SEL/PUSH EXEC dial and pressing the dial.
(6) Set the minute by turning the SEL/PUSH EXEC dial and pressing the dial by the time signal. The clock starts to move.
(7) Press MENU to make the MENU settings disappear.

The year changes as follows:

If you do not set the date and time

“--:--:-” is recorded on the tape and the Memory Stick (DCR-TRV10E only).

Note on the time indicator

The internal clock of your camcorder operates on a 24-hour cycle.

You can record and play back still images on a Memory Stick supplied with your camcorder. You can easily play back, re-record or delete still images. You can also record images from a mini DV tape on a Memory Stick or vice versa. You can exchange image data with other equipment such as a personal computer etc., using the Serial port adaptor for Memory Stick supplied with your camcorder or MSAC-PC1 PC card adaptor for Memory Stick (not supplied).

Still images

Record the still image on a Memory Stick. Play back the picture with your PC. See page 117 for details.

Using a Memory Stick

When you use a Memory Stick

On file format (JPEG)

Your camcorder compresses image data in JPEG format (extension .jpg).

Typical image data file name DSC00001.jpg.

Notes

• Prevent metallic objects or your finger from coming into contact with the metal parts of the connecting section.
• Stick its label on the labeling position.
• Do not bend, drop or apply strong shock to Memory Sticks.
• Do not disassemble or modify Memory Sticks.
• Do not let Memory Sticks get wet.
• Do not use or keep Memory Sticks in locations that are:
• Extremely hot such as in a car parked in the sun or under the scorching sun
• Under direct sunlight
• Very humid or subject to corrosive gases
• When you carry or store a Memory Stick, put it in its case.

You do not need to format the Memory Stick supplied with your camcorder

The Memory Stick supplied with your camcorder is already formatted in FAT format. FAT format is the standard format for Memory Sticks and is supported by your camcorder.

Note

Sample images are already recorded on the Memory Stick supplied with your camcorder. All of these sample images will be deleted if you format the Memory Stick.

Memory Sticks formatted on a personal computer

Memory Stick operations on your camcorder cannot be assured if the Memory Stick is formatted on a Windows machine or Macintosh.

Notes on image data compatibility

• Image data files recorded on Memory Sticks by your camcorder conform with the Design Rules for Camera File Systems universal standard established by the JEIDA (Japan Electronic Industry Development Association).
  You cannot play back on your camcorder still images recorded on other equipment (DCR-TRV890E/TRV900E, DSC-D700) that does not conform with this universal standard. (These models are not sold in some areas.)
• If you cannot use a Memory Stick that has been used on other equipment, format the Memory Stick on your camcorder following the steps on page 105. Note that all images on the Memory Stick will be deleted if you format it.

Memory Stick is a trademark of Sony Corporation.

(1) Slide MEMORY OPEN in the direction of the arrow. The Memory Stick compartment opens.
(2) Insert a Memory Stick in as far as it can go with its rounded corner facing up. Then, close the Memory Stick compartment.

1

To eject a Memory Stick

Open the Memory Stick compartment in step 1, press MEMORY RELEASE. The Memory Stick comes out.

Установка Memory Stick

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

MEMORY RELEASE

When the ACCESS lamp is lit or flashing Never shake or strike your camcorder. Do not turn the power off, eject a Memory Stick or remove the battery pack. Otherwise, the image data breakdown may occur.

Selecting image quality mode

You can select image quality mode in still picture recording. If you do not make any selection, the unit automatically records in FINE mode.

(1) Set the POWER switch to MEMORY. Make sure that the lock is set to the left (unlock) position.
(2) Press MENU to make the MENU display appear.
(3) Turn the SEL/PUSH EXEC dial to select ☐, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select QUALITY, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the desired image quality, then press the dial.
(6) Press MENU to erase the menu display.

Image quality settings

Setting	Meaning
FINE (FINE)	Use this mode when you want to record high quality images. The image is compressed to about 1/6.
STANDARD (STD)	This is the standard image quality. The image is compressed to about 1/10.

Differences in image quality mode

Recorded images are compressed in JPEG format before being stored into memory. The memory capacity allotted to each image varies depending on the selected image quality mode. Details are shown in the table below. (The number of pixels is 640 × 480 , regardless of image quality mode. The data size before compression is about 600 KB.)

Image quality mode	Memory capacity
FINE	About 100 KB
STANDARD	About 60 KB

Approximate number of images you can record on a Memory Stick

The number of images you can record varies depending on which image quality mode you select and the complexity of the subject.

4MB type:

FINE (FINE) 40 images (maximum)

STANDARD (STD) 60 images (maximum)

8MB type:

FINE (FINE) 81 images (maximum)

STANDARD (STD) 122 images (maximum)

16MB type:

FINE (FINE) 164 images (maximum)

STANDARD (STD) 246 images (maximum)

Note

In some cases, changing the image quality mode may not affect the image quality, depending on the types of images you are shooting.

Your camcorder can format (initialize) a Memory Stick. If you format a Memory Stick, all data stored in the Memory Stick will be deleted. This function is convenient when you want to delete all data including protected images. New Memory Sticks are already formatted so that formatting is not required for them. Sample images are stored in the supplied Memory Stick. Note that these sample images will be deleted if you format the Memory Stick.

Formatting (initializing) a Memory Stick

(1) Insert a Memory Stick into your camcorder.
(2) Set the POWER switch to MEMORY. Make sure that the lock is set to the left (unlock) position.
(3) Press MENU to make the MENU display appear.
(4) Turn the SEL/PUSH EXEC dial to select □, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select FORMAT, then press the dial.
(6) Turn the SEL/PUSH EXEC dial again to select OK, then press the dial. The display shows "EXECUTE."
(7) Press the SEL/PUSH EXEC dial. The display shows “FORMATTING,” and formatting procedure begins. When formatting is finished, the display shows “COMPLETE.”

Check the contents of the "Memory Stick" before formatting

Note that all data in the “Memory Stick” including protected images will be deleted.

While "FORMATTING" is displayed

Do not turn the POWER switch nor press any button.

Note

You cannot format the “Memory Stick” if the write-protect tab on the “Memory Stick” is set to LOCK.

Recording still images on Memory Sticks - Memory photo recording

- DCR-TRV10E only

You can select the FIELD or FRAME mode in still picture recording. Your camcorder compensates for camera-shake when recording moving subjects in the FIELD mode. Your camcorder records still images in high quality in the FRAME mode. Select the FIELD or FRAME in the MENU settings (p. 87).

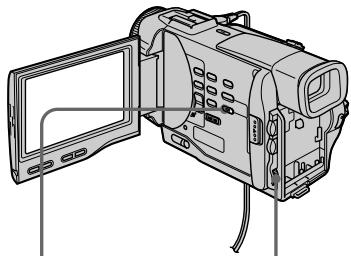

Before operation

Insert a Memory Stick into your camcorder.

(1) Set the POWER switch to MEMORY. Make sure that the lock is set to the left (unlock) position.
(2) Keep pressing PHOTO lightly. The picture freezes and “CAPTURE” appears on the LCD screen or in the viewfinder. Recording does not start yet.
(3) Press PHOTO deeper. The image displayed on the screen will be recorded on a Memory Stick. Recording is complete when the bar scroll indicator disappears.

Line drawing of a video camera with external screen and labeled component (no text or symbols beyond label)

1

2

Blank white image with a small icon in the top-right corner (no text or symbols)

Recording still images on Memory Sticks - Memory photo recording

Notes

• When recording fast-moving subjects in the FRAME mode, the recorded image blurry.
• When recording in the FRAME mode, your camcorder may not correct camera-shake. We recommend that you shoot objects with a tripod.

When the POWER switch is set to MEMORY The following functions do not work: wide TV mode, digital effect, picture effect, title.

When you are recording a still image You can neither turn off the power nor press PHOTO.

When you press the PHOTO button on the Remote Commander

Your camcorder immediately records the image that is on the screen when you press the button.

Recording images continuously

You can record still pictures continuously. Select one of the two modes described below before recording.

Continuous mode [a]

You can record 3 or 4 pictures continuously.

Multi screen mode [b]

You can record 9 still pictures continuously on a single page.

[a]

Three grayscale images showing a person's face in different angles (no text or symbols visible)

Grid of nine black-and-white photos showing people in various outdoor settings, possibly in a park or industrial setting (no visible text or symbols)

Recording still images on Memory Sticks - Memory photo recording

(1) Set the POWER switch to MEMORY. Make sure that the lock is set to the left (unlock) position.
(2) Press MENU to make the MENU display appear.
(3) Turn the SEL/PUSH EXEC dial to select ☐, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select CONTINUOUS, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the desired setting, then press the dial.
(6) Press MENU to erase the menu display.

2,6

3

Diagram showing a transformation of a curved arrow into a rectangular shape, with no text or symbols present.

4

MEMORY SET

M CONTINUOUS OFF
QUALITY
FLD / FRAME
PRINT MARK
PRINT M. PROTECT
ETC SLIDE SHOW

SLIDE SHOW

D. DELETE ALL
← DELETE FORMAT
FORMAT
←RETURN
MENU : END
MEMORY SET
M CONTINUOUS
QUALITY
FLD / FRAME
TED.//FRAME PRINT MARK
PRINT MA PROTECT
PROTECT E70 GLUPE SHOW
etc SLIDE SHOW D. SELECTS ALL
← DELETE ALL

5

Diagram showing a transformation of a striped object into a rectangular object, with no text or symbols present.

MEMORY SET

M CONTINUOUS OFF

QUALITY ON

FLD /FRAME MULTI SCRN

TED.7FRAME MOLE PRINT MARK

PRINT MARK PROTECT

PROTECT

ETC SLIDE SHOW

DELETE ALL

FORMAT

DRETURN

MEMORY SET

CONTINUOUS ON

QUALITY

FLD / EPA

1. PLED . / FRAME PRINT MARK

PRINT MARK PROTECT

PROTECT

ETC SLIDE SHOW

DELETE ALL

FORMAT

PRETURN

MENU : END

Recording still images on Memory Sticks - Memory photo recording

Continuous shooting settings

Setting	Meaning (indicator on the screen)
OFF	Your camcorder shoots one image at a time. (no indicator)
ON	Your camcorder shoots 3 or 4 still images at about 0.8 sec intervals. ( [IMAGE] )
MULTI SCRN	Your camcorder shoots 9 still images at about 0.3 sec intervals and displays the images on a single page divided into 9 boxes. ( [IMAGE] )

Number of images in continuous shooting The number of images you can shoot continuously varies depending on the image quality mode.

FINE: 3 images

STANDARD: 4 images

Note on using the video flash light (not supplied)

The video flash light does not work in the continuous or multi screen mode if you install it to the accessory shoe.

Recording an image from a mini DV tape as a still image

- DCR-TRV10E only

Your camcorder can read moving picture data recorded on a mini DV tape and record it as a still image on a Memory Stick.

Before operation

Insert a recorded mini DV tape and a Memory Stick into your camcorder.

(1) Set the POWER switch to PLAYER.
(2) Press ▶. The picture recorded on the mini DV tape is played back.
(3) Keep pressing PHOTO lightly until the picture from the mini DV tape freezes. "CAPTURE" appears on the LCD screen or in the viewfinder. Recording does not start yet.
(4) Press PHOTO deeper. The image displayed on the screen will be recorded on a Memory Stick. Recording is complete when the bar scroll indicator disappears.

Recording an image from a mini DV tape as a still image

When the ACCESS lamp is lit or flashing Never shake or strike the unit. As well do not turn the power off, eject a Memory Stick or remove the battery pack. Otherwise, the image data breakdown may occur.

If "💡" appears on the LCD screen or in the viewfinder

An incompatible Memory Stick is inserted. Be sure to use proper Memory Stick.

If you press PHOTO lightly in the playback mode

Your camcorder stops momentarily.

Sound recorded on a mini DV tape You cannot record the audio from a mini DV tape.

Titles have already recorded on mini DV tapes. You cannot record the titles on Memory Sticks. The title does not appear while you are recording a still picture with PHOTO.

Using the search function, you can automatically take in only still images from mini DV tapes and record them on a Memory Stick in sequence.

Before operation

• Insert a recorded mini DV tape and rewind the tape.
• Insert a Memory Stick into your camcorder.

(1) Set the POWER switch to PLAYER.
(2) Press MENU to make the MENU display appear.
(3) Turn the SEL/PUSH EXEC dial to select □, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select PHOTO SAVE, then press the dial. "PHOTO BUTTON" appears on the LCD screen or in the viewfinder.
(5) Press PHOTO deeper. The still image from the mini DV tape is recorded on a Memory Stick. The number of still images copied is displayed. "END" is displayed when copying is completed.

Press MENU to stop copying.

When the memory of the Memory Stick is full

“MEMORY FULL” appears on the LCD screen, and the copying stops. Insert another Memory Stick and repeat the procedure from step 2.

When the ACCESS lamp is lit or flashing

Never shake or strike your camcorder. As well do not turn the power off, eject a Memory Stick or remove the battery pack. Otherwise, the image data breakdown may occur.

To record all the images recorded on the mini DV tape

Rewind the tape all the way back and start copying.

If the write-protect tab on the Memory Stick is set to LOCK

“NOT READY” appears when you select the item in the MENU settings.

When you change Memory Sticks in the middle of copying

Your comcorder resumes copying from the last image recorded on the previous Memory Stick.

Viewing a still picture - Memory photo playback

- DCR-TRV10E only

You can play back still images recorded on a Memory Stick. You can also play back 6 images at a time by selecting the index screen.

Before operation

Insert a Memory Stick into your camcorder.

(1) Set the POWER switch to MEMORY or PLAYER. Make sure that the lock is set to the left (unlock) position.
(2) Slide OPEN in the direction of the ▶ mark. Then, open the LCD panel.
(3) Press MEMORY PLAY. The last recorded image is displayed.
(4) Press MEMORY +/- to select the desired still image. To see the previous image, press MEMORY -. To see the next image, press MEMORY +.

To stop memory photo playback

Press MEMORY PLAY again.

Viewing a still picture – Memory photo playback

To play back recorded images on a TV screen

• Connect your camcorder to the TV with the A/V connecting cable supplied with your camcorder before the operation.
• When operating memory photo playback on a TV or the LCD screen, the image quality may appear to have deteriorated. This is not a malfunction. The image data is as good as ever.
• Turn the audio volume of the TV down before operation, or noise (howling) may be output from the TV speakers.

Image data modified with personal computers or shot with other equipment

You may not be able to play them back with your camcorder.

Screen indicators during still image playback

Playing back 6 recorded images at a time (index screen)

You can play back 6 recorded images at a time. This function is especially useful when searching for a particular image.

A red ▶ mark appears above the image that is displayed before changing to the index screen mode.

• To display the following 6 images, keep pressing MEMORY +.
• To display the previous 6 images, keep pressing MEMORY -.

To return to the normal playback screen (single screen)

Press MEMORY +/- to move the ▶ mark to the image you want to display on full screen, then press MEMORY PLAY.

Note

When displaying the index screen, the number appears above each image. This indicates the order in which images are recorded on the Memory Stick. These numbers are different from the data file names.

The image quality mode indicator

The indicator may show a mode different to the one in which you recorded. This is not a malfunction. The indicator shows the size of the data file. For instance, if the size of FINE image is small enough, it may be displayed as STD. Or if the size of image is large enough, it may be displayed as SFN.

Files modified with personal computers

These files may not be displayed on the index screen. Image files shot with other equipment may not be displayed on the index screen either.

Viewing a still picture – Memory photo playback

Viewing the recorded images using a personal computer

The image data recorded with your camcorder is compressed in the JPEG format. If you use the application software, “PictureGear 3.2Lite” supplied with your camcorder, you can see images recorded on a Memory Stick on a computer screen. Use the serial port adaptor for Memory Stick supplied with your camcorder, the MSAKIT-PC4A Memory Stick/PC card kit or MSAC-PC1 card adaptor for Memory Stick (not supplied) for this operation. For detailed instructions on operation, refer to the operating instructions of the serial port adaptor, Memory Stick/PC card kit or PC card adaptor and application software.

Superimposing a still picture in a Memory Stick on a moving picture - M. CHROM/M. LUMI/C. CHROM

- DCR-TRV10E only

You can superimpose a still picture you have recorded on a Memory Stick on top of the moving picture you are recording.

M. CHROM (Memory chroma key)

You can swap a blue area of a still picture such as an illustration or a frame with a moving picture.

M. LUMI (Memory luminance key)

You can swap a brighter area of a still picture such as a handwritten illustration or title with a moving picture. Record a title on a Memory Stick before a trip or event for convenience.

C. CHROM (Camera chroma key)

You can superimpose a moving picture on top of a still picture such as a picture can be used as background. Shoot the subject against a blue background. The blue area of the moving picture will be swapped with a still picture.

Superimposing a still picture in a Memory Stick on a moving picture - M. CHROM/M. LUMI/C. CHROM

Before operation

Insert a recorded Memory Stick on your camcorder.

(1) Set the POWER switch to CAMERA.
(2) Press MEMORY PLAY in the standby mode. The last recorded or last composed image appears on the lower part of the screen as a thumbnail image.
(3) Turn the SEL/PUSH EXEC dial to select the desired mode, then press the dial to set. The mode changes as follows: M.CHROM → M.LUMI → C.CHROM
(4) Press the SEL/PUSH EXEC dial. The still picture is superimposed on the moving picture.
(5) Press MEMORY+/- to select the still picture you want to superimpose. To see the previous image, press MEMORY - . To see the next image, press MEMORY+.
(6) Turn the SEL/PUSH EXEC dial to adjust the effect.
(7) Press START/STOP to start recording.

Superimposing a still picture in a Memory Stick on a moving picture - M. CHROM/M. LUMI/C. CHROM

Items to adjust

M. CHROM	The colour (blue) scheme of the area in the still picture which is to be swapped with a moving picture
M. LUMI	The colour (bright) scheme of the area in the still picture which is to be swapped with a moving picture
C. CHROM	The colour (blue) scheme of the area in the moving picture which is to be swapped with a still picture

The fewer bars there are on the screen, the stronger the effect.

To change the still picture to superimpose

Do either of the following:

• Press MEMORY+/- before step 7.
• Press the SEL/PUSH EXEC dial before step 7, and repeat the procedure form step 3.

To change the mode setting

Press the SEL/PUSH EXEC dial before step 7, and repeat the procedure from step 3.

To cancel M. CHROM/M. LUMI/C. CHROM

Press MEMORY PLAY.

The Memory Stick supplied with your camcorder stores 30 images

- For M.CHROM : 26 images (such as a frame) DSC00001 \~ DSC00026

- For C.CHROM : 4 images (such as a background)

DSC00027 \~ DSC00030

Sample images stored before leaving the factory

Sample images are protected (p. 121).

If you format the Memory Stick

Sample images will be deleted.

During recording

You cannot change the mode setting.

To prevent accidental erasure of important images, you can protect selected images.

Before operation

Insert a Memory Stick into your camcorder.

(1) Play back the image you want to protect.
(2) Press MENU to make the MENU display appear.
(3) Turn the SEL/PUSH EXEC dial to select □, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select PROTECT, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(6) Press MENU to erase the menu display. The “○—” mark is displayed beside the data file name of the protected image.

Line drawing of a video camera with open screen and cable (no text or symbols)

2,6

3

Diagram showing a curved arrow transforming into a rectangular shape, no text or symbols present

MEMORY SET
M CONTINUOUS
QUALITY
FLD /FRAME
FLD . / FRAME
PRINT MARK
PROTECT
ETC SLIDE SHOW
20. SEEDLE SHOW
← DELETE ALL
FORMAT
MENU : END

4

MEMORY SET 10 / 12
M CONTINUOUS
QUALITY
QUALITY FLD /FRAME
FLD.//FRAME
PRINT MARK
PROTECT OFF
ETC SLIDE SHOW
20. SEEDLE SHOW
← DELETE ALL
FORMAT
DRETURN
MENU : END
[MENO] . END

MEMORY SET 10 / 12
M CONTINUOUS
QUALITY
QUALITY FLR/LFRAME
FLD./FRAME
PRINT MARK
PROTECT ON
PROTECT ON STO SLIDE SHOW OFF
EIC SLIDE SHOW
DELETE ALL
FORMAT
POSTUPN
←PRETURN
MENU : END

5

MEMORY SET
CONTINUOUS
QUALITY
QUALITY
FLD./FRAME
PRINT MARK
PROTECT ON
PROTECT
ETC SLIDE SHOW
DELETE ALL
FORMAT
FORMAT DEPUTUR
←RETURN

Preventing accidental erasure - Image protection

To cancel image protection

Select OFF in step 5, then press the SEL/PUSH EXEC dial.

Note

Formatting erases all information on the Memory Stick, including the protected image data. Check the contents of the Memory Stick before formatting.

If the write-protect tab on the Memory Stick is set to LOCK

You cannot carry out image protection.

You can specify the recorded still image to print out. This function is useful for printing out still images later.

Your camcorder conforms with the DPOF (Digital Print Order Format) standard for specifying the still images to print out.

Before operation

Insert a Memory Stick into your camcorder.

(1) Play back the image you want to write a print mark.
(2) Press MENU to display the menu.
(3) Turn the SEL/PUSH EXEC dial to select ☐, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select PRINT MARK, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(6) Press MENU to erase the menu display. The “☐” mark is displayed beside the data file name of the image with a print mark.

Line drawing of a video camera with open screen and cable (no text or symbols)

2,6

3

MENU : END

4

5

To cancel writing print marks

Select OFF in step 5, then press the SEL/PUSH EXEC dial.

If the write-protect tab on the Memory Stick is set to LOCK

You cannot write print marks on still images.

Deleting selected images

Before operation

Insert a Memory Stick into your camcorder.

(1) Play back the image you want to delete.
(2) Press MEMORY DELETE with a sharp-pointed object. "DELETE?" appears on the LCD screen.
(3) Press MEMORY DELETE again. The selected image is deleted.

To cancel deleting an image

Press MEMORY - in step 3.

To delete an image displayed on the index screen

Press MEMORY +/- to move the ▶ indicator to the desired image and follow steps 2 and 3.

Notes

• To delete a protected image, first cancel image protection.
• Once you delete an image, you cannot restore it. Check the images to delete carefully before deleting them.

Deleting all the images

You can delete all the unprotected images in a Memory Stick.

Insert a Memory Stick into your camcorder.

(1) Set the POWER switch to MEMORY. Make sure that the lock is set to the left (unlock) position.
(2) Press MENU to make the MENU display appear.
(3) Turn the SEL/PUSH EXEC dial to select ☐, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select DELETE ALL, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select OK, then press the dial. "OK" changes to "EXECUTE."
(6) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial. “DELETING” appears on the LCD screen. When all the unprotected images are deleted, “COMPLETE” is displayed.

MEMORY SET M CONTINUOUS G QUALITY FLD./FRAME PRINT MARK PROTECT ETC SLIDE SHOW DELETE ALL FORMAT

4

MEMORY SET M CONTINUOUS G QUALITY FLD ./ FRAME PRINT MARK PROTECT ETC SLIDE SHOW DELETE ALL FORMAT RETURN MENU : END

MEMORY SET CONTINUOUS QUALITY FLD. / FRAME PRINT MARK PROTECT SLIDE SHOW DELETE ALL FORMAT RETURN MENU : END

5

MEMORY SET CONTINUOUS QUALITY FLD ./FRAME PRINT MARK PROTECT ETC SLIDE SHOW DELETE ALL RETURN FORMAT OK RETURN MENU : END

MEMORY SET CONTINUOUS QUALITY FLD. / FRAME PRINT MARK PROTECT ETC SLIDE SHOW DELETE ALL RETURN FORMAT EXECUTE RETURN MENU : END

6

MEMORY SET CONTINUOUS QUALITY FLD ./FRAME PRINT MARK PROTECT ETC SLIDE SHOW DELETE ALL DELETING FORMAT RETURN MENU : END
MEMORY SET CONTINUOUS QUALITY FLD . / FRAME PRINT MARK PROTECT ETC SLIDE SHOW DELETE ALL COMPLETE FORMAT RETURN MENU : END

Deleting images

To cancel deleting all the images in the Memory Stick

Select ➕ RETURN in step 4, then press the SEL/PUSH EXEC.

While "DELETING" appears

Do not turn the POWER switch or press any buttons.

If the write-protect tab on the Memory Stick is set to LOCK

You cannot delete images.

Playing back images in a continuous loop - SLIDE SHOW

- DCR-TRV10E only

You can automatically play back images in sequence. This function is useful especially when checking recorded images or during a presentation.

Before operation

Insert a Memory Stick into your camcorder.

(1) Set the POWER switch to MEMORY. Make sure that the lock is set to the left (unlock) position.
(2) Press MENU to make the MENU display appear.
(3) Turn the SEL/PUSH EXEC dial to select ☐, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select SLIDE SHOW, then press the dial.
(5) Press MEMORY PLAY. Your camcorder plays back the images recorded on a Memory Stick in sequence.

Playing back images in a continuous loop - SLIDE SHOW

To stop the slide show

Press MENU.

To pause during a slide show

Press MEMORY PLAY.

To start the slide show from a particular image

Select the desired image using MEMORY +/- buttons before step 2.

To view the recorded images on TV

Connect your camcorder to a TV with the A/V connecting cable supplied with your camcorder before operation.

If you change the Memory Stick during operation

The slide show does not operate. If you change the Memory Stick, be sure to follow the steps again from the beginning.

Selecting cassette types

You can use the Mini DV mini DV cassette only*. You cannot use any other 8 mm, Hi8 Hi8,

Digital8, VHS VHS, VHSC VHSC, SVHS S-VHS, SVHSC S-VHSC, Betamax or DVDV cassette.

* There are two types of mini DV cassettes: with cassette memory and without cassette memory. We recommend you to use the tape with cassette memory.

The IC memory is mounted on this type of mini DV cassette. Your camcorder can read and write data such as dates of recording or titles, etc. to this memory.

The functions using the cassette memory require successive signals recorded on the tape. If the tape has a blank portion in the beginning or between the recorded portions, a title may not be displayed properly or the search functions may not work properly. Not to make any blank portion on the tape, operate the followings. Press END SEARCH to go to the end of the recorded portion before you begin the next recording if you operate the followings:

- you have ejected the cassette while recording. - you have played back the tape in the PLAYER. - you have used the edit search function.

If there is a blank portion or discontinuous signal on your tape, re-record from the beginning to the end of the tape concerning above.

The same result may occur when you record using a digital video camera recorder without a cassette memory function on a tape recorded by one with the cassette memory function.

Tapes with cassette memory have C^II (Cassette Memory) mark. Sony recommends that you use a tape having C^II mark to enjoy your camcorder fully.

CIII4K mark on the cassette

The memory capacity of tapes marked with CIII4K is 4KB. Your camcorder can accommodate tapes having a memory capacity of up to 16KB. 16KB tape is marked with CIII16K.

Выбор типа кассет

Using any other video camera recorder, you cannot record on a tape that has recorded a copyright control signals for copyright protection of software which is played back on your camcorder.

Audio mode

12-bit mode: The original sound can be recorded in stereo 1, and the new sound in stereo 2 in 32 kHz. The balance between stereo 1 and stereo 2 can be adjusted by selecting AUDIO MIX in the MENU settings during playback. Both sounds can be played back.

16-bit mode: A new sound cannot be recorded but the original sound can be recorded in high quality. Moreover, it can also play back sound recorded in 32 kHz, 44.1 kHz or 48 kHz. When playing back a tape recorded in the 16-bit mode, 16BIT indicator appears on the LCD screen or in the viewfinder.

When you play back a dual sound track tape

When you play back a dual sound track tape recorded in a stereo system, set “HiFi SOUND” to the desired mode in the MENU settings (p. 87).

Sound from speaker

HiFi Sound Mode	Playing back a stereo tape	Playing back a dual sound track tape
STEREO	Stereo	Main sound and sub sound
1	Left sound	Main sound
2	Right sound	Sub sound

You cannot record dual sound programmes on your camcorder.

При воспроизведении

Be sure to affix a label only on the locations as illustrated below [a] so as not to cause malfunction of your camcorder.

Rewind the tape to the beginning, put the cassette in its case, and store it in an upright position.

Cleaning gold-plated connector

If the gold-plated connector of mini DV cassettes is dirty or dusty, you may not operate the function using cassette memory. Clean up the gold-plated connector with cotton-wool swab, about every 10 times ejection of a cassette. [b]

If you run into any problem using your camcorder, use the following table to troubleshoot the problem. If the problem persists, disconnect the power source and contact your Sony dealer or local authorized Sony service facility. If “C:□□:□□” appears on the LCD screen or in the viewfinder, the self-diagnosis display function has worked. See page 137.

In the recording mode

Symptom	Cause and/or Corrective Actions
START/STOP does not operate.	The POWER switch is set to PLAYER.→ Set it to CAMERA. (p. 20)The POWER switch is set to OFF.→ Set the POWER switch to CAMERA. (p. 20)The tape has run out.→ Rewind the tape or insert a new one. (p. 19, 33)The write-protect tab is set to expose the red mark.→ Use a new tape or slide the tab. (p. 19)The tape is stuck to the drum (moisture condensation).→ Remove the cassette and leave your camcorder for at least 1 hour to acclimatize. (p. 149)
Recording stops in a few seconds.	START/STOP MODE is set to 5SEC or ↓.→ Set it to ↓. (p. 25)
The power goes off.	While being operated in the CAMERA mode, your camcorder has been in the standby mode for more than 5 minutes.→ Set the POWER switch to OFF and then to CAMERA again. (p. 20)
The image on the viewfinder screen is not clear.	The viewfinder lens is not adjusted.→ Adjust the viewfinder lens. (p. 23)
The SteadyShot function does not work.	STEADYSHOT is set to OFF in the MENU settings.→ Set it to ON. (p. 87)
The autofocusing function does not work.	FOCUS is set to MANUAL.→ Set it to AUTO. (p. 60)Shooting conditions are not suitable for autofocus.→ Set FOCUS to MANUAL to focus manually. (p. 60)
The fader function does not work.	START/STOP MODE is set to 5SEC or ↓.→ Set it to ↓. (p. 25)The digital effect function is working.→ Cancel it. (p. 53)
The ✕ indicator flashes in the viewfinder or on the LCD screen.	The video heads may be dirty.→ Clean the heads using the Sony DVM12CL cleaning cassette (not supplied). (p. 150)
The picture does not appear in the viewfinder.	The LCD panel is open.→ Close the LCD panel. (p. 22)
A vertical band appears when you shoot a subject such as lights or a candle flame against a dark background.	The contrast between the subject and background is too high. Your camcorder is not a malfunction.
A vertical band appears when you shoot a very bright subject.	Your camcorder is not a malfunction.
Some tiny white spots appear in the viewfinder or on the LCD screen.	Slow shutter, low lux or NightShot +Slow shutter mode is activated. This is not a malfunction.
An unknown picture is displayed in the viewfinder or on the LCD screen.	If 10 minutes elapse after you set the POWER switch to CAMERA or DEMO MODE is set to ON in the MENU settings without a cassette inserted, your camcorder automatically starts the demonstration.→ Insert a cassette and the demonstration stops. You can also cancel DEMO MODE. (p. 92)
The picture is recorded in incorrect or unnatural colours.	NIGHTSHOT is set to ON.→ Set it to OFF. (p. 28)
Picture appears too bright, and the subject does not appear in the viewfinder or on the LCD screen.	NIGHTSHOT is set to ON in a bright place.→ Set it to OFF, or use the NightShot function in a dark place. (p. 28)
The click of the shutter does not sound.	BEEP is set to OFF in the MENU settings.→ Set it to MELODY or NORMAL. (p. 87)

In the playback mode

Symptom	Cause and/or Corrective Actions
The tape does not move when a video control button is pressed.	The POWER switch is set to CAMERA or OFF. Set it to PLAYER. (p. 33)The tape has run out. Rewind the tape. (p. 33)
The playback picture is not clear or does not appear.	The television’s video channel is not adjusted correctly. Adjust it. (p. 38)
There are nine horizontal lines on the picture or the playback picture is not clear or does not appear.	The video head may be dirty. Clean the heads using the Sony DVM12CL cleaning cassette (not supplied). (p. 150)
No sound or only a low sound is heard when playing back a tape.	The volume is turned to minimum. Open the LCD panel and press VOLUME +. (p. 33)AUDIO MIX is set to ST2 in the MENU settings. Adjust AUDIO MIX. (p. 87)
Displaying the recorded date, date search function does not work.	The tape has no cassette memory. Use a tape with cassette memory. (p. 66, 129)CM SEARCH is set to OFF in the MENU settings. Set it to ON. (p. 87)

(continued on the following page)

Symptom	Cause and/or Corrective Actions
The title search function does not work.	The tape has no cassette memory.→ Use a tape with cassette memory. (p. 129)CM SEARCH is set to OFF in the MENU settings.→ Set it to ON. (p. 87)There is no title in the tape.→ Superimpose the titles. (p. 79)
The new sound added to the recorded tape is not heard.	AUDIO MIX is set to ST1 side in the MENU settings.→ Adjust AUDIO MIX in the MENU settings. (p. 87)
The title is not displayed.	TITLE DSPL is set to OFF in the MENU settings.→ Set it to ON in the MENU settings. (p. 87)
The date search or title search does not work correctly.	The tape has a blank portion in the recorded portion (p. 129)

In the recording and playback modes

Symptom	Cause and/or Corrective Actions
The power does not turn on.	The battery pack is not installed, or is dead or nearly dead.→ Install a charged battery pack. (p. 12, 13)The AC power adaptor is not connected to the mains.→ Connect the AC power adaptor to the mains. (p. 18)
The end search function does not work.	The tape was ejected after recording when using a tape without cassette memory.You have not recorded on the new cassette yet.
The end search function does not work correctly.	The tape has a blank portion in the beginning or middle.
The battery pack is quickly discharged.	The operating temperature is too low.The battery pack is not fully charged.→ Charge the battery pack again. (p. 13)The battery pack is completely dead, and cannot be recharged.→ Replace with a new battery pack. (p. 12)
The battery remaining indicator does not indicate the correct time.	You have used the battery pack in an extremely hot or cold environment for a long time.The battery pack is completely dead, and cannot be recharged.→ Replace with a new battery pack. (p. 12)The battery is dead.→ Use a charged battery pack. (p. 12, 13)
The cassette cannot be removed from the holder.	The power source is disconnected.→ Connect it firmly. (p. 12, 18)The battery is dead.→ Use a charged battery pack or the AC power adaptor. (p. 12, 18)
The [4] and ▲ indicators flash and no functions except for cassette ejection work.	Moisture condensation has occurred.Remove the cassette and leave your camcorder for at least 1 hour to acclimatize. (p. 149)
[11] indicator does not appear when using a tape with cassette memory.	The gold-plated connector of the tape is dirty or dusty.→ Clean the gold-plated connector. (p. 131)
Remaining tape indicator is not displayed.	The REMAIN is set to AUTO in the MENU settings.→ Set it to ON to always display the remaining tape indicator. (p. 87)

When operating using the Memory Stick

• DCR-TRV10E only

Symptom	Cause and/or Corrective Actions
The Memory Stick does not function.	The POWER switch is set to CAMERA. Set it to MEMORY. (p. 103)
Recording does not function.	The Memory Stick has already been recorded to its full capacity. Erase unnecessary images and record again. (p. 124, 106)The Memory Stick is not inserted. Insert a Memory Stick. (p. 102)Unformatted Memory Stick is inserted. Format the Memory Stick. (p. 105)The write-protect tab on the Memory Stick is set to LOCK. Slide the tab to write. (p. 100)
The image cannot be deleted.	The image is protected. Cancel image protection. (p. 121)
You cannot format the Memory Stick.	The write-protect tab on the Memory Stick is set to LOCK. Set the tab to write. (p. 100)Memory Stick is not inserted. Insert a Memory Stick. (p. 102)
Deleting all the images cannot be carried out.	The write-protect tab on the Memory Stick is set to LOCK. Set the tab to write. (p. 100)Memory Stick is not inserted. Insert a Memory Stick. (p. 102)
You cannot protect the image.	The write-protect tab on the Memory Stick is set to LOCK. Set the tab to write. (p. 100)The image to protect is not be played back. Press MEMORY PLAY to play back the image. (p. 114)Memory Stick is not inserted. Insert a Memory Stick. (p. 102)
You cannot write a print mark on the still image.	The write-protect tab on the Memory Stick is set to LOCK. Set the tab to write. (p. 100)The image to write a print mark is not be played back. Press MEMORY PLAY to play back the image. (p. 114)Memory Stick is not inserted. Insert a Memory Stick. (p. 102)
The slide show function does not work.	Memory Stick is not inserted. Insert a Memory Stick. (p. 100)
The photo save function does not work.	The write-protect tab on the Memory Stick is set to LOCK. Set the tab to write. (p. 100)Memory Stick is not inserted. Insert a Memory Stick. (p. 102)

(continued on the following page)

Others

Symptom	Cause and/or Corrective Actions
The title is not recorded.	· The tape has no cassette memory.→ Use a tape with cassette memory. (p. 129)· The cassette memory is full.→ Erase another title. (p. 82)· The tape is set to prevent accidental erasure.→ Slide the write-protect tab so that red portion is not visible. (p. 19)· Nothing is recorded in that position on the tape.→ Superimpose the title to the recorded position. (p. 79)
The cassette label is not recorded.	· The tape has no cassette memory.→ Use a tape with cassette memory. (p. 129)· The cassette memory is full.→ Erase some titles. (p. 82)· The tape is set to prevent accidental erasure.→ Slide the write-protect tab so that red portion is not visible. (p. 19)
While editing using the i.LINK cable (DV connecting cable), recording picture cannot be monitored.	· Remove the i.LINIK cable (DV connecting cable), and connect it again.
DV synchro-editing does not function.(DCR-TRV10E only)	· The input selector on the VCR is not set correctly.→ Set the selector to DV input position. If you use another DV camcorder, set the power switch to VTR.· The camcorder is connected to DV equipment of other than Sony.→ Operate normal editing.· Setting programme on a blank portion of the tape is attempted.→ Set the programme again on a recorded portion.
The Remote Commander supplied with your camcorder does not work.	· COMMANDER is set to OFF in the MENU settings.→ Set it to ON. (p. 87)· Something is blocking the infrared rays.→ Remove the obstacle.· The batteries are inserted in the battery holder with the + - polarities incorrectly matching the + - marks.→ Insert the batteries with the correct polarity. (p. 165)· The batteries are dead.→ Insert new ones. (p. 165)
The melody or beep sounds for 5 seconds.	· Moisture condensation has occurred.→ Remove the cassette and leave your camcorder for at least 1 hour to acclimatize. (p. 149)· Some troubles has occurred in your camcorder.→ Remove the cassette and insert it again, then operate your camcorder.
While charging the battery pack, no indicator appears or the indicator flashes in the display window.	· The AC power adaptor is disconnected.→ Connect it firmly. (p. 18)· Something is wrong with the battery pack.→ Contact your Sony dealer or local authorized Sony service facility.
No function works though the power is on.	· Disconnect the mains lead of the AC power adaptor or remove the battery, then reconnect it in about 1 minute. Turn the power on. If the functions still do not work, open the LCD panel and press the RESET button beside the speaker using a sharp-pointed object. (If you press the RESET button, all the settings including the date and time return to the default.) (p. 158)

Your camcorder has a self-diagnosis display function.

This function displays the current condition of your camcorder as a 5-digit code (a combination of a letter and figures) in the viewfinder, on the LCD screen or in the display window. If a 5-digit code is displayed, check the following code chart. The last two digits (indicated by □□) will differ depending on the state of your camcorder.

Viewfinder (or LCD screen)

Self-diagnosis display

• C: □□: □□

You can service your camcorder yourself.

• E: □□: □□

Contact your Sony dealer or local authorized Sony facility.

Five-digit display	Cause and/or Corrective Actions
C:04:□□	You are using a battery pack that is not an “InfoLITHIUM” battery pack.→ Use an “InfoLITHIUM” battery pack. (p. 17)
C:21:□□	Moisture condensation has occurred.Remove the cassette and leave your camcorder for at least 1 hour to acclimatize. (p. 149)
C:22:□□	The video heads are dirty.Clean the heads using the Sony DVM12CL cleaning cassette (not supplied). (p. 150)
C:31:□□	A malfunction other than the above that you can service has occurred.Remove the cassette and insert it again, then operate your camcorder.Disconnect the mains lead of the AC power adaptor or remove the battery pack. After reconnecting the power source, operate your camcorder.
E:61:□□	A malfunction that you cannot service has occurred.Contact your Sony dealer or local authorized Sony service facility and inform them of the 5-digit code.(example: E:61:10)
E:62:□□

If you are unable to rectify the problem even if you try corrective actions a few times, contact your Sony dealer or local authorized Sony service facility.

Warning indicators and messages

If indicators and messages appear in the viewfinder, on the LCD screen or in the display window, check the following:

See the page in parentheses “( )” for more information.

• The warning messages do not appear in the mirror mode.
• The indicators and messages are displayed in yellow.

Warning indicators

The video heads are dirty

Slow flashing:

- You need to clean the heads using the Sony DVM12CL cleaning cassette (not supplied) (p. 150).

The battery is dead or nearly dead

Slow flashing:

• The battery is nearly dead.

Fast flashing:

- The battery is dead (p. 13). Depending on conditions, the indicator may flash, even if there are 5 to 10 minutes remaining.

Warning indicator as to tape Slow flashing:

• The tape is near the end.
• No tape is inserted (p. 19).*
  Fast flashing:
  • The tape has run out (p. 19, 33).*
• The write-protect tab on the cassette is out (red) (p. 19).*

You need to eject the cassette Slow flashing:

• The write-protect tab on the cassette is out (red) (p. 19).*
  Fast flashing:
• Moisture condensation has occurred (p. 149).
  • The tape has run out (p. 19, 33).*
• The self-diagnosis display function is activated (p. 137).*

Moisture condensation has occurred\* Fast flashing:

- Eject the cassette, turn off your camcorder, and leave it for about 1 hour with the cassette compartment open (p. 149).

Warning indicator as to cassette memory Slow flashing:

- No tape with cassette memory is inserted (p. 19).*

C:21:00

Self-diagnosis display (p. 137)

Warning indicator as to Memory Stick (DCR-TRV10E only)

Slow flashing:

• No Memory Stick is inserted (p. 102).*
• Memory Stick is not formatted correctly (p. 105).

The still image is protected (DCR-TRV10E only)

Slow flashing:

- The still image is protected (p. 121).*

Warning messages

• CLOCK SET	Reset the date and time (p. 98).
• For “InfoLITHIUM”	Use an “InfoLIHIUM” battery pack (p. 17).
BATTERY ONLY
• CLEANING CASSETTE
	The video heads are dirty (p. 150).
• FULL	The tape cassette memory is full.
• 16BIT	AUDIO MODE is set to 16BIT (p. 87).* You cannot dub new sound.
• REC MODE	REC MODE is set to LP (p. 87).* You cannot dub new sound.
• TAPE	There is no recorded portion on the tape. You cannot dub new sound.
• “i.LINK” CABLE	i.LINK cable is connected (p. 73).* You cannot dub new sound.
• AV CABLE	A/V connecting cable is connected (p. 38).* You cannot dub new sound.
• FULL	The Memory Stick is full.* (DCR-TRV10E only)
• o-n	The write-protect tab on the Memory Stick is set to LOCK (p. 100).* (DCR-TRV10E only)
•	No still image is recorded on the Memory Stick (p. 106).* (DCR-TRV10E only)
• NO MEMORY STICK
	No Memory Stick is inserted (p. 102). (DCR-TRV10E only)

* You hear the melody or beep sound.

Using your camcorder abroad

Using your camcorder abroad

You can use your camcorder in any country or area with the AC power adaptor supplied with your camcorder within 100 V to 240 V AC, 50/60 Hz.

Your camcorder is a PAL system based camcorder. If you want to view the playback picture on a TV, it must be a PAL system based TV with VIDEO/AUDIO input jack. The following shows TV colour systems used overseas.

PAL system

Australia, Austria, Belgium, China, Czech Republic, Denmark, Finland, Germany, Great Britain, Holland, Hong Kong, Italy, Kuwait, Malaysia, New Zealand, Norway, Portugal, Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand, etc.

PAL-M system

Brazil

PAL-N system

Argentina, Paraguay, Uruguay

NTSC system

Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica, Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela, etc.

SECAM system

Bulgaria, France, Guyana, Hungary, Iran, Iraq, Monaco, Poland, Russia, Ukraine, etc.

Simple setting of clock by time difference

You can easily set the clock to the local time by setting a time difference. Select WORLD TIME in the MENU settings. See page 92 for more information.

Maintenance information and precautions

Moisture condensation

If your camcorder is brought directly from a cold place to a warm place, moisture may condense inside your camcorder, on the surface of the tape, or on the lens. In this condition, the tape may stick to the head drum and be damaged or your camcorder may not operate correctly. If there is moisture inside your camcorder, the beep sounds and the indicator flashes. When the indicator flashes at the same time, the cassette is inserted in your camcorder. If moisture condenses on the lens, the indicator will not appear.

If moisture condensation occurred

None of the functions except cassette ejection will work. Eject the cassette, turn off your camcorder, and leave it for about 1 hour with the cassette compartment open. Your camcorder can be used again if the ▶ indicator does not appear when the power is turned on again.

Note on moisture condensation

Moisture may condense when you bring your camcorder from a cold place into a warm place (or vice versa) or when you use your camcorder in a hot place as follows:

• You bring your camcorder from a ski slope into a place warmed up by a heating device
• You bring your camcorder from an air-conditioned car or room into a hot place outside
• You use your camcorder after a squall or a shower
• You use your camcorder in a high temperature and humidity place

How to prevent moisture condensation

When you bring your camcorder from a cold place into a warm place, put your camcorder in a plastic bag and tightly seal it. Remove the bag when the air temperature inside the plastic bag has reached the surrounding temperature (after about 1 hour).

Cleaning the video head

To ensure normal recording and clear pictures, clean the video heads. The video head may be dirty when:

• mosaic-pattern noise appears on the playback picture.
• playback pictures do not move.
• playback pictures do not appear.
• the ✕ indicator and “ 🔍 CLEANING
  CASSETTE" message appear one after another or the ✕ indicator flashes on the LCD screen or in the viewfinder.

If the above problem, [a] or [b] occurs, clean the video heads for 10 seconds with the Sony DVM12CL cleaning cassette (not supplied). Check the picture and if the above problem persists, repeat cleaning.

Информация по уходу

Чистка видеоголовок

Cleaning the LCD screen

If fingerprints or dust make the LCD screen dirty, we recommend using a LCD Cleaning Kit (not supplied) to clean the LCD screen.

Charging the vanadium-lithium battery in your camcorder

Your camcorder is supplied with a vanadium-lithium battery installed so as to retain the date and time, etc., regardless of the setting of the POWER switch. The vanadium-lithium battery is always charged as long as you are using your camcorder. The battery, however, will get discharged gradually if you do not use your camcorder. It will be completely discharged in about a half year if you do not use your camcorder at all. Even if the vanadium-lithium battery is not charged, it will not affect the camcorder operation. To retain the date and time, etc., charge the battery if the battery is discharged.

Charging the vanadium-lithium battery:

• Connect your camcorder to mains using the AC power adaptor supplied with your camcorder, and leave your camcorder with the POWER switch turned off for more than 24 hours.
• Or install the fully charged battery pack in your camcorder, and leave your camcorder with the POWER switch turned off for more than 24 hours.

Чистка экрана ЖКД

• Operate your camcorder on 7.2 V (battery pack) or 8.4 V (AC power adaptor).
• For DC or AC operation, use the accessories recommended in this operating instructions.
• If any solid object or liquid get inside the casing, unplug your camcorder and have it checked by a Sony dealer before operating it any further.
• Avoid rough handling or mechanical shock. Be particularly careful of the lens.
• Keep the POWER switch set to OFF when you are not using your camcorder.
• Do not wrap your camcorder with a towel, for example, and operate it. Doing so might cause heat to build up inside.
• Keep your camcorder away from strong magnetic fields or mechanical vibration.
• Do not touch the LCD screen with your fingers or a sharp-pointed object.
• If your camcorder is used in a cold place, a residual image may appear on the LCD screen. This is not a malfunction.
• While using your camcorder, the back of the LCD screen may heat up. This is not a malfunction.

On handling tapes

• Do not insert anything into the small holes on the rear of the cassette. These holes are used to sense the type and thickness of the tape and if the recording tab is in or out.
• Do not open the tape protect cover or touch the tape.
• Avoid touching or damaging the terminals. To remove dust, clean the terminals with a soft cloth.

Camcorder care

• Remove the tape, and periodically turn on the power, operate the CAMERA and PLAYER sections and play back a tape for about 3 minutes when your camcorder is not to be used for a long time.
• Clean the lens with a soft brush to remove dust. If there are fingerprints on the lens, remove them with a soft cloth.
• Clean the camcorder body with a dry soft cloth, or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of solvent which may damage the finish.
• Do not let sand get into your camcorder. When you use your camcorder on a sandy beach or in a dusty place, protect it from the sand or dust. Sand or dust may cause your camcorder to malfunction, and sometimes this malfunction cannot be repaired.

Maintenance information and precautions

AC power adaptor

• Unplug the unit from the mains when you are not using the unit for a long time. To disconnect the mains lead, pull it out by the plug. Never pull the mains lead itself.
• Do not operate the unit with a damaged cord or if the unit has been dropped or damaged.
• Do not bend the mains lead forcibly, or place a heavy object on it. This will damage the cord and may cause fire or electrical shock.
• Prevent metallic objects from coming into contact with the metal parts of the connecting section. If this happens, a short may occur and the unit may be damaged.
  • Always keep metal contacts clean.
• Do not disassemble the unit.
• Do not apply mechanical shock or drop the unit.
• While the unit is in use, particularly during charging, keep it away from AM receivers and video equipment. AM receivers and video equipment disturb AM reception and video operation.
• The unit becomes warm during use. This is not a malfunction.
• Do not place the unit in locations that are:

- Extremely hot or cold

- Dusty or dirty

- Very humid

- Vibrating

Battery pack

• Use only the specified charger or video equipment with the charging function.
• To prevent accident from a short circuit, do not allow metal objects to come into contact with the battery terminals.
• Keep the battery pack away from fire.
• Never expose the battery pack to temperatures above 60^ (140°F), such as in a car parked in the sun or under direct sunlight.
• Keep the battery pack dry.
• Do not expose the battery pack to any mechanical shock.
• Do not disassemble nor modify the battery pack.
• Attach the battery pack to the video equipment securely.
• Charging while some capacity remains does not affect the original battery capacity.

Maintenance information and precautions

Notes on dry batteries

To avoid possible damage from battery leakage or corrosion, observe the following:

• Be sure to insert the batteries with the + - polarities matched to the + - marks.
• Dry batteries are not rechargeable.
• Do not use a combination of new and old batteries.
• Do not use different types of batteries.
• Current flows from batteries when you are not using them for a long time.
• Do not use leaking batteries.

If batteries are leaking

• Wipe off the liquid in the battery compartment carefully before replacing the batteries.
• If you touch the liquid, wash it off with water.
• If the liquid get into your eyes, wash your eyes with a lot of water and then consult a doctor.

If any problem occurs, unplug your camcorder and contact your nearest Sony dealer.

Video camera recorder

System

Video recording system
2 rotary heads
Helical scanning system
Audio recording system
Rotary heads, PCM system
Quantization: 12 bits (Fs 32 kHz, stereo 1, stereo 2), 16 bits (Fs 48 kHz, stereo)
Video signal
PAL colour, CCIR standards
Usable cassette
Mini DV cassette with the ^Mini DV mark printed
Tape speed
SP: Approx. 18.81 mm/s
LP: Approx. 12.56 mm/s
Recording/playback time (using cassette DVM60)
SP: 1 hour
LP: 1.5 hours
Fastforward/rewind time (using cassette DVM60)
Approx. 1 min. and 45 seconds (AC power adaptor)
Approx. 2 min. and 30 seconds (battery pack)
Viewfinder
Electric viewfinder (colour)
Image device
1/4 inch CCD (Charge Coupled Device)
Approx. 800,000 pixels
(Effective: Approx. 400,000 pixels)
Lens
Combined power zoom lens
Filter diameter 30 mm. (1 3/16 in.)
10× (Optical), 40× (Digital)
Focal length
3.3 - 33 mm (5/32 - 1 5/16 in.)
When converted to a 35 mm still camera
42 - 420 mm (1 11/16 - 16 5/8 in.)
Colour temperature
Auto, HOLD (Hold), -Indoor
(3200K), ⚙ Outdoor (5800K)
Minimum illumination
5 lux (F 1.7)
0 lux (in the NightShot mode)**
** Objects unable to be seen due to the dark can be shot with infrared lighting.

Output connectors

S video output

4-pin mini DIN

Luminance signal: 1 Vp-p, 75 ohms, unbalanced

Chrominance signal: 0.3 Vp-p,

75 ohms, unbalanced

Audio/Video output

AV MINI JACK, 1 Vp-p, 75 ohms, unbalanced, sync negative 327 mV, (at output impedance more than 47 kilohms)

Output impedance with less than

2.2 kilohms/Stereo minijack (ø 3.5mm)

i DV output

4-pin connector

Headphone jack

Stereo minijack (ø 3.5 mm)

LANC control jack

Stereo mini-minijack (ø 2.5 mm)

MIC jack

Minijack, 0.388 mV low impedance

with 2.5 to 3.0 V DC, output

impedance 6.8 kilohms (ø 3.5 mm)

Stereo type

LCD screen


3.5 inches measured diagonally

72.4× 50.4mm (2 7 / 8× 2 in.)

Total dot number

DCR-TRV8E: 105,380 (479 × 220)

DCR-TRV10E: 184,580 (839 × 220)

General

Power requirements

7.2 V (battery pack)

8.4 V (AC power adaptor)

Average power consumption (when using the battery pack)

During camera recording using LCD

DCR-TRV8E: 3.6 W

DCR-TRV10E: 3.7W

Viewfinder

2.9 W

Operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage temperature

-20^ to +60^ (-4^ to +140^)

Dimensions (Approx.)

67.5×89×157.5 mm

(2 3/4 × 3 5/8 × 6 1/4 in.) (w/h/d)

Mass (approx.)

DCR-TRV8E:

630 g (1 lb 6 oz)

DCR-TRV10E:

650 g (1 lb 6 oz)

excluding the battery pack, cassette

and shoulder strap

DCR-TRV8E:

730 g (1 lb 9 oz)

DCR-TRV10E:

750 g (1 lb 10 oz)

including the battery pack,

NP-FM50, cassette DVM60, lens cap

and shoulder strap

Supplied accessories

See page 5.

AC power adaptor

Power requirements

100 - 240 V AC, 50/60 Hz

Power consumption

23 W

Output voltage

DC OUT: 8.4 V, 1.5 A in the

operating mode

Operating temperature

0^ to 40^ (32 °F to 104 °F)

Storage temperature

-20^ to +60^ (-4^ to +140^)

Dimensions (approx.)

125 × 39 × 62 ~mm

(5 × 1 9/16 × 2 1/2 in.) (w/h/d)

excluding projecting parts

Mass (approx.)

280 g (9.8 oz)

excluding mains lead

Cord length (approx.)

Mains lead: 2 m (6.6 feet)

Connecting cord: 1.6 m (5.2 feet)

Battery pack

Output voltage

DC 7.2 V

Capacity

8.5 Wh

Dimensions (approx.)

38.2×20.5×55.6 mm

(1 9/16 × 13/16 × 2 1/4 in.)

(w/h/d)

Mass (approx.)

76 g (2.7 oz)

Type

Lithium ion

Memory Stick (DCR-TRV10E only)

Memory

Flash memory

4MB: MSA-4A

Operating voltage

2.7-3.6V

Power consumption

Approx. 45mA in the operating mode

Approx. 130μA in the standby mode

Dimensions (approx.)

50× 2.8× 21.5mm

(2 × 1/8 × 7/8 in.) (w/h/d)

Mass (approx.)

4 g (0.14 oz)

Design and specifications are subject to change without notice.

Identifying the parts and controls

Camcorder

1 Viewfinder lens adjustment lever (p. 23)
② OPEN button (p. 20)
3 SEL/PUSH EXEC dial (p. 44, 87)
4 PHOTO button (p. 41, 106)
5 BATT release lever (p. 12)
6 PROGRAM AE button (p. 57)
7 EXPOSURE button (p. 59)

This mark indicates that this product is a genuine accessory for Sony video products.

When purchasing Sony video products, Sony recommends that you purchase accessories with this "GENUINE VIDEO

ACCESSORIES" mark.

Mini

Dy

D video Cassette

CIII

Cassette

Memory

InfoLITHIUM

MEMORY STICK

These are trademarks.

8 Focus ring (p. 60)
9 Camera recording lamp (p. 20)
10 Infrared rays emitter (p. 28, 40)
11 Microphone
12 FOCUS switch (p. 60)
13 Viewfinder (p. 12, 23)
14 Display window (p. 167)
15 Remote sensor (p. 164)
16 BACK LIGHT button (p. 27)
17 FADER button (p. 47)

18 LCD screen (p. 22)
19 LCD BRIGHT buttons (p. 22)
20 VOLUME buttons (p. 33)
21 RESET button (p. 136)
22 MEMORY PLAY button (p. 114, 119) (DCR-TRV10E only)
23 MEMORY INDEX button (DCR-TRV10E only) (p. 115)
24 MEMORY + button (DCR-TRV10E only) (p. 114, 119)
25 MEMORY – button (DCR-TRV10E only) (p. 114,. 119)
26 MEMORY DELETE button (DCR-TRV10E only) (p. 124)

35 Power zoom lever (p. 24)
36 ACCESS lamp (DCR-TRV10E only) (p. 102)
37 Hooks for shoulder strap
38 START/STOP button (p. 20)
39 LASER LINK button (p. 40)
40 EDITSEARCH buttons (p. 31)
41 Lock (DCR-TRV10E only) (p. 21)
42 POWER switch (p. 20)

Attaching the shoulder strap

Attach the shoulder strap supplied with your camcorder to the hooks for the shoulder strap.

Diagram of a rope knot with a loop, showing strands and joints (no text or symbols)

What is LASER LINK?

The LASER LINK system sends and receives pictures and sound between video equipment having the mark by using infrared rays.

Identifying the parts and controls

■ STOP (stop)
◀◀ REW (rewind)
▶ PLAY ( playback)
▶▶ FF (fastforward)
■ PAUSE (pause)

The control buttons light up when you set the POWER switch to PLAYER.

44 MEMORY OPEN button
(DCR-TRV10E only) (p. 102)
45 MEMORY RELEASE button
(DCR-TRV10E only) (p. 102)
46 Intelligent accessory shoe (p. 76, 163)
47 +SLOW SHTR button (p. 28)
48 NIGHTSHOT switch (p. 28)
49 Grip strap

Fastening the grip strap

50 i DV OUT jack (p. 73)

This “i.LINK” mark is a trademark of Sony Corporation and indicates that this product is in agreement with IEEE 1394-1995 specifications and their revisions.

The i DV OUT jack is i.LINK compatible.

51 Ⓞ (headphones) jack

When you use headphones, the speaker on your camcorder is silent.

52 LANC control jack

LANC stands for Local Application Control Bus System. The ⬆ control jack is used for controlling the tape transport of video equipment and other peripherals connected to the video equipment. This jack has the same function as the jack indicated as CONTROL L or REMOTE.

53 ▲ OPEN/EJECT lever (p. 19)

54 Tripod receptacle

Make sure that the length of the tripod screw is less than 6.5 mm (9/32 inch). Otherwise, you cannot attach the tripod securely and the screw may damage your camcorder.

55 S VIDEO jack (p. 38, 71)

56 DC IN jack (p. 13)

57 AUDIO/VIDEO jack (p. 38, 71)

58 MIC jack (PLUG IN POWER)

Connect an external microphone (not supplied). This jack also accepts a “plug-in-power” microphone.

Note on the Carl Zeiss lens

Your camcorder is equipped with a Carl Zeiss lens which can reproduce a fine image. The lens for your camcorder was developed jointly by Carl Zeiss, in Germany, and Sony Corporation. It adopts the MTF* measurement system for video camera and offers a quality as the Carl Zeiss lens.

* MTF is an abbreviation of Modulation Transfer Function/Factor. The value number indicates the amount of light of a subject penetrating into the lens.

Intelligent Accessory Shoe

Notes on the intelligent accessory shoe

• The intelligent accessory shoe supplies power to optional accessories such as a video light or microphone.
• The intelligent accessory shoe is linked to the POWER switch, allowing you to turn the power supplied by the shoe on and off. Refer to the operating instructions of the accessory for further information.
• The intelligent accessory shoe has a safety device for fixing the installed accessory securely. To connect an accessory, press down and push it to the end, and then tighten the screw.
• To remove an accessory, loosen the screw, and then press down and pull out the accessory.

Intelligent Accessory Shoe

The buttons that have the same name on the Remote Commander as on your camcorder function identically to the buttons on your camcorder.

1 PHOTO button (p. 41, 106)
② DISPLAY button (p. 34)
③ Memory control buttons (DCR-TRV10E only) (p. 114, 115, 119)
4 SEARCH MODE button (p. 66, 68, 69)
5 ◀◀◀/▶▶▶I buttons (p. 66, 68, 69)
6 Video control buttons (p. 36)
7 MARK button (DCR-TRV10E only) (p. 75)
8 AUDIO DUB button (p. 77)
⑨ DATA CODE button (p. 34)
10 Power zoom button (p. 24)
11 START/STOP button (p. 20)
12 Transmitter Point toward the remote sensor to control your camcorder after turning on your camcorder.
13 ZERO SET MEMORY button (p. 65)

To prepare the Remote Commander

Insert 2 R6 (Size AA) batteries by matching the + and - polarities on the batteries to the + - marks inside the battery compartment.

Illustration of a handheld device with battery and switch, showing internal components (no text or symbols)

Notes on the Remote Commander

• Point the remote sensor away from strong light sources such as direct sunlight or overhead lighting. Otherwise, the Remote Commander may not function properly.
• Your camcorder works in the commander mode VTR 2. Commander modes 1, 2 and 3 are used to distinguish your camcorder from other Sony VCRs to avoid remote control misoperation. If you use another Sony VCR in the Commander mode VTR 2, we recommend changing the commander mode or covering the sensor of the VCR with black paper.

Operation indicators

1 Cassette memory indicator (p. 129)

② Remaining battery time indicator (p. 26)

③ Zoom indicator (p. 24) /Exposure indicator (p. 59) /Data file name indicator (DCR-TRV10E only) (p. 101)

4 Digital effect indicator (p. 52) /M.CHROM/M.LUMI/C.CHROM indicator (DCR-TRV10E only) (p. 119)

⑤ FLD./FRAME indicator (DCR-TRV10E only) (p. 106)/16:9WIDE indicator (p. 44)/FADER indicator (p. 47)

6 Picture effect indicator (p. 50)

7 Data code indicator (p. 34)

⑧ LCD bright indicator (p. 22)/Volume indicator (p. 33)

9 PROGRAM AE indicator (p. 56)

10 Backlight indicator (p. 27)

11 SteadyShot off indicator (p. 88)

12 Manual focus/Infinity indicator (p. 60)

13 Recording mode indicator (p. 91)

14 Standby/Recording indicator (p. 20) /Video control mode indicator (p. 36) /Image quality mode indicator (DCR-TRV10E only) (p. 103)

Identifying the parts and controls

15 NIGHTSHOT indicator (p. 28)
16 Warning indicators (p. 138)
17 Tape counter indicator (p. 65)/5SEC mode indicator (p. 25)/Time code indicator (p. 26) / Self-diagnosis indicator (p. 137)/Photo mode indicator (p. 41)/Image number indicator (DCR-TRV10E only) (p. 115)
18 Remaining tape indicator (p. 26) /Memory playback indicator (DCR-TRV10E only) (p. 114)
19 ZERO SET MEMORY indicator (p. 65)
20 END SEARCH indicator (p. 31)
21 Audio mode indicator (p. 91)
22 Data file name indicator (DCR-TRV10E only) This indicator appears when the M.CHROM/M.LUMI/C.CHROM functions work.
23 Continuous mode indicator (DCR-TRV10E only) (p. 107)
24 Video flash ready indicator (p. 42) This indicator appears when you use the video flash light (not supplied).
25 Self-timer indicator (p. 30)

① Remaining battery time indicator (p. 13) / Tape counter (p. 65) / Memory counter (DCR-TRV10E only) (p. 115) / Time code indicator (p. 26)

2 FULL charge indicator (p. 13)

③ Remaining battery indicator (p. 13)

Functions to adjust exposure (in the recording mode)

• In a dark place	NIGHTSHOT (p. 28)
• In insufficient light	Low lux mode (p. 56)
• In dark environments such as sunset, fireworks, or general night views	Sunset & moon mode (p. 56)
• Shooting backlit subjects	BACK LIGHT (p. 27)
• In spotlight, such as at the theatre or a formal event	Spotlight mode (p. 56)
• In strong light or reflected light, such as at a beach in midsummer or on a ski slope	Beach & ski mode (p. 56)

Functions to give images more impact (in the recording mode)

• Smooth transition between scenes	FADER (p. 46)
• Taking a still picture	PHOTO (p. 41)
• Digital processing of images	PICTURE EFFECT (p. 49)/DIGITAL EFFECT (p. 51)
• Creating a soft background for subjects	Soft portrait mode (p. 56)
• Superimposing a title	TITLE (p. 79)

Functions to give a natural appearance to your recordings (in the recording mode)

• Preventing deterioration of picture quality in digital zoom	D ZOOM [MENU] (p. 87)
• Focusing manually	Manual focus (p. 60)
• Shooting distant subjects	Landscape mode (p. 56)
• Recording fast-moving subjects	Sports lesson mode (p. 56)

Functions to use in editing (in the recording mode)

• Watching the picture on a wide-screen TV	Wide mode (p. 44)
• Viewing images using a personal computer (DCR-TRV10E only)	Memory Stick (p. 117)

Functions to use after recording (in the playback mode)

• Digital processing of recorded images	PICTURE EFFECT (p. 62)/DIGITAL EFFECT (p. 63)
• Displaying the date/time or various settings when you recorded	Data code (p. 34)
• Quickly locating a desired scene	Zero set memory (p. 65)
• Searching for scenes having a title	Title search (p. 68)
• Searching for scenes recorded in the photo mode	Photo search (p. 69)
• Scanning scenes recorded in the photo mode	Photo scan (p. 70)
• Playing back on monaural sound or sub sound	HiFi SOUND [MENU] (p. 87)
• Playing back the picture on a TV without connecting a cord	LASER LINK (p. 40)

Adjusting viewfinder 23

ANTI GROUND SHOOTING 25

Audio dubbing 76

AUDIO MIX 77

Audio mode 91

AUTO SHTR 88

A/V connecting cable 38,71

BACK LIGHT 27

Battery pack 12

Beep 92

BOÛNCE 46

C, D

Camera chromakey 118

Cassette memory ...... 10, 129

Charging battery 13

Charging vanadium-lithium battery 150

Clock set 98

Connection (viewing on TV) .... 38 (dubbing a tape) .... 71

Continuous 107

Data code 34

Date search 66

DEMO 92

DIGITAL EFFECT ...... 51

DISPLAY 34

Dual sound track tape ...... 130

Dubbing a tape 71

DV connecting cable 73

E

EDITSEARCH 31

END SEARCH ...... 31, 37

Exposure 59

External microphone (not supplied) 162

F, G, H

FADER 46

Fade in/out 46

FLASH MOTION 51

FOCUS 60

Format 105

Full charge 13

Grip strap 161

Heads 150

Headphone jack 162

HiFi SOUND 89

I, J, K, L

i.LINK 73

Image protection 121

Image quality mode ...... 103

INDEX (Multiple) display ..... 115

"InfoLITHIUM" battery ...... 17

Infrared rays emitter ..... 28, 40

JPEG 101

Labeling a cassette 85

LANC 162

LASER LINK 40

LCD screen 22

LUMINANCEKEY 51

M, N

Main sound 89

Manual focus 60

Memory chromakey 118

Memory luminancekey ...... 118

Memory Stick 100

Menu settings 87

Mirror mode 22

Moisture condensation ..... 149

MONOTONE 46

Mosaic fader 46

NIGHTSHOT 28

NightShot +Slow shutter ...... 28

Normal charge 13

O, P, Q

OLD MOVIE 51

Operation indicators ...... 166

OVERLAP 46

PAL system 148

Photo scan 70

Photo search 69

Photo recording 41

PICTURE EFFECT ...... 49

Picture search ...... 36

Playback pause 36

Power sources

(the mains) 18

(car battery) 18

(battery pack) 12

Power zoom 24

Print mark 123

PROGRAM AE 56

R

Rec review 32

Recording time 15

Remaining battery time indicator 26

Remaining tape indicator ..... 26

Remote commander .... 164

Remote control jack (LANC) 162

Remote sensor 157

RESET 136

s

S video jack 38,71

Self-diagnosis display ...... 137

Self-timer recording 30

SEL/PUSH EXEC dial 156

Serial port adaptor 117

Shoulder strap 160

Skip scan 36

Slide show 127

Slow playback 36

SLOW SHUTTER 51

+SLOW SHTR 28

START/STOP MODE 25

STEADYSHOT 88

Stereo tape 130

STILL 51

Sub sound 89

T, U, V

Tape counter 26, 65

Telephoto 24

Time code 26

Title 79

Title search 68

TRAIL 51

Transition 21

TV colour systems 148

W, X, Y, Z

Warning indicators 138

Wide-angle 24

Wide mode 44

WORLD TIME 92

Write-protect tab 19

Zero set memory 65

Zoom 24

EDIT SEARCH ...... 31

END SEARCH ...... 31, 37

FADER 46

FLASH MOTION 51

FOCUS 60

Hi-Fi SOUND 89

1 - 0

i.LINK 73

JPEG 101

LANC 162

LASER LINK 40

LUMINANCEKEY 51

Memory Stick 100

MONOTONE 46

NIGHTSHOT 28

OLD MOVIE 51

OVERLAP 46

P - Z

PICTURE EFFECT ...... 49

PROGRAM AE 56

RESET 136

SLOW SHUTTER 51

+SLOW SHTR 28

START/STOP MODE 25

STEADYSHOT 88

STILL 51

TRAIL 51

WORLD TIME 92
