USER MANUAL T18IF905SP THERMADOR

Important safety instructions 4

Definitions 4

About these instructions 4

Introduction 4

Restriction of user group. 4

Risk of explosion. 4

Risk of electric shock 5

Risk of cold burns 5

Risk of injury 5

Fire hazard/Danger due to refrigerants 5

Risk of fire 5

Risk of suffocation. 6

Damage 6

Weight 6

State of California Proposition 65Warnings . . . . . . 6

Intended use 7

Environmental protection 7

Packaging 7

Old appliances 7

Installation and connection 7

Contents of package. 7

Technical data. 7

Installing the appliance 7

Check built-in cut-out. 7

Side-by-side installation 7

Saving energy 8

Before using for the first time 9

Water connection 9

Electrical connection 9

Getting to know your appliance 10

Appliance 10

Operating controls. 11

Equipment 12

Operating the appliance. 15

Switching the appliance on. 15

Switching off and disconnecting the

appliance. 15

Setting the language 15

Setting the temperature unit 15

Setting the temperature. 15

Super freezing 15

Clean lock 16

Switching ice cube production on or off .16

Reset water filter counter. 16

Eco mode 16

Self-test 16

Setting the brightness of the control panel .16

Switching key press sound on or off 17

Setting the key volume 17

Setting the signal tone volume 17

Automatic clean lock 17

Automatic door opening 17

Switching the water filter counter on and off. 18

Theater mode 18

Resetting to the factory settings 18

Switching demo mode on or off 18

Sabbath mode 18

Home network 18

Alarm. 19

Door alarm 19

Temperature alarm 19

Home Connect. 20

Setting up a home network. 20

Connecting the refrigerator to the

Home Connect app 20

Installing updates for the Home

Connect software 21

Customer Service access. 21

Deleteng network settings 21

Switch on or off the connection to the home

WLAN network (Wi-Fi). 21

Information on data protection 21

Freezer compartment. 22

Fully utilizing the freezer volume. 22

Purchasing frozen food. 22

When loading products 22

Freezing fresh food. 22

Thawing frozen food 23

Defrosting 23

Freezer compartment 23

Cleaning 23

Cleaning the display 23

Cleaning the appliance interior. 23

Cleaning the equipment 23

Care instructions for stainless steel surfaces . 23

Noises 24

Normal noises 24

Preventing noises 24

Lighting. 24

Faults - what to do? 25

Appliance 25

Ice maker 26

Customer service 27

Appliance self-test 27

Repair order and advice on faults 27

Important safety instructions

READ INSTRUCTIONS - DO NOT DISCARD!

Definitions

WARNING

Non-observance of this warning could result in death or serious injuries.

CAUTION

Non-observance of this warning could result in slight or moderately serious injuries.

NOTICE: Non-observation of this information could damage the appliance.

Note: This indicates important information and/or tips.

About these instructions

• Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance.
  The manufacturer is not liable if you disregard the instructions and warnings in the operating and installation instructions.
• Retain all documents for subsequent use or for the next owner.

Introduction

This appliance complies with the relevant safety regulations for electrical appliances.
- The refrigeration circuit has been checked for leaks.

Restriction of user group

• Avoid placing children and vulnerable persons at risk.
  This appliance may be used by children and persons who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
  Children should be supervised to ensure that they do not play with the appliance.

Risk of explosion

If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.
Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
- Never use electric devices inside the appliance (e.g. heaters or electric ice makers).
- Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.
Only store high-proof alcohol tightly closed and upright.
- Do not use additional means to accelerate the defrosting process other than those recommended by the manufacturer.

Important safety instructions

READ INSTRUCTIONS - DO NOT DISCARD!

Risk of electric shock

Improper installations or repairs may put the user at considerable risk.

• When installing the appliance, make sure that the power cord does not get jammed or damaged.
  In order to avoid danger, if the power cord is damaged, disconnect the appliance from the power source immediately. Have the power cord replaced by the manufacturer, customer service or a similarly qualified person.
• Do not use multiple outlets, extension cords, or adapters.
  Before servicing the appliance or carrying out installation work, disconnect the appliance from the power source or switch off the fuse.

Before cleaning the appliance, press the main On/Off switch to switch the appliance off.

Glass shelves and other fittings can be moved without any risk while the appliance is switched on.

• Never cut through or remove the power cord's third conductor (grounding conductor).
• Never defrost or clean the appliance using a steam cleaner. The steam may penetrate electrical parts and cause a short circuit.
  The appliance, cord and accessories should only be repaired or replaced by the manufacturer or an authorized service provider.
• Only use original parts supplied by the manufacturer.

These parts come with a warranty from the manufacturer that they satisfy the safety requirements.

Risk of cold burns

• Never put frozen food straight from the freezer compartment into your mouth.
• Avoid prolonged skin contact with frozen food, ice or any other surface inside the freezer compartment.

Risk of injury

• Containers with carbonated drinks may burst.
• Do not store containers which contain carbonated drinks in the freezer compartment.

Fire hazard/Danger due to refrigerants

The tubes of the refrigeration circuit contain a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not add to the greenhouse effect. If the refrigerant escapes, it may injure your eyes or ignite.

• Do not damage the tubes.
  If the tubes are damaged:
• Keep naked flames and ignition sources away from the appliance.
• Ventilate the room.
• Switch off the appliance and unplug the mains plug.
  Please contact customer service.

Risk of fire

Portable multi-outlet power strips and portable power supplies may overheat, causing a fire.
- Never leave portable multi-outlet power strips or portable power supplies behind the appliance.

Important safety instructions

READ INSTRUCTIONS - DO NOT DISCARD!

Risk of suffocation

If the appliance features a door lock: keep the key out of the reach of children.
- Keep children away from the packaging and its parts.

Damage

To avoid damage:

• Do not stand or lean on the base, runners or doors.
• Keep plastic parts and door seals free of oil and grease.
  Pull the power plug - not the power cord.

Weight

The appliance is very heavy. The appliance should always be transported and set up by at least 2 people.

"Installing the appliance" on page 7

State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING: / AVENTISSEMENT ISSUE DE LA PROPOSITION 65 DE L'ETAT DE LA CALIFORNIE:

WARNING / AVERTISSEMENT

Cancer and Reproductive Harm / Cancer et dommages à la reproduction - www.P65Warnings.ca.gov.

Intended use

Use this appliance

only for freezing food and making ice.
only in the home and in the home environment.
only according to these operating instructions.

This appliance is intended for use at an elevation of no more than 2000 meters above sea level.

Environmental protection

Packaging

All materials are environmentally safe and recyclable:

• Dispose of packaging in an environmentally responsible manner.
  Please ask your dealer or inquire at your local authority about current means of disposal.

Old appliances

Valuable raw materials can be reclaimed by recycling old appliances.

WARNING

CHILDREN MAY BECOME LOCKED IN THE APPLIANCE AND SUFFOCATE!

Before disposing of your old appliance:

Remove the door.
- Leave shelves and bins in the appliance to prevent children from climbing in.
- Keep children away from the discarded appliance.

CAUTION

REFRIGERANT AND HARMFUL GASES MAY ESCAPE.

Do not damage the tubes of the refrigeration circuit and insulation.

1. Pull out the power plug.
2. Cut through the power cord.
3. Have the appliance disposed of properly.

Installation and connection

Contents of package

After unpacking all parts, check for any damage during transport.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

"Customer service" on page 27

The delivery consists of the following parts:

Built-in appliance
Equipment (depending on model)
Installation material
Instruction manual
Installation instructions
Customer service booklet
Warranty enclosure
Information on the energy consumption and noises

Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.

"Getting to know your appliance" on page 10

Installing the appliance

Installation location

The weight of the appliance may be up to 460kg depending on the model. The base must be sufficiently stable and should not give. If necessary, reinforce the floor.

Check built-in cut-out

The cut-out must fulfill these criteria:

Anti-tilt bracket must be fitted
Cut-out depth min. 24" (610 mm), for flush installation 25" (635 mm)
rectangular
stable - the side panels and the top must be min. 5 / 8'' (16 mm) thick and securely attached to the floor or wall
Depth of shortest side panels min. 4" (100 mm)

Side-by-side installation

Observe the specifications in the installation instructions for a side-by-side installation.

If a partition wall is required between the appliances it must be at least 5 / 8'' (16 mm) wide.

Saving energy

If you follow the instructions below, your appliance will use less power.

Note: The arrangement of the equipment does not affect the energy consumption of the appliance.

Installing the appliance
Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient tempera-tures and therefore consumes less power.
Install the appliance as far away as possible from heating elements, cooker and other heat sources:At least 1¼" (3 cm) from electric or gas cookers.At least 11¾" (30 cm) from oil or solid-fuel cookers.
Select an installation location at a room temperature of approx. 68 °F(20 °C).
Do not cover or block the ventilation openings. The appliance needs to cool less frequently if the warm air can escape and therefore consumes less power.
Using the appliance
Open the appliance door only briefly.	The air in the appliance does not warm up so intensely. The appliance needs to cool less frequently and therefore consumes less power.
Transport purchased food in a cool bag and place in the appliance quickly.
Allow warm food and drink to cool down before placing in the appli-ance.
Thaw frozen food in the refrigerator compartment to utilize the low temperature of the frozen food.
Always leave a space between the food and the back panel.	The air can circulate and the humidity will remain constant. The appli-ance needs to cool less frequently and therefore consumes less power.
Pack food airtight.
Do not cover or block the ventilation openings. The appliance consumes less power if the warm air can escape.
Vacuum the ventilation openings once a year.

Before using for the first time

1. Remove information material, adhesive tape and protective foil.
2. Clean the appliance.

"Cleaning" on page 23

Water connection

CAUTION

Installation and connection of the appliance must be carried out by authorized technicians according to the installation instructions supplied.
To avoid damage to the appliance and to ensure its proper functioning, it should only be connected to a drinking water system.
To avoid water damage, a shut-off valve must be installed.

Water pressure of drinking water system

CAUTION

To avoid damage to the appliance, a pressure relief valve must be installed between the drinking water connection and the tubing, should the water pressure exceed the maximum value.

Note: If the water pressure is too low, this will impair the relevant functions of the appliance.

Min. 0.2 Mpa (2 bar / 29 psi)
Max. 0.8 Mpa (8 bar / 116 psi)

Electrical connection

CAUTION

Do not connect the appliance to electronic energy saver plugs.

Note: You can connect the appliance to mains-controlled and sine-controlled inverters.

Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, are not directly connected to the national grid.

1. After installing the appliance, wait at least 1 hour before connecting it to prevent damaging the compressor.
2. Check that the outlet was installed according to the regulations and complies with the requirements.

Requirements for outlets

Outlet with 110 V ... 120 V

Protective conductor60 Hz

Fuse 10 A ... 16 A

Maximum simultaneous load

Appliance 6 A

1. Connect the appliance to an outlet near the appliance.

The outlet must also be freely accessible following installation of the appliance.

If free access is impossible, an all-pole isolating switch must be integrated into the permanent electrical installation according to the installation regulations.

WARNING

RISK OF ELECTRIC SHOCK!

Never use multiple outlets, extension cords or adapters.

The appliance must be grounded correctly. Never cut through or remove the power cord's third conductor (grounding conductor).

WARNING

RISK OF ELECTRIC SHOCK!

If the power cord is too short, never use multiple outlets or extension cords. Instead, please contact customer service.

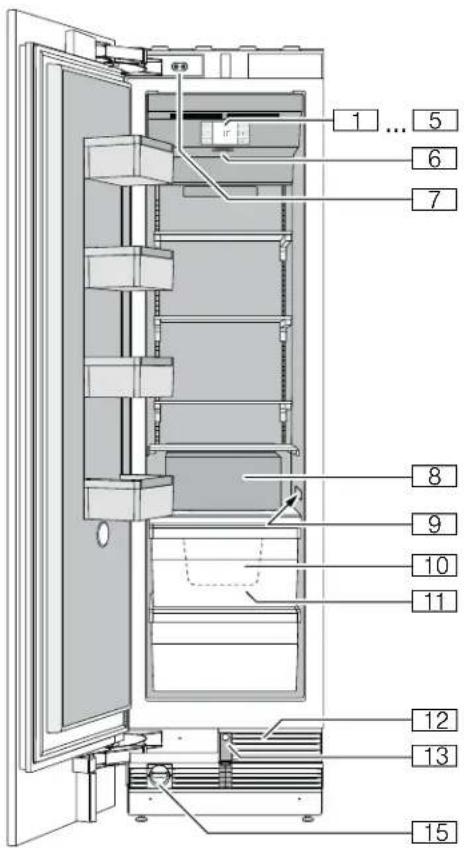

Getting to know your appliance

Appliance

... H Operating controls
P Main On/Off switch
X Door damper
Ice maker
h Rating plate
) Ice cube bin
*) Frozen food container
2 Ventilation opening
): Automatic door opening
)J Water filter

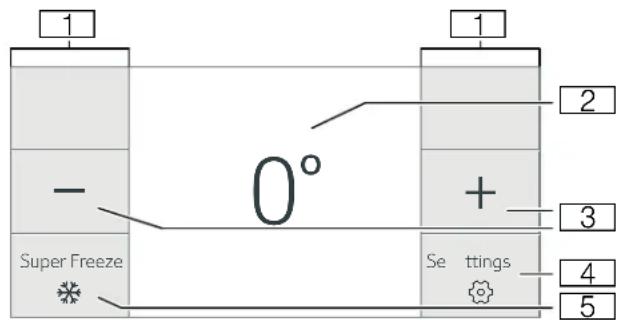

Operating controls

(Touch fields
There are sensors under the touch fields.
Touching the symbol calls up the respective function.
0 Freezer compartment temperature display
Indicates the set temperature in ^ C / ^ F
8-/+ buttons
Used to change the temperature.
@ button
Opens the Settings menu.
"Settings menu" on page 11
H Super Freeze button
Switches Super Freeze on or off.

Settings menu

Press button to open the menu.

In the Settings menu you will find:

Appliance settings
Clean lock
Ice cube production
Water filter counter
Eco mode
Self-test
Sabbath mode (if activated)

"Operating the appliance" on page 15

Appliance settings menu

This is how to navigate to the Appliance settings menu:

1. Press button.
2. Use < button to move to the Appliance settings menu.
3. Open the menu using × button.

In the Appliance settings menu you will find the following sub-menus and setting options:

Brightness
Key press sound
Key volume
Signal tone volume
Automatic clean lock
Automatic door opening
Water filter counter
Theater mode
Temperature unit
Language
Home network
Factory settings
- Demo mode
Sabbath mode

"Operating the appliance" on page 15

en-us Getting to know your appliance

Equipment

(not all models)

Storage compartment

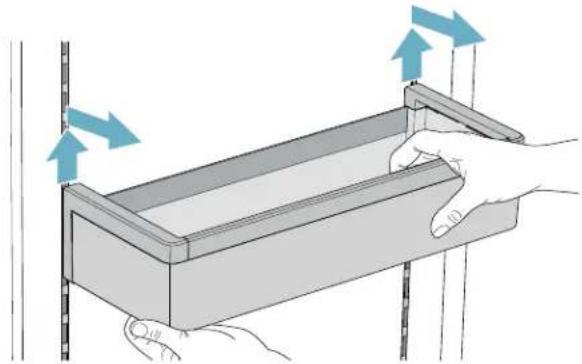

You can remove and adjust the height of the storage compartments:

1. Lift up the storage compartment and remove.

1. When re-inserting, insert hooks on back of storage compartment at same height to make it level.

Note: Insert the storage compartment carefully to avoid scratching the appliance.

Shelf

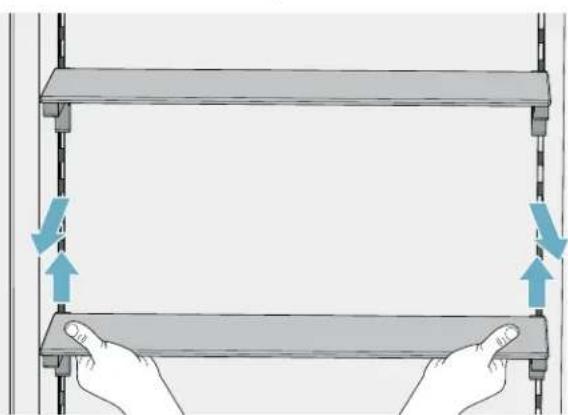

You can remove and adjust the shelf:

1. Lift shelf and remove.
2. When re-inserting, insert hooks on back of shelf at same height to make it level.

Note: Insert shelf carefully to avoid scratching the appliance.

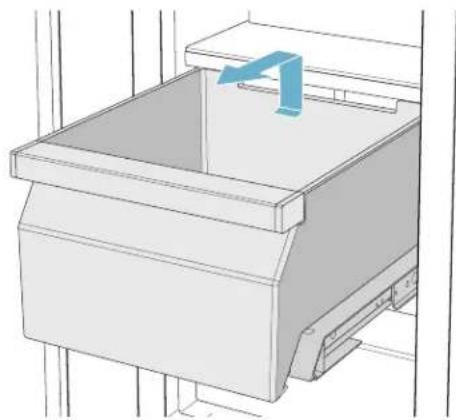

Container

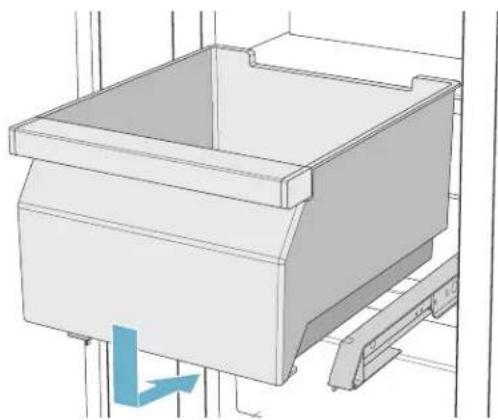

You can remove the container:

Press container to the rear,
- lift the container at the rear and remove.

You can insert the bin:

Pull out the telescopic rails all the way.
- Place the bin on the telescopic rails and push into the appliance until it engages.

Ice cube bin

Note: To avoid damaging the ice cube container, always empty it if you switch the appliance off for a prolonged period or if there is a power failure.

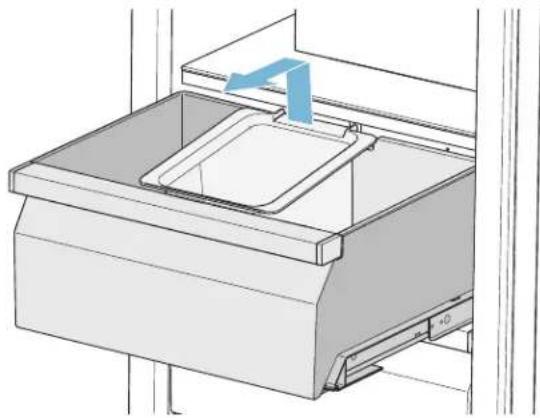

This is how to remove the ice cube container:

1. Take out the frozen food container.

Note: If the door opening angle is 90^ , you will find it easier to access the ice cube container by first removing the frozen food container. "Container" on page 12

1. Lift the ice cube container at the rear and remove.

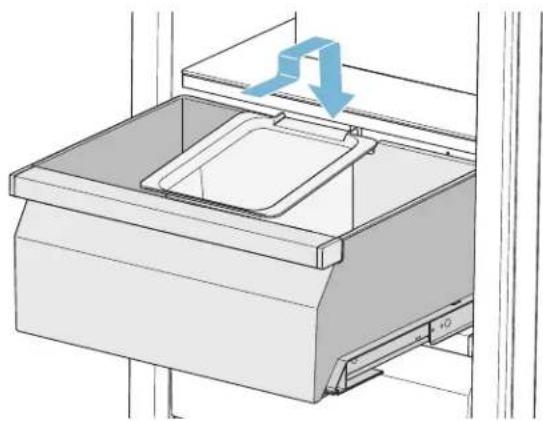

This is how to re-insert the ice cube container:

1. Take out the frozen food container.
2. Insert the ice cube container in the recess of the frozen food container provided for this purpose.

Ice pack

In the event of a power failure or a fault:

The ice pack delays the warming of stored frozen food.

You can take out the ice pack to temporarily keep food cool, e.g. in a cool bag.

Ice maker

CAUTION

DAMAGE TO THE APPLIANCE!

Never store bottles or food in the ice cube container, even for short periods. This can block and damage the ice maker.

Ice cube production starts as soon as the appliance has reached the set temperature.

Notes

Ice cube production stops automatically when the ice cube container is full.
- When using the appliance for the first time, discard ice cubes produced within the first 24 hours for hygiene reasons.
If you have stopped ice cube production for several days, discard the first 30-40 ice cubes produced for hygiene reasons.

Information about switching ice cube production on and off

"Switching ice cube production on or off" on page 16

Water filter

Change the water filter after 6 months at the latest. If the ice tastes stale, discard the rest of the ice cubes and the ones produced over the next 24 hours. If the ice still tastes stale, change the water filter.

Note: If you use an external water filter system, you can also operate the appliance without a water filter. Replace the water filter with a bypass cartridge. Switch off the water filter counter. There is no need to change the bypass cartridge.

A new water filter or bypass cartridge can be obtained from customer service or a specialist dealer.

Exchange water filter or replace with bypass cartridge

You can change the water filter, or replace it with a bypass cartridge. The bypass cartridge can remain in the appliance permanently: it does not need to be changed.

Note: After installing a water filter or a bypass cartridge, discard all ice cubes produced over the first 24 hours.

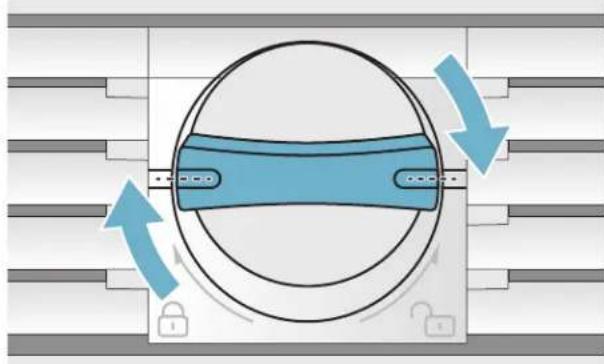

1. Turn the cap of the water filter counter-clockwise.
2. Take the water filter out.
3. Remove the protective cap of the new water filter or the new bypass cartridge.
4. Take off the cap of the used water filter and put it on the new water filter or bypass cartridge.
5. Slide the new water filter or bypass cartridge to the stop in the filter opening.

Note: The cap must be vertical here.

1. Turn the water filter or bypass cartridge clockwise to the mark.

Note: If you do not turn the water filter or bypass cartridge far enough, damage will be caused by escaping water.

1. When installing a water filter: reset water filter counter.

When installing a bypass cartridge: switch off water filter counter.

1. Discard ice cubes produced over the first 24 hours.
2. Drain the water out of the used water filter.

Note: You can dispose of the used water filter with your household garbage.

Operating the appliance

Switching the appliance on

1. Press the main On/Off switch.

The appliance starts cooling and the light is switched on when the door is open.

1. Set the required temperature.

"Setting the temperature" on page 15

Operating tips

• When the appliance has been switched on, it may take several hours until the set temperatures have been reached. Do not put in any food until the selected temperature has been reached.
  The fully automatic NoFrost system ensures that the freezer compartment remains frost-free. Defrosting is not required.
  The front sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal.
  If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalized.

Switching off and disconnecting the appliance

Switching off the appliance

Press the main On/Off switch.

The appliance is no longer cooling.

Disconnecting the appliance

CAUTION

Deterioration in water quality The water supply must be turned off 3 hours before disconnecting. This prevents mold forming with any unused water.

If you do not use the appliance for a prolonged period:

1. Turn off the water supply to the appliance and wait 3 hours.
2. Remove groceries.
3. Press the main On/Off switch.
4. Pull out the mains plug or switch off the fuse. The appliance is no longer cooling.
5. Empty the ice cube container and clean the appliance.

"Cleaning" on page 23

1. Leave appliance open.

Setting the language

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press l button.
4. Press < button to move to the menu item Language.
5. Press button.
6. Use buttons to move to the required language.
7. Press button. The display restarts, and the start screen is displayed.

Setting the temperature unit

You can choose between the unit ^ C and ^ F .

1^ means 1^
1^ means 1^

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press × button.
   4.Use < button to move to the menu item Temperature unit.
4. Press button.
5. Use buttons to move to the required unit.
6. Press button. The unit will be
7. Press button to exit the menu.

Setting the temperature

Recommended temperature

Freezer compartment: 0^ (-18^)

Freezer compartment

• Keep pressing +/- button until the display indicates the required temperature.

Super freezing

Super freezing cools the freezer compartment as cold as possible.

Switch on super freezing, e.g.:

to quickly freeze food right through to the center

4 ... 6 hours before freezing food weighing 2kg or more

Note: When super freezing is switched on, increased operating noise may occur.

After approx. 212 days the appliance switches to normal operation.

Switching super freezing on or off

Press 水 button.

Clean lock

You can use this function to switch off the touch function of the controls for 10 seconds. During this time you can clean the display.

"Cleaning the display" on page 23

1. Press button to open the Settings menu.
2. Press button.

The cleaning display appears, and the countdown starts.

Automatic clean lock

You can use this function to select whether the automatic clean lock is switched on automatically when the door is opened.

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press button.
4. Press > button to move to the menu item Automatic clean lock.
5. To change the setting, press button.

Switching ice cube production on or off

CAUTION

Damage to the appliance!

Never store bottles or food in the ice cube container, even for short periods. This can block and damage the ice maker.

Ice cube production starts as soon as the appliance has reached the set temperature.

Note: Ice cube production stops automatically when the ice cube container is full.

Switching ice maker on or off

1. Press button to open the Settings menu.
2. Use > button to move to the menu item Ice cube production.
3. Press / button.

Reset water filter counter

After replacing the water filter, you have to reset the water filter counter.

1. Press button to open the Settings menu.

2. Use > button to move to the menu item Reset water filter counter.

3. Use × button to confirm, and confirm the query again with × button.

Note: If you cancel the query or take longer than 10 seconds to make an input, the water filter counter will not be reset.

Switching the water filter counter on and off

If you have replaced the water filter with a particle filter, switch the water filter counter off. It is not needed in this case as the particle filter does not have to be replaced.

1. Press button to open the Settings menu.
2. Use < button to move to the Appliance settings menu.
3. Press button.
4. Press > button to move to the menu item Water filter counter.
5. To change the setting, press button.

Eco mode

Eco mode switches the appliance to energy-saving operation.

The appliance automatically sets the following temperatures:

Freezer compartment: +3^ (-16^)

Switching Eco mode on or off

1. Press button to open the Settings menu.
2. Press > button to move to the menu item Eco mode.
3. Press D/□ button.
   The temperature is changed and the display shows the new temperature. When Eco mode is switched off, the recommended temperature is set.

Note: You can also switch Eco mode on or off by adjusting the temperature with - / + buttons.

Self-test

This function can be used to start fault analysis on your appliance.

"Appliance self-test" on page 27

Setting the brightness of the control panel

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press button.
4. Press button to open the menu item Brightness.
5. Press buttons to set the required brightness.
6. Press l button.

The setting is saved.

1. Press button to exit the menu.

Switching key press sound on or off

You can switch the sounds generated when pressing keys off and back on again.

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press button to open the menu item.
4. Press > button to move to the menu item Key press sound.
5. Press button to open the menu item.
6. Use buttons to select the required setting.
7. Press button. The setting is s
8. Press button to exit the menu.

Setting the key volume

You can adjust the volume level of the sounds generated when pressing keys.

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press button to open the menu item.
4. Use > button to move to the menu item Key volume.
5. Press button to open the menu item.
6. Use buttons to select the required setting.
7. Press × button.

The setting is saved.

1. Press button to exit the menu.

Setting the signal tone volume

You can adjust the volume level of the signal tones generated e.g. with alarms.

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press × button to open the menu item.
4. Use > button to move to the menu item Signal tone volume.
5. Press button to open the menu item.
6. Use buttons to select the required setting.
7. Press × button.

The setting is saved.

1. Press button to exit the menu.

Automatic clean lock

You can use this function to select whether the automatic clean lock is switched on automatically when the door is opened.

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press button.
4. Press > button to move to the menu item Automatic clean lock.
5. To change the setting, press button.

Automatic door opening

The automatic door opening function supports you in opening the door.

As soon as you activate this function, automatic door opening moves out and supports you in opening the door.

CAUTION

Repeatedly closing the door too early will cause automatic door opening to fail or wear out. Do not close the door as long as automatic door opening is still moved out. If you have nevertheless closed the door, leave it closed for 5 minutes. Automatic door opening will re-adjust itself.

Switching on Push-to-open system

In an installation situation without handles you can select the Push-to-open system. Your appliance will then open a crack if you press lightly on the door.

Note: Please note that automatic door opening is disabled if Sabbath mode is activated.

1. Open menu item Auto door opening.
2. Select menu item Push-to-open system.
3. Press × button to open the menu item.
4. Select Opening force.Here you can select the level of force required to activate automatic door opening.
5. Select Opening duration.Here you can select how long the door should remain open a crack before it closes again automatically.

Note: If the door only remains open a crack, the appliance checks once a second whether the door is still ajar. After the selected opening duration elapses, the appliance will close the door automatically.

Switching on Pull-to-open system

In an installation situation with handles you can select the Pull-to-open system. Your appliance will support you in opening the door as soon as you pull on the handle.

1. Open menu item Auto door opening.
2. Select menu item Pull-to-open system.
3. Press × button to open the menu item.
4. Select Opening force.Here you can select the level of force required to activate automatic door opening.

Switching off automatic door opening

1. Open menu item Auto door opening.
2. Select menu item Off.

Switching the water filter counter on and off

If you have replaced the water filter with a particle filter, switch the water filter counter off. It is not needed in this case as the particle filter does not have to be replaced.

1. Press button to open the Settings menu.
2. Use < button to move to the Appliance settings menu.
3. Press button.
4. Press > button to move to the menu item Water filter counter.
5. To change the setting, press button.

Theater mode

If Theater mode is switched on, the light will slowly become brighter when the appliance is opened, and then slowly darker when it is closed.

Switching Theater mode on or off

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press button to open the menu item.
4. Use > button to move to the menu item Theater mode.
5. Press button to open the menu item.
6. Use > button to move to the menu item On or Off.
7. Press × button.

The setting is saved.

1. Press button to exit the menu.

Resetting to the factory settings

1. Press button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press × button.
4. Use < button to move to the menu item Factory settings.
5. Press button. A signal tone sounds, and a prompt to confirm reset appears.
6. Press × button. All settings are reset to the factory settings.
7. Press button to exit the menu.

Switching demo mode on or off

The cooling function of the appliance is switched off. All other functions can be used.

Note: Do not store any food items in demo mode as the appliance remains at room temperature.

1. Press button to open the Settings menu.

2. Use < button to move to the menu item Appliance settings.

3. Press × button.

4. Use < button to move to the menu item Demo mode.
5. Press button.
6. Use buttons to select the setting On or Off
7. Press button.

The setting is saved.

1. Press button to exit the menu.

Sabbath mode

All non-essential functions are switched off so you can also use the appliance on the Sabbath.

The appliance switches off the following:

Ice maker
Audible signals
Interior light
Messages on the display
Background illumination of display is reduced

Switching Sabbath mode on or off

Displaying Sabbath mode in the Settings menu

To use Sabbath mode, you first have to display the function in the Settings menu:

1. Press button to open the Settings menu.
2. Use < button to move to the Appliance settings menu.
3. Press × button.
4. Use < button to move to the menu item Sabbath mode. Press button.
   5.Use（button to move to the menu itemAvailable.Confirmbypressing 口 button.
5. Press button to exit the menu.
   The function is added to the Settings menu.

Switching on Sabbath mode

1. Press button to open the Settings menu.
2. Press button to open the view Duration Sabbath mode.
3. Select one of the preset settings, or change the duration with - / + buttons.
4. Press button to start. The appliance switches all listed functions off.

Switching Sabbath mode off

After the selected time elapses, the appliance switches over to normal operation.
To end Sabbath mode before the selected time elapses, press button.

Home network

You can use this function to establish a connection between the refrigerator and your mobile device.

"Home Connect" on page 20

Alarm

Door alarm

If the appliance door is open for a long time, the door alarm switches on. A message appears on the control panel.

Switching off the door alarm

Close the door.

Note: To mute the door alarm, you only have to acknowledge the message on the control panel. If the door remains opens a few more minutes, the message will appear again.

Temperature alarm

If the freezer compartment becomes too warm, the temperature alarm is switched on. A message appears on the control panel. The message shows the warmest temperature reached in the freezer compartment.

CAUTION

DURING THE THAWING PROCESS, BACTERIA MAY DEVELOP AND SPOIL THE FROZEN ITEMS.

Do not refreeze partly or completely thawed food.

Refreeze food only after cooking. No longer store the frozen items for the maximum storage period.

Note: The alarm may be actuated without risk to the food in the following cases:

The appliance is put into service and does not yet contain any food.
Large quantities of fresh food are placed in the appliance.
The freezer compartment door has been open too long.

Switching off the temperature alarm

1. Check that the cause of the temperature alarm has been eliminated.
2. Press l button to acknowledge the message. The message disappears. The control panel again indicates the temperature selected.

From this time on the warmest temperature is recalculated and saved.

Home Connect

This appliance is Wi-Fi-capable and can be controlled remotely using a mobile device.

Note: Wi-Fi is a registered trade mark of the Wi-Fi Alliance.

In the following cases, the appliance functions like a refrigerator without a network connection and can still be operated manually via the controls:

The appliance is not connected to a home network.
The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on www.home-connect.com.

Note: Please observe the safety information in this instruction manual. Ensure that this is also observed if you operate the appliance via the Home Connect app and are not at home when doing so. "Important safety instructions" on page 4

Follow the instructions in the Home Connect app as well.

Setting up a home network

Notes

Wait at least 2 minutes after switching on the appliance before setting up Home Connect. Only then is internal appliance initialization complete.
Take note of the Home Connect supplementary sheet, which is supplied with the appliance or is available for download at www.thermador.com together with the instructions. Enter the E-number of your appliance in the search field.

You can connect your appliance to the home WLAN network (Wi-Fi) in 3 basic steps.

1. Install the app.
2. Connect your refrigerator to the home WLAN network (Wi-Fi).
3. Connect the refrigerator to the Home Connect app.

The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel. For further information, please also see the following chapters.

The following sub-menus can be found in the Home network menu:

Connection
Connect to app
Software update
Delete network settings

Open Home network menu

1. To open the Settings menu, press the button.
2. Use < button to move to the menu item Appliance settings.
3. Press button.

4. Press < button to move to the menu item WiFi.

5. Press button.

Note: The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.

Setting up the connection to the home network

The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.

1. Install the Home Connect app on your mobile device.
2. Open the Home network menu on your refrigerator.
3. Open the app on your mobile device.
4. Log in or register with the app if access is not yet available.
5. Check the router of your home network to see if a WPS function is available for automatic connection.
6. If this function is available, start automatic network connection with button. Follow the instructions on the control panel.
7. Start manual network connection if this function is not available, if you're not sure whether the function is available, or if automatic network connection failed. The refrigerator temporarily generates its own network for connecting the mobile device.
8. Start manual network connection in the app of your mobile device.

As soon as the refrigerator is connected to the mobile device, a connection between the refrigerator and your home network is established.

Note: If the connection cannot be established, check whether there is sufficient reception.

"Verifying signal strength" on page 20

Verifying signal strength

The signal strength is displayed in the start window of the Home network menu. The signal strength should be at least 50% . If the signal strength is too weak, the connection may be interrupted.

Improving signal strength

• Place the router closer to the refrigerator.
• Check that screening walls do not interfere with the connection.
  Install a repeater to make the signal stronger.

Connecting the refrigerator to the Home Connect app

Use this menu to connect your refrigerator to mobile terminal devices.

1. Install the Home Connect app on your mobile terminal device and log in or register.
2. Open the Home network menu on your refrigerator.
3. Press > button to move to the menu item Connect to app.

4. Press button to open the menu item.

5. Confirm the prompt to display the refrigerator in the app.

6. Open the app and wait until the refrigerator is displayed. Press Add to confirm the connection between the app and the refrigerator. If the refrigerator is not automatically displayed, click on Add appliance in the app and follow the instructions. As soon as your refrigerator is displayed, add it with
7. Follow the instructions in the app until the process is complete.

Installing updates for the Home Connect software

The refrigerator checks at regular intervals whether updates are available for the Home Connect software.

The Info ① button is visible when an update is available.

Installing the update:
1. Press ① button.

A note window with the necessary steps for installing the new software appears.

1. Press button to close the note.
2. Open the Home network menu on your refrigerator.
3. Press > button to move to the menu item Software update.
4. Press button to open the menu item.

Note: The button is only visible if an update is available.

The software is installed.

1. A note appears when installation is complete.
2. Press button to close the note.

Customer Service access

If you contact Customer Service, they can access your appliance and view its status after you have given your consent. You need to have your appliance connected to your home network for this.

Further information about Customer Service access and its availability in your country is available under www.home-connect.com in the Help & Support area.

1. Contact Customer Service. "Customer service" on page 27
2. Confirm the start of Customer Service access in the app. During Customer Service access the symbol 念 appears on the control panel.
3. As soon as Customer Service has obtained the necessary data, they end access.

Note: You can interrupt remote diagnosis early by switching off Customer Service access in the Home Connect app.

Deleting network settings

If there is a problem when trying to establish a connection, or if you would like to register the appliance in a different home WLAN network (Wi-Fi), the Home Connect settings can be reset.

1. Open the Home network menu on your refrigerator.
2. Press > button to move to the menu item Delete network settings.
3. Press button to open the menu item.
4. Confirm the prompt to delete the network settings.

To then reconnect the appliance to the home WLAN network (Wi-Fi), perform initial setup again. "Setting up the connection to the home network" on page 20

Switch on or off the connection to the home WLAN network (Wi-Fi)

1. Open the WiFi menu on your refrigerator.

"Open Home network menu" on page 20

Note: The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.

1. To open the menu item, press Connection button.
2. Use buttons to select the required setting.
3. To select the setting, press l button.

Note: If you switch off the Home Connect connection, you will no longer be able to operate the appliance with your mobile device.

Information on data protection

The first time your Home Connect appliance is registered on a WLAN home network connected to the Internet (Wi-Fi), your appliance will transmit the following types of data to the Home Connect server (initial registration):

• Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
  Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
  The current software and hardware version of your domestic appliance.
  Status of any previous resetting to factory settings.

This initial registration prepares the
Home Connect functions for use and is only required when you want to use these
Home Connect functions for the first time.

Note: Please note that the Home Connect functions can be utilized only in conjunction with the Home Connect app. Information on data protection can be called up in the Home Connect app.

Freezer compartment

The freezer compartment is suitable for:

storing frozen food
making ice cubes
freezing food

The temperature can be set from -11^(-24^) +7^(-14^)

The freezer compartment can be used to store perishable foods long-term almost without any noticeable reduction in quality, as the low temperatures considerably slow down or stop deterioration. Appearance, flavor and all valuable ingredients are largely retained.

The time between putting fresh food in the freezer compartment and it freezing solid depends on the following factors:

temperature set
type of food
amount of food in the freezer compartment
quantity and type of storage

Fully utilizing the freezer volume

To place the maximum quantity of frozen food in the freezer compartment:

Remove all fittings.
Store food directly on the shelves and on the floor of the freezer compartment.

Purchasing frozen food

Ensure the packaging is not damaged.
Check there is a sell-by date.
The temperature in the supermarket freezer must be 0^ (-18^) or lower.
- Do not interrupt the freezing chain. If possible, transport frozen food in a cool bag and place in the freezer compartment quickly.

When loading products

Freeze large quantities of food in the top compartment.
This is where it will freeze especially quickly and gently.
- Distribute food in the compartments or frozen food containers.
- Do not bring food which is to be frozen into contact with frozen food. If required, restack frozen food in the frozen food containers.
Important for unrestricted air circulation in the appliance:

push in frozen food containers up to the limit stop.

Freezing fresh food

Freeze only fresh and undamaged food.

Food which is boiled, fried or baked is more suitable for freezing than food which is eaten raw.

Before freezing food, make preparations appropriate to the food in order to retain the best possible nutritional value, flavor and color:

Vegetables: wash, chop, blanch.
Fruit: wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution.

Information on how to do this can be found in relevant literature.

Suitable for freezing

Baked goods
Fish and seafood
Meat
Poultry and game
Vegetables, fruit and herbs
Eggs without shells.
Dairy products, e.g. cheese, butter and quark
Ready meals and leftovers, e.g. soups, stews, cooked meat and fish, potato dishes, souffles and desserts

Not suitable for freezing

Types of vegetables which are usually eaten raw, e.g. lettuce or radishes
Unpeeled or hard-boiled eggs
Grapes
Whole apples, pears and peaches
Yoghurt, soured milk, sour cream, crème fraîche and mayonnaise

Packing frozen food

The correct type of packaging and material selection are decisive factors in the retention of the product quality and prevent the development of freezer burn.

1. Place food in packaging.
2. Remove air.
3. Pack food airtight to prevent it from losing flavor or drying out.
4. Label packaging with contents and date of freezing.

Suitable packaging:

Plastic foil
Tubular foil made of polyethylene (PE)
Aluminum foil
Freezer containers

Suitable closures:

Rubber bands
Plastic clips
Cold-resistant adhesive tape

Unsuitable packaging:

Wrapping paper
Greaseproof paper
Cellophane

Garbage bags and used grocery bags

Shelf life of frozen food at 0^ (-18^)

Fish, sausage, ready meals, and cakes up to 6 months and pastries:

Meat, poultry: up to 8 months

Vegetables, fruit: up to 12 months

Thawing frozen food

The thawing method must be adjusted to the food and application in order to retain the best possible product quality.

Thawing methods:

In the refrigerator compartment (especially suitable for animal-based foods such as fish, meat, cheese)
At room temperature (bread)
In the microwave (food for immediate consumption or immediate preparation)
In the oven/cooker (food for immediate consumption or immediate preparation)

CAUTION

Do not refreeze partly or completely thawed food. You can only refreeze food once it has been cooked (boiled or fried).

The frozen food can no longer be stored for the maximum duration.

Defrosting

Freezer compartment

The fully automatic NoFrost system ensures that the freezer compartment remains frost-free. Defrosting is no longer required.

Cleaning

CAUTION

AVOID DAMAGING THE APPLIANCE AND THE EQUIPMENT.

• Do not use abrasive, chloride-based or acidic cleaning agents or solvents.
• Do not use scouring or abrasive sponges. The metallic surfaces may corrode.
• Never clean the shelves or bins in the dishwasher. The parts may become deformed.

Cleaning the display

The change in temperature and humidity can cause the controls to steam up.

Switch the clean lock on before cleaning.

"Clean lock" on page 16

Use a clean micro-fiber cloth for cleaning.

Cleaning the appliance interior

Proceed as follows:

1. Press the main On/Off switch.
2. Take out food and store in a cool location. Place ice pack (if available) on the food.
3. Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.

CAUTION

The rinsing water must not run into the light or through the drainage hole into the evaporation area.

1. Wipe door seal with clear water and dry thoroughly with a cloth.
2. Switch appliance back on and put in food.

Cleaning the equipment

To clean, take the removable parts out of the appliance.

"Equipment" on page 12

Care instructions for stainless steel surfaces

When taking care of and cleaning stainless steel surfaces, use only cleaning agents suitable for stainless steel and a stainless steel cleaning cloth.

You can purchase a suitable stainless steel cleaning cloth from customer service.

To prevent visible scratches, clean the stainless steel surface in the direction of the structure.

Noises

Normal noises

Droning: A motor is running, e.g. refrigerating unit, ventilator.

Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes.

Clicking: Motor, switches or solenoid valves are switching on or off.

Cracking: Automatic defrosting is running.

Preventing noises

Appliance is not level: Align appliance using a water level. If required, place a little packing underneath.

Bins, shelves or storage compartments wobble or stick: Check the removable equipment and re-insert if required.

Lighting

Your appliance features a maintenance-free LED light.

Only customer service or authorized technicians may repair the light.

Faults - what to do?

Before you call customer service, use this table to check whether you can rectify the fault yourself.

Appliance

Temperature differs greatly from the set value.
	Switch off appliance for 5 minutes. → "Switching off and disconnecting the appliance" on page 15 If the temperature is too warm, check temperature again after a couple of hours. If the temperature is too cold, check temperature again on the following day.
Displays do not light up.
The power plug has not been inserted properly. Connect the power plug.
The fuse has tripped. Check the fuses.
The power has failed. Check whether the power is on.
The refrigeration unit is switching on more frequently and for longer.
The appliance was opened frequently. Do not open the appliance unnecessarily.
The ventilation openings are covered up. Remove obstacles.
Large quantities of fresh food have been put in. Switch on super cooling promptly in advance.
Appliance is not cooling, display and lighting are lit.
Demo mode is switched on. Switch demo mode off.	→ "Switching demo mode on or off" on page 18
The door does not open when pressed.
A special mode has switched off automatic door opening.	To open the door, reach from below underneath the bottom panel of the unit or switch off special mode. → "Switching Sabbath mode on or off" on page 18
Pull-to-open is switched on.	Switch the appliance to Push-to-open. → "Automatic door opening" on page 17
The opening force is set too high.	Select a lower setting for the opening force. → "Automatic door opening" on page 17
The fuse has tripped. Check the fuses.
The power has failed. Check whether the power is on.

Ice maker

The ice maker is not functioning.
Ice cube production is switched off. Switch on ice cube production.
Freezer compartment is too warm. Set the temperature lower. → "Operating the appliance" on page 15
Ice cube container is not properly inserted. Insert ice cube container fully.
Ice maker without power. Call customer service. → "Customer service" on page 27
No water supply. Check water connection and contact technician if necessary.
Low water pressure. Only connect appliance to pipes with sufficient water pressure.
Kink in water hose. Turn off water supply, straighten out kink. Replace water hose, if necessary.
Too few or deformed ice cubes, water pressure lower than usual.
After switching on or removing many ice cubes, there will be too few in the ice cube container.	It takes around 24 hours for an empty ice cube container to fill up.
Ice cube production stops even though the ice cube container is still not full.	Do not store the ice shovel on the ice in the ice cube container. Otherwise, the sensor will not detect the actual fill level of the container.
Low water pressure. Only connect appliance to pipes with sufficient water pressure.
The water filter is blocked or needs to be replaced. Replace water filter.
Freezer compartment is too warm. Set the temperature lower. → "Operating the appliance" on page 15
Water is leaking out of the appliance.
Water connection is not tight. Check if the connections are fastened firmly and the water hose is undamaged. If the water hose is damaged, contact customer service and have it replaced. Replacement must be performed by customer service or a similarly qualified person only.Use original parts supplied by the manufacturer only.

Customer service

If you are unable to rectify the fault, please contact our customer service. We will always find an appropriate solution in order to avoid unnecessary visits by engineers.

The contact information for your nearest customer service can be found here or on the enclosed customer service list.

When calling, please state the product number (ENr.) and the production number (FD), which can be found on the rating plate.

"Getting to know your appliance" on page 10

Trust the expertise of the manufacturer. You can therefore be sure that the repair is carried out by trained service engineers who carry original spare parts for your home appliances.

Appliance self-test

Your appliance features a self-test program which displays the fault your customer service can rectify.

1. Press button to open the Settings menu.
2. Use > button to move to the menu item Self-test.
3. Press button to start the self-test. The self-test starts.
4. If faults are present, they will be displayed. In this case follow the instructions.
5. The appliance restarts.
6. A message that the self-test has finished is displayed for 10 seconds.

When the self-test has ended, the appliance switches to normal operation.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

USA 1-800-735-4328 Toll-free in the USA

CA1-800-735-4328

fr-ca

fr Table des matieres

Installation juxtaposing 34

Economiser de I'energie 35

Installation juxtaposing

Compartment congélateur

Le compartmentengélateur sertà:

Datos techniques .62

Instalar el aparato .62

Instalacion side by side. 62

Ahorrar energia 63

Instalacion side by side

Para colocar el recipient:
