USER MANUAL Arctis 7X Wireless STEELSERIES

PRODUCT INFORMATION GUIDE

CONTENTS

Product Overview 5-6

Setup 7-8

Charging 9

Power ON/OFF 10

Pairing 11

Microphone 12

Ski Goggle Headband 13

Translations

Espanol 14

简体中文16

繁體中文 18

日本語 20

韩国兒 22

Deutsch 24

Pycckn 26

Francais 28

Italiano 30

Portugues 32

Regulatory 35

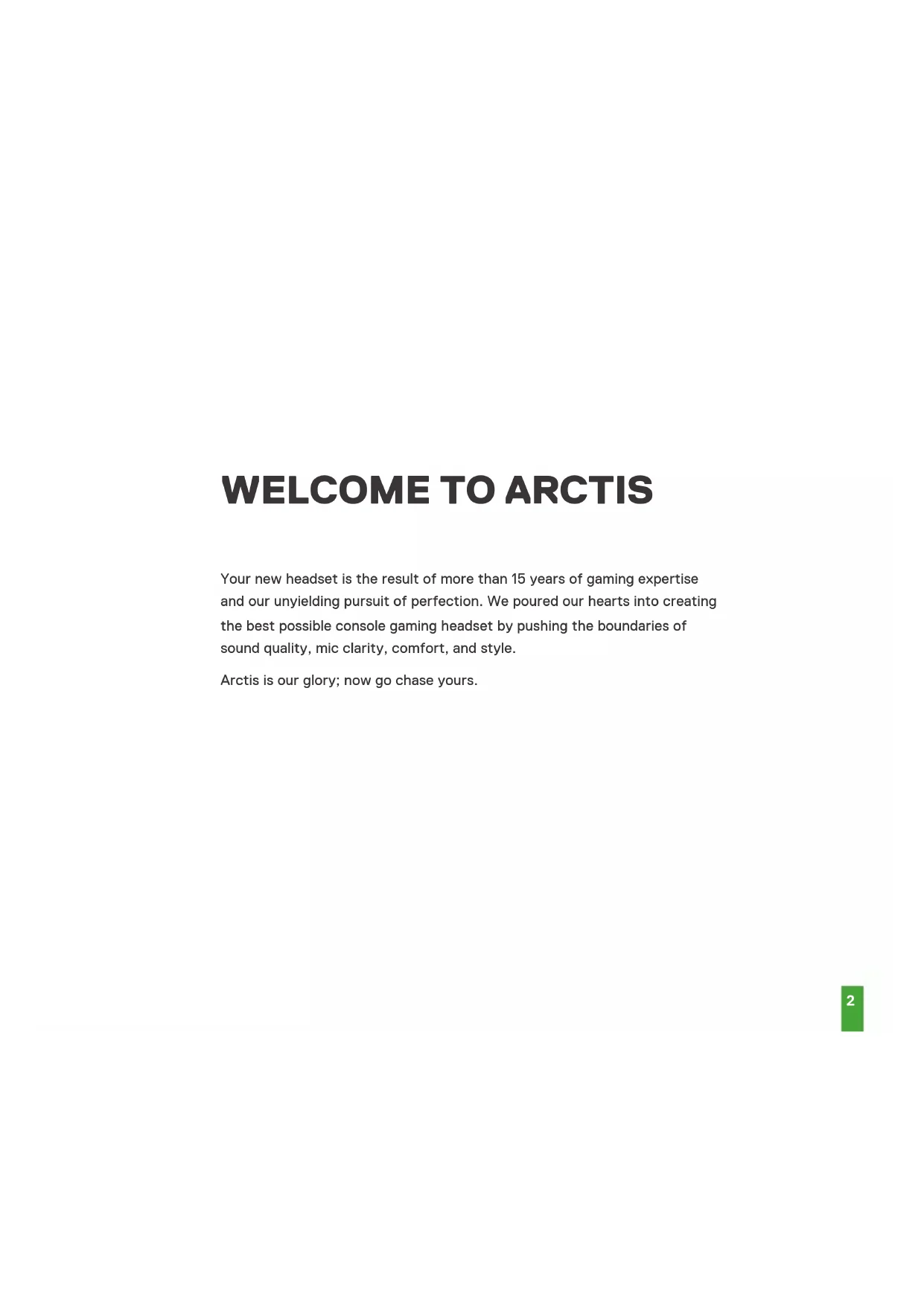

WELCOME TO ARCTIS

Your new headset is the result of more than 15 years of gaming expertise and our unyielding pursuit of perfection. We poured our hearts into creating the best possible console gaming headset by pushing the boundaries of sound quality, mic clarity, comfort, and style.

Arctis is our glory; now go chase yours.

STEELSERIES ENGINE

Download SteelSeries Engine to customize your audio settings and to integrate with Engine Apps like Discord: steelseries.com/engine

PACKAGE CONTENTS

Arctis 7X Wireless Headset

USB-C Wireless Dongle

USB-C to USB-A Adapter Cable

Micro-USB Charging Cable

4-pole 3.5 mm Audio Cable

SYSTEM REQUIREMENTS // COMPATIBILITY

Xbox Series X

Xbox One

PC

Nintendo Switch

PlayStation 5

PlayStation 4

Android (with USB-C)

Note: Samsung Galaxy phones do not support voice call or voice chat functionality via USB; however, streaming media such as games, music and videos are supported.

STEELSERIES ENGINE SOFTWARE REQUIREMENTS

Platforms*

Windows7+

Mac OS X 10.8+

• Some software features available on Windows 10 only

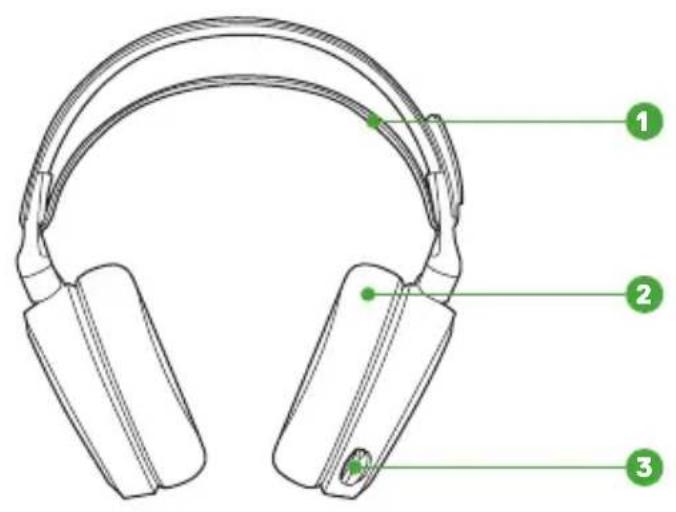

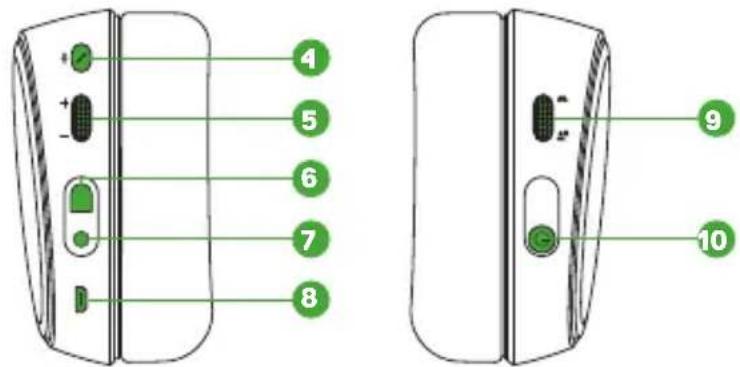

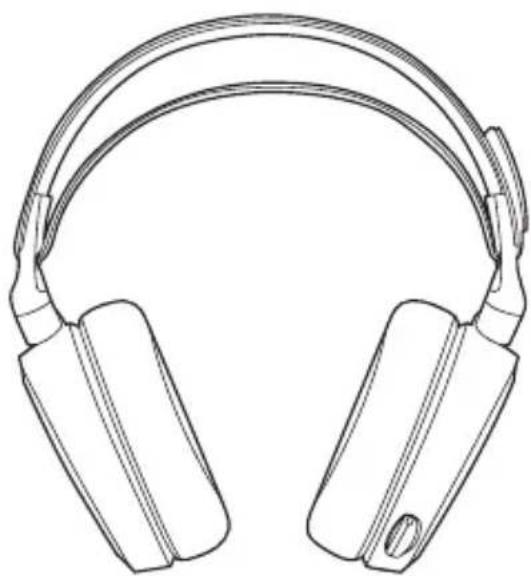

PRODUCT OVERVIEW

1 Ski Goggle Headband
2 Airweave Ear Cushions
3 ClearCast Microphone
4 Microphone Mute Button
5 Volume Control
6 Mobile Cable Jack
7 Headphone Share Jack
8 Micro-USB Charging Jack
9 ChatMix Dial
10 Power Button

*Find accessories at steelseries.com/gaming-accessories

11 USB-C Wireless Dongle
12 Mode Switch
13 USB-C to USB-A Adapter Cable
14 Micro-USB Charging Cable
15 4-pole 3.5mm Audio Cable

SETUP

More detailed product information at steelseries.com/arctis-7x

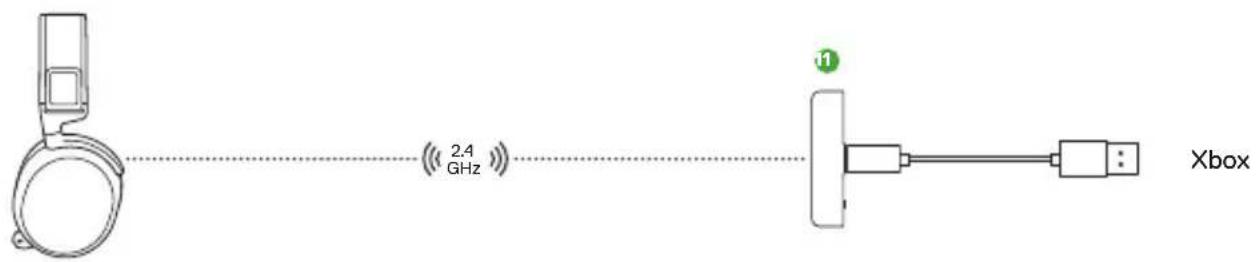

XBOX SERIES X / XBOX ONE

Set the Mode Switch 2 of the USB-C Wireless Dongle to Xbox.

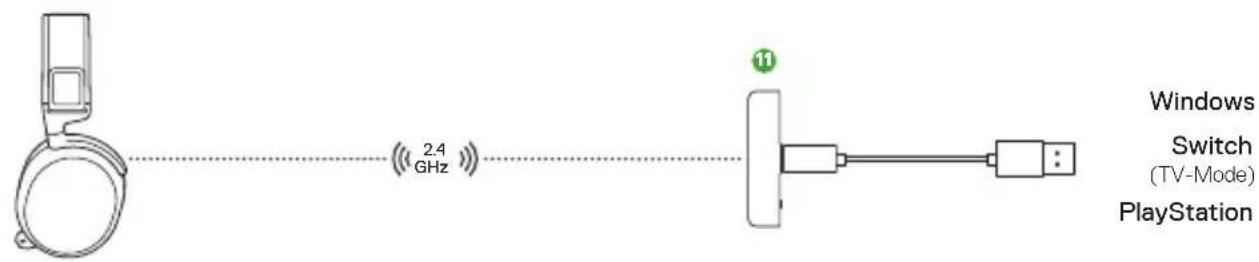

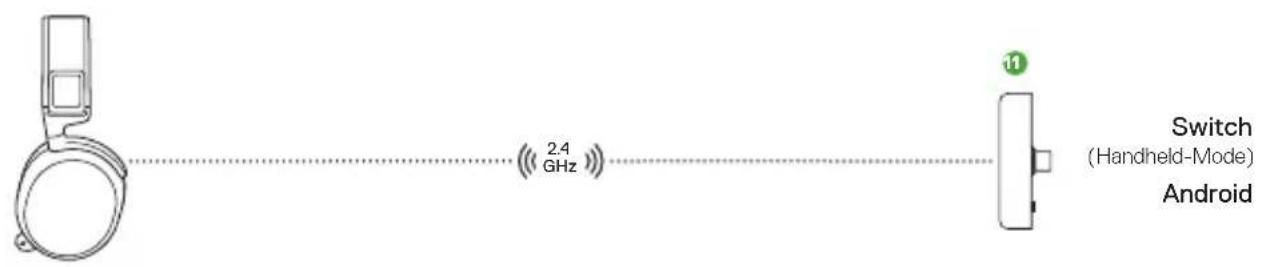

WINDOWS, SWITCH, PLAYSTATION,Android

Set the Mode Switch of the USB-C Wireless Dongle to USB.

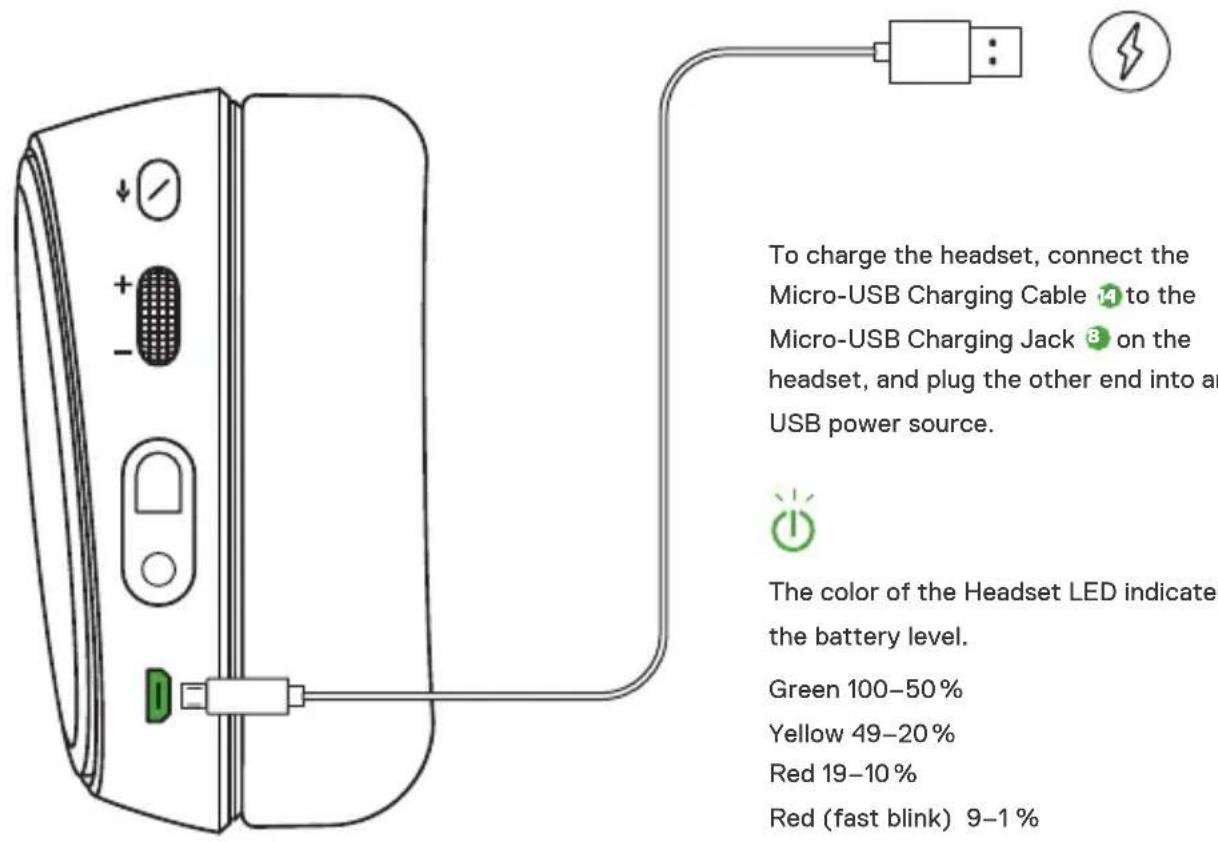

CHARGING

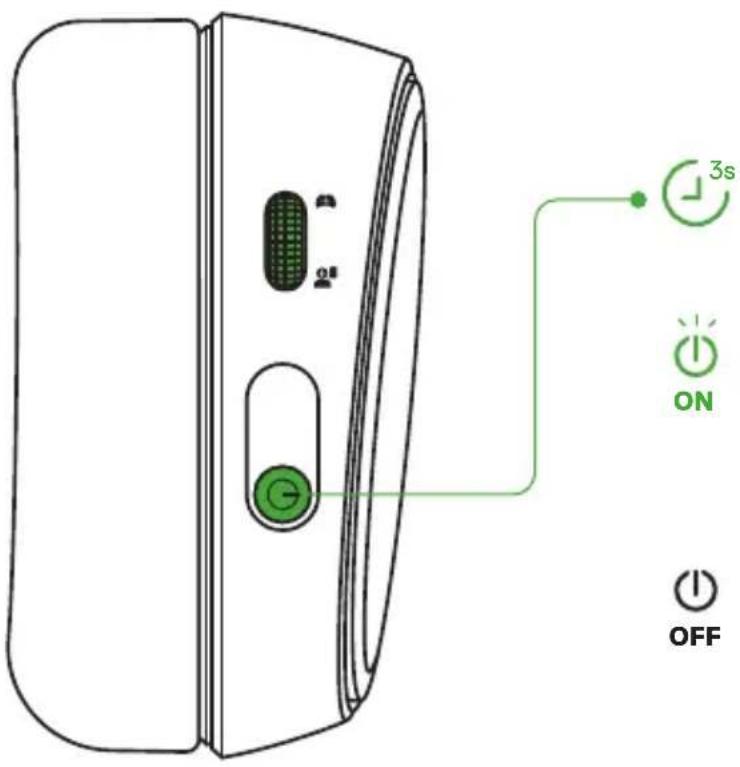

POWERON/OFF

To power on the headset, press and hold the Power Button for at least 3 seconds. You will hear a tone, and the Headset LED will illuminate.

To power off the headset, press and hold the Power Button for at least 3 seconds.

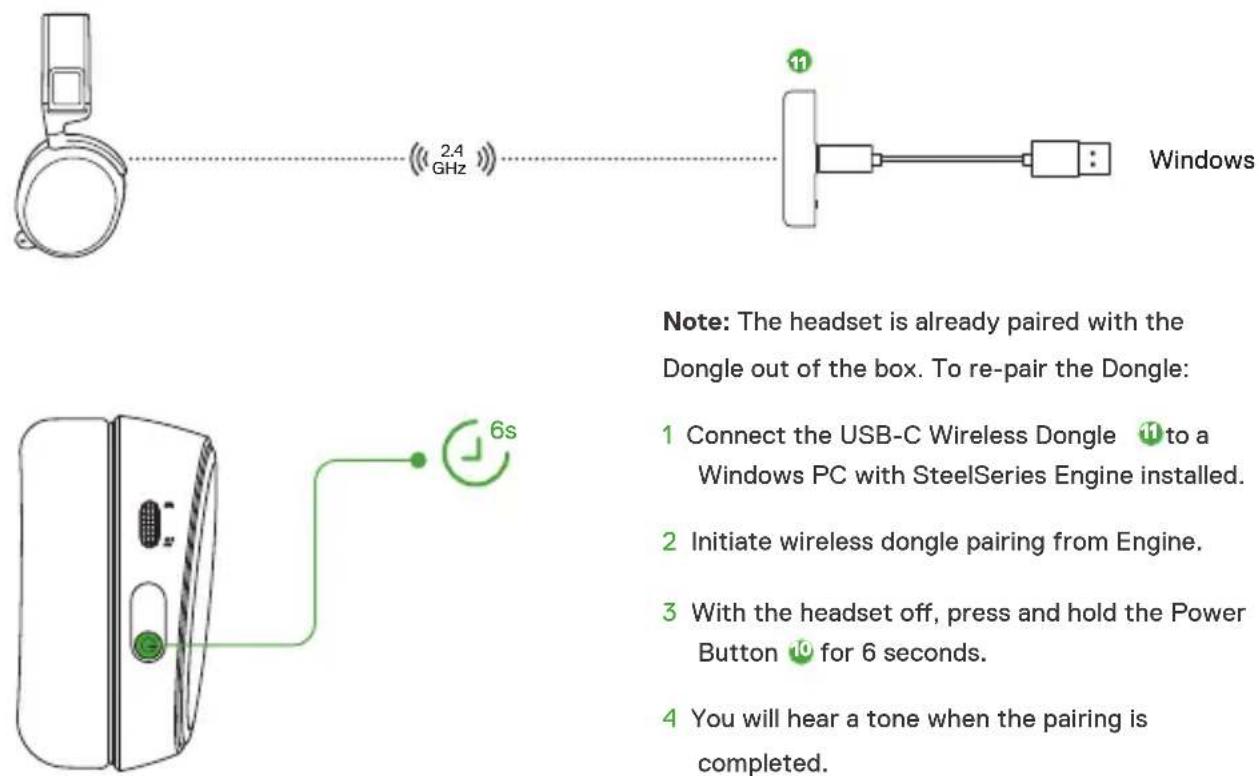

PAIRING

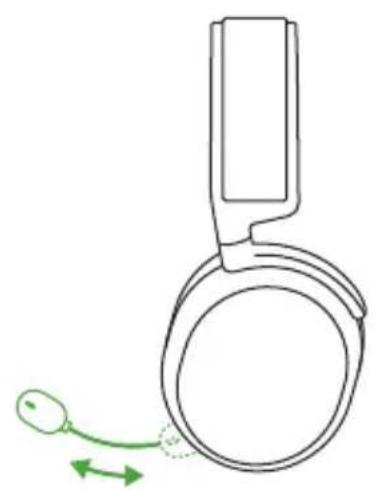

MICROPHONE

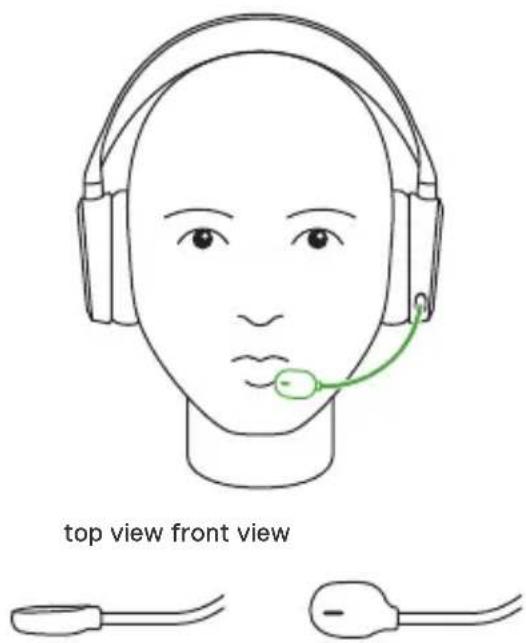

RETRACTABLE MICROPHONE POSITIONING

Position the ClearCast Microphone close to the corner of your mouth with the flat surface facing you

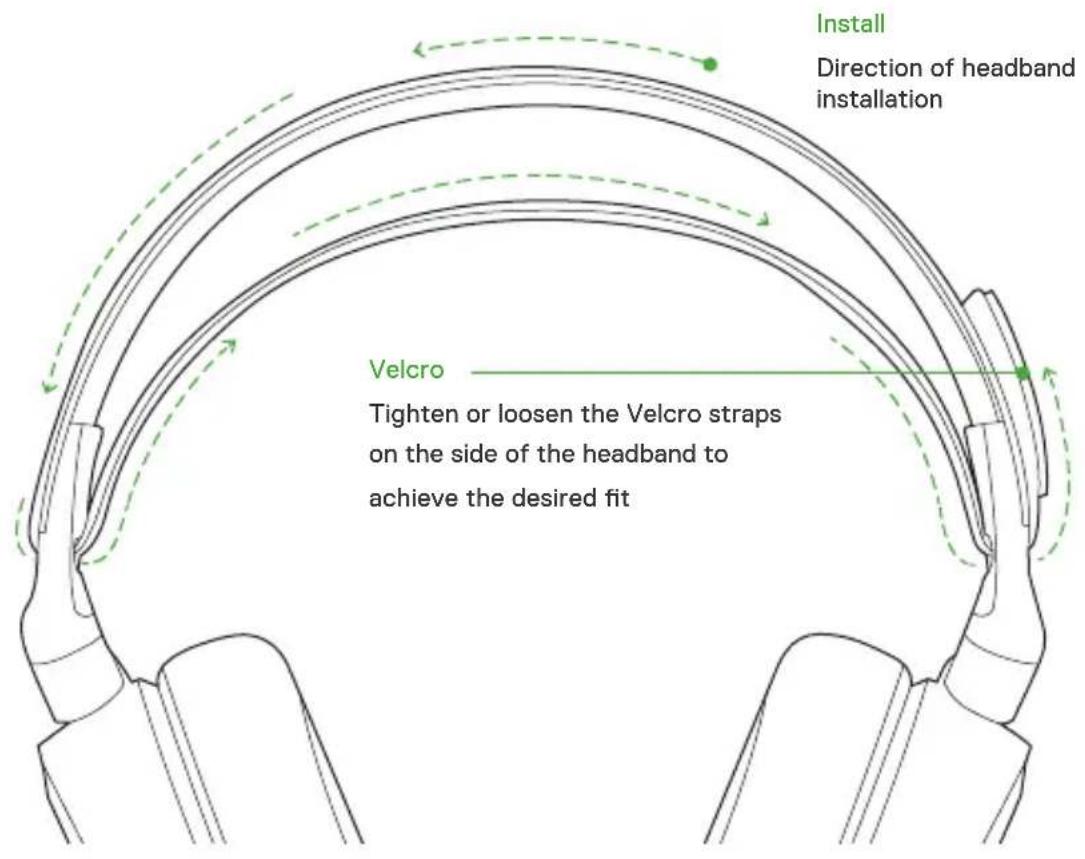

SKI GOGGLE HEADBAND

ESPANOL

CONTENIDO DE LA CAJA

Auriculares inalambricos Arctis 7X

Mochila inalambrica USB-C

Cable adaptor de USB-C a USB-A

Cable de energia micro USB

steelseries.com/gaming-accessories

sehtt

steelseries.com/arctis-7x

充電中

steeleseries.com/arctis-7x에서상품 썸본을

<|im_start|>assistant alaba보심지어.

考题

he3dは将中，M1KoUSB中，

he3ELED的*

100-50%

不鏽鋼 49-20%

凿19-10%

凿凿（由列格）9-1%

前川/卫

heD3的的，i，10e3iup

heT3E的JiH，J103t 33

#

查卫：他德贝伊迈马生的同和阮

CoeHHTeHbHk6eJb USB-C-USB-A

3apnBkKa6eB Micro-USB

Aynokka6enb c 4-KoHTaKTHbIM pa3beMOM 3,5 MM

TPEBOAHNA K CNTCTEME // COBMECTUMOCTb

Xbox Series X

Xbox One

Nintendo Switch

PlayStation 5

PlayStation 4

Android (c USB-C)

PnmeHne.Tenefohbl Samsung Galaxy He noDepKINBAOT roLOCOBbI BbIOBbI nn nepeauy roLoCaYepe3 USB, Ho noDepKINBAOT

*BbIbpaTb npHnAdJeXHoCTN MoKHO no aDpecy steelseries.com/gaming-accessories

HACTPOIKA

XBOX SERIES X / XBOX ONE

YcTaHOBnte nepeKJIuOaTeIb peKIMOB 26ecnpoBODHOro aanTepa USB-C1B noLoKeHne Xbox.

WINDOWS, SWITCH, PLAYSTATION, ANDROID

YcTaHOBnte nepeKJIIOuHaTeIb peKIMOB 16ecnpoBOHOro aAnTepa USB-C B noLoXKeHne USB.

Bolnee npo6Hyu HOpMaunMOxHo

HaiTn no aDpecy steelseries.com/arctis-7x

3APRAKA

ДяЗарядк rapнтурь NOДСоeДHHTe 3аряды кабел Micro-USB K 3apяdHomy pa3bemy Micro-USB Ha rapнtype,дуroy Koheczakбеля NOДКПОчNTe KЛIOБOMy USB-NoPTy, cnoCo6Homy obecneuTb nITaHne.

LBeT CBeToDnOda rapHnTypbl yKa3bIBaET Ha npOBeHb 3apra da 6atapeu.

3eJenb1 100-50%

KeIbI 49-20%

KpacHbI 19-10%

KpacbHb（6bICtpoMuraet）9-1%

BKIOUOHEH/BoIKIOUOHEH NITAHN

ДяВКЛЮЧЕнЯ rapHNTypbl HaKMTe n ydepknBaIte KhoNky NITaHnHa He MeHee 3cekynd.Пpo3ByuHT cHrHaI,И 3arOpNTcR CBETOJNOd rapHNTypbl.

IyBbIKIOUeHnraPHTypblHaKMITEu ydepkBaIte KHOINKy nITAHN He MeHee 3 ceKHyD.

CONPAXEHNE

PnmeHne. Hpya nocTabIeTc conpKHeHc aanTePOM. Iy noBTOPOco npKHeHc aanTePOM:

1 PoiKJIouHTe 6ecnpoBOnHo aanTep

USB-C K PIK c OC Windows u yctaHOBLeHHoN noDCncTeMoN SteelSeries.

2 B noicme 3anyctnte copjxehne c 6ecnpoBOHbIM aanTepom.
3 Ha BbIKIIOeHHoI rapHnType HaxMnte N ydepKINBaIte KHOKNy NITaHnY 10B TeueHne 6 cekyHd.
4NoOKOHuaHnCOnpJKeHnpa3daCTc3ByKOBoi CnHaI.

MVKPOΦOH

BbIiBnIXHoi MKNPOΦOH

FRANÇAIS

CONTENU DE L'EMBALLAGE

Casque sans fil Arctis 7X

DonglesansfilUSB-C

Cable de charge micro-USB

Cable audio quadripolaire 3,5 mm

SYTÉME REQUIS // COMPATIBILITÉ

Xbox série X

Xbox One

PC

P03nnoHnpOBaHne

PacnoIooKInTe MnKpOoH ClearCast 3 pIaOM cyroIokom pTa nlockoN NOBepxHocTbIO K ce6e.

OROIOBbESKI GOGGLE

YCTAHOBKA

HanpaBJIeHNye yCTaHOBKn OToIobb.

3ACTEKKA-JINNYUKA

3aTHe nnocna6bTe 3acteknnnyuynC60ky oroNoby,TO6blO6ntbcKOMΦopTHoro npnneraHn.

Nintendo Switch

PlayStation 5

PlayStation 4

Dongle wireless USB-C

steelseries.com/gaming-accessories

CONFIGURAÇÃO

XBOX SERIES X / XBOX ONE

Configure o interruptor de modo 2 do dongle sem fios USB-C 1 para Xbox.

WINDOWS, SWITCH, PLAYSTATION, ANDROID

Configure o interruptor de modo 2 do dongle sem fios USB-C 1 para USB.

steelseries.com/arctis-7x

CARREGAMENTO

Europe - EU Declaration of Conformity

Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.

The full text of the EU declaration of conformity is available at the following internet address: https://steelseries.com/Operating Temperature: 0 to +40 °C

SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.

Frequency bands and Powers (Headset and Transceiver)

a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz

b. Maximum radio-frequency power transmitted in the

frequency band(s) in which the radio equipment operates:

EIRP: n/4-DQPSK: 7.78 dBm (Headset ANT 1)

-EIRP: n/4-DQPSK: 9.57 dBm (Headset ANT 2)

EIRP: n/4-DQPSK: 9.32 dBm (Transceiver)

c. Firmware Version: T1.00.05

WEEE

This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Safety Guideline for Lithium Battery

This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Headset FCC ID: ZHK-HS00013

Transceiver FCC ID: ZHK-HS00021TXX

Frequency bands and Powers (Mouse and Transceiver)

a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz

b. Maximum radio-frequency power transmitted in the

frequency band(s) in which the radio equipment operates:

Conducted Peak Power/ n/4-DQPSK: 4.88 dBm (Headset ANT 1)
Conducted Peak Power/ n/4-DQPSK: 4.9 dBm (Headset ANT 2)
Conducted Peak Power/ n/4-DQPSK: 5.45 dBm (Transceiver)
c. Firmware Version: T1.00.05

Regions Contact Information

USA SteelSeries ApS., 656 W Randolph St., Suite 3E, Chicago, IL 60661, USA [phone]

More information and support from https://steelseries.com/

Industry Canada Statement:

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1) this device may not cause interference, and
2) this device must accept any interference, including interference that may cause undesired operation of the device. Le present appeareil est conforme aux CNR d'Industrie Canada

This Class B digital apparatus complies with Canadian ICES-003.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.

The County Code Selection feature is disabled for products marketed in the US/ Canada.

The appliance must not be exposed to splashes or drops of water and it should not be used as a support for any object filled with liquid, such as a vase.

RISK OF EXPLOSION IF BATTERY PACK IS NOT REPLACE BY SAME TYPE AS SPECIFIED BY THE MANUFACTURER.

Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

1. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.
2. Please keep this battery pack away from fire and high heat sources due to the explosion that might happen. Do not place your battery pack close to any heater or hot location.
3. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
4. This battery pack shall not be exposed to moisture, dripping or splashing.
5. If any electrolyte flows out of this battery pack when touching the user's eyes and skin, please seek medical advice immediately.

"MISE EN GARDE!"

RISQUE D'EXPLOSION SI LE BLOC-PILES N'EST PAS REMPLACÉ PAR LE MÈME TYPE QUE SPÉCIFIÉ PAR LE FABRICANT.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SteelSeries Products and Australian Consumer Law

Our goods come with guarantees that cannot be excluded under Australian consumer law. You are entitled to a repair, replacement, or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Should your product be defective, you can make a claim under Australian consumer law.

SteelSeries will provide its own remedies equivalent to those remedies in the consumer guarantee provisions of the Australian Consumer Law at any time within 24 months of the date of purchase. For the avoidance of doubt,

SteelSeries acknowledges that the Australian Consumer Law may provide for remedies beyond 24 months for a number of its products.

Summary of Australian statutory consumer guarantees

Consumer guarantees in relation to goods

The goods will be of acceptable quality, The goods will be fit for a particular purpose, The goods will match their description, The goods will match the sample or demonstration model, You have title to the goods, You have undisturbed possession of the goods, There are no undisclosed securities on the goods.

Consumer guarantees in relation to services

We will provide the services with due care and skill. The services will be fit for a particular purpose. The services will be provided within a reasonable time.

For SteelSeries-branded goods, in addition to the above, we also guarantee that we will provide repairs or spare parts for a reasonable time. Under Australian consumer law, the remedy you are entitled to if a product fails to meet a consumer guarantee will depend on whether the failure to comply with the guarantee is major or minor.

Minor failures to comply with a consumer guarantee can normally be fixed or resolved in a reasonable amount of time. In this case, the seller can choose to offer you a refund, replacement, repair or, in the case of services, resupply. If the seller does not fix the problem or takes too long, you may be able to get it fixed by someone else and recover the costs from the seller depending on the circumstances.

Remedies for major failure with goods

Return the product and ask for a refund, Return the product and ask for an identical replacement, or one of similar value if reasonably available, Keep the product and ask for compensation for the drop in value caused by the problem.

Remedies for major failure with services

Cancel the contract and pay a reasonable amount for the work done, or seek a refund. For money already paid, keep the contract and negotiate a reduced price for the drop in value of the service — this may mean asking for some of your money back if you have already paid.

For goods, there is a major failure to comply with a consumer guarantee when:

• You would not have purchased the product if you had known about the problem.

The product is significantly different from the description, sample or demonstration model you were shown.
The product is substantially unfit for its normal purpose and cannot easily be made fit within a reasonable time.
The product is substantially unfit for a purpose that you told the supplier about, and cannot easily be made fit within a reasonable time.
The product is unsafe.

For services, there is a major failure to comply with a consumer guarantee when:

• You would not have engaged the service if you had known the nature and extent of the problem.
  The service does not meet the reasonable expectations for that type of service, and the problem cannot be rectified within a reasonable time.
• You told the supplier that you wanted the service for a specific purpose, which was not fulfilled, and the problem could not be easily rectified within a reasonable time.
• You told the supplier that you wanted a specific result, yet the service and end result failed to meet your specifications and could not be easily rectified within a reasonable time.
• The supply of the service has created an unsafe situation.

For information on Australian consumer laws, please visit Australian consumer law website at http://www.consumerlaw.gov.au.

Importer Name and Address: Ingram Micro Pty LTD / Level1, 61 Dunning Avenue. Rosebery NSW 2018

Telephone technical support: [phone]

This product is compliant with requirements of Circular No. 30/2011/TT-BCT Regulations "STIPULATING TEMPORARILY THE PERMISSIBLE CONTENT LIMITATION OF SOME TOXIC CHEMICALS IN THE ELECTRONIC, ELECTRICAL PRODUCTS"

Restriction on Hazardous Substances statement (India)

This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

微功率设备应当在其产品使用说明：

The RoHS test method is based on the standards JIS C 0950 and CNS 15663.

設備名稱:Equipment name	無線耳機/Wireless Headset		型號(型式):Typedesignation	HS-00013
單元Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead(Pb)	汞 Mercury(Hg)	鎘 Cadmium(Cd)	六價鉻Hexavalentchromium(Cr+6)	多溴聯苯Polybrominatedbiphenyls(PBB)	多溴二苯醚Polybrominateddiphenyl ethers(PBDE)
塑膠部件/Plastic	○	○	○	○	○	○
電路板及元件/PCBA	-	○	○	○	○	○
線材/Cables	-	○	○	○	○	○
金屬部件/Metal	-	○	○	○	○	○
備考1. *超出0.1 wt %” 及 *超出0.01 wt %” 係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of therestricted substance exceeds the reference percentage value of presence condition。備考2. °○” 係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed thepercentage of reference value of presence。備考3. °—” 係指該項限用物質為排除項目。Note 3:The “—” indicates that the restricted substance corresponds to the exemption
Regions Contact Information
亞洲	丹麥商賽睿有限公司台灣分公司23511新北市中和區建一路150號16樓	[phone]
Asia	SteelSeries ApS. Taiwan Branch16F, No.150, Jian-Yi Rd., Chung Ho Dist., New Taipei City, Taiwan (R.O.C)	[phone]
USA 656 W	Randolph St, Suite 3E, Chicago, IL 60661, USA [phone]
Europe Dirch Passers Allé 27, 5.Sal., 2000 Frederiksberg, Denmark [phone]

More information and support from https://steelseries.com/

Product Name (產品名稱/产品名称): Wireless Headset (無線耳機/无线耳机)

SteelSeries serial numbers:

The SteelSeries serial numbers consist of 19 digits with below breakdown

a Production week
b Production year

Custom Union Compliance. (Russia / Belarus / Kazakhstan / Armenia / Kyrgyzstan)

HIDF16000265

Malaysia Approval (SIRIM)

ACMA Compliance (Australia/New-Zealand)

57479/SDPPI/2018 7428

Indonesia Approval (SDPPI)

Direct Current

Complies with IMDA Standards DA 106032

Singapore approval (IMDA)

Type Accepted No. ESD-1919263C

NTC

Type Accepted No. ESD-2021451C

learn more at steelseries.com
