USER MANUAL FKH92.31INOX Exquisit

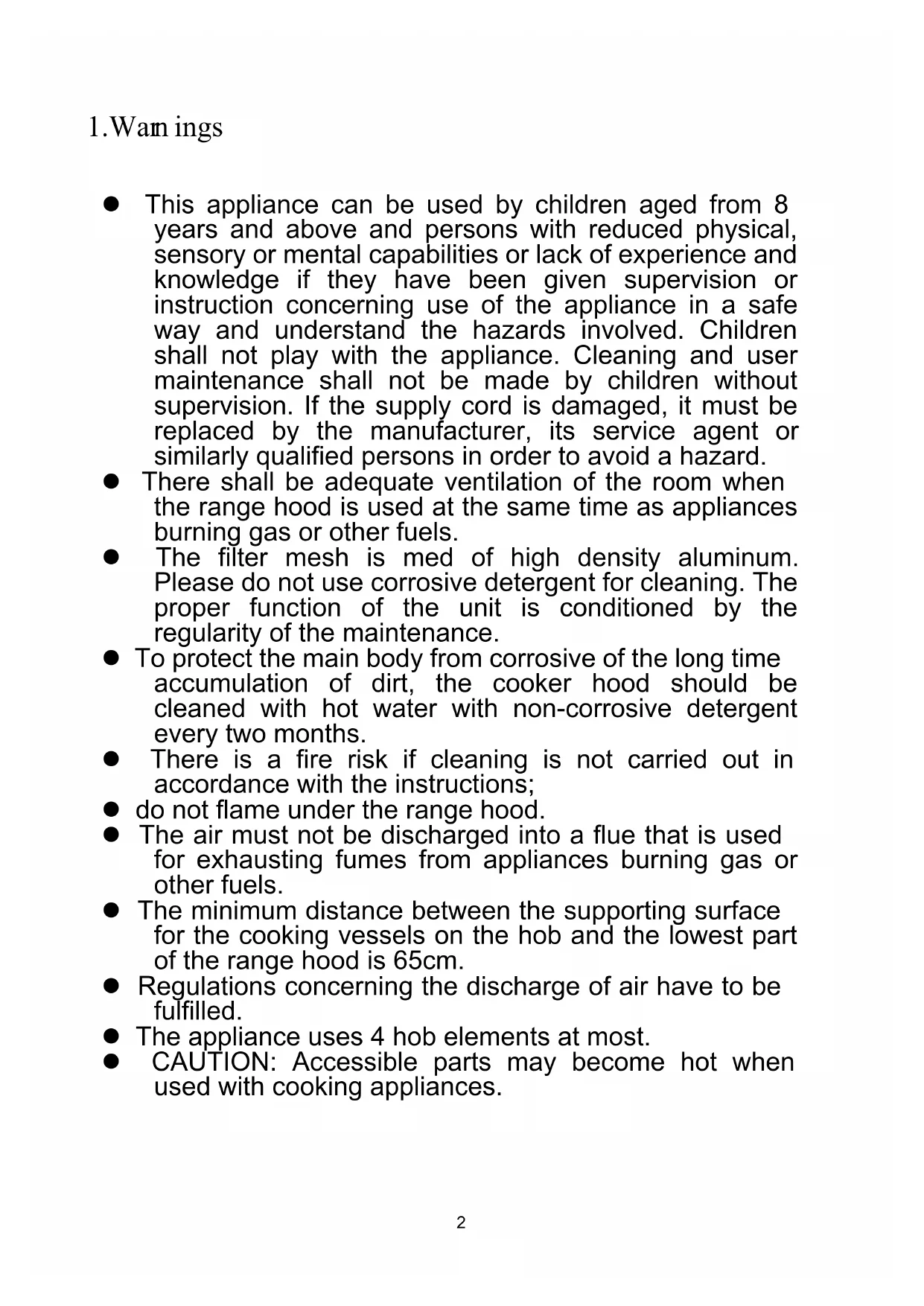

71.War ings z This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. z There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels. z The filter mesh is med of high density aluminum. Please do not use corrosive detergent for cleaning. The proper function of the unit is conditioned by the regularity of the maintenance. z To protect the main body from corrosive of the long time accumulation of dirt, the cooker hood should be cleaned with hot water with non-corrosive detergent every two months. z There is a fire risk if cleaning is not carried out in accordance with the instructions; z do not flame under the range hood. z The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. z The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood is 65cm. z Regulations concerning the discharge of air have to be fulfilled. z The appliance uses 4 hob elements at most. z CAUTION: Accessible parts may become hot when used with cooking appliances.

Adjustable decorating trimFrame groupwareJunction plateGrease filter Lamp Top plategroupware Control box coverU-shaped section cover hang boardPower cord groupwareDecorate Switch circuit board Switch

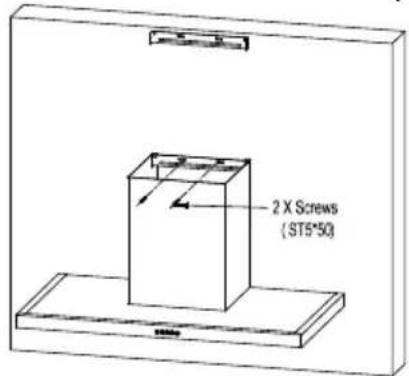

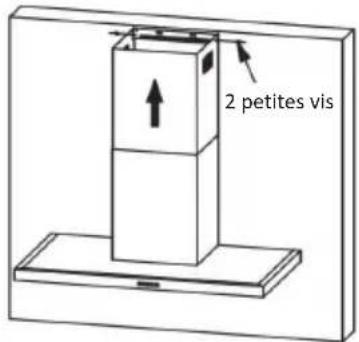

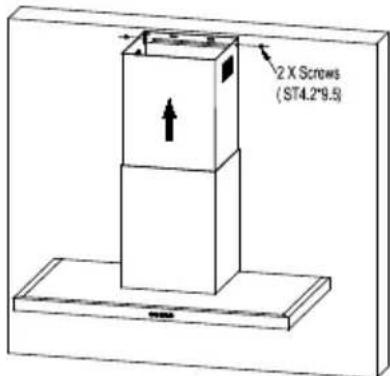

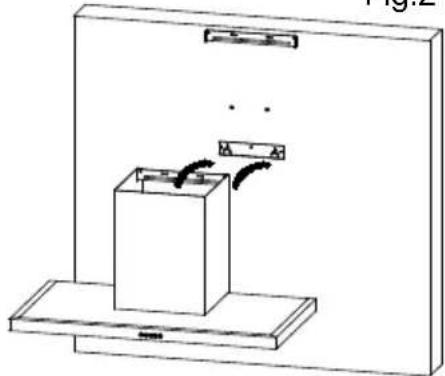

Fix installation plate and extension chimney installation plate, install the plastic expansion pipes of chimney installation plate on wall. See Fig.2. Fix the exhaust pipe and chimney on the main body connect chimney installation plate and chimney. See Fig.3. Hang range hood on the installation plate. See Fig.4. After connecting the exhaust pipe well, fix chimney installation plate to prevent the range hood from accidently sliding off the installation plate. See Fig.5. Fix extension chimney. See Fig.6 .

Fig.2 Fig.3 Fig.4 Fig.5 Fig.6 7Speed adjustment. See Fig.7 Press the Stop button,control motor power: under standby status, press this key, motor will run in low speed, and light for power and low speed key will be on; under power-on status, press this key, range will enter 3-min-delay-shutdown status, press power key again under this status, the range will turn off( motor stops running) Press the Light button,control bulb being on and off independently without any other keys’ help. Press it once, lights will be on. Press again, they will be off. Press the High button, valid under power-on status. While running in middle or low speed mode, press this key, the range will enter high speed mode. if already running in high speed, pressing this key takes no effect. In 3-min-delay-shutdown status, press it, the range cancels delay shutdown mode and enter high speed running status. Press the Low button,valid under power-on status. While running in high or middle speed mode, press this key, the range will enter low speed mode. if already running in low speed, pressing this key takes no effect. In 3-min-delay-shutdown status, press it, the range cancels delay shutdown mode and enter low speed running status. After plugging, buzz once, to declare the range is connected with electricity. After the connection: Fig.
