USER MANUAL Steam Master 4215099 SUNBEAM

©2005 Sunbeam Products, Inc. All rights reserved. SUNBEAM™ STEAM MASTER™ MOTION SMART™ SHOT OF STEAM™ and SPRAY MIST™ are registered trademarks of Sunbeam Products, Inc. DRIP FREE™ is a trademark of Sunbeam Products, Inc. In Canada, imported and distributed by Sunbeam Corporation, Limited. In the United States, distributed by Sunbeam Products, Inc., Boca Raton, Florida 33431

www.sunbeamhospitality.com

Printed in China

Imprimé en Chine

Impreso en China

Impresso na China

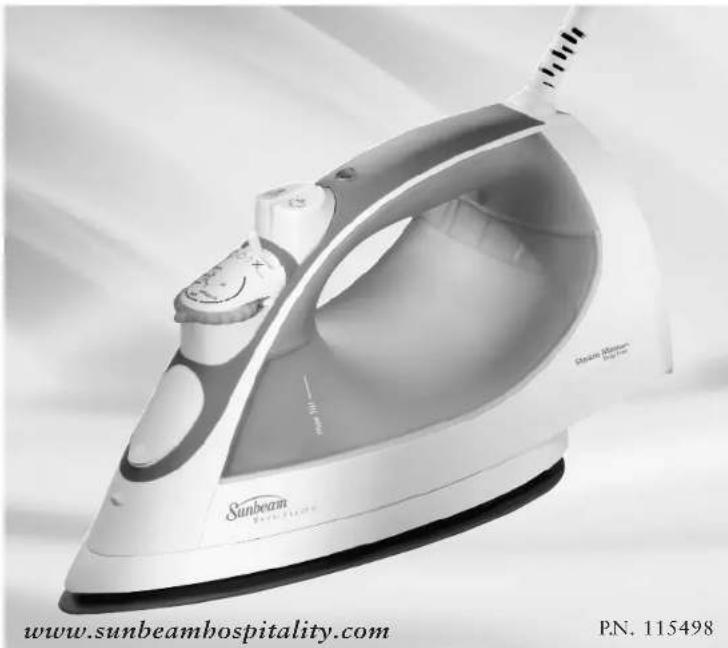

Instruction Manual Steam Master® Irons
anuel d'Instructions Fer à Repasser Steam Master®
ual de Instrucciones Planchas Steam Master®

MODELS/MODELES 4211-099, 4215-099 MODELOS

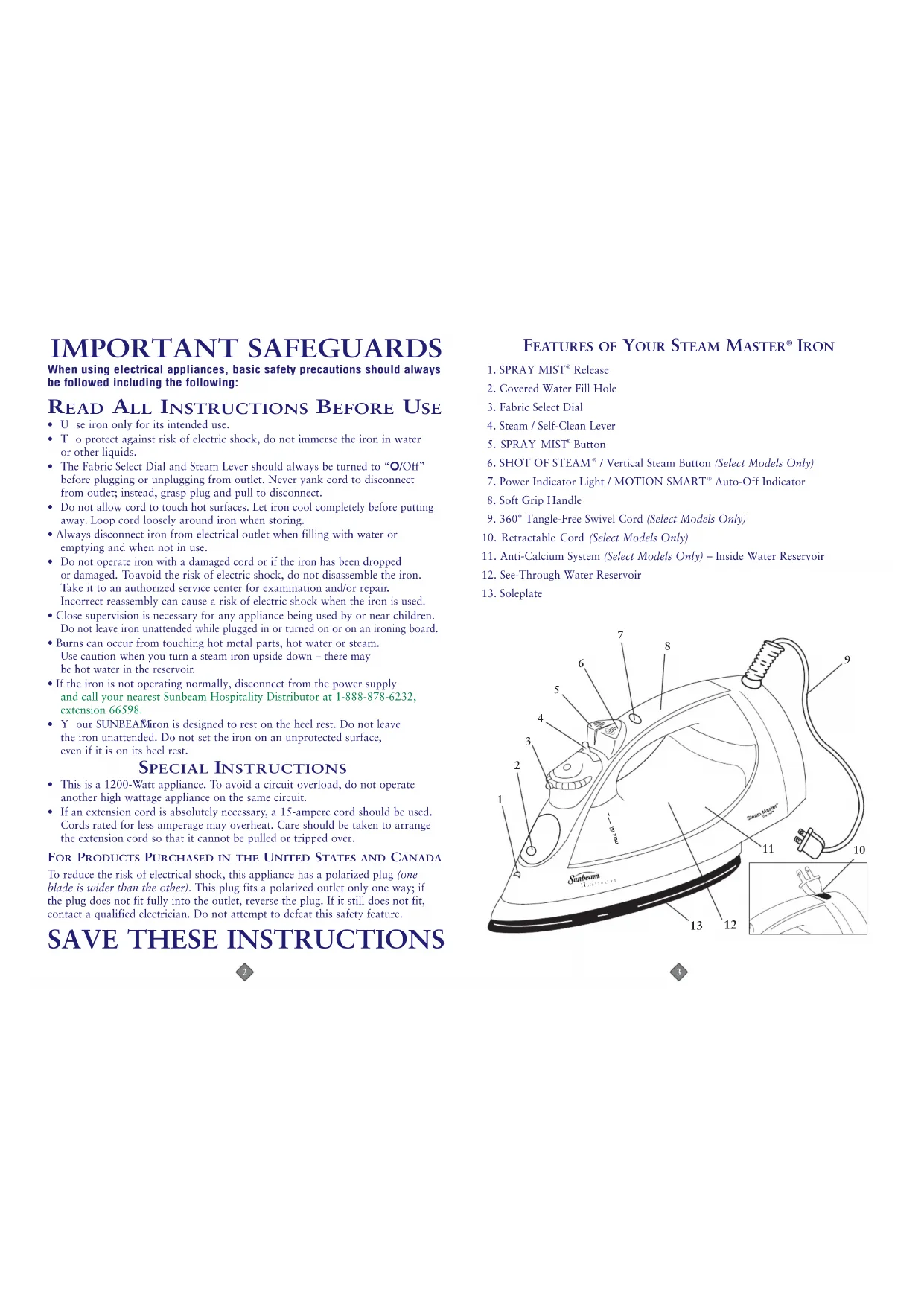

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

READ ALL INSTRUCTIONS BEFORE USE

• U se iron only for its intended use.
• T o protect against risk of electric shock, do not immerse the iron in water or other liquids.
• The Fabric Select Dial and Steam Lever should always be turned to "O/Off" before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
• Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
• Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
• Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to an authorized service center for examination and/or repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
• Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while plugged in or turned on or on an ironing board.
• Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir.
• If the iron is not operating normally, disconnect from the power supply and call your nearest Sunbeam Hospitality Distributor at 1-888-878-6232, extension 66598.
• Y our SUNBEAMiron is designed to rest on the heel rest. Do not leave the iron unattended. Do not set the iron on an unprotected surface, even if it is on its heel rest.

SPECIAL INSTRUCTIONS

• This is a 1200-Watt appliance. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
• If an extension cord is absolutely necessary, a 15-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the extension cord so that it cannot be pulled or tripped over.

FOR PRODUCTS PURCHASED IN THE UNITED STATES AND CANADA

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way; if the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

SAVE THESE INSTRUCTIONS

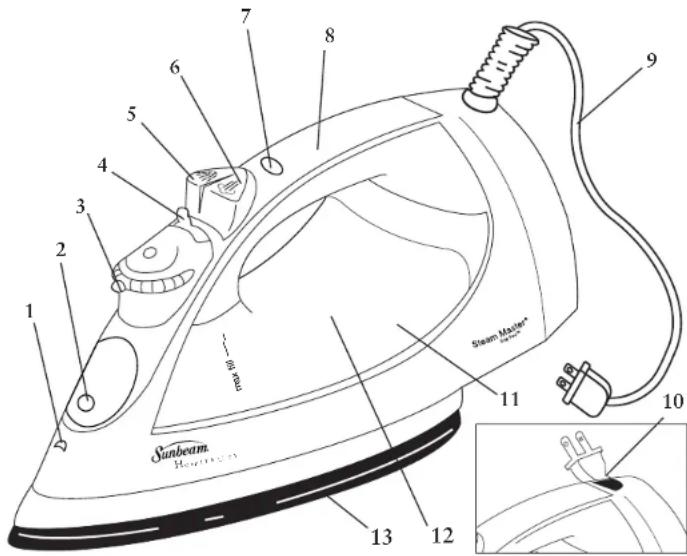

FEATURES OF YOUR STEAM MASTER® IRON

1. SPRAY MIST ^a Rclcase
2. Covered Water Fill Hole
3. Fabric Select Dial
4. Steam / Self-Clean Lever
5. SPRAY MIST* Button
6. SHOT OF STEAM* / Vertical Steam Button (Select Models Only)
7. Power Indicator Light / MOTION SMART® Auto-Off Indicator
8. Soft Grip Handle
9. 360^ Tangle-Free Swivel Cord (Select Models Only)
10. Retractable Cord (Select Models Only)
11. Anti-Calcium System (Select Models Only) - Inside Water Reservoir
12. Scc-Through Water Reservoir
13. Soleplate

TO FILL THE WATER RESERVOIR

1. Make sure the iron is unplugged. Set the Steam Lever to O / Off (Dry) and the Fabric Select Dial to OFF.
2. Lift the Water Fill Hole Cover.
3. Fill water cup with water. Pour water into iron water reservoir. Do not fill water reservoir beyond maximum fill level.

WARNING: Topprevent the risk of burns, be careful when filling a hot iron with water. Hot metal parts, hot water and steam can cause injuries.

DRYIRONING

1. Make sure the Steam Lever is turned to the Off (Dry) setting.
2. Plug the cord into a 120-Volt AC outlet.
3. Turn the large Fabric Select Dial to the fabric setting you desire (Silk or Synthetics). Allow the iron to heat for 2 minutes. While the iron is heating, make sure it is sitting on its heel rest on a stable, protected surface.

NOTE: While the Steam Lever is turned to the Off (Dry) setting, you may still use the SIOT OF STEAM or SPRAY MIST feature. Please make sure the water reservoir is 1/4 full of water.

Tip: Refer to the Ironing Guide (on Page 8) for the recommended setting for your fabric.

STEAM IRONING

1. Follow the instructions for "Filling the Water Reservoir".
2. Plug the cord into a 120-Volt AC outlet.
3. Turn the large Fabric Select Dial to the fabric setting you desire (Synthetic, Silk, Linen, Cotton or Wool). Allow the iron to heat for 2 minutes. While the iron is heating, make sure it is sitting on its heel rest on a stable, protected surface.
4. Allow the iron to heat for 2 minutes, and then turn the Steam lever to the appropriate setting.

Tip: Refer to the Ironing Guide (on Page 8) for the recommended setting for your fabric.
IMPORTANT: When not ironing, always set the Steam Lever to O/Off (Dry) and the Fabric Select Dial to OFF.

The SPRAY MIST® feature is a powerful water spray mist that dampens the fabric to aid in removing wrinkles from heavy fabrics and for setting creases.

Touse the SPRAY MIST® Feature:

Press the SPRAY MIST button firmly.

SHOT OF STEAM® FEATURE

The SHOT OF STEAM® feature provides an extra burst of steam for deep penetration of stubborn wrinkles. You can use this feature while Dry or Steam ironing, but the water reservoir must be at least 1/4 full of water.

Touse the SHOT OF STEAM® Feature:

Place the iron on top of the wrinkle and press the SHOT OF STEAM® button each time you would like an extra burst of steam. The SHOT OF STEAM® feature may be used continuously with just a short pause between shots.

VERTICAL STEAM (Select Models Only)

The vertical steam feature allows your iron to function as a garment steamer.

Tip: When using the vertical steam on clothing, hang the clothing on a clothes hanger for best results. Hanging curtains and drapes may also be steamed.

Touse Vertical Steam:

1. Make sure that the iron has heated up (2 minutes).
2. Hold the iron in a vertical position, with the iron close to but not touching the fabric you want to steam.
3. With your other hand, pull the fabric tight.
4. Press the SHOT OF STEAM button for approximately 3-second intervals as you move the iron across the wrinkled area.

WARNING: To prevent the risk of burns, keep your hand away from the area being steamed.

WARNING: DO NOT steam garments while wearing them; this may result in injuries.

PATENTED MOTION SMART AUTO-OFF FEATURE

When the iron is plugged in, the Power Indicator will light steadily, indicating that there is power to the iron.

If you leave the iron:

• in a horizontal position without moving it, or accidentally tip the iron over, it will automatically stop heating after 30 seconds. The Power Indicator will blink to let you know that the iron has stopped heating.
• in a vertical position (on its heel rest) without moving it, the iron will automatically turn off after 15 minutes. The Power Indicator will blink to let you know that the iron has stopped heating.

IMPORTANT: The Power Indicator will continue to blink until the iron is unplugged or reset.

Toreset the iron:

Move the iron back and forth and allow it to reheat for 2 minutes. The indicator will stop blinking and the iron will start heating again.

WARNING: The patented MOTION SMART® Auto-Off is a safety feature, not a recommended means for turning your iron off. See "Caring for Your Iron After Use" (on Page 6) for information on turning off your iron and storing it safely between use.

ANTI-CALCIUM SYSTEM (Select Models Only)

The Anti-Calcium System is a permanent system located inside the water reservoir.

This system removes calcium from the water and reduces calcium build-up on the soleplate.

RETRACTABLE CORD SECTION (Select Models Only)

1. When winding the cord, hold the plug with one hand, and press the winding button with the other hand. (Failure to hold plug may cause plug to fly.)
2. The cord reel is compact for multi-layer winding of the cord. In case cord is not fully rewound, pull out the cord and steer cord evenly on the reel.
3. In case the cord is not pulled out easily, pull cord firmly.
4. Select the amount of cord desired before plugging into an electrical outlet.
5. Do not allow children to use retractable cord feature as the cord may cause injury.

CARING FOR YOUR IRON AFTER USE

1. Turn the Steam Lever to Off Dry and Fabric Select Dial to Off.
2. Unplug the iron from the power source.

WARNING: NEVER yank the power cord when unplugging the iron.

This can damage the cord.

STORING YOUR IRON

1. Allow the iron to cool.
2. If you do not use your iron on a daily basis, empty the water reservoir after each use for a longer iron life. To do so, unplug the iron, turn the iron upside down, open the fill hole cover, and allow water to flow from the fill hole. Shake the iron gently to remove trapped water drops.
3. Loosely loop the power cord around the heel rest and store the iron on its heel rest.
   IMPORTANT: Wrapping the cord around the iron too tightly can damage the cord.

Ttp: When not ironing, always set the Steam Lever to O/Off (Dry) and the Fabric Select Dial to Off.

CLEANING THE SOLEPLATE

Clean the soleplate if starch or other residue accumulate.

Toclcan the Solcplate:

1. Allow the iron to cool and then wipe it with a soft, damp cloth.
   WARNING: DO NOT use abrasive cleansers, scouring pads or vinegar to clean the soleplate. This will damage the finish.
2. Run the iron over an all-cotton cloth to remove any residue.

USING THE SELF-CLEANING FEATURE

You should use the Self-Cleaning feature once a month to maintain the optimal performance of your iron.

Touse the Self-Cleaning feature:

1. Move the Steam Lever back and forth from Off (Dry) several times to remove debris and minerals from the Steam Valve. This keeps water flowing into the steam chamber.

MAINTENANCE

CLEANING THE ANTI-CALCIUM SYSTEM

The STEAM MASTER iron houses an anti-calcium filter in the reservoir, which eliminates impurities from the water.

Toprolong the efficiency of this filter:

1. Unplug the iron and allow it to cool.
2. Locate the water cup that accompanied the iron. Fill it with water to the Sunbeam logo in the top right corner. Add 1 teaspoon of salt to the water and fill the water reservoir with this solution.
3. Leave the solution in the water reservoir for 15 minutes, then empty it.
4. Fill the water reservoir a second time with the salt water solution and empty it again after 15 minutes.
5. Fill the tank with fresh water to rinse and empty.

The Anti-Calcium System should be cleaned approximately once a month.

IRONING TIPS

Always read garment labels and follow the manufacturer's ironing instructions.
- Sort the articles to be ironed according to the type of fabric.
- You should first iron garments requiring low temperature (e.g., silks and synthetics) to avoid damaging them with an iron that is too hot.
- If you are unsure of the fabric content of the garment, test a small area, such as a seam or facing, before ironing a visible area. Start with a low temperature and gradually increase the heat to find the best setting.
- When changing the temperature from a high setting to a low setting, allow approximately 5 minutes for the lower temperature to be reached.
- When steam ironing, use long, slow passes over the fabric. This will allow the steam to penetrate the fabric while allowing the heat of the soleplate to dry out the moisture.
- T o iron linens, turn garment inside out. Be careful not to use an iron that is too hot because the lining may melt or stick to the soleplate.
- T o iron zippers, use an ironing cloth or make sure the zipper is closed and iron over the flap. Never iron directly over an unprotected zipper.
- Use the Ironing Guide (on Page 8) to select the best setting and method for the fabric you plan to iron.

IRONING GUIDE

FABRIC STEAM SETTING	SUGGESTED FAB SELECT DIAL SETTING	IRONING RECOMMENDATIONS
Acrylic	O/Off (Dry)	Iron garment inside out.
Acetate	O/Off (Dry)	Iron garment inside out while still damp.
Polyester	O/Off (Dry)	Iron garment inside out while still damp.
Rayon	O/Off (Dry)	Iron garment inside out.
Silk	O/Off (Dry)	Iron garment inside out. Use an ironing cloth* to prevent shine marks.
Viscose	O/Off (Dry)	Mainly dry iron; steam may be used under garment manufacturer's instructions.
Nylon	O/Off (Dry)	Iron garment inside out while still damp.
Wool Steam Wool		Iron garment inside out or use an ironing cloth.*
Wool Blends Steam Wool		Iron garment inside out or use an ironing cloth.*
Cotton Blends Steam Cotton		Follow garment manufacturer's instructions.Use setting for the fiber requiring the lowest setting.
Corduroy Steam Cotton		Iron garment inside out or use an ironing cloth*and then brush the garment with your hand to raise the texture of the fabric.
Cotton Steam Cotton		Iron dark fabrics inside out to prevent shine marks.
Lincn Steam Linen		Iron garment inside out or use an ironing cloth* to prevent shine marks (especially on dark fabrics).
Denim	Steam Linen
*An ironing cloth is a cotton, dry-cleaned cloth that you place over the garment you are ironing to prevent the fabric from looking shiny.Note: Some fabrics may require more steam than others. Your iron has the capability to adjust steam as needed.

2-YEAR LIMITED HOSPITALITY WARRANTY (4211-099)

Sunbeam Products, Inc. ("Sunbeam") warrants that for a period of 2 years from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original purchaser from the date of initial purchase and is not transferable. Sunbeam dealers, service centers, or stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes.

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Sunbeam disclaims all other warranties or conditions, express, implied statutory or otherwise. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

This warranty is only applicable to products purchased by members of the hospitality industry and not to consumer sales.

HOW TO OBTAIN WARRANTY SERVICE

Contact your Sunbeam authorized dealer.

www.sunbeamhospitality.com

1-YEAR LIMITED HOSPITALITY WARRANTY (4215-099)

Sunbeam Products, Inc. ("Sunbeam") warrants that for a period of 1 year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original purchaser from the date of initial purchase and is not transferable. Sunbeam dealers, service centers, or stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: nglignt use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes.

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Sunbeam disclaims all other warranties or conditions, express, implied statutory or otherwise. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

This warranty is only applicable to products purchased by members of the hospitality industry and not to consumer sales.

HOW TO OBTAIN WARRANTY SERVICE

Contact your Sunbeam authorized dealer.

www.sunbeamhospitality.com

PRECAUTIONS IMPORTANTES

www.sunbeamhospitality.com

GARANTIE LIMITE L'HOSPITALITE DE 1 AN (4215-099)

www.sunbeamhospitality.com

PRECAUCIONES IMPORTANTES

www.sunbeamhospitality.com

GARANTÍA LIMITADA DE LA HOSPITALIDAD DE 1 ANO (4215-099)

www.sunbeamhospitality.com

www.sunbeamhospitality.com

GARANTIA LIMITADA DA HOSPITALIDADAE 1 ANO (4215-099)

www.sunbeamhospitality.com

Notes / Notas Notes / Notas
