Product type	Wired headset
Brand	SilverCrest
Model	SKL 36 B1
Impedance	32 Ω ± 4 Ω
Sensitivity	102 dB ± 5 dB at 1 kHz
Frequency range	20 - 20 000 Hz
Dimensions (L x H x D)	approx. 17.5 x 18.5 x 7.0 cm
Weight	approx. 146 g
Audio cable length	approx. 120 cm
Cable connectors	3.5 mm gold-plated jack (2 x)
Operating temperature	5 °C to 35 °C
Operating humidity	85% RH max.
Storage conditions	-10 °C to +50 °C, 85% RH max.
Intended use	Music listening, hands-free device
Box contents	Headset, 3.5 mm audio cable with microphone, instruction manual
Warranty	3 years
Care and cleaning	Clean, dry cloth, no aggressive liquids
Safety instructions	Do not expose to moisture, avoid high volume, keep away from pacemakers

Frequently Asked Questions - SKL 36 B1 SILVERCREST

How to connect the SKL 36 B1 headset to an audio source?

Insert the 3.5 mm jack connector with 3 rings of the cable into the headphone output of your audio source (smartphone, MP3 player...). Make sure the 2-ring connector is properly plugged into the headset.

Does the built-in microphone work with all devices?

The microphone is compatible with most smartphones and tablets. The functions of the multifunction button (answer, end call, voice command) depend on the operating system.

Can I connect a second headset to the SKL 36 B1?

Yes, an additional jack socket on the headset allows connecting a second headset. Attention: connect only one second headset, without using a splitter, to avoid damaging the audio source.

How to adjust the headset volume?

The volume is adjusted directly on the connected audio source (smartphone, computer...). There is no volume control on the headset itself.

What to do if sound is only heard from one side?

Check that the jack connectors are fully inserted into the headset and the audio source. Also adjust the balance (left/right balance) setting on your audio device.

How to clean the SilverCrest SKL 36 B1 headset?

Use a clean, dry cloth. Never use aggressive or abrasive liquids. Do not open the housing, this would void the warranty.

What are the usage precautions to protect hearing?

Set the volume to minimum before connecting the headset, then increase it gradually. Avoid prolonged listening at high volume. Do not use it in situations requiring your full attention (driving, machinery).

What to do if the headset produces no sound?

Check that both jack connectors are properly inserted. Ensure the audio source is turned on, the volume is set, and playback is in progress. Press the microphone button if playback is paused.

How to dispose of the headset at end of life?

Do not dispose of the device with household waste. Take it to a collection point for electronic waste (recycling center, store). The packaging (cardboard, plastic) should be recycled according to local guidelines.

Is the SKL 36 B1 headset under warranty?

Yes, the warranty is 3 years from the date of purchase. Keep the receipt. For any assistance, contact technical support at the numbers indicated in the manual.

USER MANUAL SKL 36 B1 SILVERCREST

Black headboard headphones with no visible text or symbols on the device itself

ON-EAR-KOPFHÖRER SKL 36 B1

DE AT CH

User manual and service information

TARGA GMBH

Coesterweg 45 50404 SOEST

DEUTSCHLAND/GERMANY

Technical diagram of a mechanical device with numbered components, likely a sensor or clamp assembly.

Deutsch......2

Français....17

Italiano....33

English 49

Inhaltsverzeichnis

Einleitung.... 3

Illustration of a black-and-white headboard with attached cable, next to an open book and labeled points A, B, C (no text or symbols on main objects)

3D rendered mechanical component with a circular base and protruding pins (no text or symbols visible)

Line drawing of a multi-axle headband with attached sensors and directional arrows (no text or symbols)

3D rendered mechanical component with a black arrow pointing to a rectangular slot (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Maintenance/nettoyage....29

Illustration of a pair of headphones (A and C) with a cord, plus an open book (no text or symbols)

3D rendered mechanical component with mounting holes and a central hub, no visible text or symbols

Line drawing of a multi-band ear with attached cable and connector (no text or symbols)

Mechanical component with a black arrow pointing to a rectangular slot (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Illustration of a white ear headphones (A), a cord of cable, and an open book (C) — no text or symbols present.

3D rendered mechanical component with a circular base and protruding pins (no text or symbols visible)

Line drawing of a multi-axle headband with attached sensors and directional arrows (no text or symbols)

Mechanical component with a black arrow pointing to a rectangular slot (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Description of the controls 52

Technical data.... 52

Safety instructions 53

Prior to use....57

First use 57

Putting on and adjusting the headset 57

The audio jack cable 58

The microphone 58

The multi-function button in the microphone....58

Using the headset ....59

Connecting an audio source....59

Transport or storage when not in use....60

Connecting another headset....60

Troubleshooting 60

No playback of external audio sources 60

Sound playback only in one headset earpiece....61

No sound playback when connecting a second headset....61

Cleaning / maintenance...... 61

Environmental and disposal information 61

Conformity information 62

Warranty and servicing advice.... 62

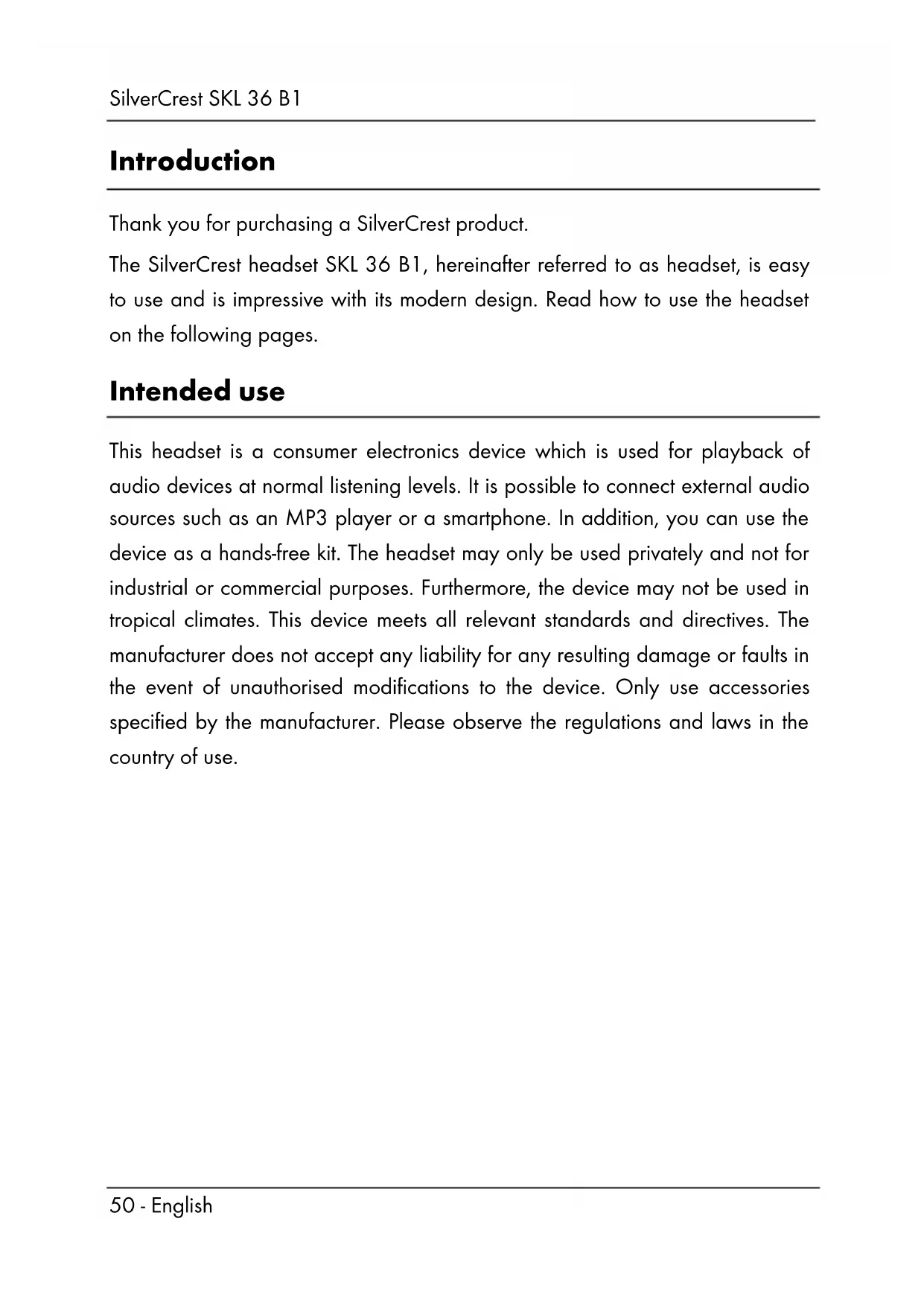

Introduction

Thank you for purchasing a SilverCrest product.

The SilverCrest headset SKL 36 B1, hereinafter referred to as headset, is easy to use and is impressive with its modern design. Read how to use the headset on the following pages.

Intended use

This headset is a consumer electronics device which is used for playback of audio devices at normal listening levels. It is possible to connect external audio sources such as an MP3 player or a smartphone. In addition, you can use the device as a hands-free kit. The headset may only be used privately and not for industrial or commercial purposes. Furthermore, the device may not be used in tropical climates. This device meets all relevant standards and directives. The manufacturer does not accept any liability for any resulting damage or faults in the event of unauthorised modifications to the device. Only use accessories specified by the manufacturer. Please observe the regulations and laws in the country of use.

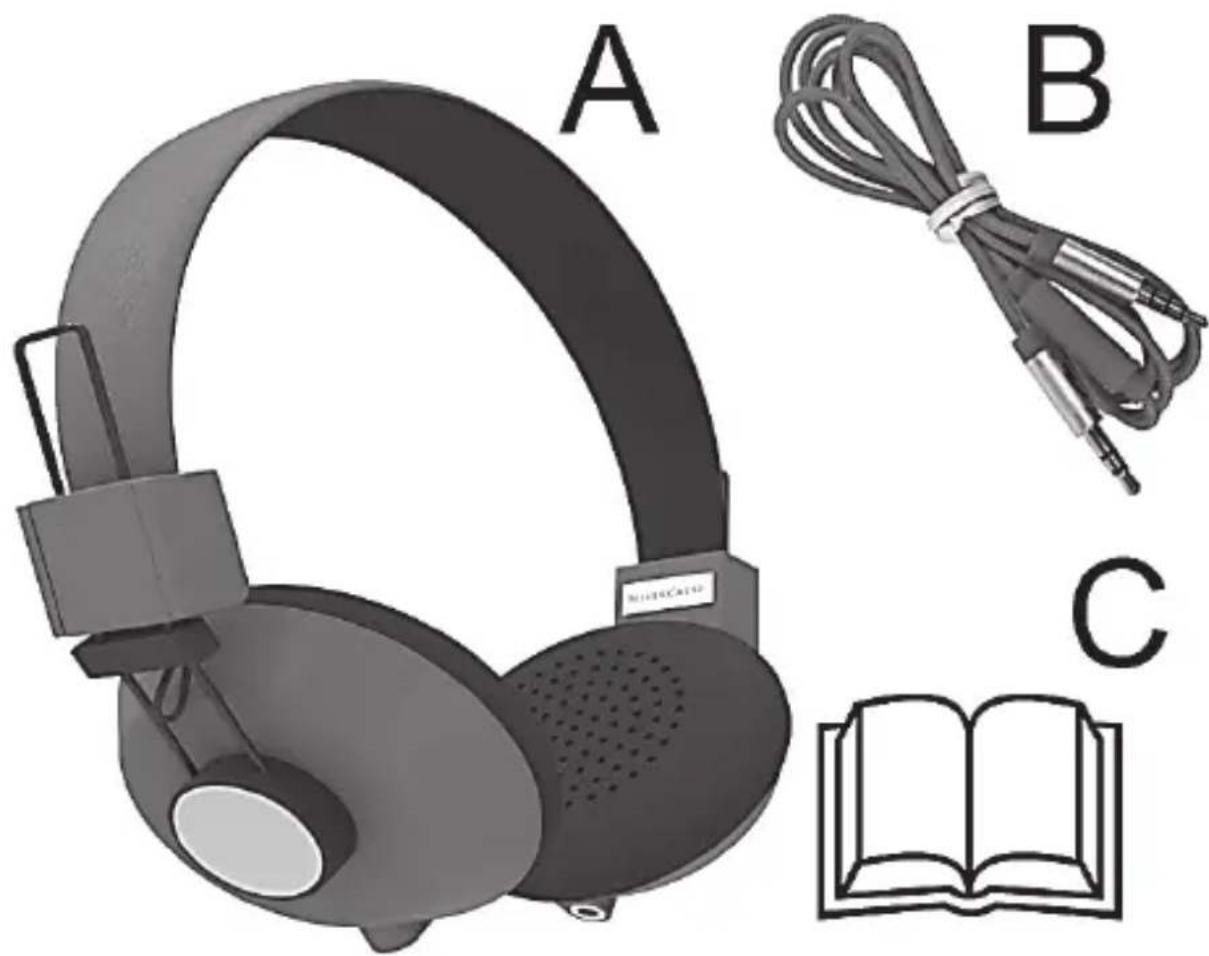

Supplied items

Take the device and all accessories from the packaging. Remove all packaging material and check that all parts are complete and undamaged. In the event of an incomplete or damaged delivery, please contact the manufacturer.

Illustration of a pair of headphones labeled A, B, and C with an open book below (no text or symbols on the devices themselves)

A SilverCrest headset SKL 36 B1

B 3.5mm audio jack cable (with built-in microphone and button)

C These operating instructions (symbolic representation)

Description of the controls

These operating instructions have a fold-out cover. Fold out this page so that you always keep the controls in sight. The numbers indicate the following:

1 Headband
2 Adjustment slider (for adjusting size)
3 Headset earpieces
4 3.5mm jack plug
5 Microphone (with built-in button)
6 3.5mm jack socket

Technical data

Model SKL 36 B1
Impedance 32 ohm +/- 4 ohm
Sensitivity	102 dB +/- 5 dB at 1 kHz
Transmission range 20 to 20,000 Hz
Wideband characteristic voltage (WBCV)	175 mV +/- 15%
Dimensions (W x H x D) approx. 1	7.5 x 18.5 x 7.0 cm
Weight approx. 146 g
Length of audio jack cable (B) approx. 120 cm
Audio jack cable (B), plug 3.5mm jack plug, gold-plated
Operating temperature 5°C to 35°C
Operating air humidity 85% rel. air humidity
Permissible storage conditions	-10°C to +50°C, max. 85% rel. humidity

The technical data and design may be changed without notification.

Safety instructions

Before using this headset for the first time, read the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these operating instructions in a safe place for future reference. If you sell or pass on the headset to someone else, be sure to always include these operating instructions as they are an integral part of the device.

DANGER! This symbol in conjunction with the "danger" note indicates an imminent dangerous situation which, if not prevented, could result in serious injury or even death.

WARNING! This symbol in conjunction with the "warning" note indicates important information for safe operation of the device and the safety of the user.

This symbol indicates other important information on the topic.

DANGER! Ensure that

• no direct heat sources (e.g. heating) can affect the device;
• no direct sunlight or bright artificial light reaches the device;
• any contact with splashed and dripping water and corrosive liquids is avoided and the device is not operated in the vicinity of water. In particular, the device should never be submerged in liquid (do not place any items filled with liquid, e.g. vases or drinks, on or near the device);
• the device is not in the immediate vicinity of magnetic fields (e.g. loudspeakers);
• no fires sources (e.g. burning candles) are placed on or near the device;

• no foreign objects penetrate the device;

• the device is never subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the device was subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the device has reached ambient temperature before use;

• the device is never subjected to excessive shocks and vibrations;
• Always handle the audio jack cable (B) by the plug and do not pull on the cable itself. Never place furniture or other heavy objects on the cable and take care that the cable is not kinked, especially near the plug. Do not connect the cable over hot or sharp points and edges to prevent damage. Never make knots in the cable or tie it together with other cables. Ensure that the cable is placed so that no one can trip over it and it does not cause an obstruction.

DANGER! Children and persons with disabilities

Electrical devices do not belong in the hands of children. Children may not recognise potential risks. Persons with limited physical, mental or sensory abilities should also only use electrical devices appropriately. Never allow children to use electrical devices unsupervised unless they have been instructed accordingly or are supervised by a person responsible for their safety. Children should always be supervised to ensure that they do not play with this device. Small parts can be fatal if swallowed.

Always keep plastic packaging out of reach also.

It poses a suffocation risk!

Operating environment

The device is not designed for use in environments with a high temperature or humidity (e.g. bathrooms) or in extremely dusty conditions. Operating

temperatures and operating air humidity: 5^ C to 35^ C, max. 85% rel. humidity.

DANGER! Pacemakers and implantable cardioverter defibrillators (ICDs)

The headset (A) produces permanent magnetic fields which can interfere with pacemakers and ICDs. Make sure that there is a distance of at least 10cm between the headset earpieces (3) and the pacemaker or ICD.

DANGER! Health risks due to excessive volume levels

Take care when using a headset. Listening at high volume fc prolonged periods of time can impair your hearing.

Do not use the headset (A) at high volumes. This impairs your hearing and may disrupt your environment. Even if the device is designed to ensure that ambient noise can still be heard, adjust the volume so that you can continue to hear the ambient noise.

Never use the headset in situations that require your full attention. These include, for example, driving vehicles, working with machinery or similar situations. The sound can distract you or cause you to fail to perceive what is happening around you. Thus do not use the device in such situations.

Cleaning / maintenance

It is necessary to service or repair the device if it has been damaged in any way, for example, if the housing is damaged, if liquid or object penetrated the device or if the product has been exposed to rain or moisture. Servicing is also required if the device is not working properly or has been dropped. If you notice any smoke, unusual noises or strange odours, disconnect the device immediately from your audio source by removing the audio jack cable (B). In such cases, the device should not be used until it has

been inspected by authorised service personnel. Only have qualified personnel carry out the maintenance work on the device. Clean the device using only a clean, dry cloth and never use any corrosive liquids. Do not attempt to open the housing of the device. This would void your warranty.

Copyright

All information contained in these instructions is subject to copyright and is provided for information purposes only.

It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data.

The text and illustrations are based on the state of the art at the time of printing.

Prior to use

Take the headset and all accessories out of the package and remove the plastic packaging. Check that all items have been included.

First use

Putting on and adjusting the headset

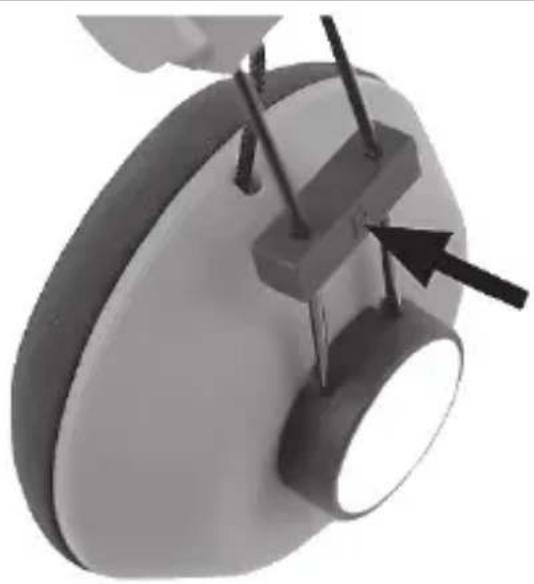

Note the markings on the headset earpieces (3) to put on the headset (A) correctly.

• R = right
• L = left

3D rendered mechanical component with mounting holes and a central hub (no text or symbols visible)

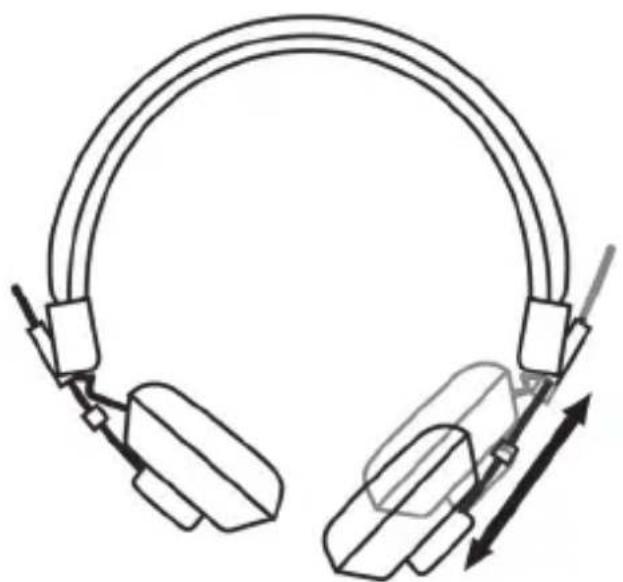

To ensure a perfect fit of the headset (A), the adjustment slider (2) can be adjusted continuously. See illustration.

Line drawing of a multi-band ear with attached cable and connector (no text or symbols)

The audio jack cable

The two 3.5mm jack plugs of the supplied audio connection cable differ slightly from each other.	1.	Headset connection (2 rings)
	2.	Audio source connection (3 rings)

Take care that the cable is connected properly to ensure the correct functioning of the built-in microphone (5) in the audio jack cable (B). Also refer to the "Using the headset" section.

The microphone

You can communicate easily via the built-in microphone (5) in the audio jack cable (B) if you are using the headset (A) normally or as a hands-free kit.

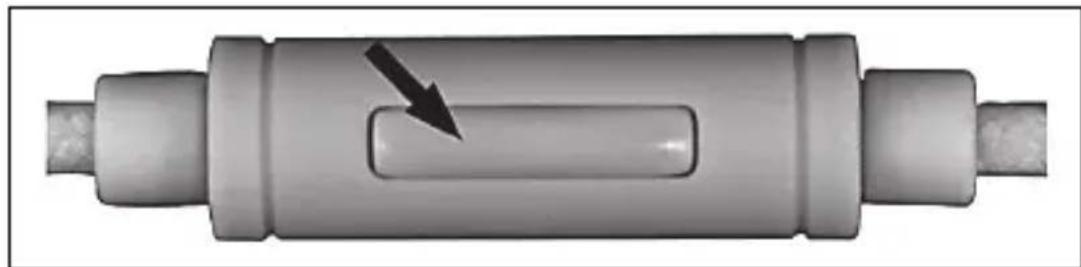

The multi-function button in the microphone

There is a multi-function button on the microphone (5) of the audio jack cable (B).

3D rendered mechanical component with a black arrow pointing to a rectangular slot (no text or symbols)

Depending on the operating mode and audio source you are using, this multifunction button can trigger various actions such as:

Briefly pressing during audio playback:

- Pause or resume playback

Press twice in rapid succession during audio playback.

- Select the next track.

Briefly pressing when using as headset or hands-free kit:

- Answering or ending a call

Prolonged pressing when using as headset or hands-free kit:

- Starting the voice control, for example, for smartphones or tablets or rejecting an incoming call

Please note that the functionality of the multi-function button is largely dependent on the audio source you are using, particularly the operating system, for example, for smartphones or tablets. For further details, please read the operating instructions for your audio source.

Using the headset

DANGER! To avoid hearing damage, you must set the volume of your audio source to the lowest level before connecting the headset. You can then adjust the volume to the desired level.

Insert the jack plug (4) of the audio jack cable (B) into one of the jack sockets (6) on the headset earpieces (3). To ensure the correct functioning of the microphone (5), the jack plug (4) with the two rings and the headphone symbol must be inserted into the jack socket (6) of the headset (A).

Connecting an audio source

Connect the free jack plug (4) with 3 rings of the audio jack cable (B) to the headset output of your audio source. Switch on the audio source and start the playback.

Please read the operating instructions for your audio source in any case.

You can adjust the volume via the volume control on your audio source.

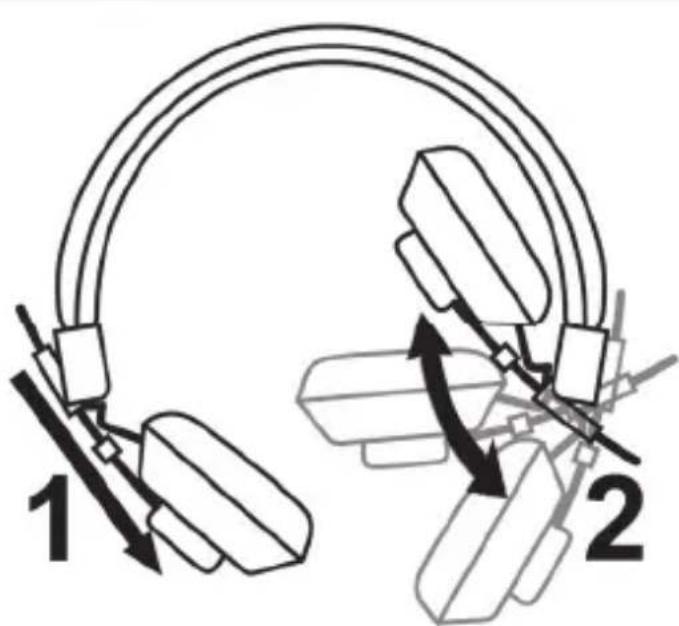

Transport or storage when not in use

If you are not using the headset (A) or want to transport it, you can fold it in a space-saving manner as shown in the illustration. To do so, first slide the headset earpieces in the direction of the arrow (1) and then fold them (2).

1 2

Connecting another headset

You can use the free jack socket (6) of the headset to connect another headset. The same audio signal is played back via the second headset.

WARNING! Never connect more than one other headset to the jack socket (for example, with a Y splitter or another SKL 36 B1). This can lead to an overload and thus can damage your audio source.

Never connect another audio source to the second jack socket.

Troubleshooting

No playback of external audio sources

- Check whether the audio jack cable (B) is inserted securely into the jack socket (6) of the headset (A) and into the headset socket of the playback device.

- Check the settings on your audio source, for example:

Is the volume set correctly?
Has playback started?

- Press the button that is built into the microphone (5) to stop the playback pause.

Sound playback only in one headset earpiece

• Check whether the jack plugs (4) of the audio jack cable (B) are inserted fully into the jack sockets (6) of the headset (A) and audio source.
• Check the balance setting of the audio source.

No sound playback when connecting a second headset

Check whether the first and second headsets are connected correctly via a suitable audio cable.

Cleaning / maintenance

Only use a clean, dry cloth for cleaning the headset (A) and never use any corrosive liquids. Never try to open the housing of the headset (A) as this would void your warranty.

Environmental and disposal information

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

When this symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at designated disposal points.

The correct disposal of old devices in this manner will prevent environmental pollution and human health hazards. For further information about proper

disposal, contact your local authorities, waste disposal office or the shop where you bought the device.

Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.

Conformity information

This device meets the basic requirements and other relevant regulations of the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of these operating

instructions.

Warranty and servicing advice

Warranty of TARGA GmbH

This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.

Your statutory rights towards the seller are not affected or restricted by this warranty.

Service

Phone: 0207 - 36 50 744

E-Mail: [e-mail]

Phone: 01 - 242 15 83

E-Mail: [e-mail]

Phone: 800 - 62 175

E-Mail: [e-mail]

Phone: 800 - 92 496

E-Mail: [e-mail]

IAN: 113022

Manufacturer

TARGA GmbH

Coesterweg 45

59494 SOEST

GERMANY

CE

EU-Declaration of Conformity

Address:

Targa GmbH

Coesterweg 45

59494 Soest, Germany

Product:

Headset with Microphone

Model:

SilverCrest SKL 36 B1

Identification number:

113022

The product complies with the requirements of the following European directives:

2011/65/EU

Restriction of the use of certain hazardous substances in electrical and electronic equipment

Compliance was proved by the application of the following standards:

RoHS:

EN 50581: 2012

Year of CE marking: 2015

Soest, 4 ^th of August 2015

Handwritten signature or scribble in cursive script

Matthias Klauke, Managing Director
