USER MANUAL TESNB32HD01W Sulpice

1280x960 þ þ 1280x1024 þ þ 1400x1050 þ þ 1440x900 þ þ 1600x1200

• Occasionally, a few non-active pixels may appear on the screen as a xed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with ngernails or other hard objects.

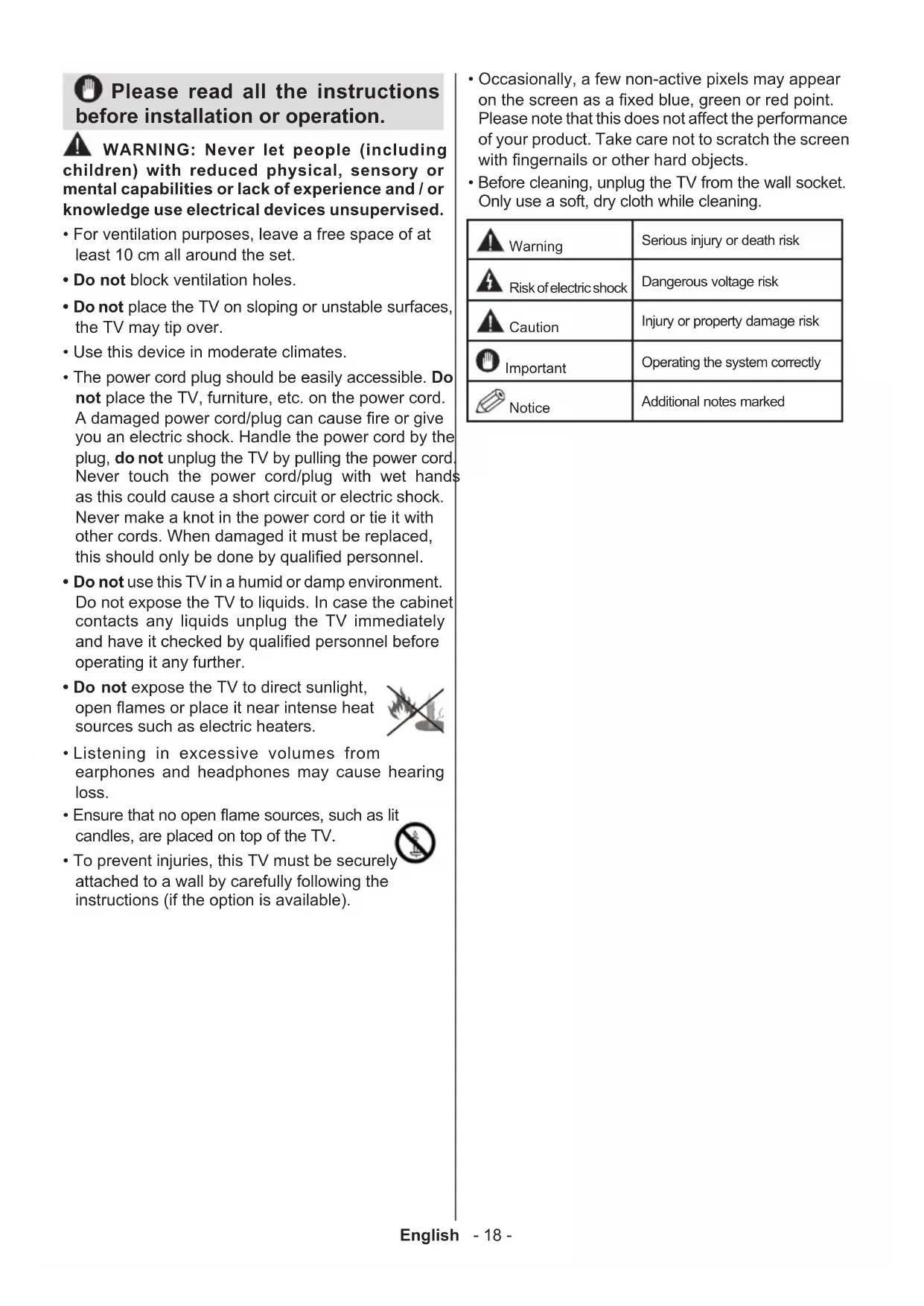

• Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning. Warning Serious injury or death risk Risk of electric shock Dangerous voltage risk Caution Injury or property damage risk Important Operating the system correctly Notice Additional notes marked Please read all the instructions before installation or operation.

WARNING: Never let people (including

children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at least 10 cm all around the set.

• Do not block ventilation holes.

• Do not place the TV on sloping or unstable surfaces, the TV may tip over.

• Use this device in moderate climates.

• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause re or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualied personnel.

• Do not use this TV in a humid or damp environment. Do not expose the TV to liquids. In case the cabinet contacts any liquids unplug the TV immediately and have it checked by qualied personnel before operating it any further.

• Do not expose the TV to direct sunlight, open ames or place it near intense heat sources such as electric heaters.

• Listening in excessive volumes from earphones and headphones may cause hearing loss.

• Ensure that no open ame sources, such as lit candles, are placed on top of the TV.

• To prevent injuries, this TV must be securely attached to a wall by carefully following the instructions (if the option is available).Getting started English - 19 - Notications&Characteristics&Accessories Information relating to the environment This television is designed to consume less power in a bid to protect the environment. In order to effectively reduce your electric energy consumption, you have to follow the steps below: You can use the Power Save Mode setting, located in the Picture menu. If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode and the luminance level of TV set will be decreased to the optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode. If pressed Right button, “Screen will be off in 15 seconds.” message will be displayed on the screen. Select PEED and press OK to turn the screen off immediately. If you don’t press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again. If you disable Power Save Mode, picture mode will be automatically set to Dynamic. Turn the television of and disconnect it when not in use. This good practice will also help you to economise energy. Standbynotications

1. If the television does not receive any incoming

signal (an antenna or an HDMI source for example) for 5 minutes, it will go on standby. The next time it is turned on, the following message will appear : “TV switched to stand-by mode automatically because there was no signal for a long time". Press OK to continue.

2. If the television stays inactive for 4 hours, it will

enter standby mode. The next time it is turned on, the following message will appear: "TV switched to stand-by mode automatically because no operation was made for a long time". Press OK to continue. Functions

• Colour television with remote control.

• Digital tuner cable and High denition TNT (DVB- T/C)

• Fully integrated digital terrestrial-cable TV(DVB-T-C)

• The HDMI ports are meant for devices with HDMI plugs.

• Jack socket for external devices (video camera, video game, audio player, etc.)

• Automatic shutdown which can be set between 2 to 6 hours maximum without using the remote control.

• Programmable shutdown.

• Parental control lock

• Automatic sound-off when there’s no transmission.

• AVL (Automatic Volume Limitation)

• PLL Tuner (Frequency scanning).

• PC port with Plug & Play function.

• Instant Plug&Play for Windows 98,) ME, 2000, XP, Vista.

• Gaming mode (optional) Accessories included

• Batteries not included

Putting batteries in the remote control Lift the cover at the back of the remote control. Insert two AAAsize batteries. Make sure that the + and – ends of the batteries match the in the battery Getting startedEnglish - 20 - compartment (respect the right polarity). Put the cover back in place. Connecting the power cord IMPORTANT: This television is designed to operate solely with a 220-240V ~ 50 Hz. power supply. After taking the television out of its package, wait a bit for the TV to reach ambient temperature before connecting it to the electricity plug. Connect the power cord to the main plug. Connecting the antenna/Cable Connect the aerial or cable TV plug to AERIAL INPUT (ANT-TV) socket located on the rear bottom side of the TV. Aerial or Cable Notication Manufactured under licence from Dolby Laboratories

MANUFACTURED UNDER LICENCE

"Dolby" and the double D symbol are trademarks of Dolby Laboratories. HDMI, the HDMI logo and the high definition multimedia interface are marks or registered trademarks of HDMI Licensing LLC. Information applicable to users in relation to disposal of old devices and batteries [European Union only] This symbol indicates that the equipment should not be disposed of as household waste. If you have to discard the TV set or the batteries, consider using collection systems or infrastructure for appropriate recycling. Note: The Pb sign inscribed on the batteries indicates that the battery contains lead. Products Battery Technical details TV Frequency (tuner)

Number of memorable channels

Audio standard German +Nicam Stereo On screen display On Screen Display RF Input Socket 75 Ohms (unbalanced) Operating voltage: 220-240V ~, 50HZ AUDIO OUTPUT POWER (WRMS.) (10% THD) 2 x 6 WRMS Power consumption 65W (max) st-by power consumption 0,5 W (max) Weight Stand 7,00 kg TV Dimensions DxLxH (with foot) 185 x 728 x 486 mm TV Dimensions DxLxH (without foot) 34/63 x 728 x 428 mm Display 32” Operating temperature and humidity 0ºC up to 40ºC, 85% humidity maxGetting started English - 21 - Remote control

English - 22 - You may use a VGA- compatible YPbPr cable (not provided) to enable the YPbPr signal via the VGA port. |You will no longer be able to use the VGA and YPbPr simultaneously. | For the YPBR or PC port, you have to connect the audio output of your device to the television’s audio AV input. |When an external device is connected to the jack socket of your TV, the TV will enter AV mode automatically when you turn on the external device .|When you are in digital mode (tuner, usb, hdmi) you will not have audio-video signal output through the jack socket. |If you use a wall-mounted kit,un , it is advisable to connect all your cables before fixing your TV to the kit. |Insert or delete the CI module CI only when the television is off. Consult the module’s instruction manual for more information on its settings. | Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. By connecting an HDMI cable to your Sharp LCD TV, you have to use only a shielded HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation. Connections If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them. Connector Type Cables Device Scart Connection (back) VGA Connection (back) SIDE AV PC/YPbPr Audio Connection (side) Side Audio/Video Connection Cable (Supplied) PC Audio Cable (Not supplied) HDMI Connection (back) SPDIFF (Coaxial Out) Connection (back) SIDE AV Side AV (Audio/Video) Connection (side) AV Connection Cable (supplied) HEADPHONE Headphone Connection (side) PC to YPbPr YPbPr Video Connection (side) YPbPr Connection Cable(not supplied) USB Connection (side)

Connection (side) CAM moduleGetting started English - 23 - Turning the TV on/off To Switch the TV On Connect the power cord to the 220-240V AC, 50 Hz. To switch on the TV from standby mode either: To switch on the TV from standby mode either:

• Press the “ ” button, P+ / P- or a numeric button on the remote control.

• Press the “ ” or P/CH+/- button on the TV. The TV will then switch on. Note: If you switch on your TV via P+ / P- buttons on the remote control or P/CH+/- on the TV set, the programme that you were watching last will be reselected. To Switch the TV Off Press the “ “ button on the remote control or press the side function switch until the TV switches into standby mode. To power down the TV completely, unplug the power cord from the mains socket. Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode. First time installation When you turn on the television for the rst time, the language selection menu appears. Select the language you want and press OK. The First time installation (FTI) screen appears during rst installation. Set your preferences using the browsing buttons. When you are through, press OK to continue. IMPORTANT : If you chose France or Italy as an alternative, the PIN code menu will appear and you will have to enter 4-digit code. You will not be able to use 0000 as code (you are advised to write down this code on your instruction manual so that you can remember it when you need to use it). Enter a PIN code and conrm by entering it again. Press the OK button to continue.

WARNING : When prompted to enter a PIN code to

access a menu item, you have to use the code you set during rst installation. If you forget the said code, use the main code 4725. Demo Mode If you want to use your television inside a home, you are advised to select the home mode. If you choose the shop mode, you will have to conrm your choice. Choosing TV receiver mode You will have to choose your reception mode, antenna or cable. If you choose the ANTENNA option from the Type of search screen, the digital television will search for digital terrestrial broadcasts. NOTE: You can press the MENU button to cancel. Once all the available channels have been saved, the list of the channels will appear on the screen. If you nd the said channels interesting, depending on the LCN(*), select Yes, then press OK. Press the MENU button to exit the list of channels and watch the television. (*) LCN Channel number system which displays channels in the order established by government agencies . Installing the cable If you choose the CABLE option and press the OK button on the remote control. You can set the frequencies manually or press OK to start an automatic search. Note: The duration of the search will depend on the search zone selected. Reading media through the USB input You can connect external hard drives (hard drives with or without external power cables, depending on their voltage) or a USB port to your TV through your TV's USB ports. IMPORTANT! Backup your les before making any connection to the TV. Note that the manufacturer shall not be held accountable if les are damaged or data lost. Some types of USB devices (MP3 players for example) or USB ‘‘hard drives / memory cards’’ ‘‘may be incompatible with this television. This television supports FAT32 and NTFS disk formatting. If your hard drive's capacity is above 1TO, you may experience some issues with formatting. Avoid First time installation - USB connectionsEnglish - 24 - disconnecting your reader quickly after inserting it in the television's USB port. This can physically damage the USB reader and the USB device itself. Never remove the USB while a le is being read. Media browser menu You can view picture, music and video les stored in a USB device by connecting this device to your TV set. Connect a USB stick to one of the USB ports located on the side of the TV set. For video, photo and music les, you can access a settings sub menu (image, sound and others) by pressing the MENU button. By pressing the MENU button again the display disappears. You can set the preferences of your media browser through your settings menu. Functioning of the Random / Repeat mode Launch playback with and enable The TV set reads the next le and closes the list.Launch playback with and enable The same folder will be read repeatedly.Launch playback with OK/ and enable The folders concerned will be read randomly. CEC and CEC RC Passthrough This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV. The CEC option in the Other Settings menu under Settings menu should be set as Enabled at rst. Press the Source button and select the HDMI input of the connected CEC device from the Source List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(DVD Player, Recorder 1 etc.). The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected. To terminate this operation and control the TV via the remote again, press and hold the “0-Zero” button on the remote control for 3 seconds. Or press Q.Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the Settings/Other Settings menu. The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system). When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device’s volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device. Teletext Press the TXT button to enter teletext mode. Press again to enable the Mix mode. Press one more time to exit. Follow the instructions displayed on the digital teletext screen. Digital teletext (United Kingdom only) Press on the TXT button to display information related to the digital teletext. Use the coloured buttons, the cursor buttons and the OK button to adjust. The operating method may differ, depending on the content of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the TXT button is pressed, TV switches back to television broadcast.English - 25 - Options and functions of the TV menu Content of the image menu Mode You can edit the image mode according to your preferences and demands. The Image mode can be set on one of these options : Cinema , Game, Sport, Dynamic and Natural. Contrast Adjusts the brightness and darkness of the screen. Brightness Adjusts the brightness of the screen. Sharpness Denes the sharpness of objects displayed on the screen. Colour Adjusts the colour value, adjusts colours. Power Saving Mode If you choose the Power saving mode set to Eco, you can enable or disable the screen . (When the mode is Dynamic, the Power saving mode set to Eco is automatically disabled.) Back-lighting (optional) This parameter controls the back-light level. The back-light function will be inactive if the Power saving mode is set to Eco. The Back-light mode cannot be enabled in VGA mode Multimedia navigator or when Image mode is dened on the Game. Noise reduction If the broadcasting signal is weak and the image noisy, use the noise reduction functionality to reduce the intensity of the noise. Advanced settings Dynamic contrast You can adjust the dynamic contrast ratio at your convenience. Colour temperature Adjusts the desired colour tone. Image zoom Adjusts the size of images in the images zoom menu. Note: Auto (Available only in Scart mode with SCART PIN8 high/low voltage switch) HDMI True Black (optional) When you watch the television from the HDMI source, this option is visible in the Image setting menu. You can use this option to increase image darkness. Film Mode Films are recorded at a number of frames per second different from normal television programs. Enable this function when you are watching lms so as to better visualize the accelerated images. Skin tone The skin tone function can be edited between -5 and 5. Colour editing Adjusts the desired colour tone. RGB gain You can congure the colour temperature values using the RGB Gain functionality. Reset Resets the image settings to the default values (except Game mode). Auto-position (in PC mode) Automatically optimises display. Press OK to optimise. Position H (in PC mode) This section changes the image horizontally towards the right or left side of the screen. Position V (in PC mode) This element moves the image vertically towards the upper or lower part of the screen. Frequency guide (in PC mode) The pilot frequency settings correct interferences which appear as vertical lines in the image for displays such as worksheets, paragraphs or texts in smaller font sizes. Phase (in PC mode) Depending on the resolution and the scanning frequency you enter for the television, you can see a fogged or sound image on the screen. In such a case you can use this element to get a clear image through trial and error. In VGA mode (PC), certain elements of the image menu will be unavailable. On the contrary, the parameters of the VGA mode will be added to the Image parameters in PC mode.English - 26 - Options and functions of the TV menu Content of Sound menu Volume Adjusts the volume level. Equaliser You can choose from 4 pre-set modes or make your own settings by selecting the user mode. Balance This parameter is used to highlight the balance of the left or right loudspeakers. Headphone Adjusts the volume of the headphone. Sound mode You can choose stereo or select language in dual -I or dual -II mode if the transmission includes this option. . AVL (Automatic Volume Limitation) This function is used to limit the volume differences between programmes. Headphone/Lineout When you connect an external amplier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone. Dynamic Bass Enables or disables the Dynamic Bass. Surround Sound (optional) Surround sound mode can be changed as On or Off. Digital output To be adjusted depending on the type of appliance attached to this plug. Content of the Settings menu Conditional access Controls the conditional access modules when they are available. Language Congures language parameters (can vary depending on the country chosen). The favourite parameters and current ones will be available. The current settings can only be edited if the broadcaster takes charge of them. Parental control Enter the correct password to edit parental control settings. You can easily adjust menu lock and parental control from this menu. You can also enter a new pin code (See the chapter on setting of parental parameters on page 12). Timer This function is used to set sleep mode Date/Time Selects the date and time. Sources Enables or disables selected Source options. Other settings: Displays other television setting options: OSD display time Denes the menu display time. Encoded channels search When this parameter is enabled, the search process locates scrambled channels as well. Blue Screen In Active mode, it displays a blue screen when there is no signal. Software update Updates the software package of your television. Application version: Displays the software version of your television. Hearing-impaired Enables specic functions for the hearing-impaired broadcast by the channels. Audio description Audio description refers to an extra narration path reserved for the visually and hearing impaired. You can only use this option if the broadcaster takes it in charge. Note: The audio sound description functionality cannot be available when the time- lag mode is active.English - 27 - Options and functions of the TV menu TV Automatic shutdown When this function is enabled, it denes the time at which your television automatically stops (between one and six hours). Standby search mode (optional) If the Standby search mode is enabled, available channels will be searched when the television is on standby. If the television nds missing or new channels, a menu screen is displayed, asking if you wish to apply these changes or not. The channels list is updated and edited after this process. Storage Mode (optional) Enables or disables the Demo mode.. Power Up Mode This setting confrigures the power up mode preference. Virtual Remote (optional) Enables or disables the virtual remote feature. CEC With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature. Turn on mode This parameter congures preferences of the power on mode. Always enabled : the television comes on when the main power on/off button is pressed. Standby: the television always comes on in standby mode. / Last view : the television comes on on the last channel/source selected. Installation Automatic channel search If you wish to install or update new channels, you can use this menu. It displays automatic setting options. Digital antenna : Searches and stores DVB channels. Digital cable :Searches and stores DVB cable television channels Analogue : Searches and stores analogue stations. Analogue and digital antenna : Search and store DVB and analogue channels. Analogue and digital cable : Search and store analogue and DVB stations.. Manual channel search Used to search or directly store a channel if the frequency is known. Network channel search Searches channels related to the transmission system. Fine tune (analogue) You can use this option to ne-tune analogue channels. It is only available if analogue channels are stored. Initial Installation Deletes all television settings and takes you back to the rst installation.English - 28 - Channel list Use of the channel list You can congure the channel list by moving, deleting, renaming and locking them to your liking. Setting of parental control settings To prevent certain programs from being watched, channels and menus can be locked through the parental control system. To display lock menu option, enter the PIN code. By default, the set factory code is 0000. After entering the appropriate PIN code, the Parental control settings menu will be displayed : Menu lock : The Menu lock option enables or disables access to the menu. Maturity lock: After installation, this option searches information related to parental programs and if this parental level has been disabled, access to broadcast is not enabled. Parental control lock: When the Parental lock option is selected, the television can only be controlled with a remote control. In this case, the control panel buttons will not be active. PIN code setting: Denes a new PIN code. The default PIN code can change depending on the country selected. If a PIN code is required to display a menu option, enter one of the following codes: 0000 or 1234. Electronic Program Guide (EPG) Some channels, not all, display information concerning the on-going program and the next one. Press EPG button to get access to the EPG menu. Up/Down/Left/Right: Navigate EPG. OK: Displays programme options. INFO: Displays, in detailed, information on the programme selected. GREEN: Switches to List Schedule EPG. YELLOW: Switches to Timeline Schedule EPG. BLUE: Displays ltering options. Programme Options In EPG menu, press the OK button to enter the Event Options menu. Select Channel In EPG menu, using this option, you can switch to the selected channel. Set Timer / Delete Timer After you have selected a programme in the EPG menu, press the OK button. Select the Set Timer on Event option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select “Delete Timer” option. The timer will be cancelled. Software update Your television can, through the antenna or cable, search and provide updates. Software update search via the user interface Simply go through the main menu. Choose Settings and select other settings menu. In the Other settingsmenu, select Software update and press the OK button to open the Update options menu. 3 Search and update mode When the TV set receives signal from the antenna. If the Automatic search option in the Update options menu is active, the television automatically turns on at 3:00 a.m. and launches the search for broadcasting channels in order to update the new software. If new software is found and downloaded successfully, the television begins to work with the new software version when next it is turned on. Note: If the television does not come on after the update, disconnect it for two minutes, then connect it again. Troubleshooting and tips The TV is not coming on Check to ensure that the electricity plug is safely connected to the wall socket or that the batteries of the remote control are functional. Poor picture quality

• Check if your antenna is properly connected. A poor signal level can negatively affect image quality.

• If you carried out manual settings, verify that you entered the right channel frequency.

• Image quality may be affected negatively when two devices are connected to the television set at the same time. If such is the case, disconnect one of the devices. No image

• No image indicates that your TV is not receiving a signal. Have you selected the correct buttons on the remote control? Try once more. Also make sure that you have selected the right input source.

• Is the antenna connected properly?

• Is the antenna cable damaged?

• Are suitable plugs used to connect the antenna?

• If you are not sure , please consult your supplier. No sound

• Has the mute button been pressed? If that is the case, press the " " button, or increase the volume.

• Only one speaker is producing sound. Is the balance well placed in the middle? Consult the Sound menu. The remote control is not working

• The batteries may be down. Replace the batteries. Input sources cannot be selected.

• If you cannot select an input source, it is possible that no device is connected.

(X: Not Available, O: Available) In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.English - 30 - Supported File Formats for USB Mode Media Extension Format Notes Video .dat, .mpg, .mpeg Mpeg1-2 1080P@30fps, 50Mbit/sec .ts, .trp, .tp, .m2ts MPEG2 , H.264,
