USER MANUAL HappyCook HCCF16R TELEFUNKEN

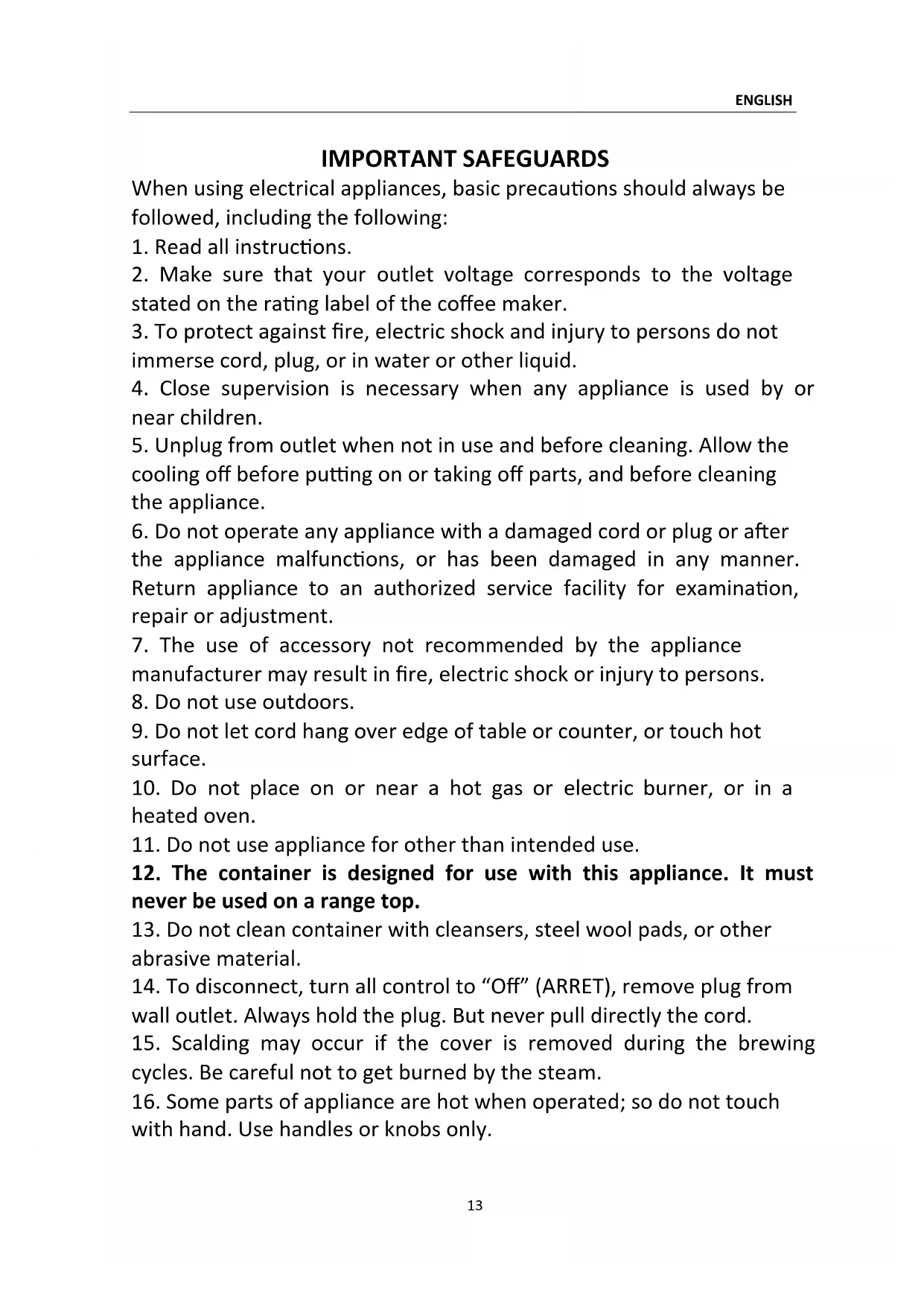

IMPORTANT SAFEGUARDS When using electrical appliances, basic precautions should always be followed, including the following:

1. Read all instructions.

2. Make sure that your outlet voltage corresponds to the voltage

stated on the rating label of the coffee maker.

3. To protect against fire, electric shock and injury to persons do not

immerse cord, plug, or in water or other liquid.

4. Close supervision is necessary when any appliance is used by or

5. Unplug from outlet when not in use and before cleaning. Allow the

cooling off before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after

the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized service facility for examination, repair or adjustment.

7. The use of accessory not recommended by the appliance

manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

10. Do not place on or near a hot gas or electric burner, or in a

11. Do not use appliance for other than intended use.

12. The container is designed for use with this appliance. It must

never be used on a range top.

13. Do not clean container with cleansers, steel wool pads, or other

14. To disconnect, turn all control to “Off” (ARRET), remove plug from

wall outlet. Always hold the plug. But never pull directly the cord.

15. Scalding may occur if the cover is removed during the brewing

cycles. Be careful not to get burned by the steam.

16. Some parts of appliance are hot when operated; so do not touch

with hand. Use handles or knobs only.ENGLISH

the carafe is liable to crack.

18. Never use the appliance if the carafe shows any signs of cracks or

carafe having a loose or weakened handle. Only use the carafe with this appliance. Use carefully as the carafe is very fragile.

19. Do not set a hot container on a hot or cold surface.

20. Do not let the coffee maker operate without water.

21. This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

22. Children shall not play with the appliance.

Check that all accessories are complete and the unit is not damaged. Add water into water tank to the max level and brew water for several times without coffee powder, then discard the water. Clean all detachable parts thoroughly with warm water.

USING YOUR COFFEE MAKER

1. Open the top lid and fill the water tank with drinking water. The water level should not exceed

MAX level marked inside the tank.

2. Place the funnel into the funnel support and make sure the funnel is assembled correctly. Then put

the filter paper correctly.

3. Add coffee powder into filter paper. Usually a cup of coffee need a level spoon of coffee powder,

but you may adjust according to your personal taste. Then, close the top lid.

4. Place the carafe on the keeping warm plate.

5. Plug the power cord into the outlet. The LED will display “12:00” and the colon will flash. Press the

ON/AUTO/OFF (MARCHE/AUTO/ARRET) button one time to start the brewing process.

6. The brewing process can be interrupted by pressing the ON/AUTO/OFF (MARCHE/AUTO/ARRET)

button twice at any time during operation, and the brew indicator will be extinguished. And the BREW (MARCHE) letter on the LED will disappear. The appliance will continue brewing once ON/AUTO/OFF (MARCHE/AUTO/ARRET) is pressed again. Note: You can take out the carafe, pour and serve at any time. The appliance will stop dripping automatically. But the time cannot exceed 30 seconds.

7. When the brewing is finished, the timer will record the keeping warm time, once the time has

achieved 2 hours, the coffee maker will shut off the power outlet automatically. For an optimum coffee taste, serve it just after brewing.

8. When the appliance is on the keeping warm state, press the PROGRAMME button for three times,

the LCD will display the keeping warm time.

9. If you want to serve the coffee immediately, you shall remove out the carafe to serve when finish

brewing. Note: the coffee quantity you get will be lesser than the amount of water you have added, as some water is absorbed by coffee ground.

10. Always turn the coffee maker off and disconnect the power supply when not use.ENGLISH

Caution: When pour coffee, the momentary inclined angle of carafe shall not be more than 45 degree from the vertical position, you shall pour the coffee slowly until the carafe is empty, otherwise the coffee in the carafe will rush to the bottom of carafe lid, and the coffee will flow out from two edges of lid and hurt you!

If you do not want the coffee maker to start operation immediately, for example now it is 17:10, you hope that the coffee maker will automatically start at 20:15 in the evening, first follow steps 1 to 5 of above section, then you can set the automatic start function as follows:

1. Press the HOUR (HEURE) and MIN (MINUTE) button continuously to set the present time (real

clock), that is 17:10 (See fig. 1). Note: the time cycle is 24 hours.

2. Press PROGRAMME button once ,the AUTO indicator will turn green.

3. set the delayed starting time by pressing HOUR (HEURE) and MIN (MINUTE) buttons repetitively,

that is 20:15 (see Fig. 2).

4. After setting the presetting time, press the PROGRAMME button once again, the LED will display

green. The LED will display the current clock. You may see the automatic start time by pressing PROGRAMME. Note: You may cancel the automatic start function by pressing ON/AUTO/OFF (MARCHE/AUTO/ARRET) button once to stop machine, if you want to brew coffee again immediately, you can press ON/AUTO/OFF (MARCHE/AUTO/ARRET) button once to start brewing immediately. If you want to change the automatic start time, only following the above 1-5 steps again. When the time is due the AUTO indicator will be extinguished and the BREW (MARCHE) indicator will be illuminated, then the unit starts brewing.

6. When the brewing is finished, the timer will record the keeping warm time, once the time has

achieved 2 hours, the coffee maker will shut off the power outlet automatically. For an optimum coffee taste, serve it just after brewing. MEMORY If the power supply has been broken off or the power cord has been unplugged unintentionally during the operation, the appliance will continue previous operation automatically from the point when the disconnection occurred, provided that the pause does not exceed 10s, even without pressing any button. In the event the pause time exceeds 10s, the display will show the default setting, the appliance must be re-started.ENGLISH

CLEANING AND MAINTENANCE

CAUTION: Be sure to unplug this appliance before cleaning. To protect against electrical shock, do not immerse cord, plug or unit in water or liquid. After each use, always make sure that the plug is first removed from wall outlet.

1) Clean all detachable parts after each use in hot, soapy water.

2) Wipe the product’s exterior surface with a soft, damp cloth to remove stains.

3) Water droplets may build-up in the area above the funnel and drip onto the product base during

brewing. To control the dripping, wipe off the area with a clean, dry cloth after each use of the product.

4) Use a damp cloth to gently wipe the keeping warm plate. Never use abrasive cleaner to clean it.

5) Replace all parts and keep for next use.

REMOVING MINERAL DEPOSITS

To keep your coffee maker operating efficiently, you should clean away the mineral deposits left by the water regularly according to the water quality in your area and the frequency use the appliance, the detail is as follows:

1. Fill the water tank with water and descaler to the MAX level in the gauge of coffee maker (the

scale of water and descaler is 4:1, the detail refers to the instruction of descaler. Please use “household descaler”, you can use the citric acid instead of the descaler (the one hundred parts of water and three parts of citric acid).

2. Place the carafe on the keeping warm plate, pay attention to let center line of carage aligns with

that of brew basket.

3. Press the ON/AUTO/OFF (MARCHE/AUTO/ARRET) button once and the BREW (MARCHE) indicator

will be illuminated red. After a while, water will drop out automatically.

4. After percolate the equivalent of one cup and then switch off the appliance by pressing the

ON/AUTO/OFF (MARCHE/AUTO/ARRET) button again. The BREW (MARCHE) indicator will be extinguished.

5. Leave the solution work for 15 minutes, repeat the steps of 3-5 again.

6. Turn the appliance on by pressing the ON/AUTO/OFF (MARCHE/AUTO/ARRET) button once and

run off the water until the water tank is completely empty.

7. Rinse by operating the appliance with water at least 3 times.

HINTS FOR GREAT-TASTING COFFEE

1. A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker

as specified in the “CLEANING AND MAINTENANCE” section. Always use fresh, cold water in the coffee maker.

2. Store unused coffee powder in a cool, dry place. After opening a package of coffee powder, reseal

it tightly and store it in a refrigerator to maintain its freshness.

3. For an optimum coffee taste, buy whole coffee beans and finely grind them just before brewing.

4. Do not reuse coffee powder since this will greatly reduce the coffee’ flavor. Reheating coffee is not

recommended as coffee is at its peak flavor immediately after brewing.

5. Clean the coffee maker when over-extraction causes oiliness. Small oil droplets on the surface of

brewed, black coffee are due to the extraction of oil from the coffee powder.

6. Oiliness may occur more frequently if heavily roasted coffees are used.ENGLISH

TECHNICAL INFORMATION Input voltage: 230V AC Frequency: 50Hz Power : 1000W(+5%,-10%) Container : 1.5 L ENVIRONMENT - The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material. The product does not contain concentrations of substances that could be considered harmful to the environment - The following information concerns the energy labeling and the ecological design: This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selective collection of waste electrical and electronic equipment (WEEE) This appliance complies with Directive 2012/19/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility. To determine the compliance with the requirements of ecological design and to calculate the energy labeling parameters, the appliance is considered as a general use vacuum cleaner and European Regulation EN 60312-1 is taken as reference.
