USER MANUAL HappyCook HCGP36DG TELEFUNKEN
HCGP-36-DG
SOMMAIRE
Information technique 9
Environnement....9
Product description....11
Important safeguards ....12
Operation guide ....14
Cleaning 15
Technical information 16
Environment 16


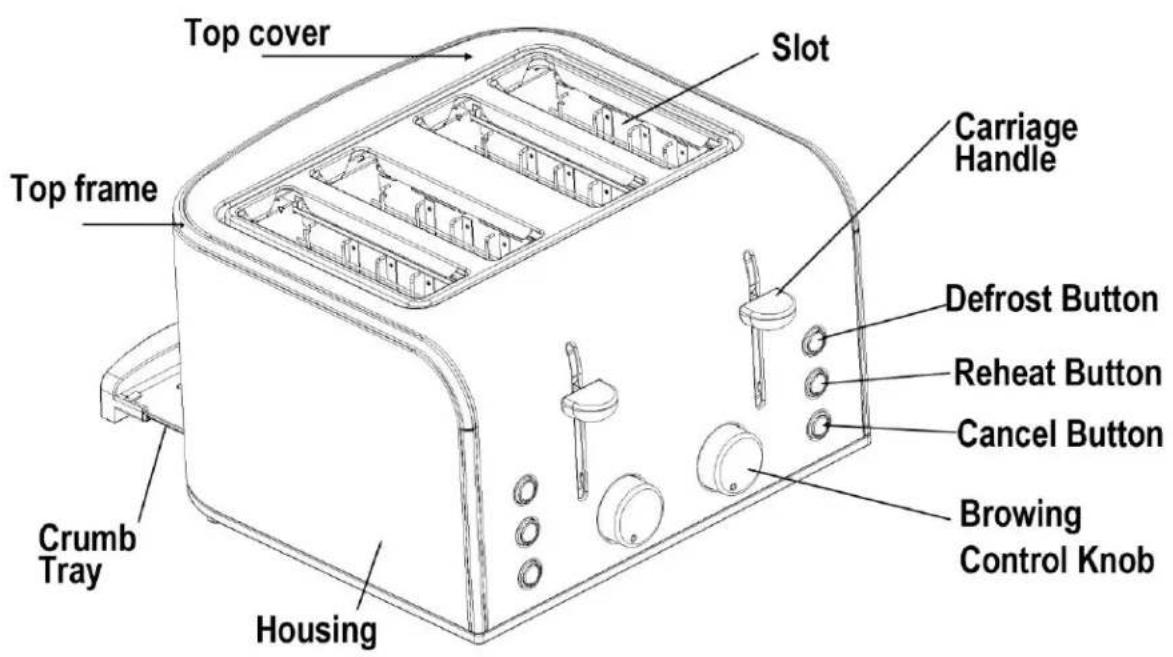

Top cover Slot Carriage Handle Top frame Defrost Button Reheat Button Cancel Button Browning Control Knob Crumb Tray HousingIMPORTANT SAFEGUARDS
When using electrical appliances, basic precautions should always be followed, including the following:
- Read all instructions.
- Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the coffee maker.
- To protect against fire, electric shock and injury to persons do not immerse cord, plug, or in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow the cooling off before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized service facility for examination, repair or adjustment.
- The use of accessory not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surface.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Do not use appliance for other than intended use.
- The container is designed for use with this appliance. It must never be used on a range top.
- Do not clean container with cleansers, steel wool pads, or other abrasive material.
- To disconnect, remove plug from wall outlet. Always hold the plug. But never pull directly the cord.
- Scalding may occur if the product is working. Be careful not to get burned by the steam.
- Some parts of appliance are hot when operated; so do not touch with hand. Use handles or knobs only.
- Never use the appliance if it shows any signs of cracks or having a loose or weakened handle.
Warning! Children
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of knowledge, unless they
have been given supervision or instruction concerning safe use of the appliance by a person responsible for their safety. Young children must be supervised to ensure that they do not play with the appliance. Safely dispose of any plastic bags or other packaging that may present a hazard to young children of suffocation or choke hazard.
Warning! Unattended Appliances
Do not leave any toaster unattended when in use. Bread may burn and poses a serious risk of fire. Do not place any toaster under or near any combustible material such as walls, cupboards or curtains or near children. Always unplug any appliance when not in use.
Safety
For household indoor use only, do not use outdoors. Not for commercial use.
Do not let the supply cord hang over the edge of any table or bench as young children may pull on the cord creating a risk of electric shock, burns, scalding, personal injury or damage.
This appliance must not be operated by means of an external timer or separate remote control system.
Always place the appliance on a heat resistant surface. The temperature of accessible surfaces may be high when the appliance is operating.
Always allow a gap around the appliance and do not cover the appliance.
Warning! Moisture
Do not immerse this appliance in any liquid. Do not operate with wet hands or near any vessel filled with water. Do not splash the appliance with water
Before using this appliance please read and fully understand the safety directions in this manual. Ensure that you know how to operate the appliance. All electrical equipment presents a risk to the end user. We ask that you use this appliance in a sensible safe manner in accordance with the instructions supplied for your own safety.
FEATURES
Auto pop up function
Variable heating dial
Removable crumb tray
Reheat / Cancel / Defrost function
OPERATION GUIDE
Power Connection
Connect to a suitable 220-240V \~50Hz power supply only. This appliance must be earthed.
First Time Use
When first used the heat elements may not heat satisfactorily until they have settled. This is normal as the elements may take 2-3 uses before operating at a maximum heat level. It is suggested that you operate the appliance 2 times without bread to allow the elements to settle correctly.
Basic Toasting
Ensure the toaster is correctly located and connected to a suitable power supply. Ensure the bread carriage lever is in the raised position.
Set the heating dial to a mid setting (3-4) of your choice.
Place the bread into the bread carriage slots and lower the lever. Toasting will commence. When toasting has completed the bread lever will release and toasting will stop.
Cancel Function (ANNULER)
Press to cancel toasting at any stage
Reheat Function (RECHAUFFER)
Cold toast may be reheated. Always remove any spreads that may remain on the cold toast. Place the bread in bread carriage, select desired heat setting and lower the bread carriage lever. Press the REHEAT (RECHAUFFER) button. Toasting will operate for a shortened time.
Defrost Function (DECONGELER)
Bread can be toasted straight from the freezer.
Place the frozen bread into the bread carriage as normal, select desired heat setting and lower the bread carriage lever. Press the DEFROST (DECONGELER) button. Toasting will operate for an extended period.
Toasting Tips
Thin sliced bread will toast quicker than toast sized bread. Thin sliced bread or torn bread should not be used as it may bend under cooking process and jam the toaster in an ON position creating a fire risk. Always use toast sized bread and were possible toast two pieces at the same time.
CLEANING
Always disconnect the appliance from the power supply when cleaning.
Do not use harsh abrasives, solvents or scouring material as they may damage the plastics.
Warning! Do not immerse this appliance in any liquid.
Remove the crumb tray and discard any crumb build up.
Gently shake the appliance over the bench to remove any loose crumbs within the body of the appliance.
DO NOT Shake the appliance violently.
Do not place foreign objects such as knives into the bread toasting area as this may damage the heating elements.
Replace the crumb tray.
Clean the outer case with a damp clean cloth, dry with a dry towel.
Power Cord
Do not abuse or damage the supply cord. If for any reason the cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid hazard. A replaceable cord must be replaced with an authorized replacement from an authorized service agent.
Use - This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments
- farm houses
- by clients in hotels, motels and other residential type environments
- bed and breakfast type environments.
Service
Refer all servicing to qualified personal. This appliance has no user servicing parts or requirements. Return the appliance to the retailer if it is damaged in any way or not operating properly.
TECHNICAL INFORMATION
220-240V\~ AC 50Hz 800 Watts
Customer Information
If for any reason the appliance does not function correctly or shows signs of damage please return it immediately to the retailer or contact the help line.
ENVIRONMENT
- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
The product does not contain concentrations of substances that could be considered harmful to the environment
- The following information concerns the energy labeling and the ecological design:
This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selective collection of waste electrical and electronic equipment (WEEE)
This appliance complies with Directive 2012/19/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.
To determine the compliance with the requirements of ecological design and to calculate the energy labeling parameters, the appliance is considered as a general use vacuum cleaner and European Regulation EN 60312-1 is taken as reference.
Imported by Vestel France, 17 rue de la Couture – 94563 Rungis CEDEX
