USER MANUAL AM90 Winix

Front view of a white industrial air purifier unit with dotted pattern and 'WINIX' branding (no readable text or symbols beyond branding)

Model

AM90

Use & Care Guide

• Please read and follow all safety rules and instructions in this manual before operating.
• The product warranty is printed on the back of this guide, so please keep it in a safe place for future use.
  • This product is manufactured for use only in USA/CA.

CONTENTS

3-STAGE AIR PURIFICATION 3

CONTROLS 4

WHERE TO USE 5

INSTALLING FILTERS 6

SAFETY AND CAUTIONS 8

INITIAL OPERATION 9

AUTO & SLEEP 10

MANUAL & PLASMAWAVE ^® 11

AIR QUALITY INDICATOR 12

FILTER CARE 13

CLEANING CARE 17

FREQUENTLY ASKED QUESTIONS ......18

UNIT SPECIFICATIONS 20

SAFETY INSTRUCTIONS 21

PRODUCT WARRANTY 22

▶ This product is suitable for 120V only.

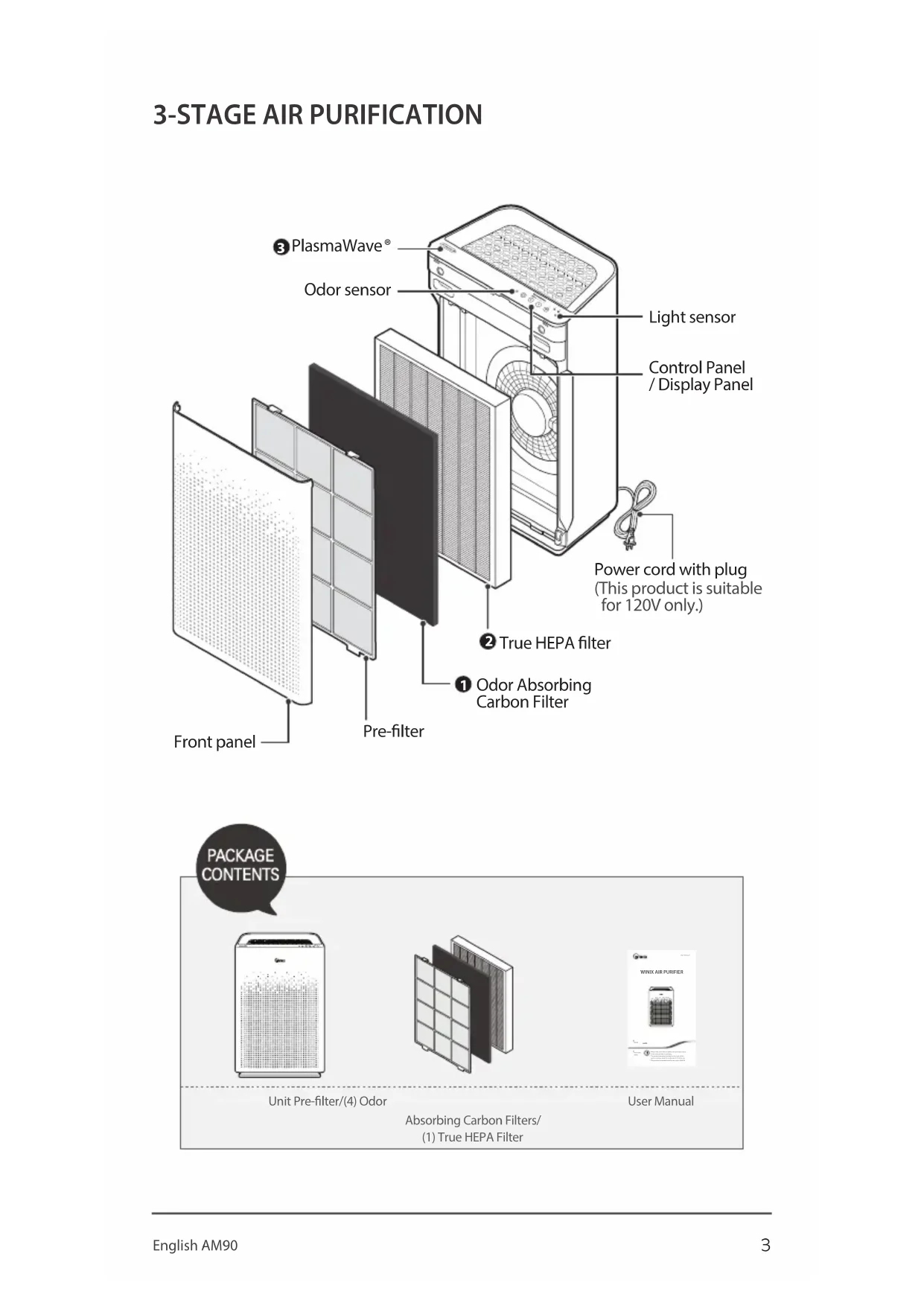

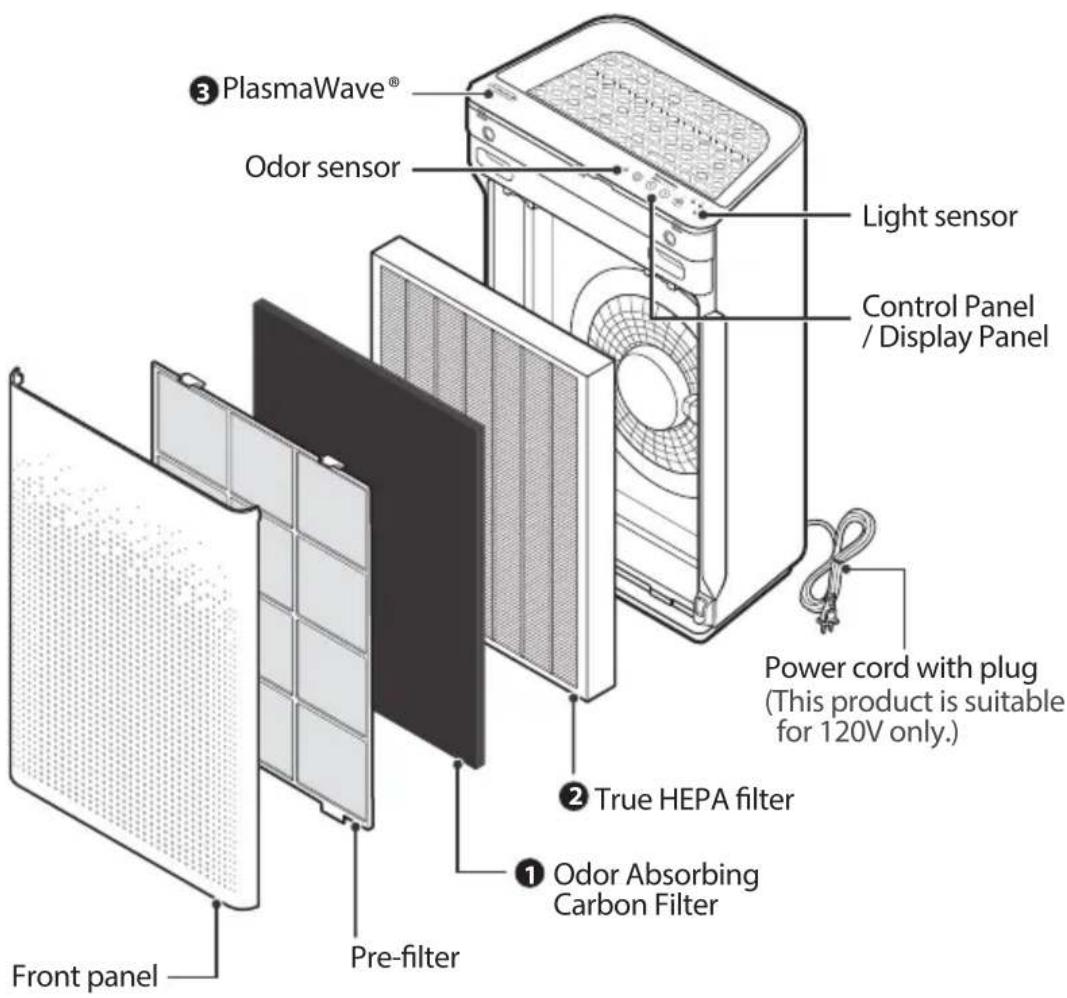

3-STAGE AIR PURIFICATION

PlasmaWave® Odor sensor Light sensor Control Panel / Display Panel Power cord with plug (This product is suitable for 120V only.) True HEPA filter Odor Absorbing Carbon Filter Front panel Pre-filter

PACKAGE CONTENTS

Front view of a white portable air purifier with grid pattern and control panel (no visible text or symbols)

Unit Pre-filter/(4) Odor

Illustration of a grid-patterned panel or panel with two panels, no text or symbols present

Absorbing Carbon Filters/
(1) True HEPA Filter

User Manual

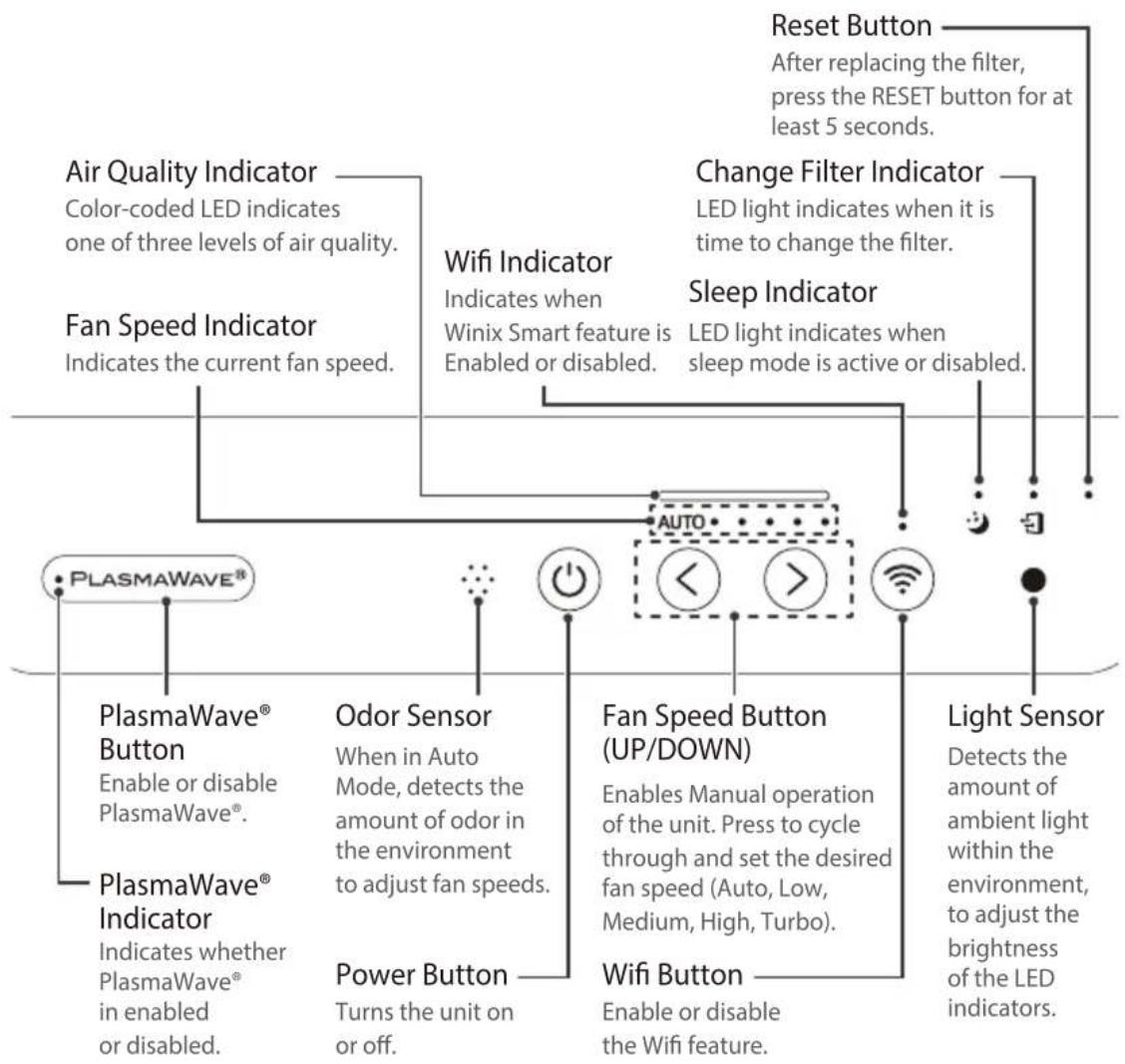

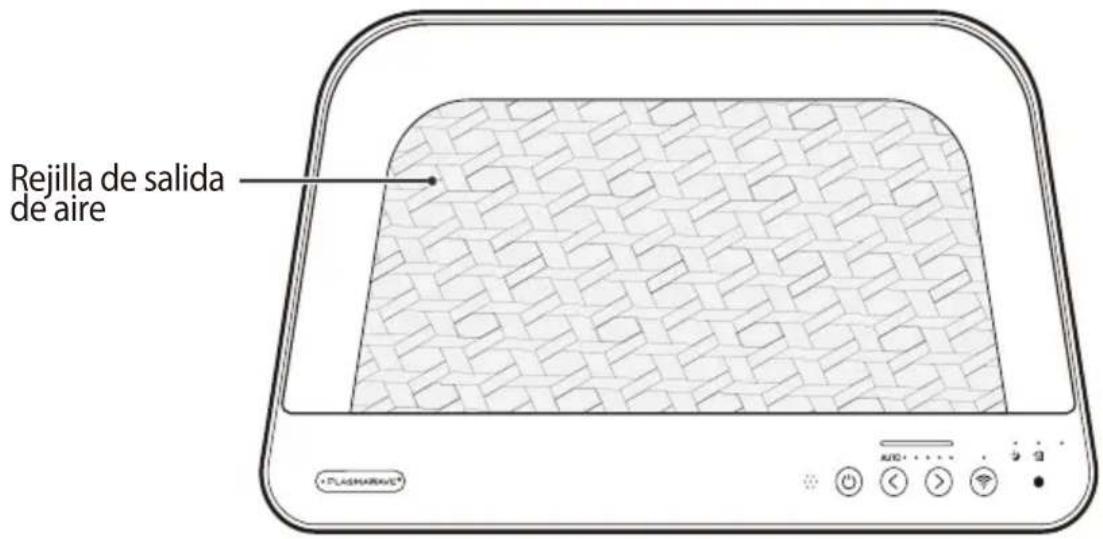

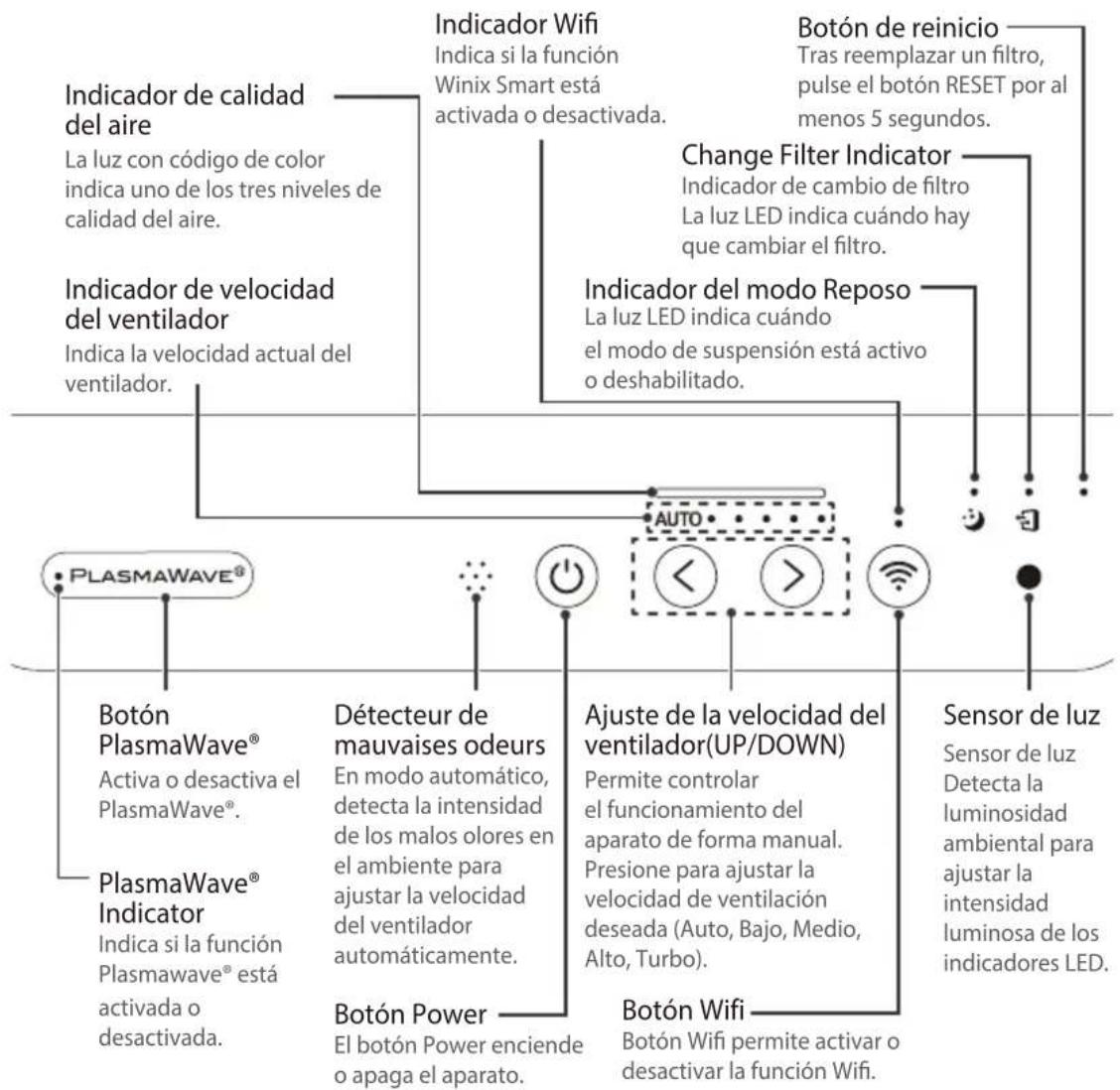

CONTROLS

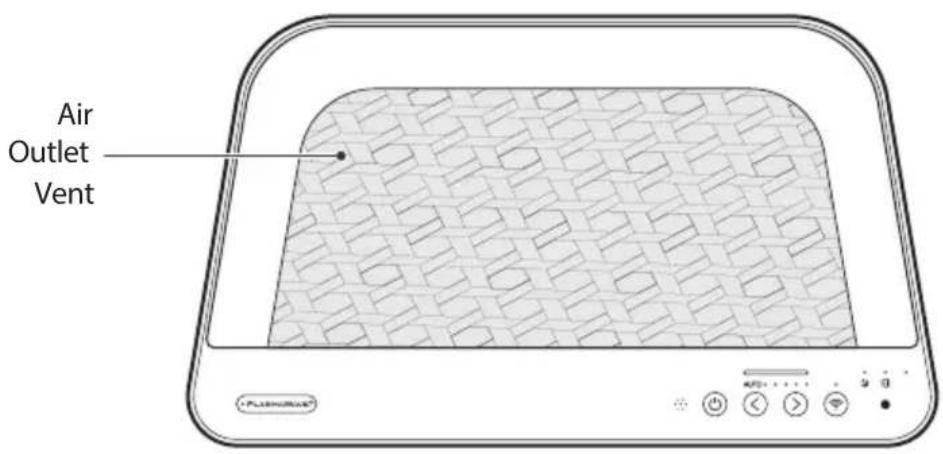

Air Outlet Vent

WHERE TO USE

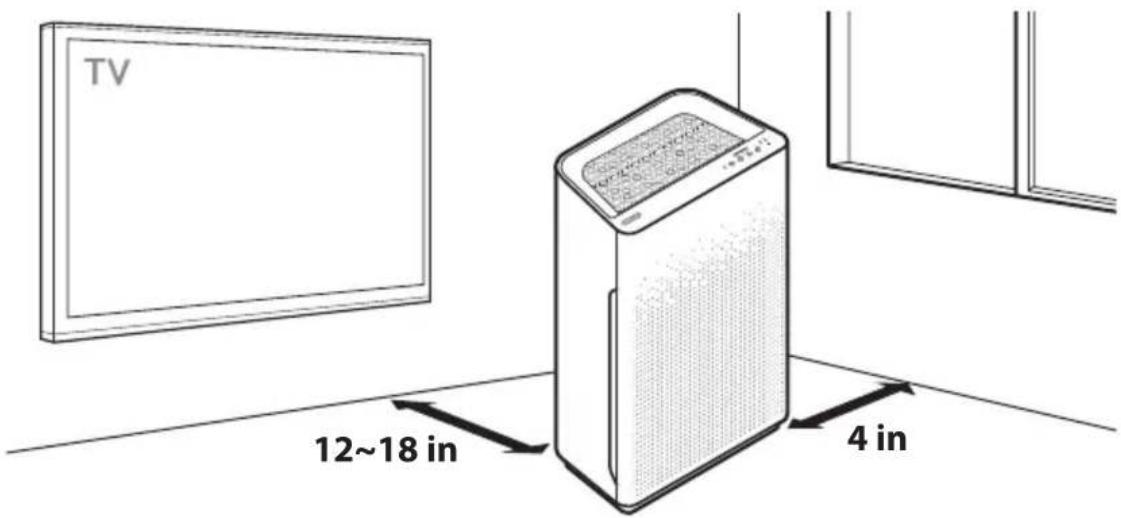

Allow 12 \~ 18 in. of space between TVs, radios, and other electronic products electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sun light

direct exposure may cause product malfunction or failure.

Only place on hard, flat surfaces

flimsy or slanted surfaces may result in abnormal noise and vibrations.

TV 12~18 in 4 in

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Do not use around mist or fumes from industrial oil or around large quantities of metallic dust

Do not place around heating elements

Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.)

Do not place in an area with excessive amounts of noxious gases

Do not place near any flammable materials (aerosols, fuel, gases etc.)

Do not have unit facing into wind or draft

Do not place below any electrical outlet

Do not place in excessively humid areas where unit may become wet

※ This unit is not intended to be used to preserve documents or in art conservation.

INSTALLING FILTERS

This product comes with all the required filters. The protective plastic wrap must be removed from the filters before use.

※ Operating the unit without removing the plastic wrap may result in product failure.
※ Unplug and make sure the unit is turned off before installing filters.

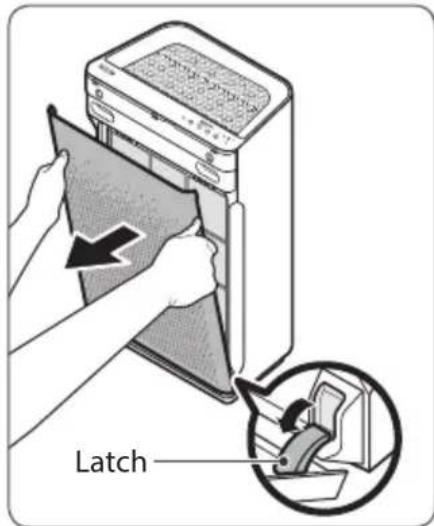

① Remove the front panel by grasping its upper edge and gently pulling forward.

• To remove the front panel release the latch at the lower edge of the panel.

Latch

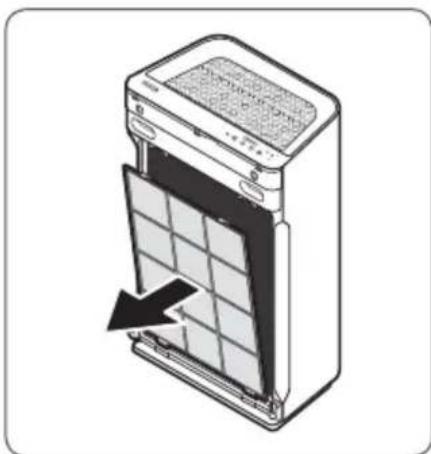

② Press the Pre-filter tabs near the top of the filter, release and remove.

Diagram of a clean air purifier unit with a grid panel and airflow direction arrow (no text or symbols)

③ Remove filters from protective plastic wrap.

- Operating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating.

Illustration of a container with a black rectangular object and an upward arrow, no text or symbols present.

NOTE

• Refer to pages 13 - 15 for details on how to replace filters.

INSTALLING FILTERS

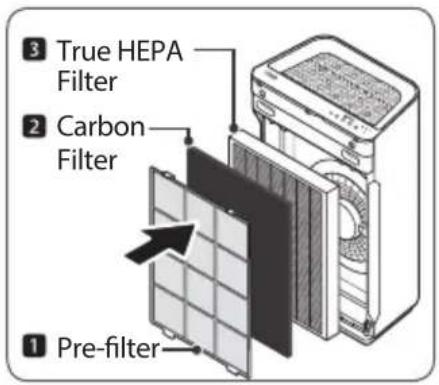

④ Install the filters until they fit securely in place.

Filters must be installed in this order:

3 True HEPA filter (rear)
2 Carbon filter (middle)
1 Pre-filter (front)

- To install the Pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until sides audibly click into place.

3 True HEPA Filter 2 Carbon Filter 1 Pre-filter

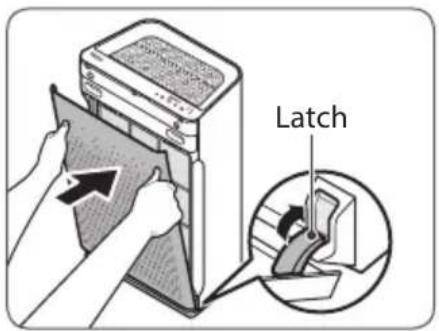

⑤ Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until the magnets pull the lid closed.

Latch

⑥ When to service and replace filters:

Filter Indicator Light		When to service	When to replace
1 Pre-filter none		Clean once every 14 days	Permanent
2 Carbon filter none		Can NOT be WASHED	Replace every 3 months
3 True HEPA filter	Check Filter		Lasts up to 12 months

※ Intervals between filter replacement may vary depending on environment.
※ For optimal use, Pre-filter can be cleaned once every 14 days which can extend the life of other filters.

To purchase replacement Winix filters:

(877)-699-4649

www.winixamerica.com

This unit is compatible with this WINIX filter ITEM: 115115 FILTER A

SAFETY AND CAUTIONS

Before operating this equipment, carefully read and follow these safety cautions

Ensure filters are inserted before running unit

running unit without filters can shorten the units life and cause electric shock or injury.

Be sure foreign objects are NOT inserted into the vents on the unit

objects can include pins, rods, and coins.

Do not touch any part of the interior of the unit with wet hands

the high voltage may cause electric shock.

Ensure unit intake and outlet vents do not become blocked

blockage may lead to increased internal temperatures causing product failure and deformation.

Do not use the unit as a step stool or place heavy objects on it

personal injury may occur or product failure and deformation.

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Do not pull on the power cord when unplugging the unit

Do not tie or knot power cord when unit is in operation

If the unit becomes submerged in water, unplug it and contact customer service

Do not unplug or move the unit while in operation

Do not plug additional appliances into the same outlet or power supply

Do not touch the plug with wet hands

Unplug unit when not in operation for extended periods of time

Cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it

INITIAL OPERATION

① Insert the power cord into an electrical outlet.

Simple line drawing of a plug inserted into a wall socket connected to a cable (no text or symbols)

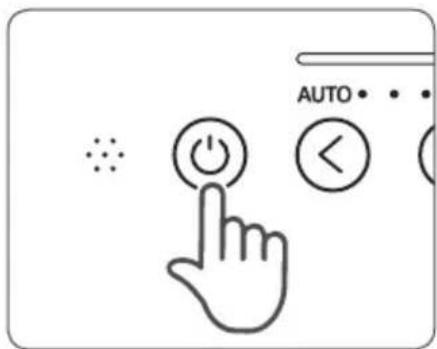

② Press the 'Power' button.

AUTO • • •

NOTE

- During the first 4 minutes of power up, the Air Quality Indicator will flash as the Smart Sensors measure the air quality in the environment, after which normal operation will begin.

③ By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave® enabled.

• When in Auto mode, the fan speed will be automatically adjusted according to the environments air quality.
• PlasmaWave® works to remove harmful airborne contaminants.

Control panel interface with power, limit, and output icons labeled AUTO, <, >

NOTE

• In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.
• When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave®, it is normal and does not signify product failure. To disable PlasmaWave®, see page 12.

AUTO & SLEEP

1. Auto Mode

Enables auto operation based on the unit's air quality Smart Sensors.

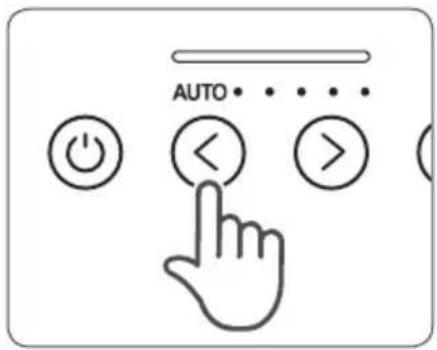

① Press the Mode button to select Auto mode.

- The LED 'Auto' light will indicate when Auto mode is activated, and operation will begin.

AUTO < > +

NOTE

- When in Auto mode the fan speed is automatically adjusted according to the indoor air quality. As the indoor air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases, the fan speed will automatically increase.

2. Sleep Mode

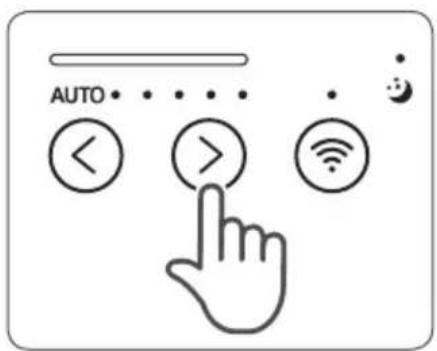

① Press the Mode button to select Sleep mode.

- The LED 'Sleep' light will indicate when Sleep mode is activated, and operation will begin.

AUTO < > > > Wi-Fi

NOTE

• When Sleep mode is selected, the fan speed is automatically set to Low. The fan speed can be manually changed by pressing the Fan Speed button, changing the unit into manual mode.
• When Sleep Mode is activated, the Air Quality Indicator LED light is disabled.

MANUAL & PLASMAWAVE®

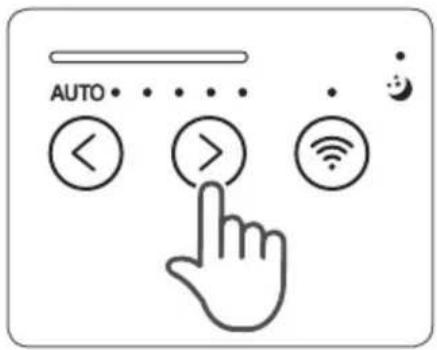

3. Manual Mode (setting fan speed)

Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.

① Press the Fan Speed button to set the desired fan speed.

AUTO < > > Wi-Fi

NOTE

- When Manual Mode is selected, Auto Mode is automatically disabled.

4. PlasmaWave®

By default, PlasmaWave ^® is enabled whenever the unit is powered on.

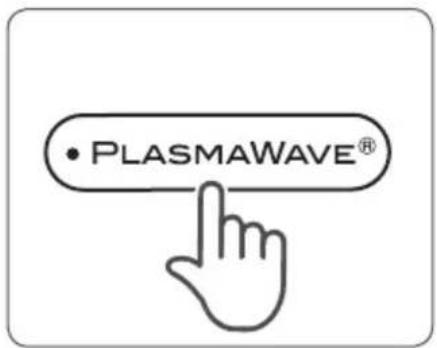

① Press the Plasmawave® button, when the unit is on, to enable or disable this feature.

• PLASMAWAVE®

NOTE

• In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.
• When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave®, it is normal and does not signify product failure.

AIR QUALITY INDICATOR

5. Air Quality Indicator

When on, the LED light will indicate the current indoor air quality according to three levels: BLUE (good), AMBER (fair), RED (poor).

Air Quality Indicator

NOTE

- Air quality level is displayed on the indicator, based on the Smart Sensors. Depending on the immediate environment, the indicator may change frequently in color or stay the same for lengthy periods of time.

FILTER CARE

1. Know The Filters

When the Check Filter indicator LED is on, it is time to replace the True HEPA Filter.

Filter Indicator Light		When to service	When to replace
1 Pre-filter none		Clean once every 14 days	Permanent
2 Carbon filter none		Can NOT be WASHED	Replace every 3 months
3 True HEPA filter	Check Filter		Lasts up to 12 months

※ Intervals between filter replacement may vary depending on environment.
※ For optimal use, Pre-filter can be cleaned once every 14 days which can extend the life of other filters.

To purchase replacement Winix filters:

(877)-699-4649

www.winixamerica.com

This unit is compatible with this WINIX filter ITEM: 115115 FILTER A

Carbon filter/ True HEPA filter

NOTE

• The filters' life varies depending on the level of pollutants in the air. The more dust present in the environment, the more dust accumulates in the filters, shortening the life.
• If the filters are heavily soiled or have a bad odor, or if the fan strength is significantly weakened, replace filters even if the Change Filter indicator has not yet turned on.

FILTER CARE

2. Removing filters

Turn the unit power off before removing filters.

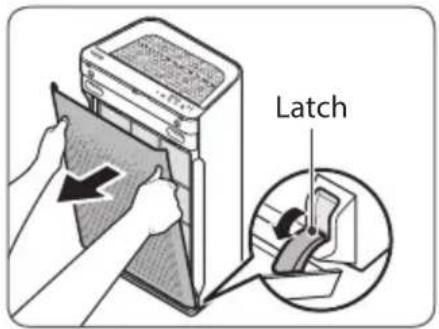

① Remove the front panel by grasping its upper edge and gently pulling forward.
• To remove the front panel release the latch at the lower edge of the panel.

Latch

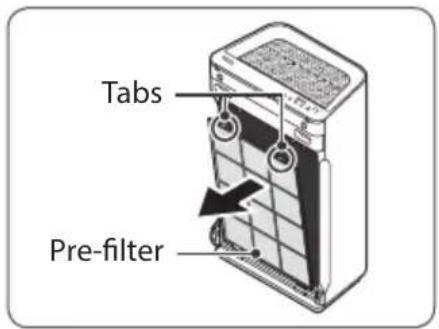

② Press the Pre-filter tabs near the top of the filter, release and remove.

Tabs Pre-filter

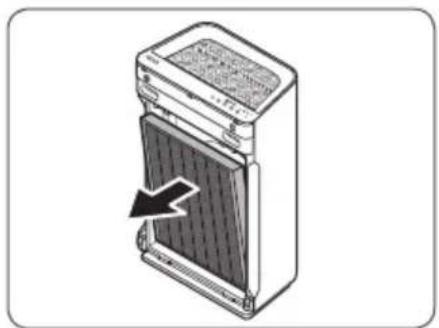

③ Pull out the Carbon filter and HEPA filter.

Diagram of a portable air conditioner unit with a black arrow indicating airflow direction (no text or symbols)

3. Preparing New Filters

① Remove replacement filters from protective plastic wrap.

- Operating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating.

Illustration of a document with an upward arrow symbol, no text or labels present

NOTICE

- For optimal performance, only Winix filters should be used with this unit.

FILTER CARE

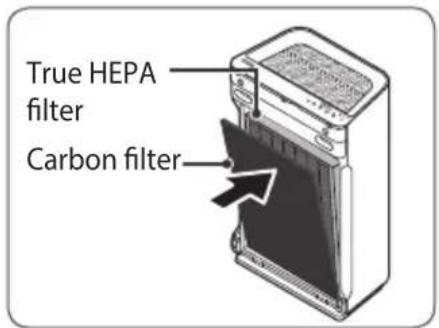

4. Replacing Filters

① Insert the True HEPA filter first, then the Carbon filter.

True HEPA filter Carbon filter

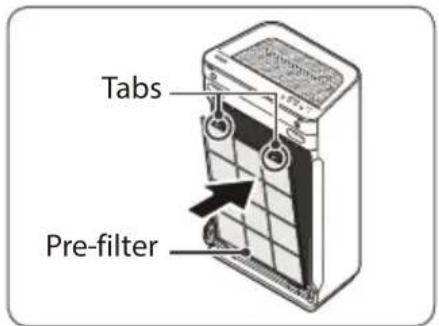

② Insert the Pre-filter.

- Insert bottom tabs of the Pre-filter into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until sides audibly click into place.

Tabs Pre-filter

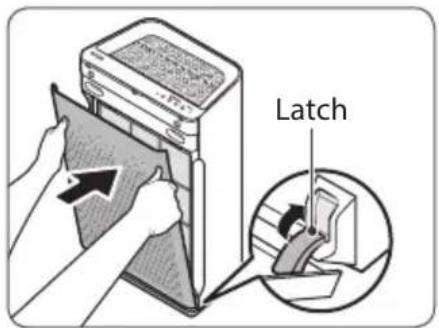

③ Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until the magnets pull the lid closed.

Latch

5. Resetting The Unit

① After replacing the filters, turn the power onto the unit and then use a thin object, such as a paper clip, to press the RESET switch for 5 seconds.

Reset

FILTER CARE

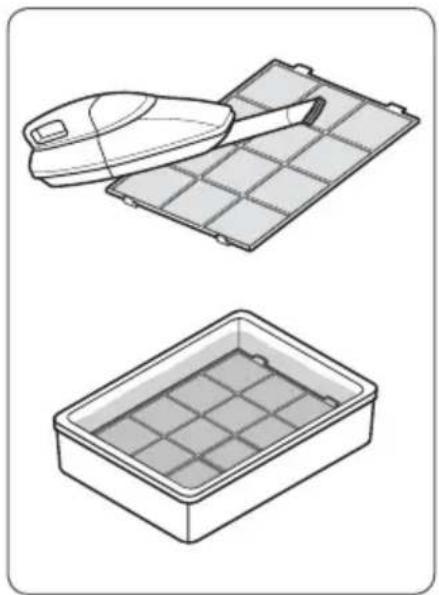

6. Cleaning the filters

Intervals between filter cleaning may vary depending on the air quality.

① Use a vacuum cleaner or soft brush to clean the Pre-filter. If it is excessively soiled, rinse in room temperature water.

• Do not use detergent or soap.
• Allow the filter to dry for 24 hours or more before using.

Technical line drawings of two plastic storage compartments: one with a lid and one with a grid-lined tray (no text or symbols)

※ If the pre-filter becomes damaged or in any way needs replacement:

Please contact Winix

(877)-699-4649

www.winixamerica.com

NOTICE

• Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
• The Pre-filter is reusable after cleaning, ensuring it is completely dry.
• Do not use hot water over 104^ or volatile fluids such as paint thinner.
• After washing the filter, allow it to dry completely in a well ventilated area. Otherwise, it may develop a bad odor.

CLEANING CARE

1. Cleaning the Exterior & Interior

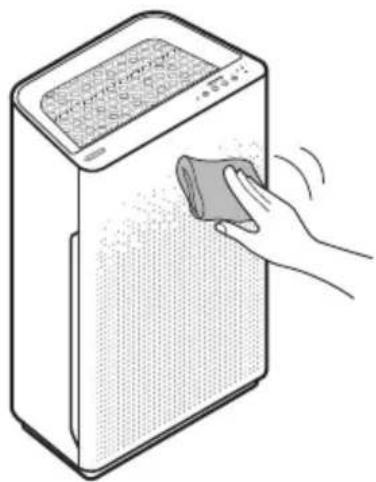

① Wipe with a soft damp cloth using room temperature water. Afterwards, wipe it down with a clean dry cloth.

• To keep unit in peak condition, clean every 1-2 months.

Line drawing of a hand cleaning a white appliance with a sponge (no text or symbols)

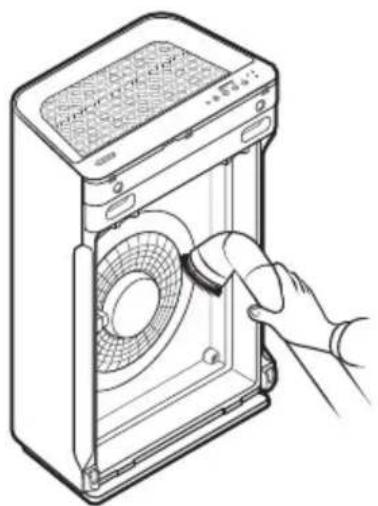

② Open the front panel and clean the interior with a vacuum cleaner.

- For optimal performance, clean every 1-2 months.

Line drawing of a hand inserting a fan into a microwave oven (no text or symbols)

NOTICE

• When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is unplugged.

FREQUENTLY ASKED QUESTIONS

Problem Check / Actions to take
It does not turn on at all.	Is the plug securely attached to the outlet?Make sure the outlet has power going to it, and ensure the plug is secured.Is there a power outage?Check to see if other lights and electrical equipment are working and try again.
It doesn’t work in Auto Mode.	Has Auto Mode been selected?Press the Mode button until Auto Mode is selected.Is the sensor blocked or clogged?Wipe Odour Sensor with wet cloth, then dry.
It vibrates and makes a lot of noise.	Is it running on a slanted or uneven surface?Move the unit to a hard, flat, even area of the floor.
The power plug and outlet feel hot.	Is the plug securely plugged in?Make sure the plug is properly plugged into the outlet.

FREQUENTLY ASKED QUESTIONS

Problem Check / Actions to take
There is a strange smell.	• Is it being used in a place with a lot of smoke, dust, or odors? - Clean the air intakes on either side and clean the pre-filter. - Replace the Carbon filter and True HEPA filter.
The fan strength is weak. The unit is not purifying the air.	• Is the Check Filter indicator light on? - Change the filters as required.
The display panel is dim.	• Is the Light Sensor blocked by debris? - When Auto Mode is on, Sleep Mode is automatically activated when the Light Sensor detects that the room is dark.

UNIT SPECIFICATIONS

Model Name AM90
Power Voltage AC 120 V / 60 Hz
Power Rate 70 W
Room Area Served 360 ft	2
Dimensions 14.9 in(W) x 23.6 in(D) x 7.8 in(H)
Net Weight 15.83 lbs
Gross Weight 19.43 lbs

※ The exterior, design and product specifications may be changed without prior notice to improve product performance.
Information regarding ENERGY EFFICIENCY RATING LABEL

The energy costs indicated on the ENERGY EFFICIENCY RATING LABEL may differ from your actual energy costs, depending on your energy consumption, usage hours, and billing changes, such as utility price increases.

Warning : Change or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or experienced radio/TV technician for help.

This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the following two conditions:

• This device may not cause interference and
- This device must accept any interference, including interference that may cause undesired operation of the device.

SAFETY INSTRUCTIONS

Thank you for purchasing a Winix air purifier. This product is for household use only.

IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER

WARNING : Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.

- Do not repair or modify the unit unless specifically recommended in this manual. All other repairs should be completed by a qualified technician.

- The plug for this unit is polarized with one blade wider than the other. Do not force the plug into an electrical outlet. Do not alter the plug in any way. If the does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet.

- Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose.

- Use AC 120V only.

- Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.

- Periodically remove dust from the power plug. This will reduce the risk of shock due to humidity build up.

- If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician.

- Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord.

- Remove the power plug from the outlet when not in use.

- Do not handle the power plug with wet hands.

- Do not operate the unit when using indoor smoke-generating insecticides.

- Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit.

- Do not use the unit where it is humid or where the unit may become wet, such as the bathroom.

- Do not insert fingers or foreign objects into air intake or outlet.

- Do not use the unit near flammable gases. Do not use near cigarettes, incense, or other spark-creating items.

- Unit will not remove carbon monoxide emitted from heating appliances or other sources.

IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER

• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove.
• Do not use where the unit may come into contact with steam.
• Do not use the unit on its side.
• Keep away from products that generate oily residue, such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a filter.
• Do not wash and reuse the True HEPA Filter or the CD Carbon Filter.
• Hold the handle on the back of the unit to transport.
• Do not hold by the front panel.

PRODUCT WARRANTY

The terms of the warranty are as follows.

1 This product is manufactured under stringent quality control and inspections.
2 Warranty void if product failure is a result of negligence or misuse by the consumer, shipping and service fees may be incurred even during the warranty period.
3 The warranty must be presented upon bringing the product for service.
4 Store the warranty in a safe place, as it cannot be reissued.
5 This warranty is valid only in the USA and Canada.

Product Name		Air Purifier
Model Name		AM90
Purchase Date
Warranty period		Two (2) years
Place of purchase
Place of purchase Tel.
Customer	Address
	Name
	Tel.

※ After purchase, be sure to complete all of the above information.

Front view of a white industrial air purifier with dotted pattern and 'WINIX' branding on top (no text or symbols on body)

Modèle

AM90

GARANTIE DU PRODUIT 44

Illustration of a portable air purifier with a grid-patterned front panel (no text or symbols visible)

Illustration of a grid-patterned panel or panel with two distinct panels, no text or symbols present.

(1) Filtre True HEPA

Diagram of a clean air purifier with a grid panel and airflow direction arrow (no text or symbols)

Illustration of a transparent container with a black rectangular object and an upward arrow symbol (no text or labels)

! REMARQUE :

Simple line drawing of a plug inserted into a wall socket connected to a cable (no text or symbols)

Control panel interface with power, battery, and status indicators labeled AUTO, <, >

REMARQUE :

Diagram of a server rack with a black arrow indicating compression or cooling process (no text or symbols present)

Illustration of a document with a paper stack and an upward arrow, no text or symbols present

! AVIS :

Technical line drawings of two storage compartments: a lid placed on a grid and a rectangular tray filled with mesh (no text or symbols)

Line drawing of a hand cleaning a white appliance with a sponge (no text or symbols)

Line drawing of a hand inserting a fan into a microwave oven (no text or symbols)

! AVIS :

Front view of a white industrial air purifier unit with dotted pattern and 'WINIX' branding (no readable text or symbols beyond branding)

Modelo

AM90

Front view of a portable air purifier with grid pattern and top handle (no visible text or symbols)

Illustration of two stacked panels with grid patterns, no text or symbols present

(1) Filtro auténtico True HEPA

Manual de uso

CONTROLES

Rejilla de salida de aire

TV 12~18 in 4 in

ATENCIÓN

Diagram of a server rack with a grid panel and ventilation cover, showing no text or symbols

Illustration of a document with a paper stack and an upward arrow, no text or symbols present

NOTA:

Simple line drawing of a cable being inserted into a wall socket (no text or symbols)

Control panel interface with power, <, and > function buttons and a 'AUTO' tab above it

NOTA:

MODO MANUAL Y PLASMAWAVE®

Illustration of a layered document or book with visible spine and cover (no text or symbols)

Filtro de carbón /

Filtro auténtico True HEPA

NOTA:

Diagram of a server rack with heat sink and ventilation duct (no text or symbols)

Illustration of a document with an upward arrow symbol, no text or labels present

Technical line drawings of two storage compartments: a lid with a handle and a rectangular tray filled with mesh grids (no text or symbols)

Line drawing of a hand cleaning a white appliance with a sponge (no text or symbols)

Line drawing of a hand inserting a fan into a microwave oven (no text or symbols)

ATENCIÓN

Independently Tested

Consumer Trusted.

0000-0000-00 Rev.00

Contact for product related inquiries and customer service

To expedite service, please specify the model name and number, the nature of the problem, your contact information, and your address.

• Dedicated Call Center : 📞 [phone]
• Website : www.winixamerica.com
