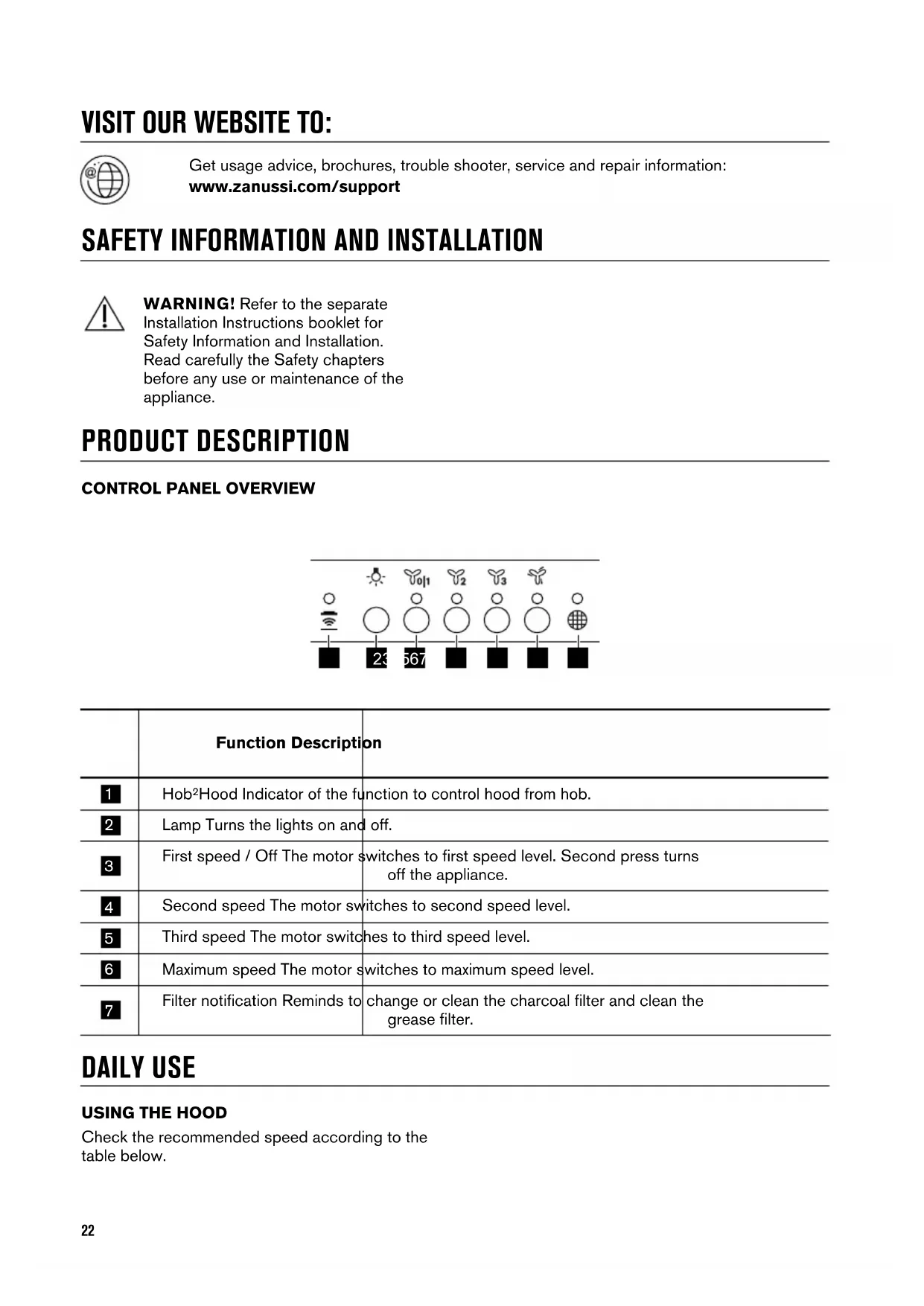

SAFETY INFORMATION AND INSTALLATION

WARNING! Refer to the separate

Installation Instructions booklet for Safety Information and Installation.

Read carefully the Safety chapters before any use or maintenance of the appliance.

PRODUCT DESCRIPTION

CONTROL PANEL OVERVIEW

23 567

	Function Description
1	Hob ^2 Hood Indicator of the function to control hood from hob.
2	Lamp Turns the lights on and off.
3	First speed / Off The motor switches to first speed level. Second press turns off the appliance.
4	Second speed The motor switches to second speed level.
5	Third speed The motor switches to third speed level.
6	Maximum speed The motor switches to maximum speed level.
7	Filter notification Reminds to change or clean the charcoal filter and clean the grease filter.

DAILY USE

USING THE HOOD

Check the recommended speed according to the table below.

	While heating up food, cooking with covered pots.
	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
	While boiling, frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
	While boiling, frying big quantities of food without a lid, big humidity. The hood operates on maximum speed. After 6 minutes the appliance returns to previous setting.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

To operate the hood:

1. Press the first speed button to switch on the appliance.
2. If needed, press the light button ⚙ to illuminate the cooking surface.
3. If needed, change the speed by pressing the desired button.

To turn off the appliance press the first speed button Yoll again.

HOB ^2 HOOD FUNCTION

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.

For more information how to use the function refer to the hob user manual.

FILTER NOTIFICATION

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator

is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator washes for

30 seconds if the charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in care and cleaning chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function press the button U3 for 3 seconds.

To activate or deactivate function:

1. To activate function press the button seconds.

for 3

If the function is activated, the indicator _2 flashes two times.

1. To deactivate function press the button 3 seconds.

If the function is deactivated, the indicator flashes ones.

REMOTE-CONTROL

The appliance can be controlled with a remote-control. Visit local supplier to buy the remote-control.

The connection is originally enabled.

To connect or disconnect remote-control:

1. Switch off the appliance.
2. Press the 🎨 for 3 seconds.

The indicator on control panel flashes twice if function is enabled and once if disabled.

NOTES ON CLEANING

Cleaning Agents	Do not use abrasive detergents and brushes.Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
	Clean stains with a mild detergent.
Keep the hood clean	Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.Follow the instructions for cleaning the accessories when filter notification is on.Refer to Filter notification in daily use chapter.
	Grease filters can be washed in a dishwasher.The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
Charcoal filter	The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

CLEANING THE GREASE FILTER

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

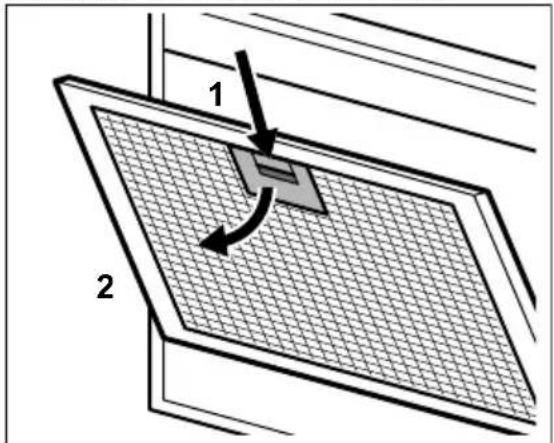

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1 2

1. Slightly tilt the front of the filter downwards (2), then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

REPLACING THE CHARCOAL FILTER (OPTIONAL)

WARNING! The charcoal filter is non-washable!

To replace the filter:

1. Remove the grease filters from the appliance.
   Refer to "Cleaning the grease filter" in this chapter.

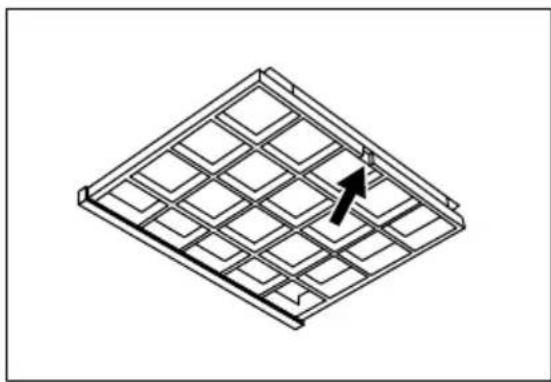

2. Press the front edge in slot towards the bottom part of the filter. Slightly tilt the front of the filter downwards.

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked

1. To install a new filter, perform the same steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

REPLACING THE LAMP

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

with the symbol 📄 with the household waste. Return the product to your local recycling facility or contact your municipal office.
