Bravia XBR49X900F - TV SONY - Free user manual and instructions

Product type	LED LCD TV 4K Ultra HD
Brand	Sony
Model	Bravia XBR49X900F
Screen size (diagonal)	49 inches (approx. 123 cm)
Screen resolution	3840 x 2160 pixels (4K)
Dimensions (with stand)	1093 x 694 x 268 mm
Weight (with stand)	14.5 kg
Power supply	110 V - 240 V AC, 50/60 Hz
Power consumption (operating)	177 W
Power consumption (standby)	Less than 0.5 W
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.1, Ethernet 100BASE-TX, HDMI (4 inputs), USB (3 ports)
Main features	Android TV, Google Assistant, Chromecast built-in, Netflix, HDR (HDR10, HLG), Motionflow XR, Dolby Audio, BRAVIA Sync
Care and cleaning	Use a soft, dry cloth. For stubborn stains, a mild soap and warm water solution. Never spray directly.
Safety	Wall mounting recommended (bracket not included). Prevent tipping by securing the TV to the wall or stand. Use angle brackets.
Spare parts and repairability	Removable table stand, M6 screws for wall mounting, remote control included. Repairability not specified by the manufacturer.
General information	Manufacturer's warranty to be checked. Help manual available online. Software updates via Internet.

Frequently Asked Questions - Bravia XBR49X900F SONY

How to install the table stand of the Sony Bravia XBR49X900F TV?

Refer to the supplied Setup Manual. Use a Phillips screwdriver and the provided screws. Make sure the TV is in an upright position before turning it on.

How to mount the TV on the wall?

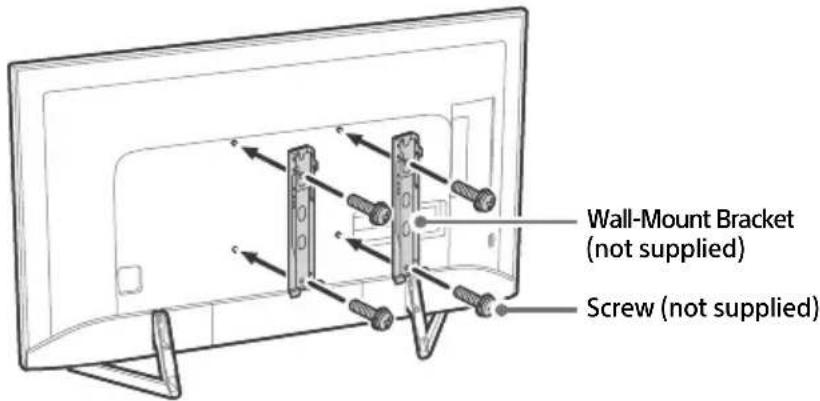

Use a compatible wall mount bracket (not supplied). Follow the instruction guide provided with the bracket. Sony recommends installation by a professional. The mounting screws are M6, 8-12 mm length.

What to do if the remote control does not work?

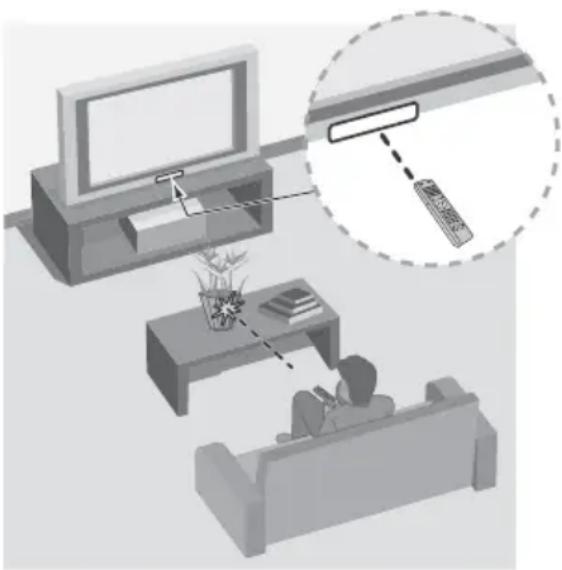

Replace the batteries. Make sure there is no obstacle between the remote control and the TV's IR sensor. Fluorescent lamps can interfere with the signal.

How to clean the TV screen?

Unplug the TV. Use a soft, dry cloth. For stubborn stains, lightly dampen the cloth with a mild soap and warm water solution. Never spray liquid directly. Allow to dry before plugging in.

How to perform a software update?

If the TV is connected to the Internet, press HELP then select 'Software update'. You can also visit the Sony support website. Do not unplug during the update.

How to reset the TV to factory settings?

Go to HOME > Settings > Storage and reset > Factory data reset. For a forced reset, unplug the power cord, press and hold the (1) and - buttons, plug in the cord then release the buttons when the LED flashes green.

What types of HDMI connections are supported?

The TV has 4 HDMI inputs compatible with HDCP 2.2. HDMI IN 3 supports ARC (Audio Return Channel). For 18 Gbps bandwidth, set 'HDMI signal format' to 'Enhanced format' on ports 2 and 3.

How to prevent the TV from tipping over?

Securely attach the TV to a wall and/or stand. Use angle brackets to secure the base to the wall. Do not place the TV on an unstable surface. Keep children away.

What to do if the screen remains black and no sound?

Check the cable/antenna connection. Plug the TV into the power supply and press the power button. If the problem persists, restart the TV by holding the power button until a message appears.

How to use the IR Blaster function?

Connect the supplied IR Blaster cable to the IR Blaster port on the TV. Place the end in front of your set-top box. Set up in HOME > Settings > External inputs > Configure IR Blaster.

USER MANUAL Bravia XBR49X900F SONY

Sony Customer Support

U.S.A.:

http://www.sony.com/tvsupport

Canada:

http://www.sony.ca/support

United States Canada

1.800.222.SONY 1.877.899.SONY

Please Do Not Return the Product to the Store

http://www.sony.ca/support

États-Unis :

http://www.sony.com/tvsupport

Canada États-Unis

1.877.899.SONY 1.800.222.SONY

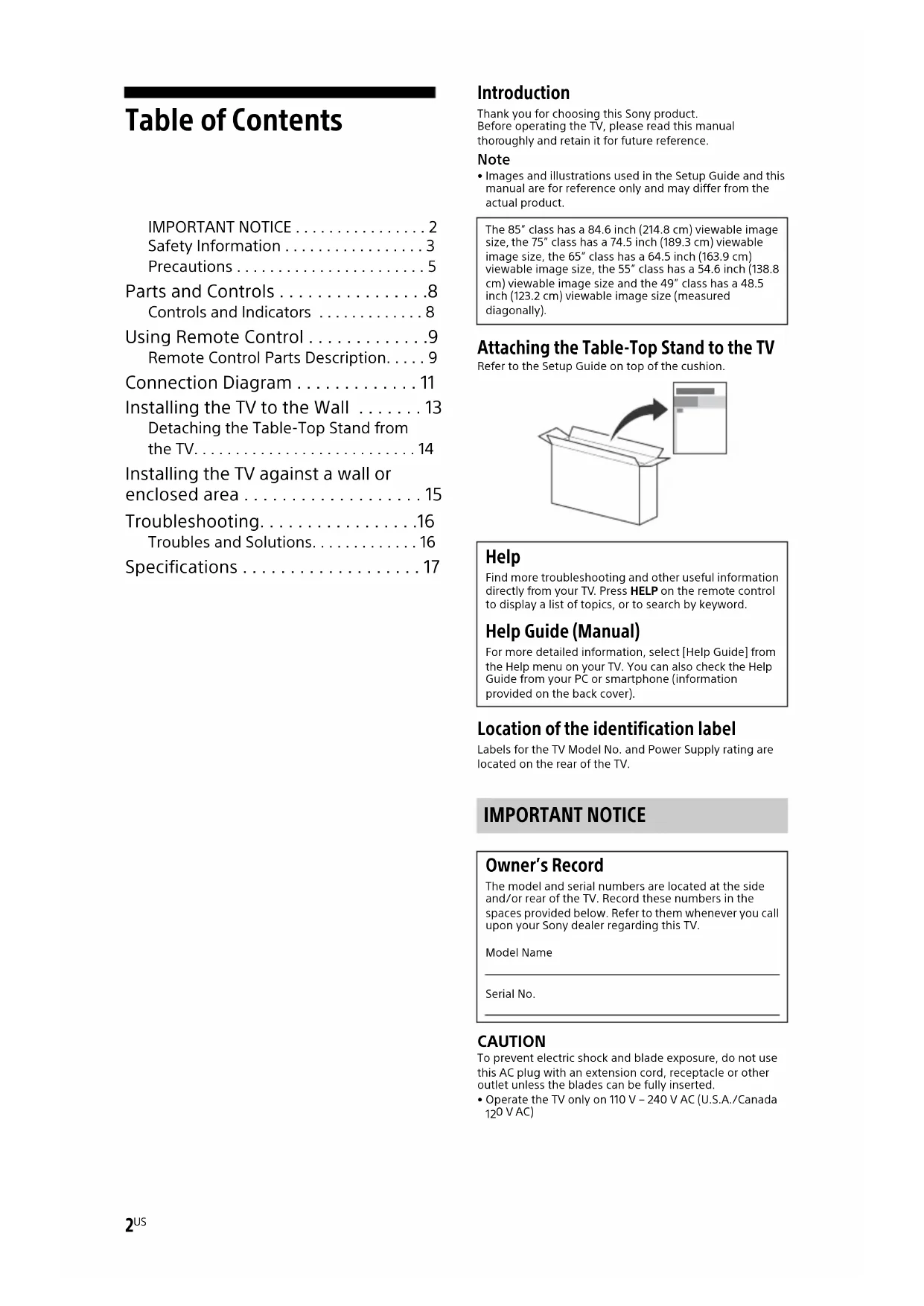

Parts and Controls. 8

Controls and Indicators 8

Using Remote Control 9

Remote Control Parts Description. 9

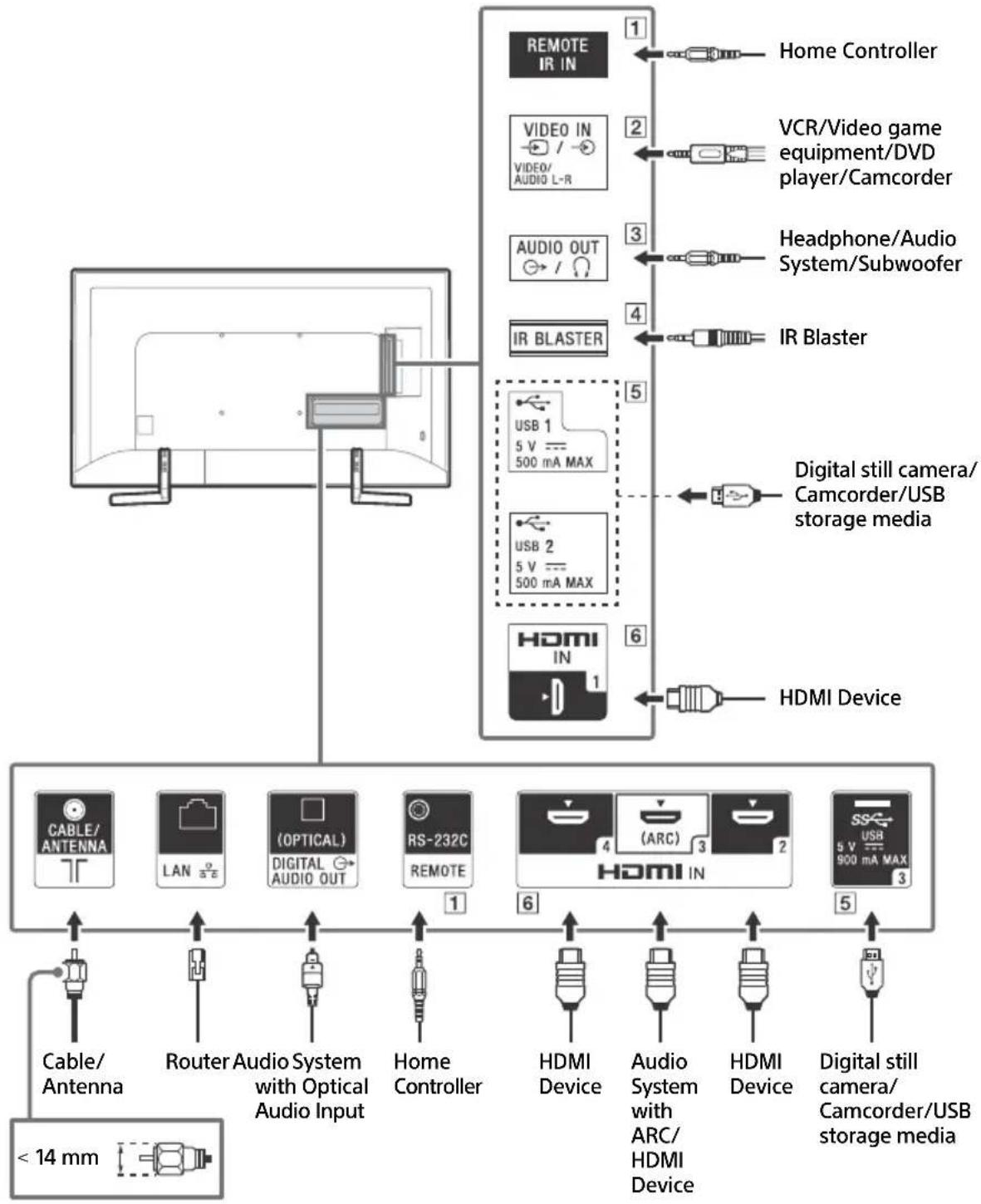

Connection Diagram 11

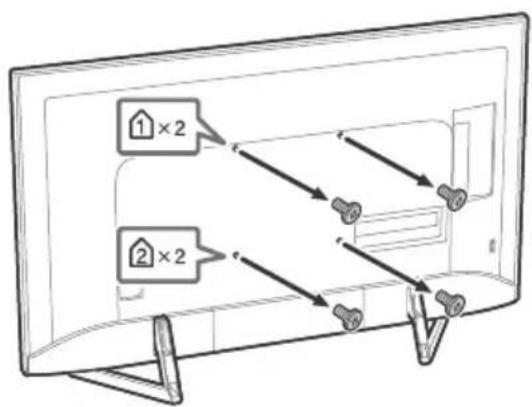

Installing the TV to the Wall 13

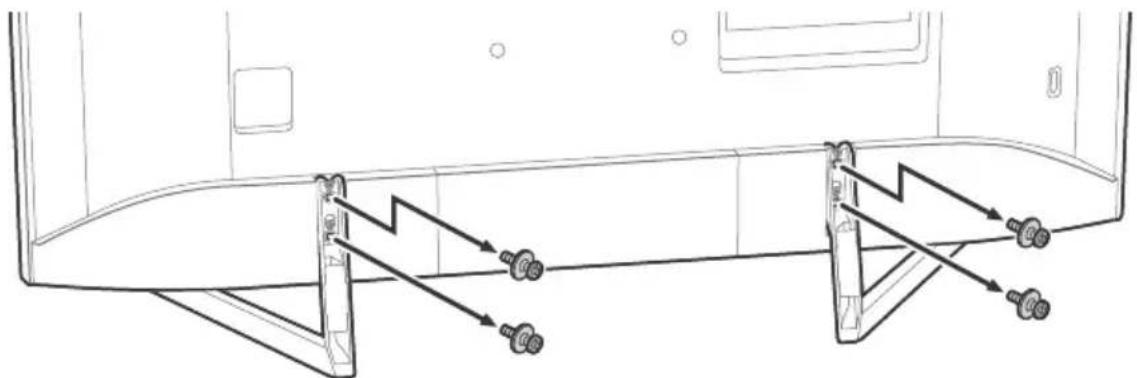

Detaching the Table-Top Stand from the TV. 14

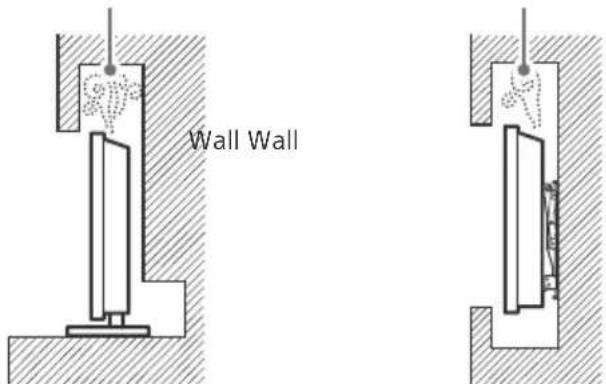

Installing the TV against a wall or enclosed area. 15

Troubleshooting. 16

Troubles and Solutions. 16

Specifications 17

Introduction

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.

The 85^ class has a 84.6 inch (214.8 cm) viewable image size, the 75^ class has a 74.5 inch (189.3 cm) viewable image size, the 65^ class has a 64.5 inch (163.9 cm) viewable image size, the 55^ class has a 54.6 inch (138.8 cm) viewable image size and the 49^ class has a 48.5 inch (123.2 cm) viewable image size (measured diagonally).

Attaching the Table-Top Stand to the TV

Refer to the Setup Guide on top of the cushion.

Help

Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of topics, or to search by keyword.

Help Guide (Manual)

For more detailed information, select [Help Guide] from the Help menu on your TV. You can also check the Help Guide from your PC or smartphone (information provided on the back cover).

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.

IMPORTANT NOTICE

Owner's Record

The model and serial numbers are located at the side and/or rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

CAUTION

To prevent electric shock and blade exposure, do not use this AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted.

• Operate the TV only on 110 V - 240 V AC (U.S.A./Canada 120 V AC)

Note

This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider.

Safety Information

Declaration of Conformity

Trade Name: SONY

Model: XBR-85X900F / XBR-75X900F / XBR-65X900F / XBR-55X900F / XBR-49X900F

Responsible Party: Sony Electronics Inc.

Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

FCC Related Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Safety and Regulatory

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

5 GHz bands are restricted to indoor operations only.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles).

This device and its antenna(s) must not be co-located or operating with any other antenna or transmitter except Grant condition.

High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

WARNING

Stability Hazard

The television set may fall, causing serious personal injury or death.

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

Before setting up your TV

Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. See page 13 (Installing the TV to the Wall) if you want to mount the TV to a wall. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and the supplied screws to complete the task, refer to the Setup Guide. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.
• Carry the TV with the adequate number of people; larger size TVs require two or more people (three or more people for XBR-85X900F).
• Correct hand placement while carrying the TV is very important for safety and to avoid damage. XBR-85X900F

XBR-75/65/55/49X900F

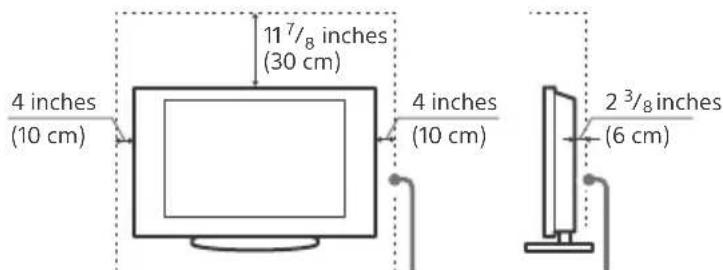

• Ensure your TV has adequate ventilation, see page 15.
• For best picture quality, do not expose the screen to direct illumination or sunlight.
• Avoid installing the TV in a room with reflective wall and floor materials.
• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on.

Securing the TV

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

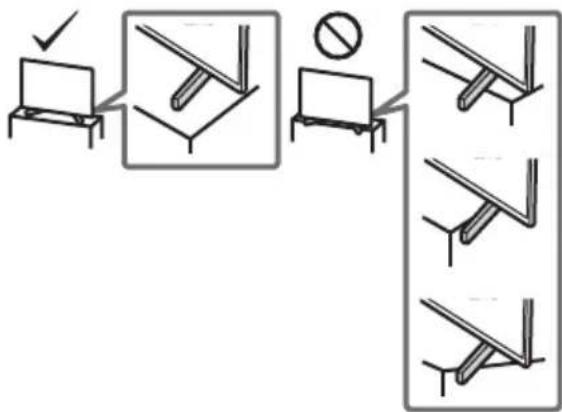

Preventing the TV from Toppling

• Secure the TV to a wall and/or Stand.
• Do not allow children to play or climb on furniture and TV sets.
• Avoid placing or hanging items on the TV.

• Never install the TV on:

• Slippery, unstable and/or uneven surfaces.
  Furniture that can easily be used as steps, such as a chest of drawers.
  Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV's Table-Top Stand does not protrude out from the Stand (not supplied). If the Table-Top Stand protrudes out from the Stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Route all AC power cords and connecting cables so that they are not accessible to curious children.

Recommended Measures to Secure the TV

Consider the following measures when securing your TV to a Stand (not supplied).

1 Secure the Stand for the TV.

Make sure the Stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the Stand. For each angle brace use the appropriate hardware to:
- Attach one side of the angle brace to the wall stud.
- Attach the other side to the Stand.

2 Secure the TV to the Stand.

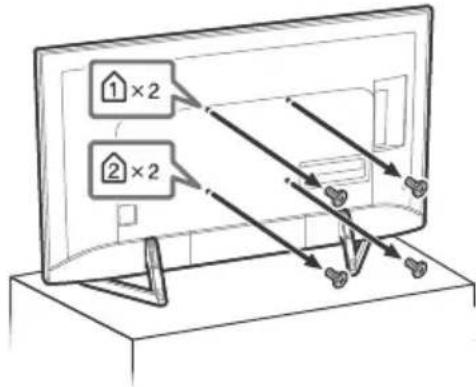

Use the optional hardware listed as follows (not supplied):
- M6 machine screws (screwed into the TV's rear cover).
- A screw or similar (attach it to the Stand).

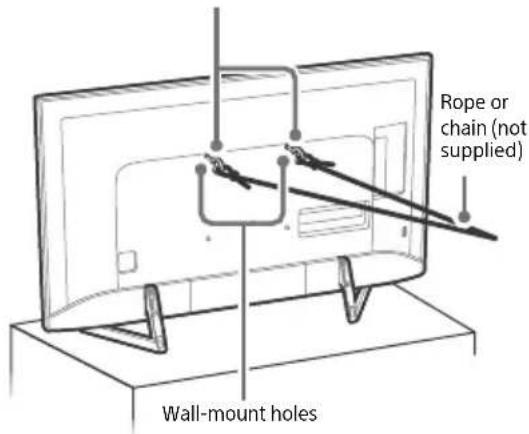

- Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

The length of the M6 machine screw differs depending on the rope or chain diameter. Please refer to below illustration.

8mm-12mm

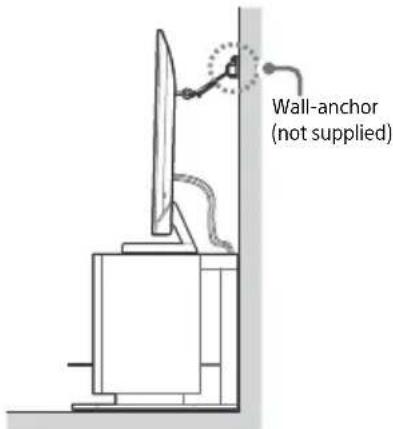

3 Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).

M6 eye bolts (not supplied)

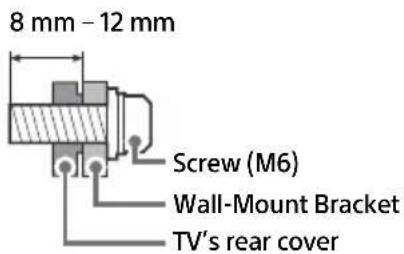

Please see below illustration for M6 eye bolt length.

8mm-12mm

Note

• Your TV is shipped with screws attached to the rear of the TV depending on the TV model. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV to a wall.

Securing the TV to the Stand without securing the TV and the Stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.

Precautions

How to care for your BRAVIA TV

Safety is very important. Please read and follow the safety documentation (Safety Booklet) separately provided.

Unplug the TV and other connected equipment from the wall outlet before you begin cleaning your TV.

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water.
  If using a chemically pretreated cloth, please follow the instruction provided on the package.

• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.
• Do not plug in the TV into the wall outlet until the moisture from cleaning has evaporated.
• Do not touch the TV if your hand is covered in any chemical substance such as hand cream or sunblock.

The TV should also be placed on a stable surface to prevent it from toppling over (see page 4). If you have young children or pets at home, check regularly to ensure the TV is securely fastened.

Recommendation for an F type plug

Projection of the inner wire from the connection part must be less than 1.5mm

(Reference drawing for an F type plug)

The BRAVIA® 4K TV Experience

Thank you for choosing Sony! Your new BRAVIA® TV opens the door to the "4K TV Experience". This document will help you get the most out of your TV. Please take a moment to register your TV at:

U.S.A.: http://productregistration.sony.com

Canada: http://www.sony.ca/registration

Four Steps to a 4K TV Experience

Set, Source, Sound, and Setup.

1 Set

Now that you have made the best selection in LED backlit LCD TV technology, be sure to remove all of the accessories from the packaging before setting up your TV.

2 Source

To experience the stunning detail of your BRAVIA TV, you need access to HD programming.
- Upgrade your signal or content source to high-definition (4K) by contacting your HD service provider.
- Bring the astonishing resolution of your Sony 4K Ultra HD TV to life with Sony 4K Ultra HD Blu-ray Player. (The availability depends on region)
- Receive over-the-air HD broadcasts with an HD-quality antenna connected directly to the back of your TV. Visit http://www.antennaweb.org for more information on antenna selection and setup.
- Discover the wealth of entertainment now available on super-high resolution Blu-ray Disc™ player and other Sony HD equipment.

3 Sound

Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from Sony.

4 Setup

Install your TV and connect your sources. See page 11 for sample connection diagrams. To help assure the highest quality for your HD experience, use Premium High Speed HDMI (High-Definition Multimedia Interface) cables.

To learn more about 4K TV, visit:

U.S.A.: http://www.sony.com/HDTV

Canada: http://www.sony.ca/hdtv

This TV displays all video input signals in a resolution of 3,840 dots × 2,160 lines.

Note

• For details of supported formats, refer to the "Specifications" in this manual.
• For supported PC formats, refer to the Help Guide.

Parts and Controls

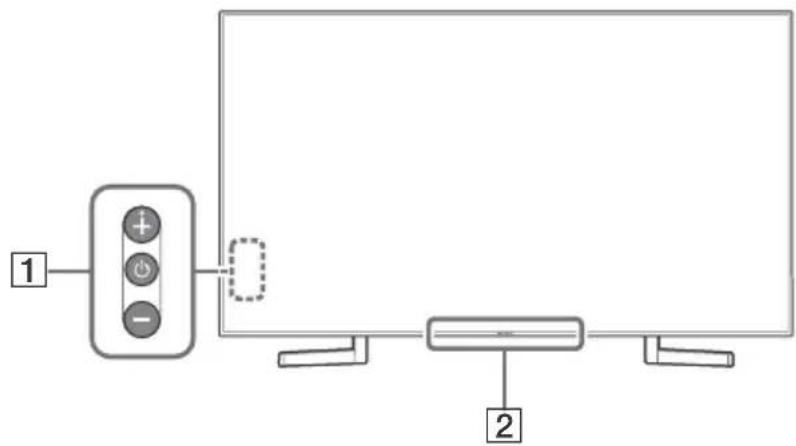

Controls and Indicators

1 (Power) /+/-

When the TV is off,

Press to power on.

When the TV is on,

Press and hold to power off.

Press ① repeatedly to change the

function, then press + or - button to:

• Adjust the volume.
• Select the channel.
• Select the input source of TV.

Remote Control sensor\*/Light sensor\*/Illumination LED

The illumination LED lights up or blinks according to the status of the TV.

For more information, refer to the Help Guide.

• Do not place anything near the sensor.

Using Remote Control

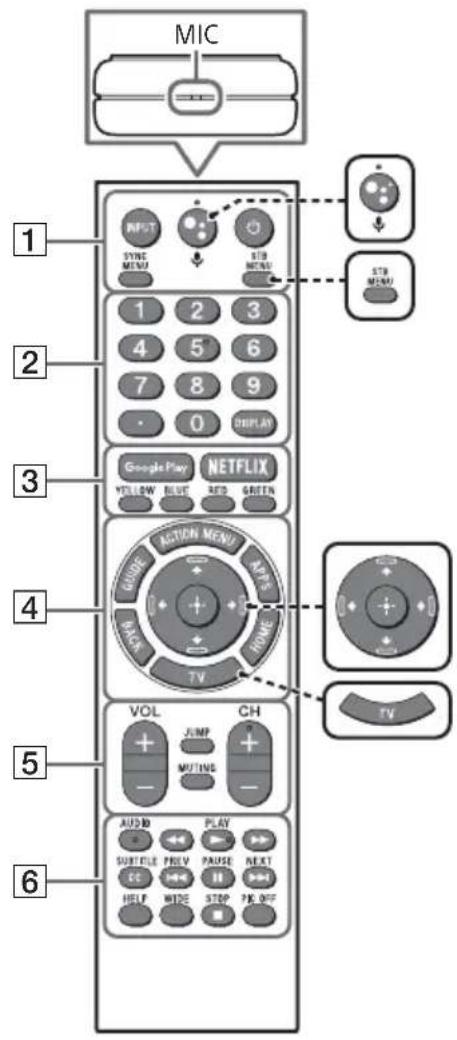

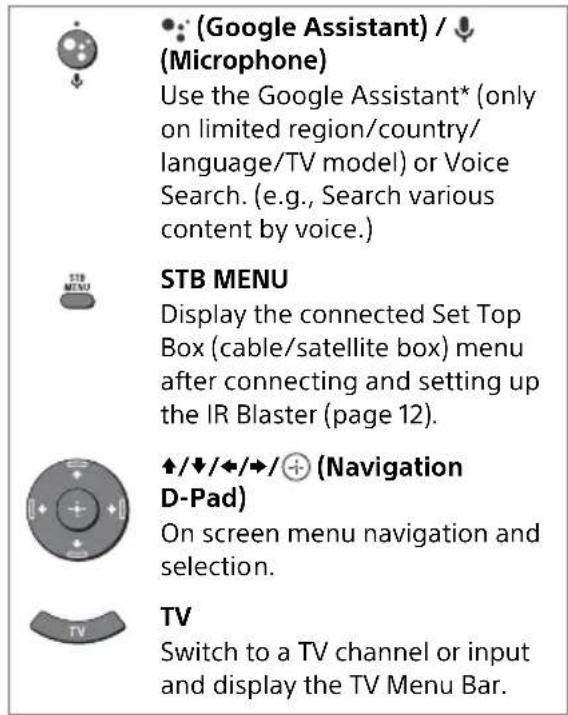

Remote Control Parts Description

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

* The Google Assistant will be available when software is updated.

1 INPUT

Display and select the input source.

(TV standby)

Turn on or turn off the TV (standby mode).

SYNC MENU

Display the BRAVIA Sync Menu.

Number buttons

Use with the 0-9 buttons to select digital channels.

DISPLAY

Display information about the channel/ program/Input you are viewing.

3 Google Play

Access the "Google Play" online service.

NETFLIX (Only on limited region/ country/TV model)

Access the "NETFLIX" online service.

Color buttons

Execute corresponding function at that time.

4 ACTION MENU

Display a list of contextual functions.

GUIDE

Display the digital program guide.

APPS

Access various services and applications.

BACK

Return to the previous screen.

HOME

Display the TV Home Menu.

5 VOL + / - (Volume)

Adjust the volume.

JUMP

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

MUTING

Mute the sound. Press again to restore the sound.

CH + / - (Channel)

Select the channel.

6 AUDIO

Change the language for the program currently being viewed.

Operate media contents on the TV and connected BRAVIA Sync-compatible device.

SUBTITLE/CC

Turn subtitles on or off (when the feature is available).

HELP

Display the Help menu. Help Guide can be accessed from here.

WIDE

Change the screen format.

PIC OFF

Turn the picture off, while sound remains on.

Guidelines for IR Remote Control

• Point your remote control directly at the IR sensor located on your TV.
• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.
• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

Connection Diagram

For more information on connections, refer to the Help Guide by pressing HELP on the remote control.

Note

• When connecting the cable to the Cable/Antenna input, finger tighten only, over tightening the connection can damage the TV.

US

1 REMOTE RS-232C REMOTE IR IN

• These jacks are for receiving the external control signal. Enables extended control of the TV using RS-232C via the RS-232C and IR IN jacks. RS-232C: connect to the RS-232C terminal of the home controller. IR IN: connect to the IR out terminal of the home controller.
• Take care to not connect to headphones or an external audio system.

VIDEO IN

• For a composite connection, use an Analog Extension Cable (not supplied).

3 AUDIO OUT/

Supports 3-pole stereo mini jack only.
- To listen to the TV's sound through the connected equipment, press HOME. Select [Settings] [Sound] [Headphone/Audio out] and then select the desired item.

4 IR BLASTER*

• Use your Sony remote control to control your Set Top Box (cable/ satellite box). Connect the IR Blaster Cable (supplied) to the IR Blaster port on your TV. Place one or both of the other two ends as shown below.

• To perform IR Blaster setup, press HOME and select [Settings] [External inputs] [IR Blaster setup].

5 USB1/2,USB4

• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 port.

HDMI IN 1/2/3/4

• HDMI interface can transfer the digital video and audio on a single cable.

HDMI IN 3 ARC (Audio Return Channel)

Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

• Only on limited region/country/TV model.

Installing the TV to the Wall

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.

Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching the Table-Top Stand; see page 14 (Detaching the Table-Top Stand from the TV).

Prepare the TV for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that installation of your TV on the wall be performed by qualified professionals. Do not attempt to install it yourself.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness. Please see below illustration.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

Note
- Read the supplied Safety Booklet for additional safety information.

1 Remove the screws from the rear of the TV.

2 Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied).

Note

If using an electric screwdriver, set the torque at approximately 1.5 N·m{15 kgf·cm}.

Detaching the Table-Top Stand from the TV

To detach the Table-Top Stand from the TV, remove the screws

Note

• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the TV.
• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV with the LCD panel facing down.
• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV.

Installing the TV against a wall or enclosed area

Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.
• Leave space around the TV set as shown below.

Installed with stand
Leave at least this much space around the set.

Installed on the wall

Never install the TV set as follows:

Air circulation is blocked. Air circulation is blocked.

Note

• Inadequate ventilation can lead to overheating of the TV and may cause damage to your TV or cause a fire.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the TV from the AC power cord for two minutes and then plug it in again.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update.
4 Visit Sony support website (information provided on the front cover).
5 Perform the factory data reset. Refer to "How to reset the TV to factory settings" (page 16).

When [A new TV system software update is available...] message is displayed.

Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features. The following screen with [Updating...] will appear and the illumination LED flashes white while software is updating.

Do not unplug the AC power cord during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes.

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

How to reset the TV to factory settings WARNING: The reset will clear all of your customized settings including the parental lock setting.

• Turn on the TV. You can reset the TV to factory settings by pressing HOME, then select [Settings] [Storage & reset] [Factory data reset].
• To force factory data reset, unplug the AC power cord. Press and hold both and - buttons on the TV, then plug in the AC power cord. Release both buttons when the illumination LED blinks in green.
• For security purposes, be sure to remove all personal and account information before discarding, selling or passing your TV to someone else by: unlinking/ unregistering, signing out of and deactivating all network services as well as factory reset the TV.

Troubles and Solutions

When the illumination LED is flashing in red.

• Count how many times it flashes (interval time is three seconds). Reboot the TV by disconnecting the AC power cord from the TV for two minutes, then turn on the TV. If the problem persists, disconnect the AC power cord, and contact Sony Customer Support (information provided on the front cover) with the number of times the illumination LED flashes.

There is no picture (screen is dark) and no sound.

• Check the cable/antenna connection.
• Connect the TV to the AC power, and press the power button on the TV or the remote control.

Some programs cannot be tuned.

• Check the cable/antenna connection.

The remote control does not function.

• Replace the batteries.

The STB MENU button on the remote control does not work.

• Check the connection and set up of the IR Blaster (page 12).

The parental lock password has been forgotten.

• Enter 4357 for the password and select [Change PIN].

The restricted profile password has been forgotten.

• Perform the force factory data reset. Refer to "How to reset the TV to factory settings" (page 16).

The TV and its surroundings become warm.

• When the TV is used for an extended period of time, the TV and its surroundings may become warm to the touch. This is not a malfunction of the TV.

Specifications

System

Television system

NTSC: American TV standard

ATSC (8VSB terrestrial): ATSC compliant 8VSB

QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)

Channel coverage

Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69

Analog Cable: 1-135 / Digital Cable: 1-135

Panel system

LCD (Liquid Crystal Display) Panel, LED

Backlight

Speaker output

10W+10W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n

Bluetooth Version 4.1

Input/Output jacks

CABLE/ANTENNA

75 ohm external terminal for RF inputs

VIDEO IN

Video/Audio input (mini jack)

HDMI IN 1/2/3/4 (support 4K resolution,

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].

*2 HDMI IN 2/3 only. To support 18 Gbps, set [HDMI signal format] to [Enhanced format].

*3 Refer to the Help Guide for details.

Audio:

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Digital, Dolby Digital Plus and DTS

ARC (Audio Return Channel) (HDMI IN 3 only)

(Two channel linear PCM: 48 kHz 16 bits,

Dolby Digital, Dolby Digital Plus, DTS)

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Digital, DTS)

Headphone, Audio output, Subwoofer

1,2-3 SS

USB port 1 and 2 support High Speed USB (USB 2.0)

USB port 3 supports Super Speed USB (USB 3.1 Gen 1)

LAN

10BASE-T/100BASE-TX connector (Connection speed may differ depending on the network environment. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

Refer to the Help Guide for supported files and formats in Home Network.

REMOTE

These jacks are for receiving the external control signal.

IR BLASTER*1

IR Blaster Cable input (mini jack)

Others

Operating temperature

32^ F - 104^ F (0 °C - 40 °C)

Power and others

Power requirement

110 V - 240 V AC, 50/60 Hz (U.S.A./Canada)

120 V AC, 60 Hz)

Power consumption

in use

XBR-85X900F:380W

XBR-75X900F:309W

XBR-65X900F:271W

XBR-55X900F:224W

XBR-49X900F:177W

instandby*2*3

Less than 0.5 W with 120 V AC and less

than 0.5 W with 240 V AC

Screen size (measured diagonally) (Approx.)

XBR-85X900F: 84.6 inches (85" cl.)

XBR-75X900F: 74.5 inches (75" class)

XBR-65X900F: 64.5 inches (65" class)

XBR-55X900F: 54.6 inches (55" class)

XBR-49X900F: 48.5 inches (49" class)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2

5V=500mA MAX

USB3

5V=900mA MAX

Dimensions (Approx.)

with stand

XBR-85X900F: 1,910 × 1,176 × 396 ~mm / 75^1 / 4

× 46^3/8 × 15^5/8 inches

XBR-75X900F: 1,674× 1,032× 355mm / 66×

40^3 / 4 × 14 inches

XBR-65X900F: 1,447× 898× 297mm / 57×

35^3 / 8 × 11^3 / 4 inches

XBR-55X900F:1,228×771×268mm/483/8

× 30^3 / 8 × 10^5 / 8 inches

XBR-49X900F:1,093×694×268mm/43 ^1 /8

× 27^3/8 × 10^5/8 inches

without stand

XBR-85X900F:1,910×1,096×73mm/75 ^1 /4

× 43^1 / 4 × 2^7 / 8 inches

XBR-75X900F:1,674×958×73mm/66×

37^3 / 4 × 2^7 / 8 inches

XBR-65X900F: 1,447 × 829 × 69 ~mm / 57 ×

32^3 / 4× 2^3 / 4 inches

XBR-55X900F: 1,228 × 706 × 69 mm / 48³/₈ ×

27^7 / 8 × 2^3 / 4 inches

XBR-49X900F: 1,093 × 629 × 69 mm / 43¹/₈ ×

24^7 / 8 × 2^3 / 4 inches

wall-mount hole pattern

XBR-85X900F: 400 × 400 ~mm

XBR-75X900F: 400 × 300 ~mm

XBR-65X900F: 300 × 300 ~mm

XBR-55X900F: 300 × 300 ~mm

XBR-49X900F: 200× 200mm

wall-mount screw size (mm)

M6 (length: refer to diagram on page 13.)

Mass (Approx.)

with stand

XBR-85X900F: 48.2kg / 106.2lb

XBR-75X900F: 36.7kg / 80.9lb

XBR-65X900F: 25.5kg / 56.2lb

XBR-55X900F:19.1kg/42.1lb.

XBR-49X900F: 14.5 kg / 32 lb.

without stand

XBR-85X900F: 45.2kg / 99.6 lb.

XBR-75X900F: 35kg / 77.1lb

XBR-65X900F: 24.5 kg / 54 lb.

XBR-55X900F: 18.2kg / 40.1lb

XBR-49X900F: 13.6 kg / 30 lb.

*1 Only on limited region/country/TV model.

*2 Specified standby power is reached after the TV finishes necessary internal processes.

*3 Standby power consumption will increase when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change without notice.

Licensing Information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
• "BRAVIA", Band BRAVIA Sync are trademarks or registered marks of Sony Corporation.
• Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.
• Vewd® Core. Copyright 1995-2017 Vewd Software AS. All rights reserved.
• Google, Android TV, Google Play, Chromecast built-in, YouTube and other related marks and logos are trademarks of Google LLC.
• Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® and Miracast® are registered trademarks of Wi-Fi Alliance.
• Wi-Fi Protected Setup™ is a trademark of Wi-Fi Alliance.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.
• For DTS patents, see http:// patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Netflix is a registered trademark of Netflix, Inc.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

• All other trademarks are the property of their respective owners.

HIGH-DEFINITION MULTIMEDIA INTERFACE

US

DOLBY

AUDIO

gracenote.

ewd

dt

Digital Surround

Bluetooth

4K

Actual resolution: 3840 × 2160 pixels

Table des matieres

AVIS IMPORTANT. 2

XBR-75X900F:74,5poucees(classe 75^

XBR-65X900F:64,5 pouces (classe 65^

XBR-55X900F:54,6 pouces (classe 55")

XBR-49X900F:48,5 pouces (classe 49")

XBR-55X900F:1228×706×69mm/48³/8

× 27^7 /8 × 2^3 /4 pouces

XBR-49X900F: 1093 × 629 × 69 ~mm / 43^1 /_8

× 24^7/8 × 2^3/4 pouces

For Your Convenience
Online Registration:	Be sure to register your TV. United States http://productregistration.SONY.com Canada http://www.SONY.ca/registration
Software Updates:	Your TV is capable of receiving software updates. For the latest information about software updates for your TV, visit: United States http://www.SONY.com/tvsupport Canada http://www.SONY.ca/support NOTE: If your TV is connected to the Internet, you can check for software updates by pressing HELP, and select [System software update].
