Brand	Sony
Model	Bravia KDL-W50A11E
Product type	LCD TV
Screen size (diagonal)	127 cm (50 inches)
Resolution	1920 x 1080 pixels (Full HD)
Backlight	CCFL (fluorescent lamp)
Dimensions with stand (W x H x D)	Approx. 1235 x 795 x 306 mm
Dimensions without stand (W x H x D)	Approx. 1235 x 746 x 99 mm
Weight with stand	Approx. 27.5 kg
Weight without stand	Approx. 24.0 kg
Power supply	220-240 V AC, 50-60 Hz
Power consumption (max)	150 W
Standby power consumption	< 0.3 W
Main functions	BRAVIA Engine 3, 24p True Cinema, teletext, multi PIP
Connectivity	4x HDMI, 2x SCART, 1x YUV, 1x VGA, 2x USB, optical audio output
Tuner	Digital DTT (MPEG-4), cable, satellite
Care and cleaning	Turn off the device, use a soft dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture, do not block ventilation slots.
Spare parts and repairability	Available via Sony authorized service. Repairability index 6.5/10
General information	User manual downloadable from notice-facile.com

Frequently Asked Questions - Bravia KDL-W50A11E SONY

How to turn on the Bravia KDL-W50A11E TV?

Press the Power button located on the right side of the device or on the remote control.

How to change the channel on this Sony TV?

Use the PROG +/- keys on the remote control or the arrow keys to navigate through the channel list.

What to do if the screen stays black?

Check the power cable, the mains socket, and that the TV is turned on. If the problem persists, consult the manual.

How to connect an HDMI device?

Plug the HDMI cable into one of the HDMI inputs on the back of the TV, then select the corresponding source using the Input button.

How to clean the TV screen?

Use a soft dry cloth. For stubborn stains, lightly dampen the cloth with water. Never use chemical products.

How to activate the energy saving mode?

Go to the Settings menu > Energy saving and choose the desired mode (auto standby, brightness reduction, etc.).

Can I use a power strip to plug in the TV?

Yes, but make sure the power strip supports the total power (150 W for the TV alone). Avoid plugging in several powerful devices.

How to update the TV software?

The KDL-W50A11E does not have USB updates. Updates are only possible through Sony after-sales service.

What do the indicator lights on the front mean?

The green light indicates the TV is on, flashing red indicates an error. Consult the manual for error codes.

How to unlock the buttons if the remote control doesn't work?

Some models have a Child lock function. Disable it via the Settings menu > Lock by entering the default PIN code (0000).

USER MANUAL Bravia KDL-W50A11E SONY

LCD Digital Colour TV

Abstract digital graphic with world map, grid lines, and horizontal bars (no readable text or symbols)

Operating Instructions

GB

⚠️ Before operating the TV, please read the “Safety information” section of this manual. Retain this manual for future reference.

Bedienungsanleitung

DE

For useful information about Sony products

http://www.sony-europe.com/myproduct

WARNING Introduction

• To prevent the risk of electric shock, do not insert the plug cut off from the mains lead into a socket outlet. This plug cannot be used and should be destroyed.
• To prevent the risk of fire or electric shock, do not expose the TV set to rain or moisture.
• Dangerously high voltages are present inside the TV set. Do not open the cabinet. Refer servicing to qualified personnel only.

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Trademark information

• is a registered trademark of the DVB Project
- “PlayStation” is a trademark of Sony Computer Entertainment, Inc.
- TruSurround technology is used as a virtualizer for Dolby Virtual Surround.
- TruSurround, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround technology is incorporated under license from SRS Labs, Inc.

• This TV incorporates

High-Definition Multimedia

Interface (HDMI™) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Table of Contents

Safety information 4

Precautions ...... 7 Disposal of the TV set...... 7

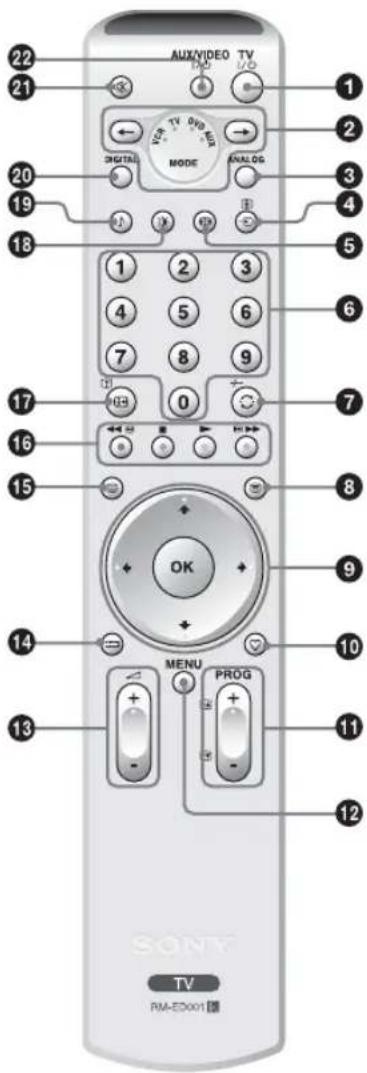

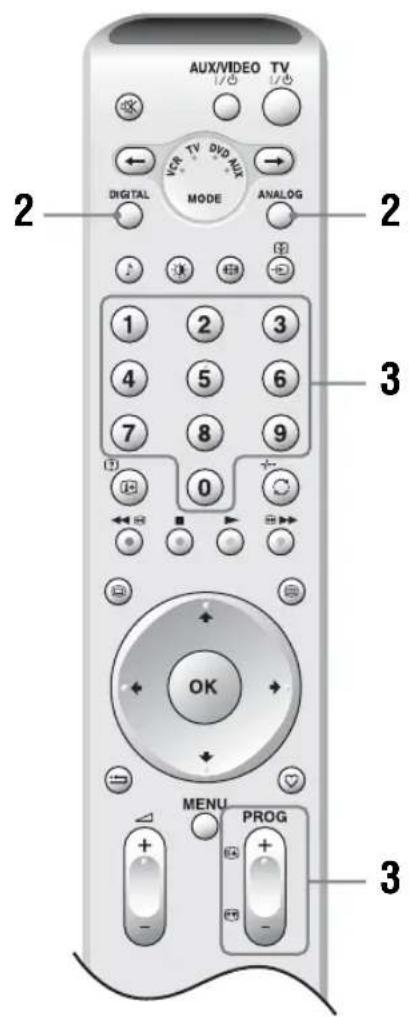

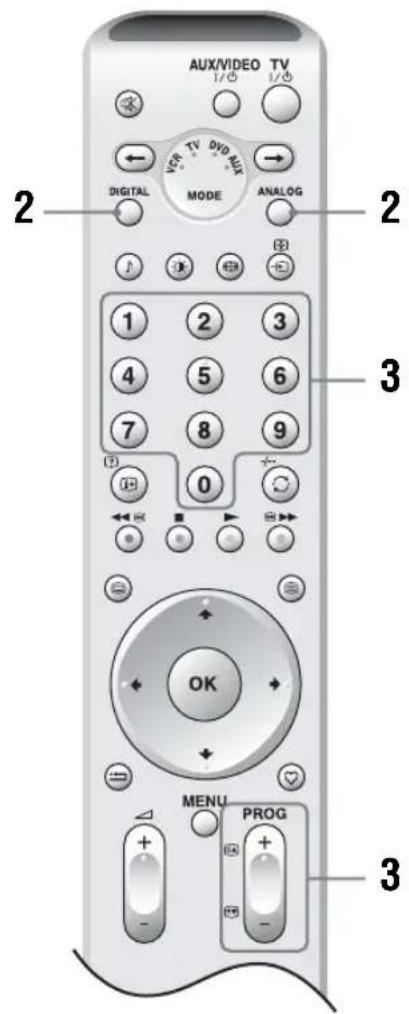

Overview of the remote 8

Overview of the TV buttons and indicators....9

Getting Started

1: Checking the accessories 10

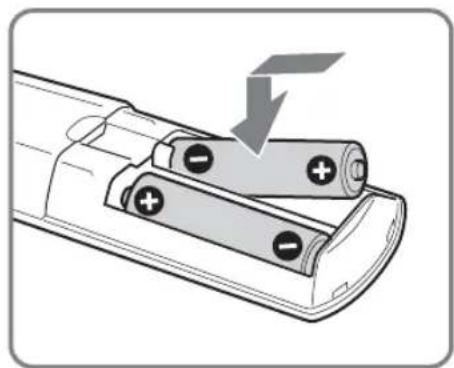

2: Inserting batteries into the remote..... 10
3: Connecting an aerial/VCR.... 11
4: Preventing the TV from toppling over.... 12
5: Switching on the TV 12

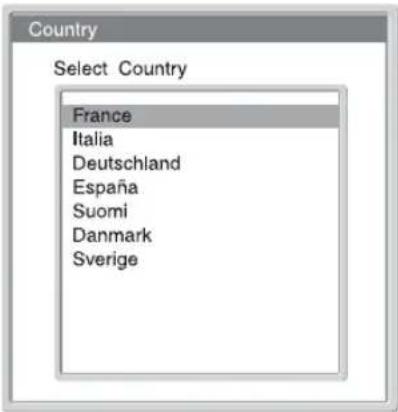

6: Selecting the language and country/region 13

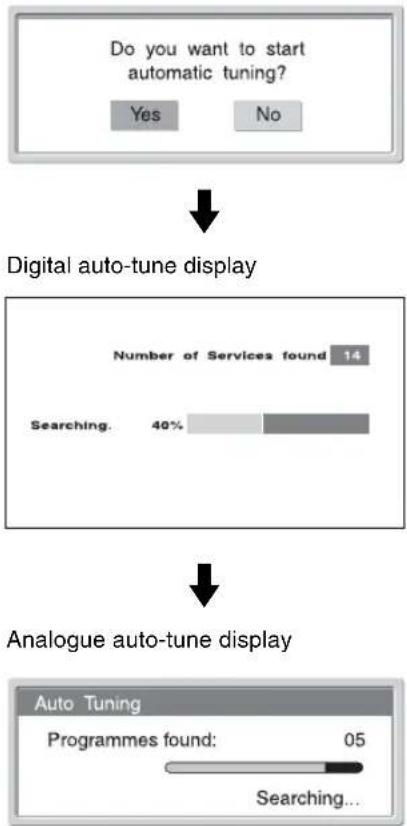

7: Auto-tuning the TV 14

Watching TV DVB : for digital channels only

Watching TV.... 15

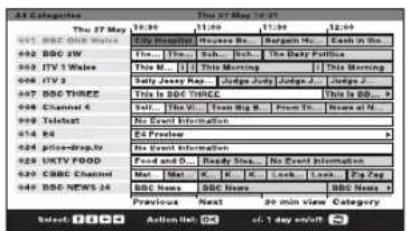

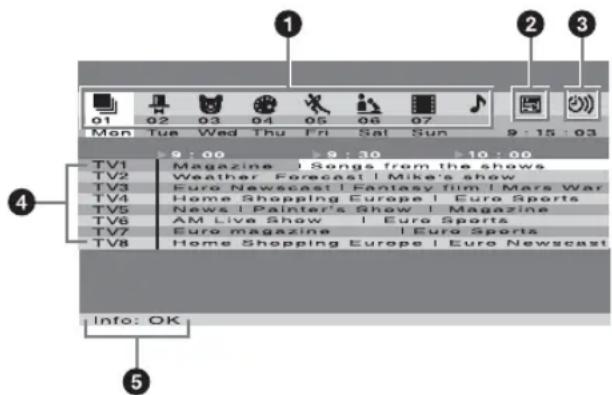

Checking the Digital Electronic Programme Guide (EPG) DVB 18

Using the Favourite list DVB...... 20

Viewing pictures from connected equipment 21

Using the Menu

Navigating through menus .... 21 Overview of the menus.... 22

Picture Adjustment menu.... 23

Mode 23

Contrast/Brightness/Colour/Hue/Sharpness/Backlight.... 23

Colour Tone.... 23

Noise Reduction.... 24

Dynamic Picture 24

Gamma Correction.... 24

Reset 24

Sound Adjustment menu .....25
Effect (sound effect)....25
Treble/Bass/Balance 25
Auto Volume....25
Dual Sound....26
Woofer Level 26
Volume (headphone volume) ......26
Dual Sound....26
Reset 26

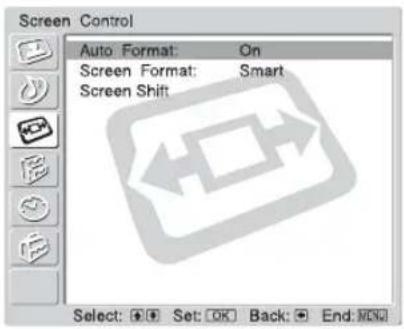

Screen Control menu....27

Auto Format....27

Screen Format....27

Screen Shift....27

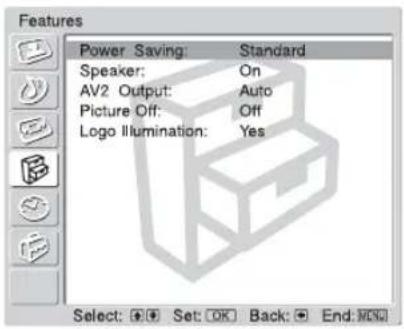

Features menu ......28

Power Saving 28

Speaker....28

AV2 Output....28

Picture Off 29

Logo Illumination....29

Timer menu 30

Sleep Timer 30

Auto Shutoff....30

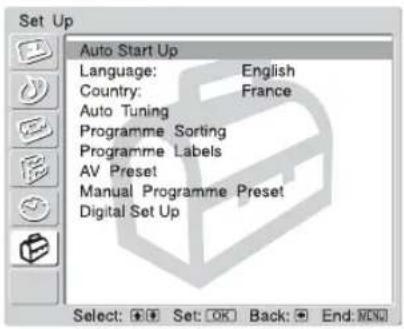

Set Up menu....31

Auto Start Up....31

Language....31

Country....31

Auto Tuning (Analogue mode only) ......32

Programme Sorting (Analogue mode only).....32

Programme Labels (Analogue mode only) .....32

AV Preset....33

Manual Programme Preset (Analogue mode only)....33

Digital Set Up DV3 36

Using Optional Equipment

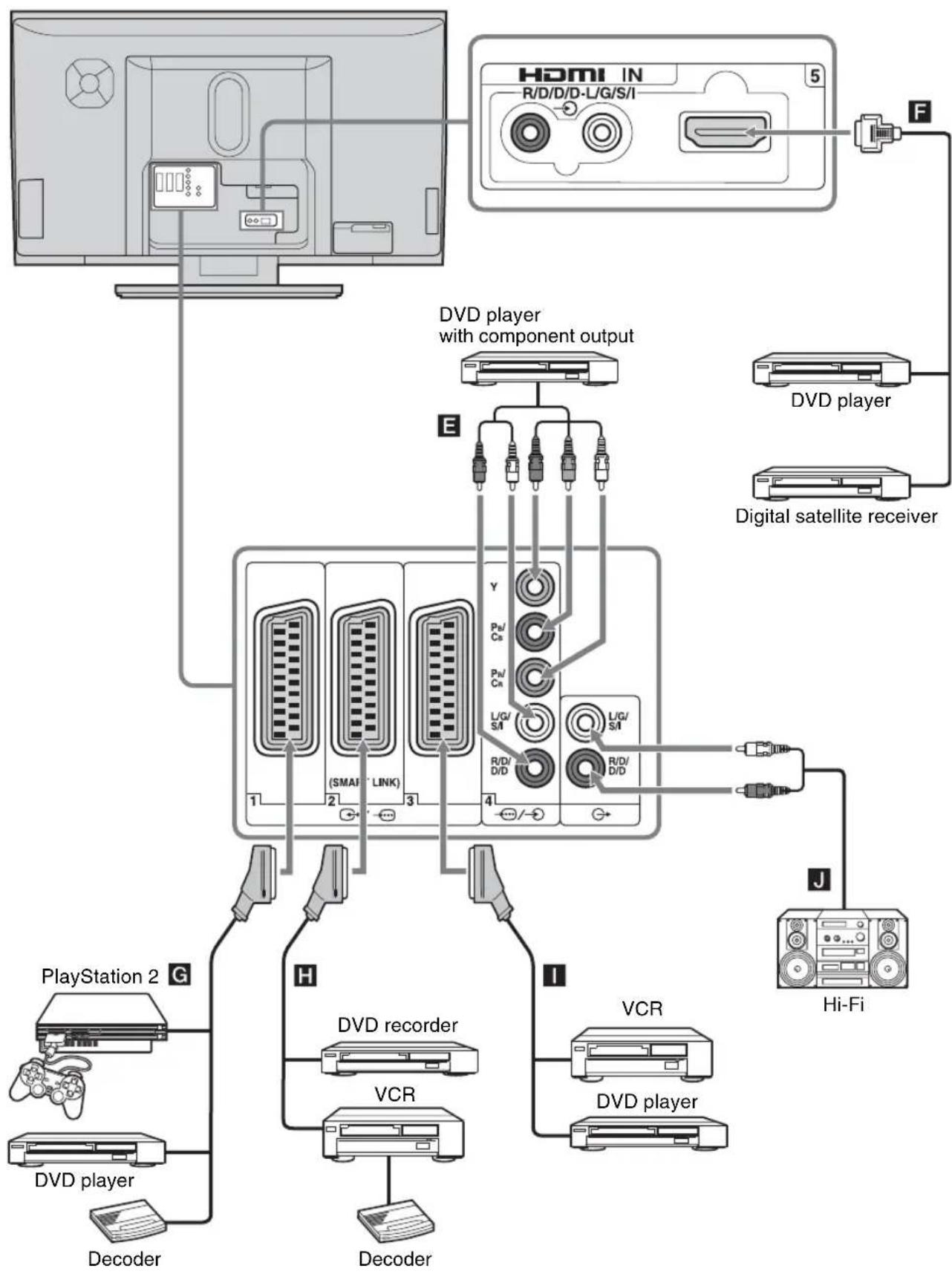

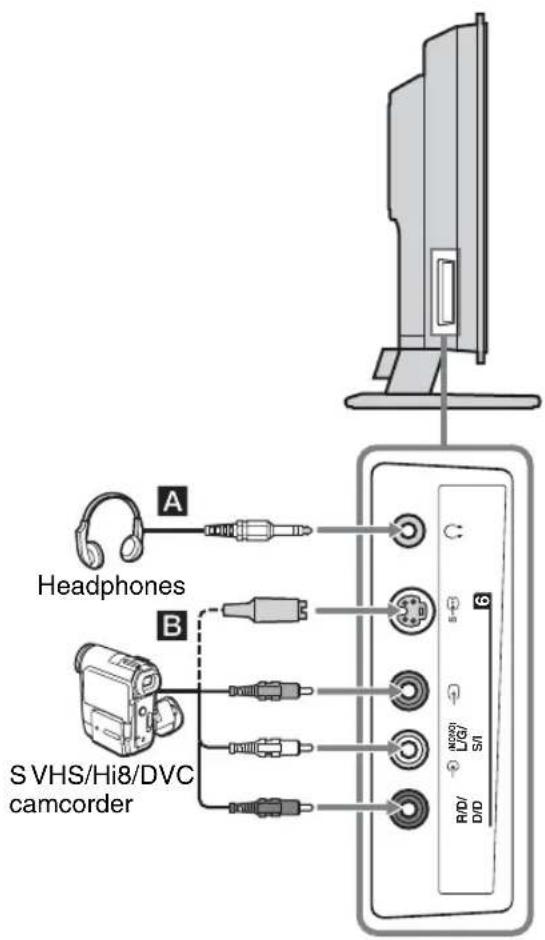

Connecting optional equipment 39

Programming the remote....41

Additional Information

Specifications 43

Troubleshooting....44

Index......47

Safety information

Mains lead

- Unplug the mains lead when moving the TV set. Do not move the TV set with the mains lead plugged in. It may damage the mains lead and result in fire or elec

Two people pulling a large computer monitor with motion lines indicating speed (no text or symbols)

- If you damage the mains lead, it may result in fire or electric shock.

• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken, causing a short-circuit, which may cause fire or electric shock.
• Do not modify or damage the mains lead.
• Do not put anything heavy on the mains lead. Do not pull the mains lead.
• Keep the mains lead away from heat sources.

• Be sure to grasp the plug when disconnecting the mains lead.

• If the mains lead is damaged, stop using it and ask your dealer or Sony service centre to exchange it.

• Do not use the supplied mains lead on any other equipment.
• Use only an original Sony mains lead, not other brands.

Mains lead/cable protection

Pull out the mains lead/cable by the plug. Do not pull on the mains lead/cable itself.

Mains

Do not use a poor fitting mains socket. Insert the plug fully into the mains socket. A poor fit may cause arcing and result in fire. Contact your electrician to have the mains socket changed.

Optional accessories

Observe the following when installing the TV set using a stand or wall-mount bracket. If you do not do so, the TV set may fall and cause serious injury.

- It is strongly recommended that you use Sony accessories for safety reasons:

- Wall-mount bracket SU-PW3M, - TV stand SU-PF3M.

• It is strongly recommended that you use the official Sony wall-mount bracket to allow adequate air circulation and to avoid dust build up around the TV, wall and ceiling.
• Secure the TV set properly, following the instructions supplied with your stand or wall-mount bracket when installing the TV set.
• Be sure to attach the brackets supplied with your stand.

Installation

If the TV set is to be installed on a wall, have the installation carried out by qualified service men. Improper installation may render the TV set unsafe.

Medical institutions

Do not place this TV set in a place where medical equipment is in use. It may cause malfunction of medical instruments.

Line drawing of a person in bed sleeping at a hospital bed with a computer monitor (no text or symbols)

Carrying

• Before carrying the TV set, disconnect all the cables from the TV set.
• When you carry the TV set by hand, hold the TV set as illustrated on the right. If you do not do so, the TV set may fall and be damaged or cause serious injury. If the TV set has been dropped or damaged, have it checked qualified service personnel.

- When transporting it, do not subject the TV set to jolts or excessive vibration. The TV set may fall and be damaged or cause serious injury.

• When you carry the TV set in for repair or when you move it, pack it using the original carton and packing material.
• Carrying the TV set requires two or more people.

Ventilation

• Never cover the ventilation holes in the cabinet. It may cause overheating and result in fire.

• Unless proper ventilation is provided, the TV set may gather dust and get dirty. For proper ventilation, observe the following:

• Do not install the TV set turned backwards or sideways.

• Do not install the TV set turned over or upside down.
• Do not install the TV set on a shelf or in a closet.
• Do not place the TV set on a rug or bed.
• Do not cover the TV set with cloth, such as curtains, or items such as newspapers, etc.

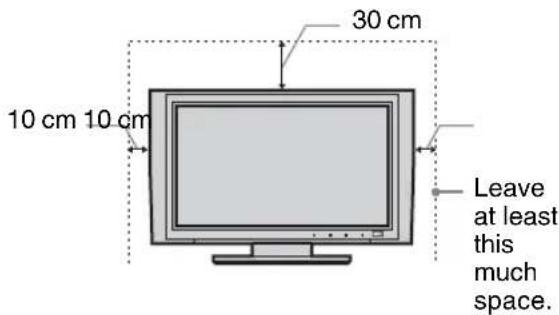

- Leave some space around the TV set. Otherwise, air-circulation may be inadequate and cause overheating, which may cause fire or damage to the TV set.

• When installing the TV set on the wall, leave at least 10 cm space from the bottom of the TV set.
• Never install the TV set as follows:

Air circulation is blocked.

Air circulation is blocked.

Cross-sectional diagram of a mechanical component or housing (no visible text or symbols)

Ventilation holes

Do not insert anything in the ventilation holes. If metal or liquid is inserted in these holes, it may result in fire or electric shock.

Placement

• Never place the TV set in hot, humid or excessively dusty places.
• Do not install the TV set where insects may enter.
• Do not install the TV set where it may be exposed to mechanical vibration.
• Place the TV set on a stable, level surface. Otherwise, the TV set may fall and cause injury.
• Do not install the TV set in a location where it may protrude, such as on or behind a pillar, or where you might bump your head on it. Otherwise, it may result in injury.

Water and moisture

• Do not use this TV set near water – for example, near a bathtub or shower room. Also do not expose to rain, moisture or smoke. This may result in fire or electric shock
• Do not touch the mains lead and the TV set with wet hands. Doing so may cause electric shock or damage to the TV set

Moisture and flammable objects

• Do not let this TV set get wet. Never spill liquid of any kind on the TV set. If any liquid or solid object does fall through openings in the cabinet, do not operate the TV set. It may result in electric shock or damage to the TV set. Have it checked immediately by qualified service personnel.
• To prevent fire, keep flammable objects (candles, etc.) and electric bulbs away from the TV set.

Illustration of a candle on a computer monitor with a hand pouring water from a plant (no text or symbols)

Oils

Do not install this TV set in restaurants that use oil. Dust absorbing oil may enter and damage the TV set.

Fall

Place the TV set on a secure, stable stand. Do not hang anything on the TV set. If you do, the TV set may fall from the stand or wall-mount bracket, causing damage or serious injury.

Do not allow children to climb on the TV set.

Vehicle or ceiling

Do not install this TV set in a vehicle. The motion of the vehicle may cause the TV set to fall down and cause injury. Do not hang this TV set from the ceiling.

Ships and other vessels

Do not install this TV set on a ship or other vessel. If the TV set is exposed to seawater, it may cause fire or damage the TV set.

Simple line drawing of a boat with a person standing on the water (no text or symbols)

Outdoor use

• Do not expose the TV set to direct sunlight. The TV set may heat up and this may result in damage to the TV set.
• Do not install this TV set outdoors.

Illustration of a person watching a soccer ball on a TV under a bright sun (no text or symbols)

Wiring

• Unplug the mains lead when wiring cables. When hooking up, be sure to unplug the mains lead for your safety.
  • Take care not to catch your feet on the cables. It may damage the TV set.

Cleaning

• Unplug the mains lead when cleaning the mains plug and this TV set. If you do not, it may result in electric shock.
• Clean the mains plug regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate and result in fire.

Lightning storms

For your own safety, do not touch any part of the TV set, mains lead, or aerial lead during lightning storms.

Continued

Damage requiring service

If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise electric shock may result.

Servicing

Do not open the cabinet. Entrust the TV set to qualified service personnel only.

Small accessories removal and fittable

Keep accessories out of children's reach. If they are swallowed, choking or suffocation may occur. Call a doctor immediately.

Broken glass

Do not throw anything at the TV set. The screen glass may explode by the impact and cause serious injury.

When not in use

For environmental and safety reasons, it is recommended that the TV set is not left in standby when unused. Disconnect from the mains. However, some TV sets may have features which need the TV set to be left in standby to work correctly. The instructions in this manual will inform you if this applies.

Viewing the TV

- To view the TV comfortably, the recommended viewing position is from four to seven times the screen's vertical length away from the TV set.

• View the TV in moderate light, as viewing the TV in poor light strains your eyes. Watching the screen continuously for long periods of time can also strain your eyes.

- If the angle of the TV set is to be adjusted, steady the base of the stand with your hand to prevent the TV set from becoming separated from the stand. Be careful not to get your fingers caught between the TV set and the stand.

Volume adjustment

- Adjust the volume so as not to trouble your neighbours. Sound carries very easily at night time. Therefore, closing the windows or using headphones is suggested.

- When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

Overloading

This TV set is designed to operate on a 220–240 V AC supply only. Take care not to connect too many appliances to the same mains socket as this could result in fire or electric shock.

Heat

Do not touch the surface of the TV set. It remains hot, even after the TV set has been turned off for some time.

Corrosion

If you use this TV set near the seashore, salt may corrode metal parts of the TV set and cause internal damage or fire. It may also shorten the life of the TV set. Steps should be taken to reduce the humidity and moderate the temperature of the area where the TV set is located.

Precautions

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.
• Do not expose the LCD screen surface to the sun. Doing so may damage the screen surface.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD panel may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD contains a small amount of liquid crystal and mercury. The fluorescent tube used in this TV set also contains mercury. Follow your local ordinances and regulations for disposal.

Fluorescent lamp

This TV set uses a special fluorescent lamp as its light source. If the screen image becomes dark, flickers, or does not appear, the fluorescent lamp has worn out and the LCD screen should be replaced. For replacement, consult qualified service personnel.

Installing the TV set

• Do not install the TV set in places subject to extreme temperature, for example in direct sunlight, or near a radiator, or heating vent. If the TV set is exposed to extreme temperature, the TV set may overheat and cause deformation of the casing or cause the TV set to malfunction.
• The TV set is not disconnected from the mains when the TV set is switched off. To disconnect the TV set completely, pull the plug from the mains.
• To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. If possible, use spot lighting directed down from the ceiling.
• Do not install optional components too close to the TV set. Keep optional components at least 30 cm away from the TV set. If a VCR is installed in front of the TV set or beside the TV set, the picture may become distorted.

Handling and cleaning the screen surface/cabinet of the TV set

The screen surface is finished with a special coating to prevent strong light reflections. To avoid material degradation or screen coating degradation, observe the following precautions.

• Do not push on the screen, scratch it with a hard object, or throw anything at it. The screen may be damaged.
• Do not touch the display panel after operating the TV set continuously for a long period as the display panel becomes hot.
• We recommend that the screen surface be touched as little as possible.
• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution. You can wash and repeatedly use the soft cloth.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• The ventilation holes can accumulate dust over time. To ensure proper ventilation, we recommend removing the dust periodically (once a month) using a vacuum cleaner.

Disposal of the TV set

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Overview of the remote

① TV I/⏻ - TV standby

Switches off the TV temporarily and on from standby mode.

②Media selector (page 41)

Selects which equipment you want to operate. A green light will be momentarily lit to show which one you have selected.

③ANALOG – Analogue mode (page 15)

④/ -Input select / Text hold

• In TV mode (page 21): Selects the input source from equipment connected to the TV sockets.
• In Text mode (page 16): Holds the current page.

⑤ Screen mode (page 17)

6Number buttons

• In TV mode: Selects channels. For channel numbers 10 and above, enter the second digit within two seconds.
• In Text mode: Enters the three digit page number to select the page.

7/ - Previous channel / VCR double digit

• In TV mode: Returns to the previous channel watched (for more than five seconds).
• In VCR mode: Selects the double-digit channels for Sony's VCR (e.g., for 23, press -/-- and then the 2 and 3).

8 - Text (page 16)

⑨ ↑/↓/←/→/OK (page 16, 21)

⑩ -Favourite (page 20)

⑪PROG +/- (page 15)

• In TV mode: Selects the next (+) or previous (-) channel.
• In Text mode: Selects the next (+) or previous (-) page.

⑫MENU (page 21)

⑬ △ +/- - Volume

14 - This button has no function for this TV.

15 - EPG (Digital Electronic Programme Guide) (page 18) / NexTView (page 16)

16 Coloured buttons

• In digital mode (page 18, 20): Selects the options at the bottom of the Favourite and EPG digital menus.
• In VCR and DVD mode (page 41): Operates the main functions of your VCR or DVD.

⑰/Info / Text reveal

• In digital mode: Displays brief details of the programme currently being watched.
• In analogue mode: Displays information such as current channel number and screen mode.
• In Text mode (page 16): Reveals hidden information (e.g., answers to a quiz).

18 Picture mode (page 23)

19 ♪ – Sound effect (page 25)

20 DIGITAL – Digital mode (page 15)

21 ☐ - Mute (page 15)

22 AUX/VIDEO I/

Switches your equipment on/off, as programmed on the remote (page 41).

Tip

The //←/→ , + , PROG+, and number 5 buttons have tactile dots. Use the tactile dots as references when operating the TV.

Overview of the TV buttons and indicators

① ⏻ - Power

Switches the TV on or off.

②PROG +/- /↑ ↓

• In TV mode: Selects the next (+) or previous (-) channel.
• In TV menu: Moves through the options up (↑) or ↓ own ( ).

③△+/-/←→

• Increases (+) or decreases (-) the volume.
• In TV menu: Moves through the options left (or right ().

④ -Input select (page 21)

Selects the input source from equipment connected to the TV sockets.

⑤ (page21)
6 (page 21)
⑦ -Picture Off indicator (page 29)

Lights up in green when the picture is switched off. Only the picture is switched off (the sound remains unchanged).

⑧ -Timer indicator (page 30)
Lights up in orange when the timer is set.
⑨ ⏻ - Standby indicator
Lights up in red when the TV is in standby mode.
10I - Power indicator
Lights up in green when the TV is switched on.
⑪ Remote control sensor

Getting Started

1: Checking the accessories

Remote RM-ED001 (1)

Size AA batteries (R6 type) (2)

Coaxial cable (1)

Do not remove this ferrite core.

Mains lead (Type C-6) (1)

Line drawing of a cable with two connectors and a power plug, no text or symbols present

Do not remove these ferrite cores.

Bundling band (1) and screw (1)

2: Inserting batteries into the remote

Diagram of a cylindrical object with a metallic tip and attached wires, showing internal structure (no text or symbols)

Diagram of a remote control with two batteries and an arrow indicating battery direction (no text or symbols)

Notes

• Observe the correct polarity when inserting batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate disposal of the battery. Please consult your local authority.
• Do not use different types of batteries together or mix old and new batteries.
• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote in a location near a heat source, or in a place subject to direct sunlight, or in a damp room.

3: Connecting an aerial/VCR

1 Connect your aerial to the socket on the rear of the TV.

If connecting to an aerial only

Go to step 3.

2 Connect your VCR.

①Connect the socket on the rear of the TV to the input socket on your VCR with the RF lead.
②Connect the scart socket on your VCR to the → /2scart socket on the rear of the TV with a scart lead.

3 Connect the supplied mains lead to the AC IN socket on the rear of the TV.

Note

Do not connect the mains lead to your mains socket until all connections are complete.

4 Bundle the cable.

Technical diagram of cable installation with a magnified inset showing a connector detail (no text or symbols)

①Run the mains lead through the bundling band and attach to the right of the rear panel with the supplied screw.
②Remove the screw to open one side of the cable cover and run the cables through, then tighten the screw again.

4: Preventing the TV from toppling over

For additional stability, the anchor attachments on the back of the TV can be used to secure the TV to a wall. (Do not remove the anchor attachments.)

1 Run suitable cables through the holes of both anchor attachments on the back of the TV.

Line drawing of a monitor mounted on a stand with two cables attached (no text or symbols)

cable (not supplied)
anchor attachment (with hole)

2 Anchor the cables to a stable surface such as a wall or pillar.

Diagram of a computer monitor with an attached cable or connector (no text or symbols present)

wall anchor bracket (not supplied)

5: Switching on the TV

1 Connect the TV to your mains socket (220-240V AC, 50Hz).
2 Press ⏻ on the TV (right side).

When you switch on the TV for the first time, the Language menu appears on the screen, then go to "6: Selecting the language and country/region" on page 13.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV (front) is red), press TV I/ ⏻ on the remote to switch on the TV.

6: Selecting the language and country/region

When you switch on the TV for the first time, the Language menu appears on the screen.

1 Press ↑/↓ to select the language displayed on the menu screens, then press OK.

2 Press ↑/↓ to select the country/region in which you will operate the TV, then press OK.

If the country/region in which you want to use the TV does not appear in the list, select “-” instead of a country/region.

The message confirming the TV start auto-tuning appears on the screen, then go to "7: Auto-tuning the TV" on page 14.

7: Auto-tuning the TV

After selecting the language and country/region, a message confirming the TV start auto-tuning appears on the screen.

You must tune the TV to receive channels (TV broadcasts). Do the following to search and store all available channels.

1 Press OK to select "Yes".

The TV starts searching for all available digital channels, followed by all available analogue channels. This may take some time, please be patient and do not press any buttons on the TV or remote.

Once all available digital and analogue channels have been stored, the TV returns to normal operation, displaying the digital channel stored on channel number 1. If no digital channels are found, the analogue channel stored on channel 1 is displayed.

When a message appears for you to confirm the aerial connections

No digital or analogue channels are found. Check all the aerial connections and press OK to start auto-tuning again.

2 When the Programme Sorting menu appears on the screen, follow steps 2 to 3 of "Programme Sorting (Analogue mode only)" (page 32).

If you do not change the order in which the analogue channels are stored on the TV, go to step 3.

3 Press MENU to exit.

The TV has now tuned in all the available channels.

Watching TV

Watching TV

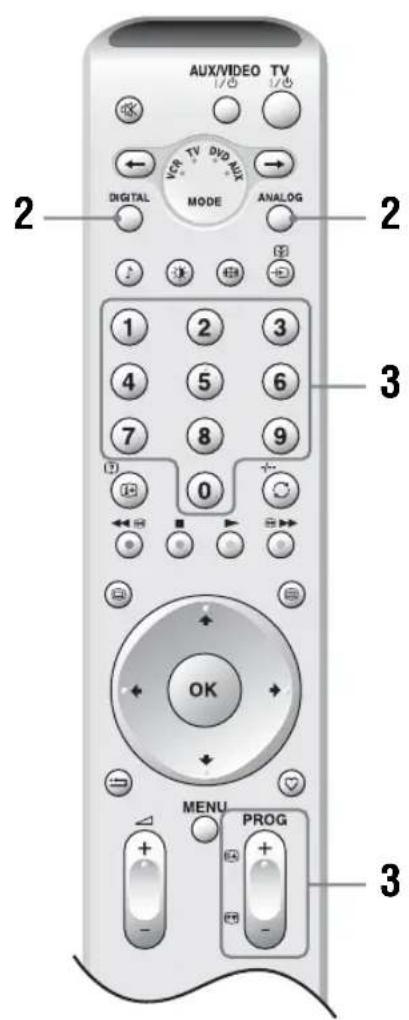

1 Press ⏻ on the TV (right side) to switch on the TV.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV (front) is red), press TV I/⏻ on the remote to switch on the TV.

2 Press DIGITAL to switch to digital mode or ANALOG to switch to analogue mode.

The channels available vary depending on the mode.

3 Press the number buttons or PROG +/- to select a TV channel.

To select channel numbers 10 and above using the number buttons, enter the second and third digits within two seconds.

To select a digital channel using the Digital Electronic Programme Guide (EPG), see page 18.

In digital mode

An information banner appears briefly. The following icons may be indicated on the banner.

: Radio service
: Scrambled/Subscription service
: Multiple audio languages available
: Subtitles available
: Subtitles available for the hearing impaired
⑱: Recommended minimum age for current programme (from 4 to 18 years)
: Parental Lock
: Current programme is being recorded

Additional operations

To Do this

Turn off the TV temporarily(Standby mode)

Press TV I/⏻.

Turn off the TV completely

Press ⏻ on the TV (right side).

Adjust the volume Press ∠ + (increase)/- (decrease).

Mute the sound Press ☐. Press again to restore.

Switch to digital mode	Press DIGITAL.
Hide interactive prompts from the screen (in digital mode only)
Switch to analogue mode	Press ANALOG.

Continued

To Do this

Return to the previous channel watched (for more than five seconds)	Press .
Access the Programme index table (in analogue mode only)	Press OK. To select an analogue channel, press / , then press OK.To access the Input signal index table, see page 21.

To access Text

Press ☐. Each time you press ☐, the display changes cyclically as follows:

Text → Text over the TV picture (mix mode) → No Text (exit the Text service)

To select a page, press the number buttons or PROG +/-.

To hold a page, press ⏻ ⏱ To reveal hidden information, press ⏻ ❓

Tips

• Ensure that the TV is receiving a good signal, or some text errors may occur.
• Most TV channels broadcast a Text service. For information on the use of the service, select the index page (usually page 100).
• When four coloured items appear at the bottom of the Text page, Fastext is available. Fastext allows you to access pages quickly and easily. Press the corresponding coloured button to access the page.

To access NexTView (depending on availability of service)

NexTView is an electronic programme guide.

1 When a channel which provides a NexTView service is selected ("NexTView" is displayed as soon as the data is available), press 📄

2 Press ↑/↓/←/→ to select the displayed option, then press OK to confirm.

To turn off NexTView, press again.

① (All)/ (Entertainment)/ (Children)/ (Art)/ (Sports)/ (News)/ (Movies)/ (Music):

Lists programmes by category.

② (Only when more than eight channels provide NexTView):

Creates a channel list. You can store up to eight channels. To restore the factory setting channels, select "Auto ▶".

③: (i))

Shows a reminder list (for details, see “⑤ Info:”).

4 Programmes:

Displays the programme list by time when the TV receives 50% or less of the NexTView data (“NexTView” is displayed in orange when a channel is selected), and displays the programme list by time and channel when the TV receives more than 50% of the NexTView data (“NexTView” is displayed in black when a channel is selected). The percentage may differ depending on your area.

5Info:

Displays programme description. To record the programme (only VCRs which support SmartLink and Timer Programming features), press the red button. To display a reminder message when the programme is broadcast, press the green button. You can set up to five programmes.

Notes

• Wrong characters appear on the screen if the language used in the NexTView does not match the language set on your TV. Set “Language” to the language used in the NexTView (page 31). Also set “Country” to the country/region from which the NexTView programme is broadcast (page 31).
• “Record” and “Remind” are not available once the programme has started.

To change the screen mode manually to suit the broadcast

Press repeatedly to select Wide, Smart, 4:3, 14:9, or Zoom.

Wide

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Displays wide screen (16:9) broadcasts in the correct proportions.

Smart\*

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Displays conventional 4:3 broadcasts with an imitation wide screen effect. The 4:3 picture is stretched to fill the screen.

4:3

Front view of a classic 19th-century sports car (no visible text or symbols)

Displays conventional 4:3 broadcasts (e.g., non-wide screen TV) in the correct proportions.

14:9\*

Front view of a classic 19th-century sports car (no visible text or symbols)

Displays 14:9 broadcasts in the correct proportions. As a result, black border areas are visible on the screen.

Zoom\*

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Displays cinemascopic (letter box format) broadcasts in the correct proportions.

* Parts of the top and bottom of the picture may be cut off. Tips

- Alternatively, you can set “Auto Format” to “On”. The TV will automatically select the best mode to suit the broadcast (page 27).

- You can adjust the portion of the picture when selecting Smart, 14:9, or Zoom. Press ↑/↓ to move up or down (e.g., to read subtitles).

Checking the Digital Electronic Programme Guide (EPG) DVB

Digital Electronic Programme Guide (EPG)

1 In digital mode, press to display the Digital Electronic Programme Guide (EPG).
2 Perform the desired operation, as shown in the following table.

Note

Programme information will only be displayed if the TV station is transmitting it.

To Do this

Turn off the EPG Press .
Move through the EPG	Press ↑/↓/←/→.
Display the previous or next six channels Press the red (previous) or green (next) button.
Watch a current programme Press OK while the current programme is selected.
Sort the programme information by category – Category list	1 Press the blue button.2 Press ↑/↓/←/→ to select a category. The category name is displayed on the side.The categories available include:FavouriteContains all the channels that have been stored in the Favourite list (page 20).All CategoriesContains all available channels.NewsContains all news channels.3 Press OK.The Digital Electronic Programme Guide (EPG) now only displays the current programmes from the category selected.
Set a programme to be recorded – Timer REC	1 Press ↑/↓/←/→ to select the future programme you want to record.2 Press OK.3 Press ↑/↓ to select “Timer REC”.4 Press OK to set the TV and your VCR timers.A symbol appears by that programme’s information. The indicator on the TV (front) lights up in standby mode.NotesYou can set VCR timer recording on the TV only for Smartlink compatible VCRs. If your VCR is not Smartlink compatible, a message will be displayed to remind you to set your VCR timer.Once a recording has begun, you can switch the TV to standby mode, but do not switch off the TV completely or the recording may be cancelled.If an age restriction for programmes has been selected, a message asking for pin code will appear on the screen. For more details refer to Parental Lock on page 37.

To Do this

Set a programme to be displayed automatically on the screen when it starts – Reminder	1 Press ↑/↓/←/→ to select the future programme you want to display.2 Press OK.3 Press ↑/↓ to select “Reminder”.4 Press OK to automatically display the selected programme when the programme starts.A ⏻ symbol appears by that programme’s information. The ⏻ indicator on the TV (front) lights up in standby mode.NoteIf you switch the TV to standby mode, it will automatically turn itself on when the programme is about to start.
Set the time and date of a programme you want to record – Manual timer REC	1 Press OK.2 Press ↑/↓ to select “Manual timer REC”.3 Press ↑/↓ to select the date, then press →.4 Set the start and stop time in the same way as in step 3.5 Press ↑/↓ to select the channel, then press OK to set the TV and your VCR timers.A Symbol appears by that programme’s information. The ⏻ indicator on the TV (front) lights up in standby mode.NotesYou can set VCR timer recording on the TV only for Smartlink compatible VCRs. If your VCR is not Smartlink compatible, a message will be displayed to remind you to set your VCR timer.Once a recording has begun, you can switch the TV to standby mode, but do not switch off the TV completely or the recording may be cancelled.If an age restriction for programmes has been selected, a message asking for pin code will appear on the screen. For more details refer to Parental Lock on page 37.
Cancel a recording/reminder – Timer list	1 Press OK.2 Press ↑/↓ to select “Timer list”.3 Press ↑/↓ to select the programme you want to cancel, then press OK.A display appears to confirm that you want to cancel the programme.4 Press → to select “Yes”, then press OK to confirm.

Using the Favourite list DVB

Favourite list

1 In digital mode, press ♥ to display the Favourite list.

A message appears asking if you want to add channels to the Favourite list when the Favourite list is blank.

2 Perform the desired operation, as shown in the following table.

To Do this

Create your Favourite list for the first time	A message appears asking if you want to add channels to the Favourite list when you press ♥for the first time.1 Press OK to select “Yes”.2 Press ↑/↓ to select the channel you want to add, then press OK.If there are more than five channels in the list, press the green button for the next five channels or press the red button for the previous five channels. If you know the channel number, you can use the number buttons to directly select a channel.3 Press OK.Channels that are stored in the Favourite list are indicated by a ♥ symbol.
Turn off the Favourite list Press .
Move through in the Favourite list	Press ↑/↓.
Display the previous or next five channels Press the red (previous) or green (next) button.
See brief details on current programmes Press while selecting a channel. Press again to cancel.
Watch a channel Press OK while selecting a channel.
Add or remove channels in the Favourite list	1 Press the blue button.Channels that are stored in the Favourite list are indicated by a ♥ symbol.2 Press ↑/↓ to select the channel you want to add or remove.If there are more than five channels in the list, press the green button for the next five channels or press the red button for the previous five channels. If you know the channel number, you can use the number buttons to directly select a channel.3 Press OK.4 Press the blue button to return to the Favourite list.
Remove all channels from the Favourite list	1 Press the blue button.2 Press the yellow button.A display appears to confirm that you want to delete all channels from the Favourite list.3 Press ← to select “Yes”, then press OK to confirm.

Viewing pictures from connected equipment

Switch on the connected equipment, then perform one of the following operation.

For equipment connected to the scart sockets using a fully-wired 21-pin scart lead

Start playback on the connected equipment.

The picture from the connected equipment appears on the screen.

For an auto-tuned VCR (page 11)

In analogue mode, press PROG +/-, or the number buttons, to select the video channel.

For other connected equipment

Press → repeatedly until the correct input symbol (see below) appears on the screen.

→1/→…1,→2/→…2,→3/→…3:

Audio/video or RGB input signal through the scart socket /+2-or-3. appears only if an RGB source has been connected.

4:

Component input signal through the Y, B/CB, PR/CR sockets → and audio input signal through the L/G/S/I, R/D/D/D sockets →

5:

Digital audio/video signal is input through the HDMI IN 5 socket. Audio input signal is analogue only if the equipment has been connected using the DVI and audio out socket.

→6/\$:→...

Video input signal through the video socket 6 and audio input signal through the audio socket L/G/S/I (MONO), R/D/D/D sockets 6 appears only if the equipment is connected to the S video socket 6 instead of the video socket 6 and S video input signal is input through the S video socket 6

Additional operations

To Do this

Return to the normal TV operation	Press DIGITAL or ANALOG.
Access the Input signal index table	Press OK to access the Input signal index table. (Then, only in analogue mode, press →.) To select an input source, press ↑/↓, then press OK.

Using the Menu

Navigating through menus

1 Press MENU to display the menu.
2 Press ↑/↓ to select a menu icon.
3 Press ↑/↓/←/→ to select an option.
4 Press ↑/↓/←/→ to change/set the setting, then press OK.
To exit the menu, press MENU.
To return to the last display, press ←.

Continued

Overview of the menus

The following options are available in each menu. For details on navigating through menus, see page 21. Also, see page in parentheses for details of each menu.

①Picture Adjustment

- Mode (23)
- Contrast/Brightness/Colour/Hue/Sharpness/Backlight (23)
- Colour Tone (23)
- Noise Reduction (24)
- Dynamic Picture (24)
- Gamma Correction (24)
- Reset (24)

②Sound Adjustment

Effect (25)
Treble/Bass/Balance (25)
Auto Volume (25)
Dual Sound (26)
Woofer Level (26)
Volume (26)
Dual Sound (26)
Reset (26)

③Screen Control

- Auto Format (27)
- Screen Format (27)
- Screen Shift (27)
- V Shift/H Shift/Reset

④ Features

Power Saving (28)
Speaker (28)
AV2 Output (28)
Picture Off (29)
Logo Illumination (29)

5Timer

Sleep Timer (30)
Auto Shutoff (30)

6 Set Up

- Auto Start Up (31)
- Language (31)
- Country (31)
- Auto Tuning (32)
- Programme Sorting (32)
- Programme Labels (32)
- AV Preset (33)
  - Equipment labels/Edit/Skip
- Manual Programme Preset (33)
  - Programme/System/Channel/Label/AFT/Audio Filter/Skip/Decoder/ATT/Confirm
- Digital Set Up (36)
  - Digital Tuning/Digital Set-up

Note

The options you can adjust vary depending on the situation. Only the options that can be operated are displayed.

Picture Adjustment menu

You can select the options listed below on the Picture Adjustment menu. To select options, see “Navigating through menus” (page 21).

Tip

When you set "Mode" to "Vivid" or "Standard", you can adjust only "Mode", "Contrast", "Colour Tone", "Noise Reduction", and "Reset".

Mode

Selects the picture mode.

1 Press OK to select "Mode".
2 Press ↑/↓ to select one of the following picture modes, then press OK.

Vivid: For enhanced picture contrast and sharpness.

Standard: For standard picture. Recommended for home entertainment.

Custom: Allows you to store your preferred settings.

Tip

You can also change the picture mode by pressing repeatedly.

Contrast/Brightness/Colour/Hue/Sharpness/Backlight

1 Press OK to select the option.
2 Press ←/→ to set the level, then press OK.

Tip

"Hue" can only be adjusted for an NTSC colour signal (e.g., U.S.A. video tapes).

Colour Tone

1 Press OK to select "Colour Tone".
2 Press ↑/↓ to select one of the following, then press OK.

Cool: Gives the white colours a blue tint.

Neutral: Gives the white colours a neutral tint.

Warm: Gives the white colours a red tint.

Continued

Noise Reduction

Reduces the picture noise (snowy picture) in a weak broadcast signal.

1 Press OK to select "Noise Reduction".

2 Press ↑/↓ to select one of the following, then press OK.

Auto: Automatically reduces the picture noise.

High/Low/Off: Modifies the effect of the noise reduction.

CNR: Reduces the picture noise when the animation image is received.

BNR: Reduces the block picture noise. This is effective for digital channels, or a connected DVD player/digital satellite receiver with MPEG playback.

Dynamic Picture

Enhances the picture contrast.

1 Press OK to select "Dynamic Picture".

2 Press ↑/↓ to select "On", then press OK.

Gamma Correction

Adjusts the balance between bright and dark areas of the picture.

1 Press OK to select "Gamma Correction".

2 Press ↑/↓ to set the level, then press OK.

Reset

Reset all the picture settings to the factory settings.

1 Press OK to select "Reset".

2 Press ↑/↓ to select "OK", then press OK.

Sound Adjustment menu

You can select the options listed below on the Sound Adjustment menu. To select options, see “Navigating through menus” (page 21).

Effect (sound effect)

1 Press OK to select "Effect".
2 Press ↑/↓ to select one of the following sound effects, then press OK. Off: Flat response.
Natural: Enhances clarity, detail, and sound presence by using “BBE High Definition Sound System ¹ ”.
Dynamic: Intensifies clarity and sound presence for better intelligibility and musical realism by using the “BBE High Definition Sound System”.
Dolby Virtual 2 : Uses the TV speakers to simulate the surround effect produced by a multi channel system.

Tips

• You can also change sound effect by pressing ♩ repeatedly.
• If you set "Auto Volume" to "On", "Dolby Virtual" is automatically set to "Natural".
  *1 Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under USP4638258, 4482866. "BBE" and BBE symbol are trademarks of BBE Sound, Inc.
  ^*2 Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Treble/Bass/Balance

Adjusts higher-pitched sounds (Treble), adjusts lower-pitched sounds (Bass), and emphasizes left or right speaker balance (Balance).

1 Press OK to select the option.
2 Press ←/→ to set the level, then press OK.

Auto Volume

Keeps a constant volume level even when volume level gaps occur (e.g., adverts tend to be louder than programmes).

1 Press OK to select "Auto Volume".
2 Press ↑/↓ to select "On", then press OK.
Tip
If you set "Effect" to "Dolby Virtual", "Auto Volume" will automatically be switched to "Off".

Continued

Dual Sound

Selects the sound from the speaker for a stereo or bilingual broadcast.

1 Press OK to select "Dual Sound".
2 Press ↑/↓ to select one of the following, then press OK.
Stereo, Mono: For a stereo broadcast.
A/B/Mono: For a bilingual broadcast, select “A” for sound channel 1, “B” for sound channel 2, or “Mono” for a mono channel, if available.
Tip
If you select other equipment connected to the TV, set "Dual Sound" to "Stereo", "A" or "B".

Woofer Level

Adjusts the output level of the built-in woofer of the TV.

1 Press OK to select "Woofer Level".
2 Press ←/→ to set the level, then press OK.

Volume (headphone volume)

Adjusts the volume of the headphones.

1 Press OK to select "Volume".
2 Press ←/→ to set the level, then press OK.

Dual Sound

Selects the sound of the headphones for a stereo or bilingual broadcast.

1 Press OK to select "Dual Sound".
2 Press ↑/↓ to select one of the following, then press OK.
Stereo, Mono: For a stereo broadcast.
A/B/Mono: For a bilingual broadcast, select "A" for sound channel 1, "B" for sound channel 2, or "Mono" for a mono channel, if available.
Tip
If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A” or “B”.

Reset

Resets the “Treble”, “Bass” and “Balance” settings to the factory settings.

1 Press OK to select "Reset".
2 Press ↑/↓ to select "OK", then press OK.

Screen Control menu

You can select the options listed below on the Screen Control menu. To select options, see “Navigating through menus” (page 21).

Auto Format

Automatically changes the screen format according to the broadcast signal.

1 Press OK to select "Auto Format".
2 Press ↑/↓ to select "On", then press OK.

To keep your setting, select "Off".

Tips

• Even if you have selected "On" or "Off" in "Auto Format", you can always modify the format of the screen by pressing repeatedly.
• "Auto Format" is available for PAL and SECAM signals only.

Screen Format

For details about the screen format, see page 17.

1 Press OK to select "Screen Format".
2 Press ↑/↓ to select "Smart", "4:3", "14:9", "Zoom" or "Wide" (see page 17 for details), then press OK.

Screen Shift

Adjusts the position of the picture for each screen format.

1 Press OK to select "Screen Shift".
2 Press ↑/↓ to select one of the following, then press OK.

V Shift: Adjusts the vertical picture position.

H Shift: Adjusts the horizontal picture position.

Reset: Resets to the factory settings. Instead of step 3, press ↑/↓ to select "OK", then press OK.

3 Press ↑/↓ (for vertical picture position) or ←/→ (for horizontal picture position), then press OK.

Tip

When "Screen Format" is set to "4:3" or "Wide", "V Shift" cannot be adjusted.

Features menu

You can select the options listed below on the Features menu. To select options, see “Navigating through menus” (page 21).

Power Saving

Reduces the power consumption of the TV.

1 Press OK to select "Power Saving".
2 Press ↑/↓ to select "Reduce", then press OK.

Speaker

Switches on/off the TV's internal speakers.

1 Press OK to select "Speaker".
2 Press ↑/↓ to select "On" or "Off", then press OK.
On: The sound of the TV is output through the TV's speakers.
Off: The sound of the TV is output through the external audio equipment connected to the audio output sockets

AV2 Output

Sets a signal to be output through the socket labelled ② on the rear of the TV. If you connect a VCR or other recording equipment to the ② socket, you can then record from the equipment connected to other sockets of the TV.

1 Press OK to select "AV2 Output".
2 Press ↑/↓ to select one of the following, then press OK.
Auto: Outputs whatever is being viewed on the screen.
TV Analog: Outputs an analogue broadcast.
TV Digital: Outputs a digital broadcast.
AV1: Outputs signals from equipment connected to the 4-socket.
AV3: Outputs signals from equipment connected to the 73 socket.
AV6: Outputs signals from equipment connected to the 6/6 socket

Picture Off

Switches off the picture. You can still listen to the sound with the picture off.

1 Press OK to select "Picture Off".
2 Press ↑/↓ to select "On", then press OK.

The ☒picture Off) indicator on the TV (front) lights up in green. To restore the picture, press any buttons (except △ +/- and ♪).

Logo Illumination

Illuminates the SONY logo on the TV (front).

1 Press OK to select "Logo Illumination".
2 Press ↑/↓ to select "Yes", then press OK.

Timer menu

You can select the options listed below on the Timer menu. To select options, see “Navigating through menus” (page 21).

Sleep Timer

Sets a period of time after which the TV automatically switches itself into standby mode.

1 Press OK to select "Sleep Timer".

2 Press ↑/↓ to select the desired time period ("30min"/"60min"/"90min"/"120min"), then press OK.

The ④Timer) indicator on the TV (front) lights up in orange.

Tips

• If you switch off the TV and switch it on again, "Sleep Timer" is reset to "Off".
• “Sleep timer will end soon. Power will be turned off.” appears on the screen one minute before the TV switches to standby mode.
• If you press /The remaining time in minutes before the TV switches to standby mode is displayed on the screen.

Auto Shutoff

Sets the TV to switch to standby mode automatically when you select the input source and there is no input signal from connected equipment.

In TV mode, this Auto Shutoff function is always set to "On".

1 Press OK to select "Auto Shutoff".
2 Press ↑/↓ to select "On", then press OK.

Set Up menu

You can select the options listed below on the Set Up menu. To select options, see “Navigating through menus” (page 21).

Auto Start Up

Starts the “first time operation menu” to select the language and country/region, and tune in all available digital and analogue channels. Usually, you do not need to do this operation because the language and country/region will have been selected and channels already tuned when the TV was first installed (page 13, 14). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).

1 Press OK to select "Auto Start Up".
2 Press OK to select "Yes".
The Language menu appears on the screen.
3 Follow steps of "6: Selecting the language and country/region" (page 13) and "7: Auto-tuning the TV" (page 14).

Language

Selects the language in which the menus are displayed.

1 Press OK to select "Language".
2 Press ↑/↓ to select the language, then press OK.
All menus will appear in the selected language.

Country

Selects the country/region where you operate the TV.

1 Press OK to select "Country".
2 Press ↑/↓ to select the country/region in which you will operate the TV, then press OK.

Continued

Auto Tuning (Analogue mode only)

Tunes in all the available analogue channels.

Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 14). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).

1 Press OK to select "Auto Tuning".
2 Follow step 1 of "7: Auto-tuning the TV" (page 14).
When all available analogue channels have been tuned, the TV returns to normal operation.

Programme Sorting (Analogue mode only)

Changes the order in which the analogue channels are stored on the TV.

1 Press OK to select "Programme Sorting".
2 Press ↑/↓ to select the channel you want to move to a new position, then press OK.
3 Press ↑/↓ to select the new position for your channel, then press OK.
Repeat the procedure in steps 2 and 3 to move other channels if required.

Programme Labels (Analogue mode only)

Assigns a channel name of your choice up to five letters or numbers. The name will be displayed briefly on the screen when the channel is selected. (Names for channels are usually taken automatically from Text (if available).)

1 Press OK to select "Programme Labels".
2 Press ↑/↓ to select the channel you want to name, then press OK.
3 Press ↑/↓/←/→ to select the desired letter or number (“□” for a blank space), then press OK.

If you input a wrong character

Press ↑/↓/←/→ to select ⊖/⊖ and press OK repeatedly until the wrong character is selected. Then, press ↑/↓/←/→ to select the correct character and press OK.

4 Repeat the procedure in step 3 until the name is complete.

5 Press ↑/↓/←/→ to select "End", then press OK.

AV Preset

Assigns a name to any equipment connected to the side and rear sockets. The name will be displayed briefly on the screen when the equipment is selected. You can skip an input source that is not connected to any equipment.

1 Press OK to select "AV Preset".
2 Press ↑/↓ to select the desired input source, then press OK.
3 Press ↑/↓ to select the desired option below, then press OK.

Option Description
Equipment labels	Uses one of the preset labels to assign a name to connected equipment.
Edit Creates your own label. Follow steps 3 to 5 of “Programme Labels” (page 32).
Skip Skips an input source that is not connected to any equipment when you press ↑/↓ to select the input source.

Manual Programme Preset (Analogue mode only)

Before selecting "Label"/"AFT"/"Audio Filter"/"Skip"/"Decoder"/"ATT", press PROG +/- to select the programme number with the channel. You cannot select a programme number that is set to skip (page 35).

1 Press OK to select "Manual Programme Preset".
2 Press ↑/↓ to select one of the following options, then press OK.

Continued

Option Description
Programme Presets programme channels manually.
System	1 Press ↑/↓ to select “Programme”, then press OK.2 Press ↑/↓ to select the programme number you want to manually tune (if tuning a VCR, select channel 0), then press ←.3 Press ↑/↓ to select “System”, then press OK.NoteDepending on the country/region selected for “Country” (page 31), this option may not be available.4 Press ↑/↓ to select one of the following TV broadcast systems, then press ←.B/G: For western European countries/regionsD/K: For eastern European countries/regionsI: For the United KingdomL: For France5 Press ↑/↓ to select “Channel”, then press OK.6 Press ↑/↓ to select “S” (for cable channels) or “C” (for terrestrial channels), then press →.7 Tune the channels as follows:If you do not know the channel number (frequency)Press ↑/↓ to search for the next available channel. When a channel has been found, the search will stop. To continue searching, press ↑/↓.If you know the channel number (frequency)Press the number buttons to enter the channel number of the broadcast you want or your VCR channel number.8 Press OK.9 Press ↓ to select “Confirm”, then press OK.10 Press ↓ to select “OK”, then press OK.Repeat the procedure above to preset other channels manually.
Channel
Label Assigns a name of your choice, up to five letters or numbers, to the selected channel. This name will be displayed briefly on the screen when the channel is selected.1 Follow steps 3 to 5 of “Programme Labels” (page 32).2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.
AFT Fine-tunes the selected programme number manually if you feel that a slight tuning adjustment will improve the picture quality.(Normally, fine tuning is performed automatically.)1 Press ↑/↓ to adjust the fine tuning over a range of -15 to +15, then press OK.2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.To restore automatic fine tuning, select “On” in step 1.
Audio Filter Improves the sound for individual channels in the case of distortionin mono broadcasts. Sometimes a non-standard broadcast signalcan cause sound distortion or intermittent sound muting whenwatching mono programmes.1 Press ↑/↓ to select “Low” or “High”, then press OK.If you do not experience any sound distortion, we recommendthat you leave this option set to the factory setting “Off”.2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.NoteYou cannot receive stereo or dual sound when “Low” or “High” isselected.
Skip Skips unused analogue channels when you press PROG +/- toselect channels. (You can still select a skipped channel using thenumber buttons.)1 Press ↑/↓ to select “Yes”, then press OK.2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.To restore a skipped channel, select “No” in step 1.
Decoder Views and records the scrambled channel selected when using adecoder connected to the scart connector 2eitherdirectly or via a VCR.NoteDepending on the country/region selected for “Country” (page 31), thisoption may not be available.1 Press ↑/↓ to select “On”, then press OK.2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.To cancel this function afterwards, select “Off” in step 1.
ATT Attenuates the RF signal. In case of a strong RF signal, some videointerference may be displayed.1 Press ↑/↓ to select “On”, then press OK.2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.NoteWhen “ATT” is set to “On”, picture noise may occur during VCRrecording when turning on/off the TV or selecting a TV channel.In this case, connect your aerial to the input socket on your VCR, thenconnect the output socket on your VCR to the 4ocket on the rear ofthe TV. Confirm that the VCR can record the digital channels.

Continued

Displays the “Digital Set Up” menu. You can change/set the digital settings using this menu.

1 Press OK to select "Digital Set Up".
2 Press ↑/↓ to select the desired icon below, then press OK.

Digital Tuning menu

3 Press ↑/↓ to select one of the following options, then press OK.

Option Description
Digital Tuning Tunes in all the available digital channels.
Digital Auto Tuning	Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 14).However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).1 Press OK to start digital auto-tuning.When all available digital channels have been tuned, a message stating that the auto-tuning process is finished appears.2 Press ← .
Programme List Edit	Removes any unwanted digital channels stored on the TV, and changes the order of the digital channels stored on the TV.1 Press ↑/↓ to select the channel you want to remove or move to a new position.If you know the channel number (frequency)Press the number buttons to enter the three-digit programme number of the broadcast you want.To display the previous or next five channelsPress the red button (previous) or the green button (next).2 Remove or change the order of the digital channels as follows:To remove the digital channelPress OK. A message that confirms whether the selected digital channel is to be deleted appears. Press → to select “Yes”, then press OK.To change the order of the digital channelsPress →, then press ↑/↓ to select the new position for the channel and press OK. Repeat the procedure in steps 1 and 2 to move other channels if required.3 Press ← .
Digital Manual Tuning	Tunes the digital channels manually.1 Press the number button to select the channel number you want to manually tune, then press ↑/↓ to tune the channel.2 When the available channels are found, press ↑/↓ to select the channel you want to store, then press OK.To display the previous or next five channelsPress the red button (previous) or the green button (next).3 Press ↑/↓ to select the programme number where you want to store the new channel, then press OK.Repeat the procedure above to tune other channels manually.
Digital Set-up Displays digital subtitles on the screen.
Subtitle Setting	Press ↑/↓ to select “Off”, “Basic”, or “For Hard Of Hearing”, then press OK.When “For Hard Of Hearing” is selected, some visual aids may also be displayed with the subtitles (if TV channels broadcast such information).
Subtitle Language	Selects which language subtitles are displayed in.Press ↑/↓ to select the language, then press OK.
Audio Language	Selects the language used for a programme. Some digital channels may broadcast several audio languages for a programme.Press ↑/↓ to select the audio language, then press OK.
Audio Type	Increases the sound level.Press ↑/↓ to select “Basic” or “For Hard Of Hearing”, then press OK.
Parental Lock	Sets an age restriction for programmes. Any programme that exceeds the age restriction can only be watched after a PIN Code is entered correctly.1 Press the number buttons to enter your existing PIN code.If you have not previously set a PIN, a message appears to inform you. Press OK, then follow the instruction of “PIN Code” below.2 Press ↑/↓ to select the age restriction or “None” (for unrestricted watching), then press OK.3 Press ←.

Continued

Option Description
PIN Code	Sets a PIN code for the first time, or to change your PIN code.1 Enter a PIN as follows:If you have previously set a PINPress the number buttons to enter your existing PIN.If you have not set a PIN:Press the number buttons to enter the factory setting PIN of 9999.2 Press the number buttons to enter the new PIN code.3 When requested, press the number buttons to enter the new PIN again for confirmation.A message appears to inform you that the new PIN has been accepted.4 Press ←.TipPIN code 9999 is always accepted.
Technical Set-up	Displays the Technical Set-up menu. Do the following options.1 Press ↑/↓ to select the desired option, then press OK.Auto Service Update: Enables the TV to detect and store new digital services as they become available.Software Download: Enables the TV to automatically receive software updates, free through your existing aerial (when issued). Sony recommends that this option is set to “On” at all times. If you do not want your software to be updated, set this option to “Off”.System Information: Displays the current software version and the signal level. Instead of step 2, press ←.2 Press ↑/↓ to select the “On”, then press OK.
CA Module Set-up	This option will allow you to access a Pay Per View service once you obtain a Conditional Access Module (CAM) and a view card. See page 39 for the location of the MODEM and (DCMCIA) sockets.

Using Optional Equipment

Connecting optional equipment

You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied.

Connecting to the TV (side)

To connect Do this

Headphones A	Connect to the ⬆ socket to listen to sound from the TV on headphones.
S VHS/Hi8/DVC camcorder B	Connect to the S video socket S→6 or the video socket 6 and the audio sockets 6To avoid picture noise, do not connect the camcorder to the video socket→6 and the S video socket S→6 at the same time. If you connect mono equipment, connect to the L/G/S/I socket 6and set “Dual Sound” to “A” (page 26).

To connect Do this

Conditional Access Module (CAM) C	To use Pay Per View services. For details, refer to the instruction manual supplied with your CAM. To use the CAM, press the eject button and remove the “dummy” card. Switch off the TV when inserting your CAM into the CAM slot. When you do not use the CAM, we recommend that the “dummy” card be inserted and kept in the CAM slot.
Modem connector D	Not supported on this TV.

Continued

Connecting to the TV (rear)

To connect Do this

DVD player with component output E	Connect to the component sockets and the audio sockets ≠The component signal containing 576p signal format and audio signal are input from the DVD player.
Digital satellite receiver or DVD player F	Connect to the HDMI IN 5 socket if the equipment has a HDMI socket. The digital video and audio signals are input from the digital satellite receiver. If the equipment has a DVI socket but not an HDMI socket, connect the DVI socket to the HDMI IN 5 socket through a DVI - HDMI adaptor interface (not supplied), and connect the equipment's audio out sockets to the audio in HDMI IN 5 sockets. The digital video and analogue audio signals are input from the equipment.
“PlayStation 2”, DVD player or decoder G	Connect to the scart socket ≠1. When you connect the decoder, the scrambled signal from the TV tuner is output to the decoder, then the unscrambled signal is output from the decoder. In this case, it will be properly unscrambled if you set “AV2 Output” to “TV Analog” (page 28).
DVD recorder or VCR that supports SmartLink H	Connect to the scart socket ≠2. SmartLink is a direct link between the TV and a VCR/DVD recorder. For more information on SmartLink, refer to the instruction manual supplied with your VCR or DVD recorder.
VCR For details, see page 11.
Hi-Fi audio equipment J	Connect to the audio output sockets to listen to the sound from the TV on Hi-Fi audio equipment. To turn off the sound of the TV speakers, set “Speaker” to “Off” (page 28).

Programming the remote

This remote is preset to operate Sony TVs, most Sony DVDs, VCRs and AUX systems (DAV, DTT Receiver, Home Theatre, etc.).

To control VCRs and DVDs of other manufactures (and some other Sony VCR, DVD and AUX models), do the following procedure to programme the remote.

Note

Before you start, look up the three-digit code for your brand of DVD, VCR or AUX system from the "Manufacturer's codes" on page 42.

1 To programme VCR or DVD:

Press and hold for about six seconds until the green VCR and DVD lights flash.

To programme Sony AUX systems:

Press and hold for about six seconds until the green AUX light flashes.

2 While the relevant lights are flashing, press the number buttons to enter all three-digits of the code for your brand of equipment (page 42).

The green light is lit momentarily.

3 Turn on your equipment and check that the following main functions work.

▶ ( playback), ■ (stop), ◀◀ (rewind), ▶▶ (fast forward), channel selection for both VCR and DVDs, MENU and ↑/↓/←/→ buttons only for DVDs.

Continued

If your equipment is not working, or some of the functions do not work

Enter the correct code or try the next code listed for the brand. However, not all brands are covered and not all models of every brand may be covered.

Tip

A small label is provided inside the battery door to allow you to record your brand codes.

Manufacturer's codes

Not all brands are covered and not all models of every brand may be covered.

VCR brand list

Brand	Code
SONY (VHS)	301, 302, 303, 308, 309, 362
SONY (BETA)	303, 307, 310
SONY (DV)	304, 305, 306
AIWA	325, 331, 351
AKAI	326, 329, 330
DAEWOO	342, 343
GRUNDIG	358, 355, 360, 361, 320, 351, 366
HITACHI	327, 333, 334
JVC	314, 315, 322, 344, 352, 353, 354, 348, 349
LG	332, 338
LOEWE	358, 355, 360, 361, 320, 351
MATSUI	356, 357
ORION	328
PANASONIC	321, 323
PHILIPS	311, 312, 313, 316, 317, 318, 358, 359, 363, 364
SAMSUNG	339, 340, 341, 345
SANYO	335, 336
SHARP	324
THOMSON	319, 350, 365
TOSHIBA	337

DVD brand list

Brand	Code
SONY	001, 029, 030, 036, 037, 038, 039, 040, 041, 042, 043, 044, 053, 054, 055
AIWA 021
AKAI 032

Brand	Code
DENON	018, 027, 020, 002
GRUNDIG	009, 028, 023, 024, 016, 003
HITACHI	025, 026, 015, 004, 035
JVC 006, 017
KENWOOD	008
LG 015, 014, 034
LOEWE	009, 028, 023, 024, 016, 003
MATSUI 013, 016
ONKYO	022, 033
PANASONIC	018, 027, 020, 002, 045, 046, 047
PHILIPS	009, 028, 023, 024, 016, 003, 031
PIONEER	004, 050, 051, 052
SAMSUNG	011, 014
SANYO	007
SHARP	019, 027
THOMSON	012
TOSHIBA	003, 048, 049
YAMAHA 018, 027, 020, 002

AUX Sony systems brand list

DVD Home Theatre System

Brand	Code
SONY (DAV)	500, 501, 502

Home Theatre System

Brand	Code
SONY	504, 505

AV receiver

Brand	Code
SONY	505, 506, 507, 508

Digital terrestrial receiver

Brand	Code
SONY	503

Additional Information

Specifications

Display Unit

Power Requirements:

220–240 V AC, 50 Hz

Screen Size:

40 inches

Approx. 101.5 cm measured diagonally

Display Resolution:

1,366 dots (horizontal) × 768 lines (vertical)

Power Consumption:

228 W

Standby Power Consumption:

0.5 W or less

Dimensions (w × h × d):

Approx. 1,114.0 × 729.0 × 360.0 mm (with stand)

Approx. 1,114.0 × 647.0 × 114.5 mm (without stand)

Mass:

Approx. 45.0 kg (with stand)

Approx. 29.5 kg (without stand)

Panel System

LCD (Liquid Crystal Display) Panel

TV System

Analogue: Depending on your country/region selection: B/G/H, D/K, L, I

Digital: DVB-T

Colour/Video System

Analogue: PAL, SECAM

NTSC 3.58, 4.43 (only Video In)

Digital: MPEG-2 MP@ML

Aerial

75 ohm external terminal for VHF/UHF

Channel Coverage

Analogue: VHF: E2–E12

UHF: E21–E69

CATV: S1–S20

HYPER: S21–S41

D/K: R1–R12, R21–R69

L: F2–F10, B–Q, F21–F69

I: UHF B21-B69

Digital: VHF/UHF

Terminals

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input, and TV audio/video output.

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input, selectable audio/video output, and SmartLink interface.

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input, and audio/video output which currently appears on the screen.

Supported formats: 1080i, 720p, 576p, 576i, 480p, 480i

Y: 1 Vp-p, 75 ohms, 0.3V negative sync

P_B / C_B : 0.7 Vp-p, 75 ohms

Pr / Cr : 0.7 Vp-p, 75 ohms

Audio input (phono jacks)

500 mVrms

Impedance: 47 kilo ohms

HDMI IN 5

Video: 1080i, 720p, 576p, 576i, 480p, 480i

Audio: Two channel linear PCM

32, 44.1 and 48 kHz, 16, 20 and 24 bits, or analogue audio input (phono jacks)

Audio output (Left/Right) (phono jacks)

Headphones jack

CAM (Conditional Access Module) slot

MODEM

Modem jack (not supported on this TV)

Sound Output

25 W + 25 W + 50 W (Sub-woofer)

Supplied Accessories

• Remote RM-ED001 (1)
  • Size AA batteries (R6 type) (2)
• Coaxial cable (1)
  • Mains lead (Type C-6) (1)
  • Bundling band (1) and screw (1)

Optional Accessories

• Wall-Mount Bracket SU-PW3M
• TV stand SU-PF3M

Design and specifications are subject to change without notice.

Troubleshooting

Check whether the ⏻ (standby) indicator is flashing in red.

When it is flashing

The self-diagnosis function is activated.

1 Count how many ⏻ (standby) indicator flashes between each two second break.
For example, the indicator flashes three times, then there is a two second break, followed by another three flashes, etc.
2 Press ⏻ on the TV (right side) to switch it off, disconnect the mains lead, and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When it is not flashing

1 Check the items in the tables below.

2 If the problem still persists, have your TV serviced by qualified service personnel.


Problem Cause/Remedy
No picture (screen is dark) and no sound	·Check the aerial connection.·Connect the TV to the mains, and press ⏻ on the TV (right side).·If the ⏻ (standby) indicator lights up in red, press TV I/ ⏻.
No picture or no menu information from equipment connected to the scart connector	·Check that the optional equipment is on and press / repeatedly until the correct input symbol is displayed on the screen.·Check the connection between the optional equipment and the TV.
Distorted picture	·Check if any connected optional equipment is installed in front of the TV or beside the TV. When installing optional equipment, leave some space between the optional equipment and the TV.·When changing programmes or selecting Text, turn off any equipment connected to the scart connector on the rear of the TV.
Double images or ghosting	·Check aerial/cable connections.·Check the aerial location and direction.
Only snow and noise appear on the screen	·Check if the aerial is broken or bent.·Check if the aerial has reached the end of its serviceable life (three to five years in normal use, one to two years at the seaside).
Picture (dotted lines or stripes) noise	·Keep the TV away from electrical noise sources such as cars, motorcycles, or hair-dryers.·Make sure that the aerial is connected using the supplied coaxial cable.·Keep the aerial cable away from other connecting cables.·Do not use a 300-ohm twin lead cable as interference may occur.
Picture noise when viewing a TV channel	Select “Manual Programme Preset” in the “Set Up” menu and adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception (page 34).Select “Noise Reduction” in the “Picture Adjustment” menu to reduce the noise in the picture (page 24).
Stripe noise during playback/ recording of a VCR	Video head interference. Keep your VCR away from the TV.Leave a space of 30 cm between your VCR and the TV to avoid noise.Avoid installing your VCR in front of the TV or beside the TV.
Some tiny black points and/or bright points on the screen	The picture of a display unit is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.
No colour on programmes	Select “Reset” in the “Picture Adjustment” menu to return to the factory settings (page 24).
No colour or irregular colour when viewing a signal from the Y, PB/CB , PR/CR jacks of - - 4	Check the connection of the Y, PB/CB , PR/CR jacks of - - 4 .Make sure that the Y, PB/CB , PR/CR jacks of - - 4 are firmly seated in their respective sockets.

Sound

Problem Cause/Remedy
No sound, but good picture	Press +/- or 呎 (Mute).Check that “Speaker” is set to “On” in the “Features” menu (page 28).
Noisy sound	See the “Picture (dotted lines or stripes) noise” causes/remedies on page 44.
Audio distortion	See “Audio Filter” on page 35.

Channels

Problem Cause/Remedy
The desired channel cannot be selected	Switch between digital and analogue mode and select the desired digital/ analogue channel.
Some channels are blank	Scrambled/Subscription only channel. Subscribe to the Pay Per View service.Channel is used only for data (no picture or sound).Contact the broadcaster for transmission details.
Digital channel is not displayed	Check that the aerial is plugged directly into the TV (not through other equipment).Contact a local installer to find out if digital transmissions are provided in your area.Upgrade to a higher gain aerial.

Continued

General

Problem Cause/Remedy
The TV turns off automatically (the TV enters standby mode)	Check if the Sleep Timer function is activated (page 30).Check if the Auto Shutoff is activated (page 30).If no signal is received or no operation is performed in the TV mode for 10 minutes, the TV automatically switches to standby mode.
Some input sources cannot be selected	Select “AV Preset” in the “Set Up” menu and cancel “Skip” of the input source (page 33).
The remote does not function	Check that the remote is set correctly for the equipment you are using.If the remote does not operate the equipment even when the remote has been set correctly to the equipment, enter the necessary code set as explained in “Programming the remote” (page 41).Replace the batteries.
Wrong characters appear when viewing the menu/Text/NexTView	Select “Language” and “Country” in the “Set Up” menu and set the language and country/region in which Text/NexTView is provided (page 31). For Cyrillic languages, we recommended that you select Russia if your own country/region does not appear in the list.
The ⏻ (standby) indicator flashes	Digital programme is set for “Timer REC”. For details, see “Checking the Digital Electronic Programme Guide (EPG)” on page 18.

Index

Numerics

0-9 buttons 8

14:9 17

4:3 17

A

Accessories supplied 10

Aerial, connecting 11

AFT 34

ANALOG button 8

ATT 35

Audio Filter 35

Audio Language 37

Audio Type 37

Auto Format 27

Auto Shutoff 30

Auto Start Up 31

Auto Tuning analogue and digital channels 14 analogue channels only 32 digital channel only 36

Auto Volume 25

AUX/VIDEO I/ button 8

AV Preset 33

AV2 Output 28

B

Backlight 23

Balance 25

Bass 25

Batteries, inserting into the remote 10

BBE 25

Brightness 23

C

CA Module Set-up 38

Category list 18

Channels

auto-tuning 14

selecting 15

Skip 35

Colour 23

Colour Tone 23

Coloured buttons 8

Connecting

an aerial/VCR 11

optional equipment 39

Contrast 23

Country 31

D

Decoder 35

Digital Auto Tuning 36

DIGITAL button 8

Digital Manual Tuning 37

Digital Set Up 36

Digital Set-up 37

Digital Tuning 36

Dolby Virtual 25

Dual Sound 26

Dynamic Picture 24

E

Edit 33

Effect (sound effect) 25

EPG (Digital Electronic Programme

Guide) 18

Equipment labels 33

F

Fastext 16

Favourite list 20

Features menu 28

G

Gamma Correction 24

H

Headphones

connecting 39

Dual Sound 26

Volume 26

Hue 23

|

Info ( ) button 8

Input select (-) button 8, 9

Input signal index table 21

L

Label 34

Language 31

Logo Illumination 29

M

Manual Programme Preset 33

Manual timer REC 19

Media selector 8

MENU button 8, 9

Mode (Picture mode) 23

Mute (☐) button 8

N

NexTView 16

Noise Reduction 24

Number buttons 8

0

OK button 8, 9

P

Parental Lock 37

Picture Adjustment menu 23

Picture mode ( ) button 8

Picture Off 29

Picture Off ( Indicator 9

PIN Code 38

Power (I) indicator 9

Power (⏻) switch 9

Power Saving 28

Previous channel ( ) button 8

PROG +/- buttons 8, 9

Programme index table 16

Programme Labels 32

Programme List Edit 36

Programme Sorting 32

R

Reminder 19

Remote control

inserting batteries 10

overview 8

programming 41

sensor 9

Reset

picture adjustment 24

sound adjustment 26

s

Screen Control menu 27

Screen Format 27

Screen mode 17

Screen mode (按钮 8

Screen Shift 27

Set Up menu 31

Sharpness 23

Skip 33, 35

Sleep Timer 30

Smart 17

Sound Adjustment menu 25

Sound effect (♪) button 8

Speaker 28

Specifications 43

Standby (⏻) indicator 9

Subtitle Language 37

Subtitle Setting 37

T

Technical Set-up 38

Text 16

Text (☐) button 8

Text hold ( ) button 8

Text reveal ( )button 8

Timer ( indicator 9

Timer list 19

Timer menu 30

Timer REC 18

Treble 25

TV standby (TV I/⏻) button 8

V

VCR

connecting 11

programming 41

recording 18

VCR double digit (-/-) button 8

Volume (△) +/- buttons 8, 9

W

Wide 17

Woofer Level 26

Z

Zoom 17

ACHTUNG Einführung

Illustration of two people pulling a large computer monitor (no text or symbols visible)

Illustration of a hand holding a plug above a TV, with an open circuit board below (no text or symbols)

Line drawing of a person in bed at night with a computer monitor displaying a soccer ball (no text or symbols)

Transport

Cross-sectional diagram of a mechanical or architectural component with hatched shading (no text or symbols)

Lüftungsöffnungen

Illustration of a person lighting a candle on a computer monitor (no text or symbols)

Line drawing of a small boat with a computer monitor on its side, sailing on water (no text or symbols)

Nutzung im Freien

Illustration of a person watching a soccer TV under a sun (no text or symbols)

Verkabelung

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or numbers present)

Line drawing of a cable with a power plug and connector (no text or symbols)

Hinweise

Technical diagram showing cable installation with a bracket and connector (no text or symbols)

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Front view line drawing of a classic 19th-century PGA Tour car (no text or symbols)

Front view of a classic 19th-century sports car (no visible text or symbols)

Front view of a classic 19th-century sports car with large headlights and front grille (no visible text or symbols)

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Abmessungen (B × H × T):

Aigus/Graves/Balance 25

Volume auto. 25

Son stéréo 26

Niveau woofer 26

Two people pulling a large computer monitor with motion lines indicating speed (no text or symbols)

Illustration of a computer monitor connected to a cable with a cartoon illustration above (no text or symbols)

- Support mural SU-PW3M, - Meuble SU-PF3M.

Illustration of a person in bed with a computer monitor displaying a soccer ball (no text or symbols)

Transport

Cross-sectional diagram of a mechanical or architectural component with hatched shading (no text or symbols)

Orifices d'aération

Illustration of a hand pouring liquid into a candle on a computer monitor (no text or symbols)

Line drawing of a boat with a person standing on the water (no text or symbols)

Illustration of a person watching a soccer ball on a computer under the sun (no text or symbols)

Suite

Câblage

Symbol of a trash bin crossed with no text or labels

① ⏻ - Marche/Arrêt

Piles AA (type R6) (2)

Câble coaxial (1)

Line drawing of a cable with a power plug and connector (no text or symbols)

Diagram of a cylindrical object with a triangular cutout and a small inset arrow, no text or symbols present.

Diagram of a battery pack with two stacked batteries and an arrow indicating downward motion (no text or symbols)

Remarques

Technical diagram of cable installation with a clamp and connector (no text or symbols)

Diagram of a computer monitor with an attached cable or connector (no text or symbols present)

support de fixation mural (non fourni)

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Front view of a classic 19th-century PGA Tour car (no visible text or symbols)

Front view of a classic 19th-century sports car (no visible text or symbols)

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Aigus/Graves/Balance

• Support mural SU-PW3M
• Meuble TV SU-PF3M

Configuration technique 39

Contraste 23

Correction Gamma 24

Couleurs 23

D

Décodeur 35

EPG (Digital Electronic Programme

Agudos/Graves/Balance....25

Auto Volumen....25

Sonido Dual....26

Nivel salida SWFer 26

Two people pulling a large rectangular object with motion lines, no text or symbols visible

Illustration of a person in bed watching a TV screen, no text or symbols present

Transporte

Cross-sectional diagram of a mechanical or architectural component with hatched shading, no visible text or symbols

Illustration of a candle on a monitor with a hand pouring water from a bottle (no text or symbols)

Line drawing of a small boat with a computer monitor on its side, sailing on water (no text or symbols)

Uso en exteriores

Illustration of a person standing beside a computer displaying a soccer ball under a sun (no text or symbols)

Continúa

Cableado

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

① ⏻ - Alimentación

Line drawing of a cable with a power plug and connector (no text or symbols)

Notas

Technical diagram showing cable installation with a connector and cable routing (no text or symbols)

Diagram of a computer monitor with a cable inserted into a vertical line (no text or symbols)

1 Conecte el televisor a la toma de corriente (ca de 220 a 240 V, 50 Hz).

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Front view of a classic 19th-century PGA Tour car (no visible text or symbols)

Front view of a classic 19th-century sports car (no visible text or symbols)

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Agudos/Graves/Balance
