USER MANUAL C Series C308ASWi KLIPSCH

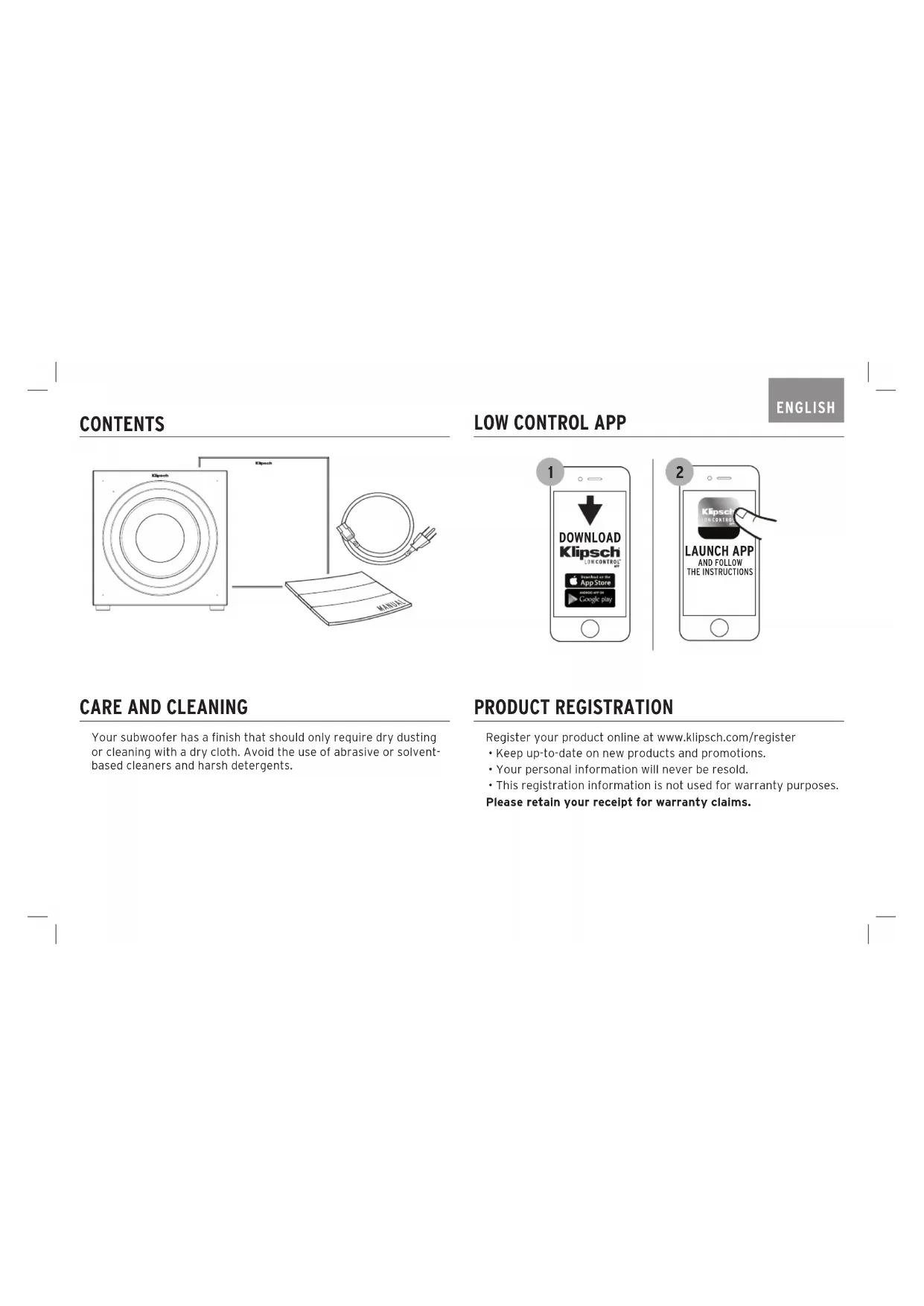

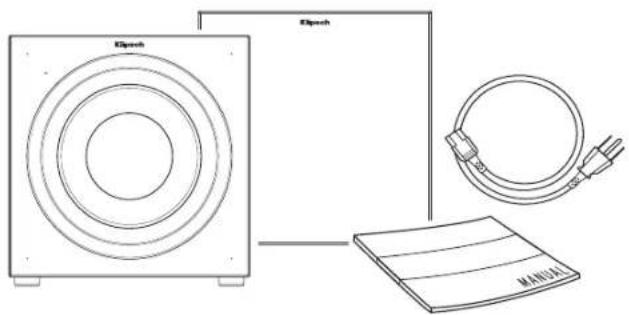

C-SERIESCONTENTS ENGLISH Your subwoofer has a finish that should only require dry dusting or cleaning with a dry cloth. Avoid the use of abrasive or solvent-based cleaners and harsh detergents.

Register your product online at www.klipsch.com/register• Keep up-to-date on new products and promotions.• Your personal information will never be resold.• This registration information is not used for warranty purposes. Please retain your receipt for warranty claims. PRODUCT REGISTRATION

2 - Line Level Volume Control

Controls Volume RCA and XLR input

3 - Hi-Level Volume Control

Controls Volume of High Level Input

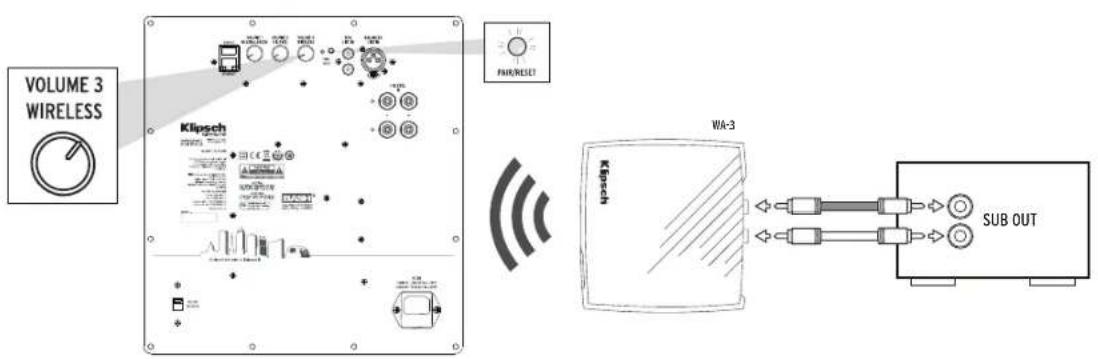

4 - Wireless Volume Control

Controls Volume of Wireless Input*

5 - PAIR / RESET Button

For Pairing to WA-3 Wireless Transmitter*

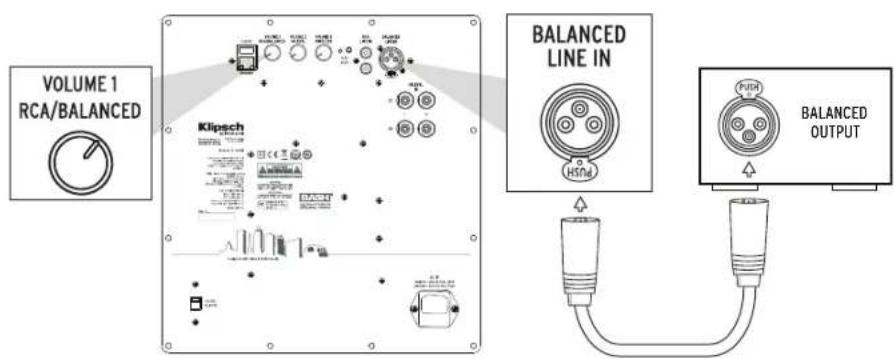

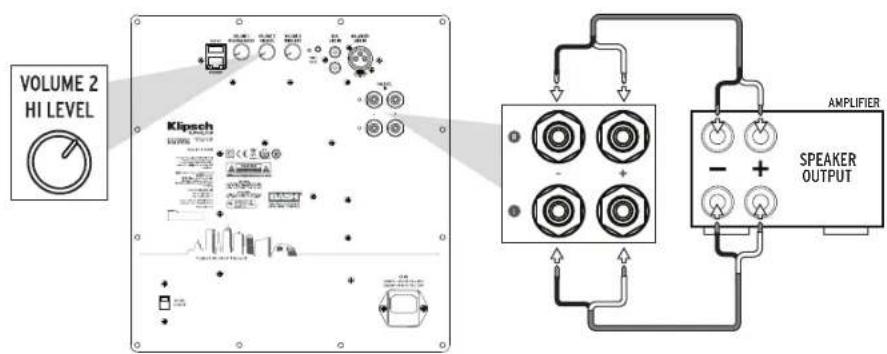

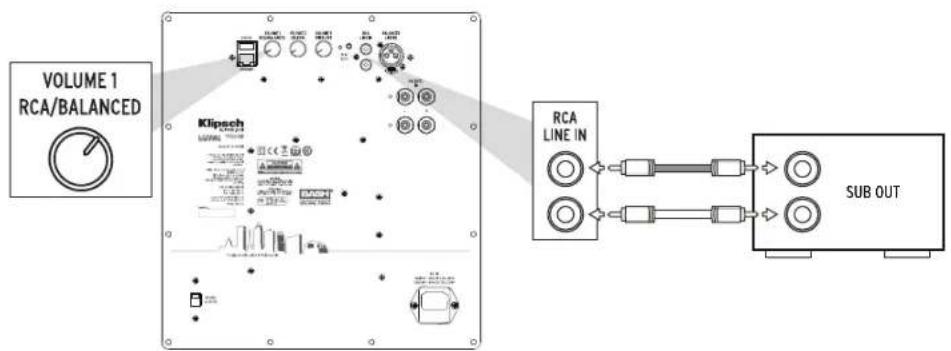

6 - RCA Unbalanced Line Input 7 - XLR Balanced Line Input 8 - Hi-Level (Speaker Level) Input

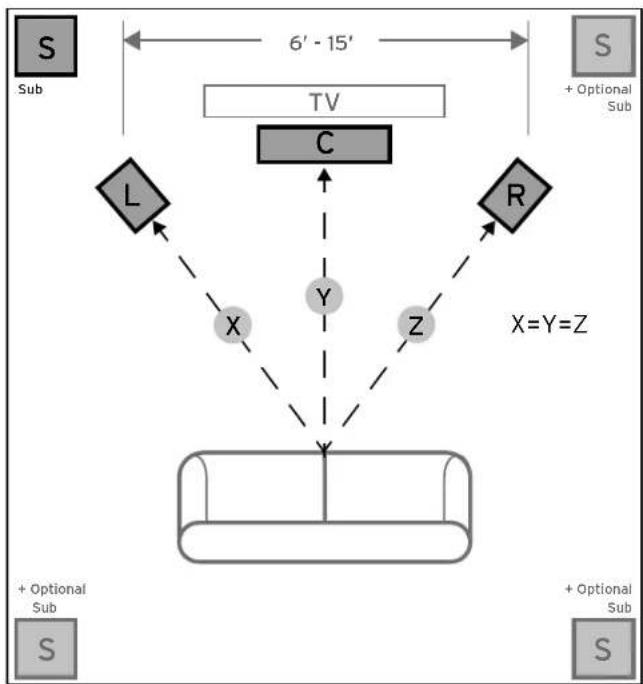

powered subwoofers are designed to reproduce deep bass and deliver the impact that makes your movies and music come alive. Typically, optimum performance will result if you place your subwoofer in a corner of the room on the same wall as your front channel speakers (Refer to Figure 1). Please note that room placement can have a dramatic effect upon the performance of your powered subwoofer. Corner placement, as suggested above, will increase the amount of bass output, while placing the subwoofer along the middle of a wall, or out in the room will decrease the amount of bass output. Experiment with a number of different placement options and control settings to find the one that best suits your particular room and taste. When choosing your subwoofer’s location, keep in mind that you will need to connect the subwoofer’s built-in amplifier to an AC power outlet.

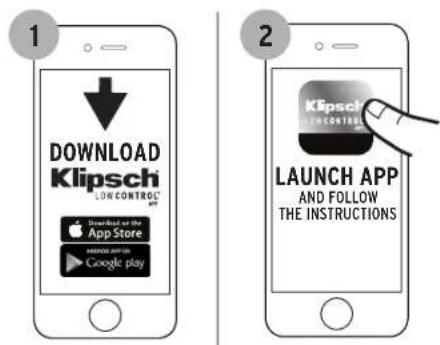

3. Follow the instructions

AUTOMATIC ROOM CORRECT

Control drivers are available at klipsch.com/cseries
