USER MANUAL HMG440 EX HOOVER

MANUEL D INSTRUCTIONS

FR

Microwave Oven

INSTRUCTION MANUAL

MODEL: HMG440EX

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

By placing the CE marking on this product, we declare, on our own responsibility, Compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	HMG440EX
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1650W
Rated Output Power(Microwave):	900W
Rated Input Power(Grill):	1750W
Oven Capacity:	44L
Turntable Diameter:	360mm
External Dimensions:	595×481×454nm
Net Weight:	Approx. kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

GB

1. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
2. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
5. Accessible parts may become hot during use. Young children should be kept away.
6. Steam cleaner is not to be used.
   29 During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
7. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
8. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
9. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)
10. Surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the interna components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

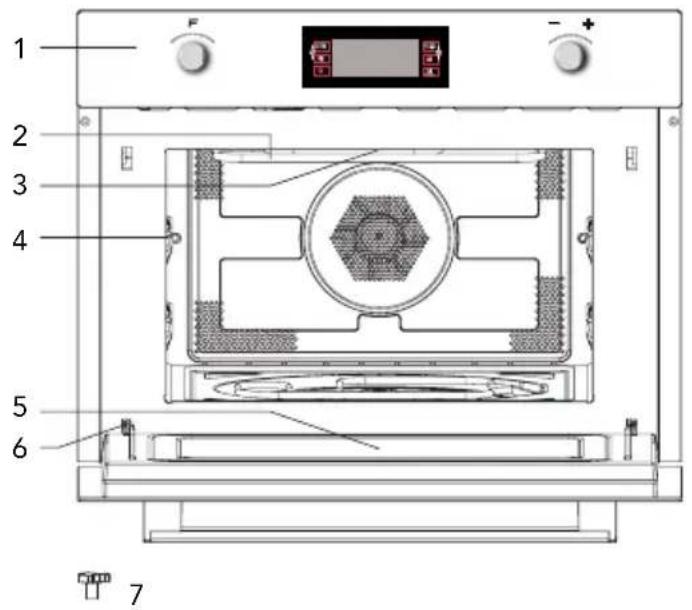

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity

Your oven comes with the following accessories:

Enamel Tray 1

Turntable ring assembly 1

Instruction Manual 1

1 2 3 4 5 6 7

Three different types of outdoor heating fans or grates, shown in separate views with numerical labels (8, 9, 10) on each panel.

1. Control panel
2. Grill element
3. Light
4. Level
5. Door glass
6. Hinge

7. Turntable shaft

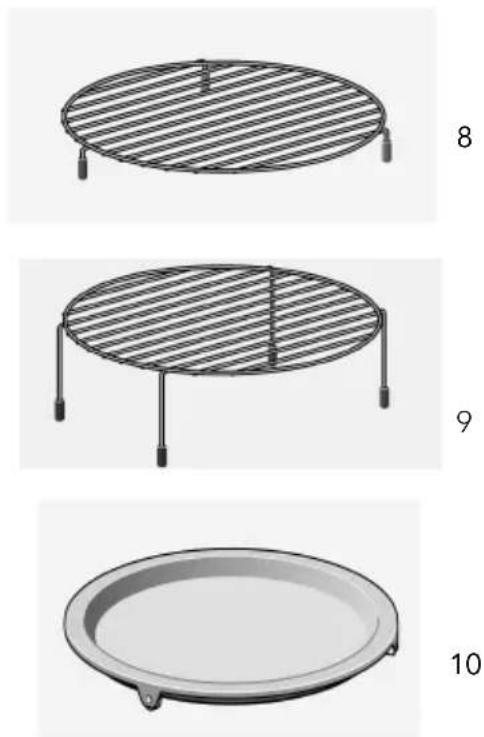

8. Short Grill Rack

9. Long Grill Rack
   10.Grill Pan

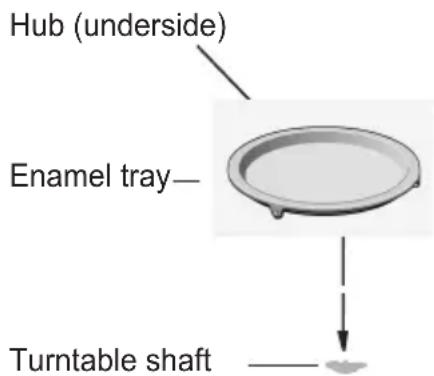

Turntable Installation

Hub (underside) Enamel tray— Turntable shaft

a. Never place the enamel tray upside down. The enamel tray should never be restricted.
b. The enamal tray must always be used during cooking.
c. All food and containers of food are always placed on the enamel tray for cooking.
d. If enamel tray cracks obreaks, contact your nearest authorized service center.

Important information about installing

• This appliance is NOT intended for use in a commercial environment.
- Please observe the installation instructions provided and note that this appliance should only be installed by a qualified technician.
- The appliance is tted with a plug and must only be connected to a properly installed earthed socket.
- In case a new socket is needed, installation and cable connection must only be done by a qualified electrician. If the plug is no longer accessible following installation, a pole disconnecting device must be present on the installation site with a contact gap of at least 3 mm.
- Adapters, multiway strips and extension cords must not be used. Overloading can result in fire.

The accessible surface may be hot during operation.

Placement

- Danger! Do not disassemble this appliance. Touching internal components of this appliance can cause serious personal injury or death.

- Place the microwave oven on a firm, flat surface. Make sure that there is sufficient ventilation around the microwave oven. At the rear • and sides keep at least 10 cm free.

Do not cover the air vents.

The adjustable feet should not be removed.

Do not place the microwave oven near a heat source.

- Transmitting and receiving equipment such as radios and televisions can affect the operation of the microwave oven.

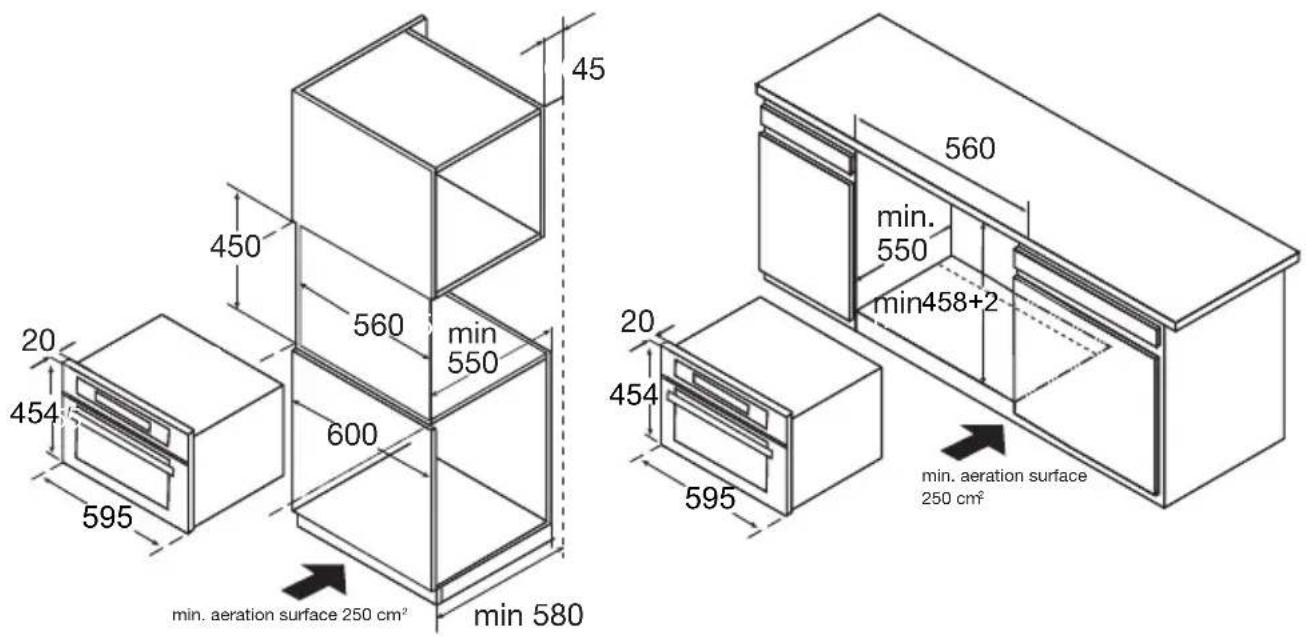

Installation dimensions

45 450 min 550 560 20 454 600 595 min 580 560 min. 550 min458+2 20 454 595 min. aeration surface 250 cm² min. aeration surface 250 cm²

Note: There should be gap above the oven.

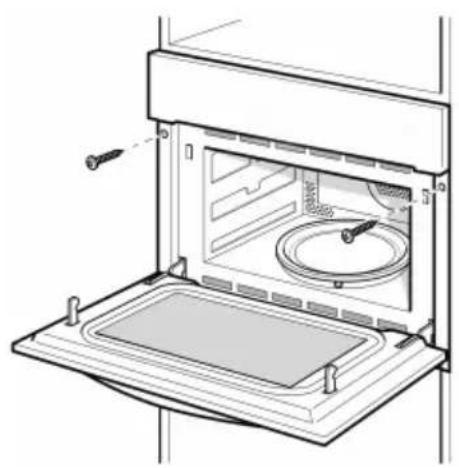

Building in

- Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appliance and may break off.

1. Carefully push the microwave into the box, making sure that it is in the centre.
2. Open the door and fasten the microwave with the screws that were supplied.

Line drawing of an open microwave oven with a dish inside, showing internal components and a handle (no text or symbols)

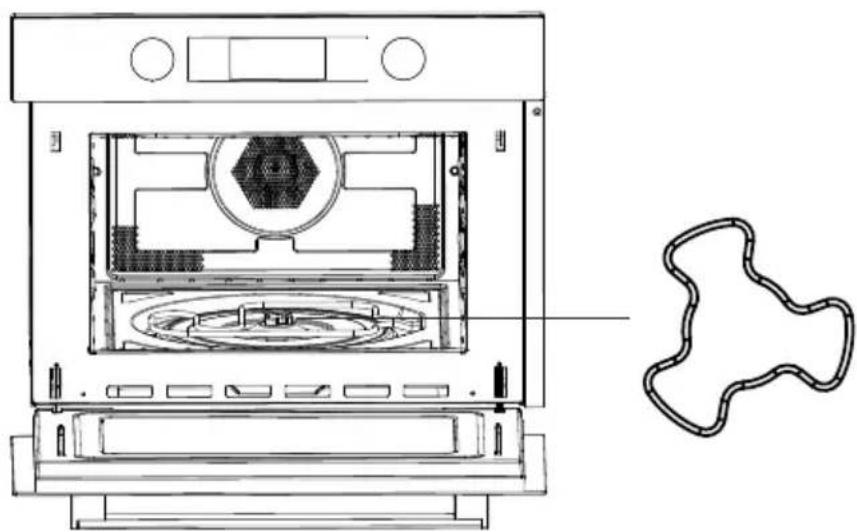

INSTALL THE TRAY

1. Check the position of the shaft.

Technical line drawing of an oven with internal components and a schematic outline (no text or symbols)

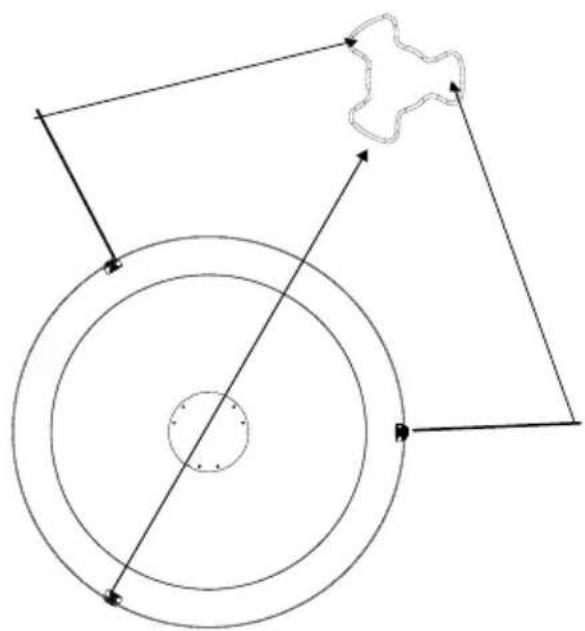

1. Adjust the angle of the tray, the tray roller should point to one of the shaft arm.

Pure geometric diagram with concentric circles and arrows, no text or symbols present

1. Put the tray on the shaft and adjust slightly .

OPERATION

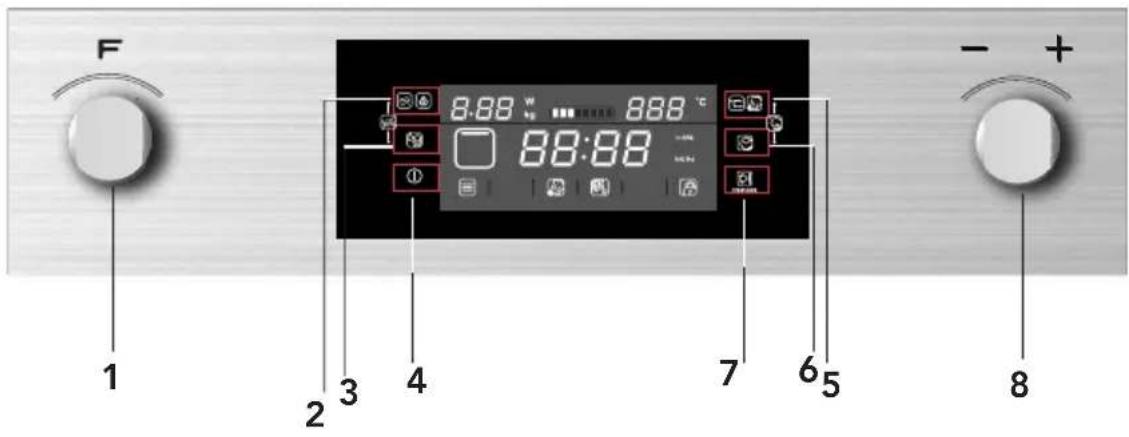

Control Panel and Features

F 1 2 3 4 8:88 W 888 °C 88:88 7 6 5 8 - +

1) Function knob
2) Power/Weight button
3) Children lock button
4) On/Off Button
5) Temperature/automenu button
6) Clock button
7) Start/Pause button
8) Selection knob

GB

You can see from the table below from which power levels you can choose and for which foods the power levels are suitable.

Power level Food
900 W - Boiling water, reheating- Cooking chicken,fish, vegetables
700 W - Reheating- Cooking mushrooms, shell fish- Cooking dishes containing eggs and cheese
450 W - Cooking rice, soup
300 W - Defrosting- Melting chocolate and butter
100 W - Defrosting sensitive/delicate foods- Defrosting irregularly-shaped foods- Softening ice cream- Allowing dough to rise

Functions

Function Mode
	Microwave Microw	icrowave		Use the microwave function to cook andreheat vegetables,potatoes, rice, fish andmeat.
	Grill		Grill	GrillThe grill is very suitableto prepare thin pieces ofmeat and fish.
+	Combination		Grill	Microwave + GrillUse this function to cookmeals quickly and at thesame time give the meala brown crust (also augratin). The microwaveand the grill are activatedat the same time. Themicrowave is cooking andthe grill is roasting.
	Auto-programs		P01 - P08	Automatic cookingprograms
	Defrost d01 + d02 Defrost

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, "00:00" will blink, buzzer will ring once.

1) Turn knob to set the right time(between 00:00 and 23:59.)

2) After you have set the right time, press " √". The clock has been set.

Note: 1) If you want to change the time, you have to press and hold the " √ " button for 3 seconds. The actual time disappears and then the time will blink in the display.

Turn knob to set the new time and press the " √ " button to confirm the setting.

2) If you do not want to see the clock in the display, press " √ " button briefly. The time disappears. Press " √ " again, and the clock appears in the display again.

2. Microwave Cooking

1) Press the " ① " button to activate the microwave function. "01:00" is blinking in the display and the microwave icon appears. If no operation in 10 seconds, the current power will be confirmed automatically.

2) Turn knob to set the cooking time.

The max. cooking time depends on the power that has been set. When the power is 900W, the MAX. time is 30 minutes and other powers are 90 minutes.

3) Press "☐ ☐" button to adjust the power microwave power.

4) Turn knob to set the microwave power (between 100W to 900W)

5) Press " ▶" button to start cooking.

6) To stop the cooking before the end of time press. To restart again the cooking, press in. To stop definitely the cooking before the end of time press.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Display

900W

700W

450W

300W

100W

GB

3. Grill Cooking

1) Press " " button to activate the microwave function.

2) Turn " F " to select the cooking mode. " □ " indicator lights.

3) Turn " " to adjust grill power level 3 (7mins to 160^ C ), level 2 (10 mins to 160^ C ) or level 1 (20 mins to 160^ C ). The default grill power is the third oevel.

4) Press " ☑ to select the time setting mode. The default time is 10 minutes.

5) Turn " - + " to select the cooking time of grill. The MAX.time is 90 minutes.

6) Press " START/END " button to start cooking. " indicator will light when grill function.

7) To stop the cooking before the end of time press. To restart again the cooking, press START/END again. To stop definitely the cooking before the end of time press.

- If grill power level have been set, press "C" to enter grill power level adjust mode, and then turn "to adjust grill power level.

- If cooking time have been set, press " √" to enter cooking time adjust mode, and then turn " - + " to adjust cooking time.

1. Microwave + Grill Cooking.

1) Press " " button to activate the microwave function.

2) Turn " F " to select the combination mode." " and " " will light.

3) Turn " ^- + " to adjust grill power level 3 (7 mins to 160°C), level 2 (10 mins to 160°C) or level 1 (20 mins to 160°C). The default grill power is the third oevel.

4) Press " [icon] " to select the power. The default power is 300W

5) Turn " - + " to select 700W,450W,300W and 100W.

6) Press" " to select the time setting mode. The default time is 10 minutes.

7) Turn " - + " to select the cooking time. The MAX.time is 90 minutes.

8) Press " START/END " button to start cooking. " indicator will light when grill function.

9) To stop the cooking before the end of time press. To restart again the cooking, press START/END again. To stop definitely the cooking before the end of time press.

- If grid power level have been set, press "C" to enter grill power level adjust mode, and then turn "to adjust grill power level

- If microwave power have been set, press "💡️" button to enter microwave power level to adjust mode, and then turn " − + " to adjust microwave power level

- If cooking time have been set, press " √" to enter cooking time adjust mode, and then turn " - + " to adjust cooking time

5. Auto Cook

There are 10 automatic cooking programs. You only have to choose the program and set the weight. The power, the time and the temperature are already set.

1) Press " " button to activate the microwave function.

2) Turn " F " to select the cooking mode. " or " will light when defrost or auto menu selected.

Time, weight, the first number of the automatic programs are shown in the display.

3) Turn " to select auto menu. " d01", "d02" or "P01", "P02" ..wP08'splay.

4) Press " ≡️ " button.

5) Turn " ^- ^+ " to select weight of the menu.

6) Press " START/END " button to start cooking.

Program	Category	Item
d01 (defrost)	Meat, poultry and fish	If you hear a beep, the combi microwave oven stops. Turn the food and press the start/pause button to continue the defrosting program.
d02 (defrost)	Bread, cake and fruit

The menu chart:

Menu	Weight	Display
P01 Pizza	1 slice about 85g	1
	2 170( )slice about g	2
	3 ( )slice about 5g	3
P02 Meat	200 g	0.20
	300 g	0.30
	400 g	0.40
	500 g	0.50
P03 Vegetable	200 g	0.20
	300 g	0.30
	400 g	0.40
	500 g	0.50
P04 Pasta	50g(with 450 ml cold water)	0.05
	100g(with 800 ml cold water)	0.10
	150g(with 800 ml cold water)	0.15
P05 Potato	1 (230g)	1
	2 (460g)	2
	3 (690g)	3
P06 Fish	200 g	0.20
	300 g	0.30
	400 g	0.40
	500 g	0.50
P07 Beverage	1cup(about 120ml)	1
	2cups(about 240ml)	2
	3cups(about 360ml)	3
P08 Popcorn	100 g	0.10

Note: Popcorn should be placed on tha high rack (the height is 60mm)

1. Lock-out Function for Children

" for 3 seconds, there will be a long "beep"Lock: In waiting state, p denoting entering into the children-lock state and " indicator will light.

Unlock: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released, and " indicator will disappear.

1. Control oven lamp and turntable tray

During the microwave, grill and combination cooking, you can switch the oven lamp by pressing "C" and "√" at the same time;

Switch the turntable tray working condition by pressing " " and " " at the same time;

Cooking mode	Default mode	Switch mode
Microwave	Turntable tray rotating/oven lamp on	Turntable tray not rotating/oven lamp off
grill	Turntable tray rotating/oven lamp on	Turntable tray not rotating/oven lamp off
combination	Turntable tray rotating/oven lamp on	Turntable tray not rotating/oven lamp off

1. Display Specification

(1) When setting, if no other operation, it will confirm automatically after 10 seconds. Except clock setting for the first time.

(2) During setting program, after adjusted for 3 seconds, it will confirm after 3 seconds.

(3) The oven lamp will light all the time if the door is open.

(4) When the oven is in setting state or pause state, including auto menu and defrost program, if no operation in 5 minutes, it will enter into the off state.

(5)To stop the cooking before the end of time press. To restart again the cooking, press START/END in. To stop definitely the cooking before the end of time press①.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Four à micro-ondes

MANUEL D'INSTRUCTIONS

MODELE: HMG440EX

Simple line drawing of a circular metal grate with diagonal slats and a central vertical rod (no text or symbols)

8

Simple line drawing of a circular metal grate with four legs and a central pan, no text or symbols present.

9

Simple 3D rendering of a circular mechanical component with three side legs (no text or symbols)

10

Simple diagram showing a circular object with a downward arrow and a small arrow below, no text or symbols present.

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

FR

Encastrement

Technical line drawing of an oven with internal compartments and a separate outline of a mechanical part (no text or symbols)

Pure geometric diagram with concentric circles and arrows, no text or symbols present
