KT 4100 - Kettle Orbegozo - Free user manual and instructions

Product type	Electric kettle
Brand	Orbegozo
Model	KT 4100
Maximum capacity	1 L
Body material	Stainless steel
Base material	Stainless steel
Power	1000 W
Voltage	220-240 V ~ 50/60 Hz
Automatic shut-off	Yes, when water boils
Dry boil protection	Yes
Power indicator light	Yes
Water level indicators	Visible MIN and MAX markings
Lid opening	Manual, by button or lever
Switch type	Push button with automatic shut-off
Estimated dimensions (L x W x H)	22 x 15 x 20 cm
Estimated weight	0.8 kg
Cleaning and maintenance	Clean with a damp cloth, do not immerse. Descale regularly with a citric acid-based agent.
Safety instructions	Do not open the lid while boiling. Do not touch hot surfaces. Unplug before cleaning.
Intended use	Household only (heat water)
Included accessories	Power base

Frequently Asked Questions - KT 4100 Orbegozo

How to clean my Orbegozo KT 4100 kettle?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth and mild soap. Never immerse the kettle, base, or cord in water. For the interior, rinse with clean water and wipe dry.

How to descale my kettle?

Use a commercial descaling agent based on citric acid (not vinegar). Fill the kettle to the MAX level with water and the recommended dose of descaler. Boil, then let it sit for 15 minutes. Rinse thoroughly several times with clean water.

What is the maximum capacity of the kettle?

The maximum capacity is 1 liter. Never exceed the MAX level indicated inside to avoid boiling water splashes.

Can I heat liquids other than water?

No, this kettle is designed only for heating water. Other liquids or foods may damage the appliance and void the warranty.

What to do if the kettle does not turn on?

Check that the kettle is properly plugged in and the switch is pressed. Ensure the water level is between MIN and MAX. If the problem persists, contact technical support.

Why does the kettle turn off before water boils?

This may be due to lack of water (dry boil protection) or excessive scale buildup. Descale the kettle regularly. If the problem persists, the appliance may be defective.

How to safely open the lid after boiling?

Wait for the water to cool or handle carefully. Open the lid by lifting it slowly to avoid steam burns. Use the handle, never the lid to lift the kettle.

Can I use the kettle on an induction cooktop?

No, this kettle is electric with its own power base. It is not designed for use on a cooktop.

What is the power of the kettle?

The power is 1000 W at a voltage of 220-240 V ~ 50/60 Hz.

How to store the power cord?

The kettle base allows you to wrap excess cord underneath. Ensure the cord is not bent or twisted to avoid damage.

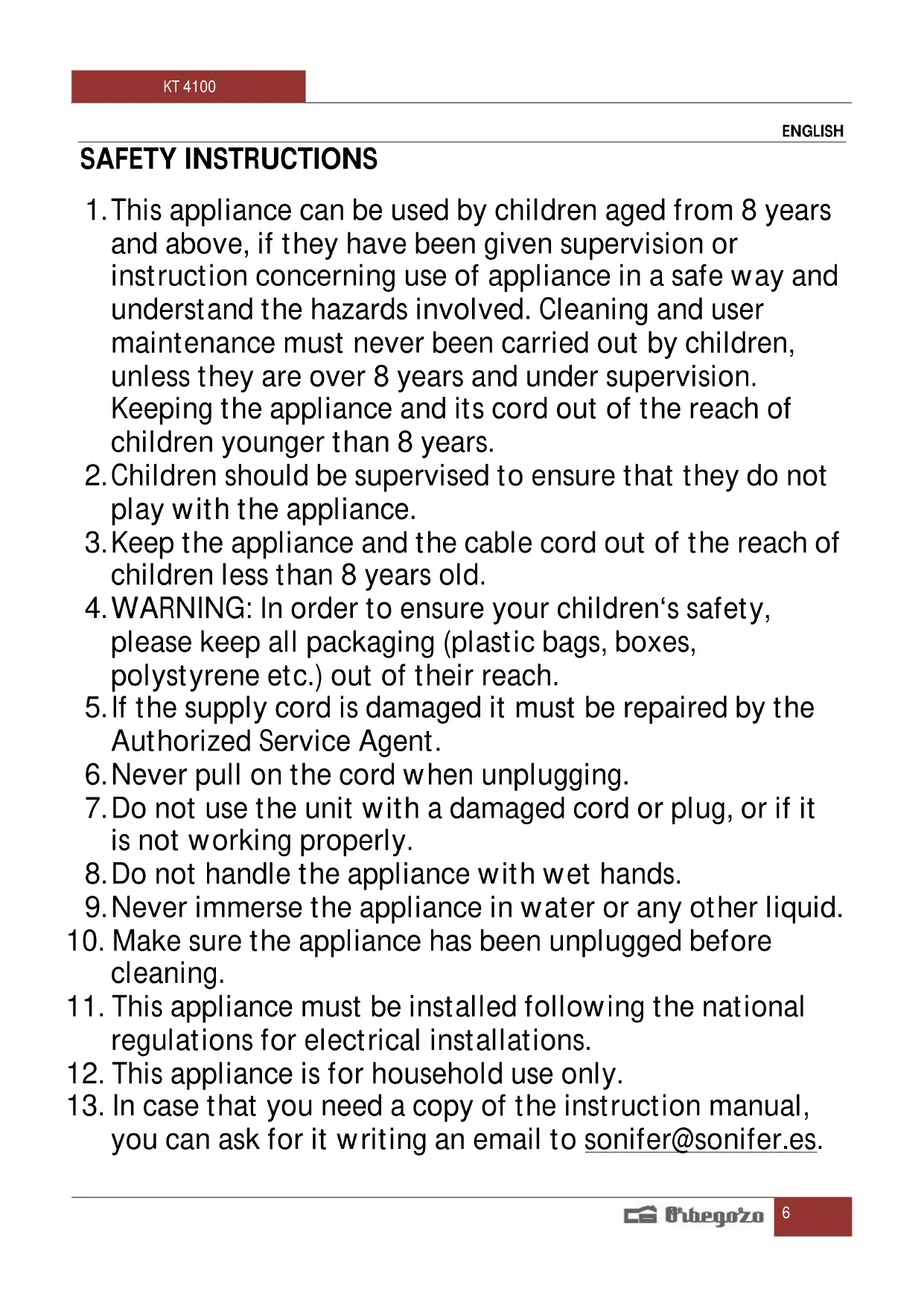

USER MANUAL KT 4100 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above, if they have been given supervision or instruction concerning use of appliance in a safe way and understand the hazards involved. Cleaning and user maintenance must never been carried out by children, unless they are over 8 years and under supervision. Keeping the appliance and its cord out of the reach of children younger than 8 years.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

14. WARNING: In case of misuse, there is a risk of possible injury.

15. CAUTION: The surface can remain hot during or after use.

16. If the unit is overfilled, boiling water may be projected.
17. CAUTION: Make sure the kettle is switched off before you move it.
18. Do not operate or place any part of this appliance on or near hot surfaces (such as gas or electric burner or in a heated oven).
19. Avoid touching the surface of the hot kettle, use the handle and knobs.
20. To avoid possible steam damage, not face the spout when operating the kettle.
21. If operated on wood furniture, use a protective pad to prevent damage to delicate finishes.
22. To avoid scalding, always ensure the lid is correctly positioned before operation.
23. Carefully open the lid when it is hot.
24. Extreme caution must be used when moving the kettle containing hot water. Never lift the kettle by its lid. Always use the body's handle.
25. Do not use the kettle for heating other liquid than water. Other liquids or food will spoil the inside.

26. This appliance is intended to be used in household applications such as:

27. Reserved kitchen areas for staff in shops, offices and other working environments.

28. Farms.
29. By clients in hotels, motels and other residential

environments.

- In environments such hotel room.

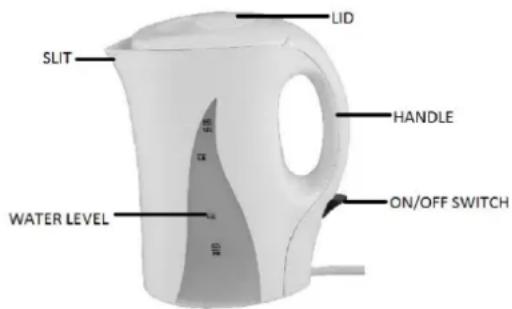

FEATURES

• 1L maximum capacity.
• Stainless Steel heating base.
• Auto-off when water boils.
• Security device auto-off, to avoid working without water.

HOW TO USE KETTLE

We recommend you, before first use, clean kettle with water several times.

1. Open kettle's lid and fill in with water, as much as you need, after closet the lid. ATTENTION: you should fill it as minimum until "MIN" level and as maximum until "MAX" level.
2. Connect the kettle to the mains. Place it so that the slit is pointing in the opposite direction to the plug.
3. Press the switch to turn on the kettle, LED indicator will light. It begins to heat, do not open the lid.
4. Once the water heats, switch goes "0" position automatically, turns off.
5. Unplug it from the mains and you can serve the water. Do it carefully, being that water will be hot. ATTENTION: never use the kettle without water. Be sure kettle is unplugged when it is not working.

CLEANING AND MAINTENANCE

1. Unplug the kettle from the mains.
2. Do not immerse the cord.
3. Do not use abrasive product.
4. It is convenient to disinfect sometime.
5. Never intent to fix the device by yourself, call the service.

DECALCIFIED

• Decalcified period depends of water hardness and frequency of use of the device.
• Please, do not use vinegar, but commercial descending agents based on citric acid.

TECHNICAL DATA

Model:KT 4100

Voltage: 220-240V~50/60Hz

Power: 1000W

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.

CONSEILS DE SECURITE

DECLARATION DE CONFORMITE:
