Owner's Manual Manuel d’utilisation Manual del propietario QDP555 Series Built-In Dishwasher Lave-Vaisselle Incorpere Lavavajillas Empotrado 49-4000207 Rev 0 09-19 GEA2 49-4000207 Rev 0 ENGLISH RECORD KEEPING Thank you for purchasing this Haier product. This Owner's Manual will help you get the best performance from your new dishwasher. For future reference, record the model and serial number located on the the tub wall just inside the door. Staple your proof of purchase to this manual to aid in obtaining warranty service if needed.

This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our Website at haierappliances.com. In Canada, visit haiercanada.ca. Connect the dishwasher/appliance to a grounded metal, permanent wiring system; or run an equipment-grounding conductor with the circuit conductors and connect to the equipment-grounding terminal or lead of the appliance. Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Dispose of discarded appliances and shipping or packing material properly. Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician. Use only cord kit WX09X70910 or hard-wire to building electrical. Failure to follow this instruction, could result in risk of fire and personal injury. To minimize the possibility of electric shock, disconnect this appliance from the power supply before attempting any maintenance. NOTE: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance. WARNING WHEN USING YOUR DISHWASHER, FOLLOW BASIC PRECAUTIONS, INCLUDING THE FOLLOWING:

Use this appliance only for its intended purpose as described in this Owner’s Manual. Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of reach of children. Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. Locate sharp items so that they are not likely to damage the door seal. Load sharp knives with the handles up to reduce the risk of cut-type injuries. Do not wash plastic items unless marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations. Do not touch the heating element during or immediately after use. Do not operate your dishwasher unless all enclosure panels are properly in place. Do not tamper with controls. Do not abuse, sit on or stand on the door or dish rack of the dishwasher. To reduce the risk of injury, do not allow children to play with, on or inside this appliance at any time. Do not store or use combustible materials including gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance. Small parts, such as rack clips and filter retaining posts, can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children. Detailed grounding instructions can be found in the “PREPARE ELECTRICAL WIRING” section of the installation Instructions.

READ AND SAVE THESE INSTRUCTIONS

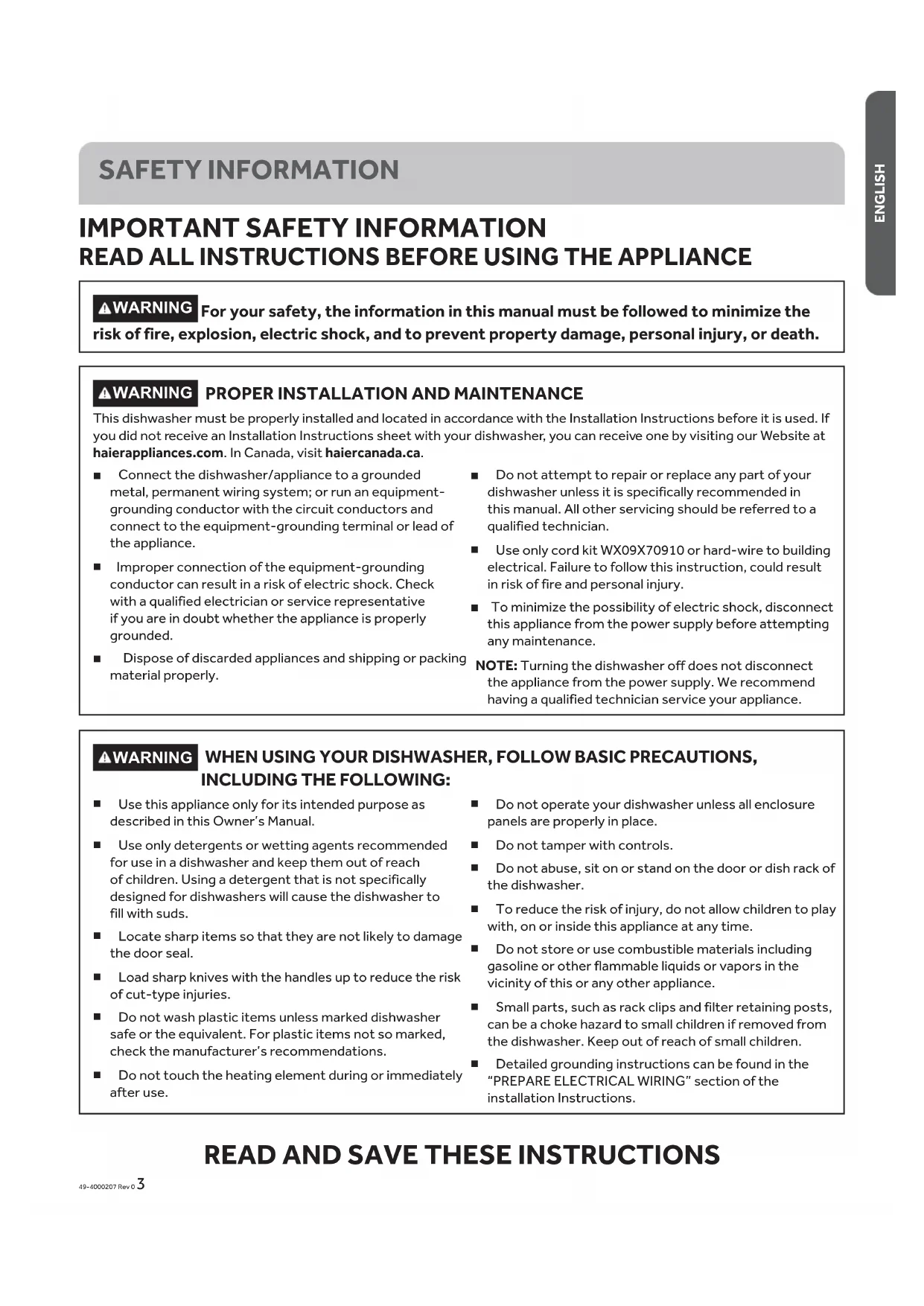

IMPORTANT SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks.HYDROGEN GAS IS EXPLOSIVE. If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance during this process. TO PREVENT MINOR INJURY AND PROPERTY DAMAGE

During or after wash cycle, contents may be hot to the touch. Use care before handling. Close supervision is necessary if this appliance is used by or near children. Do not allow children to play around the dishwasher when closing the door, closing the upper rack, or while vertically adjusting the upper rack due to the possibility of small fingers being pinched. Non-Dishware Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to the dishwasher and discoloration or staining of the dishwasher may result.WARNING

RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers are dangerous…even if they will sit for “just a few days.” If you are getting rid of your dishwasher, please follow the instructions below to help prevent accidents. Do not allow children to play with, on, or inside this or any discarded appliance. Take off the door of the washing compartment.CAUTION ELECTRICAL REQUIREMENTS Be sure that the electrical connection and wire size are adequate and in conformance with the National Electric Code, ANSI/NFPA 70 – latest edition, and all local codes and ordinances.This appliance must have: 120V, 60Hz, AC-only, 15-ampere or 20-ampere, fused electrical supply.

Wiring must be 2 wire with ground and rated for 75°C (167°F). If the electrical supply does not meet the above requirements, call a licensed electrician before proceeding.It is recommended to have: A circuit breaker or time-delay fuse. A properly grounded individual branch circuit.CAUTION NOTICE

If your dishwasher is connected to a wall switch, ensure that the switch is on prior to use. If you choose to turn the wall switch off between wash cycles, allow 5-10 seconds after turning the switch on before touching Start to allow the control to initialize. Use only powder, Finish Quantum Automatic Dishwashing Detergent, liquid detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children. Finish Quantum

Automatic Dishwashing Detergent, and Finish Jet- Dry

Rinse Aid rinse agents have been approved for use in all Haier Appliances dishwashers.49-4000207 Rev 0 5 ENGLISH

USING THE DISHWASHER

Features and appearance will vary throughout this manual SELECT CYCLE Open the door and press the Cycle pad for the desired wash cycle. The light next to the Cycle pad will be lit to indicate which wash cycle has been selected. NOTE: Cycle times vary based on soil level, water temperature, and options selected. The cycle must be selected with the door in the open position. The cycle will not start until the Start pad is pushed and the door is closed within 4 seconds. Smart This cycle automatically senses the soil level and adjusts the wash cycle accordingly. It is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is designed to conserve both water and energy. *Time range: 1 hour 50 minutes - 2 hours 10 minutes. Heavy This cycle is meant for heavily soiled dishes, cookware, pots, or pans with dried-on or baked-on soils. Everyday dishes are safe to be used in this cycle. *Time: 2 hours 31 minutes. Medium This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is designed to conserve both water and energy. *Time range: 1 hour 15 minutes - 1 hour 50 minutes. NOTE: Medium was used to rate the energy efficiency of this dishwasher. Light This cycle is for lightly soiled dishes. It is safe for china and crystal with no options selected. *Time: 55 minutes. Quick This cycle will quickly wash lightly soiled dishes. *Time: 60 minutes. For better drying, select Dry. This will raise the final rinse temperature and extend the dry time. Dry will add 49 to 90 minutes to the cycle time. When the Clean light comes on, open the door, pull the racks out, and the dishes will “flash” dry in approximately five minutes. *Washing time only. Does not include drying time, Auto Hot Start, or options. NOTE: If the incoming water temperature is too low, the Auto Hot Start feature may add up to 11 minutes of additional time.

LOAD DISHWASHER For best dishwashing results, follow the loading guidelines found in the Loading section. No pre-rinsing of normal food soil is required. Scrape off hard soils, including bones, toothpicks, skins, and seeds. Remove leafy vegetables, meat trimmings, and excessive amounts of grease or oil. ADD DETERGENT Add needed amount of detergent to the detergent dispenser. Use detergent such as Finish

Automatic Dishwashing Detergent. See Dispensers section.

Add rinse agent such as Finish

Rinse Aid to the rinse agent dispenser. See Dispensers section. NOTE: The use of rinse aid can further enhance the dishwasher’s drying performance.

Top Bottom6 49-4000207 Rev 0 ENGLISH START DISHWASHER Start Press the Start pad and close the door within 4 seconds to start the cycle or begin the Delay countdown. The wash cycle will begin shortly after closing the door. The display will turn off if the door remains open for two minutes. To activate the display, close and open the door or press any pad. Interrupt or Pause To interrupt or pause a cycle, slowly open the door. Opening the door will cause the wash cycle to pause. The dishwasher will beep every minute to remind you to close the door. To restart or resume the cycle, press Start, and close the door within 4 seconds. Cancel To cancel a wash cycle, press and hold the Start pad for 3 seconds and close door. The dishwasher will drain, emit a beep sound, and the wash cycle light will turn off. Cycle Status The indicator light on the door front will change color to indicate the wash status. During the wash cycle, the indicator light will be blue. When the wash cycle is complete, the light will change to white.

SELECT OPTIONS The light by the selected pad will be lit to indicate which Option has been selected. Light Press to turn the tub light on or off. Delay Delays the start of a wash cycle up to 8 to 12 hours depending on model. Press Delay, to select the number of hours, then press Start one time and close door to begin countdown. The cycle will start once allotted time has expired. Sanitize This option raises the water temperature in the final rinse to sanitize your dishware but may increase cycle time by 60 minutes. The cycle length will vary depending on the temperature of your inlet water. NOTE: This option is monitored for sanitization requirements. If the cycle is interrupted during or after the main wash portion or if the incoming water temperature is so low that adequate water heating cannot be achieved, the sanitizing conditions may not be met. In these cases, the Sanitized light will not illuminate at the end of the cycle. Utilizing this option will modify the cycle to meet the requirements of Section 6, NSF 184 for soil removal and sanitization efficacy. NOTE: NSF certified residential dishwashers are not intended for licensed food establishments. Zones Selecting either the Top or Bottom Zones will target dishwashing of just one rack. This will shorten the cycle time and conserve energy. This option should be used when dishes are placed in only one rack. Temp This option increases the temperature to help clean heavily soiled dishes and will increase the cycle time by 20 to 50 minutes. Option may be turned On or Off during the wash cycle. This option will also improve dry performance on the Medium cycle. Dry Off Shuts off the drying option. Dishes air dry naturally and energy is saved. Open the dishwasher door to speed drying. Dry Normal Turns on the option for faster drying. This option may add up to 64 minutes to the cycle time. On models with the hidden heater feature, this option boosts the temperature of the dishwasher during the final rinse portion of the cycle then utilizes a fan to circulate air to dry the dishes. This very efficient fan may run for an additional 90 minutes after the cycle is complete to maximize drying performance. Fan operation will end if the door is opened during this 90 minute period. Dry Extra This option can be selected by pressing the Dry pad twice to illuminate the Extra light. It will add additional time to your drying option, further enhancing the dishwasher’s performance for difficult to dry items.49-4000207 Rev 0 7 ENGLISH

USING THE DISHWASHER

INDICATOR LIGHTS Sanitized Displayed at end of the cycle when Sanitize has been selected and dishwasher has met requirements for sanitization. See Sanitize, for complete description. Closing door or pressing any pad will turn off light. Clean Displayed when a wash cycle is complete. The light stays on as a reminder that the dishes are clean. Opening the door will turn the light off. DISPLAY Time Remaining During operation, the display shows the total number of minutes remaining in the cycle. During a delay start, the display will show hours of time remaining until the cycle starts.

SOUNDS The dishwasher will emit a sound to indicate cycle completion, pad presses, and door ajar. MUTE To turn the dishwasher control sounds ON/OFF, press the Dry pad 7 times within 5 seconds.

SABBATH/DOOR WAKE UP MODE

To turn this option ON/OFF, press and hold the Start and Temp pads for 5 seconds, close the door and wait 3 minutes for the dishwasher to go into sleep mode. In the OFF mode, the control display, control sounds, and interior lights will not respond to the door opening/closing. This mode can be used when observing certain religious holidays such as the Sabbath. To activate the control and interior lights, press any pad.8 49-4000207 Rev 0 ENGLISH

The entering water should be at least 120°F (49°C) and not more than 150°F (66°C) for effective cleaning and to prevent dish damage. Check the water temperature with a candy or meat thermometer. Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising.

Rinse agents, such as Finish Jet-Dry

Rinse Aid are designed for great drying action and to protect against spots and film build-up on your dishes, glasses, flatware, cookware, and plastic. Filling the Rinse Agent Dispenser The rinse agent dispenser holds 3.5 oz. (104 ml) of rinse agent. Under normal conditions, this will last approximately one month. Make sure the dishwasher door is fully open. Open the rinse agent dispenser door. Slowly add rinse agent until the cup is full. You may need to pause several times to allow rinse aid to settle. NOTE: Indicator window does not light up. Clean up any spilled rinse agent with a damp cloth to prevent foam from forming inside the dishwasher.

Close the rinse agent dispenser door. Rinse Aid Setting The amount of rinse agent released into the final wash can be adjusted. If water drops or hard water spots remain on dishes after the dry cycle, increase the setting. To adjust the setting Open the Rinse Agent dispenser door; then turn the adjuster clockwise to increase the amount of rinse agent, counterclockwise to reduce the amount of rinse agent.Rinse agent adjusterClockwise to reduce water drops and hard water spotsCounterclockwise to reduce foamingIndicator window49-4000207 Rev 0 9 ENGLISH

USING THE DISHWASHER

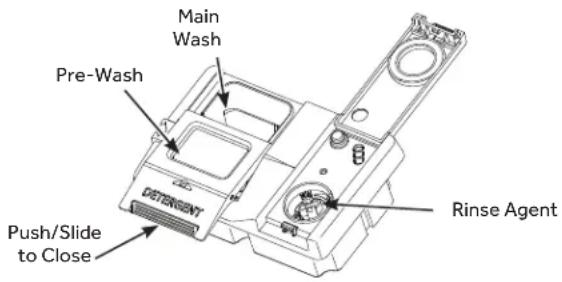

DETERGENT DISPENSER The detergent dispenser is located in the center of the dishwasher door. It has two compartments. The main wash compartment is found inside the detergent dispenser. To open, press the button on the side of the dispenser. The pre-wash compartment is on the lid of the detergent dispenser. Use the pre-wash compartment only when your water is extremely hard or when you have a heavy soiled load. The pre-wash compartment is not used when tablet or packet detergents are used. NOTE: Do not load large items in the lower rack where they may block the wash jets from rinsing out the detergent dispenser. You may use tablet, packet, powder, liquid or gel automatic dishwasher detergent. Make sure you use only detergents specifically labeled for use in automatic dishwashers. Never use liquid hand dish detergent in an automatic dishwasher. Sudsing and poor wash performance will result with the use of improper detergents. Detergents should be stored in a dry location and in their original container to prevent loss of effectiveness. Place detergent in the cup just prior to starting the dishwasher and then close the cover. The cover will open during the wash cycle.

FILLING THE DETERGENT

DISPENSER We recommend using detergent in tablet or packet form. Independent testing has shown this form of detergent is very effective in the dishwasher. Finish

is an example of this type of detergent. Simply put a tablet or packet into the main wash compartment and close the detergent cup cover. Please notice that the tablet or packet must be placed in the main wash compartment of the detergent cup. If the tablet or packet is placed in the prewash compartment or tossed in the bottom of the dishwasher, the detergent will be flushed down the drain in a very short period of time and will thus be wasted. Wash performance will be very poor as a result. If you choose to use detergent in powder, liquid or gel form, the amount of detergent you use will be determined by the hardness of your water, the temperature of your water, and the food soil load inside the dishwasher. Contact your water company to get information about the hardness of the water in your area. Water hardness is measured in grains per gallon. Use this information and the table above to determine the amount of detergent to use. You may purchase a hard water test strip from Haier Appliances. You can order through Haier Appliances Parts by visiting haierappliances.com/parts. In Canada, haiercanada.ca/parts. Use the table as a starting point and then adjust the amount of detergent you use. Use just enough to get good wash performance. Using just the right amount of detergent will provide great wash performance without wasting detergent or etching glassware. Using too much detergent with very soft and/or very hot water may cause a condition called etching on your glassware. Etching is a permanent cloudiness in your glassware. This condition is irreversible. However, using too little detergent will cause poor wash performance.

DO NOT USE HAND DISH DETERGENT

NOTE: Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. During operation, these suds will spill out of the dishwasher vents, covering the kitchen floor and making the floor wet. Because so many detergent containers look alike, store the dishwasher detergent in a separate space from all other cleaners. Show anyone who may use the dishwasher the correct detergent and where it is stored. While there will be no lasting damage to the dishwasher, your dishes will not get clean using a dishwashing detergent that is not formulated for automatic dishwashers. Number of Grains/Gal. Detergent Cup(s) to Fill Less than 4 Fill cup to 1/3 full 4 to 8 Fill cup to 2/3 full 8 to 12 Fill cup completely full Greater than 12 Fill both main wash cup and pre wash cup Detergent DispenserPre-WashMain Wash Rinse AgentPush/Slide to Close10 49-4000207 Rev 0 ENGLISH APPLIANCE COMMUNICATION WiFi Connect (for customers in the United States) Your dishwasher is HaierAppliances WiFi Connect capable. A WiFi communciation card is built into the product allowing it to communicate with your smartphone for remote monitoring, control and notifications. Please visit www.GEAppliances.com/connect to connect your appliance, learn more about connected appliance features and learn what connected appliance app’s will work with your smartphone. WiFi Connectivity: For assistance with the appliance or the ConnectPlus network connectivity, please call Haier Appliances at 800-GE-CARES. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help. Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment.49-4000207 Rev 0 11 ENGLISH NOTES12 49-4000207 Rev 0 ENGLISH For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. UPPER RACK The upper rack is primarily for glasses, cups, and saucers. For best wash performance, tilt cup and glass openings toward the center of the rack. Other items such as pots, pans, and plates may be placed in the upper rack. This is also a secure place for dishwasher-safe plastic items. The upper rack can be used for odd sized utensils. Sauce pans, mixing bowls, and other similarly shaped items should be placed face down for best wash performance. Ensure small plastic items are secure so that they cannot fall on the heater at the bottom of the dishwasher, potentially damaging the item. Some models are equipped with a hidden heater, so dishwasher safe plastic items can be placed in the lower rack. IMPORTANT: Ensure that items do not protrude through the bottom of the rack or silverware basket where they will block the rotation of the middle spray arm. This could result in noise during operation and/or poor wash performance.

USING THE DISHWASHER

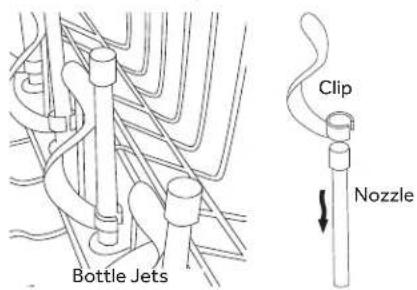

BOTTLE JETS The Bottle Jets system is the ideal location to position baby bottles, tall sports bottles, or other tall items with narrow openings. The Bottle Jets clips hold bottles with small openings in place so water jets are directed inside the bottles to clean hard to reach areas. Clips can be installed or removed by simply slipping the clip opening over the top of the nozzle.Sports bottle held in place over a Bottle Jets clipBaby bottle held in place under a Bottle Jets clip Clip NozzleBottle JetsThe upper rack may be adjusted to accommodate larger items. To adjust the upper rack, fully extend the upper rack and lift the front of the rack so that the rack roller wheels clear the end hooks on the front of the rails. Continue to pull the rack until the remaining rack roller wheels clear the end hook. Select the set of rollers on the side of the rack that provides the desired height, and reinstall the upper rack by aligning the rack roller wheels on the end hook and rack rails – Ensure that there are roller wheels above and below the rack rails. Failure to properly align the wheels onto the end hook and rails may result in the rack falling from the dishwasher.Rail End Hook Rack Rollers Rail Rail End Hook Pull rack out, lift up and over rail end hooks, and pull out to removeUpper Rack To add flexibility in loading, the stem safe shelf may be placed in the up or down position or unfolded and placed in the lower unfolded position. The shelf may also be used to secure stemware such as wine glasses. Because these stemware items come in various sizes, slowly push the rack in to ensure the items do not bump into the edges of the dishwasher, which may cause damage to the items.Place the slots in the utility shelf clips over the vertical rack wires and push down to attach utility shelf onto second wire of rack

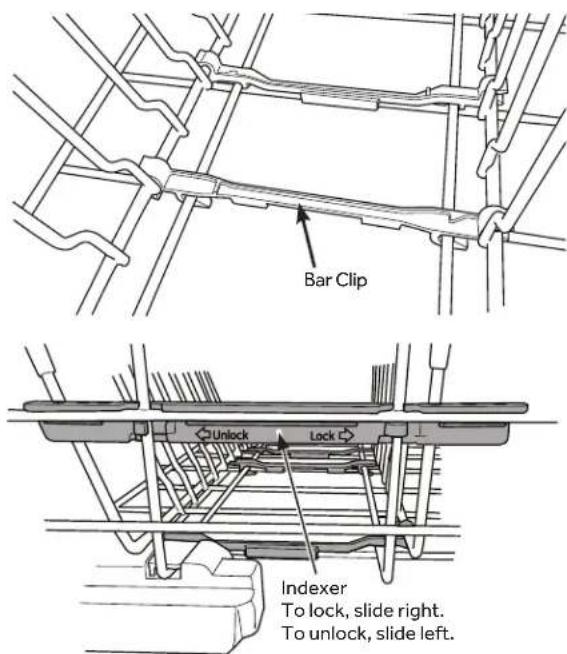

UPPER RACK - ADJUSTMENT

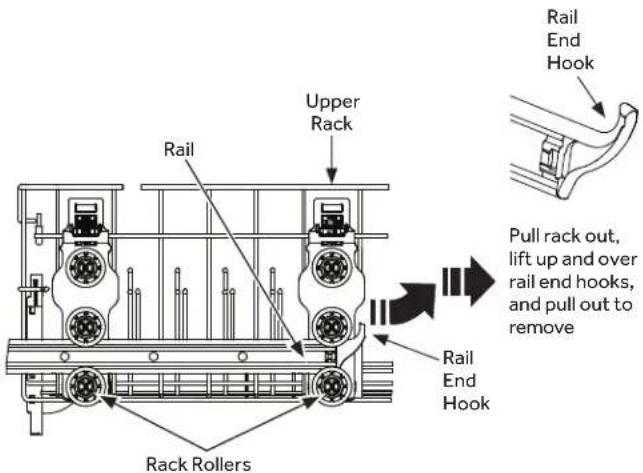

A loaded upper rack may be heavier than anticipated. To prevent minor injury or damage to the contents, do not raise or lower the upper rack after the rack is loaded. CAUTION49-4000207 Rev 0 13 ENGLISH

USING THE DISHWASHER

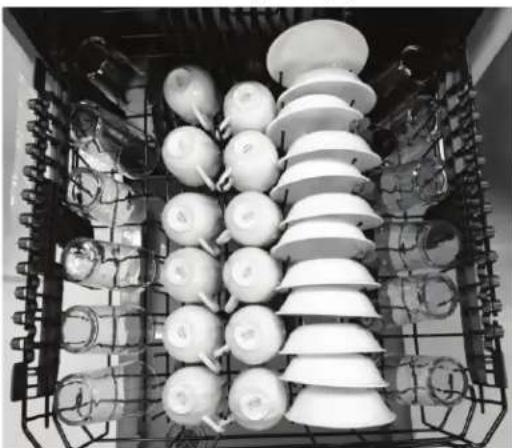

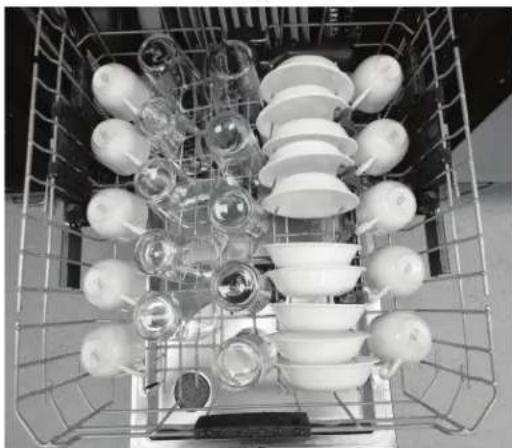

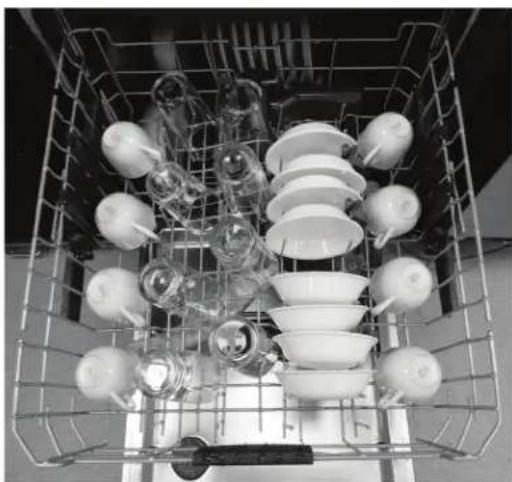

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. 8 Place Settings - Upper Rack

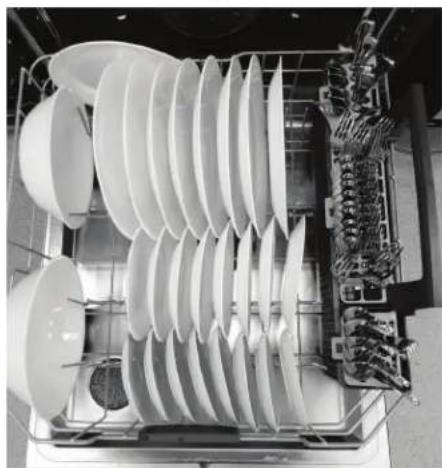

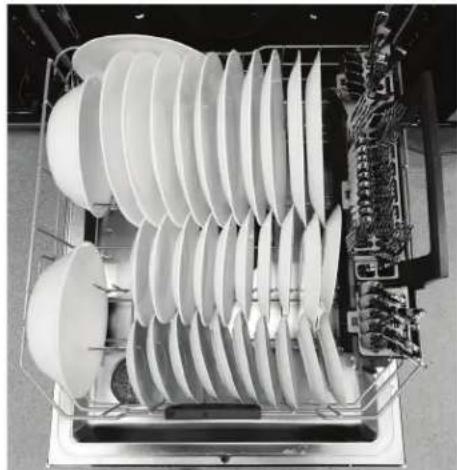

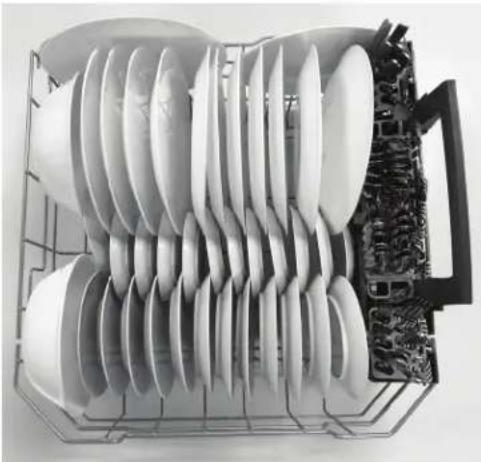

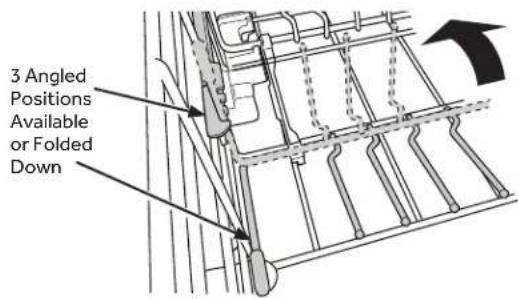

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. LOWER RACK The lower rack is best used for plates, saucers and cookware items. Large items, such as broiler pans and baking racks should be placed along the sides of the rack. If necessary, oversized glasses and mugs can be placed in the lower rack to maximize loading flexibility. Plates, saucers and similar items should be placed between the tines in the direction that allows the item to remain secure in the rack.NOTE: Do not load large items in the lower rack where they may block the wash jets from rinsing out the detergent dispenser.The lower rack fold down tines can be adjusted to different upright angles or placed flat to provide flexibility for hard-to-fit or extra-large items.To change the direction of the fold down tines, lower the tines, then pull away from the bar clips that secure the tines to the rack and remove. Reverse the direction of the tines, orienting the handle on the opposite side of the rack. Reattach the tines to the bar clips by pushing the tines back until they click in place. The indexer will also need to be switched to the opposite side of the dishwasher. To remove the indexer, simply slide it the in the direction labeled “unlock.” Then, align the indexer with the rack on the other side and slide in the direction that says “lock” in order to reattach the indexer to the rack. IMPORTANT: It is important to ensure that items do not protrude through the bottom of the rack or the silverware basket where they will block the rotation of the lower spray arm. Also, ensure that large plates, pots, or tall items don’t hit the mid spray arm. This could result in noise during operation and/or poor wash performance.3 Angled Positions Available or Folded Down IndexerTo lock, slide right.To unlock, slide left.Bar ClipThe clips can be a choke hazard for small children if removed from the dishwasher. Keep out of reach of children. WARNING49-4000207 Rev 0 15 ENGLISH

USING THE DISHWASHER

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

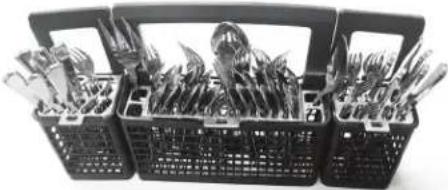

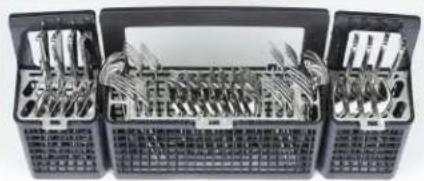

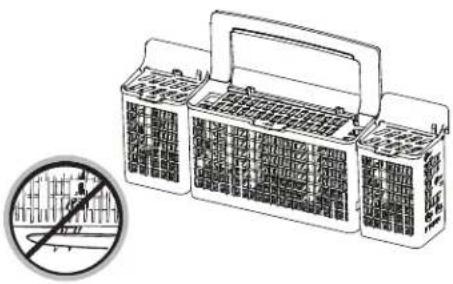

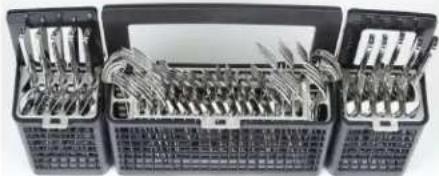

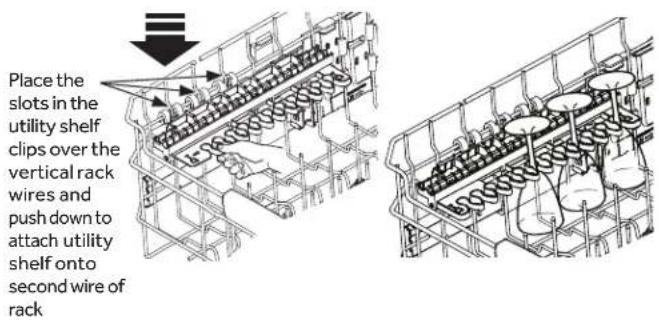

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. SILVERWARE BASKET Place flatware in the removable silverware baskets. Sharp objects, such as forks and knives, may be placed with the handles facing up, in order to protect your hands. For the best wash performance, place other items such as spoons with the handles facing down. Avoid allowing items to nest together, which may keep them from being properly washed. When loading, distribute items evenly in the basket. The silverware baskets may also be used for small items, such as measuring spoons, baby bottle nipples, plastic lids, or corn cob holders. The silverware basket covers can be closed to contain small items. IMPORTANT: Do not load large or tall utensils where they may block the detergent dispenser, mid spray arm, or become trapped between the door and the gasket when the door is closed. LOADING Silverware Basket - 12 Place Settings Silverware Basket - 8 Place Settings Silverware Basket - 10 Place Settings49-4000207 Rev 0 17 ENGLISH NOTES18 49-4000207 Rev 0 ENGLISH

CONTROL PANEL To clean the control panel, use a lightly dampened cloth. Then dry thoroughly.

Before cleaning the front panel, make sure you know what type of panel you have. Refer to the last two letters of your model number. You can locate your model number on the left-hand tub wall just inside the door. If your model number ends with BB, CC, DS, D1, ES, FS, SA, TS, WW or W2 then you have a painted door panel. If your model number ends with SS or S1, then you have a Stainless Steel door panel. If your model number ends with II, then you have an Integrated door panel. Follow the instructions below for cleaning the door panel for your specific model. Painted Door Panel (model numbers ending in BB or D1-black, CC-bisque, DS-black slate, ES-slate, FS-fingerprint resistant, SA-silver, TS-black stainless steel, or WW or W2-white) Use a clean, soft, lightly dampened cloth, then dry thoroughly

Stainless Steel Door Panel (model numbers ending in SS or S1) For cleaning rust and tarnish, cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove rust, tarnish and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge. Do not use appliance wax or polish on the stainless steel. For other blemishes and marks, use Stainless Steel Magic or a similar product using a clean soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel. You can order Stainless Steel Magic # WX10X29 through Haier Appliances Parts by visiting haierappliances.com/parts. In Canada, haiercanada.ca/parts. Integrated Door Panel (model numbers ending in II) This is a custom installed door panel, and you will need to refer to the cabinet manufacturers recommendations for proper cleaning. DISHWASHER INTERIOR To clean and de-odorize your dishwasher, use citric acid or Finish

Dishwasher Cleaner, a detergent additive. Finish

Dishwasher Cleaner will break up mineral deposits, and remove hard water film and stains. You can order citric acid Haier Appliances kit #WD35X151 through Haier Appliances Parts by visiting haierappliances. com/parts. In Canada, haiercanada.ca/parts. You can purchase Finish

Dishwasher Cleaner at your local grocery store.

STAINLESS STEEL INNER DOOR

AND TUB The stainless steel used to make the dishwasher tub and inner door provides the highest reliability available in a Haier Appliances dishwasher. If the dishwasher tub or inner door should be scratched or dented during normal use, they will not rust or corrode. These surface blemishes will not affect their function or durability.49-4000207 Rev 0 19 ENGLISH

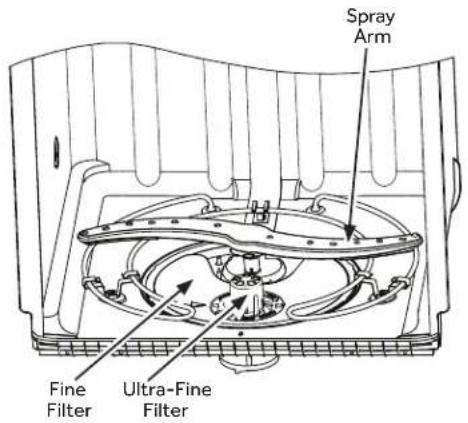

FILTER ASSEMBLY Inspect and clean the filters periodically. This should be done every month or more depending on usage. If there is a decrease in wash performance or dishes feel gritty, this is also an indication the filters need to be cleaned. ULTRA-FINE FILTER To clean the Ultra-Fine Filter, remove the bottom rack. Twist the Ultra-Fine Filter counterclockwise and lift to remove. Rinse filter with warm soapy water and use a sponge to carefully remove any stubborn particles. Scrubbing with scouring pads or brushes can dama ge the filter. Once cleaned, replace the Ultra-Fine Filter, and twist it clockwise to lock in place. FINE FILTER To clean the Fine Filter (mesh plate), remove the bottom rack. Remove the Ultra-Fine Filter. Lift the Fine Filter up and out from under the two rear retaining tabs. Rinse filter with warm soapy water. Scouring pads or brushes can scratch the filter surface but a soft brush or sponge may be needed to remove stubborn soils or calcium deposits caused by hard water. Once cleaned, replace the Fine Filter making sure it goes under the two rear retaining tabs. Replace the Ultra-Fine Filter.

PROTECT AGAINST FREEZING

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

Turn off electrical power to the dishwasher. Remove fuses or trip circuit breaker.

Turn off the water supply and disconnect the water inlet line from the water valve.

Drain water from the water inlet line and water valve. (Use a pan to catch the water.)

Reconnect the water inlet line to the water valve.

DOES YOUR DISHWASHER HAVE AN

AIR GAP? An air gap protects your dishwasher against water backing up into it if a drain clogs. The air gap is not a part of the dishwasher. It is not covered by your warranty. Not all plumbing codes require air gaps, so you may not have one. The air gap is easy to clean:

Turn off the dishwasher and lift off the air gap cover.

Remove the plastic cap under the cover and clean with a toothpick.

Replace the cap and cover when the air gap is clean. If the dishwasher tub or inner door should be scratched or dented during normal use, they will not rust or corrode. These surface blemishes will not affect their function or durability. Check the air gap any time your dishwasher isn’t draining well.Air gapFine FilterSpray Arm Ultra-Fine Filter20 49-4000207 Rev 0 ENGLISH TROUBLESHOOTING TIPS Problem Possible Cause What To Do Start status indicator light flashing The door was opened or the cycle was interrupted. Press the Start pad once and close the door within 4 seconds to start the dishwasher. Press the Start pad a second time when the dishwasher is running only if you wish to cancel the cycle. Dishwasher BEEPS once every minute This is a reminder that your dishwasher door has been left open during operation. It will continue beeping until you press Start and close the door. Press Start and close the door. Beeping at the end of the cycle This is normal. Dishwasher will beep at end of cycle. To turn off the double beep indicator (or re-activate it if it was previously turned off), press the Dry pad 5 times within 3 seconds. A triple beep will sound to indicate the end-of-cycle beep option has been turned on or off. Dishes and flatware not clean Filter assembly is clogged See the CARE AND CLEANING section. Low inlet water temperature Make sure inlet water temperature is correct (see the USING THE DISHWASHER section). Turn on the hot water faucet nearest the dishwasher, let run until the water temperature stops rising. Then start the dishwasher and turn off the faucet. This ensures the entering water is hot. Select Temp. Water pressure is temporarily low Turn on a faucet. Is water coming out more slowly than usual? If so, wait until pressure is normal before using your dishwasher. Normal water pressure to the dishwasher should be 20-120 psi. Air gap or disposer clogged Clean the air gap or flush the disposer. High drain loop or air gap not installed Refer to the Installation Instructions for proper drain line installation. Improper rack loading Make sure large dishware or utensils do not block the detergent dispenser or the wash arms. See the LOADING section. Poor performing detergent Use a highly rated detergent such as Finish

Automatic Dishwashing Detergent. Spots and filming on glasses and flatware Extremely hard water Use rinse agents such as Finish

Rinse Aid to prevent spots and prevent new film build-up. If water is extremely hard, a softener may be required. Low inlet water temperature Make sure inlet water temperature is at least 120°F (49°C). Overloading or improper loading of the dishwasher Load dishwasher as shown in the LOADING section. Old or damp powder detergent Make sure detergent is fresh. Use a highly rated detergent such as Finish

Automatic Dishwashing Detergent. Rinse agent dispenser empty Refill with rinse agent such as Finish

Rinse Aid. Too little or low performing detergent Make sure you use the proper amount of highly rated detergent. Cloudiness on glassware Combination of soft water and too much detergent This is called etching and is permanent. To prevent this from happening, use less detergent if you have soft water. Wash glassware in the shortest cycle that will get it clean. Low performing phosphate- free detergent See A white film on glassware, dishware and the interior in this TROUBLESHOOTING TIPS section. Water temperature entering the dishwasher exceeds 150°F (66°C) This could be etching. Lower the water heater temperature. Suds in the tub Wrong detergent Use only automatic dishwasher detergents to avoid sudsing. Finish

Automatic Dishwashing Detergent has been approved for use in all Haier Appliances dishwashers. Rinse agent was spilled Always wipe up rinse agent spills immediately.49-4000207 Rev 0 21 ENGLISH TROUBLESHOOTING TIPS Problem Possible Cause What To Do Detergent left in dispenser cups Dishes or utensils are blocking the detergent cup Reposition the dishes, so the water from the lower spray arm can flush the detergent cup. See the LOADING section. Reposition the tall utensils or heavy silverware that may be keeping the dispenser cup door from opening. See the LOADING section. Don’t place large bowls or pots directly under the detergent dispenser. Black or gray marks on dishes Aluminum utensils have rubbed against dishes Remove marks with a mild, abrasive cleaner. Dishes don’t dry Low inlet water temperature Make sure inlet water temperature is at least 120°F. Select Dry. Use Temp. Select a higher cycle, such as Sanitize. Rinse agent dispenser is empty Check the rinse agent dispenser and fill as required. Additional drying time is needed Leave door closed after the Clean light appears to allow the fan to run an additional 90 minutes. Note: If you open the door, this fan extension will be cancelled. Control panel responded to inputs but dishwasher never filled with water Door may not be completely closed Make sure the door is firmly closed. Water valve may be turned off Make sure water valve (usually located under the sink) is turned on. Flood float may be stuck Remove Ultra-Fine filter and lightly tap the piece under the ultra fine filter that looks like a salt shaker. Replace the filter. Stained tub interior White film on inside surface— hard water minerals Haier Appliances recommends Finish® Jet-Dry® Rinse Aid to help prevent hard water mineral deposits from forming. Run dishwasher with citric acid to remove mineral deposits. Citric acid (Part number: WD35X151) can be ordered through Haier Appliances Parts. See back cover for ordering information. Alternatively, purchase Finish® Dishwasher Cleaner and follow the directions on the label. Dishwasher won’t run Fuse is blown or circuit breaker is tripped Replace fuse or reset circuit breaker. Remove any other appliances from the circuit. Power is turned off In some installations, the power to the dishwasher is provided through a wall switch, often located next to the disposer switch. Make sure it is on. Control panel is locked Unlock control panel. See the Getting started section. Proper Start sequence was not followed See the Using the dishwasher section. Control panel lights go off when you’re setting controls Time too long between touching of selected pads Each pad must be touched within 30 seconds of the others. To relight, touch any pad again or open the door and unlock. Water standing in the bottom of the tub Air gap is clogged Clean the air gap. See the CARE AND CLEANING section. High drain loop or air gap not installed Refer to the Installation Instructions for proper drain line installation. Water won’t pump out of the tub Drain is clogged If you have an air gap, clean it. See the CARE AND CLEANING section. If the dishwasher drains into a disposer, run disposer clear. Check to see if your kitchen sink is draining well. If not, you may need a plumber.22 49-4000207 Rev 0 ENGLISH TROUBLESHOOTING TIPS Problem Possible Cause What To Do Steam This is normal Warm, moist air comes through the vent during drying and when water is being pumped out. This is necessary for drying.Sanitized light does not illuminate at the end of the cycleThe door was opened and the cycle was interrupted during final rinseDo not interrupt the cycle by opening the door during the wash cycle.The incoming water temperature was too lowRaise the water heater temperature to between 120°F and 150°F.Noise Normal operating sounds:Beeping at the end of the cycleDetergent cup openingWater entering dishwasherMotor stops and starts at various times during cycleSpray arms start and stop at various timesDrain pump sounds during pump outDrain pump starts and stops several times during each drainThese are all normal. No action is required.Rattling dishes when the spray arm rotatesMake sure dishes are properly loaded. See the LOADING section.Rattling silverware against door during washTall utensils may be placed in the upper rack to avoid bumping against inner door during wash cycle.A white film on glassware, dishware and the interior This problem is likely caused by a low quality phosphate-free dishwasher detergentTo remove the white film, run your dishes through a dishwasher cycle with citric acid. Use a WD35X151 citric acid kit found online. Otherwise, use Finish Dishwasher Cleaner found at your local grocery store.Pour the citric acid in the detergent cup and close the cover. Place the filmed but otherwise clean glassware and dishware in the dishwasher. Leave silverware and other metal items out of the dishwasher. Turn the dishwasher on and let it run through a complete cycle without detergent. The glassware, dishware, and dishwasher should come out film free. Alternatively, a vinegar rinse may be used. Pour 1 cup of vinegar into dishwasher just after the detergent cup opens and let the dishwasher complete its cycle.This may be repeated several times a year as needed.The use of a rinse agent such as Finish Jet-Dry Rinse Aid may help minimize a repeat build up of film. Also, the use of a highly rated detergent such as Finish Quantum Automatic Dishwashing Detergent will help prevent film build-up.Feel air on your legs when standing in front of the dishwasher in cycleThis is normal. Do not interrupt the cycle. No action is required

Open the door to interrupt the cycle. Pull the door handle to release the door.

Do not open the door all the way until the water spray action stops. Steam may rise out of the dishwasher.

Add additional items.

Press Start and close the door within 4 seconds to resume the cycle. FORGET TO ADD A DISH? Additional items may be added to the dishwasher at any time, ideally items would be added shortly after starting a wash cycle.49-4000207 Rev 0 23 ENGLISH LIMITED WARRANTY haierappliances.com All warranty service is provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service online, visit us at haierappliances.com/support/schedule-service or in Canada haiercanada.ca/service. Please have your serial number and your model number available when contacting us for service. Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a Haier Appliances factory service technician the ability to quickly diagnose any issues with your appliance and helps Haier Appliances improve its products by providing Haier Appliances with information on your appliance. If you do not want your appliance data to be sent to Haier Appliances, please advise your technician not to submit the data to Haier Appliances at the time of service. What Haier Appliances will not cover (for customers in the United States): ʄ Service trips to your home to teach you how to use the product. ʄ Improper installation, delivery, or maintenance. ʄ Failure of the product if it is abused, misused or used for other than the intended purpose or used commercially. ʄ Replacement of house fuses or resetting of circuit breakers. ʄ Product not accessible to provide required service. ʄ Damage to the product caused by accident, fire, floods, or acts of God. ʄ Incidental or consequential damage caused by possible defects with this appliance. ʄ Cleaning or servicing of the air gap device in drain line. ʄ Damage caused after delivery including damage from items dropped on the door. For the period of Haier Appliances will replace One year From date of the original purchase Any part of the dishwasher which fails due to a defect in materials or workmanship. During this limited one-year warranty, Haier Appliances will provide, free of charge, all labor and in-home service to replace the defective part. Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. What Haier Appliances will not cover (for customers in Canada): ʄ Service trips to your home to teach you how to use the product. ʄ Improper installation. If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connecting facilities. ʄ Failure of the product if it is abused, misused or used for other than the intended purpose or used commercially. ʄ Replacement of house fuses or resetting of circuit breakers. ʄ Damage to the product caused by accident, fire, floods, or acts of God. ʄ Damage caused after delivery including damage from items dropped on the door. This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a Haier Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Haier Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: Haier Appliances, Louisville, KY 40225 This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Warrantor: MC Commercial Inc., Burlington, ON, L7R 5B6 WARRANTOR IS NOT RESPONSIBLE FOR CONSE QUEN TIAL DAMAGES.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.24 49-4000207 Rev 0 ENGLISH CONSUMER SUPPORT Printed in USA Haier Appliances Website Have a question or need assistance with your appliance? Try the Haier Appliances Website 24 hours a day, any day of the year! You can also shop for more great Haier Appliances products and take advantage of all our on-line support services designed for your convenience. In the US: haierappliances.com Register Your Appliance Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In the US: haierappliances.com/support/register In Canada:prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx Schedule Service Expert Haier Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year. In the US: haierappliances.com/support/schedule-service. In Canada: haiercanada.ca/service Parts and Accessories Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). In the US: haierappliances.com/parts In Canada: haiercanada.ca/parts Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Contact Us If you are not satisfied with the service you receive from Haier Appliances, contact us on our website at haierappliances.com/ support/contact-us with all the details including your phone number, or write to: In the US: Haier Appliances, Consumer Relations | PO Box 1780 | Rapid City, SD 57709 In Canada: haiercanada.ca/contact-us Remote Connectivity For assistance with wireless network connectivity (for models with remote enable), visit our website in the US at haierappliances.comManuel d’utilisation QDP555 Séries Lave-Vaisselle Incorpere 49-4000207 Rev 0 09-19 GEA2 49-4000207 Rev 0 FRANÇAIS DOCUMENTS À CONSERVER Merci d’avoir acheté ce produit Haier. Ce manuel d’utilisation vous aidera à obtenir la meilleure performance possible de votre nouveau lave-vaisselle. Pour référence ultérieure, inscrire le numéro de plaque signalétique et la date d’achat. La plaque signalétique est située sur la paroi de la cuve, à l’intérieur de la porte. Pour faciliter l’obtention d’un service sous garantie, agrafer la preuve de la date d’achat à ce manuel.
