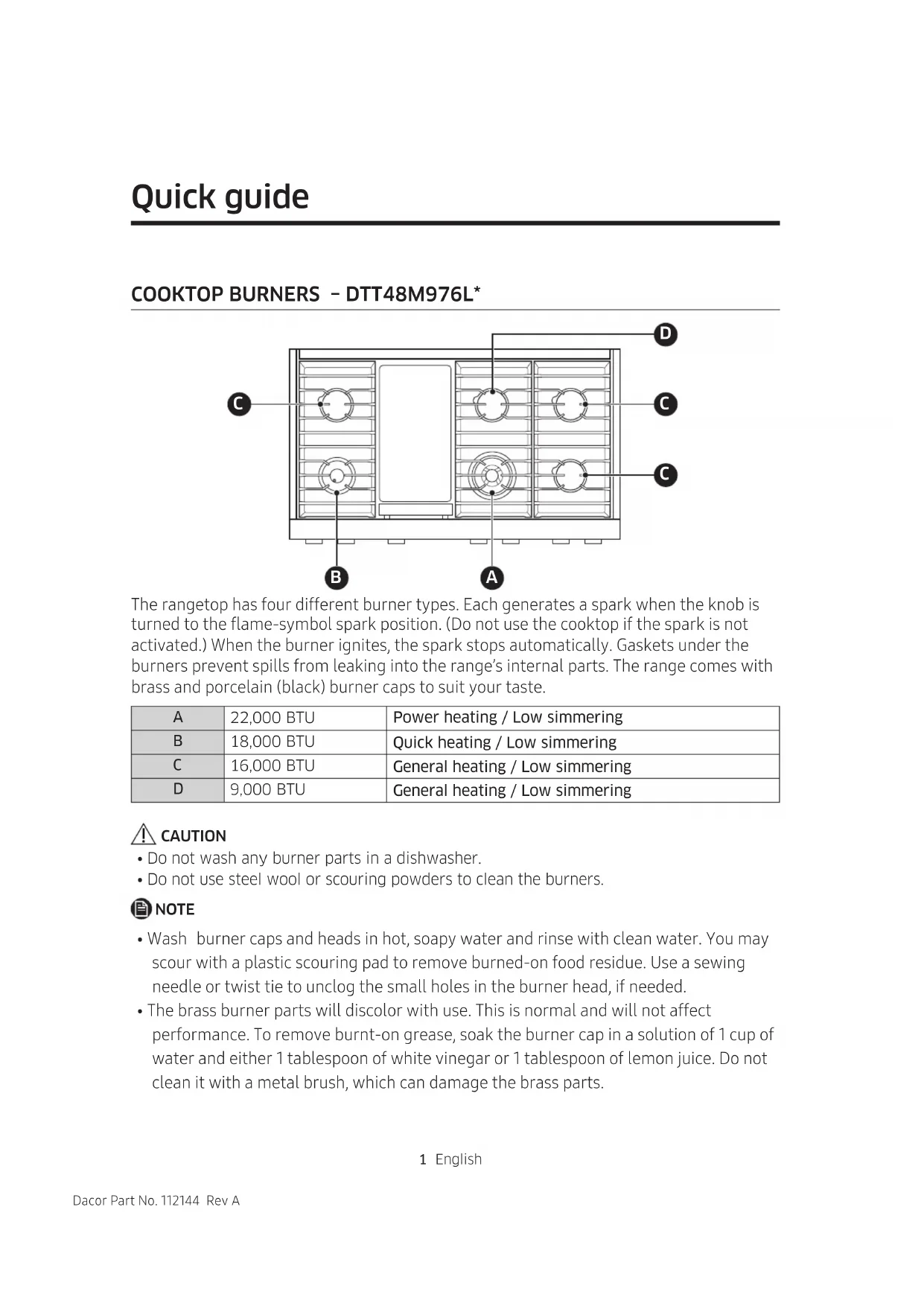

USER MANUAL Modernist DTT48M976LS Dacor

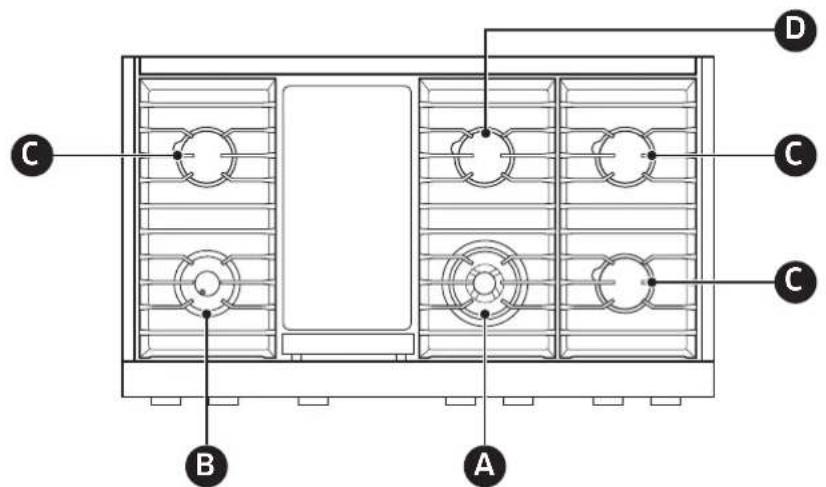

The rangetop has four different burner types. Each generates a spark when the knob is turned to the flame-symbol spark position. (Do not use the cooktop if the spark is not activated.) When the burner ignites, the spark stops automatically. Gaskets under the burners prevent spills from leaking into the range's internal parts. The range comes with brass and porcelain (black) burner caps to suit your taste.

A	22,000 BTU	Power heating / Low simmering
B	18,000 BTU	Quick heating / Low simmering
C	16,000 BTU	General heating / Low simmering
D	9,000 BTU	General heating / Low simmering

CAUTION

• Do not wash any burner parts in a dishwasher.
• Do not use steel wool or scouring powders to clean the burners.

NOTE

• Wash burner caps and heads in hot, soapy water and rinse with clean water. You may scour with a plastic scouring pad to remove burned-on food residue. Use a sewing needle or twist tie to unclog the small holes in the burner head, if needed.
• The brass burner parts will discolor with use. This is normal and will not affect performance. To remove burnt-on grease, soak the burner cap in a solution of 1 cup of water and either 1 tablespoon of white vinegar or 1 tablespoon of lemon juice. Do not clean it with a metal brush, which can damage the brass parts.

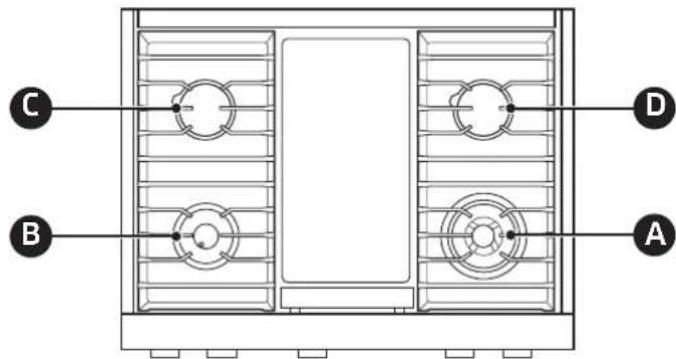

COOKTOP BURNERS - DTT36M974L*

The rangetop has four different burner types. Each generates a spark when the knob is turned to the flame-symbol spark position. (Do not use the cooktop if the spark is not activated.) When the burner ignites, the spark stops automatically. Gaskets under the burners prevent spills from leaking into the range's internal parts. The range comes with brass and porcelain (black) burner caps to suit your taste.

A	22,000 BTU	Power heating / Low simmering
B	18,000 BTU	Quick heating / Low simmering
C	16,000 BTU	General heating / Low simmering
D	9,000 BTU	General heating / Low simmering

CAUTION

• Do not wash any burner parts in a dishwasher.
• Do not use steel wool or scouring powders to clean the burners.

NOTE

• Wa sh burner caps and heads in hot, soapy water and rinse with clean water. You may scour with a plastic scouring pad to remove burned-on food residue. Use a sewing needle or twist tie to unclog the small holes in the burner head, if needed.
• The brass burner parts will discolor with use. This is normal and will not affect performance. To remove burnt-on grease, soak the burner cap in a solution of 1 cup of water and either 1 tablespoon of white vinegar or 1 tablespoon of lemon juice. Do not clean it with a metal brush, which can damage the brass parts.

USING THE IQ CONNECT FEATURE

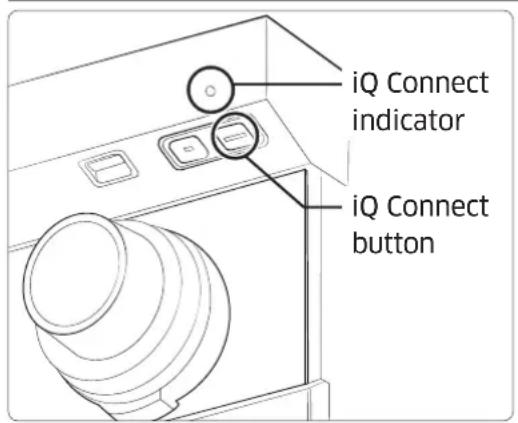

The rangetop's iQ Connect button is under the chassis over the knob.

Connecting the rangetop

Before you can remotely control your rangetop, you must pair it with the Dacor iQ Kitchen app.

1. Download and open the Dacor iQ Kitchen App on your smart device.
2. Follow the app's on-screen instructions, then press-hold the iQ Connect button for 3 seconds.

NOTE

• The iQ Connect LED indicator stops blinking but remains on, indicating the connection was successful.
• If the iQ Connect LED does not appear, follow the app's instructions to reconnect with the cooktop.

To monitor the cooktop remotely

1. Make sure the iQ Connect LED indicator appears. If not, press the iQ Connect button, after which the cooktop can be monitored remotely with a connected device.
2. Select the cooktop icon on the iQ Connect App to open the cooktop monitor app.

iQ Connect on/off

If you set the iQ Connect to Off, mobile devices cannot connect to the cooktop.

To turn iQ Connect on and off, press iQ Connect button under the chassis.

NOTE

• The iQ Connect LED indicator appears. The indicator stays while iQ Connect is active.
• The rangetop keeps operating if the Wi-Fi connection is lost.
• iQ Connect will not work properly if the Wi-Fi Connection is unstable.
• See the iQ Connect app's user manual for details. You can also visit www.dacor.com where you can view the iQ Connect web manual.

USING THE IQ CONNECT FEATURE

NOTE

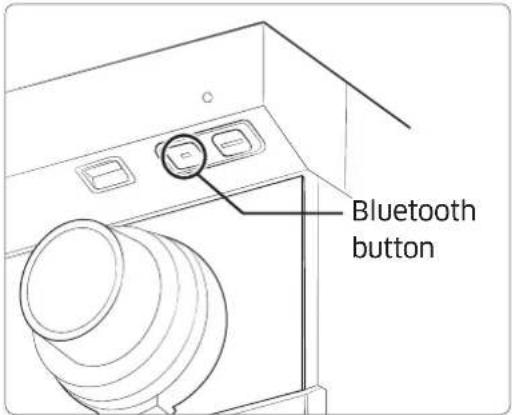

The Bluetooth button is on the right-hand end of the rangetop under the front lip above the knob.

To connect a hood-control gangetop with a hood:

1. Download and run the Dacor iQ Connect app on your smartphone, then complete the iQ Connect procedure to connect to the rangetop.
2. Follow the Bluetooth directions of the hood-control model, and activate the Bluetooth connection.
3. Press the Bluetooth icon (×) on the hood-control panel. The icon LED blinks.
4. Press the Bluetooth button on the rangetop. Pairing begins. When finished, the Bluetooth LED indicator glows steadily.
5. Follow the directions in the rangetop user manual and the app guide to control the hood.

Bluetooth on/off

Press the Bluetooth button under the chassis.

NOTE

• The hood's Bluetooth LED stays on while Bluetooth is enabled.
• If no connection is made, you cannot monitor/control the hood with the Dacor iQ Kitchen app.
• If not connected to the rangetop, you can use a Bluetooth connecti on to pair and sync the rangetop with the hood. To do this, follow the Bluetooth connection steps above.
• Bluetooth will not work properly if the Bluetooth connection is unstable.
• See the Dacor iQ kitchen app manual for details.

PRECAUTION

Before using burner knobs...

To prevent unintentionally changing the height of the flame, each burner knob operates on a "push-turn" system. Also, each knob has stop points at each setting. To proceed past a stop point, push-turn the knob again. This system ensures the flame size will only change by way of the user.

Before using Griddle...

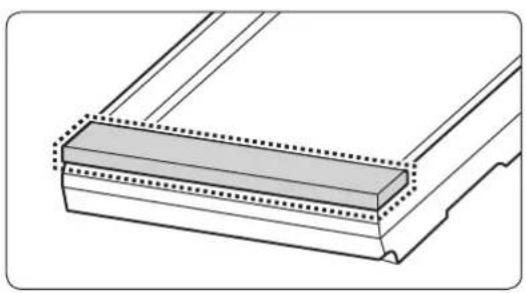

At the front of the griddle is a removable grease trap. To empty the trap, grasp it by its handle, and lift the trap up and away from the griddle.
