TVDR4804FDB - Cooker VIKING - Free user manual and instructions

Product Type	Gas Range
Brand	Viking
Model	TVDR4804FDB
Width	48 inches (122 cm)
Depth	27 inches (69 cm)
Height	36 inches (91 cm) with backguard
Weight	Approximately 140 kg
Power Supply	Natural gas or propane (convertible)
Number of surface burners	4 burners + 1 French top
Rear burners	2 burners (B and C) of different sizes
Front burners	2 burners (D) of standard size
French top	Cast iron grate/plate for cooking
Material	Stainless steel
Grates	Removable cast iron grates
Ignition	Electric with pilot
Pressure regulator	Gas regulator included, convertible
Gas conversion	LP/Propane conversion kit included (LPKTVDR)
Maintenance and cleaning	Clean with soapy water solution; avoid open flames for leak detection
Safety	Emergency shut-off if gas odor; do not touch electrical switches
Spare parts	Orifices, flanges, burner heads available (use adhesive tape to prevent losing them)
Repairability	Installation and maintenance by qualified installer; manual available online
General information	Manufactured by Viking Range, LLC, Greenwood, MS, USA
Warranty	Refer to manual or website for details

Frequently Asked Questions - TVDR4804FDB VIKING

How to convert the range from natural gas to propane?

Use the supplied LPKTVDR conversion kit. Follow these steps: remove the grates and burner heads, reverse the regulator piston (marked NAT or PL), replace the orifices with those from the kit. For the French top, remove the screws and replace the orifice under the flange. Apply adhesive tape in the socket to prevent losing the orifices. Check for leaks with soapy water.

Where is the rating plate?

The rating plate is located under the control panel. After conversion, affix the provided conversion label next to it.

What to do in case of gas odor?

Do not light any appliance, do not touch electrical switches, do not use any phone in the building. Immediately call your gas supplier from a neighbor's phone. If not possible, call the fire department.

How to check for gas leaks after conversion?

Apply a soapy water solution to the fittings and orifices. If bubbles appear, there is a leak. Tighten connections or replace defective parts. Never use an open flame.

What tools are needed for conversion?

You will need a flat-head screwdriver, a nut driver, and adhesive tape (to facilitate orifice removal).

Can I use the French top on all burners?

No, the French top (special grate) is designed for a specific burner. Follow the manual instructions to install it correctly.

How to clean the surface burners?

Remove the grates and burner heads. Clean them with warm soapy water and a soft brush. Rinse and dry completely before reassembling. Avoid abrasive products.

What if an orifice falls inside the range?

Use adhesive tape inside the socket to hold the orifice during disassembly. If it falls, turn off the gas, disconnect power, and retrieve it carefully. If not possible, contact a qualified installer.

Can I buy spare parts for this model?

Yes, orifices, flanges, burner heads are available. Refer to the manual for part numbers (e.g., #78, #105, #120, #90). Contact Viking or an authorized dealer.

Where can I find the complete manual in French?

Download the manual free in PDF format from notice-facile.com. You can also request a translation by selecting your language and providing your email.

USER MANUAL TVDR4804FDB VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifi ces may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open f1 ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
• Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP". Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

• Reinstall hex nut onto regulator in configuration desired.

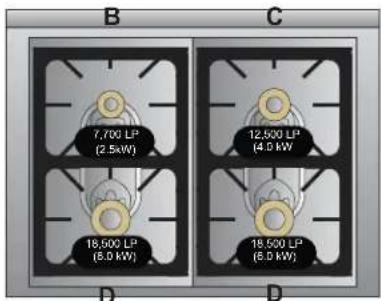

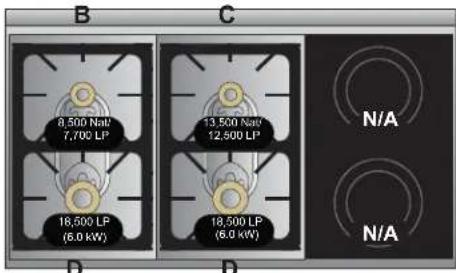

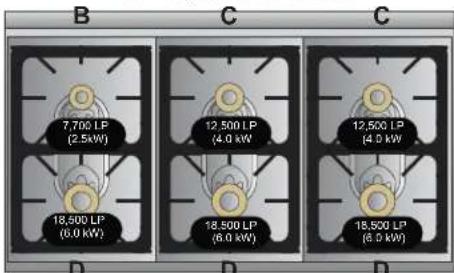

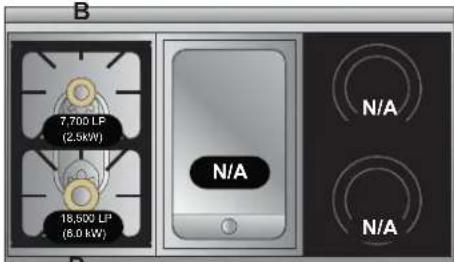

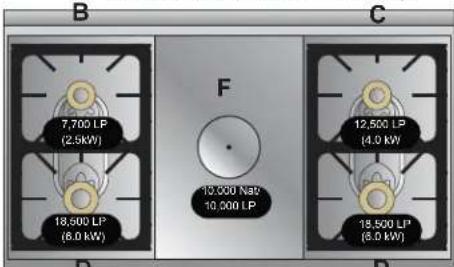

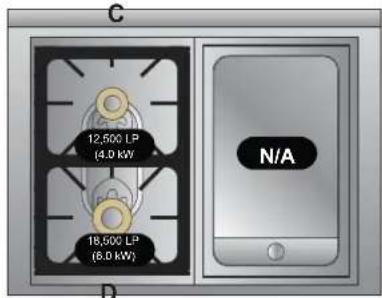

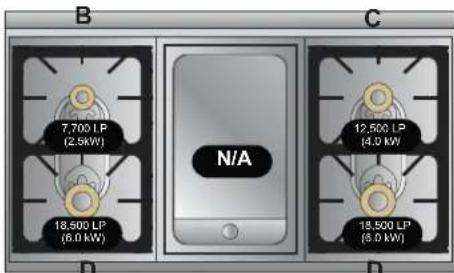

Orifices Locations

36" W/4 Surface Burners

36" W/2 Surface Burners/Griddle

48" W/6 Surface Burners

48" W/4 Surface Burners/Griddle

48" W/2 Surface Burners/Griddle/Induction

48" W/4 Surface Burners/French Top

D
48" W/4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

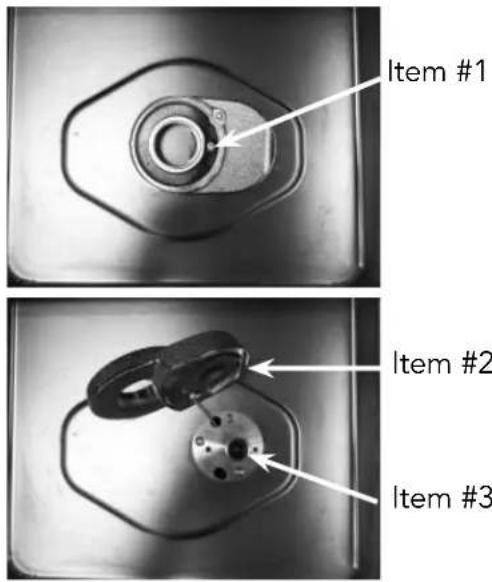

Surface Burner Conversion

-Locate appropriate orificce
-Remove screw (Item #1) fl at-head screwdriver.
- Lay the burner flange to side - do not disconnect the igniter wire. (Item #2).
-Use a nut driver to remove orificce (ltem #3).
-Replace with correct orifice - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, replace Item#2 burner fl ange.
  -Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

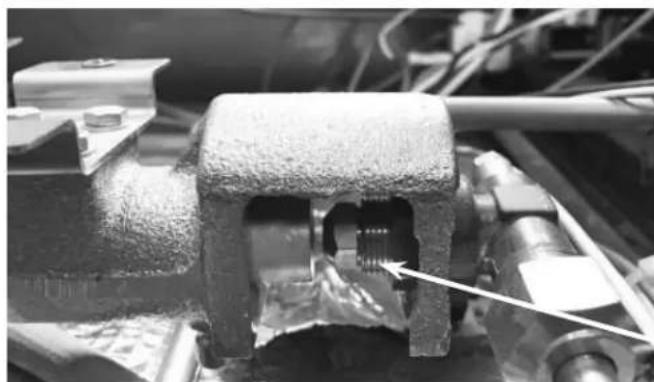

Frenchtop Burner Conversion

-Remove frenchtop plate.
-Remove screws around burner.
-Remove screws holding burner box.
-Slide burner box forward and lift out.
-Orifice is located under orifice bracket, attached to tubing.
-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, reinstall burner box and frenchtop plate

Orifice bracket

Orificce

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.

or visit our web site at vikingrange.com in the U.S. or brigade.ca in Canada.
