Product Type	Gas Range
Brand	Viking
Model	TVDR4804IAW
Width	48 inches (122 cm)
Depth	27 inches (69 cm)
Height	36 inches (91 cm)
Weight	Approximately 113 kg (250 lb)
Fuel	Natural gas or propane (conversion kit included)
Number of surface burners	6
Surface burner type	Sealed high-performance burners
French griddle	Yes, integrated
Oven	Yes, gas (estimated capacity 5.4 cu. ft.)
Ignition	Electronic
Material	Stainless steel
Cleaning	Removable grates, detachable burners
Safety	Shut-off valve, power shut-off instructions
Spare parts	LP conversion kit (LPKTVDR) included
Warranty	2 years (standard estimate)
Country of manufacture	United States
Installation	Built-in or freestanding

Frequently Asked Questions - TVDR4804IAW VIKING

How to convert the range from natural gas to propane?

Use the included LPKTVDR conversion kit. Follow the instructions: reverse the regulator piston (marked NAT/PL), replace the burner orifices with those from the kit, and check for leaks with soapy water.

How to clean the surface burners?

Remove the grates and burner caps. Wash them in warm soapy water, rinse and dry completely. Do not immerse the igniters. Ensure the orifices are not clogged.

What to do if the burner does not ignite?

Check that the gas supply is open and the electronic ignition works. Clean the burner head and orifice. If the problem persists, contact a qualified technician.

Where is the rating label located?

Under the control panel, at the front of the appliance. It indicates the gas type and settings.

Can I use the range without conversion for natural gas?

Yes, it is shipped configured for natural gas. If using propane, you must perform the conversion with the provided kit.

How to maintain the French griddle?

Clean it after each use with a soft cloth and mild detergent. Avoid abrasives. For deep cleaning, remove the griddle and wash it by hand.

What are the dimensions of the range?

Width 48 inches (122 cm), depth 27 inches (69 cm), height 36 inches (91 cm). Allow adequate spacing for ventilation.

What to do in case of gas odor?

Do not light any appliance, do not touch any switches, leave the area and call your gas supplier from a neighbor's phone. Follow the supplier's instructions.

Can I install the range myself?

Installation and conversion must be performed by a qualified installer in accordance with local codes. Warranty may be voided if improperly installed.

Where can I find spare parts?

Contact Viking Range LLC or an authorized dealer. The LPKTVDR conversion kit is included with the appliance.

USER MANUAL TVDR4804IAW VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifi ces may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open f1 ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
• Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP". Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

• Reinstall hex nut onto regulator in configuration desired.

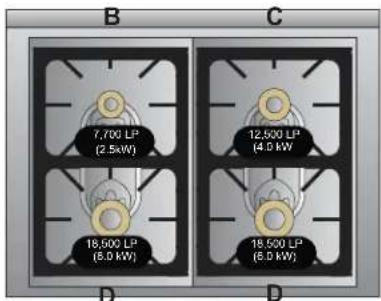

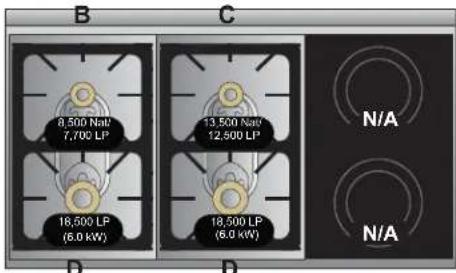

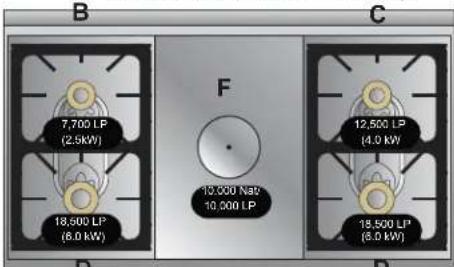

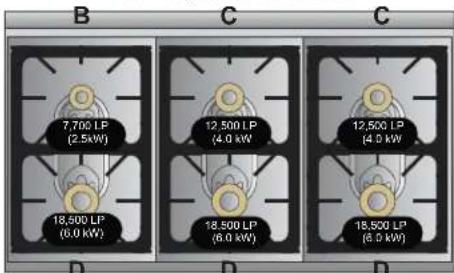

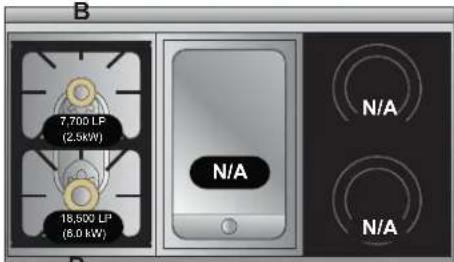

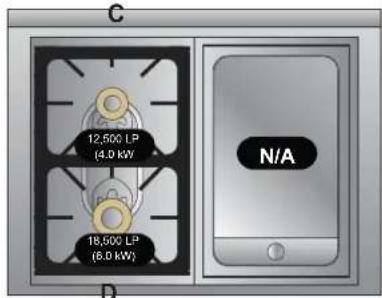

Orifices Locations

36" W/4 Surface Burners

36'' W/2 Surface Burners/Griddle

48" W/6 Surface Burners

48" W/4 Surface Burners/Griddle

48" W/2 Surface Burners/Griddle/Induction

48" W/4 Surface Burners/French Top

D
48" W/4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

Surface Burner Conversion

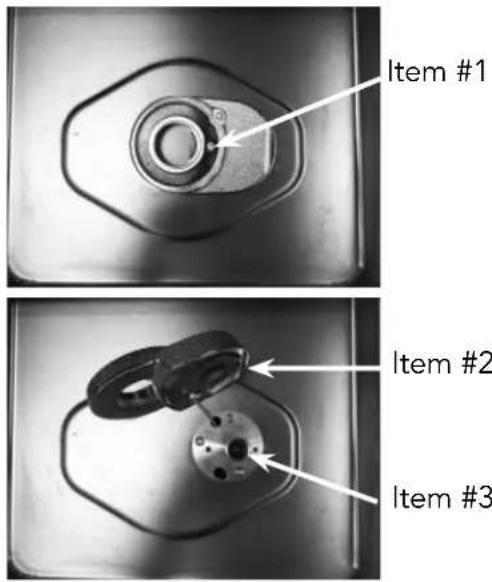

-Locate appropriate orificce
-Remove screw (Item #1) fl at-head screwdriver.
- Lay the burner flange to side - do not disconnect the igniter wire. (Item #2).
-Use a nut driver to remove orificce (ltem #3).
-Replace with correct orific e - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, replace Item#2 burner fl ange.
  -Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Frenchtop Burner Conversion

-Remove frenchtop plate.
-Remove screws around burner.
-Remove screws holding burner box.
-Slide burner box forward and lift out.

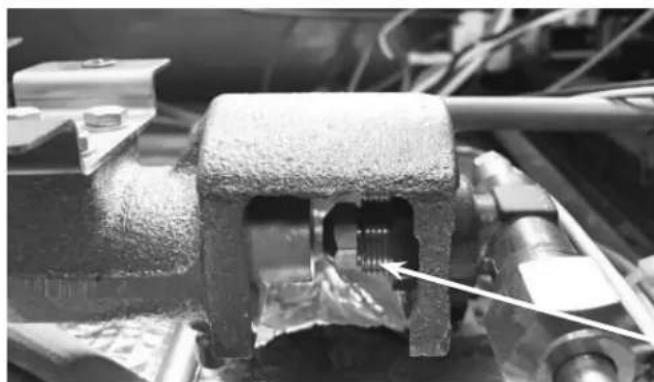

-Orifice is located under orifice bracket, attached to tubing.
-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, reinstall burner box and frenchtop plate

Orifice bracket

Orifices

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.

or visit our web site at vikingrange.com in the U.S. or brigade.ca in Canada.
