TVDR4804IDB - Cooker VIKING - Free user manual and instructions

Brand	Viking
Model	TVDR4804IDB
Product Type	Gas Range
Width	48 inches (122 cm)
Number of Surface Burners	6
Burner Type	Sealed, High-Performance Burners
French Top	Included (model with French top)
Gas Supply	Natural gas (convertible to propane with LPKTVDR kit)
Electrical Supply	120 V, 60 Hz, 15 A (for igniters and electrical functions)
Material	Stainless steel
Grates	Continuous cast-iron grates
Safety	Gas shut-off safety valve, pressure regulator
Maintenance and Cleaning	Clean burners and grates with mild soap; orifices accessible for conversion
Spare Parts	LPKTVDR conversion kit available; burner orifices sold separately
Repairability	Repairability index not specified; parts available through authorized service
Weight	Approx. 180 kg (396 lbs)
Dimensions (H x W x D)	91.4 x 122 x 76.2 cm (36 x 48 x 30 inches)

Frequently Asked Questions - TVDR4804IDB VIKING

How do I convert my Viking TVDR4804IDB range from natural gas to propane?

Use the LPKTVDR conversion kit. Disconnect the power supply, reverse the regulator piston, replace the surface burner and French top orifices with those provided. Use a soapy solution to check for leaks before relighting.

What is the difference between natural gas and propane orifices?

Propane (PL) orifices have a smaller diameter and are marked 'PL' or 'LP'. Natural gas orifices are marked 'NAT'. The regulator piston also bears these marks.

How do I clean the surface burners?

Remove the grates and burner caps. Clean them with a soft sponge and mild soap. Rinse and dry completely before reassembling. Do not clean in a dishwasher.

What should I do if I smell gas?

Follow safety instructions: do not light any appliance, do not touch any switches, leave the premises, call your gas supplier from an outside phone, then call the fire department if necessary.

How do I use the French top?

The French top is a flat, smooth cooking surface. Light the burner under the top, adjust the flame. It is ideal for crêpes, pancakes, or dishes requiring even heat.

Can I install the range myself?

Installation and gas conversion must be performed by a qualified installer in accordance with local codes. Do not attempt to do it yourself if you are not certified.

Where is the rating label located?

Under the control panel. After conversion, affix the provided conversion label next to it.

How do I remove the surface burner cap?

Remove the screw using a flat-head screwdriver. Do not disconnect the igniter wire. Use a nut driver to remove the orifice.

What accessories are available for this model?

The LPKTVDR propane conversion kit, as well as replacement orifices for surface burners and the French top.

How can I tell if the propane conversion was done correctly?

After conversion, verify that the regulator shows 'PL' on the bottom, that the orifices are from the kit, and perform a leak test with soapy water on all connections.

USER MANUAL TVDR4804IDB VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifi ces may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open f1 ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
• Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP". Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

• Reinstall hex nut onto regulator in configuration desired.

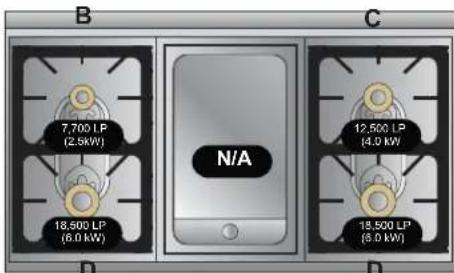

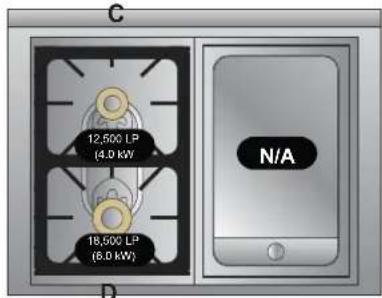

Orifices Locations

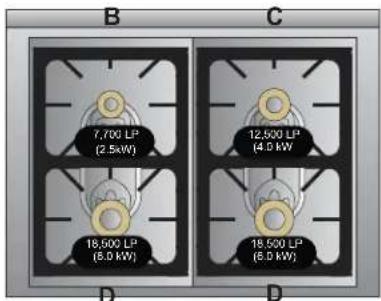

36" W/4 Surface Burners

36'' W/2 Surface Burners/Griddle

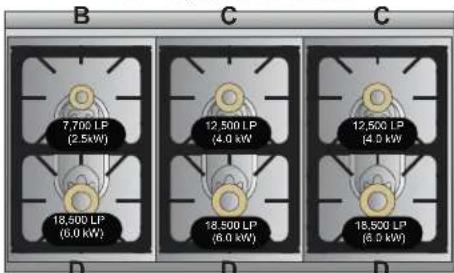

48" W/6 Surface Burners

48" W/4 Surface Burners/Griddle

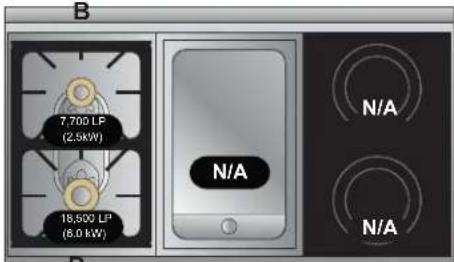

48" W/2 Surface Burners/Griddle/Induction

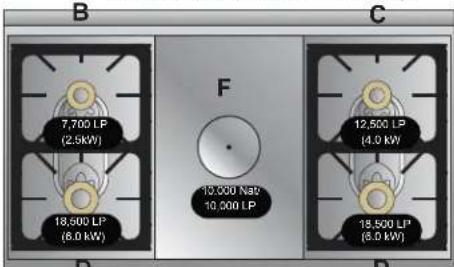

48" W/4 Surface Burners/French Top

D

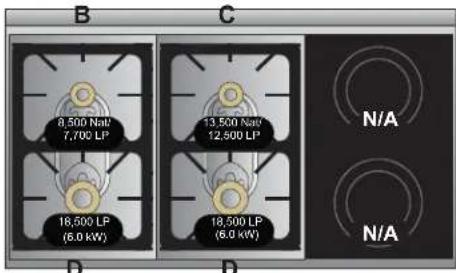

48" W/4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

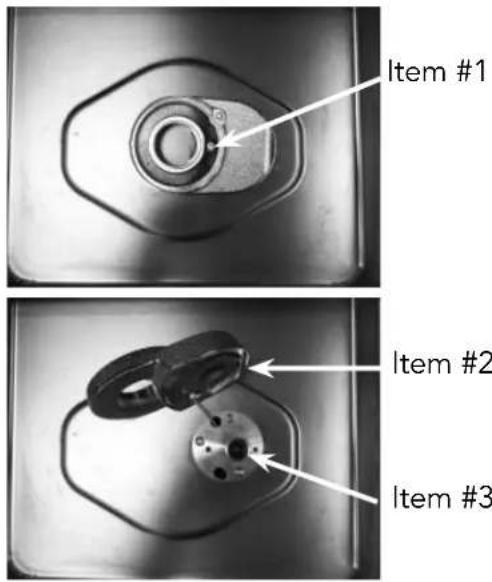

Surface Burner Conversion

-Locate appropriate orificce
-Remove screw (Item #1) fl at-head screwdriver.
- Lay the burner flange to side - do not disconnect the igniter wire. (Item #2).
-Use a nut driver to remove orificce (ltem #3).
-Replace with correct orific e - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, replace Item#2 burner fl ange.
  -Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Frenchtop Burner Conversion

-Remove frenchtop plate.
-Remove screws around burner.
-Remove screws holding burner box.
-Slide burner box forward and lift out.

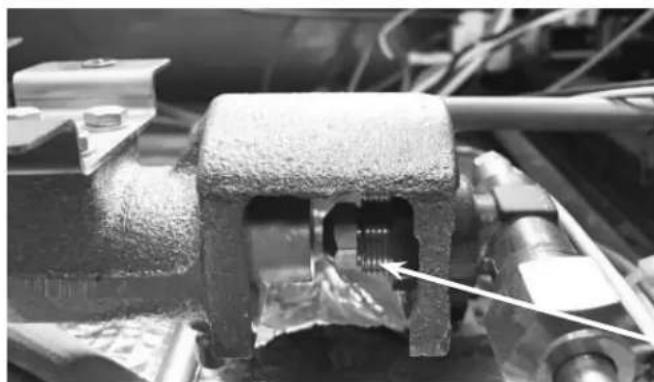

-Orifice is located under orifice bracket, attached to tubing.
-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, reinstall burner box and frenchtop plate

Orifice bracket

Orificce

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.
