SERENITY 302602 - Humidifier Arendo - Free user manual and instructions

Product type	Air humidifier
Brand	Arendo
Model	SERENITY 302602
Power supply	220-240 V, 50/60 Hz (adapter) / 24 V DC, 1 A (device)
Tank capacity	1300 ml
Standby power consumption	≤ 1 W
Power levels	2 (level 1: green LED, level 2: blue LED)
Auto shut-off	Yes, when tank is empty (red indicator)
Control	Touch button (soft-touch) "POWER"
LED indicator	Green (level 1), Blue (level 2), Red (empty tank)
LED brightness adjustment	Yes, by holding the POWER button
Recommended water temperature	Max. 40 °C
Tank cleaning	Vinegar solution, rinse with clear water (weekly)
Atomizer cleaning	Soft brush or toothbrush, clear water
Base cleaning	Clean cloth, no harsh cleaners
Minimum installation distance	≥ 1.5 m from ceiling, ≥ 50 cm from walls and floor
Safety precautions	Disconnect before cleaning; do not use without water; avoid high temperatures

Frequently Asked Questions - SERENITY 302602 Arendo

How to turn on the humidifier and adjust the power?

Press the POWER button to turn on the device. The indicator lights up green (level 1). Press again to switch to level 2 (blue indicator). To turn off, press once more.

What does the red indicator mean?

The red indicator means the water tank is empty or incorrectly positioned. Fill the tank or check its placement on the base.

How to clean the humidifier?

Unplug the device. Clean the base with a damp cloth without detergent. For the tank, use a vinegar solution, rinse thoroughly. Clean the atomizer with a soft brush.

Why is the device not producing steam?

Check that the tank is filled with water and properly placed on the base. Ensure the device is plugged in and the power level is activated.

The water has an unusual odor, what should I do?

Clean the tank and atomizer. Change stagnant water. Use fresh, clean water.

Water is leaking from the device, what should I do?

Check that the tank lid is tightly closed and the tank is correctly positioned on the base.

Can I use hot water?

No, the water temperature must not exceed 40°C to avoid damaging the device.

Where should I place the humidifier?

Place it on a flat, stable surface, at least 1.5 m from the ceiling and 50 cm from walls and floor. Keep it away from moisture-sensitive furniture.

What to do if I don't use the device for a long time?

Unplug the device, empty and dry the tank and base completely before storing in a dry place.

How to recycle the device at end of life?

Do not dispose of the device with household waste. Return it to a collection point for electrical and electronic equipment in accordance with the WEEE directive.

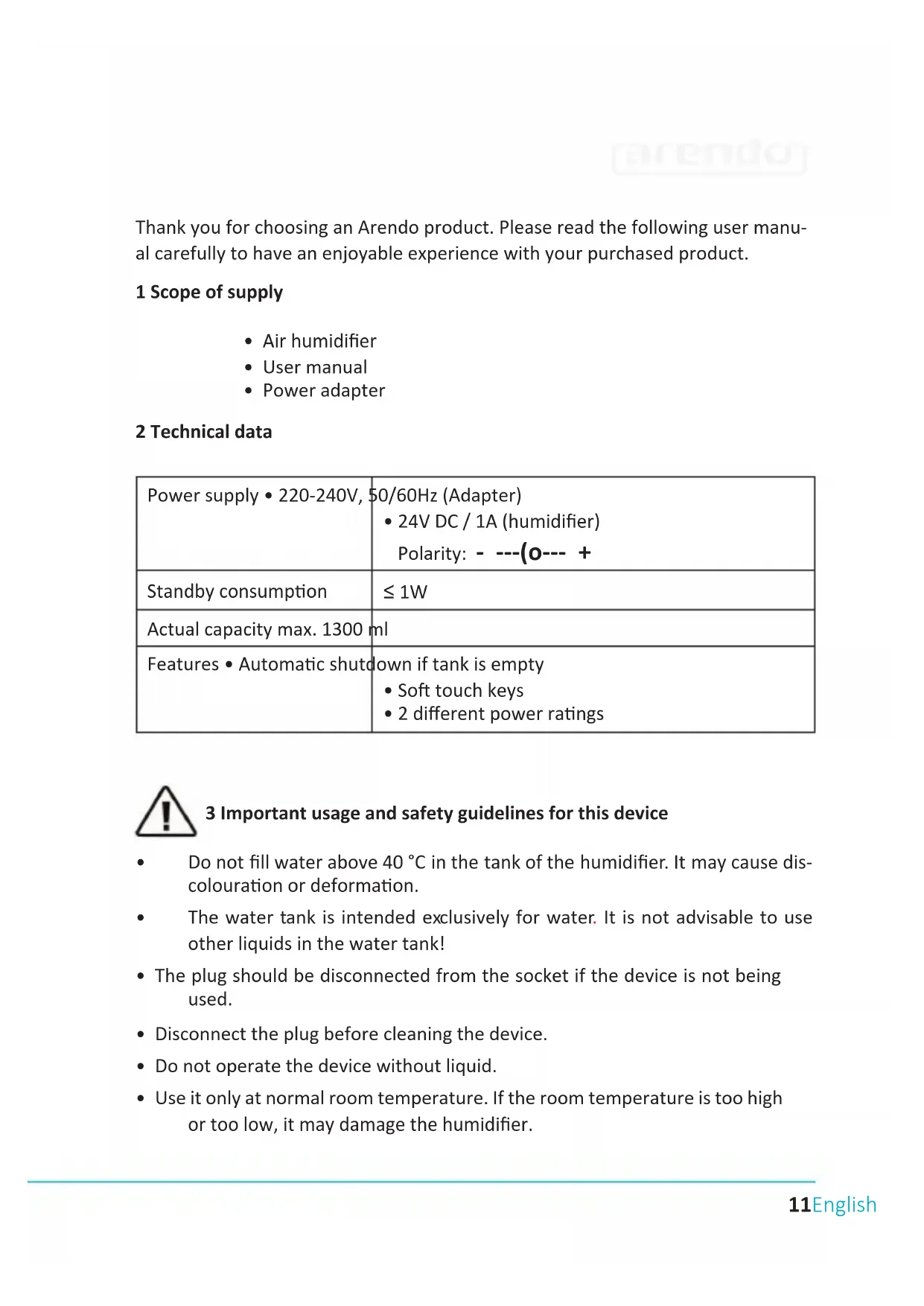

USER MANUAL SERENITY 302602 Arendo

Thank you for choosing an Arendo product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

Air humidifier
- User manual
- Power adapter

2 Technical data

Power supply • 220-240V,	50/60Hz (Adapter) • 24V DC / 1A (humidifier) Polarity: - ---(0--- +
Standby consumption	≤ 1W
Actual capacity max. 1300 ml
Features • Automatic shutdown
	• Soft touch keys • 2 different power ratings

3 Important usage and safety guidelines for this device

• Do not fill water above 40^ in the tank of the humidifier. It may cause discolouration or deformation.
  The water tank is intended exclusively for water. It is not advisable to use other liquids in the water tank!
• The plug should be disconnected from the socket if the device is not being used.
• Disconnect the plug before cleaning the device.
• Do not operate the device without liquid.
• Use it only at normal room temperature. If the room temperature is too high or too low, it may damage the humidifier.

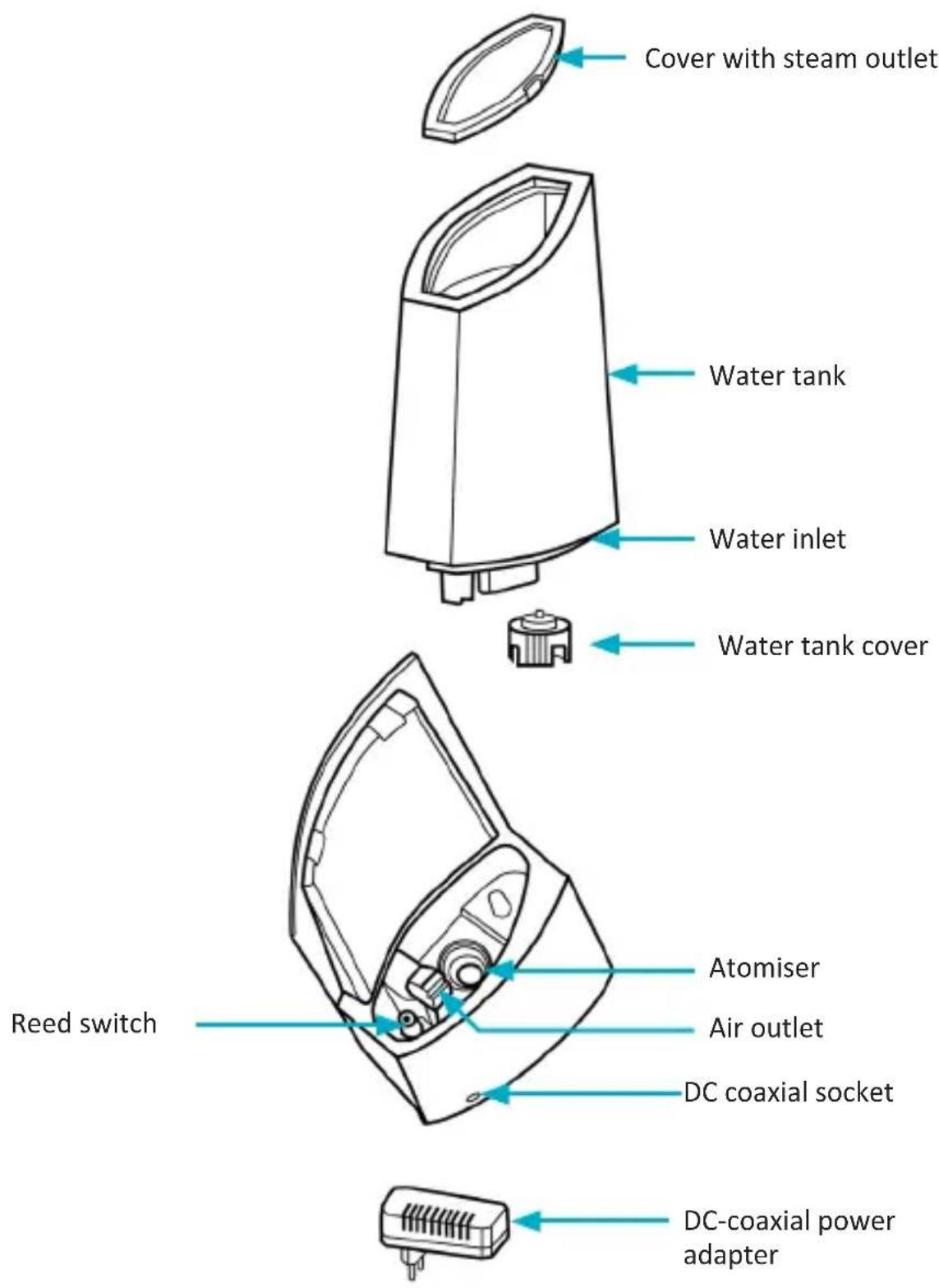

4 Product details

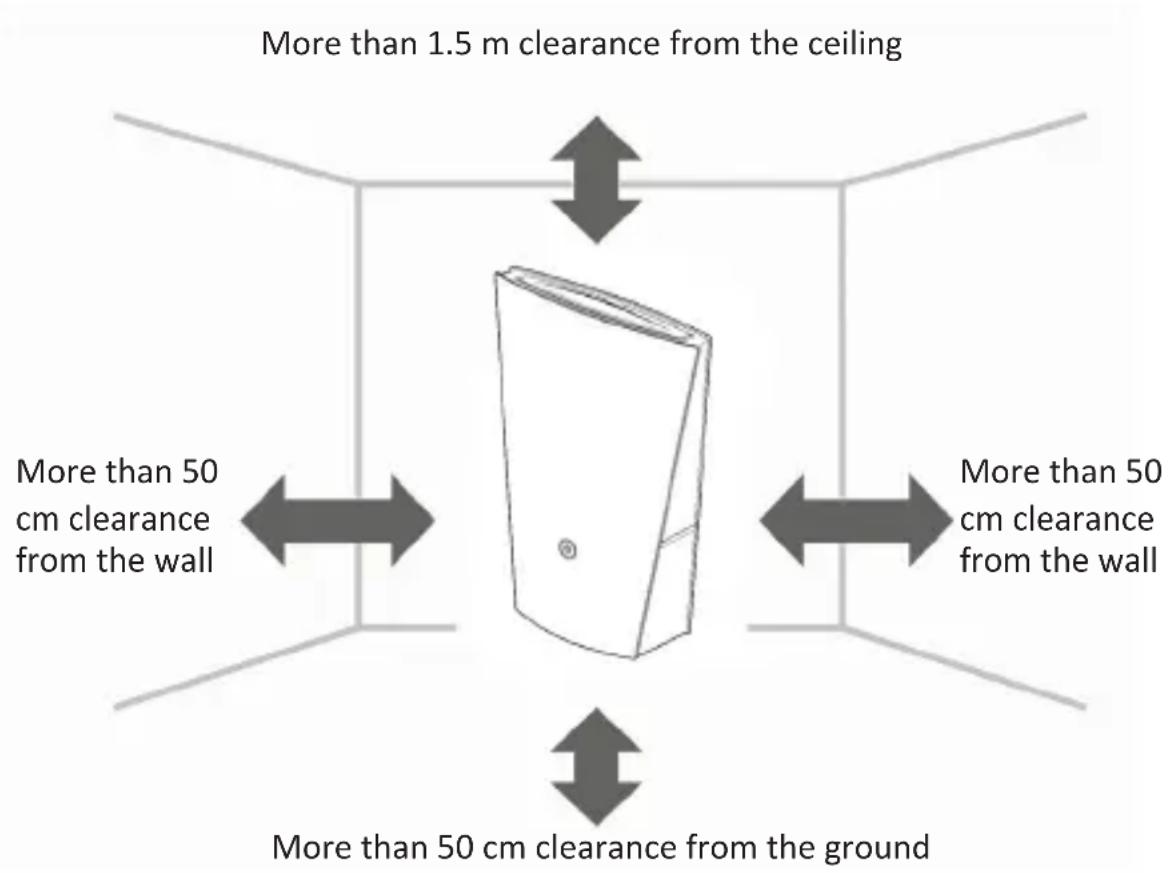

5 Selecting the right location

Selecting the right location is important for the humidifier to work properly. Ensure that the humidifier is placed at a distance of at least 1.5m from the ceiling and has a clearance of at least 50~cm on the sides and a clearance of 50~cm from the ground. Never place the humidifier next to furniture or other objects, which are sensitive to moisture. Adjust the intensity of the humidifier depending on the size of your room.

6 Initial use

1. Take the device out of the package and remove all the packaging material. Place the humidifier before initial use on a flat and even surface.
2. Remove the water tank from the device. Open the water tank by unscrewing the water tank cover.
3. Fill the tank with fresh clear water. Ensure that the water temperature is not above 40^ . Also, ensure that the tank is not overfilled.
4. Then screw the water tank cover back onto the tank properly.
5. Afterwards, put the water tank back onto the base unit. Ensure that the tank is firmly seated and does not wobble.
6. Then, the cover should be placed with the steam outlet on the top of the tank.
7. Now, the supplied power adapter can be plugged to a properly connected power socket and diffuser. The device is now ready to be used. Press the "POWER" button to start. The quantity of steam released can be set individually with this button. Press the "POWER" button again. A green light indicates that the first power level is active. As soon as the LED lights up blue, the second level is active.

7 Key function and signal LEDs

A signal LED is located in the base unit. If it lights up red, then the automatic shutdown is active. In this case, refill the water tank or check whether the tank was placed properly onto the base unit.

The air humidification has two levels for the steam generation. Press the "POWER" button on the front side of the device to switch it on. The LED light turns green (level 1). Press this button again to activate the second power level. The signal LED turns blue as soon as this is activated.

If the brightness of the LEDs is too high, you can dim it by keeping the "POWER" key pressed.

8 Cleaning and Maintenance

Caution! Ensure that the plug has been disconnected from the socket before cleaning!

We suggest cleaning of the water tank and the base once a week, if used frequently. Ensure that the water in the tank is changed regularly.

Before storing it away ensure that the tank and the base unit are dried completely.

Cleaning the base:

Remove the lid and the water tank. Using a clean cloth, remove any water residues and stains from the device. Do not use any aggressive or chemical cleaning agent.

Cleaning the atomiser:

Remove the lid and the water tank. Using a clean cloth, remove any water residues and stains from the device. Clean the atomiser using a soft brush or alternatively a toothbrush. Then wash the metal plate with water and allow the device to dry completely and uniformly.

Cleaning the water tank:

Remove the lid and the water tank. Rinse the tank using a vinegar solution. Then wash the tank thoroughly with water. Do not leave any residue of vinegar in the tank. Dry the device completely and uniformly.

9 Troubleshooting

Error Troubleshooting
The device cannot be switched on Inset the mains plug into the socket
• The device is switched on but the humidification does not start • The mist output is very low	• Fill the water tank • Ensure that the humidifier is placed on an even surface
The mist has a unusual smell	• Clean the tank and the atomiser • Ensure that the water in the tank is not stale. If this is the case, replace the water in the tank
The water is draining out of the device	• Ensure that the tank cover is closed correctly. • Ensure that the tank is placed correctly on the base unit.

10 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

11 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU
WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302602/20170316FS013 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
