USER MANUAL MD 16471 MEDION
-
Package contents
-
About these instructions 58
2.1. Symbols and keywords used in these instructions 58
-
Proper use
-
Safety information
4.1. Setting up the appliance 61
4.2. Connecting the rice cooker 62
4.3. General safety instructions 62
4.4. Cleaning and care 63
- Overview of the appliance 64
- Before first use 65
- Using the rice cooker 65
7.1. Filling the rice cooker 65
7.2. Cooking 66
7.3. Keeping rice warm 66
- Using the steamer insert 67
-
Cleaning the appliance 67
-
Technical data
- Declaration of conformity 68
- Legal notice 68
- General Warranty Conditions
- Service Address.. 71
1. Package contents
After unpacking the product, please ensure that the following parts have been supplied:
- Rice cooker MD 16471, consisting of:
-Pot insert
-Steamer insert
-Glass lid
-Mains cable
- Measuring cup
Rice spoon - Operating instructions and warranty documents
2. About these instructions
Read the safety instructions carefully before using the appliance for the first time. Note the warnings on the appliance and in the operating instructions.
This appliance may only be used as described in the operating instructions. Always keep these operating instructions at hand and store them safely so that you can pass them on to a new owner if you sell the unit.
2.1. Symbols and keywords used in these instructions
DANGER!
Warning of immediate risk of fatal injury.
WARNING!
Warning of possible risk of fatal injury and/or serious irreversible injuries.
WARNING!
Warning of risk of electric shock.
WARNING!
Warning of danger due to hot surfaces.
CAUTION!
Please follow the instructions to prevent injuries and property damage.
ATTENTION!
Please follow the guidelines to prevent property damage.
NOTICE!
Additional information on using the product.
NOTICE!
Please follow the guidelines in the operating instructions!
Bullet point/information on operating steps and results
Tasks to be performed
3. Proper use
This appliance may only be used for cooking and keeping rice warm or steaming food, such as vegetables, fish or meat.
This appliance is intended to be used in private households or for similar household applications, such as:
-in kitchens for employees in shops, offices and other commercial areas;
-on agricultural estates;
-by customers in hotels, motels and other residential facilities;
-in bed & breakfast accommodation.
The appliance is not suitable for commercial or industrial use. Please note that we shall not be liable in cases of improper use:
-
Do not modify the appliance without our consent and do not use any auxiliary equipment which we have not approved or supplied.
-
Use only spare parts and accessories that we have supplied or approved.
- Heed all the information in these operating instructions, especially the safety information. Any other use is deemed improper and can cause personal injury or property damage.
- Do not expose the appliance to any extreme conditions. The following should be avoided:
-High levels of humidity or moisture
-Extremely high or low temperatures
-Direct sunlight
-Naked flames
- Do not use the appliance outdoors.
4. Safety information
WARNING!
Risk of injury due to improper handling.
- Keep the appliance and its accessories out of the reach of children.
This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and have understood the dangers that result from it. Children must not be allowed to play with the appliance. Cleaning and user maintenance must not be carried out by children, unless they are aged 8 or over and are supervised.
Children younger than 8 should be kept away from the appliance and the power cord.
WARNING!
Risk of suffocation.
- Keep any plastic sheet used in packaging away from children.
WARNING!
Risk of injury from electric shock.
Before using the rice cooker for the first time and after each use, check the appliance and the mains cable for damage.
- Do not operate the appliance if there is any visible damage to the rice cooker or the mains cable.
If you find transport damage, contact the Medion Service Centre at once.
- Ensure that a defective appliance is repaired immediately by a specialist workshop. To avoid hazards, if the mains cable is damaged it must be replaced with a mains cable of the same type.
- Never try to open and/or repair an appliance component yourself. In the event of a fault, please contact the Medion Service Centre or an approved repair specialist.
Do not touch the appliance with wet hands while it is switched on.
4.1. Setting up the appliance
WARNING!
There is a risk of fire.
Place the appliance on a heat-resistant, dry and level surface.
- Do not place the appliance on surfaces that can become hot (e.g. on hotplates, open flames).
- Ensure that the appliance does not come into contact with any other objects during operation. Maintain a distance of at least 10cm to other objects. Especially, do not set up the appliance near easily flammable materials (curtains, drapes, paper, etc.).
During operation, do not place the appliance under wall cupboards or other objects that could hinder the free upwards flow of steam.
Do not cover the appliance.
Do not place any objects on the appliance.
Ensure that there are no foreign bodies between the hotplate and the pot insert.
4.2. Connecting the rice cooker
- Connect the rice cooker only to a properly installed and earthed power socket with a voltage of 230V 50Hz that has at least a 16 amp fuse. Do not use an extension cable.
- Remove the plug from the safety socket after each use, before every cleaning and during periods when the appliance is unattended.
- When disconnecting the appliance from the mains supply, always pull on the plug rather than on the cable.
Do not kink or crush the mains cable. - Ensure that the power cable is undamaged and does not run underneath the appliance or over any hot surfaces or sharp edges.
Lay the cable so that nobody is able to step on it or trip over it.
The mains cable should not come into contact with the body of the appliance or any other hot objects during operation.
4.3. General safety instructions
WARNING!
There is a risk of burns.
During operation, the touchable surfaces on the appliance and accessories may become very hot.
During operation, only touch the appliance on the handles and operating elements! Use oven gloves.
- Do not move the appliance while it is in use. Turn it off and allow it to cool down completely before moving it.
If you remove the lid during or after cooking, hot
steam may escape which can cause burns. Do not hold your head directly over the appliance and never put your hands into this steam.
- Never use the appliance if the pot insert has not been inserted.
Use only the supplied accessories.
ATTENTION!
Sensitive surfaces on the steamer insert.
- Avoid contact with acidic, saline or alkaline foodstuffs. The steamer insert could be damaged.
4.4. Cleaning and care
WARNING!
Live components. There is a risk of electric shock.
Never immerse the appliance in water or other liquids. If the appliance does fall into liquid, do not attempt to touch it. Disconnect the mains plug first!
Always pull out the plug before cleaning the appliance.
To prevent burns, allow the appliance to cool down completely before cleaning.

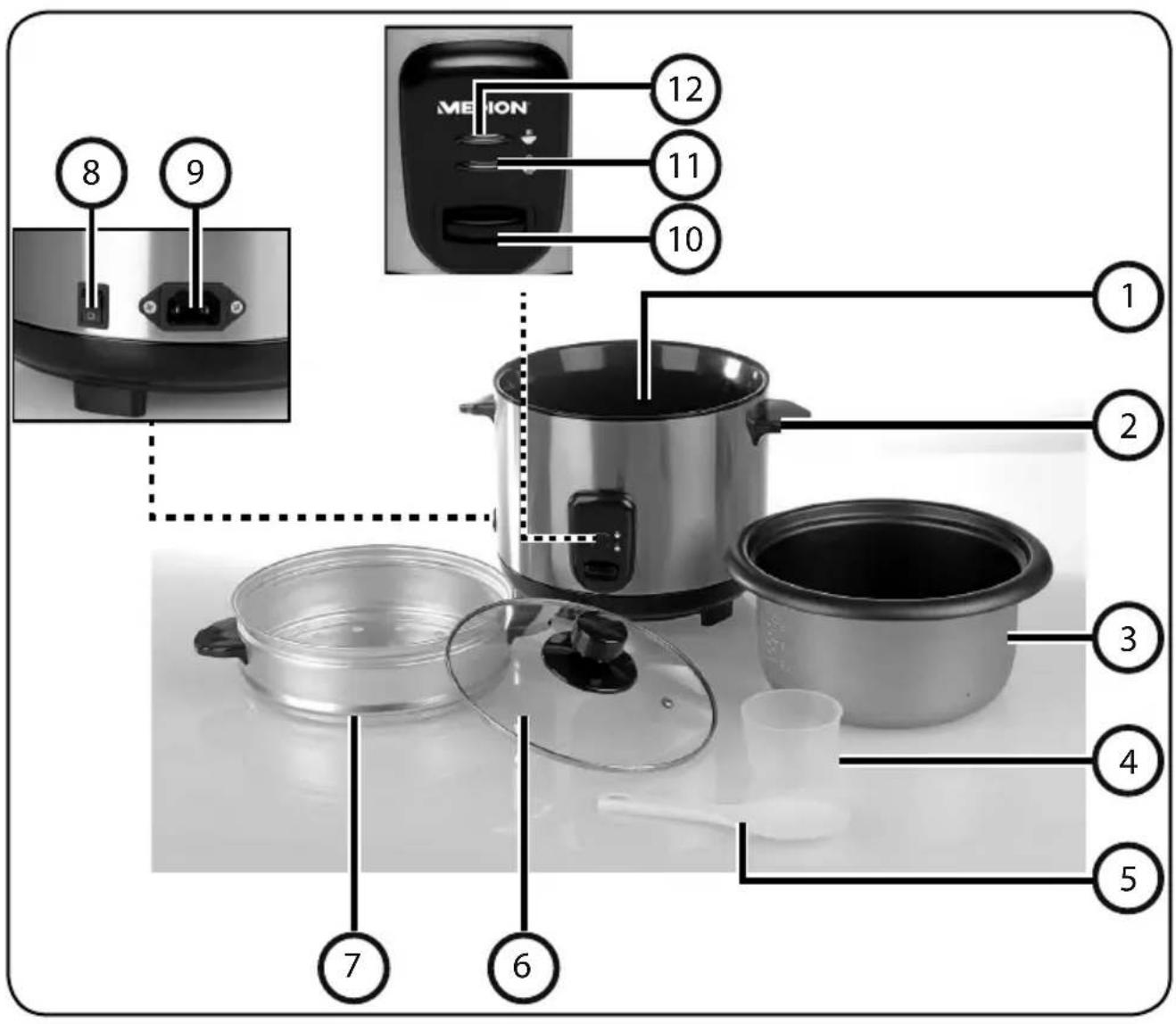

5. Overview of the appliance
1) Rice cooker
2) Handle
3) Pot insert
4) Measuring cup
5) Rice spoon
6) Glass lid
7) Steamer insert
8) On/off switch
9) Mains connection
10) Operating switch
11) Cook control lamp
12) Keep-warm control lamp
6. Before first use
Before the first use and any further cooking, rinse all supplied parts that come into contact with food thoroughly with warm soapy water.
Rinse all the parts afterwards with clean water and dry them thoroughly.
7. Using the rice cooker
Plug the mains cable into the mains connection and connect the mains cable with a properly installed safety socket (230V 50Hz)
7.1. Filling the rice cooker
Use the measuring cup to measure the required amounts.
You can add up to ten measuring cups of washed, uncooked rice (up to 1800 ml) for cooking in the pot insert.
One cupful of uncooked rice (180 ml) produces about triple the amount of cooked rice.
Measure the required quantity of rice and add the rice to the pot insert of the rice cooker.
Make sure that the hotplate and the outside of the pot are clean and dry before you put the pot insert into the rice cooker. This is the only way to ensure optimum contact between the hotplate and the pot insert.
- Add cold water to the pot as indicated on the scale on the inside. Thus, if you add 4 measuring cups of rice, fill the pot insert with water up to the 4 mark on the scale. Adding too much water can cause the appliance to boil over.
Add a little salt according to taste.
TIP:
The taste and hardness of the rice grains will depend on the quality of the rice and the cooking time. To get soft and fluffy rice, add a little more water and allow the rice to soak for about 5-10 minutes before cooking. Bear in mind that cooking times will be longer for brown rice (whole-grain rice).
Set the ON/OFF switch to the ON position.
The WARM control lamp lights up orange.
7.2. Cooking
Place the lid on the rice cooker.
Press the power switch down to start the cooking process.
The COOK control lamp lights up red.
CAUTION!
Risk of scalding and risk of property damage.
The escaping steam is very hot! Therefore do not place the rice cooker under kitchen cabinets.
After cooking, the COOK control lamp goes out and the WARM control lamp lights back up.
The cooking time is dependent on the rice type and water fill volume.
The cooked rice is now kept warm.
After cooking, leave the rice to stand for around 5-10 minutes with the lid on to complete cooking.
Fluff up the rice with the supplied spoon and serve it as desired.
- When you are finished using the rice cooker, move the On/Off switch to the OFF position and pull out the plug.
TIP:
If you want to cook some quick-cook rice, first add only the right amount of water to the pot and boil it in the rice cooker. Add the quick-cook rice as soon as the water boils and put the lid on the rice cooker. See the manufacturer's instructions for the cooking times.
7.3. Keeping rice warm
The keep-warm function remains switched on until you set the On/Off switch to the OFF position.
Cooked rice can be kept warm indefinitely. However, the longer you keep the rice warm the more it loses its flavour, colour and nutrients and it can cause odours.
ATTENTION!
Risk of property damage.
If the operating switch is jammed, do not attempt to switch to auto-cook after the cooking process has ended.
8. Using the steamer insert
You can use the steamer insert when cooking rice to steam food such as vegetables.
Fill the pot insert with water.
After filling, place the steamer insert into the pot insert.
- Add the desired quantity of food to the steamer. Do not overfill the steamer and make sure that sufficient steam can escape through the holes in the base to prevent the cooker from boiling over.
- Close the pot insert using the lid.
The steaming times are dependent on the amount of food being steamed. See the following table for some guideline values:
| Vegetables Amount of water Steaming time | ||
| Cabbage, carrots, green beans | 1 measuring cup 15 minutes | |
| Asparagus, spinach, brown/red beans | 1 measuring cup 15 minutes | |
| Courgettes 1 measuring cup | 10 minutes | |
Press the power switch down to steam the food.
After the desired cooking time, push the power switch back up and switch off the appliance by moving the On/Off switch into the OFF position.
9. Cleaning the appliance
WARNING!
Live components. There is a risk of electric shock or short circuit.
- Never immerse the appliance in water or other liquids. If the appliance does fall into liquid, do NOT attempt to touch it. Disconnect the mains plug first!
Always pull out the plug before cleaning the appliance.
If water gets onto the switch, mains cable or plug or onto the hotplate, allow the appliance to dry thoroughly before using it again.
WARNING!
There is a risk of burns.
To prevent burns, allow the appliance to cool down completely before cleaning.
Clean the rice cooker carefully after each use.
If there is any rice residue cooked onto the pot insert, fill the pot insert with hot soapy water and leave it to stand for half an hour before cleaning the pot.
Clean the housing inside and out with a damp cloth soaked in soapy water.
The pot insert and lid can be washed in warm soapy water. Do not use any abrasive cleaners or steel wool. Scratches and dents can degrade the contact with the hotplate.
Ensure that no vinegar or salt residue remains in the pot insert as this could lead to corrosion.
10. Technical data
Power supply: 220 - 240V 50Hz
Output:
700
watts
Maximum fill quantity of rice: 1,800 ml
Maximum fill quantity of water: approx 3,300 ml
11. Declaration of conformity
Medion AG hereby declares that the product MD 16471 conforms to the following European requirements:
-EMC Directive 2004/108/EC
-Low Voltage Directive 2006/95/EC
-Ecodesign Directive 2009/125/EC
-RoHS Directive 2011/65/EU
Full declarations of conformity are available at www.medion.com/conformity.
12. Legal notice
Copyright © 2015
All rights reserved.
This operating manual is protected by copyright.
Mechanical, electronic and any other form of reproduction is prohibited without the written permission of the manufacturer
Copyright is owned by the company:
Medion AG
Am Zehnhof 77
45307 Essen
Germany
The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/.
You can also scan the QR code above and download the operating manual onto your mobile device via the service portal.
13. General Warranty Conditions
13.1.General information
The warranty period is 24 months and begins on the day the product is purchased. The warranty covers all types of material and product damage that could occur during normal use.
Please keep your original proof of purchase in a safe place. The warranty provider reserves the right to refuse to confirm the status of the warranty or to carry out a repair under warranty if a valid proof of purchase cannot be produced.
If it is necessary to return your device for repair, please ensure that it is suitably packaged for transportation. Unless otherwise specified, you shall bear the costs for sending the device and the transport risk. The warranty provider does not assume any liability for additional materials sent with the product that do not belong to the original package contents supplied with the product.
Please enclose as much information as possible about the fault when sending the device to the warranty provider. In order to make a valid claim under warranty and before returning the device, please contact the Service Hotline operated by the warranty provider or the Service Portal. They will provide you with information on how to proceed further.
This warranty has no effect on your statutory warranty rights and is subject to the laws of the country in which the first purchase of the product was made by the end customer.
13.1.1. Scope
In the event of a fault on your product that is covered by this warranty, the warranty provider guarantees to repair or replace the product. The decision about whether to repair or replace the device is taken by the warranty provider. Therefore, the warranty provider can at its own discretion decide to replace a device submitted for repair under warranty with a refurbished device of the same quality.
No warranty is provided for batteries or rechargeable batteries or for consumable materials i.e. parts which have to be replaced at regular intervals during the normal use of the product e.g. video projector lamps.
A pixel error (permanently coloured, light or dark point in an image) is not generally considered a fault. Please refer to the information provided in the manual for this product for the precise number of permissible defects in the image.
The warranty provider gives no warranty for burnt-in images on plasma or LCD devices that result from the improper use of the device. Please refer to the information provided in the manual for this product for precise instructions on operating your plasma or LCD device.
The warranty does not cover errors relating to the playback of data media that have been created in an incompatible format or as a result of using unsuitable software. If it is discovered during the repair that the fault concerned is not covered under warranty, the warranty provider reserves the right to invoice the customer for the
costs already incurred in the form of a flat-rate handling charge, as well as to charge the customer for the materials and labour required for the repair after submitting a cost estimate. You will be informed in advance as the customer about these repair charges; you are responsible for accepting or rejecting the repair process.
13.1.2. Exclusions
Malfunctions and damage to the device caused by external influences, accidental damage, improper use, changes made to the product, modifications, upgrades, the use of third-party parts, neglect, viruses or software faults, improper transport, improper packaging or loss during the return of the product are not covered by the warranty issued by the warranty provider.
The warranty will be invalidated if the fault to the device is caused by maintenance or repair carried out by someone other than a service partner authorized by the warranty provider. The warranty will also be invalidated if labels or serial numbers on the device or a component of the device have been modified or made illegible.
13.1.3. Service Hotline
Before sending the device to the warranty provider, you must contact us via the Service Hotline or the Service Portal. This ensures that you receive further information on how to make a valid claim under warranty.
The use of the hotline may be subject to a charge.
The Service Hotline should under no circumstances be considered a substitute for user training for software and hardware or reading the manual, nor does it provide support for third-party products.
13.2. Special warranty conditions for PC, notebook, pocket PC (PDA), devices with navigation functions (PNA), telephone devices, mobile telephones and devices with a memory function
Should any of the supplied options (e.g. memory cards, etc.) have a fault, you are entitled to a repair or replacement. The warranty covers material and labour costs for restoring the functionality of the product concerned.
The warranty can be invalidated if any damage to the product itself or the supplied options results from the addition of any hardware to your product that is not produced or distributed by the warranty provider.
A limited warranty is provided for supplied software. This applies to a pre-installed operating system and also to supplied programs. For software supplied with the device by the warranty provider, a warranty is issued that any data media, e.g. discs and CD-ROMs on which the software is supplied, shall be free from faults in terms of their materials and workmanship for a period of 90 days following purchase. In the event of a faulty data medium being supplied, the warranty provider shall replace the faulty data medium free of charge; any further claims are excluded. Excluding the warranty for data media, all software is supplied without warranty. Furthermore,
it is not warranted that this software shall function without interruption or errors or that it will meet your requirements. In the case of map material supplied for a device with navigation functions, no warranty is provided for its completeness.
It may be necessary to delete all data from the device in order to repair it. Please ensure that you have a backup copy for all of the data on the device before sending back the device. We expressly point out that the factory settings will be restored in the event of a repair. The warranty provider assumes no liability for the cost of a software configuration, lost revenue, loss of data or software, or other consequential damages.
13.3. Special warranty conditions for repair on site or replacement on site
If there is an entitlement to on-site repair or replacement, the specific warranty terms and conditions for on-site repair or replacement shall apply to your product. The following provisions must be ensured by you for carrying out repairs or replacements on site:
- Personnel from the warranty provider who arrive at your premises for the above-mentioned purpose must have unrestricted, safe and immediate access to the devices.
- Telecommunication facilities required by these personnel for the proper execution of your order, for testing and diagnostic purposes or for remedying faults must be provided by you at your own expense.
- You shall be personally responsible for restoring your own application software after completion of the service by the warranty provider.
- You shall be personally responsible for configuring and connecting any existing external devices after completion of the service by the warranty provider.
- The free cancellation period for repairs or replacements on site is at least 48 hours, thereafter we shall invoice you for any costs resulting from a late or missing cancellation.
14. Service Address
0333
3213106
01793
715716
(costs:
local)
Mo - Fr: 08:00 - 20:00
Sa - Su: 10:00 - 16:00
www.medion.co.uk
@ Please use the contact form at www.medion.com/contact
