Series 9 9299S - Shaver BRAUN - Free user manual and instructions

USER MANUAL Series 9 9299S BRAUN

(Sharecall charged at local rates)

www.service.braun.com

B Series 9

C

Deutsch

Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun's quality, and we hope you enjoy your new Braun shaver.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

Your appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance.

If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

This appliance is suitable for cleaning under running water and use in a bathtub or shower. For safety reasons it can only be operated cordless.

Do not shave with a damaged foil or cord.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

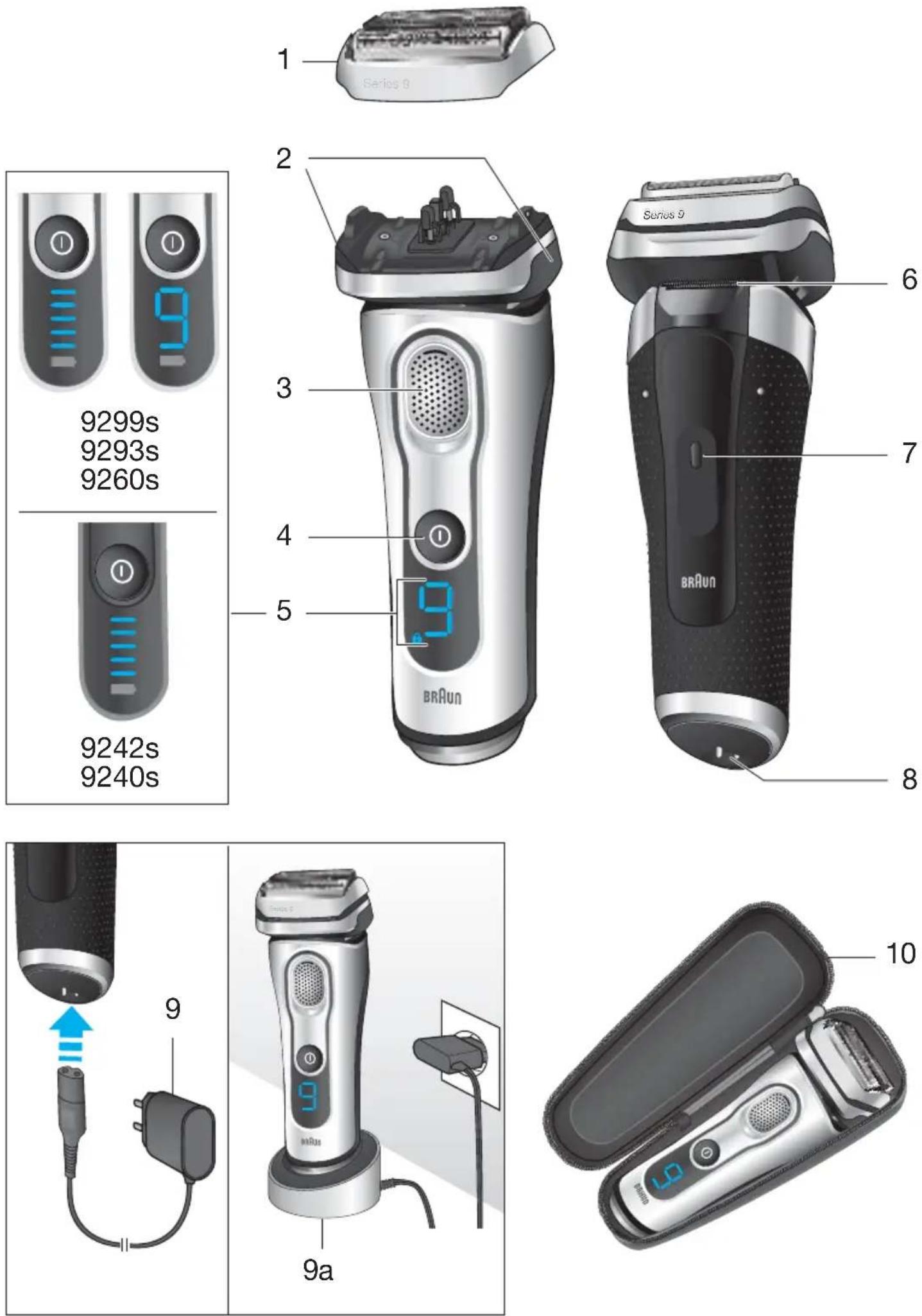

Shaver

1 Foil & Cutter cassette
2 Cassette release buttons
3 MultiHeadLock switch
4 On/off switch
5 Shaver display*

6 Long hair trimmer
7 Release button for long hair trimmer
8 Shaver power socket
9 Special cord set*
9a Charging stand*
10 Travel case

* design can differ

First use and Charging

Connect the shaver to an electrical outlet by snapping the special cord set (9) into the power socket (8) / the charging stand (9a).

Charging and basic operating information

• When charging for the first time, charge continuously for 1 hour.
• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature.
• Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures.
• Recommended ambient temperature for shaving is 15 °C to 35 °C.
• Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.
• When the shaver is connected to an electrical outlet, it may take some minutes until the display illuminates.

Shaver display

Charge status

The shaver display (5) shows the charge status of the battery when connected to an electrical outlet:

• During charging the respective battery segment will blink.
• When fully charged all battery segments will light up for a few seconds then the display turns off.

Low charge

The low-charge light flashes red when the battery is running low. You should be able to finish your shave. With switching off the shaver a beep sound reminds of the low charge status.

The last 9 minutes of remaining shaving time are displayed in digits (depending on your model / display).

Travel lock

The lock symbol 🔒 lights up when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing in a suitcase).

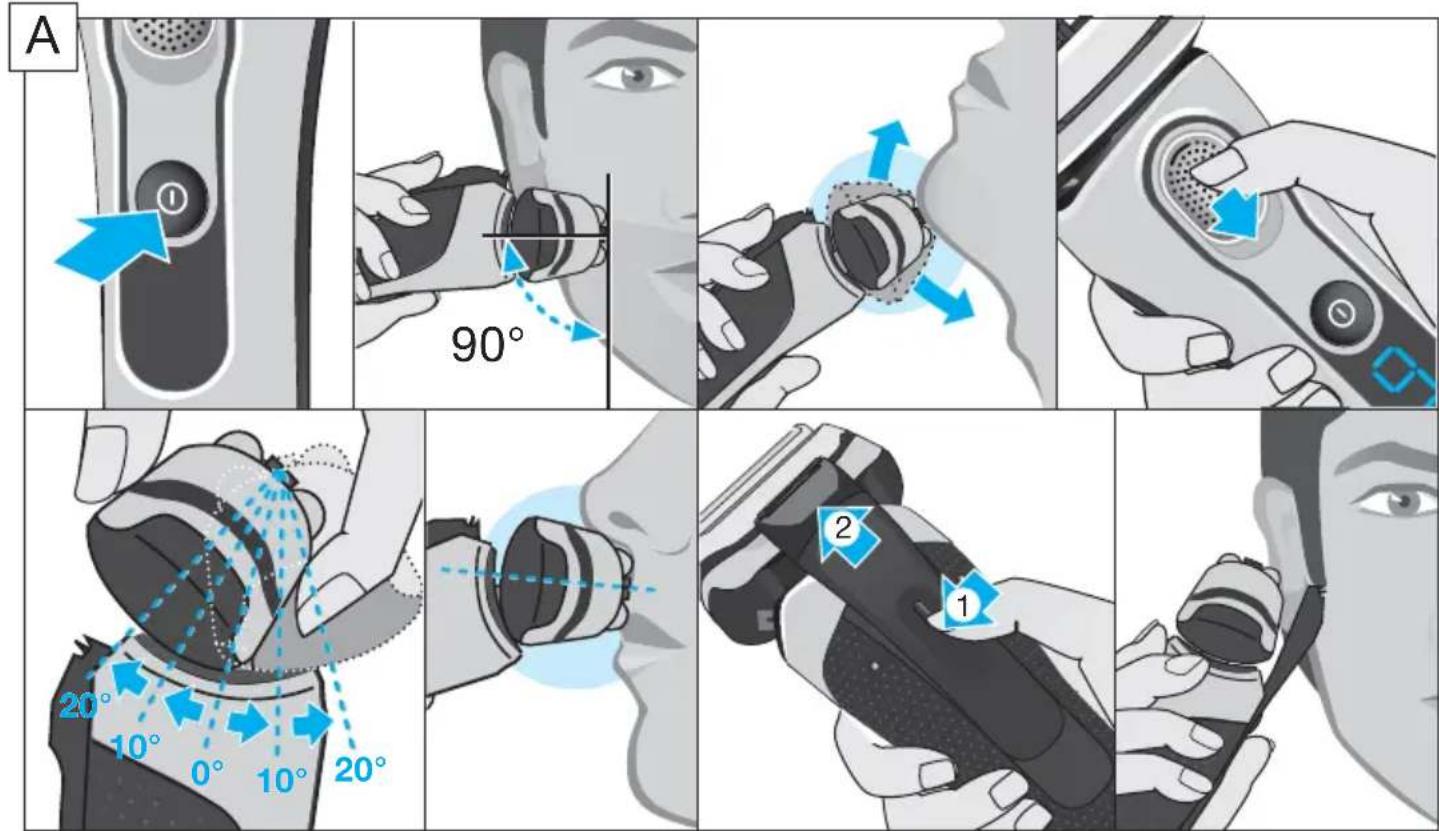

Using the shaver (see fig. A)

Press the on/off switch (4) to operate the shaver.

Tips for a perfect dry shave

1. Always shave before washing your face.
2. At all times, hold the shaver at the right angle (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

MultiHeadLock switch (head lock)

To shave hard-to-reach areas (e.g. under the nose) slide the MultiHeadLock switch (3) down to lock the shaver head. The shaver head can be locked in five positions. To change position, move the shaver head with your thumb and forefinger back or forth. It will automatically click into the next position.

Long hair trimmer

To trim sideburns, moustache or beard press the release button (7) and slide the long hair trimmer (6) upwards.

Travel lock

• Activation: By pressing the on/off switch (4) for 3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol in the display. Afterwards the display turns off.
• Deactivation: By pressing the on/off switch for 3 seconds the shaver is unlocked again.

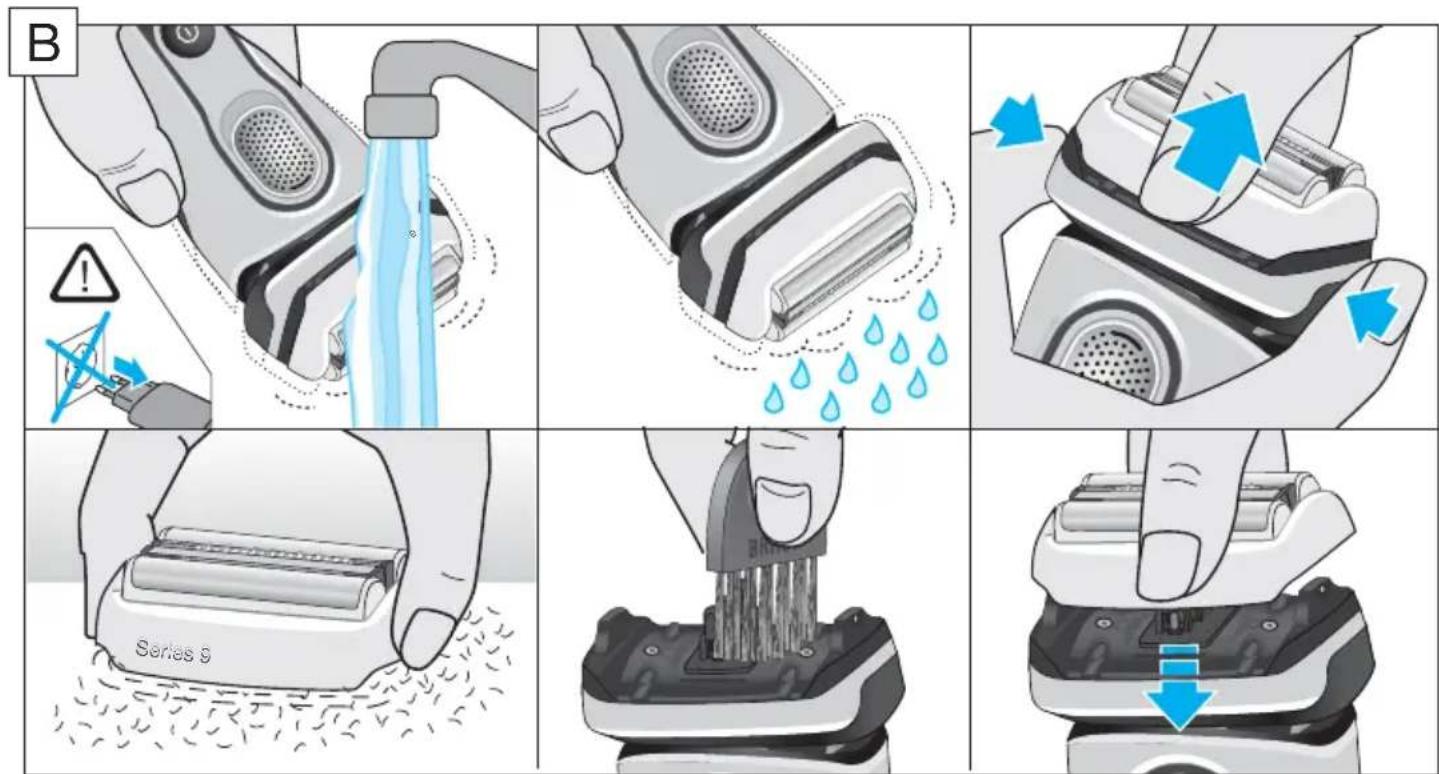

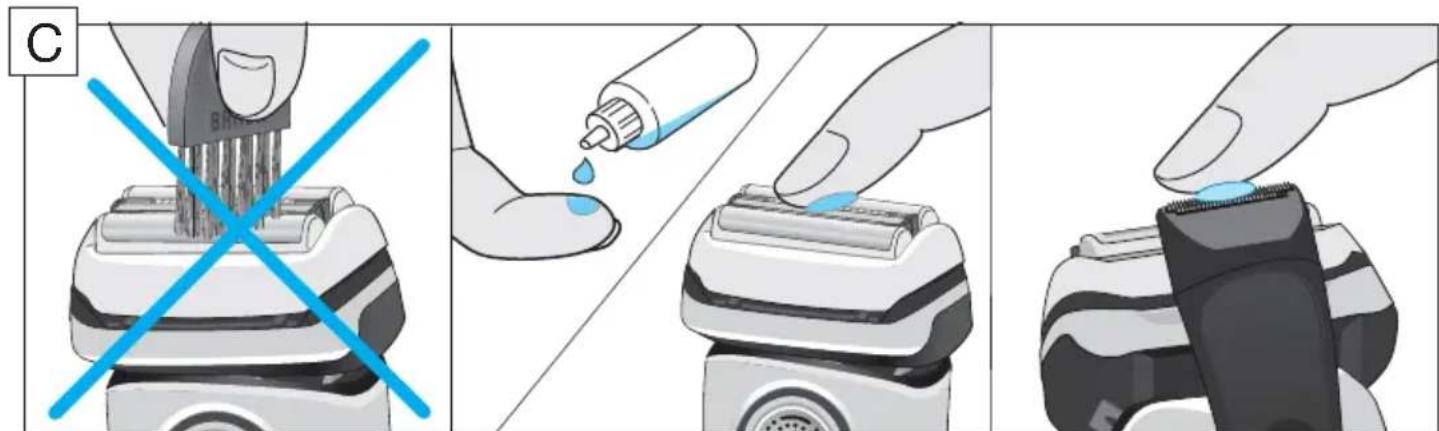

Manual cleaning of the shaver

(see fig. B/C)

Cleaning under running water

• Switch on the shaver (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, press the release buttons (2) to remove the Foil & Cutter cassette (1) and let it dry completely.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil (not included) onto the long hair trimmer and Foil & Cutter cassette.

The shaver should be cleaned after each foam usage.

Cleaning with a brush

- Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it!

The Foil & Cutter cassette can be attached either way. There is no impact on the shaving performance.

Accessories

Braun recommends changing your shaver's Foil & Cutter cassette every 18 months to maintain your shaver's maximum performance.

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 92S/92B
• Cleaning cartridge Clean&Charge Station: CCR
• Braun Shaver cleaner spray

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

The cleaning cartridge can be disposed of with regular household waste.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Trouble-Shooting

Problem: Possible reason: Remedy:
Shaver does not start when pressing the start button.	1. Travel lock is activated.2. This appliance can only be operated cordless.	1. Press the on/off switch for 3 seconds to unlock the shaver.2. Unplug the shaver.
Shaver does not charge completely and keeps blinking.	Ambient temperature is out of valid range.	Recommended ambient temperature for charging is 5 °C to 35 °C.
Charging does not start when connected to power socket.	1. Sometimes charging could start delayed (e.g. after long storage).2. Ambient temperature is out of valid range.3. Special cord set is not plugged in properly.	1. Wait a few minutes, if charging will start automatically.2. Recommended ambient temperature for charging is 5 °C to 35 °C.3. Special cord set needs to snap into place.
Unpleasant smell from the shaver head.	Shaver head is cleaned with water.	When cleaning the shaver head with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry.
Battery performance dropped significantly.	1. Shaver head is regularly cleaned with water but not lubricated.2. Foil and cutter are worn which requires more power for each shave.	1. If the shaver is regularly cleaned with water, apply a drop of light machine oil on top of the foil once a week for lubrication.2. Replace Foil & Cutter cassette.
Shaving performance dropped significantly.	1. Shaving system is clogged.2. Foil and cutter are worn.	1. Soak the Foil & Cutter cassette in hot water with a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil.2. Replace Foil & Cutter cassette.
Shaver turns off with fully charged battery.	Foil and cutter are worn which requires more power than the motor can deliver. The appliance turns off.	- Replace Foil & Cutter cassette.- Regularly oil the shaving system, especially when cleaning with water only.

Français

MultiHeadLock-bryter

(låseknapp for barberhodet)

ELMIN, 48350, Đurđevac, R. Boškovića 20,

048 813 365

MAGREL vl.Grković Marko, 51211, Rijeka / Matulji,

Frana Supila 11, Ⓞ 095 911 0009

RTV SERVIS KALAICA, 34310, Pleternica,

A.M.Relkovića 6, ⓚ 034 252 000

SORIĆ ELEKTRONIKA, 44000, Sisak,

A.Starčevića 35, Ⓞ 044 549 117

MERC&DUJMOVIĆ, 21000, Split,

Alojzija Stepinca 6, Ⓞ 021 537 780

ELEKTRO OBRT MARKOVIĆ, 42000,

Varaždin, K.Filića 9, Ⓞ 042 210 588

ALTA, 23000, Zadar, Vukovarska 3c,

① 023 327 666

RJEŠAVANJE PROBLEMA

Problem Mogući razlog Rješenje
Uređaj se ne uključuje kada se pritisne njegov prekidač.	1. Uključeno je putno zaključavanje.2. Iz sigurnosnih razloga uređaj se može pokrenuti isključivo kada nije spojen na priključni kabel.	1. Pritisnite prekidač za uključivanje/isključivanje i držite ga tako 3 sekunde kako biste otključali uređaj.2. Iskopčajte priključni kabel.
Uređaj se ne puni do kraja I stalno bljeska.	Temperatura okoliša je izvan dopuštenog raspona.	Preporučena temperatura okoliša za punjenje je između 5 °C i 35 °C.
Punjenje ne radi kada je spojen u utičnicu.	1. Ponekad punjenje može započeti malo kasnije (npr. ako se uređaj dugo nije koristio).2. Temperatura okoliša je izvan dopuštenog raspona.3. Posebni priključni kabel nije pravilno spojen.	1. Pričekajte nekoliko minuta da vidite hoće li punjenje automatski započeti.2. Preporučena temperatura okoliša za punjenje je između 5 °C i 35 °C.3. Posebni priključni kabel treba sjesti na svoje mjesto.
Neugodan miris brijaće glave.	Brijaća glava je čišćena pod vodom.	Kada brijaću glavu čistite vodom, koristite isključivo vruću vodu i povremeno malo tekućeg sapuna (bez abrazivnih sastojaka). Skinite kazetu mrežice i bloka noža i pustite da se osuši.
Značajno lošiji rad baterije.	1. Brijaća glava se redovito čisti vodom, ali se ne podmazuje.2. Mrežica i blok noža su istrošeni pa uređaj troši više energije za svako brijanje.	1. Ako se uređaj redovito čisti pod vodom, jednom tjedno u svrhu podmazivanja nanesite kap mašinskog ulja na vrh mrežice.2. Zamijenite kazetu s mrežicom i blokom noža.
Primjetno lošiji rezultati brijanja.	1. Brijaći sustav je zaštopan.2. Mrežica i blok noža su istrošeni.	1. Ostavite kazetu s mrežicom i blokom noža da se namače u vrućoj vodi, pa je nakon toga dobro isperite i tapkanjem o ravnu površinu izbacite zaostale dlačice i kapi vode. Kada se osuši, na mrežicu nanesite kap mašinskog ulja.2. Zamijenite kazetu s mrežicom i blokom noža.
Uređaj se isključuje iako mu je baterija u potpunosti napunjena.	Mrežica i blok noža su istrošeni pa uređaj troši više energije za svako brijanje. Uređaj se isključuje.	- Zamijenite kazetu s mrežicom i blokom noža.- Redovito podmazujte brijaći sustav, pogotovo ako se uređaj čisti isključivo pod vodom.

Slovenski

Naši izdelki so oblikovani tako, da ustrezajo najvišjim standardom kakovosti, funkcionalnosti in oblike. Zahvaljujemo se vam za zaupanje v kakovost Braun in upamo, da boste uživali v novem brivniku Braun.

Country of origin: Germany

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: "201" – The product was manufactured in week 01 of 2012.

بld المنشأianoيا

تاريخ الصنع

Close-up of a modern electric shaver with visible grille and brand logo (no text or symbols on body)

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.

92S/92B

Three identical rectangular frames with white vertical lines inside, arranged horizontally (no text or symbols)
