USER MANUAL IAN 90234 AQUAPUR

Operation and Safety Notes

FI

nuKanpOlstaja

Two horizontal color swatches: black, gray, white with squares, and yellow, magenta, cyan, blue, green, red, black, yellow, pink, and light blue (no text or symbols)

GB / IE Operation and Safety Notes Page 7

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

A 1 2 4 5 6 7 8

B 8

Color palette bar with grayscale gradient and a central crosshair (no text or symbols)

C ON OFF 3 3 8

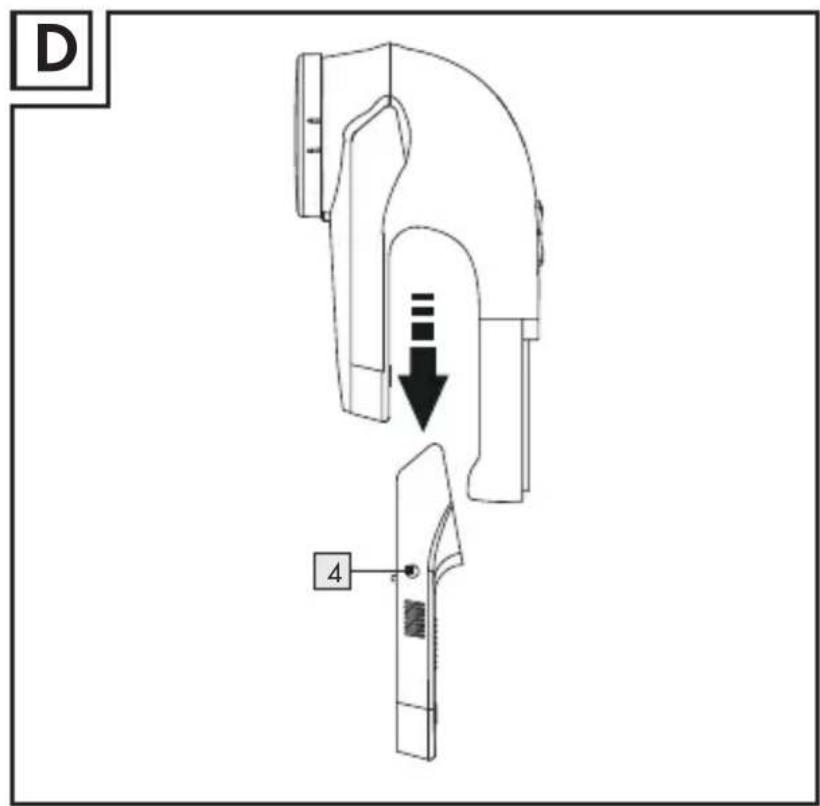

D 4

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

E ON OFF 4

F 4

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

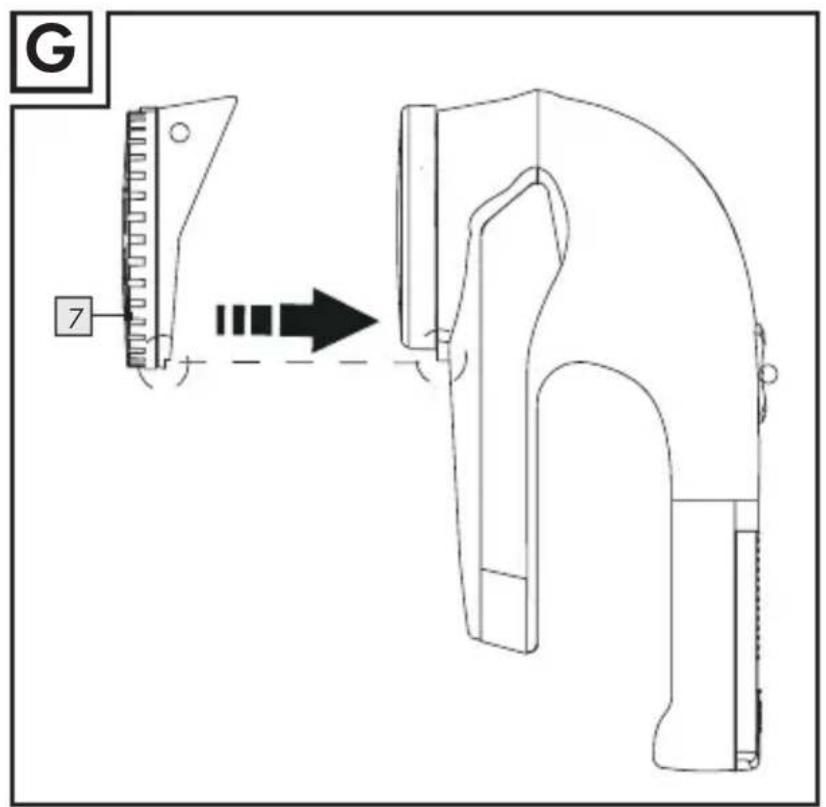

G 7

Intended use......Page 8

Description of parts ......Page 8

Technical data......Page 8

Safety instructions......Page 9

Safety instructions for batteries......Page 10

Inserting the batteries......Page 11

Preparing for use ......Page 11

Cleaning Page 12

Disposal Page 13

7 GB/IE

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

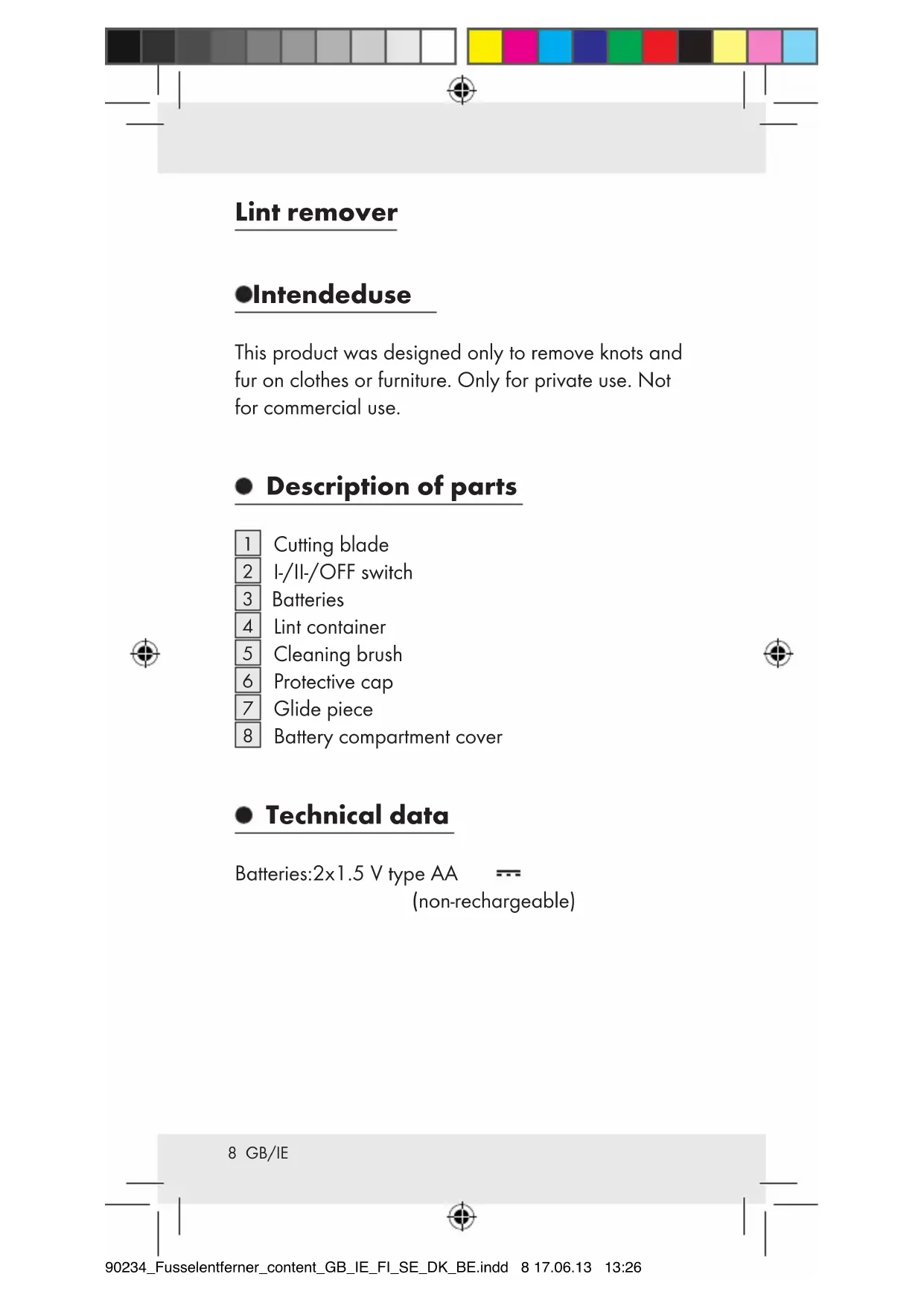

Lint remover

Intendeduse

This product was designed only to remove knots and fur on clothes or furniture. Only for private use. Not for commercial use.

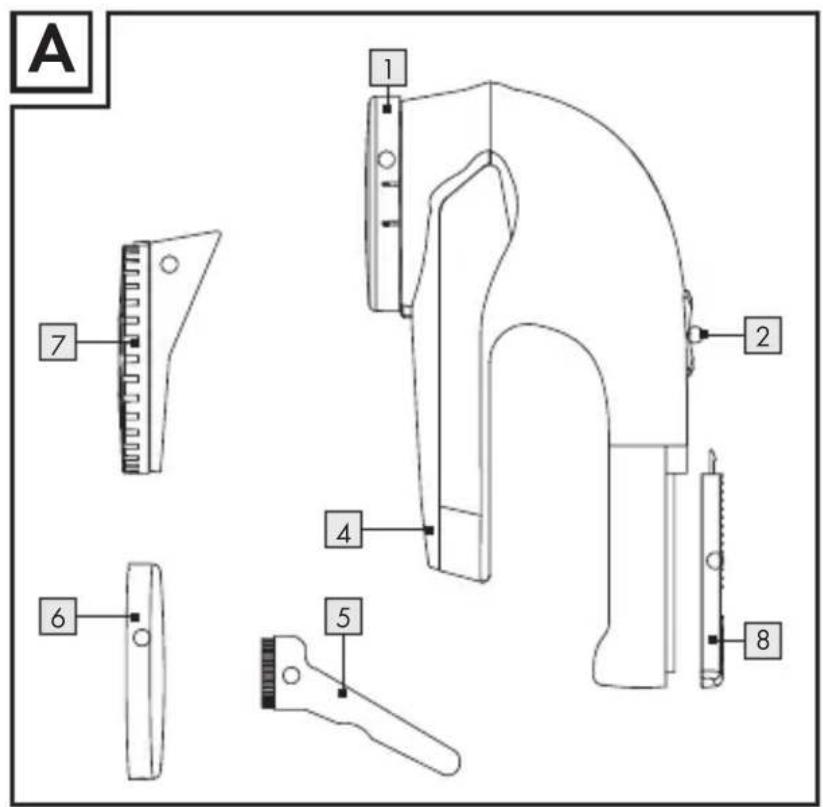

• Description of parts

1 Cutting blade
2 I-/II-/OFF switch
3 Batteries
4 Lint container
5 Cleaning brush
6 Protective cap
7 Glide piece
8 Battery compartment cover

- Technical data

Batteries:2x1.5 V type AA ( non-rechargeable)

8 GB/IE

Safety instructions

BEFORE USING THIS PRODUCT, PLEASE READ THE INSTRUCTIONS FOR USE! PLEASE KEEP THE INSTRUCTIONS FOR USE IN A SAFE PLACE!

CAUTION! RISK OF INJURY!

Children should be supervised in order to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Never use the device without the lint container or the glide piece in place.
- Do not touch the cutting blade while using the lint remover!
■ Never use it if the cutting blade is damaged.
■ Never put any strong pressure onto the cutting blade while in use.
The cutting blade is sharp - please take proper care, otherwise there is a risk of injury!

9 GB/IE

Safetyinstructions for batteries

RISK OF EXPLOSION! Never recharge, short-circuit and / or open non-rechargeable batteries. Overheating, fire or destruction of the batteries might result. Never throw batteries into fire or water. The batteries might explode.

RISK OF EXPLOSION! The batteries may explode if they have been improperly replaced. Replace exhausted batteries with 2 new batteries of the same type (1.5 V — AA).

WARNING! Switch the device to the "OFF" position before inserting the batteries.

■ Use only the recommended battery type.
- Insert the batteries correctly, observing the correct polarity (+ and -).
- Check the batteries regularly for to see if they are leaking.
If the above instructions are not complied with, the batteries may discharge themselves beyond their end voltage. There is then a danger of leaking. If the batteries in your device leak, remove them immediately to prevent the device from being damaged!

10 GB/IE

Leaking or damaged batteries can cause chemical burns if they come into contact with the skin; in such cases you must wear suitable protective gloves!

■ Remove battery if device is not used for long periods.

- Do not short-circuit supply terminals under any circumstances.

- Inserting the batteries

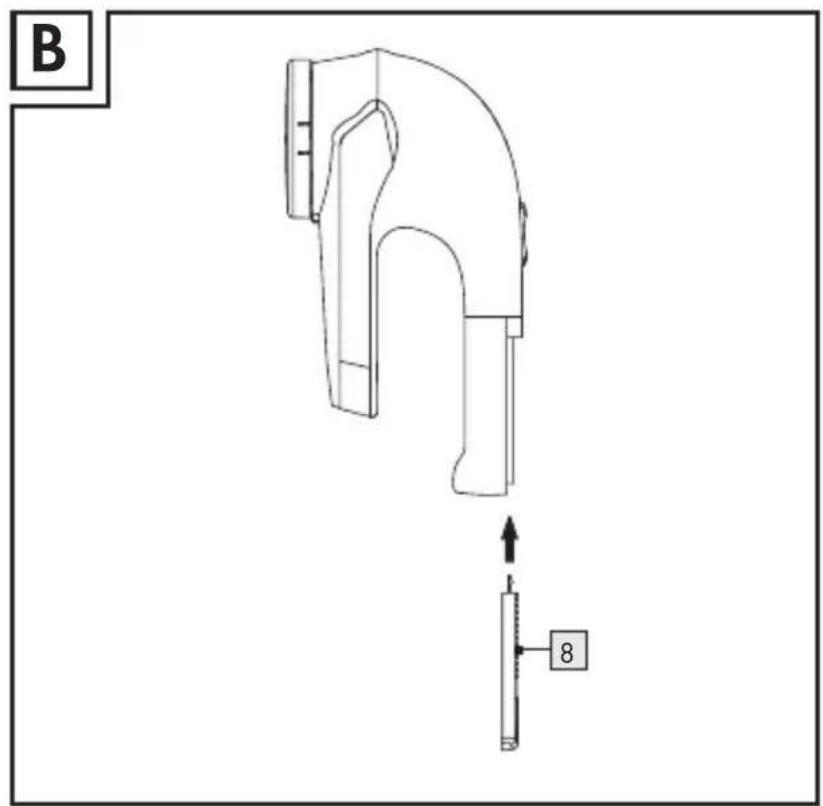

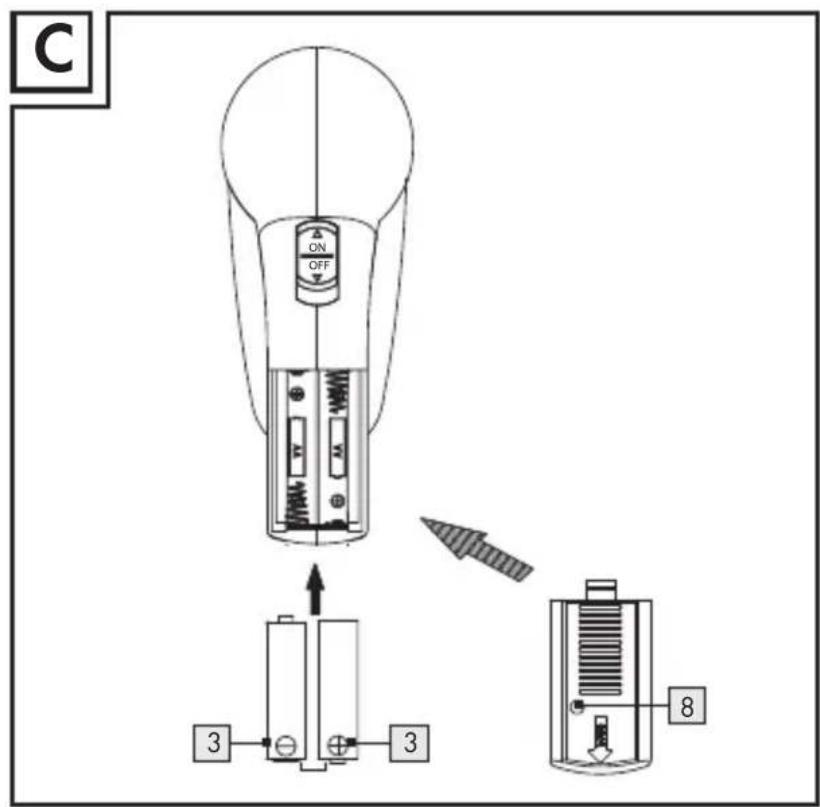

☐ To insert or replace the batteries, follow the procedure described in figures B and C.

● Preparing for use

☐ Put the garment smoothly onto an even and clean surface.

CAUTION! The lint remover may damage textured or very soft fabrics such as Angora. Before use, test the device and the different height settings on an inconspicuous area in order to prevent damage.

- Do not oil or grease the cutting blade! Your clothes could get dirty!

☐ Switch the device on by sliding the I-/II-/ OFF switch 2 to position "I" or "II"

☐ Guide the glide piece 7 over the surface of the garment using repeated, light, circular movements.

Note: You may speed up the process by switching to position "II" as described above.

11 GB/IE

Note: We recommend that you do not operate the device for more than about 2 minutes in one session.

☐ Select between different height settings by turning the glide piece 7 towards the left or right. You may select the settings H (high), M (middle) and L (low).

- Cleaning

WARNING! Never put the device in water for cleaning.

□ Always switch off the device before cleaning it, then open the battery compartment 8 cover. Remove the batteries 3 from the battery compartment to prevent accidentally switching the device on.
☐ Then pull the protective cover 6 off of the device.
ATTENTION: When removing lint remains, be careful not to damage the cutting blade 1.
☐ The lint container 4 should be emptied regularly!

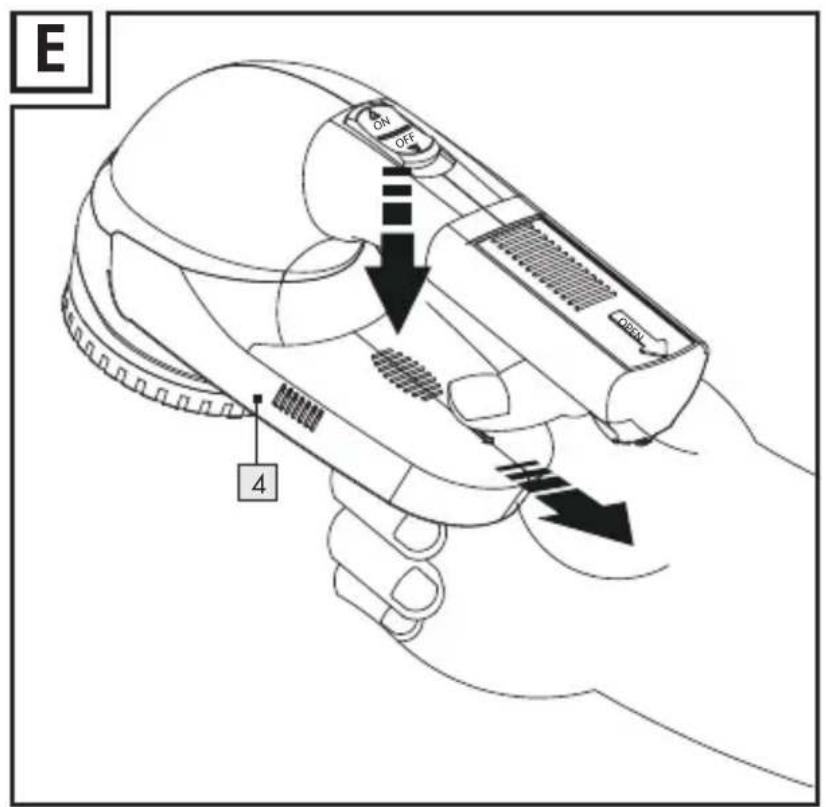

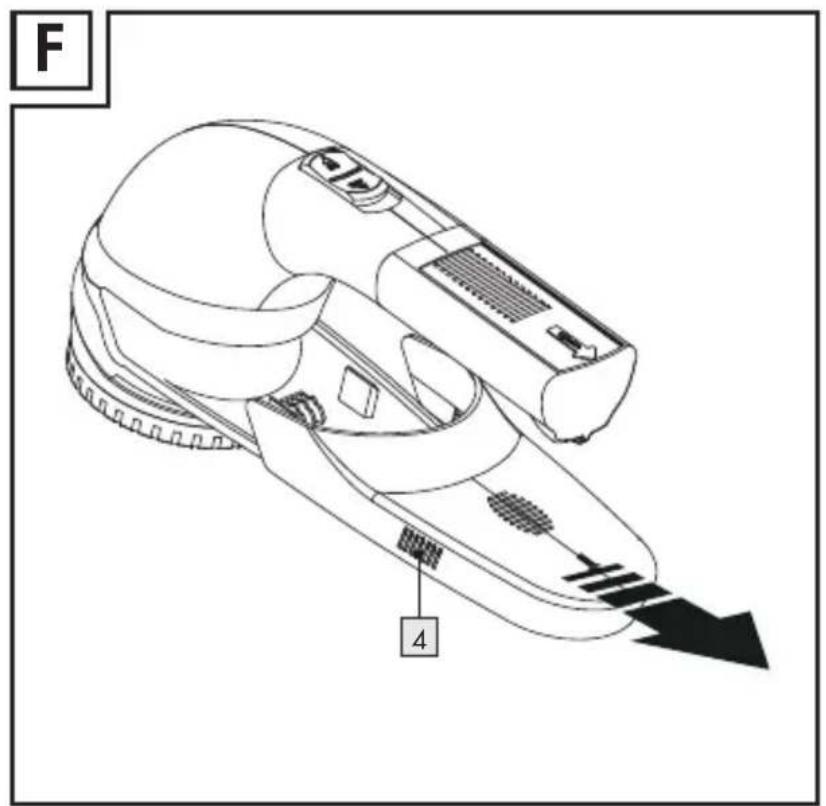

1. Lint container: Pull off the lint container and empty it (figures E and F). The lint container should never be more than 3 / 4 full.

2. Cutting blade: Carefully remove the blade attachment. Wipe away or brush out any lint remains with the included cleaning brush.

12 GB/IE

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

EMC CE

13 GB/IE

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair (no text or symbols)

EKSPLOSIONSFARE! Fare for eks-

plosion, hvis batterierne skiftes forkert.

Piles:2x1,5 V Type AA (non rechargeables)

Mesures de sécurité

RISQUES D'EXPLOSION ! Risque

Color palette bar and textured vertical strip with control points (no text or symbols)

OWIM GmbH & Co. KG

Stiftsbergstraße 1

D-74167 Neckarsulm

Model-No.: Z31511

Version: 06/2013
