USER MANUAL Smarts Teen ORAL-B

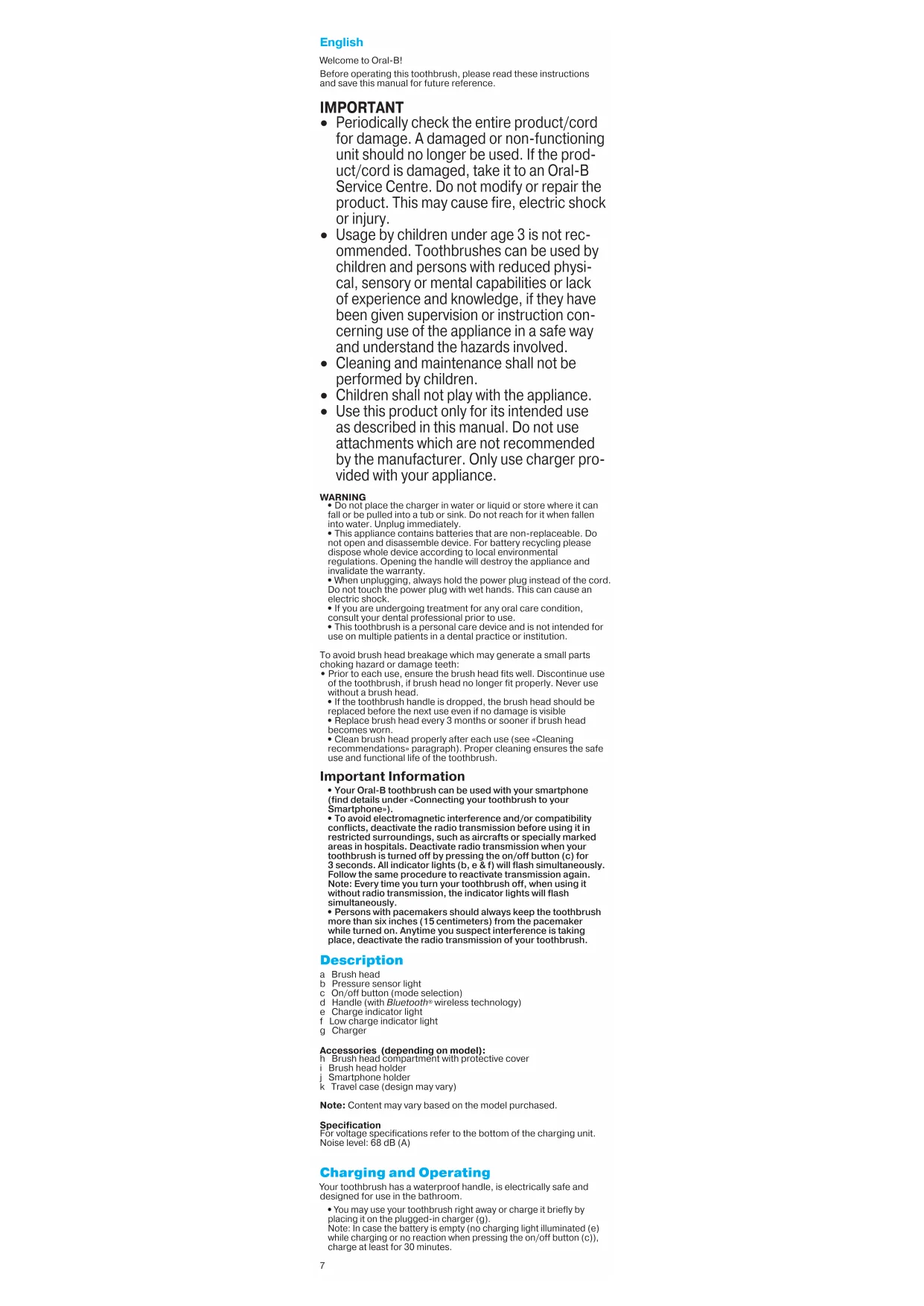

Periodically check the entire product/cord for damage. A damaged or non-functioning unit should no longer be used. If the prod- uct/cord is damaged, take it to an Oral-B Service Centre. Do not modify or repair the product. This may cause fire, electric shock or injury.

Usage by children under age 3 is not rec- ommended. Toothbrushes can be used by children and persons with reduced physi- cal, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction con- cerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and maintenance shall not be performed by children.

Children shall not play with the appliance.

Use this product only for its intended use as described in this manual. Do not use attachments which are not recommended by the manufacturer. Only use charger pro- vided with your appliance. WARNING

• Do not place the charger in water or liquid or store where it can fall or be pulled into a tub or sink. Do not reach for it when fallen into water. Unplug immediately.

• This appliance contains batteries that are non-replaceable. Do not open and disassemble device. For battery recycling please dispose whole device according to local environmental regulations. Opening the handle will destroy the appliance and invalidate the warranty.

• When unplugging, always hold the power plug instead of the cord. Do not touch the power plug with wet hands. This can cause an electric shock.

• If you are undergoing treatment for any oral care condition, consult your dental professional prior to use.

• This toothbrush is a personal care device and is not intended for use on multiple patients in a dental practice or institution. To avoid brush head breakage which may generate a small parts choking hazard or damage teeth:

• Prior to each use, ensure the brush head fits well. Discontinue use of the toothbrush, if brush head no longer fit properly. Never use without a brush head.

• If the toothbrush handle is dropped, the brush head should be replaced before the next use even if no damage is visible

• Replace brush head every 3 months or sooner if brush head becomes worn.

• Clean brush head properly after each use (see «Cleaning recommendations» paragraph). Proper cleaning ensures the safe use and functional life of the toothbrush. Important Information

• Your Oral-B toothbrush can be used with your smartphone (find details under «Connecting your toothbrush to your Smartphone»).

• To avoid electromagnetic interference and/or compatibility conflicts, deactivate the radio transmission before using it in restricted surroundings, such as aircrafts or specially marked areas in hospitals. Deactivate radio transmission when your toothbrush is turned off by pressing the on/off button (c) for 3 seconds. All indicator lights (b, e & f) will flash simultaneously. Follow the same procedure to reactivate transmission again. Note: Every time you turn your toothbrush off, when using it without radio transmission, the indicator lights will flash simultaneously.

• Persons with pacemakers should always keep the toothbrush more than six inches (15 centimeters) from the pacemaker while turned on. Anytime you suspect interference is taking place, deactivate the radio transmission of your toothbrush. Description a Brush head b Pressure sensor light c On/off button (mode selection) d Handle (with Bluetooth

wireless technology) e Charge indicator light f Low charge indicator light g Charger Accessories (depending on model): h Brush head compartment with protective cover i Brush head holder j Smartphone holder k Travel case (design may vary) Note: Content may vary based on the model purchased. Specification For voltage specifications refer to the bottom of the charging unit. Noise level: 68 dB (A) Charging and Operating Your toothbrush has a waterproof handle, is electrically safe and designed for use in the bathroom.

• You may use your toothbrush right away or charge it briefly by placing it on the plugged-in charger (g). Note: In case the battery is empty (no charging light illuminated (e) while charging or no reaction when pressing the on/off button (c)), charge at least for 30 minutes. 91617774_D601_WE_1.indd 791617774_D601_WE_1.indd 7 08.01.18 11:0308.01.18 11:03 CSS APPROVED Effective Date 26Jan2018 GMT - Printed 06Feb2018 Page 6 of 248

• The green charge indicator light (e) flashes while the handle is being charged. Once it is fully charged, the light turns off. A full charge typically takes 12 hours and enables at least 2 weeks of regular brushing (twice a day, 2 minutes) (picture 1). Note: After deep discharge, the charge indicator light might not flash immediately; it can take up to 30 minutes.

• If the battery is running low, the red charge indicator light (f) is flashing for a few seconds when turning your toothbrush on/off and the motor is reducing its speed. Once the battery is empty, the motor will stop; it will need at least a 30-minute charge for one usage.

• You can always store the handle on the plugged-in charging unit to maintain it at full power; a battery overcharge is prevented by device. Note: Store handle at room temperature for optimal battery maintenance. Caution: Do not expose handle to temperatures higher than 50 °C. Using your toothbrush Brushing technique Wet brush head and apply any kind of toothpaste. To avoid splashing, guide the brush head to your teeth before switching on the appliance (picture 2). When brushing your teeth with one of the Oral-B oscillating-rotating brush heads guide the brush head slowly from tooth to tooth, spending a few seconds on each tooth surface (picture 5). With any brush head start brushing the outsides, then the insides and finally the chewing surfaces. Brush all four quadrants of your mouth equally. You may also consult your dentist or dental hygienist about the right technique for you. In the first days of using any electric toothbrush, your gums may bleed slightly. In general, bleeding should stop after a few days. Should it persist after 2 weeks, please consult your dentist or dental hygienist. If you have sensitive teeth and/or gums, Oral-B recom- mends using the «Sensitive» mode (optional in combination with an Oral-B «Sensitive» brush head). Brushing modes (depending on model)

Daily Clean – Standard for daily mouth cleaning

Pro Clean – For an extraordinary clean feeling (operated with a higher frequency)

Sensitive – Gentle, yet thorough cleaning for sensitive areas

Whitening – Exceptional polishing for occasional or everyday use

Gum Care – Gentle massage of gums Your toothbrush automatically starts in the «Daily Clean» mode. To switch to other modes, successively press the on/off button (picture 6). Switch off the toothbrush by holding the on/off button until the motor stops. Note: You can set/advance the mode functionality via Oral-B

App. Professional Timer A short stuttering sound at 30-second intervals reminds you to brush all four quadrants of your mouth equally (picture 4). A long stuttering sound indicates the end of the professionally recommended 2-minute brushing time. If the toothbrush is turned off during brushing, the elapsed brushing time will be memorised for 30 seconds. When pausing longer than 30 seconds the timer resets. Note: You can set/advance the timer functionality via Oral-B

App. Pressure sensor If too much pressure is applied, the pressure sensor light (b) will light up in red, notifying you to reduce pressure. In addition the pulsation of the brush head will stop and the oscillation movement of the brush head will be reduced (during «Daily Clean», «Pro Clean» and «Sensitive» mode) (picture 3). Periodically check the operation of the pressure sensor by pressing moderately on the brush head during use. Brush heads Oral-B offers you a variety of different Oral-B brush heads that fit your Oral-B toothbrush handle. Oral-B Sensi Ultrathin brush head features a combination of regular bristles to clean teeth surfaces and ultrathin bristles for a gentle brushing experience on the gumline. Most Oral-B brush heads feature light blue INDICATOR® bristles to help you monitor brush head replacement need. With thorough brushing, twice a day for two minutes, the blue color will fade halfway approximately within 3 months, indicating the need to exchange your brush head. If the bristles splay before the color recedes, you may exert too much pressure on teeth and gums. We do not recommend using the Oral-B «FlossAction» or Oral-B «3D White» brush head with braces. You may use the Oral-B «Ortho» brush head, specifically designed to clean around braces and wires. Connecting your toothbrush to your Smartphone The Oral-B

App is available for mobile devices running iOS or Android operating systems. It can be downloaded for free from App Store (SM) or Google Play™. The Oral-B™ App gives you the opportunity to chart your brushing progress and customize your toothbrush settings (for many more benefits see the Oral-B™ App instructions).

• Start the Oral-B™ App. It will guide you through the entire Bluetooth pairing procedure. Note: Oral-B™ App functionality is limited if Bluetooth wireless technology is deactivated on your smartphone (for directions please refer to your smartphone’s user manual).

• Once the app asks you, please activate Bluetooth by lifting the toothbrush off the plugged-in charger (g) or briefly turning your toothbrush on and off (c). It automatically connects to the Oral-B™ App.

• Any app instructions will be displayed on your smartphone. 91617774_D601_WE_1.indd 891617774_D601_WE_1.indd 8 08.01.18 11:0308.01.18 11:03 CSS APPROVED Effective Date 26Jan2018 GMT - Printed 06Feb2018 Page 7 of 249

• Keep your smartphone in close proximity (within 5m distance) when using it with the handle. Make sure the smartphone is safely positioned in a dry place.

• The smartphone holder (j) (depending on model) can hold your smartphone while using. Before use, make sure your phone fits the stand and keeps stable. Note: Your smartphone must support Bluetooth 4.0 (or higher)/ Bluetooth Smart in order to pair your handle. Caution: Follow your smartphone’s user manual to ensure your phone/charger is designed for use in a bathroom environment. Cleaning recommendations After brushing, rinse your brush head under running water with the handle switched on. Switch off and remove the brush head. Clean handle and brush head separately; wipe them dry before reassembling. Unplug the charging unit before cleaning. Brush head compartment/protective cover (h), brush head holder (i) and smartphone holder (j) are dishwasher-safe. The charger (g) and travel case (k) should be cleaned with a damp cloth only (picture 7). Subject to change without notice. Environmental Notice Product contains batteries and/or recyclable electric waste. For environment protection do not dispose in household waste, but for recycling take to electric waste collection points provided in your country. Guarantee We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use, especially regarding the brush heads, as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. This appliance is equipped with a Bluetooth Smart approved radio module. Failure to establish a Bluetooth Smart connection to specific smart phones is not covered under the device guarantee, unless the Bluetooth radio module of this appliance is damaged. The Bluetooth devices are warranted by their own manufacturers and not by Oral-B. Oral-B does not influence or make any recommendations to device manufacturers, and therefore Oral-B does not assume any responsibility for the number of compatible devices with our Bluetooth systems. Oral-B reserves the right, without any prior notice, to make any technical modifications or changes to system implementation of device features, interface, and menu structure changes that are deemed necessary to ensure that Oral-B systems function reliably. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Oral-B Braun Customer Service Centre. UK only: This guarantee in no way affects your rights under statutory law. Information Bluetooth

radio module Although all indicated functions on the Bluetooth device are supported, Oral-B does not ensure 100% reliability in connection, and feature operation consistency. Operation performance and connection reliability are direct consequences of each individual Bluetooth device, software version, as well as the operating system of those Bluetooth devices and company security regulations implemented on the device. Oral-B adheres to and strictly implements the Bluetooth standard by which Bluetooth devices can communicate and function in Oral-B toothbrushes. However, if device manufacturers fail to implement this standard, Bluetooth compatibility and features will be further compromised and the user may experience functional and feature-related issues. Please note that the software on the Bluetooth device can significantly affect compatibility and operation.

1) Warranty – Exclusions and Limitations

This limited warranty applies only to the new products manufactured by or for The Procter & Gamble Company, its Affiliates or Subsidiaries («P&G») that can be identified by the Braun / Oral-B trademark, trade name, or logo affixed thereto. This limited warranty does not apply to any non-P&G product including hardware and software. P&G is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or any non-P&G product or part not covered by this limited warranty. Recovery or reinstallation of programs, data or other information is not covered under this limited warranty. This limited warranty does not apply to (i) damage caused by acci- dent, abuse, misuse, neglect, misapplication, or non-P&G product; (ii) damage caused by service performed by anyone other than Braun or authorized Braun service location; (iii) a product or part that has been modified without the written permission of P&G, and (iv) damage arising out of the use of or inability to use the Oral-B Smartphone stand/puck, Smartphone mirror holder, or charging travel case («Accessories»).

2) Using your smartphone holder

The Oral-B Accessories included in the package has been designed to provide you with a convenient way to position your smartphone while you are using the Oral-B app. Try multiple orientations of your smartphone in the Oral-B smartphone holder prior to use to deter- mine the best positioning of your smartphone in the holder. Be sure to try this in a manner which will not harm your smartphone if it falls out of the stand. Do not use in automobiles.

OTHER PERSONAL PROPERTY THAT ARE CONTAINED ON OR 91617774_D601_WE_1.indd 991617774_D601_WE_1.indd 9 08.01.18 11:0308.01.18 11:03 CSS APPROVED Effective Date 26Jan2018 GMT - Printed 06Feb2018 Page 8 of 2410 EXTERIOR TO THE ORAL-B ACCESSORIES, OR ANY LOSS OF DATA CONTAINED IN THE FOREGOING DEVICES. IN NO EVENT SHALL ANY RECOVERY AGAINST ORAL-B EXCEED THE ACTUAL PRICE PAID FOR THE PURCHASE OF THE PRODUCT. Warranty replacement brush heads Oral-B warranty will be voided if electric rechargeable handle dam-age is found to be attributed to the use of non-Oral-B replacement brush heads.Oral-B does not recommend the use of non-Oral-B replacement brush heads. • Oral-B has no control over the quality of non-Oral-B replacement brush heads. Therefore, we cannot ensure the cleaning performance of non-Oral-B replacement brush heads, as communicated with the electric rechargeable handle at time of initial purchase. • Oral-B cannot ensure a good fit of non-Oral-B replacement brush heads. • Oral-B cannot predict the long-term effect of non-Oral-B replacement brush heads on handle wear.All Oral-B replacement brush heads carry the Oral-B logo and meet Oral-B’s high quality standards. Oral-B does not sell replacement brush heads or handle parts under any other brand name. 30 Day Risk Free Trial Satisfaction guaranteed or your money back!Full details at www.oralb.com or call:UK 0800 731 1792 IE 1800 509 448 Trouble Shooting Problem Possible reason Remedy APP Handle does not operate (properly) with Oral-B App.1. Oral-B App is turned off.2. Bluetooth inter-face is not acti-vated on smart-phone.3. Radio transmis-sion is deactivat-ed on handle.4. Bluetooth connection to smartphone has been lost.5. Your smartphone does not support Bluetooth 4.0 (or higher)/Blue-tooth Smart.6. Handle on plugged-in charger.1. Turn on Oral-B App.2. Activate Bluetooth interface on smartphone (described in its user manual).3. Activate radio transmission by pressing on/off (c) for 3 seconds.4. Briefly turn your toothbrush on and off (c) to re-connect or pair handle and smartphone again via app settings. Keep your smartphone in close prox-imity when using it with handle.5. Your smartphone must support Bluetooth 4.0 (or higher)/ Bluetooth Smart in order to pair handle.6. Radio transmission is deactivated while handle is placed on plugged-in charger.Reset to factory settings.Original app functionality wanted.Press and hold on/off button (c) for 10 seconds until all lights (b, e & f) double blink simultaneously. Note: radio transmission may be (de)activated while resetting. After reset radio transmission is re-activated.TOOTHBRUSHHandle is not operating (during first use).Battery has a very low charge level; no light illuminates. Charge at least for 30 min.Handle does not operate any timer.Timer has been modified/deactivated via app.Use app to change timer settings or perform factory reset (see App Trouble Shootings).Handle does not charge but charger indicator lights flash alternating.Ambient temperature for charging is out of valid range ( 0 °C and
