AMN3210 - Fridge ARTHUR MARTIN - Free user manual and instructions

Product type	Refrigerator
Brand	Arthur Martin
Model	AMN3210
Dimensions (H x W x D)	1780 x 560 x 550 mm
Voltage	230-240 V
Frequency	50 Hz
Climate class	SN, N, ST, T (from +10°C to +43°C)
Refrigerant	R600a (isobutane)
Lighting	LED (replacement by professional)
Functions	Shopping, Fan, Humidity control
Defrost	Automatic (refrigerator)
Temperature indicator	Yes (coldest zone)
Shelves	Removable (except glass shelf above vegetable drawer)
Door bins	Adjustable in height
Safety instructions	Mandatory grounding; flammable refrigerant circuit
Maintenance	Regular cleaning; automatic defrosting; checking drain hole
Repairability	Replacement lighting by professional; refrigerant circuit by professional

Frequently Asked Questions - AMN3210 ARTHUR MARTIN

How to adjust the temperature of my Arthur Martin AMN3210 refrigerator?

To adjust the temperature, press the thermostat button until the LED indicator corresponding to the desired temperature appears. The selection is made progressively from +2°C (coldest) to +8°C (warmest). An intermediate setting is usually the most suitable. The interior temperature depends on the ambient temperature, door opening frequency, amount of food, and the appliance's location.

What to do if the appliance does not cool?

First check if the appliance is turned on and the plug is properly inserted. Make sure the ambient temperature is not too high. If the compressor runs continuously, it may be due to a door not closed properly, an inappropriate temperature setting, or introducing too many hot foods. Refer to the 'In case of malfunction' chapter of the manual for more details.

How to activate the Shopping function?

To activate the Shopping function, press the Shopping button (3). The corresponding LED indicator lights up. This function allows rapid cooling of food. It deactivates automatically after 6 hours or by pressing the button again.

What to do in case of frost accumulation?

The refrigerator has automatic defrosting. If frost accumulates, check that the door is properly closed and the gasket is clean. Make sure the drain plug of the defrost water drainage channel is properly in place. If the problem persists, clean the drain hole located in the middle of the refrigerator compartment.

How to clean the defrost water drain hole?

The drain hole is located in the middle of the refrigerator compartment. Clean it regularly with a soft cloth or a non-metallic rod to prevent any blockage. A blocked hole can cause water overflow inside the appliance.

What to do if the interior lighting does not work?

The lighting is LED type. If the light does not turn on, close and open the door to reactivate it. If the problem persists, contact an authorized after-sales service, because the replacement of the lighting must be done by a professional.

How to replace the bulb (LED lighting)?

The lighting is LED and cannot be replaced by the user. In case of failure, contact an authorized after-sales service. Any unauthorized intervention may damage the appliance.

How to properly install the appliance?

Install the appliance in a dry, well-ventilated indoor room, away from heat sources and direct sunlight. Leave space for air circulation at the back. After installation, wait at least 4 hours before plugging in the appliance to allow the compressor oil to flow back.

What to do in case of abnormal noise?

Some noises are normal: gurgling of refrigerant, hum of compressor, cracking due to thermal expansion, and clicking of thermostat. If the appliance is noisy, check its stability. If the noise persists, contact after-sales service.

How to save energy with this refrigerator?

Avoid opening the door too often and leave it open only as long as necessary. If the ambient temperature is high, set the thermostat to a higher position to avoid continuous compressor operation. Clean the condenser and compressor at the back of the appliance regularly to improve performance and reduce electricity consumption.

USER MANUAL AMN3210 ARTHUR MARTIN

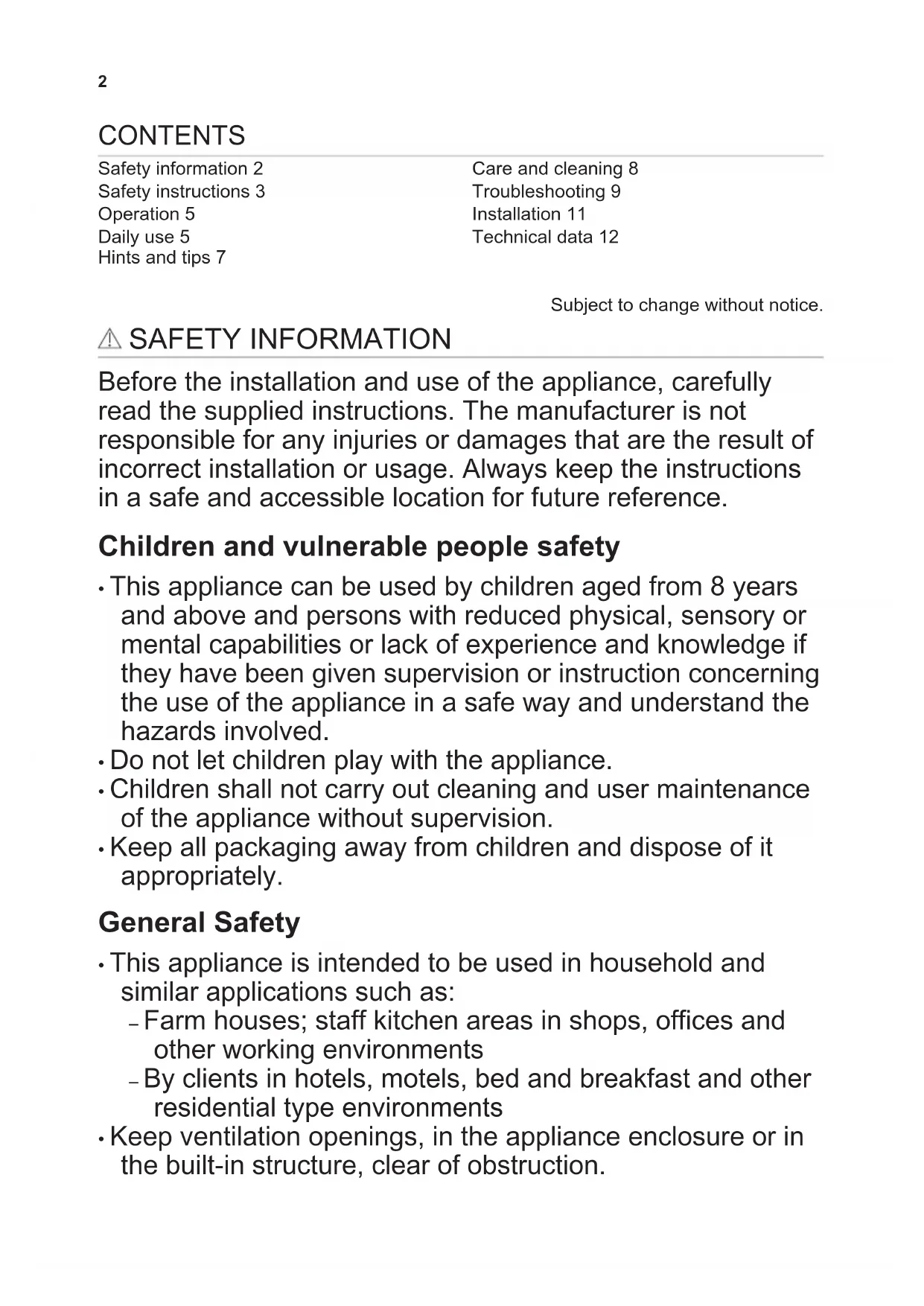

Safety information 2
Safety instructions 3
Operation 5
Daily use 5
Hints and tips 7

Care and cleaning 8 Troubleshooting 9 Installation 11 Technical data 12

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

General Safety

• This appliance is intended to be used in household and similar applications such as:

• Farm houses; staff kitchen areas in shops, offices and other working environments

• By clients in hotels, motels, bed and breakfast and other residential type environments

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

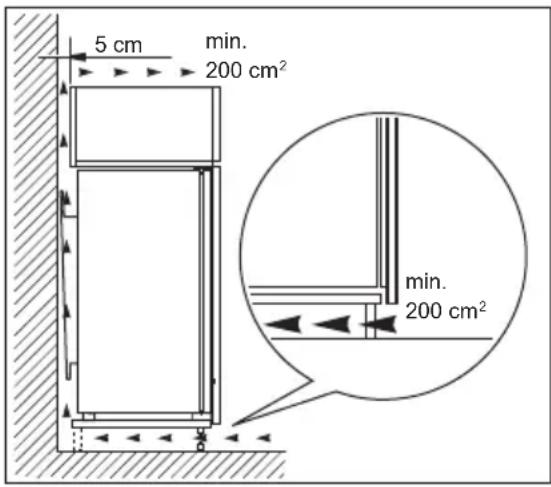

• Make sure the air can circulate around the appliance.
• At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.

• Do not install the appliance close to radiators or cookers, ovens or hobs.

• Do not install the appliance where there is direct sunlight.

• Do not install this appliance in areas that are too humid or too cold, such as the construction appendices, garages or wine cellars.
• When you move the appliance, lift it by the front edge to avoid scratching the floor.
• The appliance contains a bag of desiccant. This is not a toy. This is not food. Please dispose of it immediately.

Electrical connection

WARNING! Risk of fire and electrical shock.

• The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.

• The mains cable must stay below the level of the mains plug.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.

Internal light

The type of lamp used for this appliance is not suitable for household room illumination

Care and cleaning

WARNING! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

OPERATION

Control panel

Switching on

1. Insert the plug into the wall socket.
2. Touch the temperature regulator button if all LED are off.

Switching off

Keep touching the temperature regulator button for 3 seconds. All indicators light off.

Temperature regulation

To operate the appliance, touch the temperature regulator until the LED corresponding to the required temperature lights up. Selection is progressive, varying from 2^ to 8^ .

Coldest setting: +2^ Warmest setting: +8^ A medium setting is generally the most suitable.

Choose the setting keeping in mind that the temperature inside the appliance depends on:

DAILY USE

WARNING! Refer to Safety chapters.

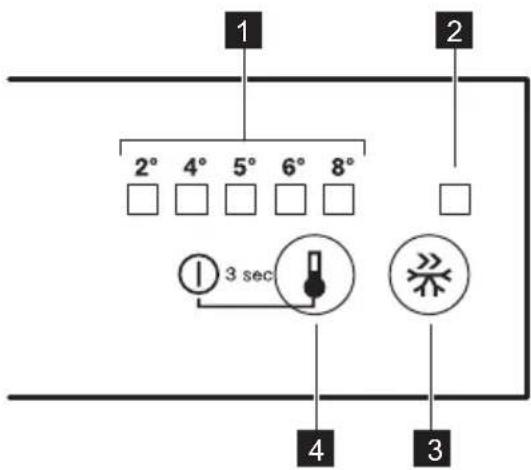

1 Temperature indicator LED
2 Shopping indicator
3 Shopping button
4 Temperature regulator ON/OFF button

• room temperature
• frequency of opening the door
• quantity of food stored

• appliance location.

• Touch temperature regulator.

Current temperature indicator blinks. Any time you touch the temperature regulator, the setting moves by one position. The corresponding LED blinks for a while.
2. Touch the temperature regulator until the required temperature is selected.

Shopping function

You can activate Shoppingfunction by pressing the Shopping button.

The LED corresponding to the symbol Shopping indicator lights up.

You can deactivate Shoppingfunction by pressing the button again.

The Shopping indicator will light off.

This function stops automatically after 6 hours.

Cleaning the interior

Before using the appliance for the first time, the interior and all internal

accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

CAUTION! Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

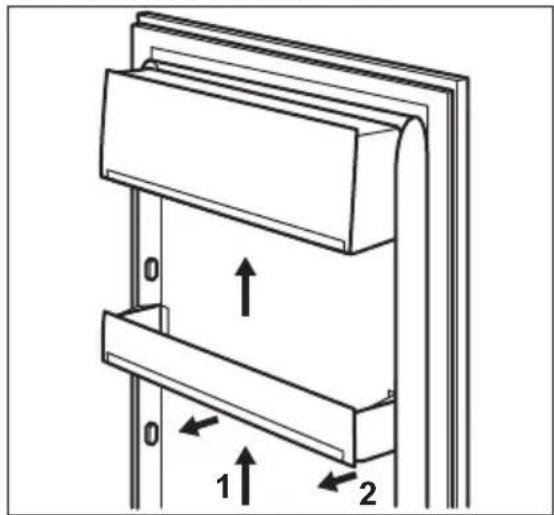

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

1. Gradually pull the shelf in the direction of the arrows until it comes free.
2. Reposition as required.

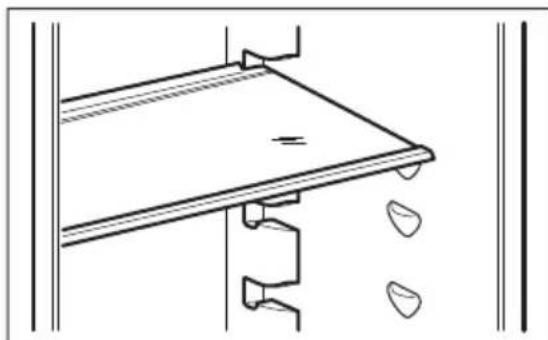

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

Fan function

The Fan function lets the food cool quickly and keeps more uniform temperature in the compartment.

Switch on the Fan when the ambient temperature exceeds 25^

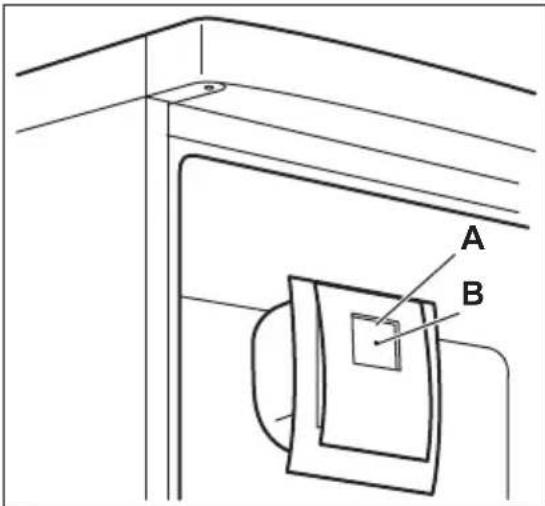

Press the switch (A) to switch on the fan. The green light (B) comes on.

When you switch off the appliance remember to turn off the fan by pressing the button (A). The green light (B) comes off.

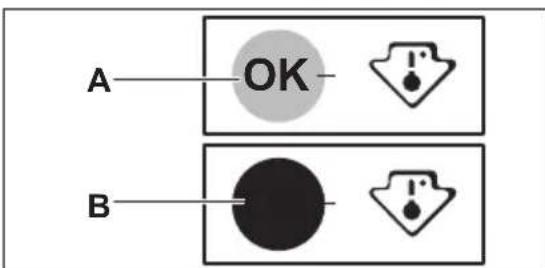

Temperature indicator

For proper storage of food the refrigerator is equipped with the temperature indicator. The symbol on the side wall of the appliance indicates the coldest area in the refrigerator.

If OK is displayed (A), put fresh food into area indicated by symbol, if not (B), adjust the temperature controller to a colder setting and wait 12 hours before checking the temperature indicator again.

After putting fresh food into the appliance or after opening the door repeatedly or for a long period, it is normal for the indicator not to show OK; wait at least 12 hours before readjusting the temperature controller.

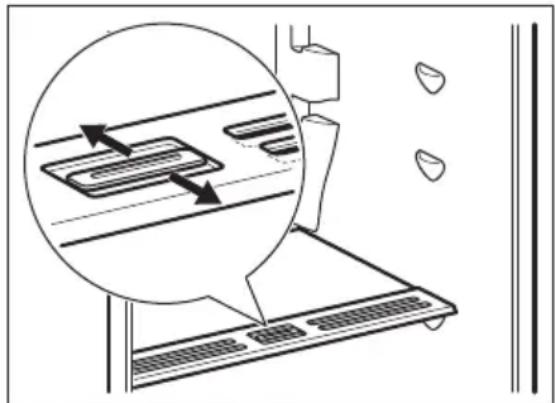

Humidity control

The glass shelf incorporates a device with slits (adjustable by means of a sliding lever), which makes it possible to regulate the humidity in the vegetable drawer(s).

HINTS AND TIPS

Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off.

When the ventilation slots are closed: the natural moisture content of the food in the fruit and vegetable compartments is preserved for longer.

When the ventilation slots are opened: more air circulation results in a lower air moisture content in the fruit and vegetable compartments.

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator

• do cover or wrap the food, particularly if it has a strong flavour

• position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

• Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the vegetable drawer. Store meat for at most 1-2 days.
  Cooked foods, cold dishes: cover and place on any shelf.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

General warnings

CAUTION! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Periodic cleaning

CAUTION! Do not pull, move or damage any pipes and/or cables inside the cabinet.

CAUTION! Take care of not to damage the cooling system.

CAUTION! When moving the cabinet, lift it by the front edge to avoid scratching the floor.

The equipment has to be cleaned regularly:

• Fruit and vegetables: clean thoroughly and place in a special drawer. Bananas, potatoes, onions and garlic must not be kept in the refrigerator if not packed.
  Butter and cheese: place in a special airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.

• Bottles: close with a cap and place on the door bottle shelf, or (if available) on the bottle rack.

• Clean the inside and accessories with lukewarm water and some neutral soap.

• Regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• Rinse and dry thoroughly.
• If accessible, clean the condenser and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

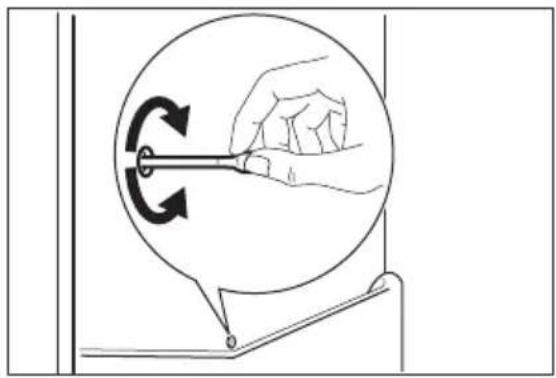

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

TROUBLESHOOTING

1. Disconnect the appliance from electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent unpleasant smells.

WARNING! If you want to keep the appliance switched on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause So	ution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.		Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy. The appliance is not supported properly.		Check if the appliance stands stable.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Authorised Service Centre.
The compressor operates continually.	Temperature is set incorrectly.	Refer to "Operation".
Many food products were put in at the same time.		Wait some hours and then check the temperature again.
The room temperature is too high.		Refer to climate class chart on the rating plate.
Problem Possible cause Solution
Food products placed in	the appliance were too warm.	Allow food products to cool to room temperature before storing.
	The door is not closed correctly.	Refer to "Closing the door".
	The Shopping is switched on.	Refer to "Shopping mode".
There is too much frost and ice.	The door is not closed correctly or the gasket is de- formed/dirty.	Refer to "Closing the door".
	The water drainage plug is not correctly positioned.	Position the water drainage plug in the correct way.
	Food products are not wrapped properly.	Wrap the food products better.
	Temperature is set incor- rectly.	Refer to "Operation".
The compressor does not start immediately after pressing the Shopping, or after changing the tempera-ture.	This is normal, no error has occurred.	The compressor starts after a period of time.
Water flows on the rear plate of the refrigerator.	During the automatic de- frosting process, frost melts on the rear plate.	This is correct.
Water flows inside the refriger- erator.	The water outlet is clog- ged.	Clean the water outlet.
	Food products prevent that water flows into the water collector.	Make sure that food products do not touch the rear plate.
Water flows on the floor. The melting water outlet is not connected to the evap- orative tray above the compressor.		Attach the melting water outlet to the evaporative tray.
Temperature cannot be set. The FastFreeze or Shop- ping mode is switched on.		Switch off FastFreeze or Shopping manually, or wait until the function resets auto- matically to set the tempera-ture. Refer to "FastFreeze or Shopping mode".
Problem Possible cause So	ution
The temperature in the ap- pliance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/lower tempera- ture.
	The door is not closed cor- rectly.	Refer to "Closing the door".
	The food products' tem- perature is too high.	Let the food products temper- ature decrease to room tem- perature before storage.
	Many food products are stored at the same time.	Store less food products at the same time.
	The door has been opened often.	Open the door only if necessa- ry.
	There is no cold air circu- lation in the appliance.	Make sure that there is cold air circulation in the appliance.

If the advice does not lead to the desired result, contact the nearest Authorised Service Centre.

Replacing the lamp

The appliance is equipped with a longlife LED interior light.

Only service is allowed to replace the lighting device. Contact your Authorised Service Centre.

INSTALLATION

Location

Refer to the assembly instructions for the installation.

To ensure best performance, install the appliance well away from sources of heat such as radiators, boilers, direct sunlight etc. Make sure that air can circulate freely around the back of the cabinet.

Positioning

Install the appliance in a dry, well ventilated indoors where the ambient temperature corresponds to the climate

Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to assembly instructions.
3. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

class indicated on the rating plate of the appliance.

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.
- This appliance complies with the E.E.C. Directives.

Ventilation requirements

The airflow behind the appliance must be sufficient.

CAUTION! Refer to the assembly instructions for the installation.

TECHNICAL DATA

Technical data

Dimensions of the recess
Height mm 1780
Width mm 560
Depth mm 550
Voltage Volts 230-240
Frequency Hz 50

The technical information is situated in the rating plate, on the external or internal

side of the appliance and in the energy label.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES
