10030041 - Dehumidifier Klarstein - Free user manual and instructions

Product type	Condensation dehumidifier (Peltier)
Brand	Klarstein
Model	10030041
Approximate dimensions (W x D x H)	20 x 15 x 30 cm
Approximate weight	2.5 kg
Color	White
Power supply	Adapter 12 V DC, 8 A
Power consumption	72 W
Water tank capacity	1100 ml
Dehumidification capacity	550 ml per 24 hours
Operating temperature range	Above 5 °C
Minimum relative humidity	45%
Maximum recommended area	Up to 40 m²
Automatic shutdown	Yes, when the tank is full
Full tank indicator	Red light
Operation indicator	Blue light
Care and cleaning	Wipe with a damp cloth; do not use abrasive products or solvents
Safety	Do not obstruct air outlets; use on a horizontal surface
Intended use	Domestic, in cupboards, shelves, toilets, kitchens, etc.

Frequently Asked Questions - 10030041 Klarstein

How to empty the water tank?

First unplug the device. Remove the tank, take off the black lid, empty the water, wipe dry, and replace the lid.

What does the red light constantly on mean?

The red light on indicates that the water tank is full or the float is stuck. Empty the tank or check the float.

What to do if the red light flashes every 5 seconds?

This means the ambient temperature is below 5 °C or above 40 °C. The device stops automatically to protect itself.

Why does the blue light flash every 3 seconds?

This indicates the device is in automatic defrost mode, because the ambient temperature is between 5 and 15 °C.

Can the dehumidifier be used continuously?

Yes, it operates continuously as long as the tank is not full. It stops automatically when the tank is full.

Where to place the dehumidifier for optimal efficiency?

Place it on a horizontal surface, in a room up to 40 m², at a temperature above 5 °C and relative humidity above 45%.

How to clean the device?

Unplug it, then wipe the external surfaces with a damp cloth. Never use abrasive products or solvents.

What to do if the device does not turn on?

Check that the adapter is properly plugged in, the DC switch is on, and the air outlet is not obstructed.

Can the device be used in a bathroom?

Yes, but only if the temperature is above 5 °C and relative humidity above 45%. Do not immerse it in water.

How to recycle the device at the end of its life?

Do not dispose of it with household waste. Take it to a collection point for electrical and electronic equipment (WEEE).

USER MANUAL 10030041 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Technical Data

Item number 10030040 10030041
Power supply Adapter 12 V DC, 8 A
Power consumption 72 W
Water tank capacity 1100 ml
Dehumidifying Capability 550 ml in 24 hours
Operating temperature range	>5°C
Operating rel. humidity range	>45%

Safety Instructions

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance
• Cleaning and user maintenance shall not be made by children without supervision.
• Use this dehumidifier only in the specified temperature and humidity conditions; because the low temperature humidity is small, there is no need for dehumidification.
• Do not block the front air inlet and the air outlet of the dehumidifier; do not insert any foreign objects into the air outlet, as this will lead to damage.
• Dehumidifier should be placed on a level surface; otherwise the water will overflow.
• When this dehumidifier is not being used for an extended period of time, please make sure that the water tank is drained.
• Remove the dehumidifier water box, do not tilt, to avoid water poured out.
• When this dehumidifier is not being used for an extended period of time, please make sure that the water tank is drained.
• Please don't store the transformer in moist places; it shall be kept in dry and well ventilated place.
  After each use, please shutdown the dehumidifier and unplug it to end the operation.

Intended use

This dehumidifier can be used in wardrobe, bookcases, storage boxes, rest rooms, kitchens and similar small spaces, which have an area of about 40m^2 . The dehumidifier reduces the level of humidity in the air. Only for household use. The ideal environment for use: Temperature: >5^ ; Humidity: >45% .

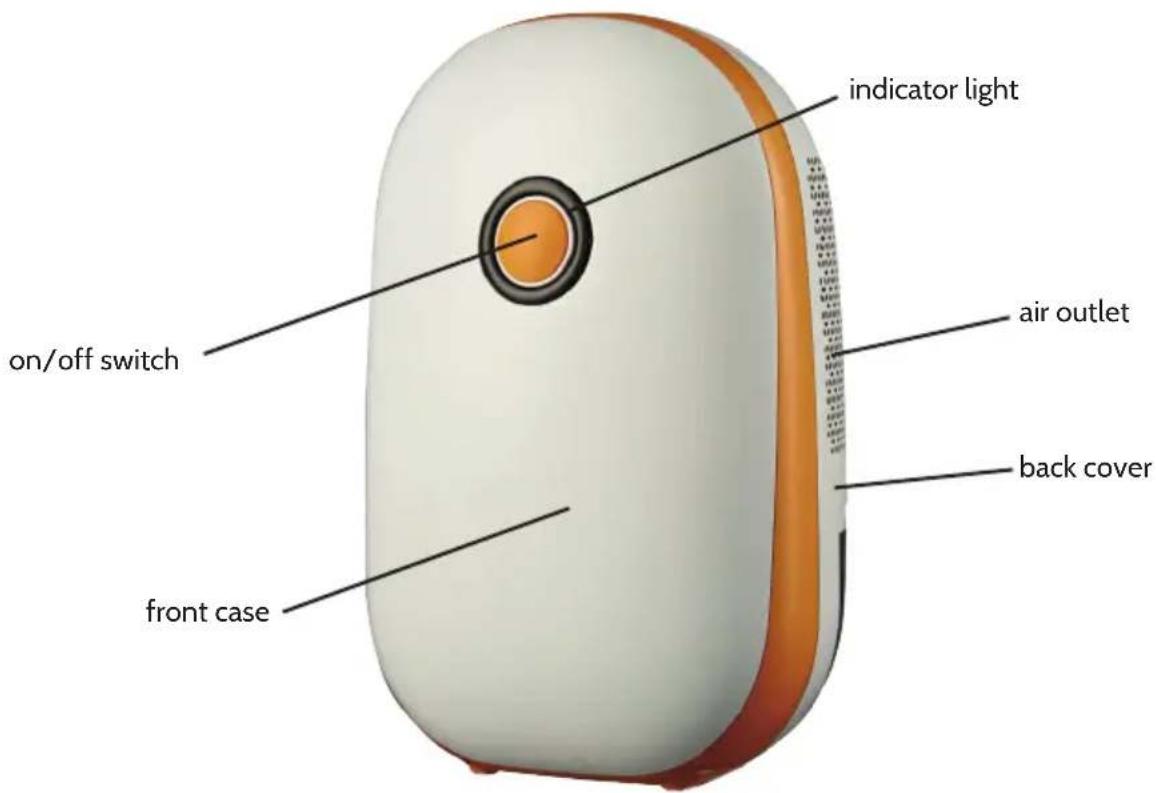

Product Description

Note: This is only for reference, it can be different from different models. All rights reserved.

Operation

1. Use AC power supply. Install the water tank into the dehumidifier. Plug the DC plug into the DC port of the appliance and the adaptor in to the socket outlet. The power light will turn on (blue) and the fan will continuously run.
2. Press the on/off button. If the red indicator lights on, please check, if the water tank is in correct position.
3. This dehumidifier will stop the dehumidification automatically, if the water reaches the level and the red indicator will turn on, which means the water tank is full. Please cut off the power supply, before you take out the tank. Remove the black drain cover of the water tank and discard the collected water. Then replace it.
4. Wipe and dry the water tank and the dehumidifier.

Indicator lamp status

Blue light Appliance runs normally.
Red light. Full water tank.
Red light blinks every 5 seconds. The ambient temperature is over 40 °C or under 5 °C.
Blue light blinks every 3 seconds.	The ambient temperature is between 5°C to 15°C, the dehumidifier will defrost automatically.
Red light every 3 seconds. The fan, refrigeration slice or other parts have problems,

Troubleshooting

Problem Possible Cause Solution
After connecting, the red indicator lights up	The water tank is full	Empty the water tank and replace it in correct position
	The float gets jammed	Press the float and replace the water tank
The dehumidifier does not work	The power supply is cut off Check if DC switch is OFF Turn the switch on The air outlet is blocked	the adaptor is plugged in
		Maintain the minimum clearance at least 10cm around the dehumidifier when the unit is operating

Maintenance and Cleaning

Before cleaning and maintenance please pull out the plug out of the socket outlet. Wipe the shell of the appliance with a soft damp cloth; never use abrasive agent and resolvent, as these will damage this appliance.

Disposal Considerations

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
