10028006 - Kettle Klarstein - Free user manual and instructions

Product type	Electric kettle
Brand	Klarstein
Model	10028006
Power supply	220-240 V, 50/60 Hz, 2200 W
Maximum capacity	1,7 L
Minimum capacity	0,5 L
Body material	Stainless steel
Integrated thermometer	Yes, on the body
Functioning LED	Yes
Automatic shut-off	Yes, at the end of boiling and in case of dry heating
Overheat protection	Yes, dry protection
Rotating base	Yes, base with connector
Keep warm function	No
Exterior cleaning	Soft dry cloth, no spray
Recommended descaling	Yes, regularly with vinegar or citric acid
Repairs	By qualified personnel only
Spare parts	Not supplied, contact manufacturer
Warranty	Does not cover damage caused by third parties
Country of manufacture	China (estimated)

Frequently Asked Questions - 10028006 Klarstein

How to clean the kettle?

Use a soft dry cloth to clean the exterior. Do not use spray or abrasive products. For descaling, boil a mixture of water and white vinegar or citric acid, then rinse thoroughly.

What is the maximum water capacity?

The maximum capacity is 1.7 liters. Do not exceed this mark to avoid overflow.

The kettle turns off before the water boils, what should I do?

Check that you have filled at least 0.5 liters of water. If the quantity is insufficient, the dry heating protection activates and turns off the appliance prematurely.

Can I open the lid while boiling?

No, it is not recommended to open the lid while boiling to avoid steam burns. Wait for the appliance to cool down.

Why does the LED not light up?

Make sure the kettle is properly placed on its base and that the ON/OFF button is not obstructed. If the problem persists, check the power supply.

How to descale the kettle?

Fill the kettle with a mixture of water and white vinegar (1:1) or citric acid, bring to a boil, let sit for 30 minutes, then rinse several times with clean water. Repeat if necessary.

What to do if the appliance does not heat?

Check that the plug is properly plugged in and that the power button is not blocked. If the indicator does not light up, the appliance may be defective. Contact an authorized service.

Can I heat liquids other than water?

No, this appliance is designed only for heating water. Using other liquids may damage the appliance and pose a risk.

Is the kettle suitable for distilled water?

Yes, distilled water can be used, but this does not prevent regular descaling, as deposits can still form over time.

Where to find spare parts?

Spare parts are not supplied with the appliance. Contact the manufacturer Chal-Tec GmbH or an authorized dealer for information.

USER MANUAL 10028006 Klarstein

Yellow Klarstein water heater with black handle and digital temperature gauge (no text or symbols on body)

Wasserkocher

10021357

10021359

10028005

10021358

10021360

10028006

10028003

10028004

KLARSTEIN

Sicherheitshinweise

Gerät:

Reparaturen

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

1. Read all instructions before using.
2. Before connecting the kettle to the power supply, check that the voltage indicated on the appliance (underside the kettle & base) corresponds with the voltage in your home. If this is not the case, contact your dealer and do not use the kettle.
3. The attached base can not be used for other than intended use.
4. Do not operate the appliance without load to avoid damaging the heat elements.
5. Unplug from the outlet when not in use.
6. Do not let the cord hang over edge of table counter or touch hot surface.
7. Do not place on or near a hot gas or electric burner or in a heated oven.
8. Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.
9. Ensure that kettle is used on a firm and flat surface where the children can't touch, this can prevent from overturning the kettle to damage the person or kettle.
10. To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or kettle in water or other liquids.
11. Always take care to pour boiling water slowly and carefully without tipping the kettle too fast.
12. Be careful when opening the lid for refilling when the kettle is hot.
13. Close supervision is necessary when any appliance is used by or near children.
14. Do not touch the hot surface. Use the handle or the button.
15. Extreme caution must be used when moving an appliance containing hot water.
16. The appliance is not a toy. Do not let the children play it.
17. The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
18. While boiling water, avoid to contact with steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid.
19. Unplug from outlet when not in use and before cleaning; Allow it to cool before putting on or taking off parts and before cleaning the appliance.
20. Always ensure the lid is closed and do not lift it while the water is boiling. Scalding may occur if the lid is removed during the brewing cycles.
21. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
22. Do not use the appliance for other than intended use.
23. The kettle can only use with the stand provided.
24. If the kettle is overfilled, boiling water may be ejected.
25. Do not use the kettle outdoors.
26. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
27. Children should be supervised to ensure that they do not play with the appliance.
28. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
29. Save these instructions.

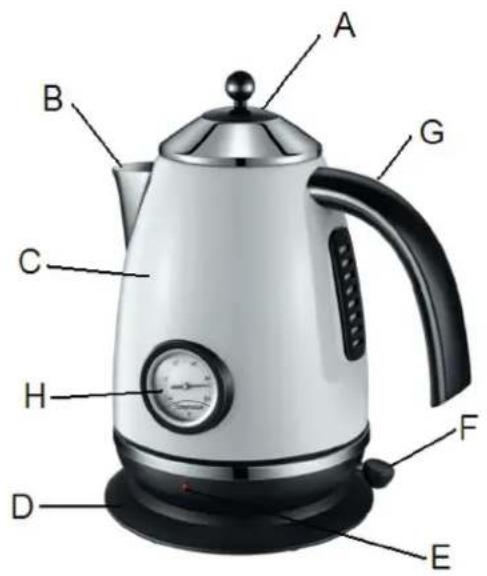

Kettle

A Lid Cover
B Filer
C Body
D Base
E Power Indicator Light
F On/Off Switch]
G Handle
H Thermometer

Before initial use

If you are using the kettle for the first time, it is recommended that you clean your kettle before use by boiling a full kettle of water twice and then discarding the water.

Operation

1. To fi ll water into the kettle, remove it from the power base and open the lid by pressing the lid open button, fi ll with the desired amount of water to the kettle. Always fi ll the kettle between the minimum (0.5L) and maximum (1.7L) marks. Too little water will result in the kettle switching off before the water has boiled.

NOTE: Do not fi ll the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is fi rmly in place before connecting the power cord to the outlet.

1. Position the kettle on the power base.
2. Connect the plug into a power outlet. Press the switch button below the handle. The indicating lights inside the kettle will light up. Then start to boil the water. The kettle will switch off automatically once the water has boiled and the light extinguishes. You can shut off the power by pressing the switch button at any moment during boiling water.

NOTE: Ensure that switch is clear of obstructions and the lid is firmly closed. The kettle will not turn off if the switch is constrained or if the lid is left open.

1. Lift the kettle from the power base and then pour the water.

NOTE: Operate carefully when pouring the water from your kettle as boiling water may result in scald, besides, don't open the lid while the water in the kettle is hot.

1. The kettle will not re-boil until the switch is uplifted. Allow to cool for 15\~20 seconds before reopening to boil water. The kettle may be stored on the power base when not in use.

NOTE: Ensure power supply is turned off when kettle is not in use.

Boil-dry protect

Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

Care and cleaning

Always disconnect the appliance from the power outlet before cleaning. Never immerse the kettle or cord in water, or allow moisture to contact with these parts.

Removal of mineral deposits

Mineral deposits in tap water may cause the kettle interior to discolor. To remove this build-up, use Liquid Descaler, a simple to use non-toxic cleaner.

Alternatively:

1. Fill the kettle with 3 cups of white vinegar and the remainder with water and be allowed to stand overnight. DO NOT BOIL.
2. Empty the solution from the kettle. Any stains remaining inside the spout can be removed by rubbing with a damp cloth, fill the kettle with clean water, bring to boil and then discard the water. Repeat and the kettle will then be ready to use. The outside of the kettle can be wiped over with a damp cloth.

Cleaning appearance of housing

Wipe the appearance of housing with a wild and damp cloth or cleaner, never use a poisonous cleaner.

Cleaning the filter

Remember to clean the filter with a wild and damp cloth at intervals. The filter can be detached for easier cleaning simply by pulling it out. To attach, insert the filter into the support dent.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle.

Storage

When not in use or storage, the power cord may be wound around the cord storage under the bottom of kettle.

Technical Specifications

Technical specifications: 220-240V 50/60Hz 2200W

Hints on Disposal

Symbol of a trash bin crossed with a diagonal line, no text or labels present

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

CE

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
