60001597 - Blender Klarstein - Free user manual and instructions

Brand	Klarstein
Model	60001597
Product type	Blender
Power supply	220-240 V ~ 50/60 Hz
Power	1800 W
Speeds	3 speeds (High, Medium, Low) + Pulse function
Automatic programs	7 programs (including Sauces, Chopping, etc.)
Jug capacity	Approximately 1.5 L ("Max" mark)
Blade material	Stainless steel
Jug material	Glass or resistant plastic
Pulse function	Yes, to unblock food
Overload protection	Yes, automatic shut-off
Non-slip feet	Yes, rubber
Cleaning	Unplug before cleaning; do not immerse the base
Child safety	Keep out of reach of children
Maximum continuous operation time	5 minutes
Included accessories	Jug, lid with opening
Compliance	CE directives (EMC, LVD, RoHS)

Frequently Asked Questions - 60001597 Klarstein

How to use the Pulse function?

The Pulse function allows mixing in short intervals. Hold down the Pulse button to activate the blender in bursts, ideal for unblocking food stuck under the blades.

What is the maximum capacity of the jug?

The maximum capacity is indicated by the "Max" mark on the jug. Do not fill beyond to avoid spillage.

What to do if the blender does not start?

Check that the jug is properly locked onto the base. Make sure the plug is well connected and that the voltage matches 220-240 V. If the problem persists, consult a qualified workshop.

Can I blend hot foods?

It is not recommended to blend very hot foods. Let them cool before placing them in the blender. Steam could damage the lid.

How to clean the blender?

Always unplug the appliance before cleaning. Wash the jug, lid, and blades with warm soapy water. Never immerse the base in water; wipe it with a damp cloth.

Which automatic programs are available?

The blender offers 7 programs, including Sauces, Chopping, etc. Select the desired program with the Function button, then press On/Off.

Can I crush ice with this blender?

Yes, the blender can crush ice. Use the Pulse function in bursts or high speed. Add a little water if necessary.

What to do in case of overload?

The blender is equipped with overload protection. If the appliance stops suddenly, unplug it, let it cool for a few minutes, reduce the amount of food, then try again.

Is the appliance under warranty?

The warranty does not apply in case of damage caused by improper use or technical modifications. For any repair, contact a qualified professional.

Where can I find spare parts?

Contact Klarstein customer service or an authorized dealer. Use only original accessories to ensure safety and proper operation.

USER MANUAL 60001597 Klarstein

1. Make sure the voltage is correct according to the plug label.
2. With the unit in Off position, place container on the blender base. Be sure container is fully seated and that drive coupling is properly engaged. Plug blender cord into outlet.
3. Put ingredients into container and cover it. Do not fill above Max Line.
4. Ensure the blender jar, lid, fill cap and tamper are clean and prepare your ingredients before operation.

Placing Ingredients

1. Placing materials into the blender jar.

a) Place soft materials or liquids in first, then hard materials or ice in last. Large ingredients should be sliced or broken into chunks before being placed in the jar for better blending results.
b) Most ingredients should be started on a low speed then changed to medium or high or started with the timer. If the ingredients get stuck you can press 'PULSE' 2 or 3 times to refresh and then use the tamper to help blending.

1. Place the lid tightly on the blender jar.
2. Put the blender jar onto motor base correctly.

Starting

Touch panel Version:

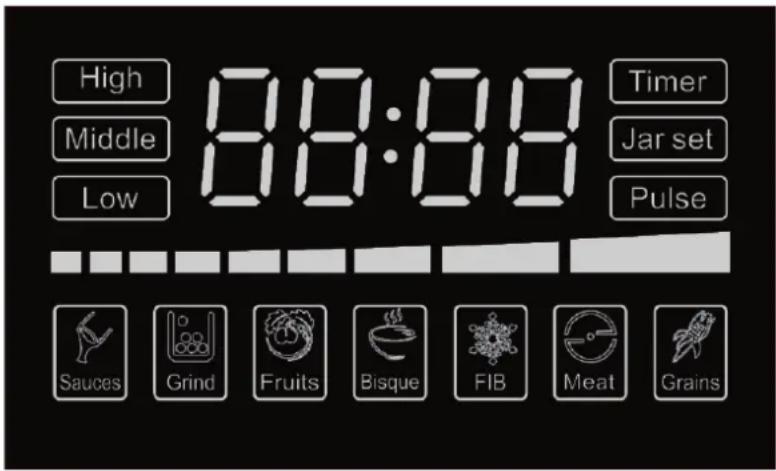

1. This blender is equipped with an electronic glass touch keypad.The keypad has a main power On/ Off button, and High Middle and Low, 7 function setting timer and Pulse buttons.
2. Press the On/Off button, to turn on the blender. The whole glass pad will illuminate. For continuos operation, press either Low or Middle or High button, When finished blending, Press stop. For momentary operation, pre the pulse button; motor will run on High speed until the button is released. Also you can press setting, choose the best function for your food blend. Each function will have difference speed and time.
3. To turn the unit off, press On/Off button. Blue LED light will go off.
4. This blender is equipped with a pulse option. Hold paddle switch in down position to engage pulse function. Unit will run on high speed until the paddle switch is released.
5. All Motor to come to a complete stop before removing container from blender base. Never place the container on the motor base or remove it from the motor base while motor is running.
6. Always hold container with one hand when starting and while blending. Never operate without jar lid.
7. Wash and dry container after each use.

Under the state of high speed by 5 minutes, it must be stoped 1 minute.

When using the mixing rod, take off the fill cap first and then insert into the cap lid.

Cautions

No metal articles, such as knives, forks, spoons...etc. in the container.

To prevent the danger of the cutting blade, don't clean by hand.

1. Ensure that the container is securely placed on the motorized base before using the blender.
2. Hold the container before starting as the motor is powerful, also ensure that the clutch is in place.
3. Do not place your fingers inside the jug at anytime, whether on or off the base, due to the sharpness of the blade.
4. Remove the jug from the base before pouring blended produce.
5. Be sure not to touch the switch when the machine has started.

Safeguards

1. Unplug from wall when blender is not in use.
2. The cover can only be opened when the blade has completely stopped rotating.
3. When cleaning, ensure that you unplug the appliance, the jug can be washed separately.
4. Do not submerge the motorized blender base in water or place in the dishwasher.
5. When in use, keep children away to prevent accidents.

Cleaning And Maintenance

1. Always unplug the blender from the power source before cleaning.
2. Clean the machine and relative parts after use.
3. The outer case can be wiped with a damp cloth.
4. Clean the jar every time after use. Do not use abrasives or stiff brushes to clean the blender base or blender jug as this will make them dull or scratch them.
5. There will be some sediment attached to the blades after use. This will affct the blades so please ensure they are cleaned for optimum performance.
6. Make sure the machine is clean and dry before you store it away.
7. Please unplug the machine when not in use for long periods of time and keep the machine away from dust, insects and moisture.
8. DO NOT CLEAN THE BLENDER JUG AND LID IN A DISHWASHER.

Trouble Shooting

Problem Possible cause Solution
Blender fails to run No	power connection Plug in correct power outlet
	Motor overheat protector was tripped	Allow motor to cool down with power off in cool spot
Increased vibration and noise	The machine is not on a level surface	Place the machine on a level surface
	The blender jug has not been placed on the base completely	Make sure the blender jug is placed securely
	Container is too full Decrease the ingredients
Leaking from lid Water	or liquid is too high Decrease the water or liquid
	The lid is not fi tted properly Place the lid tightly on the blender jug

If the problem is still not resolved, please contact your local Distributor for maintenance.

Hints On Disposal

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaratino Of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
