USER MANUAL CM75 PROLINE

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments;

bed and breakfast type environments. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The appliance must not be immersed.

WARNING: The filling aperture must not be

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than

Downloaded from www.vandenborre.be8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. The surfaces are liable to get hot during use.

Regarding the instructions for cleaning surfaces in contact with food, refer to the section “Cleaning and Descaling” on pages 4&5 of the manual.

WARNING: Risks of injuries if you don't use

this appliance correctly. The heating element surface is subject to residual heat after use.

WARNING: Avoid spillage on the connector.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the appliance and keep them for furture reference.

The appliance is intended to make coffee. Do not use the appliance for other than intended use. Never touch the appliance with wet or damp hands.

Downloaded from www.vandenborre.be Never immerse the appliance in water. Switch off and unplug the appliance from the mains socket when not in use or before cleaning. Allow the appliance to cool before cleaning.

Be careful not to get scalded by steam.

Never switch on the appliance without water in the water tank. Only use the glass jug supplied with this appliance. Never use it on a cooking surface.

Do not use the jug if it is damaged or the handle is loose. Do not use outdoors. Do not let the power cord hang over the edge of a table or counter, or touch hot surface.

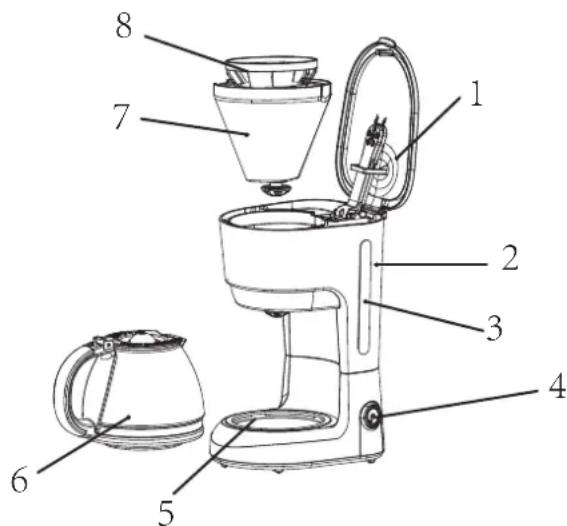

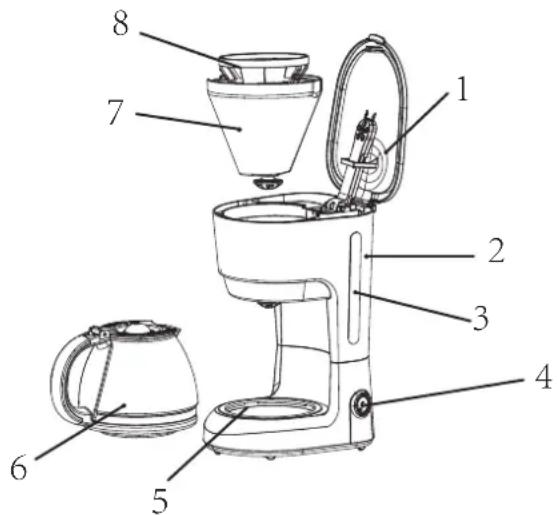

Do not touch the warming plate when the appliance is in use, as this may cause burns or scalding. DESCRIPTION

4. Power on/off button with

BEFORE USING THE APPLIANCE FOR THE FIRST TIME Carefully unpack the appliance and remove all packaging materials. Wipe the appliance with a slightly damp cloth. Dry thoroughly. It is recommended to wash the drip coffee system before first use. Fill the water tank with cold water and follow the directions for making drip coffee to make at least two jugs of coffee without using ground coffee. Switch off the coffee maker and allow it to cool before refilling with cold water.

1. Place the appliance on dry, level and heat-resistant surface, away from any edge.

2. Open the top cover.

3. Fill the water tank with the required amount of fresh, cold water using the water

level indicator as a guide. The markings on the water tank window indicate level of water required to

Downloaded from www.vandenborre.bebrew the desired number of cups. To avoid overflow, do not fill the water tank with water past the max line.

4. Place the mesh filter into the filter holder, making sure it is assembled correctly.

5. Place a 1x4 paper filter (not supplied) into the mesh filter.

6. Add the desired ground coffee in the paper filter by spreading it evenly.

It is recommended to use a level spoon of ground coffee (approximately 6g) for every cup of coffee.

7. Close the top cover until a click is heard.

8. Slide the jug into the appliance ensuring it sits correctly on the plate.

9. Plug the coffee maker into the mains socket.

10. Press the power on/off button to turn on the coffee maker.

The red power indicator light will illuminate, indicating that the appliance is brewing coffee.

11. The coffee will begin to flow from the filter holder after a short time.

During brewing, you can remove the jug from the warming plate. The brewing process does not stop during this period and only the flow of coffee from the filter holder stops. Do not remove the jug for longer than 30 seconds or the coffee may overflow the filter holder. Although the coffee maker has the above feature, it is not recommended to pour coffee before the cycle has completed as do this may affect the flavour of the coffee. It is normal for the appliance to emit steam while it is brewing coffee.

The brewing process can be interrupted at any time by pressing the power on/off button. The red power indicator light will go out.

12. When the brewing process is finished, wait for about 1 minute to allow coffee

to stop dripping and then remove the jug to serve.

13. To keep coffee warm after the brewing process has finished, place the jug on the

The appliance is designed to keep the coffee warm for approximately 40 minutes and then the appliance will be turned off automatically.

The red power indicator light will go out.

CLEANING AND MAINTENANCE

Turn off and unplug the appliance from the mains socket. Allow the appliance to cool down before cleaning. Clean the outside of the appliance with a slightly damp cloth. Dry thoroughly. Never immerse the appliance in water. Clean the removable parts in warm soapy water then rinse them thoroughly. Do not use abrasive or chemical cleaning agents. Downloaded from www.vandenborre.beSPECIFICATIONS Ratings: 220-240V~ 50-60Hz 600W DISPOSAL As a responsible retailer we care about the environment.As such we urge you to follow the correct disposal procedure for the appliance andpackaging materials. This will help conserve natural resources and ensure that it isrecycled in a manner that protects health and the environment.You must dispose of this appliance and its packaging according to local laws andregulations.Because this appliance contains electronic components, the appliance and itsaccessories must be disposed of separately from household waste when theappliance reaches its end of life.Contact your local authority to learn about disposal and recycling.The appliance should be taken to your local collection point for recycling. Somecollection points accept appliance free of charge.We apologise for any inconvenience caused by minor inconsistencies in theseinstructions, which may occur as a result of product improvement and development.

1. Fill the tank with water and descaler to the

max line. (Refer to the descaler instructions for the scale of water and descaler.)

2. Place the jug onto the plate.

3. Plug in the appliance and then press the

power on/off button.

4. After descaling, rinse out the appliance by

operating the appliance using water at least twice (two full tanks of water). Downloaded from www.vandenborre.beATTENTION

5. Plaque chauffante
