Introduction

Intended use......Page 48

Parts description Page 49

Technical Data Page 49

Scope of delivery Page 50

Safety information......Page 50

Installation Page 51

Connecting the fitting....Page 52

Connecting accessories (shower hose and shower head)...... Page 52

Operation

Start-up......Page 53

Maintenance and Cleaning

Maintaining and cleaning the tap....Page 53 Replacing the cartridge....Page 54

Disposal Page 55

Information

Potability of tap water......Page 56

Warranty and Service Page 57

47 GB

Shower Mixer Tap

- Introduction

Congratulations on the purchase of your new product. You have selected a high quality product. The assembly and operating instructions are part of this product. Before installation please read through the whole of these instructions and take note of the advice they contain before you start the installation. These instructions contain important information about installation, settings and care. Keep these instructions safe and if you pass on the product to anyone else please pass on the documentation as well.

Intendeduse

The product is only designed to regulate the hot and cold water flow. For tub installation only. This product is suitable for use with all pressure-resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler etc. It is not suitable for low pressure water heaters such as wood or coal burning bath geysers, oil or gas bath geysers, open electrically heated water tanks. When in doubt please consult a plumber or heating specialist. Any use not specified or product modification is prohibited and will result in damage. Any form of use other than the stipulated intended purpose can cause danger to life and cause injury. The product is for private use only and is not intended for medical or commercial use. The manufacturer accepts no responsibility if the intended purpose of this unit is not adhered to.

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

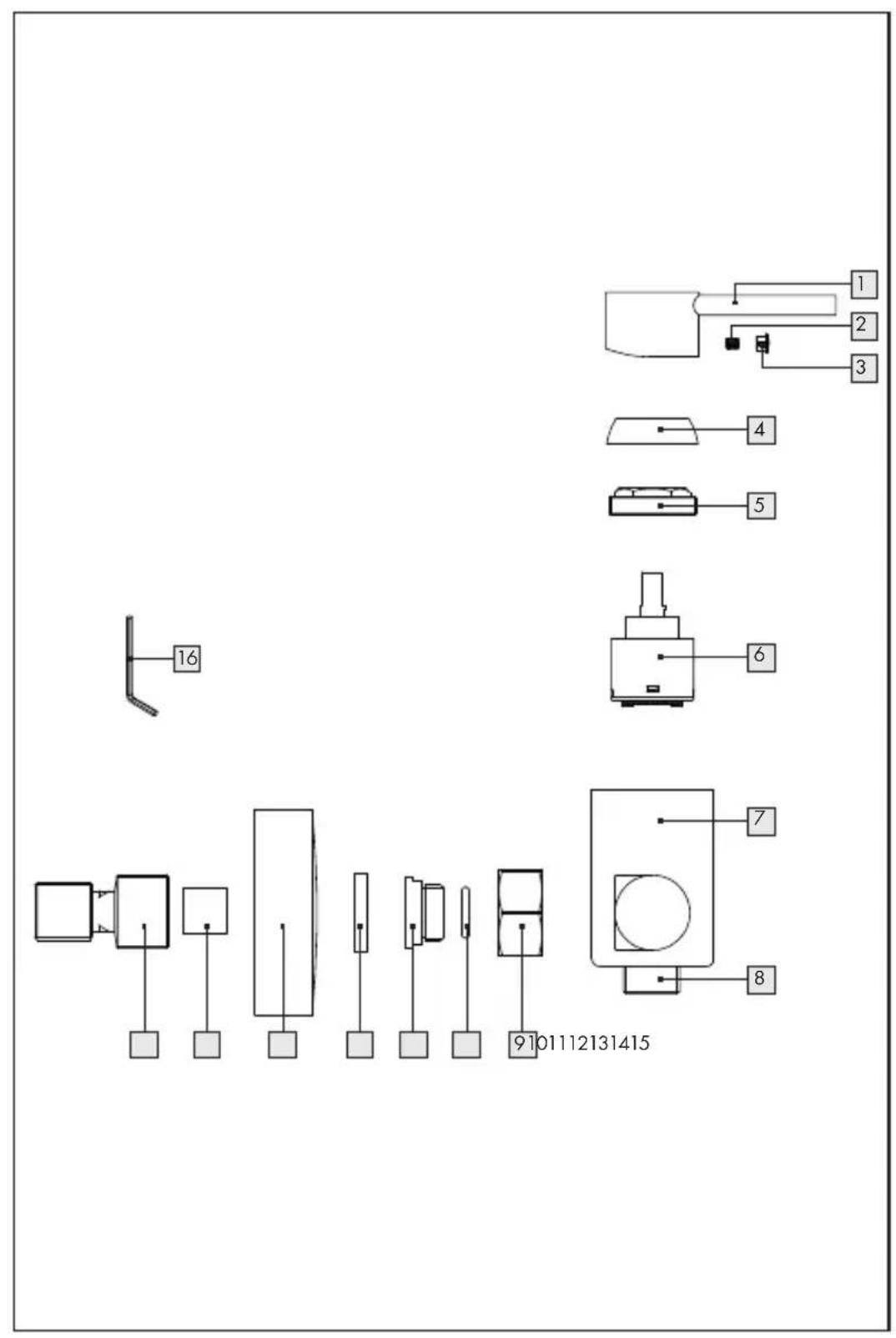

Parts description

1 Handle*
2 Locking screw*
3 Hot/cold plaque*
4 Cartridge cover ring*
5 Cartridge lock nut*
6 Cartridge*
7 Fitting body
8 Shower connection*
9 2 Swivel nuts*
10 Seat mount nut*
11 Seal (seat mount nut)*
12 2 Seals
13 2 Covers
14 2 Silencers*
15 2 S-connectors
16 Allen key

* preinstalled

- Technical Data

Swivel nut (water connections): G 34

Shower hose connection: G 1/2"

Flow rate at 3 bar:

Shower connection:

approx. 17.7 to 18.8 L/min

49 GB

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

- Scope of delivery

1 Shower valve 1-11
2 Caps 13
2 S-connectors with silencer 14-15
2 Seals 12
1 Socket head wrench 16
1 Instructions for assembly/operation

Safety information

DANG WACJING AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children unattended with the packaging material. Suffocation hazard. Keep this product well away from children. This product is not a toy.

BEWARE OF ELECTRIC SHOCK! Leaking or water discharge can lead to life-threatening danger due to electric shock. Carefully check that all connections are watertight. Also ensure that all wires of electric appliances are correct and have been securely installed.

CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that washers and gaskets are wear parts and therefore will need to be replaced from time to time.

Damaged parts could impact safety and function.

• Be sure all seals are correctly seated.
  ■ SCALDINGRISK! When adjusting the hot water temperature be sure the water temperature is not too high.

⚠CAUTION! Be careful not to reverse the hot/cold water plaque 3. The correct position is: left = red (hot water), right = blue (cold water).

■ CAUTION! DAMAGE TO THE ARTICLE! Please have all installations performed by skilled individuals.
Please note that the seals are wear parts and must be changed from time to time.
■ Any leakage or sudden escape of water can cause considerable damage to buildings and property. All connections must therefore be checked carefully to ensure that they are tight.
- Familiarise yourself prior to installation with all local conditions, e.g. water connections and shut-off device.
The product is only suitable for use in rooms in which a temperature above 0 °C is maintained.

●Installation

Note: Familiarise yourself with the product prior to assembly. Carefully read the following assembly instructions and safety advice. In the event of incorrect installation, all warranty claims – particularly in relation to subsequent damage – are excluded.

■ CAUTION! Before you start installation turn off the water supply at the mains. Otherwise there is a danger of injury and / or damage to the product.

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

- Connecting the fitting

Note: this step requires an SW 30 mm open-end spanner and sealing tape.

Note: cover any parts which will be screwed with a damp cloth or plastic clamps. This will prevent scratches.

Follow these steps:

- Wrap sealing tape around the roughened threaded part ( 12 " thread) of the S-connectors 15

Note: sealing tape not included.

☐ Screw the S-connectors 15 with the sealed threaded parts into the wall connectors.

☐ Horizontally align the screwed in S-connectors 15 with the spacing guide for the fitting.

☐ By hand, tightly screw the caps 13 onto the S - connectors 15 to the wall.

☐ Insert the seals 12 into the swivel nuts 9 and screw the fitting body 7 with the swivel nuts 9 onto the S-connectors 15

●Connectingaccessories (shower hose and shower head)

Note: Shower hose and shower head are not included in delivery.

Note: cover any parts which will be screwed with a damp cloth or plastic clamps. This will prevent scratches.

□ Connect a standard shower hose to the shower connector 8.

□ Connect a standard shower head to the shower hose.

Note: Also refer to the assembly instructions for the accessories.

Operation

- Start-up

After the initial commissioning, carefully check all connections for leaks.

☐ Check the operation of the fitting. To do so, swing the handle into all permissible positions.

Note: If the tap has not been used for a long period, flush the pipes thoroughly to avoid stagnation and build-up of residue.

- Open the main water supply. - Life the handle 1 and swing it up and down in order to regulate the speed or temperature of the water.

Hot water:

Swing the handle 1 to the left.

Cold water:

Swing the handle 1 to the right.

● Maintenance and Cleaning

● Maintaining and cleaning the tap

Please note that sanitary taps require special care and attention.

Therefore, please follow the instructions:

- When cleaning, never use petrol, solvents, aggressive cleansers or hard cleaning brushes etc. These could damage the surface of the product.

• Dry your taps with a cloth after every use in order to avoid the build-up of any limescale.
  □ Clean the product with a damp, soft cloth and a mild cleaning agent if required.

Non-observance of the above care advice can be expected to result in damage to the surfaces of the product. This will inevitably invalidate the guarantee.

● Replacing the cartridge

A cartridge 6 is a wear part that needs replacing according to the hardness and / or degree of contamination of the water. This becomes evident when the handle 1 becomes difficult to move. A new cartridges 6 can be obtained from the listed service office.

Note: this step requires an open-end spanner SW 27 mm or fitting pliers.

Proceed as follows to replace the cartridge 6:

☐ Shut off the main water supply. Allow any remaining water in the pipework to drain.
☐ Remove the hot/cold plaque 3 by adjusting the handle to the highest position between the rim and the hot/cold plaque 3 and the outside of the handle 1.
Note: Use light pressure to carefully push the hot/cold plaque 3 outward so as not to scratch the surface.
☐ Loosen the locking screw 2 with the socket head wrench 16 by turning it counter-clockwise.

CAUTION! Do not completely unscrew the locking screw 2. Only loosen this as far as is necessary to remove the handle 1

Remove the handle 1.

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

□ Unscrew the cartridge covering ring 4, do not use pliers or a spanner. Otherwise the product could be damaged.
☐ Loosen the cartridge locknut 5 below with the fitting pliers or an open-ended spanner SW 27 mm and remove the entire cartridge 6 from the fitting body 7
☐ Place the new cartridge 6 into the body of the tap 7 in exactly the same way.
Note: Be sure that the seal under the cartridge 6 is correctly in place. Make sure that the guides are in the corresponding holes.
☐ Reassemble all the above parts. Tighten the cartridge lock nut using fitting pliers or an open-end spanner SW 27 mm while simultaneously securing the fitting from twisting. This will achieve tightness and ensure the handle is not difficult to move.

CAUTION! Be careful not to reverse the hot/cold water

plaque 3. The correct position is as follows:

left = red (hot water)

right= blue (cold water).

●Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details on how to dispose of your worn-out product.

Information

- Potability of tap water

☐ Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.

The following general recommendations apply to the potability of tap water:

- Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Otherwise health concerns can arise. Fresh water can be readily distinguished from stagnant water as fresh water is noticeably cooler as it leaves the pipe.

Do not use stagnant water from chromium-plated pipework to prepare food, for drinking, or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.

Do not use water from lead pipework for preparing food baby food and/or to prepare foods during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.

● Warranty and Service

The warranty period is three years and begins on the day of purchase. Please keep your receipt as proof of purchase.

However, if defects do occur during the warranty period, after first contacting service the defective fitting may be returned freight forward to the service address specified. You will then receive a new or repaired fitting free of charge.

After the warranty period has expired you may also send the defective fitting to the address specified for repair. Repairs made after the expiration of the warranty period are subject to payment.

Note: Eisl Sanitär GmbH will replace defective fittings or supply the respective replacement parts free of charge within the warranty period. Eisl Sanitär GmbH is unable to refund the purchase price for defective fittings.

This warranty does not limit your legal rights.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and exchanged parts. Complaints are often initiated by difficulties encountered during use. Many of these complaints can be resolved by telephone or email. Please contact the service address set up for you before filing a warranty claim for the fitting with the manufacturer:

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

GB:

Eisl Sanitär GmbH

Please have the receipt and item number, e.g. IAN 12345 ready as your proof of purchase when making an enquiry.

Product description:

Shower Mixer Tap

Eisl sanitary No.

NI168-060-LIDL
