USER MANUAL RTMIG 622 ROSIERES

3000 W (foyer Ø 200),

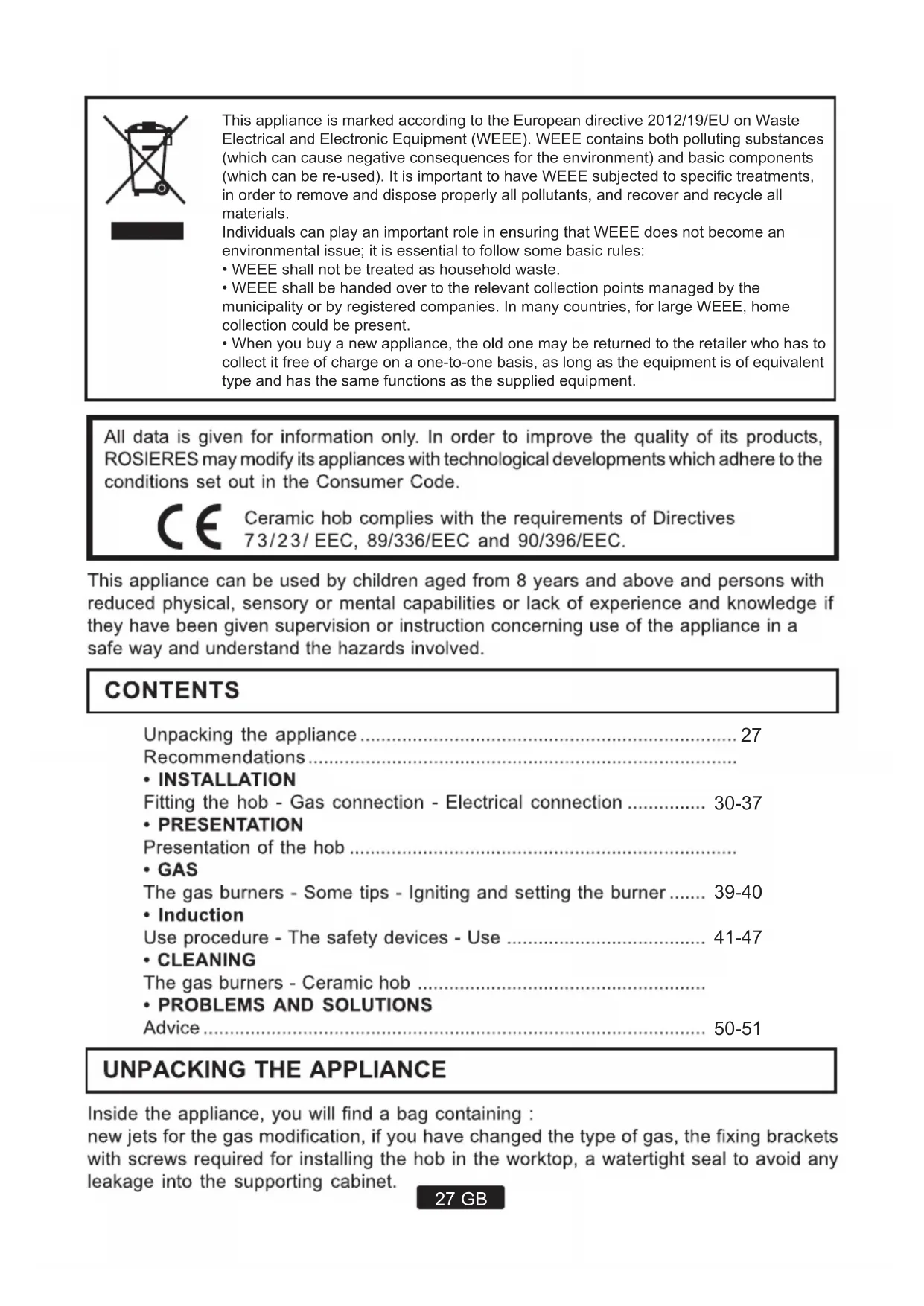

• WEEE shall not be treated as household waste.

• WEEE shall be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

• When you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment. 27 GB• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children must not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• WARNING: Danger of fire: do not store items on the cooking surfaces.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not use a steam cleaner for cleaning operations.

• Metallic objects such as knives, forks, spoons and sauce pan lids must not be placed on the hob surface as they can get hot.

• Any spillage should be removed from the lid before opening.

• The hob surface must be allowed to cool down before closing the lid.

• After use, switch off the hob element by its control. Do not rely on the pan detector.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• CAUTION: In order to avoid a hazard due to inadvertent resetting of 28 GBCode produit: Numéro de série : the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.

• "These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country".

• "Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible";

• "the adjustment conditions for this appliance are stated on the label (or data plate)";

• "This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation".

• The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present. 29 GB30 GB31 GBƵƚĂŶĞW ƌŽƉĂŶĞ 'ϯϬ' ϯϭϮϴ -ϯϬϯ ϳŵďĂƌ 32 GB33 GB34 GB35 GB35 GB37 GB38 GB

• KEY PROTECTION (CHILD-LOCK) Child-lock against unattended usage. Can only be activated when no cooking zone is selected. Locking: After switching on the control by the main switch the child lock can be activated. Therefore cooking zone selection key FL (front left) and Minus key has to be pressed together and after releasing then FL key again. All displays show „ “ for locked. If a cooking zone has an hot status „ “ and „ “ will be shown alternating. The activation has to take place within 10 sec after switching on the control and no other key has been pressed. Otherwise the activation is blocked. The control will keep this status until deactivation. No matter of switching on and off or resetting (separation to main supply) the complete cooktop. Temporary deactivation for cooking: Deactivation the control you have to press cooking zone selection key FL( front left) and Minus key together. “ “ will be erased in the displays and „0“ is displayed on all cooking zones. If a cooking zone has an hot status „ “ and „0“ will be shown alternating. After switching of the control with the main switch Child Lock is activated again. Permanent deactivation: After switching on the control by the main switch the child lock can be activated. Therefore cooking zone selection key FL (front left) and Minus key has to be pressed together and after releasing then Minus key again. Following the steps within 10 sec. the control will be in STAND-BY–condition. If not operation is not accepted and control is being switched of after 20 sec.47 GB

• TIMER-FUNCTION Timer is being displayed on the rear cooking zone display (RL). The displays of the front cooking zones (FL) are switched off. There are 2 different Timer realised: - Cooking Timer: Timer is related to a certain cooking zone. After exploration of the Timer an audible sound is generated and the cooking zone will be switched off. - Stand alone Timer: independent Timer operation. After exploration of the Timer an audible sound will be generated but no further activities. - Selecting a Timer. By pressing Plus- and Minus Key simultaneously the Timer function is selected. If a cooking zone has been selected before, the Timer is related to this particular cooking zone and the decimal dot of the cooking zone is blinking. If no cooking zone was selected before activation of the Timer function, the Stand alone Timer is activated. Having more Timer activated at the same time you can toggle with Plus- and Minus key among each other. All active Timers will be toggled clockwise. Timer setting is limited to 10 sec. selection time. After this the Timer display switches back to active cooking zone display. Timer setting: After Timer has been activates you can change the Timer value by using Pus- and Minus key. If no Timer value is selected you can start at 30 min. by pressing the Minus key. Pressing Plus- or Minus key permanent Timer value is changed faster. The automatic repeat ist stoped with setting 99 or 01. A dedicated Timer will be displayed by the decimal dot in the corresponding cooking zone display. A dedicated egg-timer will be displayed by a blinking of both decimal dots in the timer displays. Timer deleting: Timer can be switched off by setting his value to 00. For cooking Timer the dedicated cooking zone remains active. Expiration of Timer: After setting a Timer value the countdown starts automatically. Changing the Timer value by Plus-or Minus Key the Timer starts with the complete minute. Timer signal: Reaching the value 00 an acoustic and optical signal is given. An expired cooking Timer switches off the cooking zone. Additional selected Timers will be displayed together with the corresponding decimal dot of the cooking zone display. The signal is limited to 2 min. if no other key has been pressed meanwhile.48 GB49 GB50 GB51 GB53-54
