USER MANUAL ActiFry Family AH9000 TEFAL

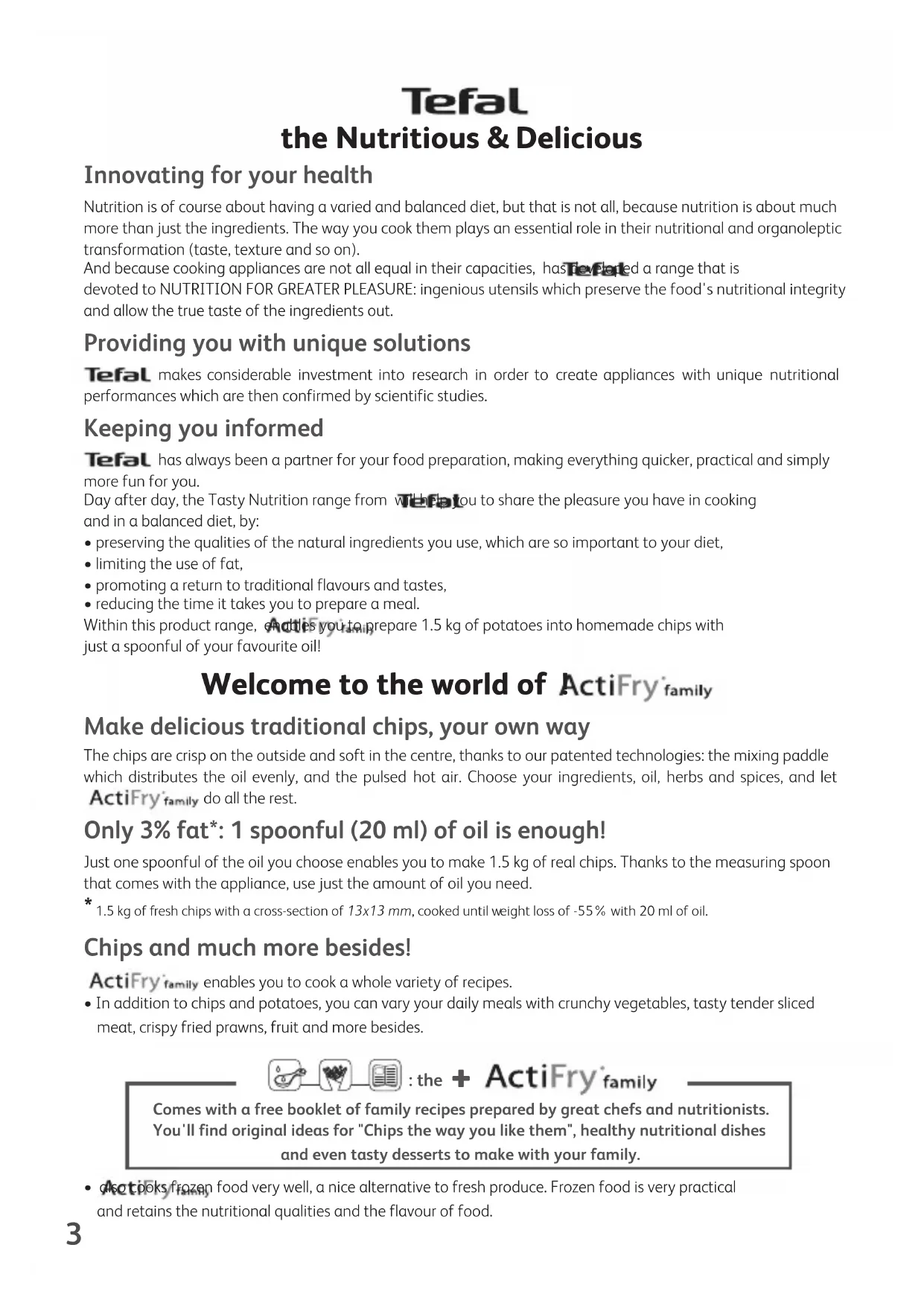

fig.5 fig.6 fig.7 fig.8 fig.9 fig.10 fig.11 fig.12 fig.13 fig.14 fig.15 TEFAL435-ACTIFRY_GB-FR-AR-FA_5086607_Mise en page 1 15/04/10 10:53 PageD3 the Nutritious & Delicious Innovating for your health Nutrition is of course about having a varied and balanced diet, but that is not all, because nutrition is about muchmore than just the ingredients. The way you cook them plays an essential role in their nutritional and organoleptictransformation (taste, texture and so on).And because cooking appliances are not all equal in their capacities, has developed a range that isdevoted to NUTRITION FOR GREATER PLEASURE: ingenious utensils which preserve the food's nutritional integrityand allow the true taste of the ingredients out. Providing you with unique solutions makes considerable investment into research in order to create appliances with unique nutritional performances which are then confirmed by scientific studies. Keeping you informed has always been a partner for your food preparation, making everything quicker, practical and simplymore fun for you.Day after day, the Tasty Nutrition range from will help you to share the pleasure you have in cookingand in a balanced diet, by:• preserving the qualities of the natural ingredients you use, which are so important to your diet, • limiting the use of fat, • promoting a return to traditional flavours and tastes, • reducing the time it takes you to prepare a meal. Within this product range, enables you to prepare 1.5 kg of potatoes into homemade chips withjust a spoonful of your favourite oil! Welcome to the world of ! Make delicious traditional chips, your own way The chips are crisp on the outside and soft in the centre, thanks to our patented technologies: the mixing paddle which distributes the oil evenly, and the pulsed hot air. Choose your ingredients, oil, herbs and spices, and let do all the rest. Only 3% fat*: 1 spoonful (20 ml) of oil is enough! Just one spoonful of the oil you choose enables you to make 1.5 kg of real chips. Thanks to the measuring spoonthat comes with the appliance, use just the amount of oil you need. *1.5 kg of fresh chips with a cross-section of 13x13 mm, cooked until weight loss of -55% with 20 ml of oil. Chips and much more besides! enables you to cook a whole variety of recipes.• In addition to chips and potatoes, you can vary your daily meals with crunchy vegetables, tasty tender slicedmeat, crispy fried prawns, fruit and more besides. : the Comes with a free booklet of family recipes prepared by great chefs and nutritionists.You'll find original ideas for "Chips the way you like them", healthy nutritional dishesand even tasty desserts to make with your family.• also cooks frozen food very well, a nice alternative to fresh produce. Frozen food is very practicaland retains the nutritional qualities and the flavour of food. TEFAL435-ACTIFRY_GB-FR-AR-FA_5086607_Mise en page 1 15/04/10 10:53 Page3EN

To make your meals a real success, gives you hints and tips on potatoes and oils. Potatoes: balance and pleasure each and every day! Potatoes are a great food for everybody at every age! They are an excellent source of energy and vitamins. Depending on the variety, the climate and the way they are grown, there are a huge number of different kinds ofpotato: shape, size, flavour. Each of them has its own characteristics in terms of seasonality, yield, size, colour,conservation and culinary uses. The cooking results therefore vary depending on the origin and the season.What variety should you be using with Generally speaking, we recommend that you use potatoes that are marketed as especially good for chips. For newlyharvested potatoes which have a high water content, we recommend that you fry them for a few extra minutes. also makes it possible to cook frozen chips. Because they are already precooked in oil, there is noneed to add any oil.Where should I keep my potatoes?The best places to keep potatoes are a good cellar or a cool cupboard (between 6 and 8°C), out of the light.How should I prepare my potatoes for use with ?For the best results, you need to make sure that the chips do not stick to one another. To do this, we recommendthat you wash the whole potatoes thoroughly before cutting them and then once again when they have been cut,until the water runs clear. This will enable you to remove as much starch as possible. Dry the chips carefully using adry and highly absorbent tea towel. The chips need to be perfectly dry before they are put into .Remember the cooking time of the chips will vary according to the weight of chips and the batch of potatoes used.How should I cut my potatoes?The size of the chip has an influence on how crunchy or soft they are. The thinner your chips your chips, thecrunchier they will be and conversely, if they are very thick, they will be softer in the middle. Depending on whatyou're looking for, you can vary how you cut your chips and adapt the cooking time accordingly:Thin American style: 8 x 8 mm / Standard: 10 x 10 mm / Thick: 13 x 13 mmLength: Up to approximately 9 cmIn the maximum recommended chip thickness is 13 x 13 mm and a length of up to 9 cm. Vary the oils that are good for you You can vary the type of oil depending on your choice or for different needs. Choose a different oil every time youcook! All of them contain, in various proportions, those nutrients that are so essential for balanced diet. To provideyour body with everything it needs, vary your oils! With , you can use a whole variety of oils:• Standard oils: olive, rapeseed*, grapeseed, corn, groundnut (peanut), sunflower, soya* • Flavoured oils: oils infused with herbs, garlic, pepper, lemon… Speciality oils: hazelnut*, sesame*, almond*, avocado*, argan* (*cooking time according to manufacturer).Note: Some of these oils are not available in the UK.Because it uses so little oil during cooking, enables you to preserve all of the good fats that youneed for your vitality.: the +With and the oil you choose, your chips will be of a higher nutritional standard. Depending on your taste and what you're looking for, you can add an extraspoonful of oil for that extra flavour! But this will increase the fat content. With , make tasty, healthier chips for your family as a real treat! TEFAL435-ACTIFRY_GB-FR-AR-FA_5086607_Mise en page 1 15/04/10 10:53 Page45 Important recommendations Safety instructions

• Read these instructions carefully and keep them in a safe place.

• This appliance is not intended to be operated using an external timer or separate remote control system.

• For your safety, this appliance conforms with applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.).

• Check that the voltage of your mains network corresponds to the voltage given on the rating plate on the appliance (alternative current).

• Given that there are so many different standards, if the appliance is to be used in a country other than that in which it was bought, have it checked by Approved Service Centre.

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• This appliance is intended to be used only in the household. It is not intended to be used in the following applications, and the guarantee will not apply for: - staff kitchen areas in shops, offices and other working environments; - farm houses inns, - clients in hotels, motels and other residential type environments, - bed and breakfast type environments. Connecting to the power supply

• Do not use the appliance if it or the power cord is damaged or if it has fallen and has visible damage or appears to be working abnormally. If this occurs, the appliance must be sent to an Approved Service Centre.

• Do not use an extension lead. If you nevertheless decide to do so, under your own responsibility, use an extension lead that is in good condition and compliant with the power of the appliance.

• For models with detachable power cords, only use the original power cord.

• If the power cord is damaged, it must be replaced by the manufacturer, an approved After- Sales Service or a similarly qualified person, in order to avoid any danger. Never take the appliance apart yourself.

• Do not let the power cord dangle.

• Do not unplug the appliance by pulling on the power cord.

• Always unplug your appliance: after use, to move it, or to clean it. Operation

• Use the appliance on a flat, stable, heat-resistant work surface away from water splashes.

• This appliance is not designed to be used by people (including children) with a physical, sensory or mental impairment, or people without knowledge or experience, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

• The work surface can become hot when the appliance is operating, which could cause burns. Do not touch the hot surfaces of the appliance (the lid, visible metal parts, etc).

• Never operate your appliance when empty.

• Never overload the cooking pan comply with the recommended quantities.

Your appliance is fitted with a turn-over ring. This ring is designed particularly for cooking chips but we also recommend you use it when making recipes with the maximum quantity of food. It must be removed for recipes using liquid. Description

4. Paddle release button

5. Maximum capacity for liquids and chips

6. Removable mixing paddle

8. Ceramic coated removable cooking pan

12. Removable filter

and Handle release button

Instructions for use Before using for the first time

• To remove the lid - open the lid by pressing the lid opening button (13) - fig.1 and push the lid locks (2) outward to remove the lid - fig.2.

• Remove the measuring spoon.

• Lift the detachable pan handle until you hear a "CLICK" as it locks, in order to remove the pan - fig.3.

• Remove the paddle by pushing the release button - fig.4a.

• To remove the ring, hold the left side of the ring and press slightly on the securing clip of the right hand side of the ring to release the catch. Separate the two parts of the ring and extract - fig 5.

• Remove the detachable filter - fig.14.

• All the removable parts are dishwasher safe - fig.6 or can be cleaned using a non abrasive sponge and some washing up liquid.

• Clean the body of the appliance with a damp sponge and a little washing-up liquid.

• Dry carefully before putting everything back in place.

• Place the dismantled ring on the edge of the cooking pan and centre-up the parts. Push the two left and right parts together until these "CLICK" together.

• Reposition the paddle until you hear the "CLICK" - fig.4b.

• When using for the first time, the appliance may give off a harmless odour. This has no impact on the use of the appliance and will soon disappear. The ActiFry ResistantTechnology pan has a ceramic coating which has a highresistance to scratching.
• In the event of fire, unplug the appliance and smother the flames using a damp tea towel.

• Never move the appliance when it still contains hot food.

• Place the foodstuffs in the cooking pan and always observe the maximum amounts (see cooking table p. 8 to 10) and keep to the recipe instructions - fig.7. Do not alter the quantities or ingredients used.

• Fill the spoon with the recommended amount of oil (see cooking table p. 8 to 10) and pour the contents evenly onto the food - fig.8.

• Unlock the handle and push it right back into its housing - fig.9.

• Close the lid. Cooking Start cooking

• Attach the removable power cord to the appliance and plug it into an earthed electrical outlet - fig.15.

• Press the On/Off button; the appliance emits a beep and the screen displays 00 - fig.10.

• Set the cooking time using the +/- button (see cooking table p. 8 to 10), the appliance emits a second beep - fig.11 and the cooking starts thanks to the movement of hot air into the cooking chamber.

• The selected time is displayed and the clock counts down minute by minute - fig.12. The selection and time displayed is in minutes and only the time displayed below one minute is in seconds.

• In the event of an error or to delete the selected time, hold the +/- button down for 2 seconds and re-select the time, increase or decrease the cooking time with the +/- button. Remove the food

• When the cooking is complete, the timer beeps and the display shows 00: the appliance automatically stops cooking what you have prepared. Stop the beeps by pressing one of the +/- buttons - fig.13.

• Open the lid - fig.1.

• Lift the handle until it "CLICKS" to remove the pan and the food. Cooking times The cooking times are given as a rough guide and may vary depending on the seasonality of the food, its size, the quantities used and individual tastes, as well as the voltage of the mains system. The amount of oil indicated may be increased depending on your taste and needs. If you want crisper chips, you can add a few extra minutes to the cooking. To avoid damaging yourappliance, please followthe quantities ofingredients and liquidsgiven in the manual andthe recipe book.Do not leave themeasuring spoon insidethe pan while cookingfood.The timer is indicated bythe Tasty Nutrition logo

fig.12. The timer signals the endof cooking. The timerdisplay shows 00 and theappliance automaticallystops cooking. To switchoff the appliancecompletely you have topress the on/off button.Opening the lid stops thepulsing of hot air.If the lid remains open formore than 3 minutes thetimer is cancelled. Resetthe timer. TEFAL435-ACTIFRY_GB-FR-AR-FA_5086607_Mise en page 1 15/04/10 10:53 Page7EN

Other vegetables Potatoes

COOKING TIME Courgettes Fresh in slices 1200 g 1 spoon of oil + 150 ml cold water 30 min Peppers Fresh in slices 1000 g 1 spoon of oil + 250 ml cold water 25 min Mushrooms Fresh in quarters 1000 g 1 spoon of oil 20 min Tomatoes Fresh in quarters 1000 g 1 spoon of oil 20 min Onions Fresh in round slices 750 g 1 spoon of oil 30 min

TYPE QUANTITY OIL COOKING TIME

Standard size chips 10 mm x 10 mm length up to 9 cm* Fresh 1500 g** 1 spoon of oil 45 min 1000 g** ¾ spoon of oil 38 min 750 g** ½ spoon of oil 32 min 500 g**

⁄3 spoon of oil 26 min 250 g**

• For UK style thicker chips cut 13 mm x 13 mm increase the cooking time slightly. ** Weight of unpeeled potatoes. *** For American Style Thin Cut Frozen Chips (8 mm x 8 mm) cook for the same time as 10 mm x 10 mm frozen chips. TEFAL435-ACTIFRY_GB-FR-AR-FA_5086607_Mise en page 1 15/04/10 10:53 Page89

COOKING TIME Chicken nuggets Fresh 1200 g without 20 min Frozen 1200 g without 20 min Chicken legs Fresh 3 without 30 min Chicken drumsticks Fresh 9 without 35 min Chicken breast (boneless) Fresh 9 breasts (about 1200g) without 25 min Spring Rolls Fresh 12 small 1 spoon of oil 12 min Lamb chops Fresh (2.5 cm to 3 cm thick) 8 1 spoon of oil 20 min* Minced beef Fresh 900 g 1 spoon of oil 15 min Frozen 600 g 1 spoon of oil 15 min Meat balls Frozen 1200 g 1 spoon of oil 20 min Sausages Fresh 8 to 10 (pricked) none 12 min Meat - Poultry To add a little flavour to your meat, don't hesitate to mix spices in with the oil (paprika, curry, mixed herbs, thyme, bay leaf, etc). Fish - Shellfish

COOKING TIME Bananas In slices 700 g (7 bananas) 1 spoon of oil + 1 spoon of brown sugar 6 min Wrapped in foil packets 3 bananas without 20 min Apples Cut in half 5 1 spoon of oil + 2 spoons of sugar 12 min Pears Cut in pieces 1500 g 2 spoons of sugar 12 min Pineapple Cut into pieces 2 2 spoons of sugar 17 min Frozen food

• Do not add salt to chips while the chips are in the pan. Only add salt once the chips are removed from the appliance at the end of cooking.

• When adding dried herbs and spices to ActiFry, mix them with some oil or liquid. If you try sprinkling them directly into the pan they will just get blown around by the hot air system.

• Please note that strong coloured spices and strong coloured foods such as tomatoes, may slightly stain the paddle and parts of the appliance. This is normal.

• For best results, use finely chopped garlic instead of crushed garlic to avoid it adhering to the central paddle.

• If using onions in ActiFry recipes, they are best thinly sliced instead of chopped as they cook better. Separate the onion rings before adding them to the pan and give them a quick stir so that they are evenly distributed.

• With meat and poultry dishes, stop the apppliance and stir the pan once or twice during cooking so that the food on top does not dry out and the dish thickens evenly.

• Prepare vegetables in small pieces or stir fry size to ensure they cook through.

• This appliance is not suitable for recipes with a high-liquid content (eg. soups, cook-in sauces…).

• Not available in the UK. TEFAL435-ACTIFRY_GB-FR-AR-FA_5086607_Mise en page 1 15/04/10 10:53 Page1011 A few tips in case of problems… The appliance does not work. The appliance is not plugged in properly. Make sure the appliance is properly connected. You have not pressed the ON / OFF button. Press the ON / OFF button. You have pressed the ON / OFF button but the appliance is not working. Close the lid. The appliance is not heating. Take the appliance to an Authorised Service Centre. The paddle does not turn. Check that it is inserted in the correct position, otherwise take the appliance to an Authorised Service Centre. The paddle does not stay in place. The paddle is not locked. Reposition the paddle until you hear it "CLICK" - fig.4b. The food has not been cooked uniformly. You have not used the paddle. Put it in position. The food has not been cut uniformly. Cut the food all to the same size. The chips have not been cut uniformly. Cut the chips all to the same size. The paddle has been fitted correctly but is not turning. Take the appliance to an Authorised Service Centre.

PROBLEMS CAUSES SOLUTIONS

Never immerse theappliance in water.Do not use any corrosiveor abrasive cleaningproducts.The removable filter mustbe cleaned regularly.To ensure the qualities ofyour removable pan lastlonger, never use anymetal utensils. Easy to clean Clean the appliance

• Leave it to cool completely before cleaning.

• Open the lid by pressing the button - fig.1 and push the lid locks (2) outward to remove the lid - fig.2.

• Lift the detachable pan handle until you hear a "CLICK", in order to remove the pan - fig.3.

• Remove the paddle by pushing the release button - fig.4a.

• To remove the ring, push the two sides of the ring apart by gently pushing the right-hand side, then pull it free - fig.5.

All the removable parts are dishwasher safe - fig.6 or can be cleaned using a non abrasive sponge and some washing up liquid.

• Clean the body of the appliance with a damp sponge and a little washing-up liquid.

• Dry carefully before putting everything back in place.

• We guarantee that the detachable pan COMPLIES WITH REGULATIONS with regards to materials in contact with food.

• The pan has a natural coating that is highly resistant, durable and scratch resistant.

• If food gets stuck onto the paddle or pan, leave them to soak in warm water before cleaning (Recyclable ceramic coated removable pan, highly scratch resistant). TEFAL435-ACTIFRY_GB-FR-AR-FA_5086607_Mise en page 1 15/04/10 10:53 Page11EN

The chips are not crunchy enough. You are not using a potato variety that is recommended for chips. Choose a potato variety that is recommended for chips. The potatoes are insuffciently washed and/or not completely dried. Wash potatoes for a long time to remove the starch, drain and dry very thoroughly before cooking. The chips are too thick. The maximum chip thickness is 13 mm x 13 mm. Cut them more thinly. There is not enough oil. Increase the amount of oil (see cooking table on p. 8 to 10). The filter is clogged. Clean the filter. The chips break during cooking. The quantity is too large. Reduce the amount of potatoes and adjust the cooking time. The potatoes used are newly harvested and hence have a high water content. Choose a potato variety recommended for chips. The food stays on the edge of the pan. The pan has too much food. Comply with the amount shown on the cooking table. Put the turn-over ring in place. Reduce the amount of food. Max level exceeded. Reduce the quantities. Cooking fluids have leaked into the base of the appliance. Faulty pan or paddle. Check that the paddle is correctly positioned, otherwise take the appliance to an Authorised Service Centre. The max level has been exceeded. Observe the max level. Do not use ActiFry for making recipes with a high liquid content. The LCD screen does not work. The appliance is not plugged in. Plug the appliance in. The lid is open. Close the lid. The appliance has not been started. Press the ON / OFF button. The LCD displays shows "Er" (error). The appliance is not functioning correctly. Unplug the appliance, wait 10 seconds, plug the appliance, press the ON / OFF button. If the The LCD displays still shows

(error), take the appliance to an Authorised Service Centre. The appliance is abnormally noisy. You suspect there is a problem in the way the appliance motor is working. Take the appliance to an Authorised Service Centre.

PROBLEMS CAUSES SOLUTIONS

Environment protection first! i Your appliance contains valuable materials which can be recovered or recycled.
