Table of CONTENTS

▲ Safety Definitions .... 4

IMPORTANT SAFETY INSTRUCTIONS 5

Proper Installation and Maintenance 5

Fire Safety 5

Burn Prevention 5

Child Safety 6

Cookware Safety 6

Food Safety 6

State of California Proposition 65 Warning: 6

Getting to Know the Appliance 7

Storage Drawer Overview 7

Warming Drawer Overview 7

Control Panel 7

Operation 8

Food Safety 8

Setting the Warming Drawer 8

Sabbath Mode 8

Preheating the Warming Drawer 8

Warming Food 8

Warming Empty Serving Bowls and Plates 8

Proofing Dough 8

Crisping Stale Items 9

Warming Drawer Charts 9

Cleaning and Maintenance 10

Cleaning Chart 10

Removing the Drawer 10

Replacing the Drawer 10

Service 11

Rating Label-WD30W AND WD30WC 11

Data Plate-SDS30WC and SD30WC 11

Model Number and FD Number 11

STATEMENT OF LIMITED PRODUCT WARRANTY .... 12

What this Warranty Covers & Who it Applies to ..... 12

How Long the Warranty Lasts 12

Repair/Replace as Your Exclusive Remedy 12

Out of Warranty Product 12

Warranty Exclusions 12

THERMADOR® Support 13

Service 13

Parts and Accessories 13

This THERMADOR Appliance is made by

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

Questions?

1-800-735-4328

www.thermador.com

We look forward to hearing from you!

Safety Definitions

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING

When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.

Proper Installation and Maintenance

Have the installer show you the location of the circuit breaker or fuse. Mark it for easy reference.

This appliance must be properly installed and grounded by a qualified technician. Connect only to properly grounded outlet. Refer to Installation Instructions for details.

This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Statement of Limited Product Warranty. If you have any questions, contact the manufacturer.

Do not store or use corrosive chemicals, vapors, flammables or nonfood products in or near this appliance. It is specifically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.

Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer.

Do not repair or replace any part of the appliance unless specifically recommended in this manual. Refer all servicing to an authorized servicer.

Fire Safety

If materials inside an oven or warming drawer should ignite, keep door closed. Turn off the appliance and disconnect the circuit at the fuse or circuit breaker panel. To reduce the risk of fire, do not store anything in the warming drawer (such as groceries, bags, etc.) which could cause fire if the drawer is turned on.

WARNING

Use this appliance only for its intended use as described in this manual. NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in overheating the appliance. Never use the appliance for storage.

Always have a working smoke detector near the kitchen. In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames.

Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance. Smother flames from food fires other than grease fires with baking soda. Never use water on cooking fires.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A GREASE FIRE, OBSERVE THE FOLLOWING:

a. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:
- You know you have a Class ABC extinguisher, and you already know how to operate it.
- The fire is small and contained in the area where it started.
- The fire department is being called.
- You can fight the fire with your back to an exit.

Burn Prevention

Exercise caution when opening the appliance. Standing to the side, open the door (or drawer) slowly and slightly to let hot air and/or steam escape. Keep your face clear of the opening and make sure there are no children or pets near the unit. After the release of hot air and/or steam, proceed with your cooking. Keep doors shut unless necessary for cooking or cleaning purposes. Do not leave open doors unattended.

Do not touch interior surface of the drawer while it is in use. The interior of the drawer could become hot enough to cause burns. Allow drawer and rack (if equipped) to cool before handling.

Do not heat or warm unopened food containers. Build-up of pressure may cause the container to burst and cause injury.

Always use dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.

Secure all loose garments, etc. before beginning. Tie long hair so that it does not hang loose, and do not wear loose fitting clothing or hanging garments, such as ties, scarves, jewelry, or dangling sleeves.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Child Safety

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer. This can damage the appliance, and the unit may tip over, potentially causing severe injury.

Do not allow children to use this appliance unless closely supervised by an adult. Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.

WARNING

Items of interest to children should not be stored in an appliance, in cabinets above an appliance or on the backsplash. Children climbing on an appliance to reach items could be seriously injured.

Cookware Safety

CAUTION

Plastic containers or plastic wrap can melt if in direct contact with the drawer or a hot utensil. If it melts onto the drawer, it may not be removable.

Food Safety

CAUTION

To maintain food safety, follow these guidelines:

Notes

• DO NOT use the warming drawer to heat cold food (exception: it is safe to use the drawer to crisp crackers, chips or dry cereal and to warm plates.)
• Be sure to maintain proper food temperature. The USDA recommends holding hot food at 140^ F or warmer.
  • DO NOT warm food for longer than one hour.

State of California Proposition 65 Warning:

WARNING

This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to

www.P65Warnings.ca.gov.

Getting to Know the Appliance

This section outlines and describes the features, indicators and controls of the appliance. You will also find information on the various functions of your appliance.

Note: Depending on the appliance model, individual details and colors may differ.

Storage Drawer Overview

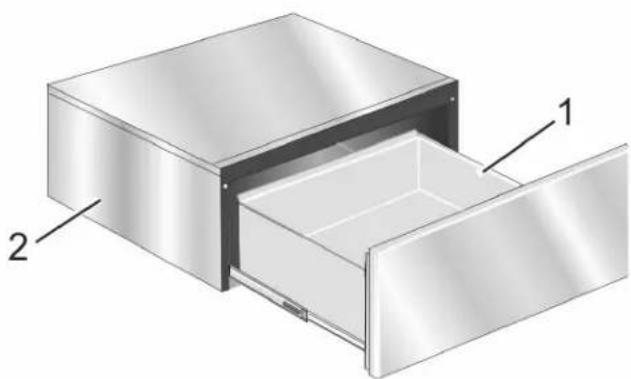

3D diagram of a stainless steel drawer with labeled components (no text or symbols present)

1 Drawer

2 Storage Drawer Housing

Push to Open Feature (PTO)

The storage drawer has a Push to Open (PTO) feature. Open the drawer fully by lightly pushing the drawer front in 4 to 5 mm. The drawer will automatically open about 4 to 5 inches and can then be pulled open.

Warming Drawer Overview

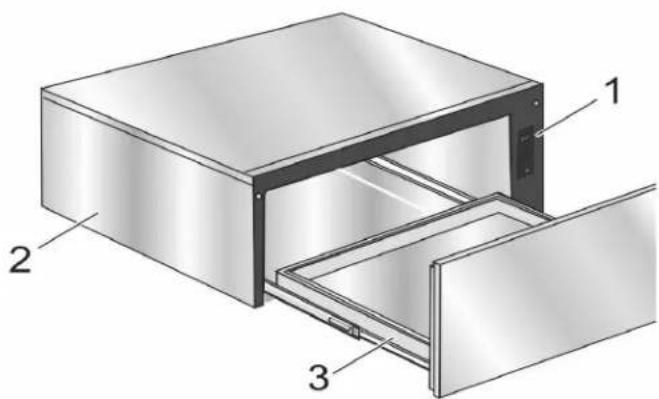

Technical diagram of a multi-compartment storage unit with labeled components 1, 2, and 3

1 Control Panel

2 Warming Drawer Housing

3 Drawer

Push to Open Feature (PTO)

The warming drawer has a Push to Open (PTO) feature. Open the drawer fully by lightly pushing the drawer front in 4 to 5 mm. The drawer will automatically open about 4 to 5 inches and can then be pulled fully open.

EZ Close Feature

The warming drawer has an EZ Close feature which engages when the drawer is slightly pushed closed.

Control Panel

The control panel has several touchpads that respond to light pressure. Touch the center of the touchpad to activate it. The temperature pads control the drawer bottom temperature.

The control panel emits a beep when an entry is made. The warming timer beeps when the specified amount of time has elapsed.

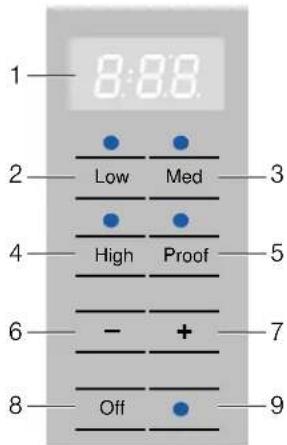

1—8:88. 2—Low Med 3 4—High Proof 5 6—- + 7 8—Off 9

Location Touch Button Function

1 Display Displays the current drawertemperature.
2 LOW 140°F
3 MED 165°F
4 HIGH 190°F
5 PROOF 100°F
6 - Press to decrease time.
7 + Press to increase time.
8 ON|OFF Switches the warmingdrawer on and off.
9●Signal light	Indicates which setting is inuse.

Operation

The warming drawer will keep hot, cooked foods at serving temperature. Always start with hot food. DO NOT use to heat cold food other than proofing yeast dough, crisping crackers, chips, dry cereal, warming breads and biscuits, or warming dishes or plates.

The Warming Drawer has a push-to-open feature. Push in on the front of the drawer to cause the drawer to open.

Food Safety

CAUTION

To maintain food safety, follow these guidelines:

Notes

• DO NOT use the warming drawer to heat cold food (exception: it is safe to use the drawer to crisp crackers, chips or dry cereal and to warm plates.)
• Be sure to maintain proper food temperature. The USDA recommends holding hot food at 140^ F or warmer.
• DO NOT warm food for longer than one hour.

Setting the Warming Drawer

Press ON | OFF to turn the warming drawer on. The warming timer can be set for any increment of 5 minutes. The minimum time is 5 minutes and the maximum time is 5 hours.

Note: The warming timer default is 1 hour.

Changing the Warming Timer

Use the + and - pads to change the warming timer.

Time elapsed

When the time is elapsed, the control panel beeps and the drawer automatically turns off.

Turning the Warming Drawer Off

Press ON | OFF to turn the warming drawer off.

Sabbath Mode

The Sabbath feature enables those of particular faiths to use their warming drawer on the Sabbath.

• The warming drawer is set to run for 74 hours before automatically turning off.
• While operating in Sabbath Mode, the display will show SAb.
• The warming drawer time and temperature cannot be changed once the Sabbath Mode is set.
• Press ON/OFF at any time during Sabbath Mode to end the mode and turn off the appliance.

Setting the Sabbath Mode Feature

Press MED for 5 seconds.

Once the Sabbath Mode is set, all buttons are disabled except the ON|OFF button, used to cancel the mode.

Note: Only the MED temperature can be used while in the Sabbath Mode.

Preheating the Warming Drawer

Preheat the warming drawer when warming food. For best results, preheat for the following times:

Setting Preheat Time

LOW 10 minutes

MED 15 minutes

HIGH 20 minutes

PROOF No preheating necessary

Warming Food

1. Press ON I OFF to turn on the warming drawer.
2. Press the button for the desired temperature.
3. Preheat warming drawer.
4. Set the timer if desired.
5. Place cooked, hot food in the drawer and push to close.

It is okay to leave food in the cookware it was prepared. Alternatively, you can transfer food to a heat-safe serving dish before placing it in the warming drawer.

Aluminum foil or lid may be used to cover food.

Warming Empty Serving Bowls and Plates

• Use only heat-safe dishes.
• Warm on low setting for cooking containers.
• Check dish temperature during warming period.

• Place empty plates or dishes in a cold warming drawer. Do not preheat drawer prior to placing dishes.

• Press Low.

• Set the warming timer.

Proofing Dough

Place dough in desired dish in a cold warming drawer and lightly oil top of dough. Loosely cover with cloth.

1. Press PROOF.
2. Set the warming timer.
3. Check dough height. Add time as needed.

Crisping Stale Items

Place food in low sided dishes or pans.

1. Press LOW.
2. Preheat for 5 minutes, then place dish in drawer.
3. Set the warming timer.
4. Check crispness after 45 minutes. Add time as needed.

Warming Drawer Charts

Food Category Control Setting		Cover
Bacon High No
Beef: medium rare Low No
Beef: medium-well done Medium No
Bread, quick: hard rolls, soft rolls, coffee cakes, biscuits, and toast	Medium Yes
Casserole Medium Yes
Cereal, cooked Medium Yes
Crisping: stale item Low No
Dough (to proof) Proof Yes
Eggs High Yes
Fried Foods High No
Gravy, cream sauce Medium Yes
Meats: ham, lamb and pork Medium Yes
Pies Medium No
Pizza High No
Potatoes, baked	High Yes
Potatoes, mashed	Medium Yes
Poultry, roasted	Medium Yes
Seafood	Medium Yes
Vegetables	Medium Yes
Waffle / Pancakes	High No
Plates	Low No
Plate of food	Medium Yes
Note: : Preheat all cookware prior to inserting into the warming drawer. If the cookware has previously been used to prepare a dish, then no preheating is necessary.

Cleaning and Maintenance

With good care and cleaning, your appliance will retain its appearance and remain fully functional for a long time to come. How to correctly care for and clean your warming drawer or storage drawer is detailed below.

Cleaning Chart

Part Recommendations
Drawer Interior (polished stainless steel)	Use dish detergent. Wash, rinse well and dry. For hard water spots or scale, use white vinegar. Apply with a sponge or cloth, rinse and dry.
Painted Surfaces	Use hot soapy water or mild cleaners such as Fantastik® or Formula 409®. Wash, rinse well and dry.Do not use abrasive cleaning agents, steel wool pads and oven cleaners.
Drawer Exterior Frame (brushed stainless steel)	Always wipe or rub in the direction of the grain. Clean with a soapy sponge, then rinse and dry, or wipe with Fantastik® or Formula 409® sprayed on a paper towel. Protect and polish with Stainless Steel Magic® and a soft cloth. Remove water spots with a cloth dampened with white vinegar. Use Bar Keeper's Friend® to remove heat discoloration.
Control Panel (warming drawer only)	Clean with hot soapy water or apply Fantastik® or Formula 409® to a clean sponge or paper towel and wipe clean.Do not use abrasive cleaners and scrubbing pads.

Removing the Drawer

CAUTION

To prevent burns, do not remove the drawer while hot. Be sure the drawer is empty before removing.

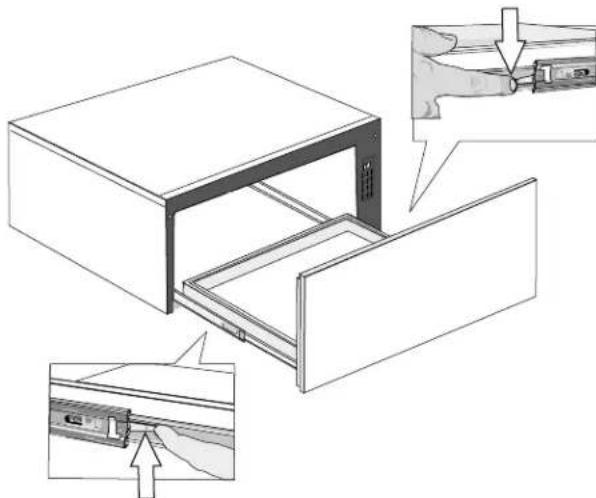

Technical diagram showing a door opening with labeled parts and a hand inserting a clip into a device.

1. For WD30W warming drawer, pull drawer to fully open position.
2. For WD30WC warming drawer and SD30WC and SDS30WC storage drawers, slightly push drawer to the fully open position.
3. Press down on right drawer clip.
4. Lift up on left drawer clip.
5. Firmly pull the drawer straight out. Retract the cabinet rails while the drawer is removed.

If additional issues remain at this point, contact Customer Service.

Replacing the Drawer

1. Be sure cabinet rails are pushed inside the cabinet.
2. Align the drawer rails with the cabinet rails.
3. Firmly push the drawer straight into the cabinet until the drawer clicks in to place.
4. Open and close the drawer to test operation.

Note: If the drawer will not close, verify the rail clips are properly positioned.

Service

If the warming drawer elements or signal lights do not turn on, check the power source to see if the circuit breaker is tripped.

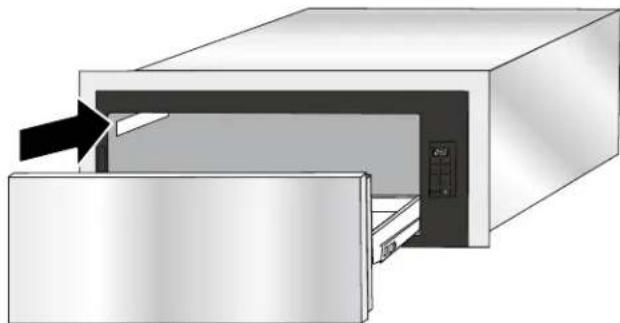

Rating Label-WD30W AND WD30WC

Refer to the rating label on the appliance when requesting service or when contacting Customer Service for assistance. The rating label is visible on the left of the drawer casing.

Diagram of a microwave oven with an open lid and internal door, showing airflow direction (no text or symbols)

Data Plate-SDS30WC and SD30WC

Refer to the data plate on the storage drawer when requesting service or when contacting Customer Service for assistance. The data plate is visible on the bottom of the drawer casing for the SDS30WC storage drawer. It will be necessary to remove the drawer to view it.

Diagram showing two views of a device with an arrow indicating a process or movement (no text or symbols present)

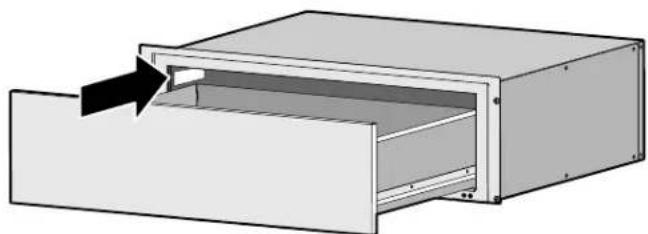

SDS30WC Data Plate Location

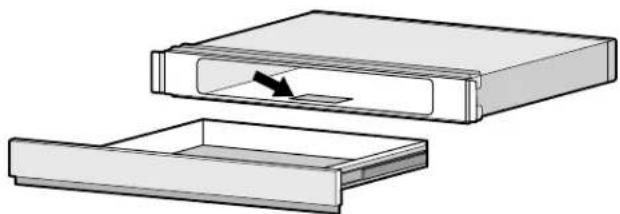

The data plate for the SD30WC storage drawer is located on the left inside of the housing.

Diagram of a rectangular device with an arrow pointing to its side panel (no text or symbols present)

SD30WC Data Plate Location

Model Number and FD Number

The model number and the FD number of your appliance are found on the data plate or rating label. Make a note of these numbers in the space below to save time in the event your appliance requires service.

Model # FD #

Thermador Customer Support 800-735-4328

Keep your invoice or escrow papers for warranty validation if service is needed.

STATEMENT OF LIMITED PRODUCT WARRANTY

What this Warranty Covers & Who it Applies to

The limited warranty provided by BSH Home Appliances Corporation ("BSH") in this Statement of Limited Product Warranty applies only to the THERMADOR® appliance ("Product") sold to you, the first using purchaser, provided that the Product was purchased:

• For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes.
• New at retail (not a display, "as is", or previously returned model), and not for resale, or commercial use.
• Within the United States or Canada, and has at all times remained within the country of original purchase.

The warranties stated herein apply to the original purchaser of the Product warranted herein and to each succeeding owner of the product purchased for ordinary home use during the term of the warranty.

BSH reserves the right to request proof of purchase at the time any warranty claim is submitted to confirm that the Product falls within the scope of this limited product warranty.

Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for BSH to notify you in the unlikely event of a safety notice or product recall.

How Long the Warranty Lasts

BSH warrants that the Product is free from defects in materials and workmanship for a period of seven hundred and thirty (730) days from the date of purchase. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever.

This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product), for a period of sixty (60) days from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, "As Is", or "B" stock appliances.

Repair/Replace as Your Exclusive Remedy

During this warranty period, BSH or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then BSH will replace your Product (upgraded models may be available to you, in BSH's sole discretion, for an additional charge). All removed parts and components

shall become the property of BSH at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. BSH's sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a BSH-authorized service provider during normal business hours. For safety and property damage concerns, BSH highly recommends that you do not attempt to repair the Product yourself, or use an un-authorized servicer; BSH will have no responsibility or liability for repairs or work performed by a non-authorized servicer. If you choose to have someone other than an authorized service provider work on your Product, THIS WARRANTY WILL AUTOMATICALLY BECOME NULL AND VOID. Authorized service providers are those persons or companies that have been specially trained on BSH products, and who possess, in BSH's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of BSH). Notwithstanding the foregoing, BSH will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, BSH would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call.

Out of Warranty Product

BSH is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or Product replacement, once this warranty has expired.

Warranty Exclusions

The warranty coverage described herein excludes all defects or damage that are not the direct fault of BSH, including without limitation, one or more of the following:

• Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).
• Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self-performed "fixing" or exploration of the appliance's internal workings).
• Adjustment, alteration or modification of any kind.
• A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install

the product in strict conformity with local fire and building codes and regulations.

• Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.
• Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.

In no event shall BSH have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses.

TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH

RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/ OR RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BSH, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

THERMADOR® Support

Service

We realize that you have made a considerable investment in your kitchen. We are dedicated to supporting you and your appliance so that you have many years of creative cooking.

Please do not hesitate to contact our STAR® Customer Support Department if you have any questions or in the unlikely event that your THERMADOR® appliance needs service. Our service team is ready to assist you.

USA

800-735-4328

www.thermador.com/support

Canada

800-735-4328

www.thermador.ca

Parts and Accessories

Parts, filters, descalers, stainless steel cleaners and more can be purchased in the THERMADOR® eShop or by phone.

USA

http://store.thermador.com/us

Canada

- If you live in any of the Atlantic provinces, Ontario, or Québec contact:

Marcone

1.800.287.1627

- If you live in any of the Territories, Manitoba, Saskatchewan, Alberta, or British Columbia contact:

Reliable Parts

1.800.663.6060

Table de MATIÈRES

Illustration of a stainless steel drawer with labeled components (no text or symbols present)

1 Tiroir

Technical diagram of a multi-compartment storage unit with labeled components 1, 2, and 3

Technical diagram showing a door opening with labeled components and a close-up of the interior panel being inserted into a wall.

Diagram of a microwave oven with a door and internal compartments, showing airflow direction (no text or symbols)

Diagram showing two views of a device with an arrow indicating direction, no text or symbols present

Diagram of a file drawer with an arrow pointing to the drawer (no text or symbols present)
