USER MANUAL CF030250 CONSTRUCTA

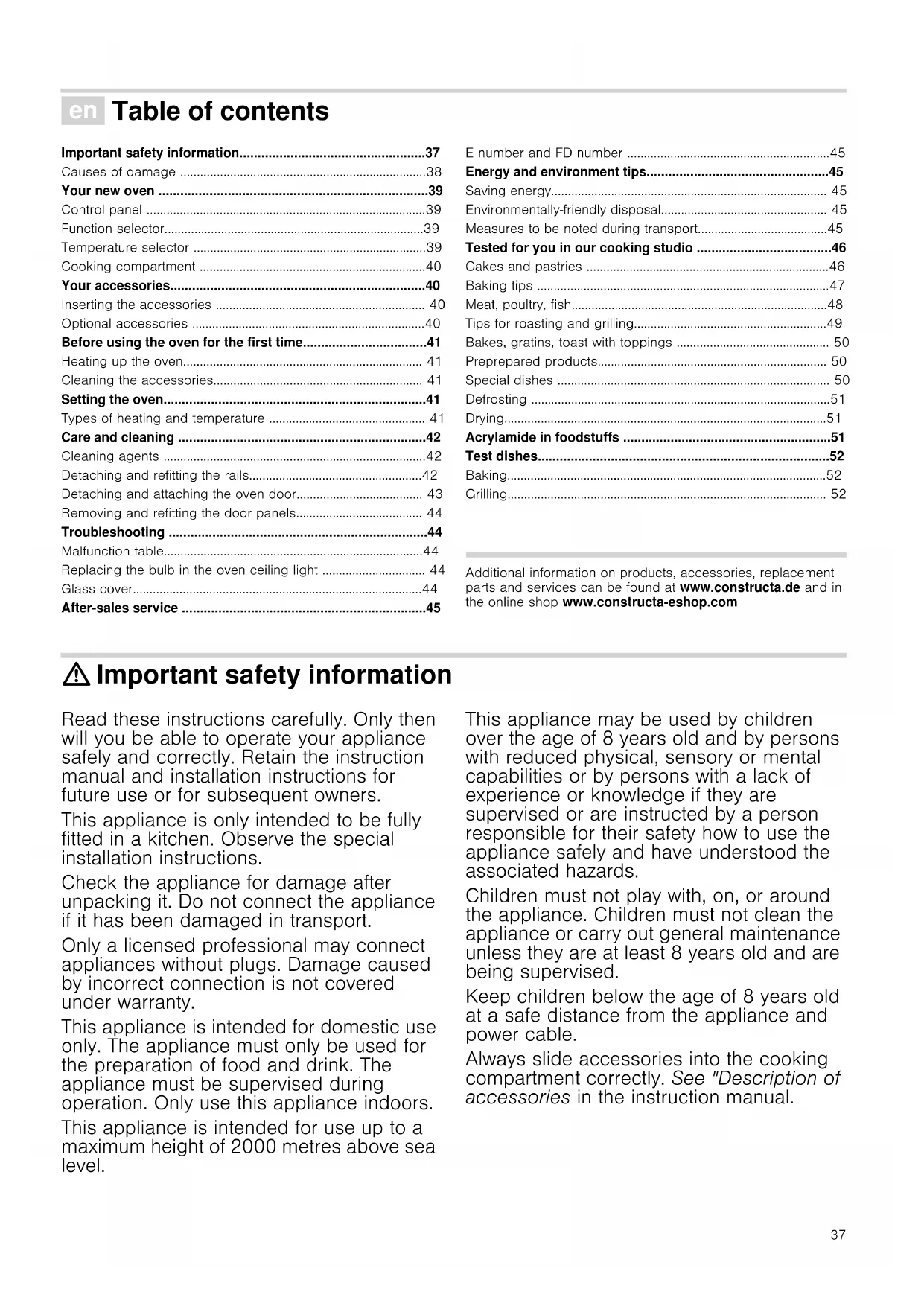

• Retournez après Z du temps de cuisson37 Ú Table of contents [en]Instruction manual Important safety information...................................................37 Causes of damage ..........................................................................38 Your new oven ..........................................................................39 Control panel ....................................................................................39 Function selector..............................................................................39 Temperature selector ......................................................................39 Cooking compartment ....................................................................40 Your accessories......................................................................40 Inserting the accessories ............................................................... 40 Optional accessories ......................................................................40 Before using the oven for the first time..................................41 Heating up the oven........................................................................ 41 Cleaning the accessories............................................................... 41 Setting the oven........................................................................41 Types of heating and temperature ............................................... 41 Care and cleaning ....................................................................42 Cleaning agents ...............................................................................42 Detaching and refitting the rails....................................................42 Detaching and attaching the oven door...................................... 43 Removing and refitting the door panels...................................... 44 Troubleshooting .......................................................................44 Malfunction table..............................................................................44 Replacing the bulb in the oven ceiling light ............................... 44 Glass cover.......................................................................................44 After-sales service ...................................................................45 E number and FD number .............................................................45 Energy and environment tips..................................................45 Saving energy................................................................................... 45 Environmentally-friendly disposal.................................................. 45 Measures to be noted during transport.......................................45 Tested for you in our cooking studio .....................................46 Cakes and pastries .........................................................................46 Baking tips ........................................................................................47 Meat, poultry, fish.............................................................................48 Tips for roasting and grilling..........................................................49 Bakes, gratins, toast with toppings .............................................. 50 Preprepared products..................................................................... 50 Special dishes .................................................................................. 50 Defrosting ..........................................................................................51 Drying.................................................................................................51 Acrylamide in foodstuffs .........................................................51 Test dishes................................................................................52 Baking................................................................................................52 Grilling................................................................................................ 52 Produktinfo Additional information on products, accessories, replacement parts and services can be found at www.constructa.de and in the online shop www.constructa-eshop.com : Important safety information Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners. This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty. This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors. This appliance is intended for use up to a maximum height of 2000 metres above sea level. This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable. Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.38 Risk of fire!

Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box. Risk of fire!

A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof paper with a dish or a baking tin. Only cover the surface required with greaseproof paper. Greaseproof paper must not protrude over the accessories. Risk of burns!

The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance. Risk of serious burns!

Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment. Risk of burns!

Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care. Risk of scalding!

The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance. Risk of scalding!

When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance. Risk of scalding!

Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment. Risk of injury! Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents. Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service. Risk of electric shock and serious injury!

The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance. Risk of electric shock!

Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. Risk of electric shock!

When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Risk of electric shock!

A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. Causes of damage Caution! ■ Accessories, foil, greaseproof paper or ovenware on the cooking compartment floor: do not place accessories on the cooking compartment floor. Do not cover the cooking compartment floor with any sort of foil or greaseproof paper. Do not place ovenware on the cooking compartment floor if a temperature of over 50 ºC has been set. This will cause heat to accumulate. The baking and roasting times will no longer be correct and the enamel will be damaged. ■ Water in a hot cooking compartment: do not pour water into the cooking compartment when it is hot. This will cause steam. The temperature change can cause damage to the enamel. ■ Moist food: do not store moist food in the cooking compartment when it is closed for prolonged periods This will damage the enamel. ■ Fruit juice: when baking particularly juicy fruit pies, do not pack the baking tray too generously. Fruit juice dripping from the baking tray leaves stains that cannot be removed. If possible, use the deeper universal pan. ■ Cooling with the appliance door open: only allow the cooking compartment to cool when it is closed. Even if the appliance door is only open a little, front panels of adjacent units could be damaged over time. ■ Very dirty door seal: If the door seal is very dirty, the appliance door will no longer close properly when the appliance is in use. The fronts of adjacent units could be damaged.Always keep the door seal clean.39 ■ Appliance door as a seat, shelf or worktop: Do not sit on the appliance door, or place or hang anything on it. Do not place any cookware or accessories on the appliance door. ■ Inserting accessories: depending on the appliance model, accessories can scratch the door panel when closing the appliance door. Always insert the accessories into the cooking compartment as far as they will go. ■ Carrying the appliance: do not carry or hold the appliance by the door handle. The door handle cannot support the weight of the appliance and could break. Your new oven Here you will learn about your new oven. The control panel and the individual operating controls are explained. You will find information on the cooking compartment and the accessories. Control panel Here you can see an overview of the control panel. The design depends on the respective appliance model. Function selector With the function selector knob you can set the heating mode for the oven. The function selector knob can be rotated to the right or to the left. When the required type of heating is set, the oven light lights up. Temperature selector Use the temperature selector to set the temperature and the grill setting. The small light above the temperature selector is lit when the oven is heating. It goes out during pauses in the heating. For some settings, it does not light up. Grill settings With ( Radiant grilling, use the temperature selector to set a grill setting.

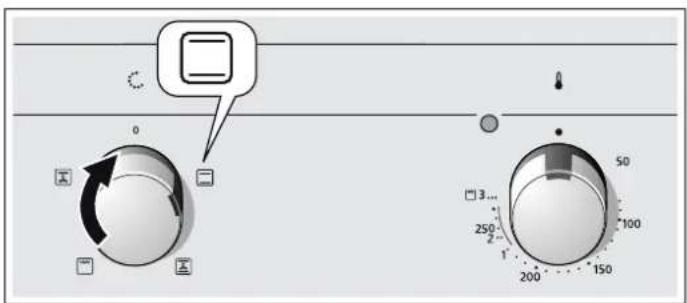

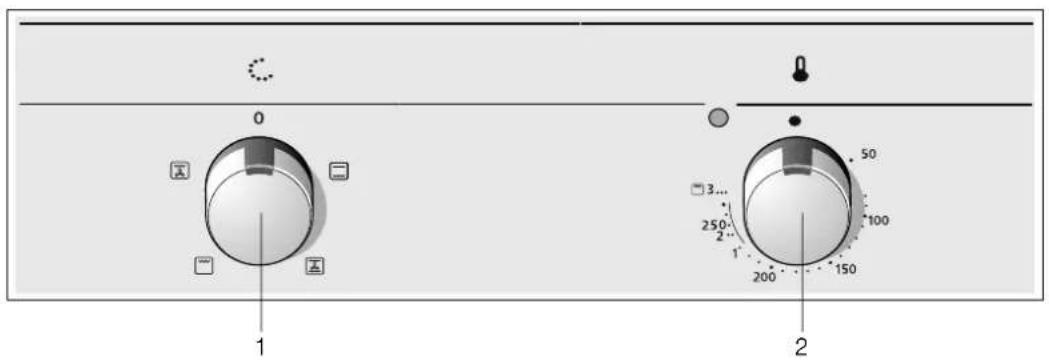

Explanations 1 Function selector 2 Temperature selector Settings Function ý Off The oven is switched off. % Top/bottom heat- ing Baking, roasting or grilling is possi- ble on a single level only. This set- ting is well-suited for cakes and pizza in tins or on the baking tray, and for lean joints of beef, veal and game. Heat is emitted evenly from the top and bottom. 2 Hot air* Meringues and puff pastries can be baked on a single level. Small baked items, cookies and puff pastries can be baked at the same time on two levels. The fan on the rear side of the appliance takes the air that comes from above and below and distrib- utes it evenly around the food.

• Type of heating in accordance with energy efficiency class EN50304. ( Radiant grilling, large area Can be used to grill a large number of beef steaks, sausages and fish, or to toast bread. The whole area below the grill heating element becomes hot. 4 Hot air grilling Hot air grilling is particularly suita- ble for grilling fish, poultry and larger pieces of meat. The grill ele- ment and fan switch on and off alternately. The fan distributes the heated air around the food. Positions Function û Off Oven not hot. 50-270 Temperature range Temperature in °C 1, 2, 3 Grill settings The grill settings for "Grill, large( area". Setting 1 = low Setting 2 = medium Setting 3 = high Settings Function

• Type of heating in accordance with energy efficiency class EN50304.40 Cooking compartment The oven light is located in the cooking compartment. A cooling fan protects the oven from overheating. Oven light During oven operation, the oven light is on. By turning the function selector to any position, the oven light can also be switched on without the oven heating up. Cooling fan The cooling fan switches on and off as required. The hot air escapes above the door. So that the cooking compartment cools down more quickly after operation, the cooling fan continues to run for a certain period afterwards. Caution! do not cover the ventilation slots. Otherwise the oven will overheat. Your accessories The accessories supplied with your appliance are suitable for making many meals. Ensure that you always insert the accessories into the cooking compartment the right way round. There is also a selection of optional accessories, with which you can improve on some of your favourite dishes, or simply to make working with your oven more convenient. Inserting the accessories The accessories can be inserted in the oven at 4 different levels. Always insert the accessories as far as they can go to ensure that they do not touch the door glass. When the accessories are pulled approximately halfway out, they lock into position. This allows meals to be taken out easily. When placing the accessories in the oven, check that the indentation is at the back. They can only lock correctly in place in this position. Note: Heat may cause the accessories to deform. As soon as the accessories cool down, they regain their original shape. Their function is not impaired. Hold the baking tray securely on the sides with both hands and push it parallel into the frame. Avoid movements to the right or left when pushing the baking tray in. Otherwise, it will be difficult to push the tray in and the enamelled surfaces could be damaged. You can order optional accessories from the after-sales service, from specialist retailers or online. Please always specify the CZ number. Optional accessories You can buy optional accessories from your after-sales service or from specialist retailers. You will find a variety of suitable products for your oven in our brochures and on the Internet. The availability of optional accessories and the options for ordering them on the internet vary depending on the country. Information regarding this can be found in the sales documents. Not every optional accessory is suitable for every appliance. When purchasing, always quote the complete identification number (E no.) of your appliance. Wire rack For ovenware, cake tins, joints, grilled items and frozen meals. Insert the wire rack with the open side facing the oven door and the curvature pointing downwards ¾. Universal pan For moist cakes, pastries, frozen meals and large roasts. It can also be used to catch dripping fat when you are grilling directly on the wire rack. Slide in the universal pan with the sloping edge facing the oven door. Optional accessories CZ number Function Aluminium baking tray CZ 10100 For cakes and biscuits. Place the baking tray in the oven with the sloping edge towards the oven door. Enamel baking tray CZ 10200 For cakes and biscuits. Place the baking tray in the oven with the sloping edge towards the oven door. Universal pan CZ 10300 For moist cakes, pastries, frozen meals and large roasts. Can also be used under the wire rack to catch fat or meat juices. Place the universal pan in the oven with the sloping edge towards the oven door.41 Oven door - Additional safety precautions During long cooking times, the oven door may become very hot. If you have small children, extra supervision is required during oven operation. In addition, there is a safety device which prevents direct contact with the oven door. This optional accessory (440651) is available from the after-sales service. Before using the oven for the first time In this section, you can find out what you must do before using your oven to prepare food for the first time. First read the section on Safety information. Heating up the oven To remove the new cooker smell, heat up the oven when it is empty and closed. An hour of Top/bottom heating % at 240 °C is ideal for this purpose. Ensure that no packaging remnants have been left in the cooking compartment. Keep the kitchen ventilated the whole time the oven is on.

1. Use the function selector to set Top/bottom heating %.

2. Set the temperature selector to 240 °C.

After an hour, switch off the oven. To do so, turn the function selector to the off position. Cleaning the accessories Before you use the accessories for the first time, clean them thoroughly with hot soapy water and a soft dish cloth. Setting the oven You have several options for setting the oven. In this section, we will explain how you can select the required type of heating and temperature or grill setting. Types of heating and temperature Example in the picture: Top/bottom heating, 190 ºC.

1. Use the function selector to select the required type of

2. Use the temperature selector to set the temperature or the

grill setting. The oven heats up. Switch off the oven Turn the function selector to the off position. Changing the settings You can change the type of heating, temperature and grill setting as required. Pizza tray CZ 1352X0 Particularly good for pizza, frozen meals and round tarts. You can use the pizza tray instead of the universal pan. Slide the tray in above the wire rack and proceed according to the instructions in the tables. 2-level telescopic pull-out rail set CZ 1002X0 With the pull-out rails on level 1 and 3, the accessories can be fully pulled out without tilting. 3-level telescopic pull-out rail set CZ 1003X0 With the pull-out rails on level 1, 2 and 3, the accessories can be fully pulled out without tilting. Optional accessories CZ number Function42 Care and cleaning With good care and cleaning, your oven will remain clean and fully-functioning for a long time to come. Here we will explain how to maintain and clean your oven correctly. Notes ■ Slight differences in the colours on the front of the oven are caused by the use of different materials, such as glass, plastic and metal. ■ Shadows on the door panel which look like streaks, are caused by reflections made by the oven light. ■ Enamel is baked on at very high temperatures. This can cause some slight colour variations. This is normal and does not affect their function. The edges of thin trays cannot be completely enamelled. As a result, these edges can be rough. This will not impair the anti-corrosion protection. Cleaning agents Damage to the various different surfaces caused by using the wrong cleaning agent can be avoided by observing the following instructions. When cleaning the oven do not use ■ sharp or abrasive cleaning agents,■ cleaning agent with a high alcohol content,■ scouring pads,■ high-pressure cleaners or steam jets.■ Do not clean individual parts in the dishwasher. Wash new sponges thoroughly before first use. Detaching and refitting the rails The rails can be removed for cleaning. The oven must have cooled down. Unhooking the rails

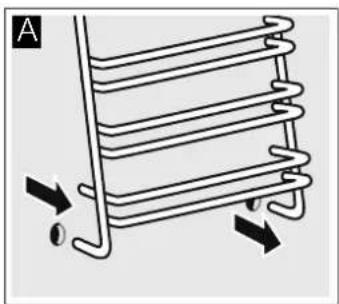

1. Hold the shelf frames from underneath and pull slightly

forward. Pull the extension pins at the bottom of the rails out of the mounting holes (Fig. A).

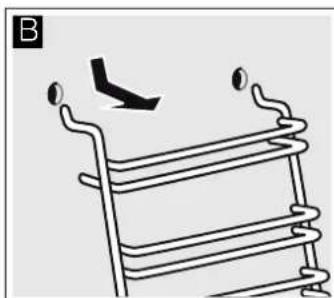

2. Then fold the rails upwards and carefully remove them

(Fig. B). Clean the rails with washing-up liquid and a sponge. For stubborn deposits of dirt, use a brush. Installing the frames

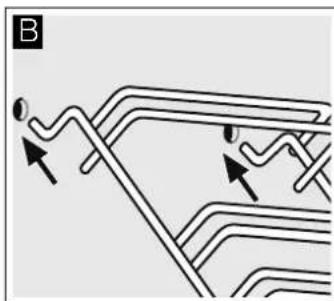

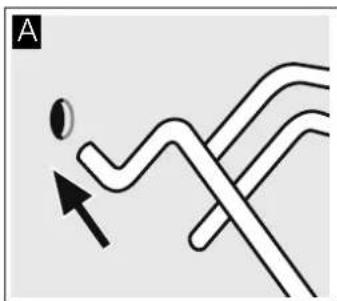

1. Insert the two hooks carefully into the upper holes. (Figure A-

The control panel Hot soapy water: Clean with a dish cloth and dry with a soft cloth. Do not use glass cleaners or glass scrapers for cleaning. Stainless-steel surfaces Clean with warm soapy water and a soft cloth. On stainless-steel surfaces, always wipe par- allel to the natural grain. Otherwise, you may scratch the surface. Dry with a soft cloth. Remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Do not use any abrasive materials, scouring sponges or rough cleaning cloths. The stain- less-steel fronts can be polished using a spe- cial care product. Follow the manufacturer's instructions. You can purchase special stain- less-steel cleaner from our after-sales service or from specialist retailers. Enamel sur- faces and lac- quered surfaces Wipe with a damp cloth and some washing-up liquid. Dry with a soft cloth. Rotary knobs Wipe with a damp cloth and some washing-up liquid. Dry with a soft cloth. Glass panel Clean using glass cleaner. Do not use any abrasive cleaning agents or sharp metal objects. These could scratch and damage the surface of the glass panel. Seal Wipe with a damp cloth. Dry with a soft cloth. Oven interior Warm soapy water or a vinegar solution. If there are heavy deposits of dirt, only use oven cleaner on cold surfaces. Glass cover for the oven light Wipe with a damp cloth and some washing-up liquid. Dry with a soft cloth. Accessories Soak in warm soapy water. Clean with a brush or sponge. Aluminium baking tray (optional) Do not clean in the dishwasher. Never use oven cleaner. To avoid scratches, never touch the metal surfaces with a knife or a similar sharp object. Clean horizontally with some washing-up liquid and a damp glass cleaning cloth or a microfibre cloth – do not press too hard. Dry with a soft cloth. Do not use any abrasive materials, scouring sponges or rough cleaning cloths. Otherwise, you may scratch the surface Childproof lock (optional) If a childproof lock has been fitted on the oven door, it must be removed before clean- ing. Soak all plastic parts in warm soapy water and wash with a sponge. Dry with a soft cloth. If very dirty, the childproof lock will not work properly. Hob Refer to the hob instruction manual for infor- mation about care and cleaning.

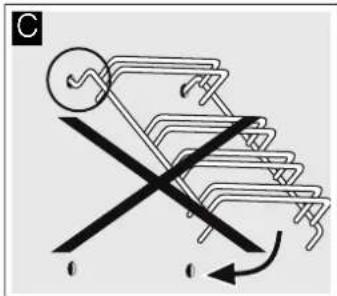

%$43 : Incorrect assembly! Never move the frame before the two hooks are fully anchored in the upper holes. The enamel could be damaged and may break (figure C).

2. the two hooks must be inserted fully into the upper holes.

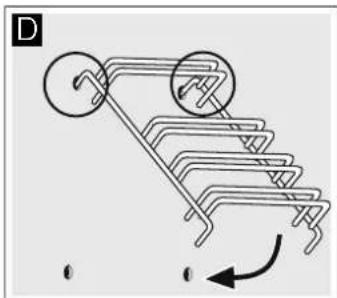

Now move the frame slowly and carefully downwards and insert in the lower holes (figure D).

3. Insert both frames into the side walls of the oven (figure E).

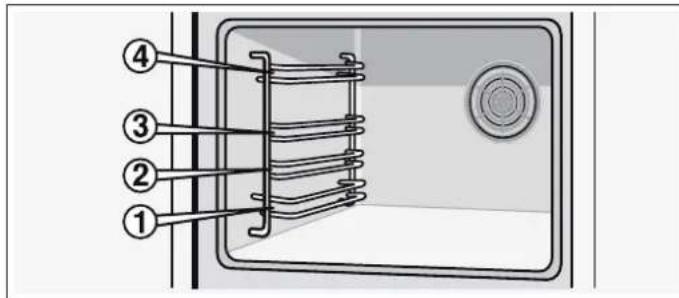

If the rails are fitted correctly, the distance between the two upper shelf positions is greater. Detaching and attaching the oven door For cleaning purposes and to remove the door panels, you can detach the oven door. The oven door hinges each have a locking lever. When the locking levers are closed (figure A), the oven door is secured in place. It cannot be detached. When the locking levers are open in order to detach the oven door (Fig. B), the hinges are locked. They cannot snap shut. : Risk of injury! Whenever the hinges are not locked, they snap shut with great force. Ensure that the locking levers are always fully closed or, when detaching the oven door, fully open. Detaching the door

1. Open the oven door fully.

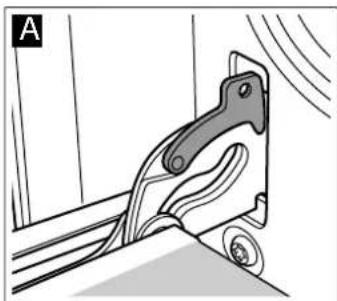

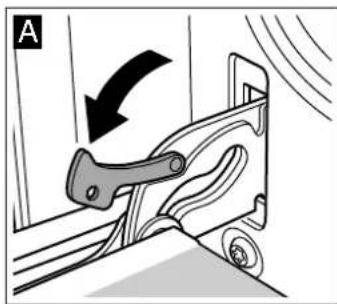

2. Fold up the two locking levers on the left and right (figure A).

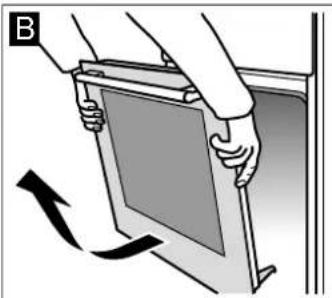

3. Close the oven door as far as the limit stop. With both hands,

grip the door on the left and right-hand sides. Close the door a little further and pull it out (figure B). Attaching the door Reattach the oven door in the reverse sequence to removal.

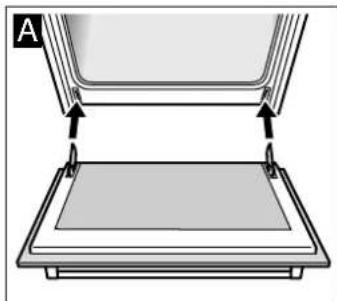

1. When attaching the oven door, ensure that both hinges are

inserted straight into the opening (figure A).

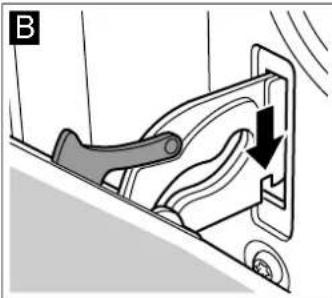

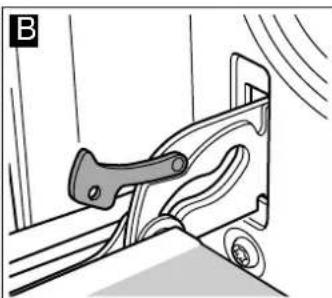

2. The notch on the hinge must engage on both sides (figure B).

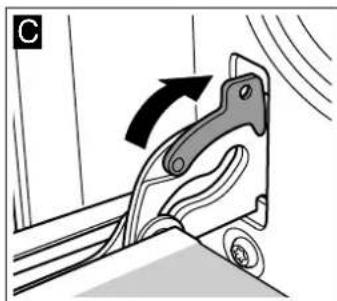

3. Fold back both locking levers (figure C). Close the oven

door. : Risk of injury! If the oven door falls out accidentally or a hinge snaps shut, do not reach into the hinge. Call the aftersales service.

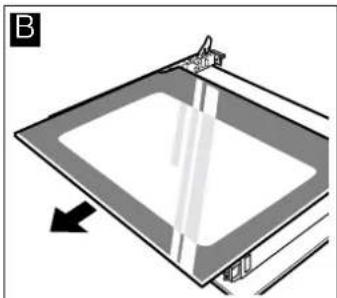

&44 Removing and refitting the door panels The glass panels can be removed from the oven door to allow more thorough cleaning.Removal

1. Removing the oven door See the section Removing the oven

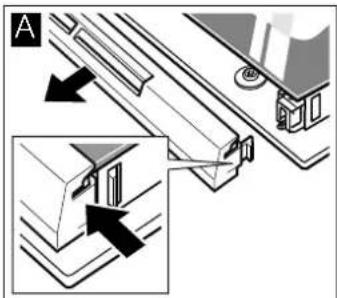

door. Lay the oven door on a cloth with the handle facing downwards.2. Remove the cover from the top of the oven door. To do this, press with your fingers on the left and right-hand side. Pull out the cover (Fig. A).3. Raise the top panel and pull it out (Fig. B).Clean the panels with glass cleaner and a soft cloth. : Risk of injury! Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.Fitting1. Hold the top glass panel firmly by the sides and slide it in towards the back at an angle. The panel must be inserted into the openings on the lower side. The smooth surface must face outwards, while the roughened side must be on the inside. (Fig. A).2. Place the cover on the top of the oven door and press in place. Make sure that the grooves along the sides lock into position.3. Refitting the oven door See the section Refitting the oven door.Do not use the oven again until the panels have been correctly fitted. Troubleshooting Malfunctions often have simple explanations. Refer to the table before calling the after-sales service as you may be able to remedy the fault yourself. Malfunction table If your meal is not successful, please refer to section . We have tested the recipe for you in our cooking studio. Here, you will find useful cooking tips and tricks for cooking, baking and roasting. : Risk of electric shock! Repairs that are not carried out properly are dangerous. Repairs must only be performed by one of our after-sales service technicians.Caution!If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Replacing the bulb in the oven ceiling light If the bulb in the oven light fails, it must be replaced. Heat-resistant, 40 watt spare bulbs can be obtained from our after-sales service or a specialist retailer. Only use these bulbs. : Risk of electric shock! Switch off the circuit breaker in the fuse box.1. Place a tea towel in the oven when it is cold to prevent damage.2. Unscrew the glass cover by turning it anti-clockwise. 3. Replace the bulb with one of the same type.4. Screw the glass cover back in.5. Remove the tea towel and switch on the circuit breaker. Glass cover You must replace a damaged glass cover. Suitable glass covers may be obtained from the after-sales service. Please specify the E number and FD number of your appliance.

Malfunction Possible cause Remedy/informationThe oven does not work.The circuit breaker is defective.Look in the fuse box to see if the circuit breaker is defective.Power cut. Check whether the kitchen light and other kitchen appliances are working.Oven not hot. Dust on the contacts.Turn the control knobs sev-eral times to the left and right.45 After-sales service Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician. E number and FD number When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate containing these numbers is found on the side of the oven door. To save time, you can make a note of the number of your appliance and the telephone number of the after-sales service in the space below, should it be required. Please note that there will be a fee for a visit by a service technician in the event of a malfunction, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances. Energy and environment tips Here you can find tips on how to save energy when baking and roasting and how to dispose of your appliance properly. Saving energy ■ Only preheat the oven if this is specified in the recipe or in the operating instruction tables. ■ Use dark, black lacquered or enamelled baking tins. They absorb the heat particularly well. ■ Open the oven door as infrequently as possible while you are cooking, baking or roasting. ■ It is best to bake several cakes one after the other. The oven is still warm. This reduces the baking time for the second cake. You can also place two loaf tins next to each other. ■ For longer cooking times, you can switch the oven off 10 minutes before the end of the cooking time and use the residual heat to finish cooking. Environmentally-friendly disposal Dispose of packaging in an environmentally-friendly manner. Measures to be noted during transport Secure all mobile parts in and on the appliance using an adhesive tape that can be removed without leaving any traces. Push all accessories (e.g. baking tray) into the corresponding slots with cardboard at the edges, in order to avoid damaging the appliance. Place cardboard or similar between the front and rear side to prevent knocks against the inside of the door glass. Secure the oven door to the side walls of the appliance using adhesive tape. Keep the original appliance packaging. Only transport the appliance in the original packaging. Observe the transport arrows on the packaging. If the original packaging is no longer available pack the appliance in protective packaging to guarantee sufficient protection against any transport damage. Transport the appliance in an upright position. Do not hold the appliance by the door handle or the connections on the rear, as these could be damaged. Do not place any heavy objects on the appliance. E no. FD no. After-sales service O This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.46 Tested for you in our cooking studio Here you will find a selection of dishes and the ideal settings for them. We will show you which type of heating and which temperature are best suited for your dish. You can find information about suitable accessories and the height at which they should be inserted. There are also tips about cookware and preparation methods. Notes ■ The values in the table always apply to dishes placed into the cooking compartment when it is cold and empty. Only preheat the appliance if the table specifies that you should do so. Do not line the accessories with greaseproof paper until after they have been preheated. ■ The times specified in the tables are guidelines only. They will depend on the quality and composition of the food. ■ Use the accessories supplied. Additional accessories may be obtained as special accessories from specialist retailers or from the after-sales service. Before using the oven, remove any unnecessary accessories and ovenware from the cooking compartment. ■ Always use oven gloves when taking hot accessories or ovenware out of the cooking compartment. Cakes and pastries Baking on one level When baking cakes and tarts, the best results can be achieved using % Top/bottom heating. When baking with 2 2D Hot air, use the following shelf positions for the accessories: ■ Cake in a cake tin: Shelf position 2 ■ Cake on a baking tray: Shelf position 3 Baking and roasting on two or more levels Use 2 Hot air. Shelf positions for baking and roasting on 2 levels: ■ Universal pan: Shelf position 3 ■ Baking tray: Shelf position 1 Dishes that are put in the oven at the same time do not have to be ready at the same time. The tables contain a selection of dishes. Note: Do not place food directly onto the aluminium baking tray. Line the aluminium baking tray with greaseproof paper. Baking tins It is best to use dark-coloured metal baking tins. Baking times are increased when light-coloured baking tins made of thin metal or glass dishes are used, and cakes do not brown so evenly. If you wish to use silicone baking tins, use the information and recipes provided by the manufacturer as a guide. Silicone baking tins are often smaller than normal tins. The amount of mixture and recipe instructions may differ. Tables The tables show the ideal type of heating for the various cakes and pastries. The temperature and baking time depend on the amount and composition of the mixture. This is why temperature ranges are given in the tables. You should try the lower temperature first, since a lower temperature results in more even browning. You can increase the temperature next time if necessary. If you preheat the oven, the baking time is shortened by 5 to 10 minutes. Additional information can be found in the Baking tips section following the tables. Cake in a mould Tin Level Type of heating Temperature,

• Allow cakes to cool in the appliance for approx. 20 minutes. Cakes on trays Accessories Level Type of heating Temperature,

Cooking time in minutes Yeast bread, 1.2 kg flour Universal pan: 2 % 270

35-45 Bread rolls (e.g. rye rolls) Universal pan: 2 % 200-220 20-30 Small baked products Accessories Level Type of heating Temperature,

• Additional baking trays can be ordered from the after-sales service or specialist retailers. ** When baking on two levels, always place the universal pan above the baking tray. You wish to bake according to your own recipe. Use similar items in the baking tables as a guide. How to tell whether sponge cake is baked through: Approx. 10 minutes before the end of the baking time stated in the recipe, insert a cock- tail stick into the cake at its deepest point. If the cocktail stick comes out clean, the cake is ready. The cake collapses. Use less fluid next time or set the oven temperature 10 degrees lower. Observe the specified mixing times in the recipe. The cake has risen in the middle but is lower around the edge. Do not grease the edge of the springform cake tin. After baking, loosen the cake care- fully with a knife. The cake goes too dark on top. Place the cake lower in the oven and bake at a lower temperature for slightly longer. The cake is too dry. Make tiny holes in the finished cake using a cocktail stick. Then drizzle fruit juice or an alcoholic drink over it. Next time, set the temperature 10 degrees higher and reduce the baking time. The bread or cake (e.g. cheesecake) looks good, but is soggy on the inside (sticky, with streaks of water). Use slightly less fluid next time and bake for slightly longer at a lower temperature. For cakes with a moist topping, bake the base first. Cover the base with almonds or bread- crumbs first and then apply the topping. Take care to follow recipes and baking times. The pastries are not evenly browned. Select a slightly lower temperature to ensure that the cake is baked more evenly. Bake delicate pastries on one level using % Top/bottom heating. Protruding greaseproof paper can affect the air circulation. For this reason, always trim greaseproof paper to fit the baking tray. The bottom of a fruit cake is too light. Place the cake one level lower the next time. The fruit juice overflows. Next time, use the deeper universal pan (if available). The pieces of dough are sticking together when the yeast rolls are baked. There must be a distance of about 2 cm between the bread rolls. This gives enough space for the bread rolls to expand and bake evenly on all sides. You want to bake on two levels: Always use 2 Hot air to bake on more than one level. Dishes that are put in the oven at the same time do not have to be ready at the same time. Condensation forms when you bake moist cakes. Steam can form during baking, which escapes via the door. The steam may settle and form water droplets on the control panel or on the fronts of adjacent units. This is a natu- ral process.48 Meat, poultry, fish Ovenware You may use any heatresistant ovenware. The universal pan is suitable for large roasts. Glass ovenware is the most suitable. Ensure that the lid of the roasting dish fits well and closes properly. Add a little more liquid when using enamelled roasting dishes. With roasting dishes made of stainless steel, browning is not so intense and the meat may be somewhat less well cooked. Increase the cooking times. Information in the tables: Ovenware without a lid = open Ovenware with a lid = closed Always place the ovenware in the centre of the wire rack. Place hot glass ovenware on a dry mat after cooking. The glass could crack if placed on a cold or wet surface. Roasting Add in a little liquid if the meat is lean. Cover the base of the ovenware with approx. ½ cm of liquid. Add liquid generously for pot roasts. Cover the base of the ovenware with approx. 1 - 2 cm of liquid. The amount of liquid depends on the type of meat and the material the ovenware is made of. If preparing meat in an enamelled roasting dish, it will need a little more liquid than if cooked in glass ovenware. Roasting dishes made from stainless steel are not ideal. The meat cooks more slowly and browns less fully. Use a higher temperature and/or a longer cooking time. Tips for grilling Always grill with the oven door closed. Heat the grill for approximately 3 minutes before placing the food to be grilled on the wire rack. Place the food to be grilled directly on the wire rack. If you are grilling a single piece, the best results are achieved by placing it in the centre of the wire rack. The universal pan should also be inserted at level 1. The meat juices are collected in the pan, keeping the oven cleaner. Do not insert the baking tray or universal pan at level 4. They may become deformed at high temperatures and damage the cooking compartment when they are removed. If possible, grill items should be of equal thickness. This will allow them to brown evenly and remain succulent and juicy. Only add salt to steaks once they have been grilled. Turn grilled items after Z of the specified time. The grill element switches on and off intermittently. This is normal. The grill setting determines how frequently this occurs. Meat Turn pieces of meat halfway through the cooking time. When the roast is ready, turn off the oven and allow it to rest for an additional 10 minutes. This allows better distribution of the meat juices. After cooking, wrap sirloin in aluminium foil and leave it to rest for 10 minutes in the oven. For roast pork with a rind, score the rind in a crossways pattern, then lay the roast in the dish with the rind at the bottom. Meat Weight Accessories and ovenware Level Type of heating Temperature °C, grill setting Cooking time in minutes Beef Joint of beef 1.0 kg Covered 2 % 200-220 120

Smoked pork on the bone 1.0 kg Covered 1 % 210-230 80 Lamb Leg of lamb, boned, medium 1.5 kg Uncovered 1 4 170-190 120 Minced meat Meat loaf approx. 750 g Uncovered 1 4 180-200 7049 Poultry The values in the table apply to dishes placed in a cold oven. The weights indicated in the table are for unstuffed poultry that is ready for roasting. If you are grilling directly on the wire rack, you should also insert the universal pan at level 1. When cooking duck or goose, pierce the skin on the underside of the wings to allow the fat to escape. Place the bird onto the wire rack with the breast side facing downwards. Turn the whole bird when two thirds of the cooking time has elapsed. Poultry will turn out particularly crispy and brown if you baste it towards the end of the roasting time with butter, salted water or orange juice. Fish Turn the pieces of fish after Z of the specified time. Whole fish do not need to be turned. Place the whole fish in the oven in swimming position with the dorsal fin facing upwards. To ensure that the fish remains in position, place half a potato or a small, ovenproof container into the stomach cavity. If you are grilling directly on the wire rack, also insert the universal pan at level 1. The fish juices are collected in the pan and the oven is kept cleaner. Tips for roasting and grilling Sausage Sausage Wire rack + univer- sal pan 4+1 ( 315 Meat Weight Accessories and ovenware Level Type of heating Temperature °C, grill setting Cooking time in minutes Poultry Weight Accessories and ovenware Level Type of heating Temperature °C, grill setting Cooking time in minutes Chicken halves, 1-4 pieces 400g each Wire rack 2 4 210-230 40-50 Chicken pieces 250 g each Wire rack 3 4 210-230 30-40 Chicken, whole, 14 pieces per 1 kg Wire rack 2 4 200-220 55-85 Duck, whole 1.7 kg Wire rack 2 4 170-190 80-100 Goose, whole 3.0 kg Wire rack 2 4 160-180 110-130 Small turkey, whole 3.0 kg Wire rack 2 4 180-200 80-100 2 turkey drumsticks 800g each Wire rack 2 4 180-200 80-100 Fish Weight Accessories and ovenware Level Type of heating Temperature °C, grill setting Cooking time in minutes Fish, whole 300 g each Wire rack 3 ( 2 20-25

Fish, in slices (e.g. steaks) 300 g each Wire rack 4 ( 2 20-25 The table does not contain information for the weight of the joint. Select the next lowest weight from the instructions and extend the time. How to tell when the roast is ready. Use a meat thermometer (available from specialist shops) or carry out a “spoon test”. Press down on the roast with a spoon. If it feels firm, it is ready. If the spoon can be pressed in, it needs to be cooked for a little longer. The roast is too dark and the crackling is partly burnt. Check the shelf height and temperature. The roast looks good but the juices are burnt. Next time, use a smaller roasting dish or add more liquid. The roast looks good but the juices are too clear and watery. Next time, use a larger roasting dish and use less liquid. Steam rises from the roast when basted. This is normal and due to the laws of physics. The majority of the steam escapes through the steam outlet. It may settle and form condensation on the cooler switch panel or on the fronts of adjacent units.50 Bakes, gratins, toast with toppings If you are grilling directly on the wire rack, the universal pan should also be inserted at level 1. This keeps the oven cleaner. Always place the ovenware on the wire rack. How well cooked the bake is will depend on the size of the dish and the height of the bake. The figures in the table are only average values. Preprepared products Observe the instructions on the packaging. If you line the accessories with greaseproof paper, make sure that the paper is suitable for these temperatures. Make sure the paper is a suitable size for the dish to be cooked. The cooking result greatly depends on the quality of the food. Pre-browning and irregularities can sometimes even be found on the raw product. Note The universal pan may warp when cooking frozen dishes. The reason for this is the large temperature differences that the accessory is subjected to. The deformation disappears as early as during the cooking process. Special dishes Low temperatures are particularly good for preparing yeast dough and home-made yoghurt. Remove the accessories from the oven. Preparing yoghurt

1. Bring 1 litre of milk (3.5% fat) to the boil, let it cool to 40 °C.

2. Add 150 g yoghurt (from the refrigerator) to the milk and stir

3. Pour into small sealable jars and cover with cling film.

4. Place the jars on a wire rack and slide in at level 1.

5. Set the baking temperature to 50 °C and continue as

indicated. Proving yeast dough

1. Prepare the yeast dough as usual, place it in a heat-resistant

ceramic dish and cover with a lid.

2. Preheat the oven as indicated.

3. Close the oven door and allow the yeast dough to prove in

the oven. Dish Accessories and oven- ware Level Type of heating Temperature in

Cooking time in minutes Bakes Bake, sweet Ovenproof dish 2 % 170-190 50-60 Pasta bake Ovenproof dish 2 % 210-230 25-35 Gratin Potato gratin made using raw ingredients, Max. 2 cm deep Ovenproof dish 2 4 150-170 50-60 Toast Toasting bread, 12 slices Wire rack 4 ( 3 4-5 Toast, with topping, 12 slices Wire rack 3 ( 3 5-8 Dish Accessories Level Type of heating Temperature,

Cooking time in minutes Strudel with fruit filling Universal pan: 3 2 180-200 40-50 Chips Universal pan: 3 % 210-230 25-30 Pizza Wire rack 2 % 200-220 15-20 Pizza baguette Wire rack 2 4 190-210 15-20 Dish Ovenware Type of heating Temperature Cooking time Yoghurt Sealable yoghurt jars 1 % 50 °C 6-8 hours Proving yeast dough Place the heat- resistant dish on the oven floor % preheat to 50 °C Switch off the appliance and place the yeast dough in the oven 5-10 minutes 20-30 minutes51 Defrosting The defrosting time depends on the amount and type of food. Observe the instructions on the packaging. Take food out of its packaging and place in suitable ovenware on the wire rack. Place poultry with the breast side to the plate. Drying Use undamaged fruit and vegetables only and wash them thoroughly. Drain off any excess water from fruit and vegetables and dry them. The universal pan must be inserted at level 3, and the wire rack is placed at level 1. Line the universal pan and the wire rack with greaseproof or parchment paper. Turn very juicy fruit or vegetables several times. Remove fruit and vegetables from the paper as soon as they have dried. Acrylamide in foodstuffs Acrylamide is mainly produced in grain and potato products prepared at high temperatures, such as potato crisps, chips, toast, bread rolls, bread or fine baked goods (biscuits, gingerbread, cookies). Frozen food Accessories Level Type of heating Temperature e.g. cream cakes, buttercream cakes, gateaux with chocolate or sugar icing, fruit, chicken, sausage and meat, bread and bread rolls, cakes and other baked items Wire rack 2 2 The temperature selector remains switched off Fruit and vegetables Level Type of heating Temperature, °C Cooking time, hours 600 g apple rings 1+3 2 80 approx. 5 800 g pear slices 1+3 2 80 approx. 8

1.5 kg damsons or plums 1+3 2 80 approx. 8-10

200 g herbs, washed 1+3 2 80 approx. 1½ Tips for keeping acrylamide to a minimum when preparing food General ■ Keep cooking times to a minimum. ■ Cook meals until they are golden brown, but not too dark. ■ Large, thick pieces of food contain less acrylamide. Baking With top/bottom heating max. 200 °C. With 3D hot air or hot air max.180 °C. Biscuits With top/bottom heating max. 190 °C. With 3D hot air or hot air max. 170 °C. Egg or egg yolk reduces the production of acrylamide. Oven chips Spread evenly over the baking tray, in a single layer. Bake at least 400 g per baking tray so that the chips do not dry out52 Test dishes These tables have been produced for test institutes to facilitate the inspection and testing of the various appliances. In accordance with EN 50304/EN 60350 (2009) and IEC

Baking Baking on 2 levels: Always insert the universal pan above the baking tray. Piped cookies (such as Spritz cookies in sugar syrup): Dishes that are put in the oven at the same time do not have to be ready at the same time. German apple pie, level 1 Change the position of the dark springform cake tin, slide in diagonally. German apple pie, level 2 Change the position of the dark springform cake tin. Cakes in a metal springform cake tin: Bake on level 1 with % Top/bottom heating Place the springform cake tin on the universal pan instead of on the wire rack. Grilling If you are grilling food directly on the wire rack, the universal pan should also be inserted at level 1. The liquid is then collected, keeping the oven cleaner. Dish Accessories and oven- ware Level Type of heating Temperature,

• Additional baking trays and wire racks can be obtained as an optional accessory from the after-sales service or specialist retailers. ** When baking on two levels, always place the universal pan above the baking tray. *** Place the cake tins diagonally on the accessories. Dish Accessories and oven- ware Level Type of heating Grill setting Cooking time in minutes Browning toast Preheat for 10 mins Wire rack 4 ( 3 ½-2 Beefburgers, 12 pieces* No preheating Wire rack + universal pan 4+1 ( 3 25-30
