TM2456 - Grill plate Tomado - Free user manual and instructions

Brand	Tomado
Model	TM2456
Product type	Grill plate
Dimensions (L x W x H)	104.4 x 23.5 x 11.5 cm
Net weight	2.67 kg
Power supply	220-240 V~ 50/60 Hz
Power	1800 W
Plate coating	Non-stick
Adjustable thermostat	Yes, with heating indicator
Removable drip tray	Yes
Insulated handles	Yes
Heating indicator	Yes
Use	Domestic use only
Plate cleaning	Damp cloth, do not immerse
Drip tray cleaning	Washable in warm soapy water
Safety	Do not leave unattended, hot surface
Warranty	2 years
Included accessories	Thermostat, drip tray
Repairability	Contact a certified professional

Frequently Asked Questions - TM2456 Tomado

How to use the grill plate for the first time?

Before first use, wipe all removable parts with a damp cloth. Place the drip tray under the grease outlet, insert the thermostat and plug in the appliance. Heat at maximum power for at least 5 minutes without food to remove manufacturing residues. A slight odor may be released, this is normal.

Why does my appliance emit an odor during first use?

A slight odor is normal during first start-up. It comes from the combustion of manufacturing residues. Ensure good ventilation and it will disappear quickly.

How to clean the drip tray?

Remove and empty the drip tray after each use. Wash it with warm soapy water. Never put the tray in the dishwasher.

Can I immerse the grill plate in water?

No, never immerse the appliance, cord or plug in water or any other liquid to avoid electric shock. Clean the plate with a damp cloth.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its after-sales service or a qualified person to avoid any risk.

What is the power of the appliance?

The Tomado TM2456 grill plate has a power of 1800 W and operates at a voltage of 220-240 V~ 50/60 Hz.

Is the grill plate suitable for children?

The appliance must not be used by children under 8 years old. Children aged 8 and over can use it under supervision. Keep the appliance and its cord out of reach of children under 8.

Can I use metal utensils on the plate?

Never use sharp or metal objects on the plate, as this will damage the non-stick coating. Prefer wooden or silicone utensils.

How to adjust the temperature?

Turn the thermostat clockwise to increase the temperature. The heating indicator flashes to indicate that the constant temperature is maintained.

What is the warranty period?

Tomado offers a 2-year warranty against manufacturing and material defects, provided the proof of purchase is kept.

USER MANUAL TM2456 Tomado

Black rectangular flat-screen grating with metal handles and a small protrusion (no text or symbols visible)

Black frying pan with fried egg, red squid, and skewers arranged on a stand (no text or symbols visible)

TOMADO®

Labeled diagram of a black rectangular heating element with numbered parts for identification

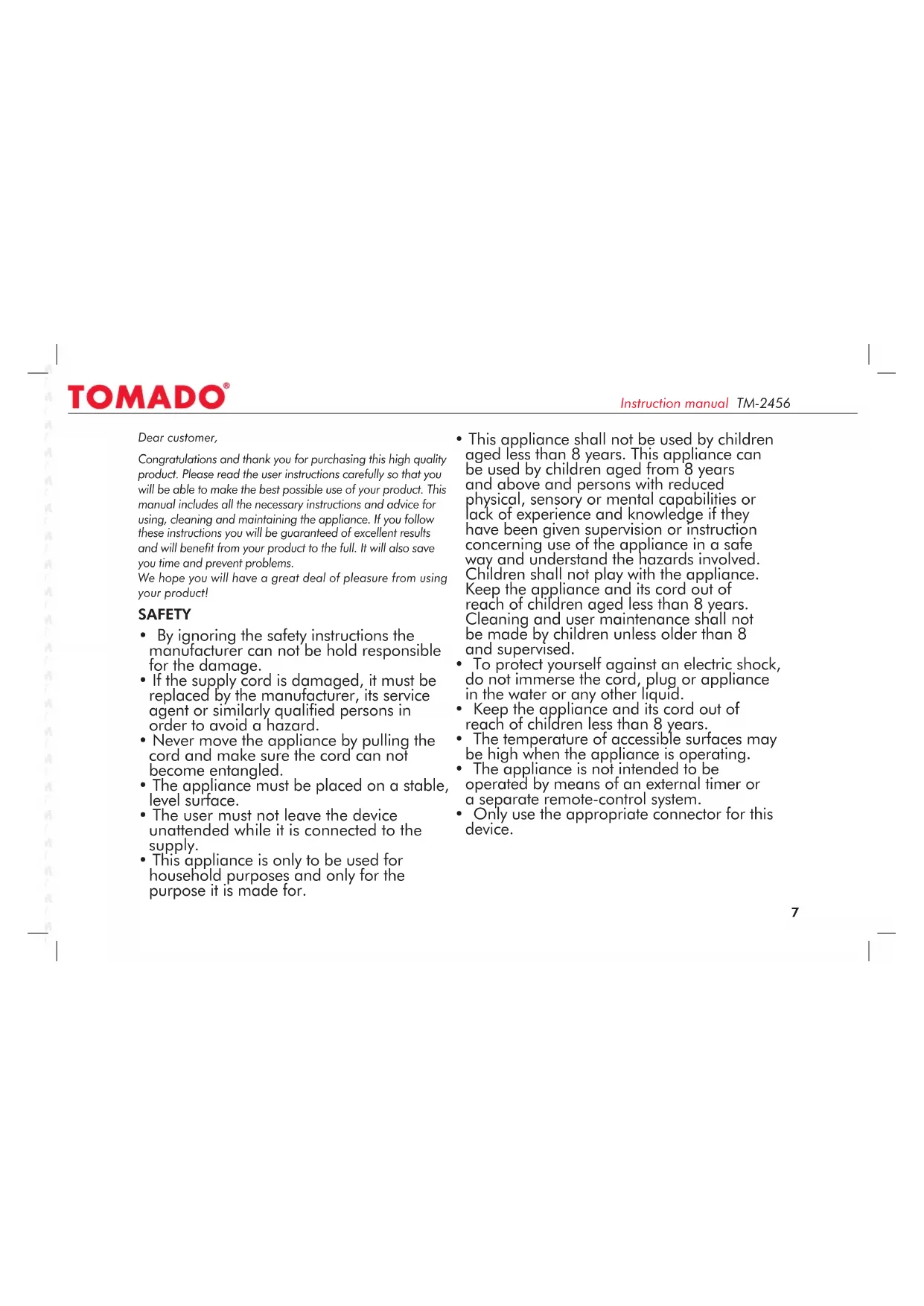

Congratulations and thank you for purchasing this high quality product. Please read the user instructions carefully so that you will be able to make the best possible use of your product. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of excellent results and will benefit from your product to the full. It will also save you time and prevent problems.

We hope you will have a great deal of pleasure from using your product!

SAFETY

• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The appliance must be placed on a stable, level surface.
• The user must not leave the device unattended while it is connected to the supply.

• This appliance is only to be used for household purposes and only for the purpose it is made for.

• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• Only use the appropriate connector for this device.

PARTS DESCRIPTION

1. Handles
2. Baking plate
3. Grease tray
4. Temperature control knob
5. Heat up indicator

Labeled diagram of a black rectangular heating element with numbered parts for identification

BEFORE THE FIRST USE

• Take the appliance and accessories out the box.
Remove the stickers, protective foil or plastic from the device.
- Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
- Place the grease collecting tray below the grease outlet.
- Place the supplied thermostat in the connection of the thermostat.
- Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device.)
- Turn the thermostat clockwise to the highest setting and allow the device heating at least 5 minutes without food.
- When the device is turned on for the first time, a slight odor will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.
- We advise to place a heat resistant coating between your table and the appliance (this way you don't get burns on your table or table cloth).
- Place the device in a well ventilated space.

USE

• Pre-heat your appliance on the highest level for a few minutes until the temperature indicator goes off.
• The heating plate should be rubbed in with some food oil.
• Use the temperature knob on the thermostat to choose the desired temperature.
• The thermostat regulates a constant temperature. During cooking the indicator light on and off, this is normal, the temperature is always constant adjusted. Never use sharp objects on the grill plate, this will damage the anti-stick coating.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Never pour cold water on a hot plate, this could damage the device and can cause splashing hot water.
• Wipe the inside and the edges of the appliance with a paper towel or a soft cloth.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Remove and empty the fat collecting tray after each use and wash the tray in warm, soapy water.
• Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof.

TECHNICAL DATA:

Type no.: TM-2456

Power: 1800 W

Mains voltage: 220-240V\~50/60 Hz

Dimensions: 104,4 x 23,5 x 11,5 cm

Net weight: 2,67 KG

TOMADO®

Warranty regulations

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

• TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
• The warranty runs from the date of purchase; we advise you to carefully save your receipt.
• Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
• The warranty certificate has to be filled in by the sales person at the moment of purchase.
• Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
• The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
• The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.

• The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).

• TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

• All other claims, including damages, are excluded unless the Law states otherwise.
• Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumentenservice

Antwoordnummer 19016

NL - 1000 VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

TOMADO®

Labeled diagram of a black rectangular heating element with numbered parts for identification

AVANT LA PREMIÈRE UTILISATION

Labeled diagram of a black rectangular heating element with numbered parts for identification.

487 This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
