USER MANUAL IAN 60101 MIOMARE

Assembly, operating and safety instructions

IAN60101

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE/AT/CH Montage, Bedienungs- und Sicherheitshinweise	Seite 5
FR / CH Instructions de montage, d'utilisation et consignes de sécurité Page 13
IT / CH Istruzioni di montaggio, d'uso e di sicurezza Pagina 21
GB Assembly, operating and safety instructions Page 29

Einleitung

PRENEZ GARDE AU RISQUE

Intended use Page 30
Parts description.. Page 30
Technical Data Page 30
Scope of delivery.. Page 30

Safety information.. Page 31

Installation

Connecting the fitting.. Page 31
Connecting accessories (shower hose and shower head) Page 31

Operation

Start-up.. Page 32
Tub filler/shower diverter

Maintenance and Cleaning

Maintaining and cleaning the tap . Page 32
Replacing the LED insert . Page 32
Replacing the screen. Page 33
Replacing the cartridge . Page 33

Disposal

Information

Potability of tap water.. Page 34

Warranty and Service

LED Bath/ Shower Fitting

Introduction

Congratulations on the purchase of your new product. You have selected a high quality product. The assembly and oper

ating instructions are part of this product. Please carefully read these assembly instructions / instructions for use before use and observe all instructions. These assembly instructions and instructions for use contains important assembly, set-up and care information. Please retain these assembly instructions / instructions for use and hand them on to any future owner.

Intendeduse

The product is only designed to regulate the hot and cold water flow. For tub installation only. Suitable for use with all pressure-resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler etc. This product is not suitable for low pressure water heaters or pressure-free small storage reservoirs, e.g. wood- or coal-burning domestic hot water heaters, oil or gas-fired hot water heaters, or open electrically heated cylinders. When in doubt please consult a plumber or heating specialist. Any use not specified or product modification is prohibited and will result in damage. Any form of use other than the stipulated intended purpose can cause danger to life and cause injury. The product is for private use only and is not intended for medical or commercial use. The manufacturer accepts no responsibility if the intended purpose of this unit is not adhered to.

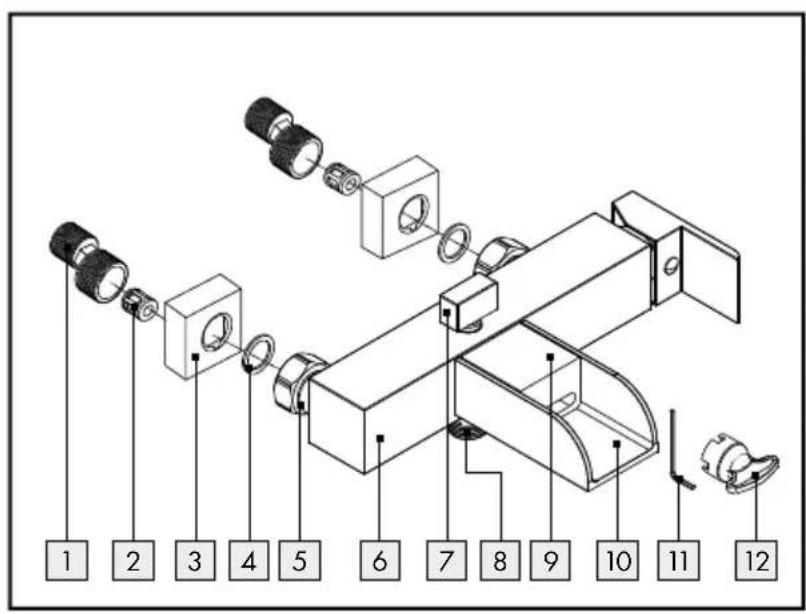

- Parts description

1 2 S- connectors
2 2 Silencers*
3 2 Covers
4 2 Seals (S- connectors)
5 2 Swivel nuts*

6 Fitting body
7 Diverter*
8| Shower connection
9 LED cover
10] Tub mixer*
[11] Socket head wrench
12 LED installation wrench
[13] Cartridge
14 Cartridge lock nut*
15 Cartridge cover ring*
16 Handle
17 Locking screw
[18] Hot/cold plaque

* prefitted

- Technical Data

Swivel nut

(water connections): G 34

Shower hose

connection: G 12

Flow rate at 3 bar:

Shower connection: approx. 17.7 to 18.8L / min

Tub mixer: approx. 8.5 to 9.2L / min

LED light: approx. < 33^ blue,

approx. 33 - 43^ green,

approx. >43^ red

approx. >53^ flashing red

LED life:

approx. 10,000 operating

hours

Temperature sensor

tolerance:

+/- 2°C

- Scope of delivery

1 LED tub filling / shower mixer(5 - 10, 13 - 18)
2 Caps 3
2 S- connectors with silencer 1 - 2
2 Seals 4
1 Socket head wrench 11
1 LED installation spanner 12
1 Instructions for assembly / operation

Safety information

DATING/TONING!

LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unattended with the packaging material. Danger of suffocation. Keep this product well away from children. This product is not a toy.

BEWARE OF ELECTRIC SHOCK!

Leaking or water discharge can lead to life-threatening danger due to

electric shock. Carefully check that all connections are watertight. Also ensure that all wires of electric appliances are correct and have been securely installed.

CAUTION! RISK OF INJURY! Please ensure

that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that washers and gaskets are wear parts and therefore will need to be replaced from time to time. Damaged parts could impact safety and function.

CAUTION! DAMAGE TO THE ARTICLE!

Please have all installations performed by skilled individuals.

Be sure all seals are correctly seated.

SCALDINGRISK! When adjusting the hot water temperature be sure the water temperature is not too high.

CAUTION! Be careful not to revere the hot / cold water plaque [18]. The correct placement is: left = red (hot), right = blue (cold).

Please note all seals are wear items and will therefore need to be replaced over time.

Any leakage or sudden escape of water can cause considerable damage to buildings and property. All connections must therefore be checked carefully to ensure that they are tight.

Familiarise yourself prior to installation with all local conditions, e.g. water connections and shut-off device.

The product is only suitable for use in rooms with a temperature above 0^ .

Installation

Note: Familiarise yourself with the product prior to assembly. Carefully read the following assembly instructions and safety advice. In the event of incorrect installation, all warranty claims - particularly in relation to subsequent damage - are excluded.

CAUTION! Before you start installation turn off the water supply at the mains. Otherwise injuries and/or property damage may occur.

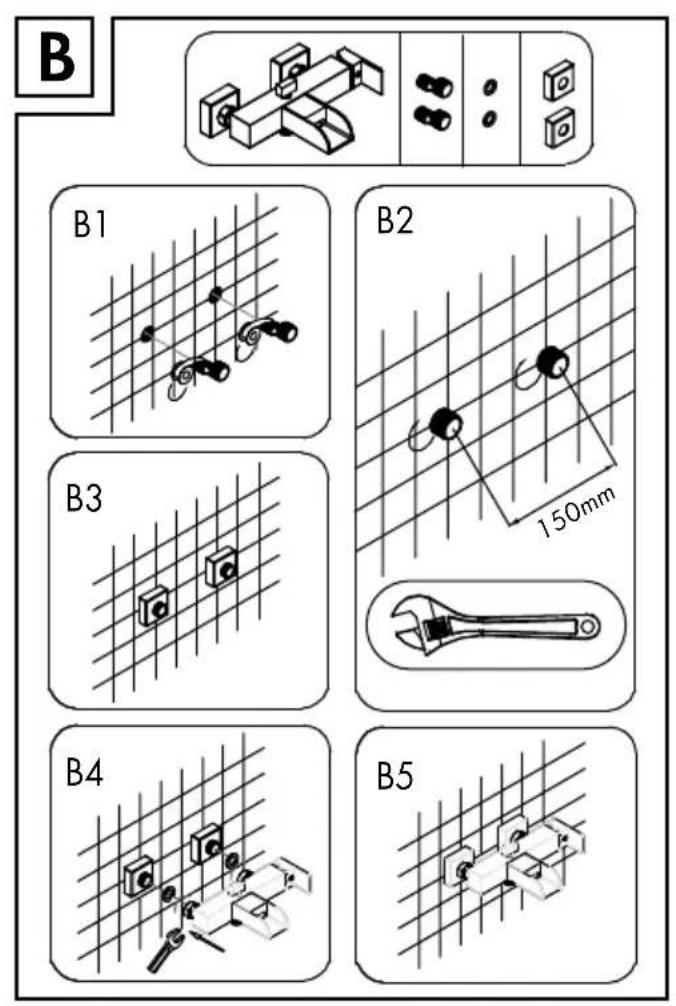

- Connecting the fitting

Note: this step requires an SW 30 mm open-end spanner and sealing tape.

Note: cover any parts which will be screwed with a damp cloth or plastic clamps. This will prevent scratches.

Follow these steps:

Wrap sealing tape around the roughened threaded part (1 / 2^ thread) of the S-connectors [see Fig.B1].

Note: sealing tape not included.

Screw the S- connectors 1 with the sealed threaded parts into the wall connectors.

Horizontally align the screwed in S-connectors 1 with the spacing guide for the fitting (see Fig.B2).

Screw the cap 3 hand tight onto the S- connectors 1 to the wall (see Fig. B3).

Insert the seals into the swivel nuts and screw the fitting body with swivel nuts onto the S-connectors (see Fig. B4-B5).

- Connecting accessories (shower hose and shower head)

Note: Shower hose and shower head are not included in delivery.

Note: cover each of the parts which are to be screw connected with a damp cloth or plastic clips. This will prevent scratches.

Connect a standard shower hose to the shower connector 8.
Connect a standard shower head to the shower hose.

Note: Also refer to the assembly instructions for the accessories.

Operation

- Start-up

After the initial commissioning, carefully check all connections for leaks.

Check the operation of the fitting. To do so, swing the handle 16 into all permissible positions.

Note: the fitting features an LED light. The LED is lit through an integrated turbine (without batteries). The LED colour changes automatically based on the water temperature through an integrated temperature sensor:

up to approx. 33^ blue,
from approx. 33 - 43^ green,
over approx. 43^ red.

Note: over approx. 53^ the LED light will begin to flash red to warn of potential scalding.

Note: when starting the fitting for the first time the LEDs will first flash blue, green and red before indicating the temperature based on the temperature (self-test).

Note: If the tap has not been used for a long period, flush the pipes thoroughly to avoid stagnation and build-up of residue.

Open the main water supply.
Lift the handle 16 and swing it to the right or left in order to regulate the speed or temperature of the water.

Hot water:

Swing the handle 16 to the left.

Cold water:

Swing the handle 16 to the right.

- Tub filler / shower diverter

Manually switch between the tub filler to shower function by lifting and lowering the diverter.

Tub mixer:

Lower diverter 7.

Shower function:

Lift diverter 7.

Note: switching manually means: when turning the water off with the shower function activated, the shower function will remain on. When starting the water again, the shower function will remain active until it is switched to tub filler.

- Maintenance and Cleaning

Maintaining and cleaning the tap

Please note that sanitary taps require special care and attention. Therefore, please follow the instructions:

• When cleaning, never use petrol, solvents, aggressive cleansers or hard cleaning brushes etc. These could damage the surface of the product.
  Dry your fitting with a cloth after every use to prevent any lime deposits.
  Clean the product with a damp, soft cloth and a mild cleaning agent if required.

Non-observation of the above care advice can be expected to result in damage to the surfaces of the product. This will inevitably invalidate the guarantee.

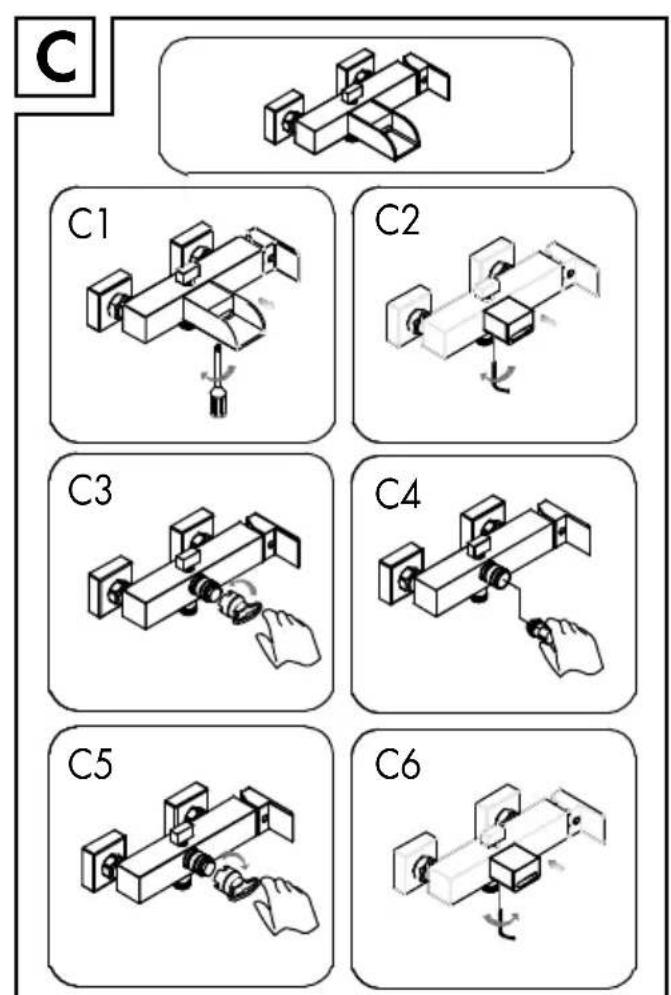

- Replacing the LED insert

If the LED lamps fail to light, the LED insert may be replaced.

LED life: approx. 10,000 operating hours.

A new LED insert (ET-WCRL-LED) can be obtained from the specified service address.

To do so, follow these steps:

Unscrew the tub mixer 10 from the fitting body 6 (see Fig. C1), which requires a cross-tip screwdriver.
Unscrew the LED cover 9 from the fitting body 6 using the socket head wrench 11 (see Fig. C2).
Remove the plastic LED insert (see Fig. C3-C4) using the LED installation wrench 12
Install the new LED insert, the LED cover 9 and the tub mixer to the fitting body 6 similar to disassembly (see Fig. C5-C7).

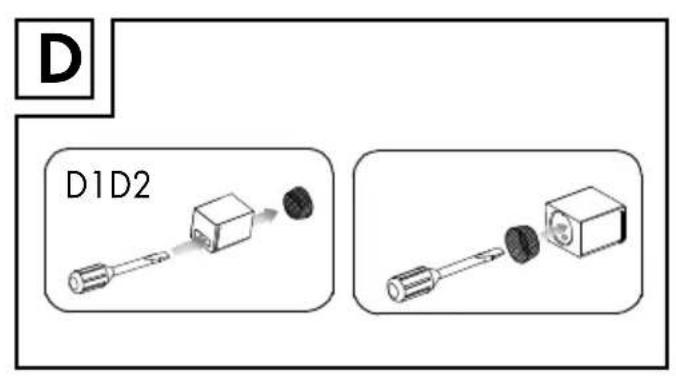

- Replacing the screen

If the screen inside the LED cover is severely clogged it must be cleaned or replaced.

To do so, follow these steps:

Unscrew the tub mixer 10 from the fitting body 6 (see Fig. C1), which requires a cross-tip screwdriver.
Unscrew the LED cover 9 from the fitting body using the socket head wrench 11 (see Fig. C2).
Push the screen out of the LED cover 9 from the outside, using a flat object (see Fig. D1).

CAUTION RISK OF INJURY! The outer edge of the screen fabric may be pointy.

• Remove any limescale deposits or foreign bodies. Replace the screen if severely clogged or damaged. A new screen (ET-WCRL-WBS) can be obtained from the specified service address.
  Press the cleaned / new screen into the LED cover from the inside (see Fig. D2).

Note: be sure the screen is properly seated in the LED cover 9.

Install the LED cover 9 and the tub mixer10 in the fitting body 6 similar to disassembly (see Fig.C6-C7).

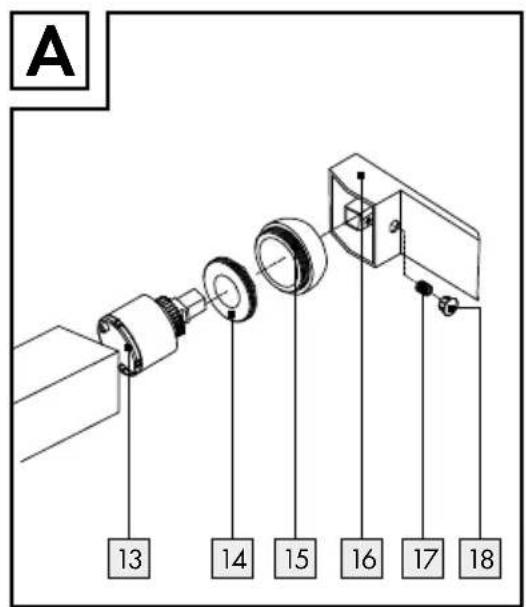

- Replacing the cartridge

A cartridge 13 is a wear part that needs replacing according to the hardness and / or degree of contamination of the water. This becomes evident when the handle 16 becomes difficult to move. A new cartridges 13 can be obtained from the listed service office.

Note: this step requires an open-end spanner SW 27 mm or fitting pliers.

Proceed as follows to replace the cartridge 13:

Shut off the main water supply. Allow any remaining water in the pipework to drain.
Remove the hot / cold plaque 18 by inserting a flat object between the edge of the hot / cold plaque 18 and the outside of the handle 16.

Note: use light pressure to carefully push the hot/cold plaque 18 outward so as not to scratch the surface.

Loosen the locking screw 17 with the socket head wrench 11 by turning it counter-clockwise.

CAUTION! Do not completely unscrew the locking screw [17]. Only loosen this as far as is necessary to remove the handle [16].

Remove the handle 16.
Unscrew the cartridge covering ring 15, do not use pliers or a spanner. Otherwise the product could be damaged.
Loosen the cartridge locknut 14 below with fitting pliers or an open-end spanner SW 27 mm and remove the entire cartridge 13 from the fitting body 6.
Insert the new cartridge [13] (model 35 M LED) into the fitting body [6] in the same manner.

Note: be sure the seal under the cartridge 13 is correctly seated. Make sure that the guides are in the corresponding holes.

Reassemble all the above parts. Tighten the cartridge lock nut using fitting pliers or an open-end spanner SW 27 mm while simultaneously securing the fitting from twisting. This will achieve tightness and ensure the handle is not difficult to move.

CAUTION! Be careful not to revere the hot/ cold water plaque [18]. The correct placement is:

left = red (hot water),
right = blue (cold).

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Information

- Potability of tap water

Please consult your local authorities on the potability of water in your town / municipality.

The following general recommendations apply to the potability of tap water:

• Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Otherwise health concerns can arise. Fresh water can be readily distinguished from stagnant water as fresh water is noticeably cooler as it leaves the pipe.
• Do not use stagnant water from chromium-plated pipework to prepare food, for drinking, or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.
• Do not use water from lead pipework for preparing food baby food and / or to prepare foods during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.

Warranty and Service

The warranty period is three years and begins on the day of purchase. Please keep your receipt as proof of purchase.

However, if defects do occur during the warranty period, after first contacting service the defective fitting may be returned freight forward to the service address specified. You will then receive a new or repaired fitting free of charge.

After the warranty period has expired you may also send the defective fitting to the address specified for repair. Repairs made after the expiration of the warranty period are subject to payment.

Note: Eisl Sanitär GmbH will replace defective fittings or supply the respective replacement parts free of charge within the warranty period. Eisl Sanitär GmbH is unable to refund the purchase price for defective fittings.

This warranty does not limit your legal rights.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and exchanged parts. Complaints are often initiated by difficulties encountered during use. Many of these complaints can be resolved by telephone or email. Please contact the service address set up for you before filing a warranty claim for the fitting with the manufacturer:

GB:

Eisl Sanitar GmbH

• Free of charge number

IAN 60101

Warranty and Service

Please have the receipt and item number, e.g.

IAN 12345 ready as your proof of purchase when

making an enquiry.

Product description:

LED Bath/ Shower Fitting

Eisl Sanitär no.

NIO23WCRL-LIDL2

Eisl Sanitär GmbH
