USER MANUAL MW420620 GAGGENAU
Microwave Built-in Printer

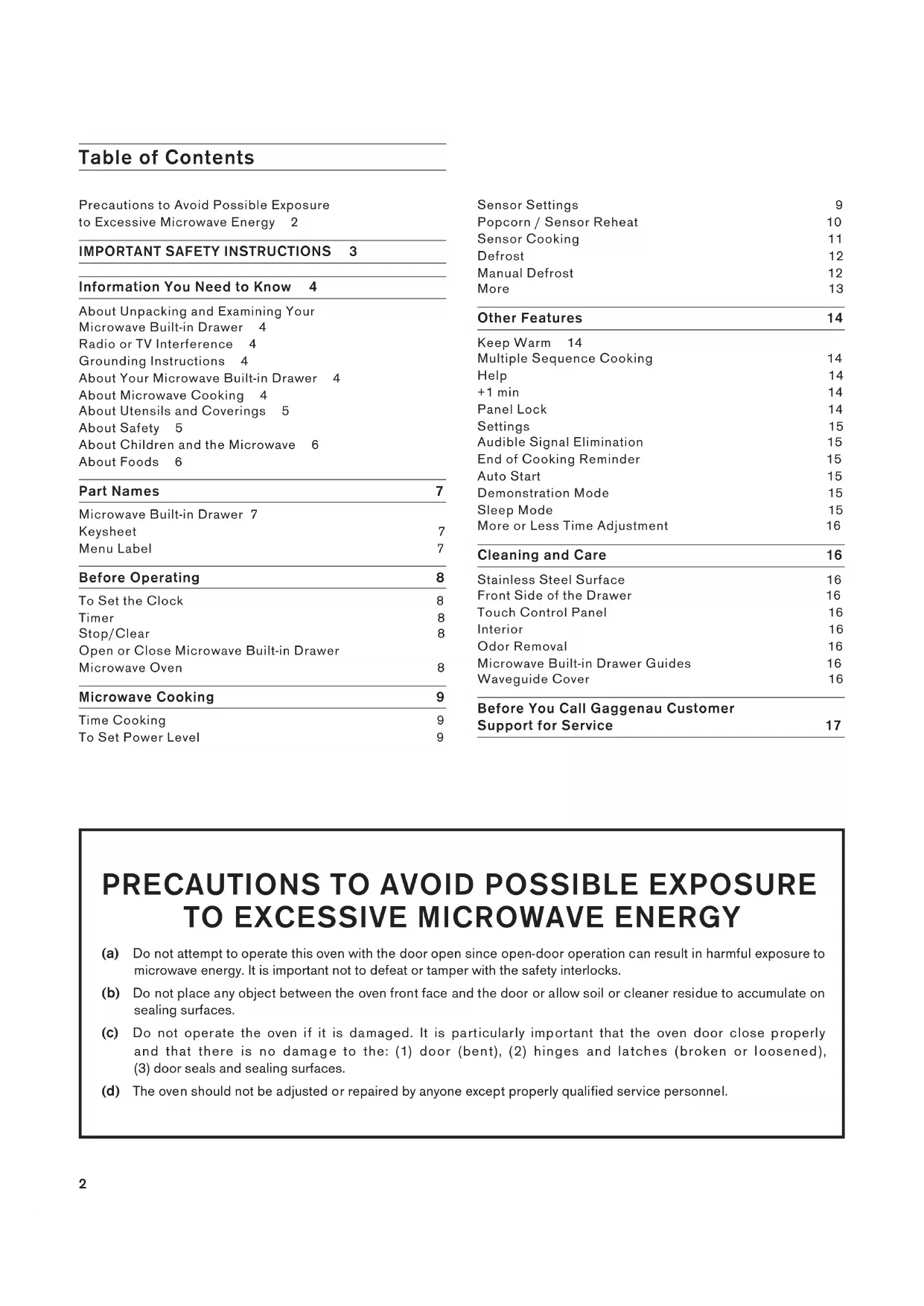

Precautions to Avoid Possible Exposure to Excessive Microwave Energy 2
IMPORTANT SAFETY INSTRUCTIONS 3
Information You Need to Know 4
About Unpacking and Examining Your
Microwave Built-inDrawer 4
Radio or TV Interference 4
Grounding Instructions 4
About Your Microwave Built-in Printer 4
About Microwave Cooking 4
About Utensils and Coverings 5
About Safety 5
About Children and the Microwave 6
About Foods 6
Part Names 7
Microwave Built-in Printer 7
Keysheet 7
Menu Label 7
Before Operating 8
To Set the Clock 8
Timer 8
Stop/Clear 8
Open or Close Microwave Built-in Printer
Microwave Oven 8
Microwave Cooking 9
Time Cooking 9
To Set Power Level 9
Sensor Settings 9
10 Popcorn / Sensor Reheat
Sensor Cooking 11
Defrost 12
Manual Defrost 12
More 13
Other Features 14
KeepWarm 14
Multiple Sequence Cooking 14
Help 14
+1 min 14
Panel Lock 14
Settings 15
Audible Signal Elimination 15
End of Cooking Reminder 15
Auto Start 15
Demonstration Mode 15
Sleep Mode 15
More or Less Time Adjustment 16
Cleaning and Care 16
Stainless Steel Surface 16
Front Side of the Drawer 16
Touch Control Panel 16
Interior 16
Odor Removal 16
Microwave Built-inDrawer Guides 16
Waveguide Cover 16
Before You Call Gaggenau Customer
Support for Service 17
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
Important Safety InStructonS READ AND SAVE THESE INSTRUCTIONS
When using the appliance, basic safety precautions should be followed, including the following:
WarningG
To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:
1 Read all instructions before using the appliance.
2 Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 2.
3. This appliance must be properly grounded. See page 4 for grounding instructions.
4 Install or locate this appliance only in accordance with the provided Installation Manual.
5 Some products such as whole eggs and sealed containers - for example, closed glass jars-are able to explode and should not be heated in this oven.
6 Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
7 As with any appliance, close supervision is necessary when used by children.
8 Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
9 This appliance should be serviced only by qualified service personnel. Contact nearest Gaggenau Authorized Servicer for examination, repair or adjustment.
10 Do not cover or block any openings on the appliance.
11 Do not store or use this appliance outdoors. Do not use this product near water-for example, near a kitchen sink, in a wet basement, near a swimming pool or similar locations.
12 Do not immerse cord or plug in water.
13 Keep cord away from heated surfaces.
14 Do not climb or sit on the appliance.
15 Be sure that fingers or other objects or materials are not around the appliance opening when the appliance is closed.
16 Do not put fingers or clothes around the drawer guides when the appliance is opened or closed; they could be caught in the guides when the appliance is closed.
17 Be sure that the food and container are shorter than the drawer before closing it. You can refer to the height of the side walls of the drawer.
18 When cleaning appliance sealing surfaces that come together on closing the drawer, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth. See cleaning instructions on page 16.
19 To reduce the risk of fire in the appliance cavity:
a. Do not overcook food.
b. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the appliance to facilitate cooking.
c. Remove wire twist-ties from paper or plastic bags before placing bag in appliance.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the appliance when not in use.
If materials inside the appliance ignite, keep appliance door closed, turn microwave off and shut off power at the fuse or circuit breaker panel.
20 Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the appliance is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway through heating it.
c. Do not use straight-sided containers with narrow necks. Use a wide-mouthed container.
d. After heating, allow the container to stand in the appliance at least for 20 seconds before removing the container.
e. Use extreme care when inserting a spoon or other utensil into the container.
21 If the appliance light fails, consult a GAGGENAU Customer Support.
Proposition 65 Warning:
This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:
STATE OF CALIFORNIA PROPOSITION 65 WARNING:
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Information You Need to Know

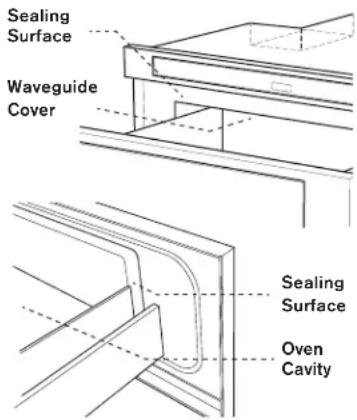

About Unpacking and Examining Your Microwave Built-in Printer
1 Remove all packing materials from inside the Microwave Built-in Printer. DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the top of the Microwave Built-in Printer.
2 Check the drawer for any damage, such as misaligned or bent drawer, damaged
igator or a Gaggenau Customer Support.
Radio or TV Interference
Should there be any interference to your radio or TV caused by the Microwave Built-in Printer, check that the Microwave Built-in Printer is on a different electrical circuit, relocate the radio or TV as far away from the printer as feasible or check position and signal of receiving antenna.
GROUNDING INSTRUCTIONS
- This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. The Microwave Built-in Printer is equipped with a cord having a grounding wire with
a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances.
Permanent and Correct Installation
WARNING
Improper use of the grounding plug can result in a risk of electric shock. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or servicer install an outlet near the appliance.
If you have any questions about the grounding or electrical instructions, consult a qualified electrician or servicer.
About Your Microwave Built-in. Drawer
ALWAYS have food in the Microwave Built-in Printer when it is on to absorb the microwave energy.
The vent under the Microwave Built-in Printer must not be blocked. During microwaving, steam may come from the right side of the vent.
When using the Microwave Built-in Printer at power levels below 100% , you may hear the magnetron cycling on and off.
It is normal for the exterior of the microwave oven to be warm to the touch when cooking or reheating.
Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will influence the amount of moisture that condenses in the microwave oven. Generally, covered foods will not cause as much condensation as uncovered ones.
The Microwave Built-in Printer is for food preparation only. It should not be used to dry clothes or newspapers.
Your Microwave Built-in Printer is rated 950 watts by using the IEC Test Procedure. In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly.
When opening or closing the drawer quickly, food in the drawer may be spilled. To clean, please refer to the Cleaning and Care section on page 16.
About Microwave Cooking
- Arrange food carefully. Place thickest areas towards outside of dish.
- Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
- Cover foods while cooking. Check recipe or cookbook for suggestions: paper towels, wax paper, microwave plastic wrap or a lid may be used. Covers prevent spattering and help foods to cook evenly.
Shield with small flat pieces of aluminum foil any thin areas of meat or poultry to prevent overcooking before
dense, thick areas are cooked thoroughly.
- Stir foods from outside to center of dish once or twice during cooking, if possible.
- Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
- Rearrange foods such as meatballs halfway through cooking both from top to bottom and from right to left.
- Add standing time. Remove food from Microwave Built-in Printer and stir, if possible. Cover the food during standing time which allows the food to finish cooking without overcooking.
- Check for doneness. Look for signs indicating that cooking temperatures have been reached.
Doneness signs include:
- Food steams throughout, not just at edge.
Center bottom of dish is very hot to the touch. - Poultry thigh joints move easily.
- Meat and poultry show no pinkness.
-
Fish is opaque and flakes easily with a fork.
-
A good microwave cookbook is a valuable asset. Check it for microwave cooking principles, techniques, hints and recipes.
About Utensils and Coverings
It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your new Microwave Built-in Printer. Make sure the utensil does not touch the interior walls during cooking.
Use these utensils for safe microwave cooking and reheating:
glass ceramic (Pyrocer) such as Corningware.
heat-resistant glass (Pyrex
- microwave-safe plastics
- microwave-safe paper plates
- microwave-safe pottery, stoneware and porcelain
- browning dish (Do not exceed recommended preheating time. Follow manufacturer's directions.)
These items can be used for short time reheating of foods that have little fat or sugar in them:
- wood, straw, wicker
DO NOT USE
metal pans and bakeware
- dishes with metallic trim
non-heat-resistant glass
non-microwave-safe plastics (margarine tubs)
recycled paper products
brown paper bags
food storage bags
metal twist-ties
Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.
The following coverings are ideal:
- Paper towels are good for covering foods for reheating and absorbing fat while cooking bacon.
Wax paper can be used for cooking and reheating.
- Plastic wrap that is specially marked for microwave use can be used for cooking and reheating. DO NOT allow plastic wrap to touch food. Vent so steam can escape.
Lids that are microwave-safe are a good choice because heat is kept near the food to hasten cooking.
- Oven cooking bags are good for large meats or foods that need tenderizing. DO NOT use metal twist ties. Remember to slit bag so steam can escape.
How to use aluminum foil in your Microwave Built-in Printer:
- Small flat pieces of aluminum foil placed smoothly on the food can be used to shield areas that are either defrosting or cooking too quickly.
- Foil should not come closer than one inch to any surface of the microwave oven.
Accessories There are many microwave accessories available for purchase. Evaluate carefully before you purchase so that they meet your needs. A microwave-safe thermometer will assist you in determining correct doneness and assure you that foods have been cooked to safe temperatures. Gaggenau is not responsible for any damage to the Microwave Built-in Printer when accessories are used.
About Safety
- Check foods to see that they are cooked to the United States Department of Agriculture's recommended temperatures.
| 145°F | - | Fish. |
| 160°F | - | Pork, ground beef/veal/lamb, egg dishes |
| 165°F | - | For leftover, ready-to-reheat refrigerated, and deli and carry-out “fresh” food. Whole, pieces and ground turkey/chicken/duck. |
To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave use.
- ALWAYS use potholders to prevent burns when handling utensils that are in contact with hot food. Enough heat
from the food can transfer through utensils to cause skin burns.
- Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish's covering and carefully open popcorn and oven cooking bags away from the face.
- Stay near the Microwave Built-in Printer while it's in use and check cooking progress frequently so that there is no chance of overcooking food.
NEVER use the Microwave Built-in Printer for storing cookbooks or other items. - Select, store and handle food carefully to preserve its high quality and minimize the spread of foodborne bacteria.
- Keep waveguide cover clean. Food residue can cause arcing and/or fires. See page 16 for cleaning and care information.
About Children and the Microwave
Children below the age of 7 should use the microwave oven with a supervising person very near to them.
Between the ages of 7 and 12, the supervising person should be in the same room. The child must be able to reach the microwave oven comfortably.
At no time should anyone be allowed to lean or swing on the Microwave Built-in Printer.
Children should be taught all safety precautions: use potholders, remove coverings carefully, pay special attention to packages that crisp food because they may be extra hot.
Don't assume that because a child has mastered one cooking skill he/she can cook everything.
Children need to learn that the Microwave Built-in.
Drawer is not a toy. See page 14 for Panel Lock feature.
About Foods
| Food Do Don't | ||
| Eggs, sausages, fruits & vegetables | ● Puncture egg yolks before cooking to prevent "explosion". ● Pierce skins of potatoes, apples, squash, hot dogs and sausages so that steam escapes. | ● Cook eggs in shells. ● Reheat whole eggs. ● Dry nuts or seeds in shells. |
| Popcorn | ● Use specially bagged popcorn for the microwave. ● Listen while popping corn for the popping to slow to 1 or 2 seconds or use special POPCORN pad. | ● Pop popcorn in regular brown bags or glass bowls. ● Exceed maximum time on popcorn package. |
| Baby food | ● Transfer baby food to small dish and heat carefully, stirring often. Check temperature before serving. ● Put nipples on bottles after heating and shake thoroughly. "Wrist" test before feeding. | ● Heat disposable bottles. ● Heat bottles with nipples on. ● Heat baby food in original jars. |
| General | ● Cut baked goods with filling after heating to release steam and avoid burns. ● Stir liquids briskly before and after heating to avoid "eruption". ● Use deep bowl when cooking liquids or cereals to prevent boilovers. ● Food should be shorter than the drawer. Please refer to the height of side walls of the drawer. | ● Heat or cook in closed glass jars or airtight containers. ● Can in the microwave as harmful bacteria may not be destroyed. ● Deep fat fry. ● Dry wood, gourds, herbs or wet papers. |

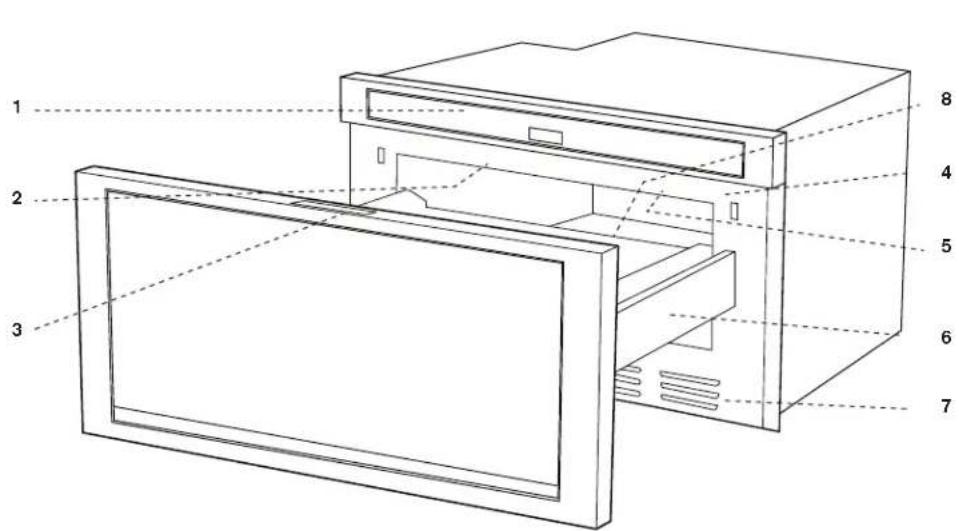

Part Names
Microwave Built-in Printer

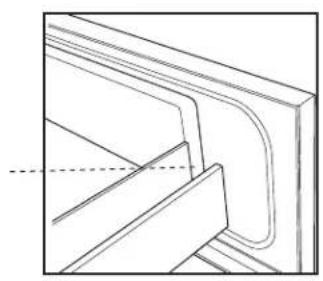

| 1 Control Panel |
| 2 Waveguide Cover - DO NOT REMOVE |
| 3 Menu Label |
| 4 Printer Sealing Surfaces |
| 5 Printer Light |
| 6Drawer Guidelines |
| 7Vent |
| 8Name Plate: open the drawer fully.The label is beyond the back wall of the microwave oven cavity facing up from the flat surface. |

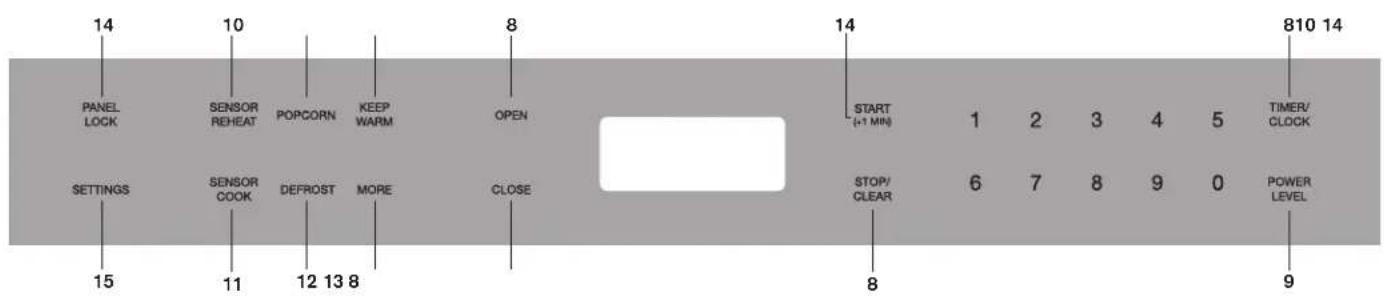

Keysheet
Numbers next to the keysheet illustration indicate pages on which there are feature descriptions and usage information.
Menu Label
| DEFROSTSENSOR COOK MORE | |||
| 1 Fresh Vegetables: Quick 6 Sweet Potatoes2 Fresh Vegetables: Longer 7 Ground Meat3 Frozen Vegetables 8 Fish/Seafood4 Frozen Entrees 9 White Rice5 Baked Potatoes 10 Brown Rice | Ground Meat2 Steaks/Chops3 Boneless Poultry4 Bone-in Poultry5 Roast6 Casserole or Soup | 1 Reheat Fresh Rolls / Muffins2 Reheat Frozen Rolls / Muffins3 Reheat Beverage4 Hot Water5 Melt Butter | 6 Melt Chocolate7 Soften Ice Cream8 Soften Cream Cheese9 Warm Syrup10 Warm Dessert Topping |
Before Operating
Before operating your new Microwave Built-in Printer make sure you read and understand this operation manual completely.
Before the Microwave Built-in Printer can be used, follow these steps:
| 1 Plug in the Microwave Built-in Printer. | ENJOY YOUR |
| MICRO- | WAVE TOUCH CLEAR AND TOUCH |
| CLOCK | will appear. |
2 Touch the STOP/CLEAR pad. will appear.
3 Set clock.
To Set the Clock
1 Touch TIMER/CLOCK pad and number 2
2 Touch number pads for correct time of day and touch TIMER/CLOCK pad again.
This is a 12 hour clock. If you attempt to enter an incorrect clock time, will appear in the display. Touch the STOP/CLEAR pad and re-enter the time.
If the electrical power supply to your Microwave Built-in Printer should be interrupted, the display will intermittently show ENJOY YOUR MICROWAVE TOUCH CLEAR AND TOUCH CLOCK after the power is reinstated. If this occurs during cooking, the program will be erased. The time of day will also be erased. Simply touch S TOP/CLEAR pad and reset the clock for the correct time of day.
Note:
The Microwave Built-in Printer can be programmed with the printer open except for START (+1 MIN).
Timer
1 Touch TIMER/CLOCK pad and number 1.
2 Enter time.
3 Touch TIMER/CLOCK pad again.
To cancel timer, touch S TOP/CLEAR.
Stop/Clear
Touch the STOP/CLEAR pad to:
- Erase if you make a mistake during programming.
-
Cancel timer.
-
Stop the Microwave Built-in Printer temporarily during timed cooking.
-
Return the time of day to the display.
- Cancel a program during cooking; touch twice for timed cooking.
Open or Close Microwave Built-in. Drawer
Always press the Open or Close key on the control panel to open or close the drawer.
Do not push or pull the drawer by hand, except in case of emergency, such as during a power failure. If necessary, push or pull slowly.
Note:

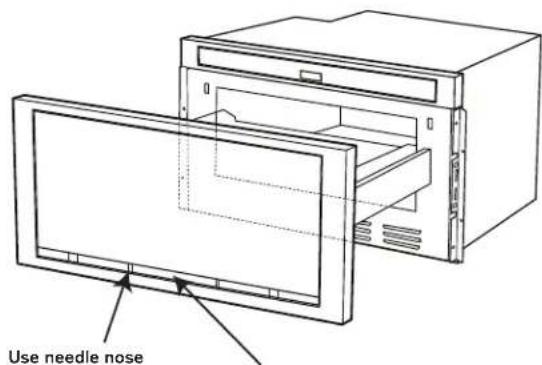

If the unit is flush-mounted with no power, open the unit by using the following procedure:
Using needle nosed pliers, grab one of the inside columns at the bottom vent of the door (careful not to scratch or damage the plastic/decoration) and pull door open. A 90 degree angled screwdriver and/or angled hex key may also be used by inserting into the middle of the bottom door vent to catch the bottom of the plastic door frame and carefully pull open (see below).
Use needle nose pliers to grab plastic vent column.
Use 90 degree angled screw driver or an angled hex key and insert through vent opening to pull open.
Microwave cooking
Time Cooking
Your Microwave Built-in Printer can be programmed for 99 minutes 99 seconds (99.99). Always enter the seconds after the minutes, even if they are both zeros.
To cook for 5 minutes at 100%
| 1 Enter cooking time 5 0 0. 5.00TCHSTART |
| ORTOUCH POWER LEVEL |
2 To cook at 100% power (High), touch START (+1 MIN) pad.
To Set Power Level
There are eleven preset power levels.
Using lower power levels increases the cooking time, which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult a microwave cookbook or recipes for specific recommendations.
To defrost for 5 minutes at 30%
| 1 | Enter defrost time | 5 | 0 | 0. | 5.08 |
2 Touch POWER LEVEL pad 8 times.
3 Touch START (+1 MIN) pad.
| Touch Power Level Pad Number of Times for Desired Power | Approxim a te Percentage of Power | Common Words for Power Levels |
| POWER LEVEL x 1 | 100% | High |
| POWER LEVEL x 2 | 90% | |
| POWER LEVEL x 3 | 80% | |
| POWER LEVEL x 4 | 70% | Medium High |
| POWER LEVEL x 5 | 60% | |
| POWER LEVEL x 6 | 50% | Medium |
| POWER LEVEL x 7 | 40% | |
| POWER LEVEL x 8 | 30% | Med Low/ Defrost |
| POWER LEVEL x 9 | 20% | |
| POWER LEVEL x 10 | 10% | Low |
| POWER LEVEL x 11 | 0% |
Sensor Settings
The sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power levels for various foods and quantities.
Using Sensor Settings:
1 After the Microwave Built-in Printer is plugged in, wait 2 minutes before using any sensor setting.
2 Be sure the exterior of the cooking container and the interior of the Microwave Built-in Printer are dry. Wipe off any moisture with a dry cloth or paper towel.
3 The sensor works with foods at normal storage temperature. For example, popcorn would be at room temperature.
4 Any sensor selection can be programmed with More or Less Time Adjustment. See page 16.
5 More or less food than the quantity listed in the charts should be cooked following the guidelines in any microwave cookbook.
6 During the first part of sensor use, the food name will appear on the display. Do not open the drawer or touch STOP/CLEAR during this part of the cycle. The measurement of vapor will be interrupted. If this occurs, an error message will appear. To continue cooking, touch the STOP/CLEAR pad and cook manually.
When the sensor detects the vapor emitted from the food, the remainder of cooking/reheating time will appear. The drawer may be opened when the remaining time appears on the display. At this time, you may stir or season food, as desired.
7 Except for Popcorn, if the sensor does not detect vapor properly when cooking other foods, will be displayed, and the microwave will turn off.
8 Check food temperature after cooking. If additional time is needed, continue to cook manually.
9 Each food has a cooking hint. Touch the Settings pad when the HELP indicator is lighted in the display.
Covering Foods:
Some foods cook best when covered. Use the cover recommended in the charts for these foods. You may refer to the hints by touching the SETTINGS pad. See page 14.
1 Casserole lid.
2 Plastic wrap: Use plastic wrap recommended for microwave cooking. Cover dish loosely; allow approximately 1/2 inch to remain uncovered to allow steam to escape. Plastic wrap should not touch food.
3 Wax paper: Cover dish completely; fold excess wrap under dish to secure. If dish is wider than paper, overlap two pieces at least one inch to cover.
Be careful when removing any covering to allow steam to escape away from you.
Popcorn / Sensor Reheat
You can pop popcorn and reheat many foods and don't need to calculate cooking time or power level.
Touch SENSOR REHEAT or POPCORN and START (+1 MIN) pad.
When the sensor detects the vapor emitted from the food, the remainder of cooking/reheating time will appear.
Note:
The Popcorn setting has 2 choices. Follow directions in the display to choose desired option.
Popcorn / Sensor Reheat Chart
| Food Amount Procedure | ||
| Popcorn | Only 1 package at a time | Use only popcorn packaged for the microwave. Try several brands to decide which you like. Do not try to pop unpopped kernels. |
| 2.85 - 3.5 oz.(Regular / Regular light) | Touch POPCORN pad once. | |
| 1.2 - 1.75 oz.(Mini / Snack) | Touch POPCORN pad twice. | |
| Sensor Reheat 4 - 36 oz. Place in dish or casserole | slightly larger than amount to be reheated. Flatten, if possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic wrap or lids with larger quantities of more dense foods such as stews. After reheating, stir well, if possible. Re-cover and allow to stand 2 to 3 minutes. Foods should be very hot. If not, continue to heat with variable power and time. | |
Sensor Cooking
1 Touch Sensor Cook pad once.
SEE LABEL SELECT FOOO NUMBER
2 See Menu Label. Select desired food by touching number pad. Ex: Touch 5 for baked potatoes.
3 Touch START (+1 MIN) pad.
Note:
- To heat or cook other foods or foods above or below the quantity allowed on the Sensor Cook Chart, cook manually.
Sensor Cook Chart
| Food Amount Procedure | ||
| 1 Fresh vegetables: Quick Broccoli | .25 - 2.0 lb. | Wash and place in casserole. Add no water if vegetables have just been washed. Cover with lid for tender vegetables. Use plastic wrap for tender-crisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes. |
| Brussels sprouts | .25 - 2.0 lb. | |
| Cabbage | .25 - 2.0 lb. | |
| Cauliflower (flowerets) | .25 - 2.0 lb. | |
| Cauliflower (whole) | 1 med. | |
| Spinach | .25 - 1.0 lb. | |
| Zucchini | .25 - 2.0 lb. | |
| Baked apples | 2 - 4 med. | |
| 2 Fresh vegetables: Longer Carrots, sliced | .25 - 1.5 lb. | Place in casserole. Add 1 - 4 tablespoons water. Cover with lid for tender vegetables. Use plastic wrap cover for tender-crisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes. |
| Corn on the cob | 2 - 4 | |
| Green beans | .25 - 1.5 lb. | |
| Winter squash: diced | .25 - 1.5 lb. | |
| halves | 1 - 2 | |
| 3 Frozen vegetables | .25 - 1.25 lb. | Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand, covered, for 3 minutes. |
| 4 Frozen entrees | 6 - 17 oz. | Use this pad for frozen convenience foods. It will give satisfactory results for most brands. You may wish to try several and choose your favorite. Remove package from outer wrapping and follow package directions for covering. After cooking, let stand, covered, for 1-3 minutes. |
| 5 Baked potatoes | 1 - 6 med. | Pierce. Place on paper-towel-lined microwave oven. After cooking, remove from microwave, wrap in aluminum foil and let stand 5 to 10 minutes. |
| 6 Sweet potatoes | 1 - 6 med. | |
| 7 Ground meat | .25 - 2.0 lb. | Use this setting to cook ground beef or turkey as patties or in a casserole to be added to other ingredients. Place patties on a microwave-safe rack and cover with wax paper. Place ground meat in a casserole and cover with wax paper or plastic wrap. When microwave stops, turn patties over or stir meat in casserole to break up large pieces. Re-cover and touch START (+1 MIN). After cooking, let stand, covered, for 2 to 3 minutes. |
| 8 Fish/seafood | .25 - 2.0 lb. Arrange in ring around shallow glass dish (roll fillet with edges underneath). Cover with vented plastic wrap. After cooking, let stand, covered for 3 minutes. | |
| 9 White rice | .5 - 2.0 cups | Place rice into a deep casserole and add double quantity of water. Cover with lid or plastic wrap. After cooking, stir, cover and let stand 3 to 5 minutes or until all liquid has been absorbed. |
| 10 Brown rice | .5 - 2.0 cups | Rice Water Size of casserole .5 cup .1 cup .1.5 quart 1 cup .2 cups .2 quart 1.5 cups .3 cups .2.5 or 3 quart 2 cups .4 cups .3 quart or larger |
Defrost
Use this feature to defrost the foods shown in the Defrost Chart below.
1 Touch DEFROSt pad.
SEE LABEL SELECT FOOD NUMBER
2 See Menu Label. Select desired food by touching the number pad. Ex: Touch 2 for steaks/chops. STEAKS CHOPS ENTER LEIGHT
3 Enter weight by touching number pads. 1.8Lb
4 Touch START (+1 MIN) pad.
The oven will stop so that the food can be checked.
5 After the first stage, open the drawer. Turn steak over and shield any warm portions. Close the drawer. Touch S TART (+1 MIN) pad.
6 After the second stage, open the drawer. Shield any warm portions. Close the drawer. Touch START (+1 MIN) pad.
7 After defrost cycle ends, cover and let stand as indicated in the chart below.
Note:
- Defrost can be programmed with More or Less Time Adjustment. See page 16.
To defrost other foods or foods above or below the weights allowed on the Defrost Chart, see Manual Defrost below. - Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue thawing. Do not cook until all ice crystals are thawed.
Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth strips of aluminum foil to cover edges and thinner sections of the food.
Defrost Chart
Food Amount Procedure
| 1 Ground meat | .5 - 2.0 lb Remove any thawed pieces after each audible signal. Let stand, covered, for 5 to 10 minutes. | |
| 2 Steaks/chops | .5 - 3.0 lb After each audible signal, rearrange and if there are warm or thawed portions, shield with small flat pieces of aluminum foil. Remove any meat or fish that is almost defrosted. Let stand, covered, for 10 to 20 minutes. | |
| 3 Boneless poultry | .5 - 2.0 lb After each audible signal, if there are warm or thawed portions, rearrange or remove. Let stand, covered, for 10 to 20 minutes. | |
| 4 Bone-in poultry | .5 - 3.0 lb After each audible signal, rearrange pieces or remove portions should they become warm or thawed. Let stand, covered, for 10 to 20 minutes. | |
| 5 Roast | 2.0 -4.0 lb | Start defrosting with fat side down. After each stage, turn roast over and shield the warm portions with aluminum foil. Let stand, covered, for 30 to 60 minutes. |
| 6 Casserole Soup | 2 - 6 cups | After each audible signal, break apart and remove any defrosted part. At end, stir well and let stand, covered, for 5 to 10 minutes. |
Manual Defrost
If the food that you wish to defrost is not listed on the Defrost Chart or is above or below the limits in the Amount column on the Defrost Chart, defrost manually.
Defrost any frozen food, either raw or previously cooked, by using Power Level at 30% . Follow the exact 3-step procedure found under To Set Power Level on page 9. Estimate defrosting time and touch Power Level pad eight times for 30% power.
For either raw or previously cooked frozen food the rule of thumb is approximately 4 minutes per pound. For
example, defrost 4 minutes for 1 pound of frozen spaghetti sauce.
Always stop the oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1 minute increments on Power Level 30% until totally defrosted.
When using plastic containers from the freezer, defrost only long enough to remove from the plastic in order to place in a microwave-safe dish.
More
More automatically computes the correct cook time and microwave power level for foods shown in the chart below.
1 Touch MORE pad once.
SEELABELSELECTFOODNUMBER
2 See Menu Label. Select desired food by touching number pad. Ex: Touch for frozen rolls or muffins.
3 Touch the number pad to select quantity. Ex: Touch 2 for 2 rolls or muffins.
4 Touch S TART (+1 MIN) pad.
Note:
- More can be programmed with More or Less Time Adjustment. See page 16.
To cook other foods or foods above or below the quantity allowed on the More Chart, use manual operation.
More Chart
| Food Amount Procedure | ||
| 1 Reheat Fresh Rolls/Muffins | 1 - 8 pcs Use this pad to warm rolls, muffins, biscuits, bagels etc. Large items should be considered as 2 or 3 regular size. Arrange on plate; cover with paper towel. For refrigerated rolls or muffins, it may be necessary to double the entered amount to ensure the proper serving temperature. For example, enter quantity of 2 for 1 refrigerated muffin. | |
| 2 Reheat Frozen Rolls/Muffins | 1 - 8 pcs Use this pad to warm frozen rolls, muffins, biscuits, bagels etc. Large items should be considered as 2 or 3 regular size. Arrange on plate; cover with paper towel. | |
| 3 Reheat Beverage | .5 - 2.0 cups This setting for good for restoring cooled beverage to a better drinking tempera-ture. Touch number 1 pad for a 0.5 cup increase per touch. Stir after heating. | |
| 4 Hot Water | 1 - 6 cups Use this setting for heating COLD TAP WATER to a temperature somewhat below the boiling point to make instant coffee or tea. Touch number 1 pad for 1 cup increase per touch. Stir liquid briskly before and after heating to avoid "eruption". | |
| 5 Melt Butter | 2 tbsp .5 cup Use a Pyrex measuring cup. Cover with plastic wrap. Touch 1 once for 2 tbsp. Use a Pyrex measuring cup. Cover with plastic wrap. Touch 1 twice for .5 cup. | |
| 6 Melt Chocolate | 1 cup chips Use a Pyrex measuring cup. Cover with plastic wrap. Touch 1 once for 1 cup chips. 1 square Use a Pyrex measuring cup. Cover with plastic wrap. Touch 1 twice for 1 square. | |
| 7 Soft Ice Cream | 1 pint 1.5 quart Do not cover. Touch 1 once for 1 pint. 1.5 quart Do not cover. Touch 1 twice for 1.5 quart. | |
| 8 Soft Cream Cheese | 3 oz. 8 oz. Do not cover. Touch 1 once for 3 oz. 8 oz. Do not cover. Touch 1 twice for 8 oz. | |
| 9 Warm Syrup | 1/4 cup Use a Pyrex measuring cup. Do not cover. Touch 1 once for 1/4 cup. 1/2 cup Use a Pyrex measuring cup. Do not cover. Touch 1 twice for 1/2 cup. | |
| 10 Warm Dessert Topping | 1/4 cup Use a Pyrex measuring cup. Do not cover. Touch 1 once for 1/4 cup. 1/2 cup Use a Pyrex measuring cup. Do not cover. Touch 1 twice for 1/2 cup. | |
Other Features
Keep Warm
Keep Warm allows you to keep food warm up to 30 minutes.
Direct use
| 30 MINUTES |
| 2 Enter desired time by touching the number pads. To enter 30 minutes, touch 30.00 TOUCH START |
3 Touch START (+1 MIN) pad.
The oven will start. The display will show 30.00 and count down. KEEP UARN will be displayed intermittently during the count down.
With Manual Cooking
1 Enter desired cooking time and power level.
2 Touch KEEP WARM pad.
3 Enter desired warming time up to 30 minutes.
4 Touch START (+1 MIN) pad.
The operation will start. When the cooking time is complete, a long tone will sound and Keep Warm will start. The display will count down. KEEP UARNI will be displayed intermittently during the count down.
Note:
- If you attempt to enter more than 30 minutes for Keep Warm, an error message will appear in the display.
- Keep Warm cannot be programmed with Popcorn, Sensor Reheat, Sensor Cook, Defrost or More.
Multiple Sequence Cooking
Your Microwave Built-in Printer can be programmed for up to 4 automatic cooking sequences, switching from one power level setting to another automatically.
Sometimes cooking directions tell you to start on one power level and then change to a different power level. Your Microwave Built-in Printer can do this automatically.
1 First enter cooking time. Then touch PO WER LEVEL pad once for 100% cooking or repeat touching POWER LEVEL pad for a lower power level.
2 Enter second cooking time. Repeat touching PO WER LEVEL pad for desired level. This procedure can be repeated up to 4 times. TOUCH START
3 Touch START (+1 MIN) pad.
Note:
If Power Level pad is touched onc5H will be displayed.
If 100% is selected as the final sequence, it is not necessary to touch the Power Level pad.
If you wish to know power level during cooking, simply touch the Power Level pad. As long as the Power Level pad is pressed, the power level will be displayed.
- Keep Warm can be programmed even if 4 cooking sequences have been set.
Help
Each setting of Sensor Reheat, Sensor Cook, Popcorn, Keep Warm and Defrost has a cooking hint. Only More settings for Fresh rolls/muffins, Frozen rolls/muffins, Beverage reheat and Beverage hot water have a cooking hint. If you wish to check, touch SETTINGS whenever HELP is lighted in the Interactive Display for these and other manual operation hints.
+1 min
+1 MIN will cook for a minute at 100% by simply touching the +1 MIN pad. Extend cooking time in multiples of 1 minute by repeatedly touching the +1 MIN pad during manual cooking.
Note:
- To use +1 MIN, touch pad within 3 minutes after cooking, closing the drawer or touching the STOP/CLEAR pad.
+1dHnot be used with Sensor settings, More or Defrost.
Panel Lock
The Panel Lock prevents unwanted drawer operation, such as by small children. The Microwave Built-in Drawers can be set so that the control panel and the automatic door mechanism are deactivated or locked.
To Lock
Touch PANEL LOCK pad and hold for 3 seconds. The display shows LOCK ON
To Unlock
Touch PANEL LOCK pad and hold for 3 seconds. The display shows LOCKO F
The Panel Lock is canceled when the electrical power supply to your oven is interrupted. Set the Panel Lock again when power to the oven is restored.
Settings
If the electrical power supply to the Microwave Built-in Printer should be interrupted, the display will intermittently show ENJOY YOUR MICRO- WAVE TOUCH CLEAR AND TOUCH CLOCK after the power is reinstated. If this occurs, the current Settings option will be erased. Simply touch STOP/CLEAR pad and reset.
Audible Signal Elimination
At the end of timed cook, beeps will sound. The audible signal can be turned off if quiet operation is preferred.
To Turn Sound Off
1 Touch SETTINGS pad. TOUCH AGRI
2 Touch SETTINGS pad again. SOUND OFF P TOUCH START
3 Touch START (+1 MIN) pad. The display shows sound OFF
To Restore Sound
1 Touch SETTINGS pad. TOUCH RGIN
2 Touch SETTINGS pad again. SOUND ON P TOUCH START
3 Touch START (+1 MIN) pad. The display shows
End of Cooking Reminder
At end of timed cooking, the microwave will signal every 10 seconds for the first minute; then every 3 minutes until STOP/CLEAR pad is touched, up to one hour.
To Turn Reminder Off
1 Touch SETTINGS pad three times. The display shows REFIND SIGNAL OFF? TOUCH START
2 Touch START (+1 MIN) pad. The display shows REINO SIGNAL OFF
To Turn Reminder Signal Back On
1 Touch SETTINGS pad three times. The display shows REFIND SIGNAL ON? TOUCH START
2 Touch START (+1 MIN) pad. The display shows REINNO SIGNAL ON
Auto start
To program the Microwave Built-in Printer to begin cooking automatically at a designated time of day, follow this procedure.
CAUTION
To maintain food safety, do not leave food in the oven for more than one hour before or after cooking.
1 Touch SETTINGS pad 4 times. The display shows RUTO START TOUCH START
2 Touch START (+1 MIN) pad.
ENTER START TIME
3 Enter start time. 4:30 TOUCH CLOCK
4 Touch TIMER/CLOCK pad. ENTER COOKING TIME
5 Touch the number pads to enter cooking time. 20.00
TOUCH START OR TOUCH POWER LEVEL
Touch POWER LEVEL pad repeatedly until the desired power level is reached. TOUCH START
6 Touch START (+1 MIN) pad.
Demonstration Mode
To select Demo Mode
1 Touch SETTINGS pad five times. The display shows DEMO ONHOLD START 3SEC
2 Hold START (+1 MIN) pad for 3 seconds. The display shows DENDON
To cancel Demo Mode
1 Touch SETTINGS pad five times. The display shows
2 Touch START (+1 MIN) pad. The display shows
Note:
- Microwave Built-in Printer doesn't heat in Demo Mode.
- Display counts down quickly.
Sleep Mode
The backlight of the display will automatically turn off after 15 minutes if the unit has not been in operation. The information in the display will remain, but the display will not remain lighted. The display will not go into the Sleep Mode during cooking or while the Demo Mode is set.
If the display is "sleeping", simply touch the control panel or open/close the door to turn the back light on. The Sleep Mode feature can be deactivated, if desired.
To Turn Sleep Mode Off
1 Touch SETTINGS pad 6 times. The display shows SLEEP MODE OFF
2 Touch START (+1 MIN) pad. The display shows SLEEP MODE OFF
To Turn Sleep Mode Back On
1 Touch SETTINGS pad 6 times. The display shows
2 Touch START (+1 MIN) pad. The display shows SLEEP MODE ON
More or Less Time Adjustment
To increase cooking time for any of the Sensor Reheat, Sensor Cook, Defrost, Popcorn or More settings, touch the POWER LEVEL pad once after touching your selection. The display will show NONE.
To decrease cooking time, touch the POWER LEVEL pad twice after touching your selection. The display will show LESS.
Cleaning and Care
Stainless Steel Surface
Always wipe or rub in the direction of the grain. The exterior should be wiped often with a soft damp cloth and polished with a soft dry cloth to maintain its beauty. There are also a variety of products designed especially for cleaning and shining the stainless exterior of the oven. We recommend that the cleaner be applied to a soft cloth and then carefully used on the stainless exterior rather than sprayed directly on to it. Follow package directions carefully.
Front Side of the Printer
Wipe the window on both sides with a soft damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a soft damp cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the drawer surface.
Touch Control Panel
If desired, the touch pads may be deactivated before cleaning. See the Panel Lock information on page 14 of this manual. Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close drawer and follow directions on page 14 for turning Panel Lock off. Touch STOP/CLEAR.
Interior
Before cleaning the Microwave Built-in Printer, touch and hold the Panel Lock button for 3 seconds to lock the control pad and the automatic door mechanism. The drawer can be locked in either the open or closed position. The display will show LOCK ON. This will prevent the drawer from accidentally opening or closing during cleaning. After cleaning, touch and hold the Panel Lock button for 3 seconds to turn the lock off. The display will show LOCK OFF.
Cleaning is easy because no heat is generated to the interior surfaces; therefore, there is no baking and setting of spills or spattering. To clean the interior surfaces, including drawer sealing surfaces, wipe with a soft damp cloth. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use mild soap; wipe clean with a soft damp cloth. Do not use any chemical oven cleaners.
Odor Removal
Occasionally, a cooking odor may remain in the drawer. To remove odor, combine 1 cup water, grated peel and juice of one lemon and several whole cloves in a 2-cup glass microwave-safe measuring cup. Boil for several minutes using 100% power. Leave in the drawer until water cools. Wipe interior with a soft cloth.
Microwave Built-in Printer Guides
Remove the food crumbs from the drawer guides. Wipe with a soft dry cloth in order to keep the drawer opening and closing smoothly.
Waveguide Cover
ATTENTION The waveguide cover, located on the inside top of the drawer area, is made from mica, so it requires special care. Keep the waveguide cover clean to assure good microwave performance. Carefully wipe with a soft damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch fire. Do not remove the waveguide cover.
Before You Call Gaggenau Customer Support for Service
Please check the following before calling for service. It may save you time and expense.
| Problem Possible cause Solution | ||
| 1 Part or all of Microwave Built-in Printer does not operate. | Power cord of Microwave Built-in Printer is not completely connected to the electrical outlet.Power outage.Fuse/circuit breaker doesn't work.Microwave Built-in Printer is in Demo Mode. | Make sure the power cord is tightly con- nected to the outlet.Check house lights to be sure. Call your local electric company for service.Replace the fuse or reset the circuit breaker.See page 15 for how to cancel Demo Mode. |
| 2 Food in Microwave Built-in Printer is not heated. | No power to the appliance.Dreamer controls improperly set.Dreamer is in Demo Mode. | See Solution for Problem 1.Check if the controls have been properly set.See page 15. |
| 3 Microwave Built-in Printer light does not work. | Light bulb is loose or burned out. | Call Gaggenau Customer Support for service. Always have the complete model number and FD number available prior to calling. |
| 4 Touch controls will not operate. | Panel Lock is on. | See page 14 to unlock. |
| 5 Display flashes. | Power failure. | Touch STOP/CLEAR pad and reset the clock. If the microwave oven was in use, you must reset the cooking function. |
| 6 Steam from the vent | During microwaving, steam may come from the right side of the vent. | |
Table des matieres
www.P65Warnings.ca.gov
ImportanteS conSIGneS De SEcurIté LIRE TOUTES LES INSTRUCTIONS AVANT L'EMPLOI
PROBLÉME CAUSE POSSIBLE Solution
Interferencia de radio o television 38
Interferencia de radio o television
| DEFROSTSENSOR | COOK MORE | |
| 1 Fresh Vegetables: Quick 6 Sweet Potatoes | 1 Ground Meat | 1 Reheat Fresh Rolls / Muffins 6 Melt Chocolate |
| 2 Fresh Vegetables: Longer 7 Ground Meat | 2 Steaks/Chops | 2 Reheat Frozen Rolls / Muffins 7 Soften Ice Cream |
| 3 Frozen Vegetables 8 Fish/Seafood | 3 Boneless Poultry | 3 Reheat Beverage 8 Soften Cream Cheese |
| 4 Frozen Entrees 9 White Rice | 4 Bone-in Poultry | 4 Hot Water 9 Warm Syrup |
| 5 Baked Potatoes 10 Brown Rice | 5 Roast | 5 Melt Butter 1 0 Warm Dessert Topping |
| 6 Casserole or Soup |
Antes de operar
1901 Main Street, Suite 600
Irvine, CA 92614
+18774GAGGENAU
USA
www.gaggenau-usa.com
