603 - Air purifier BLUEAIR - Free user manual and instructions

Product type	Air purifier
Brand	Blueair
Model	603
Height	53 cm
Width	43 cm
Depth	20 cm
Weight	9 kg
Power supply	220-240 V, 50/60 Hz
Power consumption	90 W (max)
Noise level	30-55 dB depending on speed
Filtration technology	HEPASilent™ + negative ionization
Number of filters	3 (2 side, 1 top)
Standard filter type	Polypropylene particle filter
Filter option	Smokestop™ (activated carbon)
Filter replacement frequency	Every 6 months
Recommended area	Up to 50 m²
Number of speeds	Variable (rotary knob)
Maintenance	Internal dusting, external wiping with damp cloth
Safety	Grounded plug, do not immerse, keep out of reach of children
Limited warranty	Possible extension by registration
Recyclability	Device and filters recyclable
Included accessories	Power cord, manual, 3 HEPASilent™ filters

Frequently Asked Questions - 603 BLUEAIR

How to replace the filters of the Blueair 603?

Unplug the device, remove the top cover, then remove the three filters (two side and one on top). Clean the interior with a vacuum, then insert the new filters ensuring to respect the out/up orientation indicated.

What is the filter replacement frequency?

Blueair recommends replacing the filters every 6 months for optimal performance.

Can I use non-Blueair filters?

No, it is imperative to use only original Blueair filters to ensure proper operation and preserve the warranty.

Is the air purifier noisy?

Thanks to HEPASilent™ technology, the device is very quiet, with a noise level between 30 and 55 dB depending on the selected speed.

Where to place the Blueair 603 purifier?

Place it in an open area, at least 10 cm from walls and objects. Avoid heat sources, humidity, and soft surfaces. For maximum efficiency, close doors and windows.

Does the Blueair 603 consume a lot of electricity?

No, its consumption is very low, about 90 W at maximum speed, comparable to a standard light bulb.

How to clean the device?

Unplug it, vacuum the interior with a soft brush, and wipe the exterior with a soft, damp cloth. Never use solvents or corrosive products.

What to do in case of breakdown or malfunction?

Do not attempt to repair yourself. Contact your dealer or Blueair customer service for a warranty intervention.

Is the Smokestop filter different from the standard filter?

Yes, the Smokestop™ kit contains enhanced activated carbon that removes gases and odors (smoke, VOCs), unlike the standard filter which only captures particles.

How to extend the warranty of the Blueair 603?

Fill out and return the warranty card provided in the packaging to Blueair to benefit from an extended limited warranty.

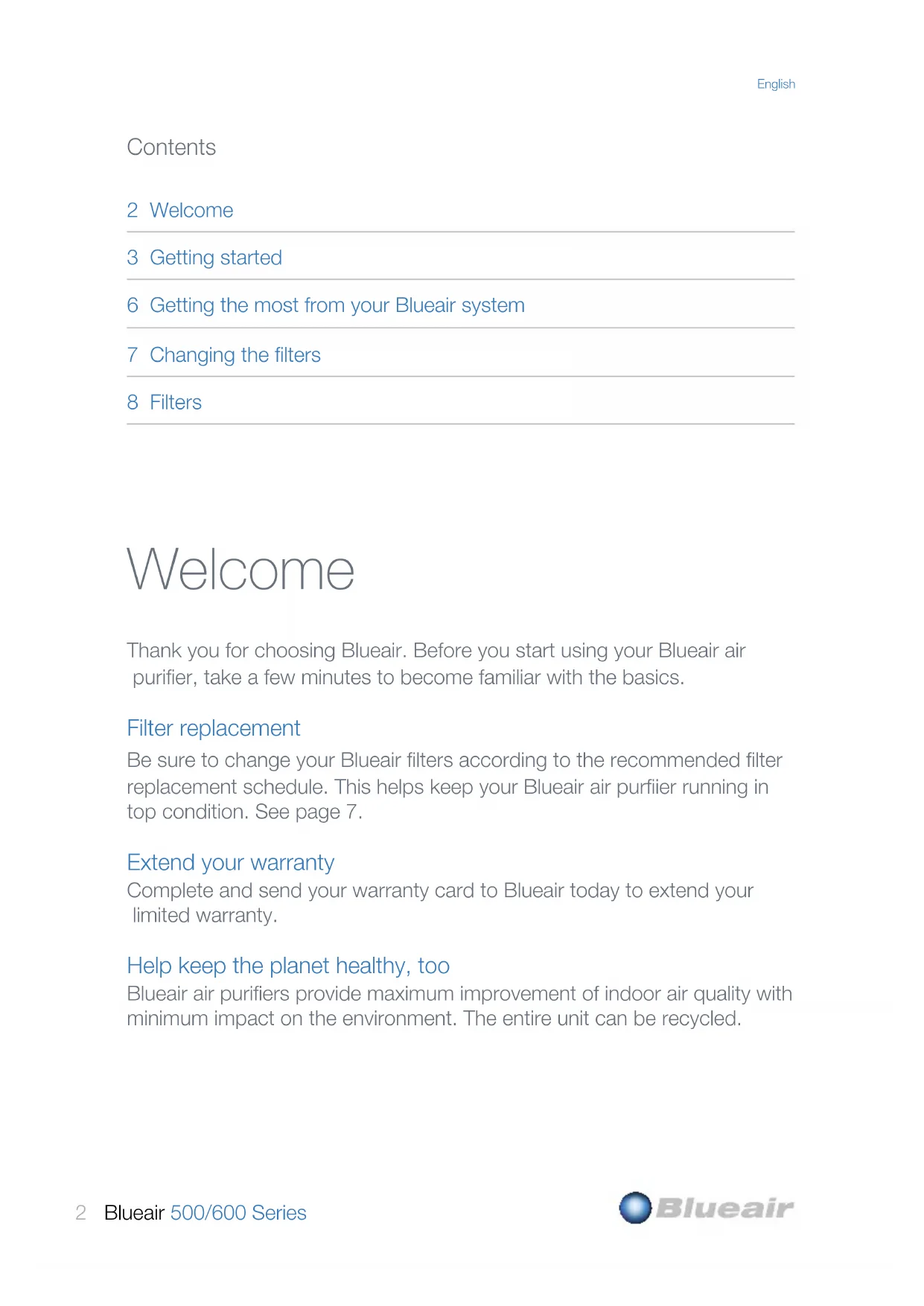

USER MANUAL 603 BLUEAIR

2 Welcome
3 Getting started
6 Getting the most from your Blueair system
7 Changing the filters
8 Filters

Welcome

Thank you for choosing Blueair. Before you start using your Blueair air purifier, take a few minutes to become familiar with the basics.

Filter replacement

Be sure to change your Blueair filters according to the recommended filter replacement schedule. This helps keep your Blueair air purfiier running in top condition. See page 7.

Extend your warranty

Complete and send your warranty card to Blueair today to extend your limited warranty.

Help keep the planet healthy, too

Blueair air purifiers provide maximum improvement of indoor air quality with minimum impact on the environment. The entire unit can be recycled.

Getting started

General safety instructions

The Blueair 500/600 Series air purifier is an electrical appliance. Please read the safety instructions before use and take the necessary precautions to reduce the risk of fire, electric shock or injury. The Blueair Limited Warranty applies only if the unit is used according to these instructions.

• Use the grounded power cable provided with your Blueair unit. The plug fits into a grounded outlet. Do not alter the plug in any way.
• Use the cable provided to plug the Blueair unit directly into an appropriate electrical outlet (please refer to the voltage label on your unit). The cable is packaged beneath the unit.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified persons in order to avoid a hazard.

Placement

Place the unit in a location that allows air to circulate freely in, out and around the unit. The minimum acceptable distance from another object is 4" or 10 cm. Use only genuine Blueair filters. Do not place the unit:

Directly on or against soft furnishings, such as bedding or curtains.

Near sources of heat, such as radiators, fireplaces or ovens.

Near wet areas, such as bathrooms or laundry rooms, where it may come into contact with water.

Outdoors.

Settings\*

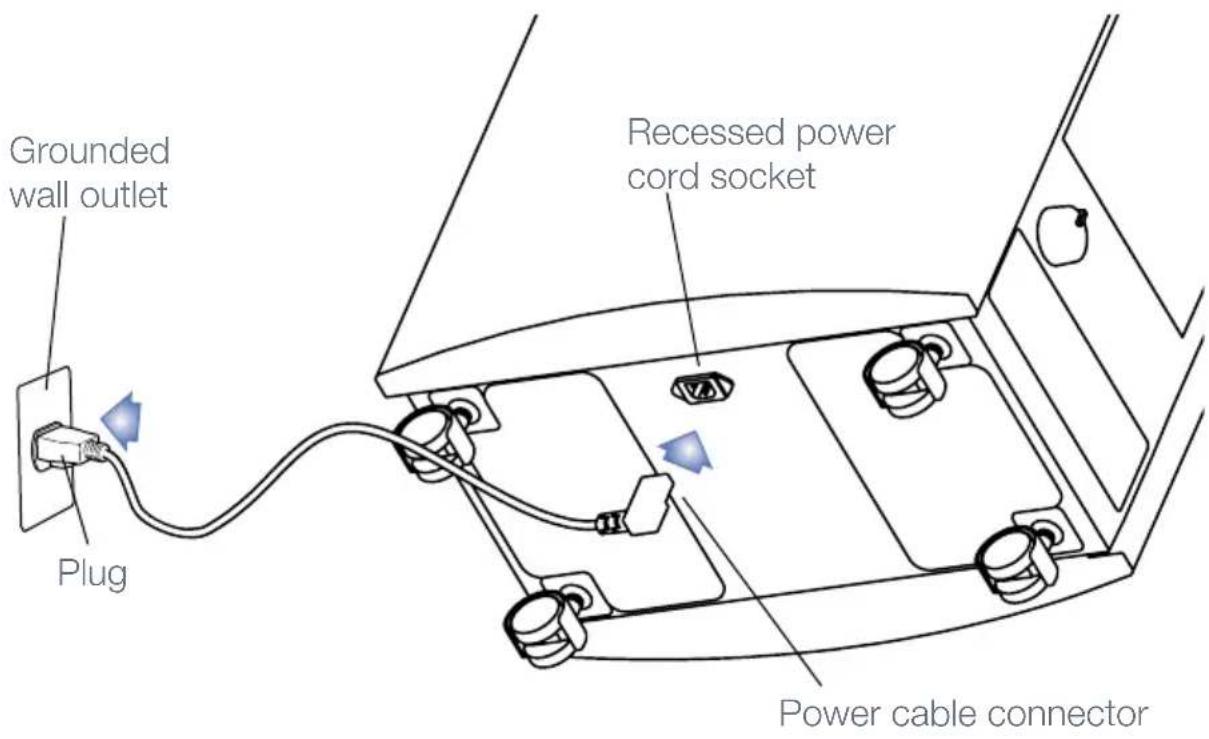

Plug the power cable firmly and completely into the recessed power cord socket located at the bottom of the unit and plug the other end into a grounded wall outlet or power strip. Turn on your Blueair unit. The blue light-emitting diode indicates that the unit is working. Set the control knob to maximum speed, which is recommended for fast initial cleaning, daytime use, or very polluted air. After a few minutes, adjust the control to the desired speed. Minimum speed is generally recommended for nighttime use.

Care and maintenance

Blueair air purifiers feature high quality design, materials and workmanship. To keep your unit in top condition, we recommend routine cleaning. The appliance must be disconnected from the supply mains before cleaning or maintenance.

• Vacuum the air intake grille from the inside when you remove the filters to replace them.

• Vacuum the small inlets with a soft brush attachment.

- Wipe the exterior of the unit with a soft, clean, damp cloth.

- Never clean with gasoline, chemical solvents or corrosive material also as these agents may damage the surface.

- Do not allow foreign objects to enter the ventilation or exhaust openings. This may cause electric shock or damage the unit.

- Do not try to repair or adjust any of the electrical or mechanical functions on your Blueair unit yourself. Contact your local dealer or Blueair for warranty information.

3D rendering of a white industrial machine with internal components and ventilation ducts (no text or symbols visible)

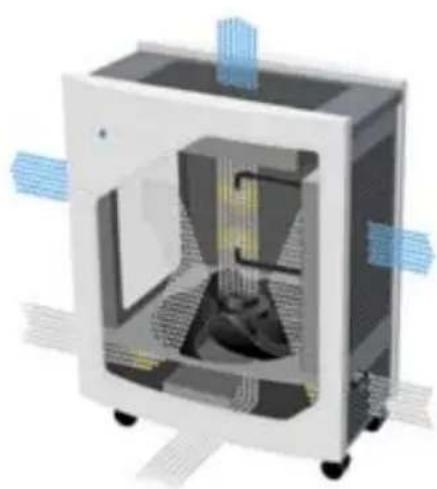

How it works

Air passes through an ion chamber where airborne particles are charged with negative ions. Charged particles are drawn to the HEPASilent™ filter surface. Purified air, which is virtually contaminant-free, is re-circulated into the room.

Getting the most from your Blueair system

The Blueair system is easy to use. Make sure your unit is the right size for your room, and change the filters according to recommended filter replacement schedule. Remember that, just as air conditioners and heaters have limits to the volume of air they can cool or heat, every air purification system has limits to the volume of air it can clean. Follow these common-sense guidelines.

Close your windows

You wouldn't throw open your windows on a hot summer day and expect your air conditioner to work efficiently, because you can feel the hot air coming in and the cool air going out. Even though you can't see the contaminated air coming in and the clean air going out, the same logic applies to your air purifier.

Close your doors, too

Just as you might seal off part of your house on a cold winter night to keep your heater working more efficiently, seal off the room in which your system is working for best results. This is especially important for people using a Blueair system to ease nighttime asthma or allergy attacks.

Run your system 24 hours per day

For best results, run your Blueair unit 24 hours a day, 7 days a week. Round-the-clock operation ensures that a continuous supply of clean, filtered air constantly circulates throughout the room. Blueair systems are designed for phenomenally low power usage. In fact, it costs about the same to power a Blueair air purifier as it does to power a single light bulb, depending on the unit and the operating speed.

Changing the filters

Step 1

Unplug the unit and lift the lid from the top of the unit.

Illustration of a white office cabinet with a blue upward arrow on top (no text or symbols)

Step 2

Remove the filter on top.

Illustration of a white refrigerator with a blue arrow pointing upward (no text or symbols)

Step 3

Remove the filters on each side. Vacuum the grille from the inside.

Illustration of a refrigerator with two blue upward arrows above the top panel (no text or symbols)

Step 4

Guide the first and second replacement filters into the side slots. Ensure that the side with the words out/up is turned toward the outer wall of the unit.

Illustration of a white refrigerator with two blue arrows pointing downward (no text or symbols)

Step 5

Place the third filter on top of the unit and ensure that the side with the words out/up is facing upwards. Make sure that the carbon side is always facing out.

Illustration of a white refrigerator with a blue arrow pointing to the top panel (no text or symbols)

Step 6

Snap the lid back into place.

Illustration of a white filing cabinet with a blue arrow pointing to the top panel (no text or symbols)

Filters

Patented HEPASilent™ technology makes the Blueair 500/600 Series incredibly quiet. The unit comes with a complete set of three HEPASilent™ filters already installed.

Particle Filter Kit. Includes three particle filters that remove dust, pollen, bacteria, pet dander, mold spores and other airborne particles. The particle filter is made of polypropylene, which help mechanically filter out airborne particles. To maximize filter effectiveness, particles are negatively charged by the Blueair unit before reaching the filters.

Smokestop™ Filter Kit. Includes three filters with enhanced active carbon to remove gaseous pollutants such as cigarette and cigar smoke or other VOCs (volatile organic compounds, including household paints and other chemicals). You may notice a slight odor from the enhanced active carbon when the filter is first used; this will quickly dissipate.

For optimal performance, Blueair recommends that you replace filters every six (6) months.

We offer a convenient Filter Subscription Program in some countries. Contact your local dealer or Blueair to find out whether the program is available to you.

IMPORTANT! Use only genuine Blueair filters to ensure proper function of your unit and to qualify for full warranty coverage.

Customer's record

The model number and serial number of this product can be found on the bottom of the unit. Please note them in the space provided below and keep for future reference.

Model number Dealer's name

Serial number Dealer's address

Date of purchase Telephone number

Contenido

9 Bienvenida

3D rendering of a white industrial machine with internal components and ventilation ducts (no text or symbols visible)

Funcionamiento

Illustration of a white filing cabinet with a blue upward arrow indicating top view (no text or symbols)

Paso 2

Illustration of a white refrigerator with a blue arrow pointing upward (no text or symbols)

Paso 3

Illustration of a white rectangular machine with two blue upward arrows above it, no text or symbols present.

Paso 4

Simple line drawing of a refrigerator with two blue arrows pointing to top compartments (no text or symbols)

Paso 5

Simple line drawing of a refrigerator with a blue arrow pointing to the top panel (no text or symbols)

Paso 6

Illustration of a white open box with a lid and wheels, no text or symbols present

Filtros

3D rendering of a white industrial machine with internal components and ventilation ducts (no visible text or symbols)

Fonctionnement

Illustration of a white filing cabinet with a blue upward arrow icon above it (no text or symbols)

Étape 2

Illustration of a white rectangular box with a blue arrow pointing upward, no text or symbols present.

Étape 3

Illustration of a rectangular machine with two blue upward arrows above it, no text or symbols present.

Étape 4

Illustration of a white rectangular electronic device with two blue indicator lights above it, no text or symbols present.

Étape 5

Simple line drawing of a refrigerator with a blue arrow pointing to the top panel (no text or symbols)

Étape 6

Illustration of a white rectangular box with a lid and wheels, no text or symbols present.

Filtres

Blueair believes in cleaner indoor air for everyone. Removing air impurities down to the tiniest particle requires a deep commitment to continuous innovation and a greener global environment. Our fresh air solutions are not only inventive, but extremely effective, energy efficient and ecofriendly. At Blueair we believe that clean air is a human right.

Nuestra filosofía

17 N. State, Suite 1830, Chicago, IL 60602 Phone: (888) blueair (1-888-258-3247), Fax: [phone] [e-mail] www.blueair.com

Blueair AB

Danderydsgatan 11, SE-114 26 Stockholm, Sweden Tel: [phone], Fax: [phone] [e-mail] www.blueair.com

Blueair
