Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Device

• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not suck up liquids!
• Do not suck up hot ashes or pointed or sharp objects!

• Do not use the device in damp rooms!

• Never use without the filter. Check that the filter is inserted correctly!

• Hair, clothing and body parts away from the vacuum nozzle during use!
• Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.!

Overview of the Components

1 Air slide
2 Handle
3 Suction hose
4 Cover lock (dust container)
5 On / off switch
6 Carrying handle
7 Dust collector release button
8 Cable-winding button
9 Suction power control
10 Ventilation grill lock (outlet filter)
11 Positioning aid
12 Dust container
13 Dust collector base plate
14 Hose connection
15 Connection head of the vacuum hose
16 Carpet / hard floor selector
17 Floor nozzle (with hook (not shown))
18 Telescopic suction tube
19 Parquet brush
20 Combined brush / crevice nozzle

Start-up

• Insert the connecting head of the suction hose into the hose connection of the appliance. It must lock mechanically.
• To disconnect the hose again, press the button on the connecting head.
• Insert the vacuum tube into the handle if required.
• You can use the sliding switch on the telescopic suction tube to adjust the length individually. (Page 4, Fig. A)
• Then assemble the floor nozzle and / or the accessories.

Nozzle Attachment

Floor nozzle (17)

You can clean smooth surfaces and carpets with the floor nozzle.

Set the selector (16) according to condition of the floor:

For durable hard floors like laminate, tiles, PVC, etc.

For carpet floors, rugs, etc. with high or low pile

Parquet brush (19)

For gentle cleaning of sensitive hard floors like parquet, laminate, tiles, etc.

Combined brush / crevice nozzle (20)

For vacuuming upholstery, curtains and in corners and crevices etc.

NOTE: "2-in-1" nozzle:

When this is folded together it can be used as a groove nozzle. If you would like to use the brush nozzle, pull the brush section in the direction of the arrow until it locks in place.

To detach the nozzle attachments from the suction pipe, pull them off by turning them slightly.

Using the Appliance

1. Unwind the length of cable you require.

CAUTION:

• Pull out the cable up to the maximum length indicated with the yellow mark.
• Never pull the cable out up to the red mark as the cable winding can be damaged.

i NOTE:

If the red mark is visible, pull in the cable with the help of the cable winding button back to the yellow mark.

1. Insert the mains plug into a correctly installed power socket.
2. Turn the device on by the on / off switch by pressing down the button.
3. Set the "carpet / hard floor" selector, depending on the floor covering.
4. Set the suction power with the suction power controller.
5. Vacuum at a steady speed. There is no need to exert pressure.

i NOTE:

Pay attention to the range that can be covered with the cable length!

Air Slide (1)

Open the air slide on the hose handle in order to regulate the airflow or to clear any particles sticking to the nozzle.

Switching off and Winding up the Mains Lead

1. Turn the vacuum cleaner off by the on / off switch and remove the plug from the socket.
2. Hold the cable to avoid wrapping.
3. Press the cable winding button and guide the cable.

Maintenance

Emptying the dust collector

Empty the dust collector once the collected dirt reaches the MAX marking.

1. Disconnect the mains plug from the wall socket.
2. Press the button (7) to release the dust collector. Remove the dust collector.
3. Empty the dust collector over a dustbin. In order to do so, press the button on the dust collector to open the base plate. (Page 4, Fig. B)
4. Then close the base plate again.
5. Attach the dust collector to the appliance. First position it at the bottom of the appliance and then secure it with the hook on top.
6. Check that the position of the dust collector is secure by briefly lifting the appliance at its carrying handle.

The Filter System

Your appliance features 4 filters. The common dust bag system has been replaced by a transparent dust collector. The higher flow speed of the collector allows for heavy dirt and smallest floating particles to be separated from the "sucked-in air".

It is thus not necessary to buy dust bags.

The filters must be cleaned periodically.

The filter unit (Page 4, Fig. C to H)

The filter unit is composed of:

• Nylon filter
• Filter fleece
• Central filter
• Pre-filter
• Fastening disk

CAUTION:

• Never wash the components in a washing machine or a dishwasher!
• Do not use a hairdryer for drying.
• Operate the appliance again only when all components are completely dry and have been installed correctly.

Proceed as follows to clean the filter unit:

1. Empty the dust container as described above. (Steps 1-3)
2. Disassembly of the filter unit

2.1. Turn the filter unit in the direction. (Fig. C)

2.2. Pull the filter unit from the dust container. (Fig. D)

2.3. Turn the fastening disk and pull it off. (Fig. E)

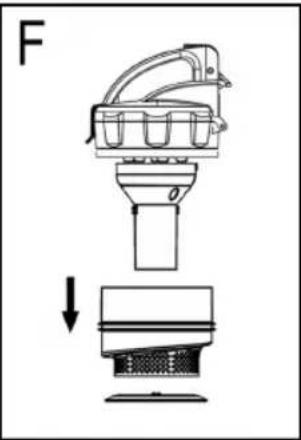

2.4. Pull the pre-filter from the central filter. (Fig. F)

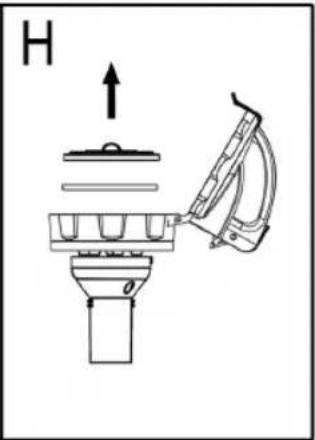

2.5. Open the cover of the filter unit. (Fig. G)

2.6. Remove the nylon filter and the filter fleece. (Fig. H)

1. Clean all parts of the filter unit and the dust container under running water. You may use a soft brush.
2. Allow all parts to dry completely in air.
3. Assembly of the filter unit

5.1. Insert the filter fleece and then the nylon filter into the cover.

5.2. Close the cover. It must lock mechanically.

5.3. Set the pre-filter to the central filter.

i NOTE:

The pre-filter has recesses of different sizes, which match the tabs on the central filter.

5.4. Set the fastening disk onto the pre-filter and tighten it by turning.
5.5. Replace the filter unit in the dust container: Set the guide tab on the filter unit to the symbol. Tighten the filter unit by turning it in the direction.

Outlet filter

The appliance is also equipped with an outlet filter. It is located on the back of the appliance.

1. Push the lock (10) down and remove the ventilation grill.
2. Remove the filter insert and clean it as described above.
3. Place the completely dry filter back into the ventilation grille.
4. Put the ventilation grille back on the appliance. Observe the guide lugs. The ventilation grid must engage audibly.

Cleaning

WARNING:

- Before cleaning remove the mains lead from the socket.

WARNING:

- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Clean the housing with a soft, dry cloth without additives.

Storage

• Let the device cool down completely.
  • Wind the cable completely.
• Please insert the hook of the floor nozzle into the parking assistant on the rear of the device.

Troubleshooting

• The device does not work.
Remedy: Check the connection to the mains. Check the position of the switch.

• The device does not suck up anything.

Possible Cause: The dust collector is full. Remedy: Empty the dust collector.

or Possible Cause: The filters are dirty. Remedy: Clean the components.

or Possible Cause: There is a foreign body in the suction tube Remedy: Check the accessories for foreign bodies.

Technical Data

Model: BS 1302
Power supply: 220 - 240 V\~, 50 / 60 Hz
Protection class:....II
Net weight: 5.30 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Technical Data for vacuum cleaners COMMISSION DELEGATED REGULATION (EU)

Nr. 665/2013

Trade mark Clatronic
Model BS 1302

Use as universal vacuum cleaner with floor nozzle

Energy efficiency class1)		A
Energy consumption
Annual energy consumption2)	kWh/year	28.0
Cleaning performance class
Carpet cleaning performance class		E
Hard floor cleaning performance class		B
Dust re-emission class G
Sound power level	dB(A)re1pW	85
Rated input power W 700

Use as hard floor vacuum cleaner with parquet brush

Energy efficiency class1)		A
Energy consumption
Annual energy consumption2)	kWh/year	20.4
Cleaning performance class
Hard floor cleaning performance class		D
Dust re-emission class G
Sound power level	dB(A)re1pW	85
Rated input power W 700

1) A (highest efficiency) to G (lowest efficiency).
2) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.

The device meets the European standards and directives in the current version at delivery:

• Low Voltage Directive (LVD) 2014/35/EU
• Electromagnetic Compatibility (EMC) Legislation Directive 2014/30/EU
• RoHS-directive 2011/65/EU
• Ecodesign-directive (ErP) 2009/125/EC
- Ecodesign requirements for vacuum cleaners COMMISSION REGULATION (EU) No 666/2013

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
