Product type	Juicer
Brand	Black & Decker
Model	CJ200
Power supply	220 – 240 V, 50 Hz, 30 W
Carafe capacity	500 ml
Automatic shut-off function	Yes, when pressure on the cone stops
Insulation type	Double insulation (class II)
Intended use	Citrus juice extraction, indoor household use
Spare parts	Cone, pulp filter, carafe, motor base
Material of removable parts	Food-grade plastic (not specified)
Cleaning	Removable parts washable with warm soapy water; do not immerse the base
Safety	Do not immerse, do not use unsuitable extension cord, unplug before cleaning
Use cycle	Maximum 15-second presses, then 15-second rest; after 10 cycles, let cool for 30 minutes
Warranty	24 months against material or manufacturing defects
Country of origin	Not specified (estimated: China)
Weight	Not specified (estimated: approx. 0.5 kg)

Frequently Asked Questions - CJ200 BLACK & DECKER

How to assemble the CJ200 juicer?

Place the carafe on the motor base, then the pulp filter on the carafe, and finally the cone on the base spindle. The appliance comes assembled; just clean the parts before first use.

How to use the juicer?

Gently roll the fruits to soften them, cut them in half. Plug in the appliance, place the fruit on the cone and press lightly. The motor starts automatically. Release to stop. Do not press continuously for more than 15 seconds.

What types of fruits can I juice with the CJ200?

This juicer is designed only for citrus fruits: oranges, lemons, grapefruits, etc. Do not use other hard or stone fruits.

What to do if the appliance does not start?

Check that the plug is connected and the voltage matches the label. Make sure the cone is properly installed. The appliance only starts when the fruit presses on the cone.

How to clean the juicer?

Unplug the appliance. Wash the removable parts (cone, filter, carafe) with warm soapy water. Do not use abrasive products. Never immerse the motor base in water; wipe it with a damp cloth.

Can I put the parts in the dishwasher?

The manual does not specify. To avoid damage, it is recommended to wash them by hand with warm soapy water.

Why does the juice taste bitter?

If you juice citrus fruits with the white pith, it can cause bitterness. Avoid pressing too hard or use very ripe fruits. Drink the juice immediately to preserve its flavor.

Does the appliance stop automatically?

Yes, the motor stops as soon as you stop pressing the cone with the fruit. It is a built-in safety feature.

What is the capacity of the carafe?

The carafe has a capacity of 500 ml, enough to prepare one or two glasses of juice.

What to do in case of breakdown or broken part?

Contact an authorized Black & Decker repairer. The 24-month warranty covers material defects. You can find addresses at www.2helpU.com or from the Black & Decker office.

USER MANUAL CJ200 BLACK & DECKER

Line drawing of a simple electric juice grater with a spool of juice being brushed (no text or symbols)

ENGLISH

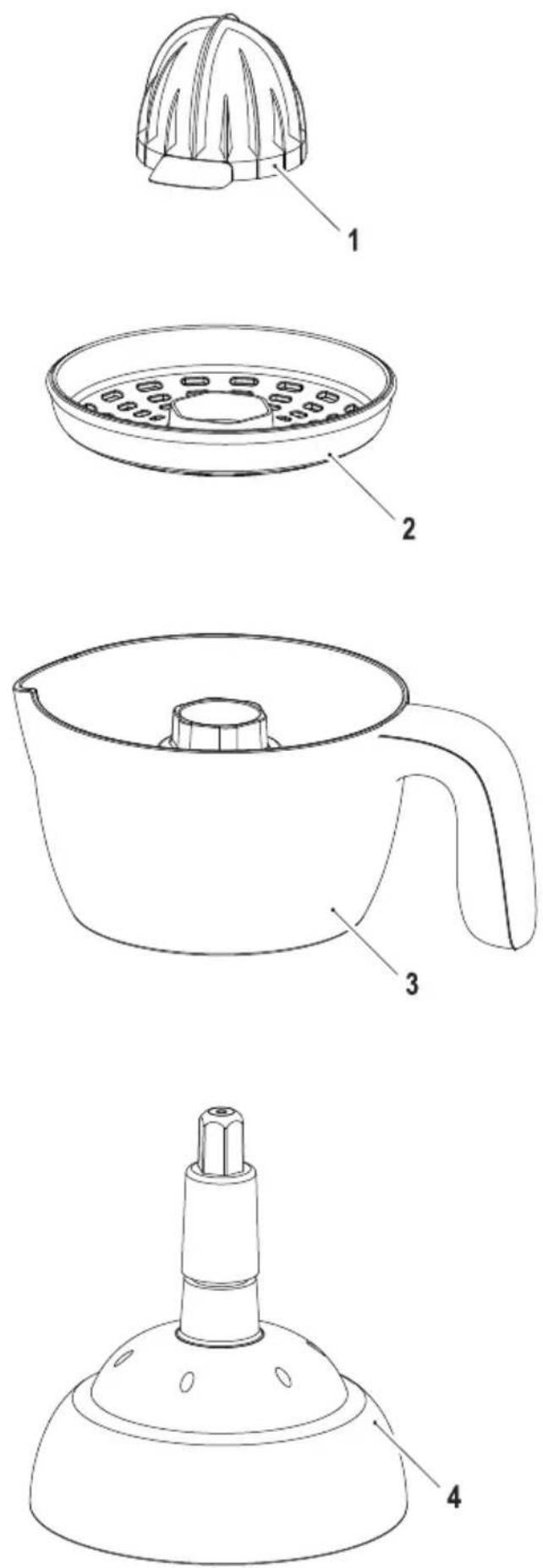

Parts identification

1. Reamer
2. Pulp strainer
3. Jug (500ml capacity)
4. Motor Base

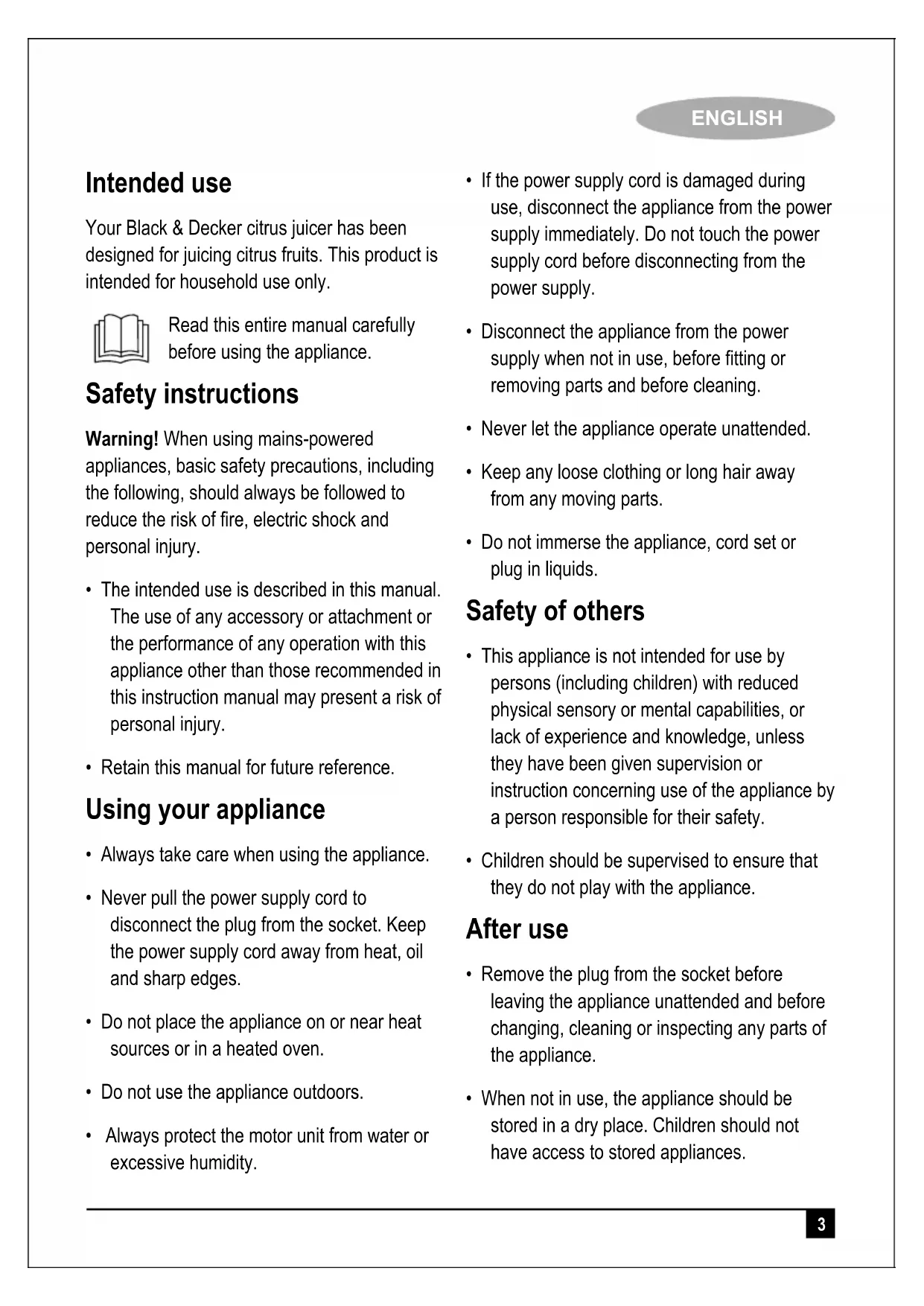

Intended use

Your Black & Decker citrus juicer has been designed for juicing citrus fruits. This product is intended for household use only.

Read this entire manual carefully before using the appliance.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury.

- The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.

- Retain this manual for future reference.

Using your appliance

• Always take care when using the appliance.

- Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.

- Do not place the appliance on or near heat sources or in a heated oven.

- Do not use the appliance outdoors.

• Always protect the motor unit from water or excessive humidity.

• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
• Disconnect the appliance from the power supply when not in use, before fitting or removing parts and before cleaning.
• Never let the appliance operate unattended.
• Keep any loose clothing or long hair away from any moving parts.
• Do not immerse the appliance, cord set or plug in liquids.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

After use

• Remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

ENGLISH

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Before use, check the power supply cord for signs of damage, ageing and wear.
• Do not use the appliance if the power supply cord or mains plug is damaged or defective.
• If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.
• Never attempt to remove or replace any parts other than those specified in this manual.

Electrical safety

Before use, check that the mains voltage corresponds to the voltage on the rating plate.

This appliance is double insulated in accordance with EN 60335-2-14; therefore no earth wire is required.

• To avoid the risk of electric shock, do not immerse the cord, plug or motor unit in water or other liquid.
- Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee.

Extension cables & class 1 product

• A 3 core cable must be used as your tool is earthed and of class 1 construction.
• Up to 30m (100 ft) can be used without loss of power.
• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Mains plug replacement

If a new mains plug needs to be fitted:

• Safely dispose of the old plug
- Connect the brown lead to the live terminal of the new plug
- Connect the blue lead to the neutral terminal
- If the product is class I (earthed), connect the green/yellow lead to the earth terminal.

Note: If your product is class II double insulated (only 2 wires in the cord set), no connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs

Any replacement fuse must be of the same rating as the original fuse supplied with the product.

Warning! The above section on mains plug replacement is for authorized service centre personals.

Additional safety instructions for Citrus Juicers

- Do not immerse the appliance, cord set or plug in liquids

• Always leave sufficient space around the appliance for ventilation
- Keep loose clothing, hair, jewelry, etc. away from moving parts.
- Do not use the unit if you have wet hands or bare feet.
- "Switch off the appliance before changing accessories or approaching parts which move in use".

Assembly

- This appliance is supplied fully assembled & only requires parts to be cleaned before use. See "Cleaning" for details.

1. Place the jug (3) onto the motor base (4).
2. Place the pulp strainer (2) onto the jug.
3. Place the reamer (1) over the spindle of the motor base (4).

Use

• Prepare the fruit by rolling it gently between the hands for a moment or two then cut it in half.
- Assemble the appliance.
- Connect the appliance to a suitable electrical supply.
- Press the cut face of the fruit onto the reamer. Pressing on the reamer will start the motor in the base. The reamer will rotate, cutting into the fruit and the juice will flow into the jug.

Note: Ensure fingers & hands do not touch the reamer during operation. Never allow loose clothing, jewelry, hair, etc. to come in contact with moving parts.

• The juicer will automatically stop once you stop applying downward pressure on the reamer (1) with the fruit.
• Once juicing is completed, the jug (3) can be removed & used to serve the juice.

The appliance should be disconnected from the mains supply before removing the jug. The juicer should be pulsed in 15 second bursts.

After 10 consecutive cycles of 15 seconds on followed by 15 seconds off, the Juicer should be allowed to cool completely for 30 minutes before further use.

Useful advice

• Choose fresh, ripe fruit as they will yield more juice.
• Drink the juice immediately after you have extracted it. If it is exposed to air for some time, the juice will lose its taste and nutritional value.

Maintenance & cleaning

• The appliance is easier to clean if you do so immediately after use.
• Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.
• All detachable plastic parts should be washed in warm soapy water.

Technical data

CJ200

Voltage 220 – 240 Volts

Supply 50 Hz

Power consumption 30W

ENGLISH

Protecting the environment

arate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.

- Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

- You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorized Black & Decker repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.

Warranty

Black & Decker is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

The warranty is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;

The product has been subjected to misuse or neglect;

The product has sustained damage through foreign objects, substances or accidents;

Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual.

Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
