Technical specifications	ASUS R7260XDC21GD5, AMD Radeon R7 260X graphics card, 2 GB GDDR5, PCI Express 3.0 interface, GPU frequency 1100 MHz, 896 processing units.
Usage	Designed for 1080p gaming, compatible with DirectX 11.2 and OpenGL 4.3, ideal for recent games with medium to high settings.
Maintenance and repair	Regularly check dust on fans, use monitoring software to control temperature, driver updates recommended.
Safety	Avoid overheating by ensuring good ventilation, do not exceed recommended voltage limits, use surge protection.
General information	Dimensions: 21 x 11 x 3.8 cm, weight: about 1 kg, 2-year manufacturer warranty, requires a minimum 500W power supply.

Frequently Asked Questions - R7260XDC21GD5 ASUS

What are the system requirements to install the ASUS R7260XDC21GD5 graphics card?

The ASUS R7260XDC21GD5 graphics card requires a PCI Express x16 slot, a minimum 400W power supply, and a compatible operating system such as Windows 7, 8, or 10.

How do I install the ASUS R7260XDC21GD5 graphics card?

To install the card, turn off your computer, unplug it, open the case, insert the card into the PCI Express x16 slot, secure it with screws, then reconnect your computer and install the drivers.

Which drivers should I install for the ASUS R7260XDC21GD5 graphics card?

You should install the latest AMD Catalyst drivers to ensure the best performance and compatibility. You can download them from AMD's official website.

My ASUS R7260XDC21GD5 graphics card does not power on, what should I do?

Check that the card is properly seated in the PCI Express slot, ensure the power supply is sufficient and functional, and verify all cable connections.

How can I check if my ASUS R7260XDC21GD5 graphics card is working properly?

You can use software like GPU-Z or MSI Afterburner to monitor the graphics card's performance and check its temperature, usage, and other parameters.

What should I do if I encounter compatibility issues with games?

Make sure your drivers are up to date, check game settings and your system configuration, and try lowering graphics settings to improve performance.

What are common problems with the ASUS R7260XDC21GD5 graphics card?

Common issues include crashes, poor gaming performance, and overheating problems. Ensure adequate ventilation and that drivers are up to date.

Can I use the ASUS R7260XDC21GD5 graphics card for cryptocurrency mining?

Yes, the card can be used for mining, but check profitability and power consumption before engaging in this activity.

How do I clean my ASUS R7260XDC21GD5 graphics card?

To clean the card, turn off the computer, remove the card, and use compressed air to remove dust. Avoid touching components with your hands.

USER MANUAL R7260XDC21GD5 ASUS

ASUS GPU Tweak II User Manual

Q10790

First Edition

August 2015

Contents

English. 3

繁體中文 14

简体中文 25

Francais 36

日本語 47

Italiano 58

Pycckn 69

Čestina. 80

Nederlands 91

Elambdaeta 102

Portugues. 113

Polski 124

Espanol. 135

YKpaHcbKa 146

Deutsch 157

Knowing GPU Tweak II

ASUS GPU Tweak II utility allows you to monitor and tweak the settings of your ASUS graphics card for optimal performance. It has two user interfaces, the Simple Mode and Professional Mode, that allow you to quickly monitor your preset and customized profiles, boost the GPU settings for your game-changing enjoyment, or do some advanced tweaking on the GPU settings for optimal performance.

ASUS GPU Tweak II includes these ASUS-exclusive preset power-saving and gaming profiles:

OC Mode

Silent Mode

Gaming Mode

My Profile

System requirements

AMD 7000 Series GPU or higher
NVIDIA 600 Series GPU or higher
32-/64-bit Microsoft*Windows 10/8/8.1/7

Installing GPU Tweak II

1. Ensure that you have installed the ASUS graphics card and its driver. Refer to the ASUS graphics card user manual for details on installing its driver.
2. Locate the ASUS GPU TweakII driver folder and double-click the setup.exe file to start the installation.
3. Follow the onscreen instructions to finish the installation.

Launching GPU Tweak II

Double-click the GPU Tweak icon on the desktop.
- Click Start > All Programs > ASUS > GPU Tweak II to launch the program.

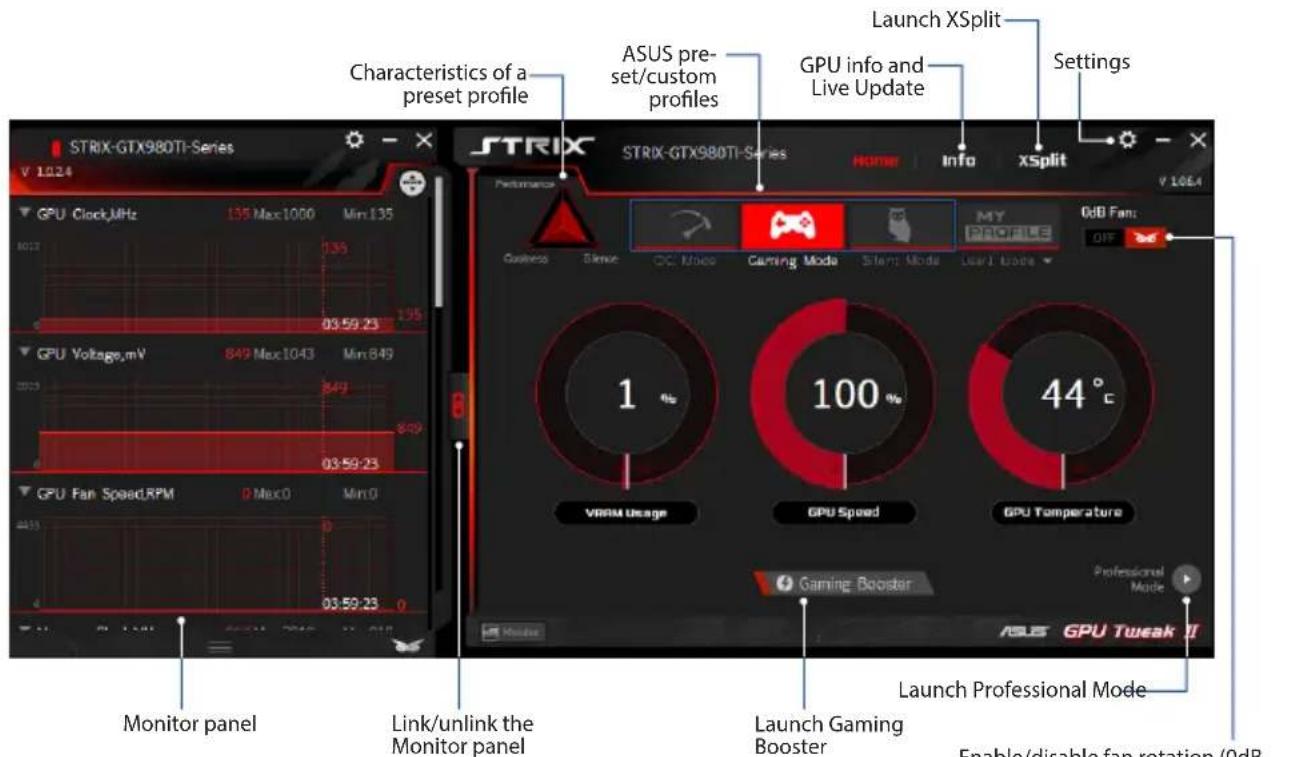

Simple Mode

Simple Mode provides you with a quick way to monitor your GPU settings in real-time, and tweak some system settings via Gaming Booster for your game-changing enjoyment.

Enable/disable fan rotation (0dB Fan)* * Appears only on an ASUS Graphics card with 0dB Fan function.

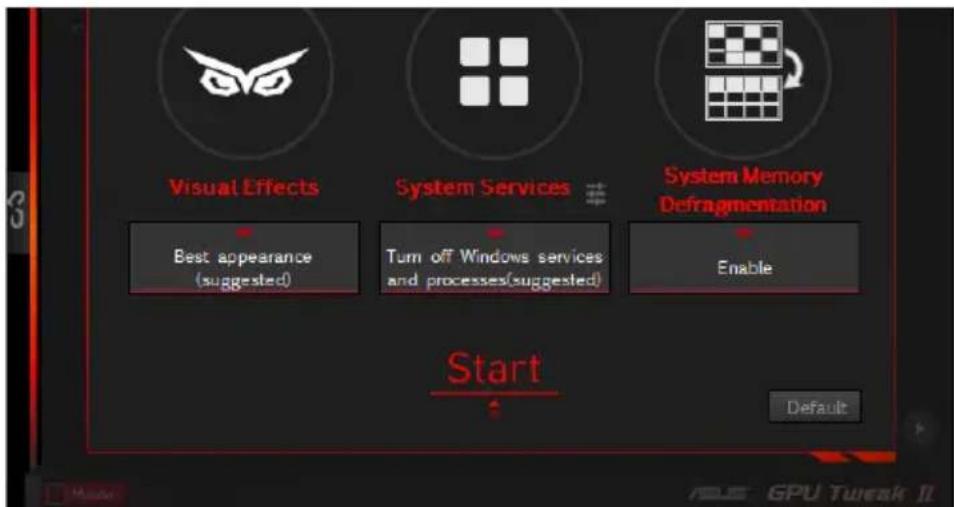

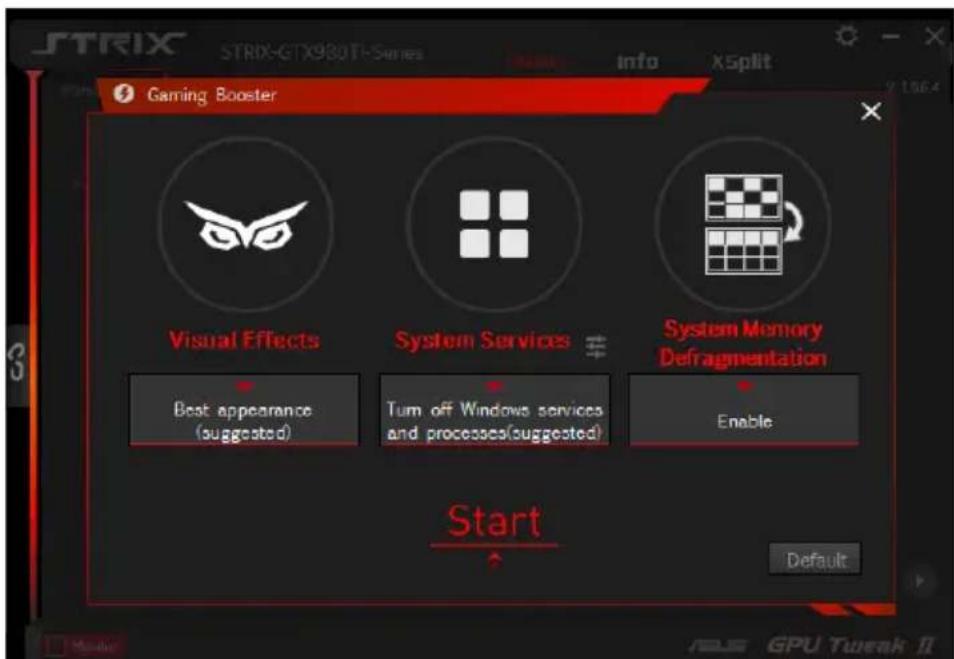

Gaming Booster

Get that game-changing performance edge with Gaming Booster, which helps optimize your system for a seamless and faster game play in your computer games.

Gaming Booster offers you these three (3) functions:

Visual Effects: Lets you turn off the Windows® visual effects to intensify the processor performance.
System Services: Lets you to automatically or manually turn off Windows® services or processes.

• System Services setting: Lets you to manually choose the services or processes that you want to stop.

• System Memory defragmentation: Lets you rearrange and clean your system memory without closing any processes.

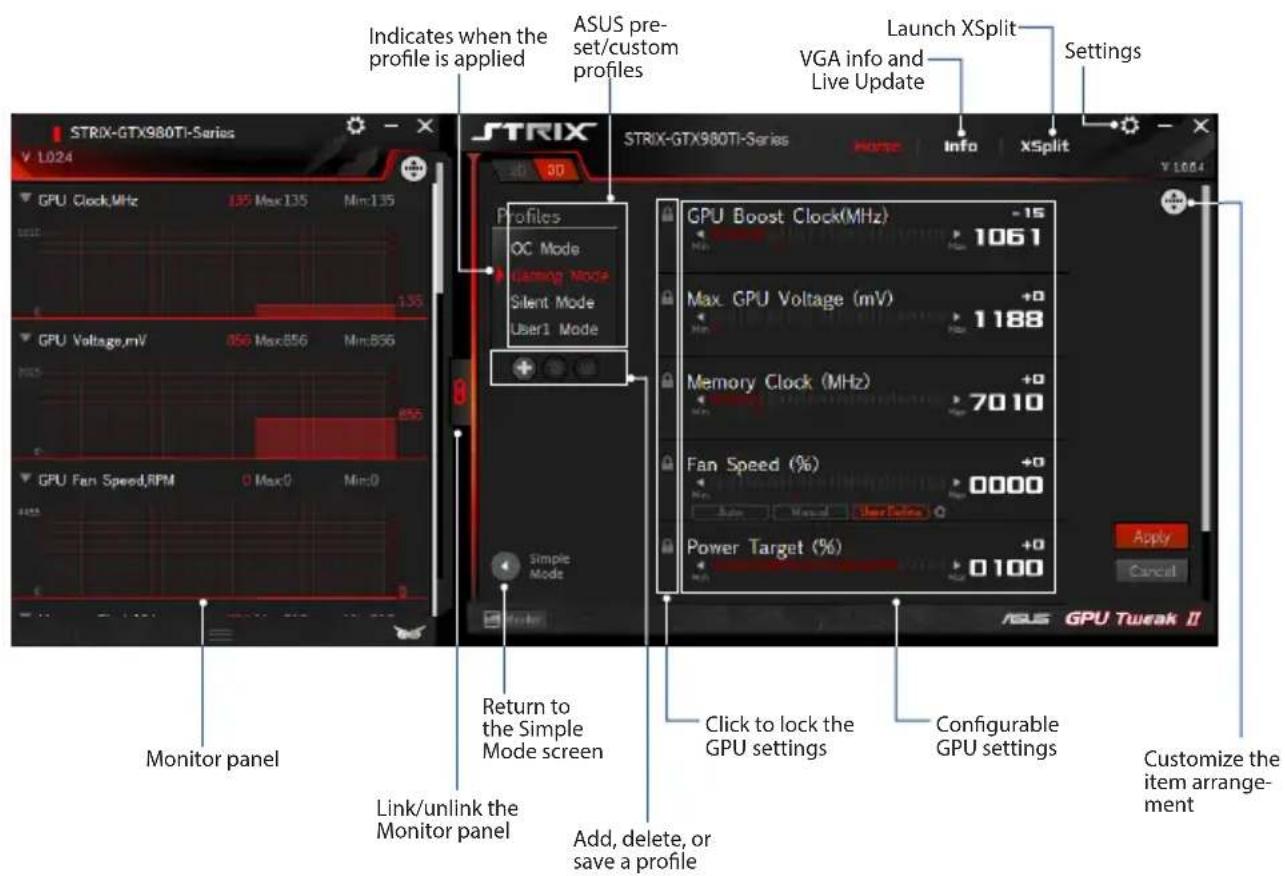

Professional Mode

Configure the GPU settings like a pro, and get the optimal performance from your ASUS Graphics card.

Configuring a profile

1. Select the profile that you want to configure.
2. Select the GPU setting, then key in your preferred value.
3. When done, click Apply

Adding a profile

1. Click + then assign the profile name.
2. Set your preferred values.
3. When done, click save the profile.

Applying a profile

• Select the profile, then click Apply to apply the profile.

Deleting a profile

• Select the profile, then click to delete the profile.

Getting the VGA info and Live Update

The Info screen provides you with information and live updates about your ASUS VGA card.

NOTE: Ensure that your computer is connected to the Internet to get the Live Update.

Launching XSplit

Install and launch XSplit Gamecaster from GPU Tweak II.

Using the Settings screen

The Settings screen allows you to configure the GPU Tweak II settings such as Main, Tuning Settings, Live Update, and Keyboard Shortcuts.

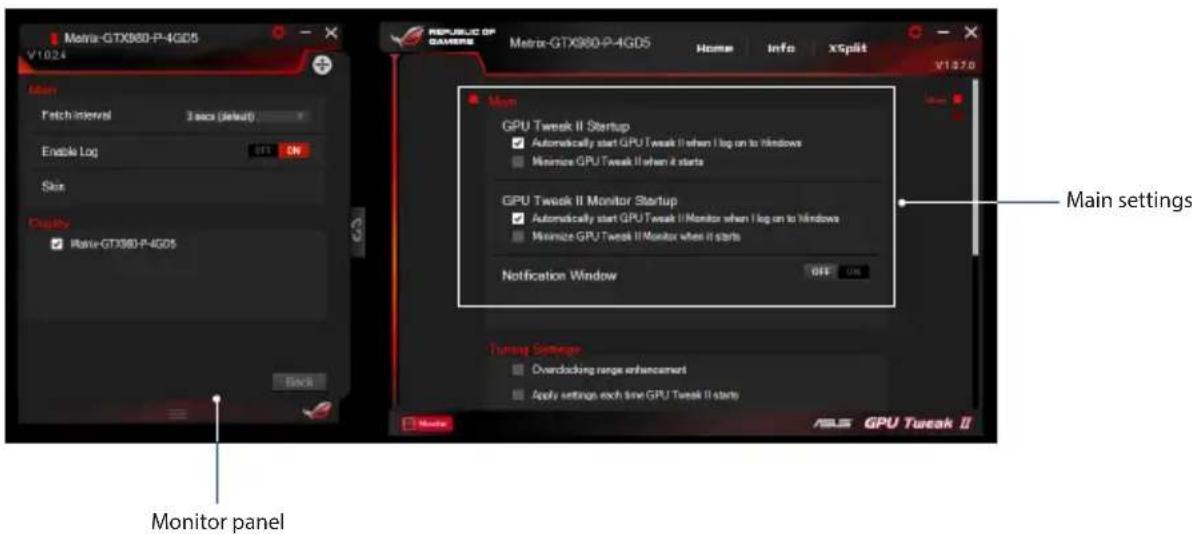

Main

From the Main settings, you can select any of these options on launching GPU Tweak II:

• Automatically launch GPU Tweak II or its Monitor panel on Windows® startup.
• Minimize GPU Tweak II or its Monitor panel once launched.
• Turn the notification window on/off.

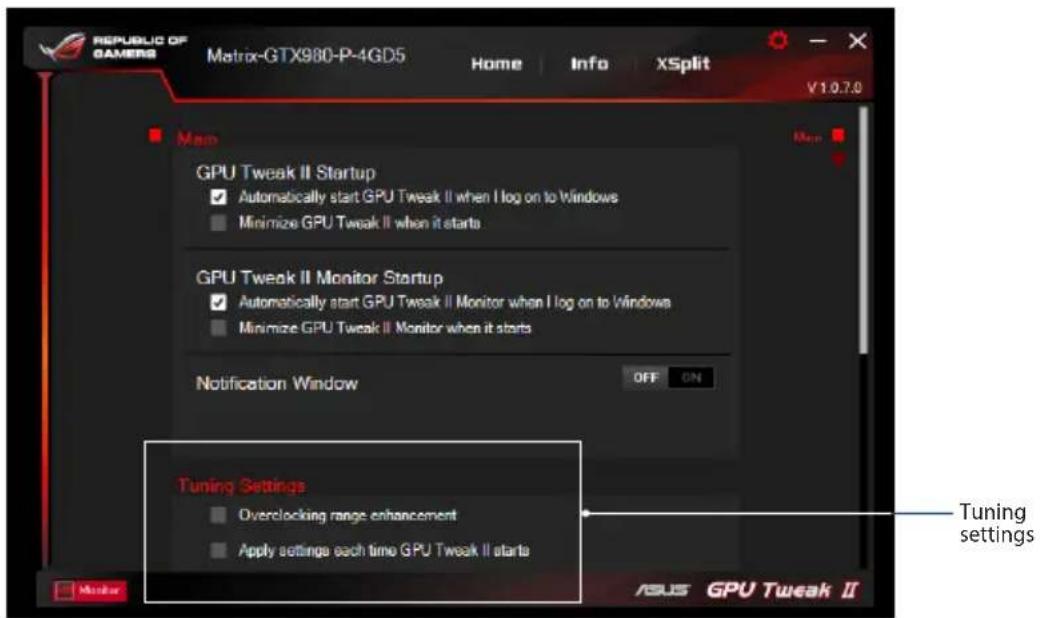

Tuning Settings

From the Tuning Settings, you can select any of these options on applying the GPU Tweak II settings:

• Enhance the overclocking range.
• Apply the settings on GPU Tweak startup.

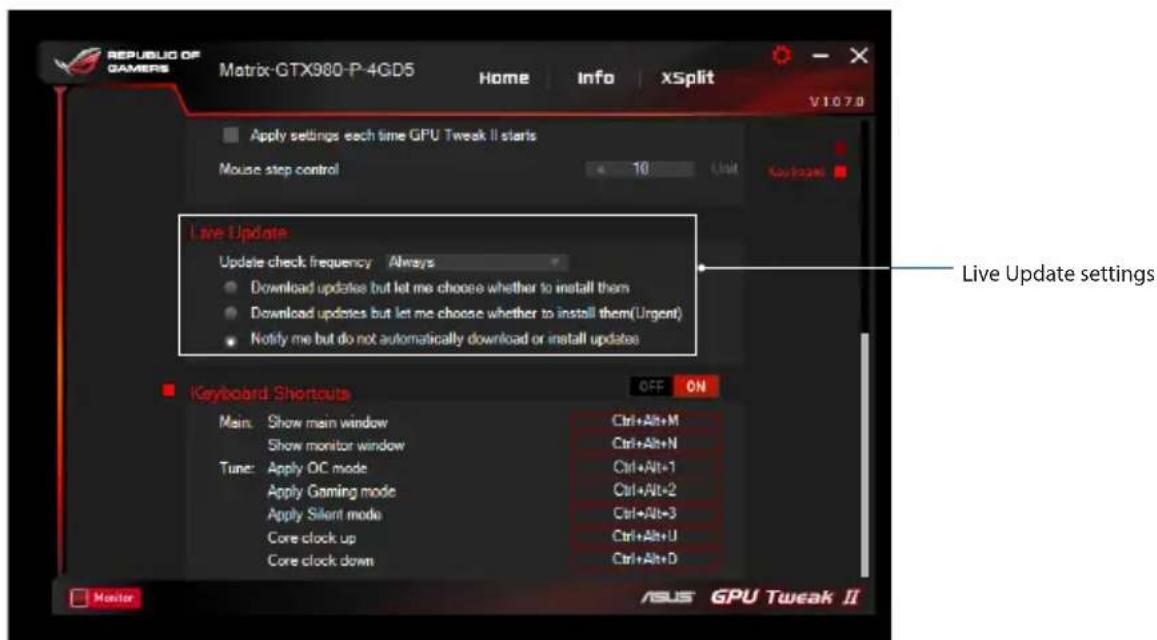

Live Update

Receive notifications on the latest VBOS and driver updates from Live Update. Configure and select the following Live Update options:

• Set the Update check frequency as to when you want to receive the Live Update.

• Select any of the Live Update options:

• Download updates but let me choose whether to install them: Select this option to automatically download updates, and decide whether to manually install them.

• Download important updates but let me choose whether to install them: Select this option to automatically download critical updates, and decide whether to manually install them.
• Notify me but do not automatically download or install updates: Select this option to receive notifications only, and decide whether to manually download and install the updates.

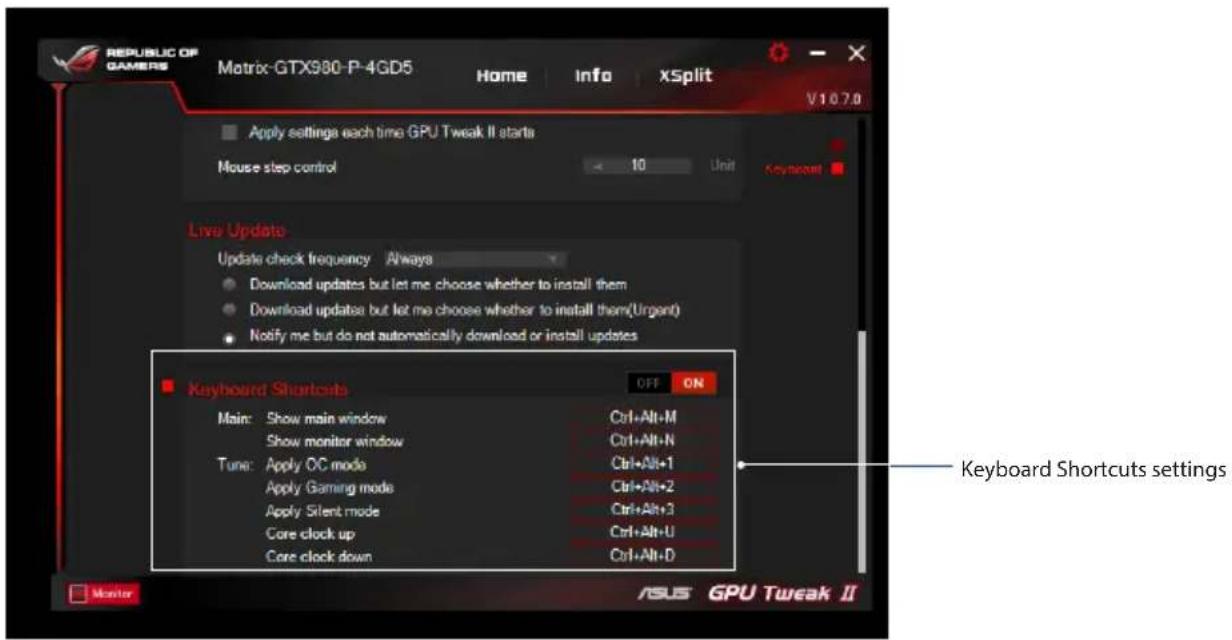

Keyboard Shortcuts

Turn on/off the Keyboard Shortcuts to quickly show the main screen or apply some quick adjustments.

了解GPU Tweak II

Gaming Mode (Tryb Gier)

My Profile (Moj profil)

Wymagania systemowe

• HanauTyBaHn System Services (CnCTemHi cnJx6n): Hadae moKnlBicTB Bn6paTn cnJx6y a6o npOec, kI BV 6aKaTe 3ynHHTN.

System Memory defragmentation (Дeф parmentaia cnCTemhoi nam'ari): Hadae moKJIbICTb nepenoprkyBaTI i ouHCTHTn CNCTemHy nam'ATb, He 3akpnuBauOuN JODEN pOuec.

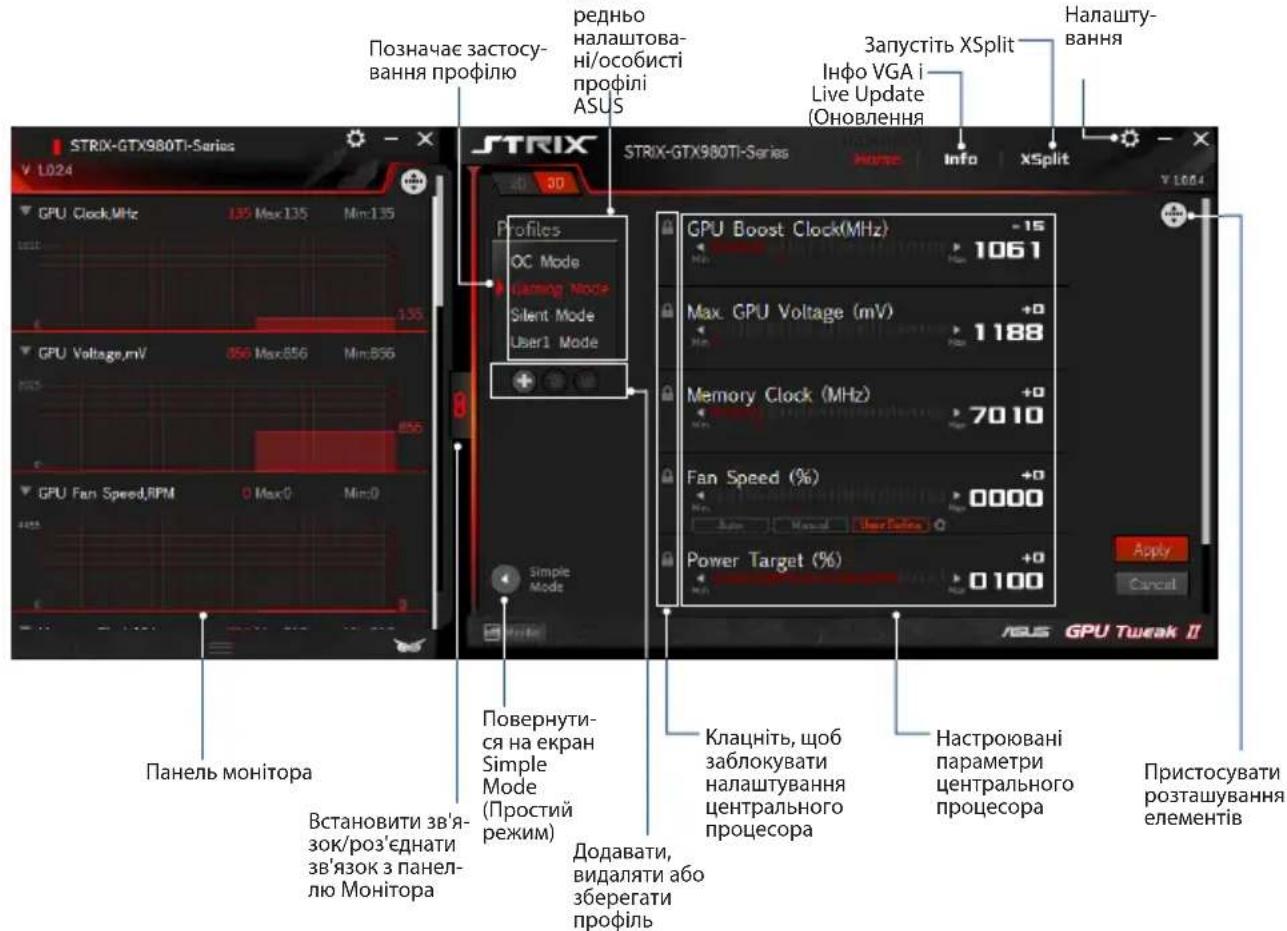

Professional Mode (Pexim PpocecioHaBn)

KoHphiIpyuTe hanaStyBaHHa CEHTpaIbHOrO npouecopa, kCe po6ntb faxibeUb, iOTpmaTte onTImaJIbHi po6Oci xapaKTepnCTNK dIra rpaqHoiKapTu ASUS.

KoHphiirypaizipnophiio

1. Bn6epitb npoipj, knn 6axaTe KOHigpyBaTn.
2. Bn6epitb HanaaTbVaHHIeHTpaIbHoro npouecopa i BBeIb 6aXaHe 3NaueHHA.
3. BnkoHabu, KnaCHiTb Apply

Iodabahnnpophiio

1. Knaunit a notim npn3NaTe Ha3By npofoiio.
2. BctaHObitb 6axaHI 3NaueHHN.
3. BnkoHabu,HaTnciH 06 36epertn npoipnb.

3actocybaHH npophiIO

Bn6epitb npoipnb, a notim klaunihb Aap 3actocybaTn npoipnb.

Budanen npophiio

Bn6epitb npoipnb, a notim knaunHtB 06 BndaHn npoipnb.

Ekpan Settings (HanauTyBaHHa) Hadae MOxNtBicTh KOHphiIpyBaTu npaMeTp n GPU Tweak II, taki k Main (ToNoBHe), Tuning Settings (ToHKi HanauTyBaHHa), Live Update (OnOBnHnHaXnBO) i Keyboard Shortcuts (ApnnKn KnaiaTypn).

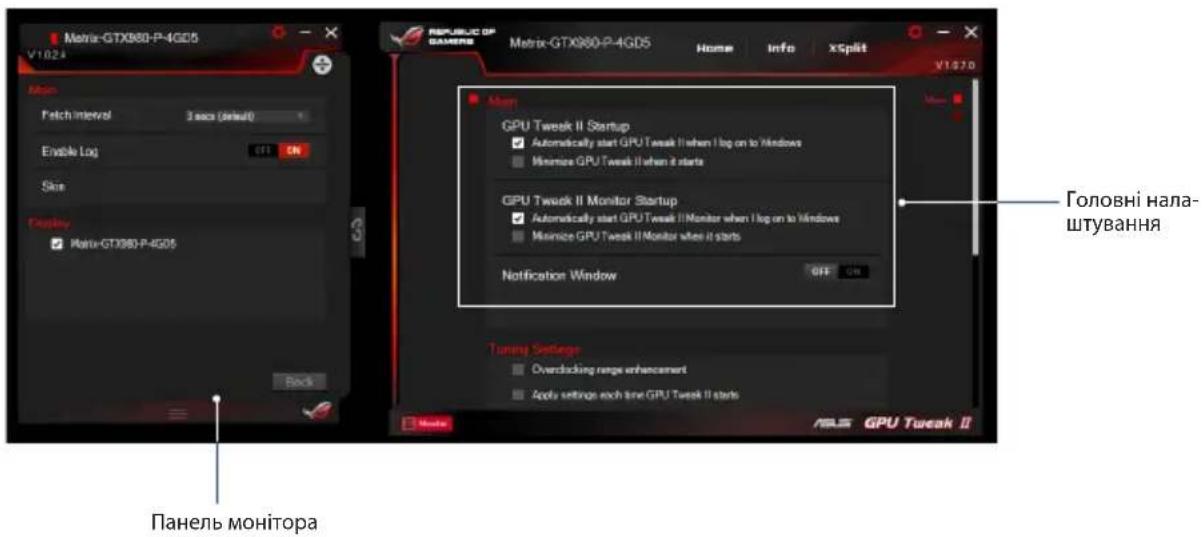

TOnOBHe

Y hanaTbyaHHax Main (IolOBHe) MoXHa Bn6paTn 6yDb-aki 3 uX onui 3anycky GPU Tweak II:

• ABTomatnuHo 3anyctnGPU Tweak II a60 ii Monitor panel (Pahelb Monitopa) niD yac 3anycky Windows
• Minimizybatn Bxe 3anyueneHi GPU Tweak II a6o ii Monitor panel (Panael MOHITopa).
  BmKatn/BmMkTu BIKHO NOBIOMneHb.

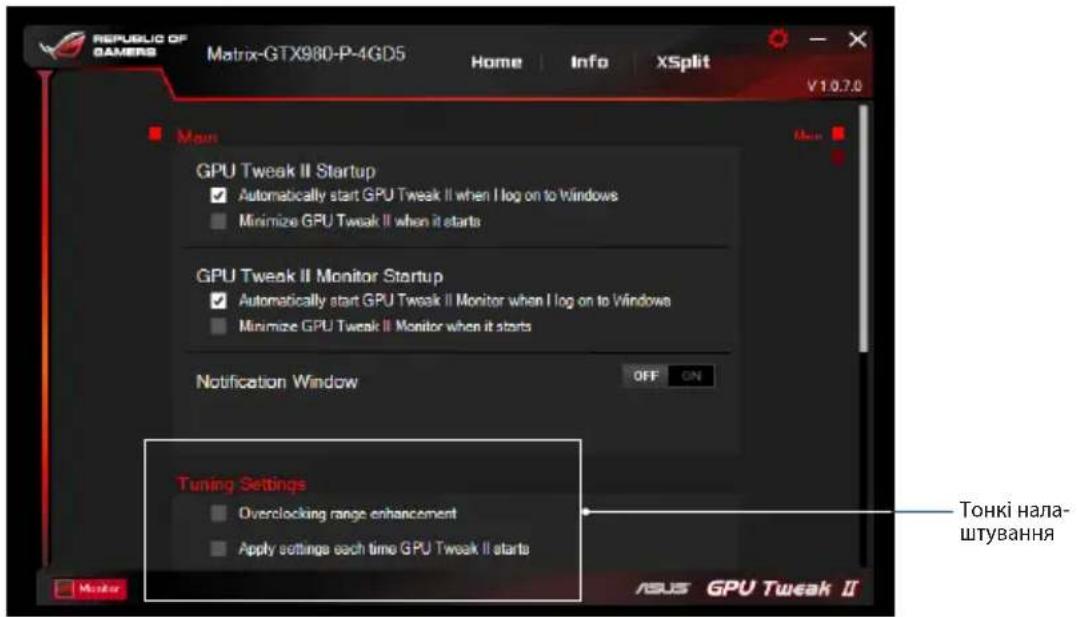

Tohki HanaawtyBaHHa

Y Tuning Settings (ToHki HanaStyBaHHa) MoXHa Bn6paTn 6yIb-3x Oni3acTocyBaHHa GPU Tweak II:

36inbwnTn diaanaoh npnckopeHHraOHHHka.
3actocyBaTN HalauByaHHn iD vac 3anycky GPU Tweak.

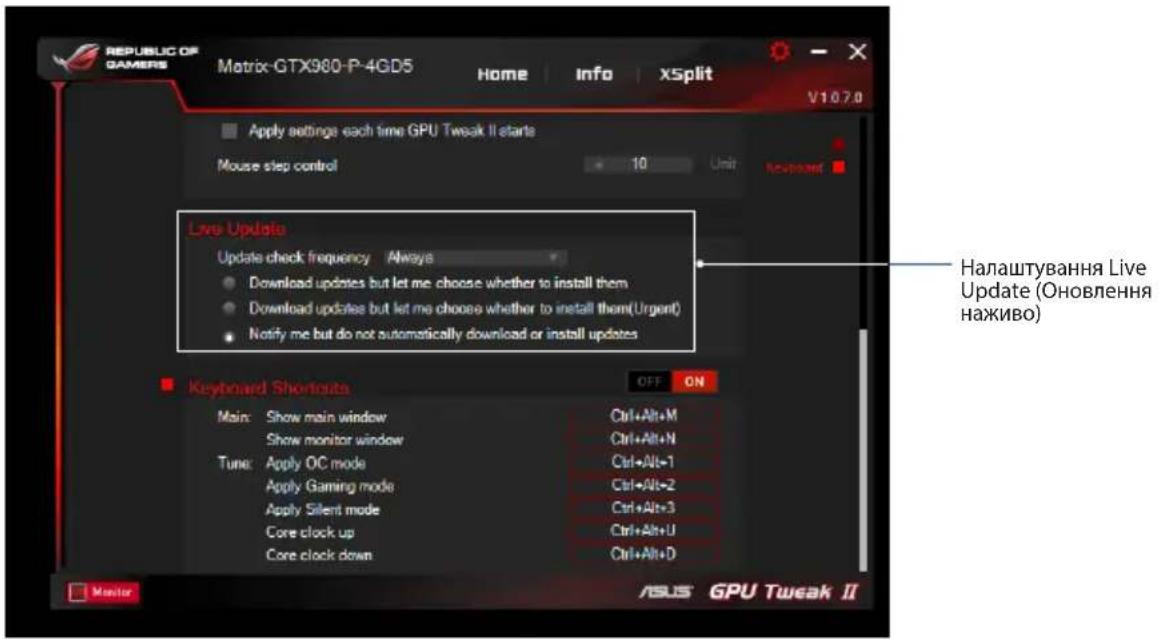

OHOBHeHHHaXnBO

OtpmyBaTn cnoiueHn npo haHOBiWi VBIOS i OHOBeHHa paBepa Bi Live Update (OHOBeHHaHXBO).KoHphiIpyBaTu i Bn6paTu nacTynni onuLive Update (OHOBeHHaHXBO);

BCTaHObUTn Update check frequency (Yactota nepeBipKn OHOBneHb) Ha YACTOTy, 3 RaKOIO Bn 6aXaTe OTPmByatn Live Update (OHOBHeHHaXnBO).
Bn6epitb 6ydb-ky3 onui Live Update (OHOBneHna HaxnBO), 0o6:

3aBAHTaxNTn OHOBneHn, ane Do3BOJNTm MeHi Bn6bnpaTn, nn IHCTaIIOBaTn ix: NocTaBte zu onuio Ha aBTOMaTnue He 3aBAHTaxKeHHn OHOBneHn i npabo BnpiSyBaTn, nn IHCTaIIOBaTn ix BpyHy.
3aBaHTaXNTu BaxnBi OHOBHeH,ane Do3BOUNTu MeHi Bu6npaTu, uHCTaIIOBAtuix:IOCTaTe IIO ONiIO Ha aBTOMaTnUHe 3aBaHTaXeHHKpTNuHo BaxnBuX OHOBHeb i Do3BIn BuPiSyBaTu, uHCTaJIIOBAtu ix BpyHy.
CnoBiaatm Mei, ane He 3aBaHTaxyBaTu H e IHCTaIIOBAtn OHOBHeHH aBTOMaTHo: IocTaBte CuO onciHO Ha OTpMaHn JIwE CNOiueHb i Do3BIn BnpiuYBaTu, YN 3aBaHTaxyBaTu Ta IHCTaIIOBAtn OHOBHeHH BpyHy.

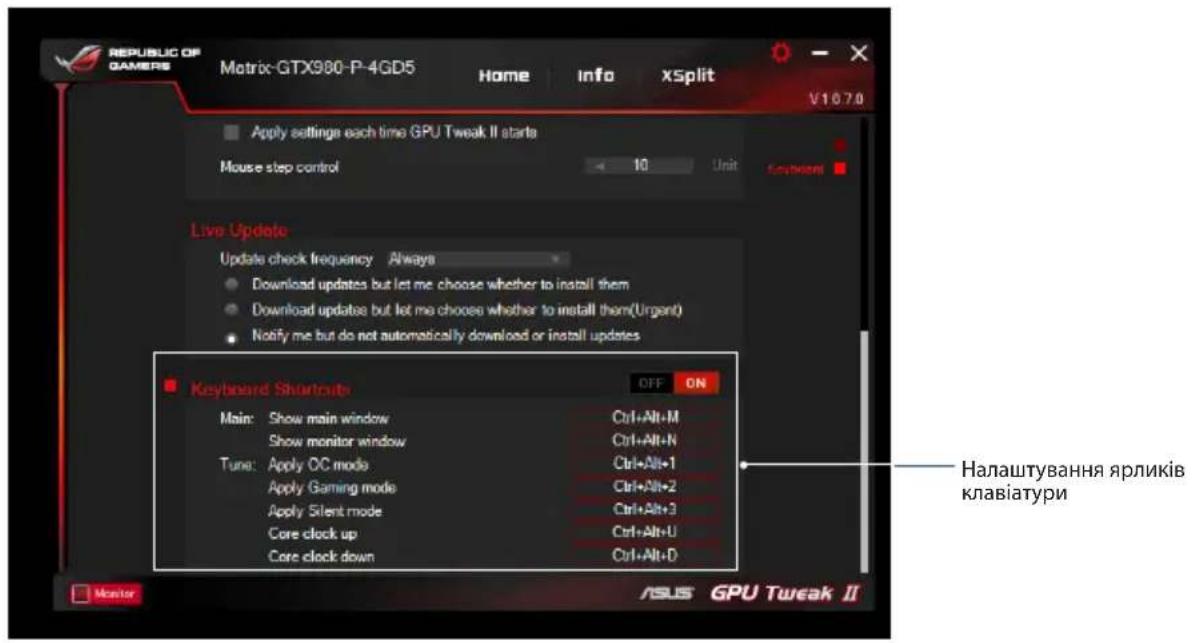

Ярпкkn knabiatypn

YbIMKHyTN/BmMKHyTN RaPnKn KnaBiaTypn, 06 WbNko Noka3yBtAn rOJOBHn eKpaH i WbNko BHOCTN neBHi KopeKTnBn.
