Product type	Combined refrigerator/freezer
Brand	Siemens
Model	KA93DVIFP
Dimensions (W x D x H)	908 mm x 628 mm x 1171 mm
Power supply	220-240 V, 50 Hz
Climate class	SN to T (from +10°C to +43°C)
No Frost technology	Yes, in the freezer compartment
Super freezing	Yes, manual activation, auto stop after 52 h
Super cooling	Yes, manual activation, auto stop after 3 h
Water and ice dispenser	Yes, with chilled water, ice cubes and crushed ice
Ice maker	Automatic, can be turned off (ice off function)
Interior lighting	LED (not user-replaceable)
Water filter	Yes, replacement recommended every 6 months
Child lock	Yes, locks buttons and dispenser
Door alarm	Yes, sounds after 2 minutes of opening
Vacation mode	Yes, refrigerator at 15°C, freezer at -18°C
Energy saving mode	Yes, refrigerator at 6°C, freezer at -17°C
Temperature settings	Refrigerator: +2°C to +8°C; Freezer: -14°C to -24°C
Number of shelves	5 glass shelves in the refrigerator
Fruit and vegetable drawer	Yes, with gliders
Equipment	Freezer bins, door shelf support, ice cube tray
Cleaning and maintenance	Automatic defrosting, cleaning with warm water and neutral dish soap
Installation	Freestanding, requires ventilation space (50-70 mm at the back)

Frequently Asked Questions - KA93DVIFP SIEMENS

How to set the refrigerator temperature?

After disabling the child lock (press "alarm/lock 3s" for 3 seconds), press the "cool/super 3s" button several times to choose between +2°C and +8°C. The recommended value is +4°C.

How to activate Super freezing?

Press the "freeze/super 3s" button for 3 seconds. The display ■ lights up and the freezer temperature goes to -24°C. The function stops automatically after 52 hours.

What to do if the water dispenser does not work?

Check that the water supply is open, that the water filter is not clogged, and that the child lock is disabled. Also make sure the freezer door is properly closed.

How to clean the interior of the refrigerator?

Unplug the appliance, remove the food. Clean with a soft cloth, warm water and neutral dish soap. Do not use steam cleaners or abrasive products. Dry thoroughly before plugging back in.

Why does the door alarm go off?

The alarm sounds if a door remains open for more than 2 minutes. To stop it, close the door or press the "alarm/lock 3s" button (if the child lock is not active).

How to change the water filter?

Turn off the water supply. Unscrew the old filter counterclockwise. Screw on the new filter clockwise. Reset the filter display by pressing "eco/filter reset 3s" for 3 seconds.

The freezer does not produce ice cubes, why?

Check that the ice maker is on ("ice off" button), that water is connected and the ice cube tray is not blocked. The first cycle may take several hours.

What is the use of vacation mode?

Vacation mode sets the refrigerator to 15°C (to avoid odors) and the freezer to -18°C. Ideal for prolonged absence. Do not store any perishable food in the refrigerator.

How to activate the child lock?

Press the "alarm/lock 3s" button for 3 seconds. The display lights up. The buttons and water/ice dispenser are then locked.

What to do if water leaks onto the floor?

Check the water recovery tray at the back of the appliance: it must be correctly positioned and not blocked. Also ensure that the water connections are tight and that the ice cube tray has not overflowed after a power outage.

USER MANUAL KA93DVIFP SIEMENS

Register your product on My Siemens and discover exclusive services and offers.

siemens-home.bsh-group.com/welcome

The future moving in.

de

Inhaltsverzeichnis

Back panel of a computer drive showing ventilation grilles and mounting hardware (no text or symbols visible)

Simple line drawing of a mechanical lever or bracket with a circular motion indicator (no text or symbols)

Gerätausrichten

Hand inserting a small object into a device inside a rack (no text or symbols visible)

Technical line drawing of a mechanical component with an inset showing a cylindrical component being inserted (no text or symbols present)

Technical illustration of two mechanical fasteners with bolt holes and a nut assembly (no text or symbols)

1Taste„freeze/super3s“

ZurEinstellungderGefrierraum-Temperatur.

2 T a s t e , i c e o f

17Taste,,cool/super3s"

ZurEinstellungderKühlraum-Temperatur.

18Taste„water“

Illustration of a hand holding a cup using a digital water dispenser (no text or symbols visible)

Illustration of a hand holding a cup over a digital water dispenser (no text or symbols visible)

Illustration of two hands hanging from parallel plates with a downward arrow indicating motion (no text or symbols)

Illustration of two hands holding a flexible electronic device with directional arrows indicating motion (no text or symbols)

Pure technical line drawing of a mechanical or electrical component with no text, numbers, or symbols

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

Mechanical component with a white arrow indicating direction, no visible text or symbols

Line drawing of a refrigerator with air conditioner unit and adjacent to a box labeled ①, showing airflow direction (no text or symbols beyond labels)

Technical line drawing of an air conditioner unit showing internal components and a close-up view of the housing (no text or symbols)

Diagram of a refrigerator interior with a magnified view showing the exterior wall and internal components (no text or symbols)

Avoidingplacingchildrenandvulnerablepeople at risk 28

Generalrequirements 28.

Damage 28

Weight 28

Information concerning disposal 28

Disposal of packaging 28

Disposal of your old appliance 28

Scope of delivery 29

Installing the appliance 29

Transporting 29

Removing the appliance doors 29

Installationlocation29.

Subsurface 29

Observe ambient temperature and ventilation .... 30

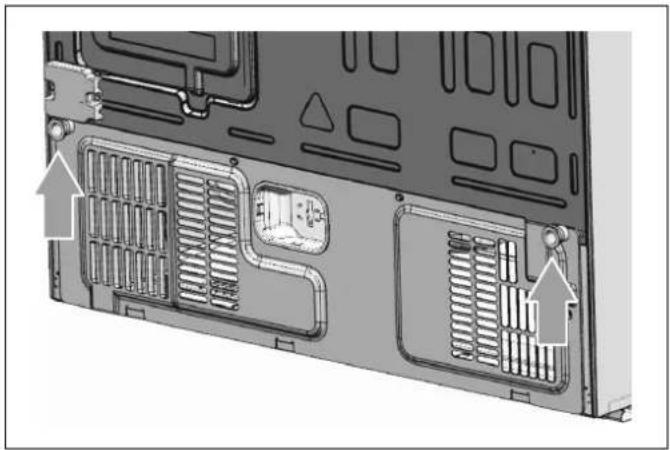

Installing the spacers 30

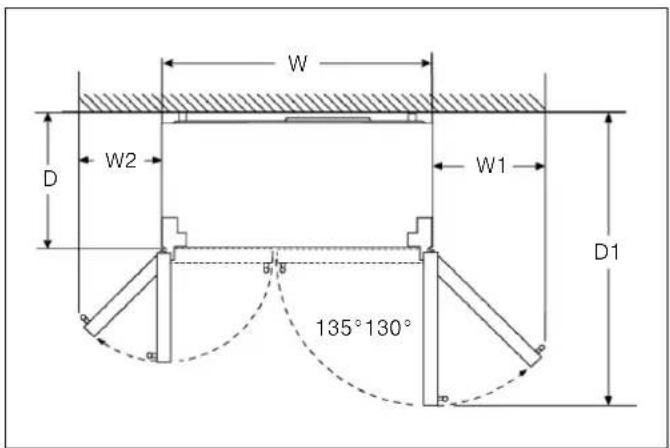

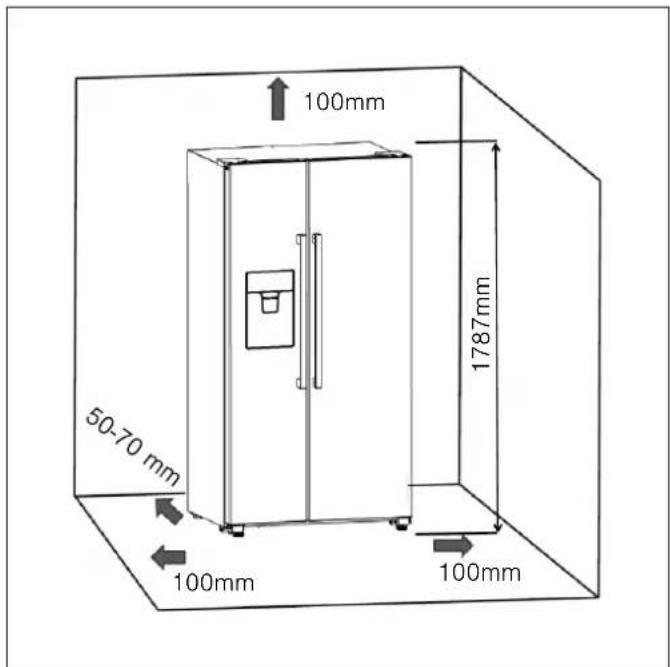

Installation dimensions and door opening angle .. 30

Fixing the door handle 30

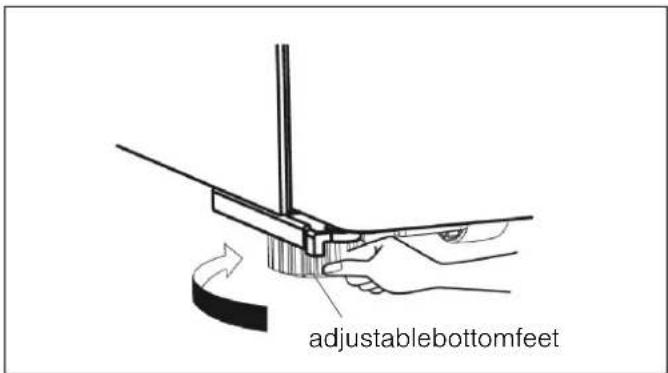

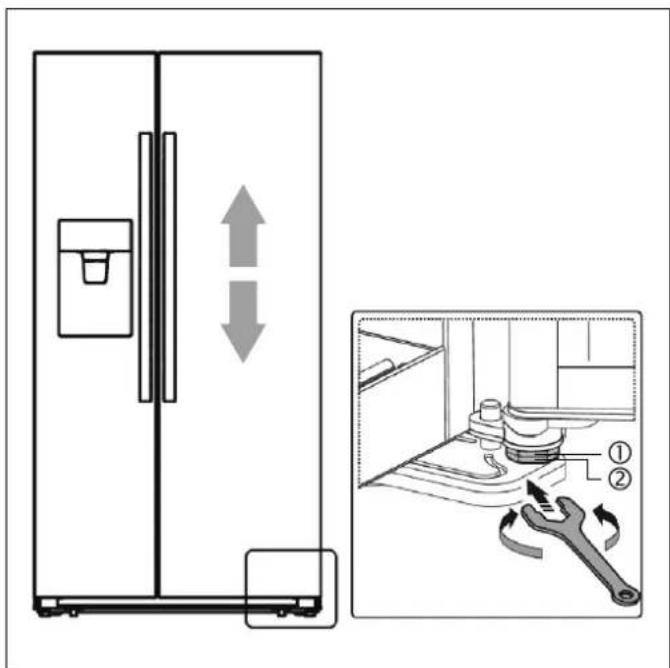

Aligningtheappliance 31.

Aligningthedoors31....

Connecting the appliance 32

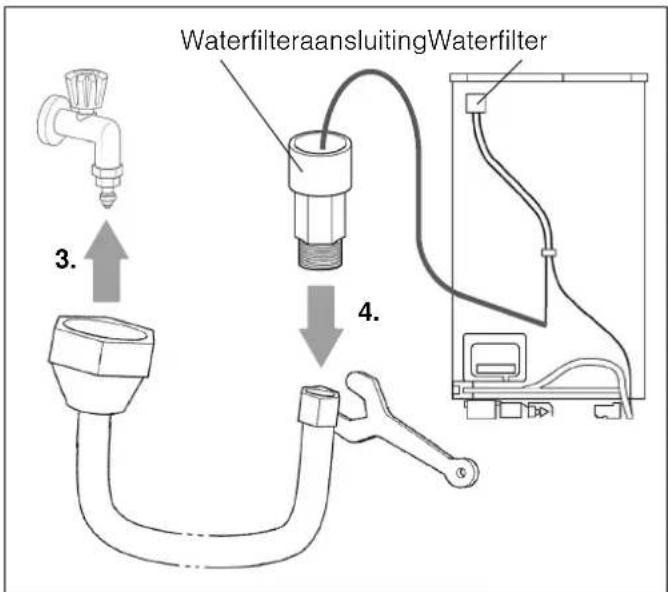

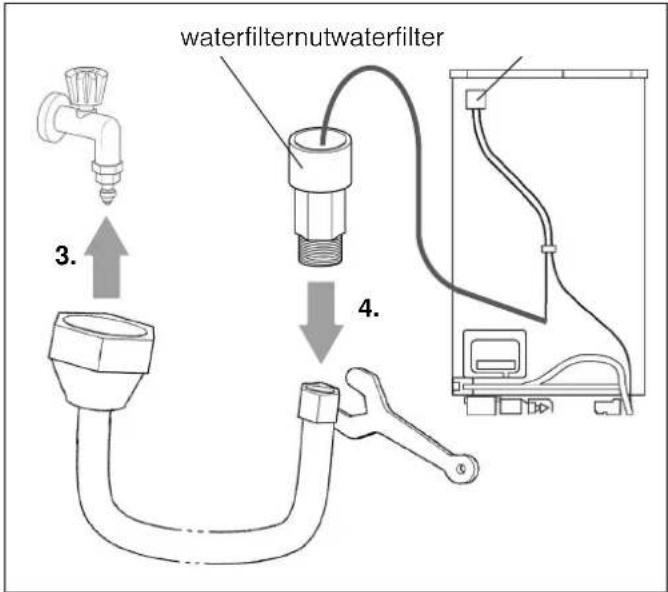

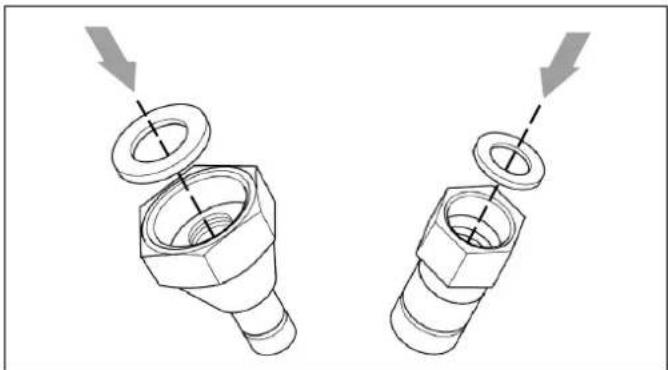

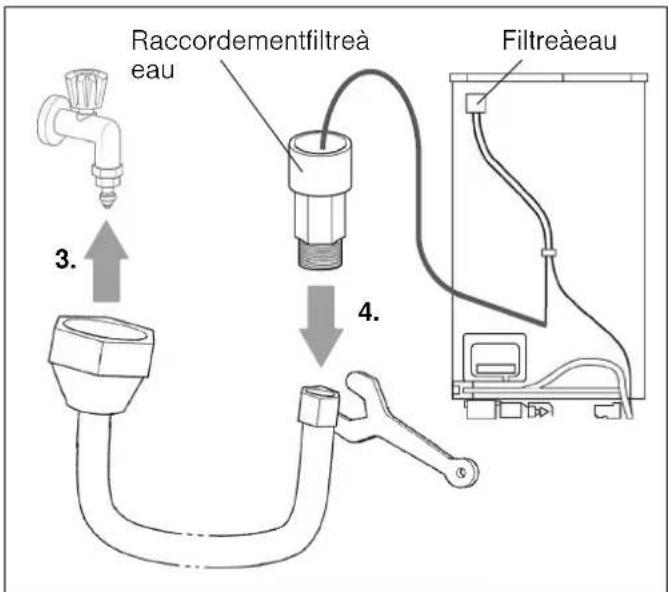

Waterconnection 32.

Electrical connection 33

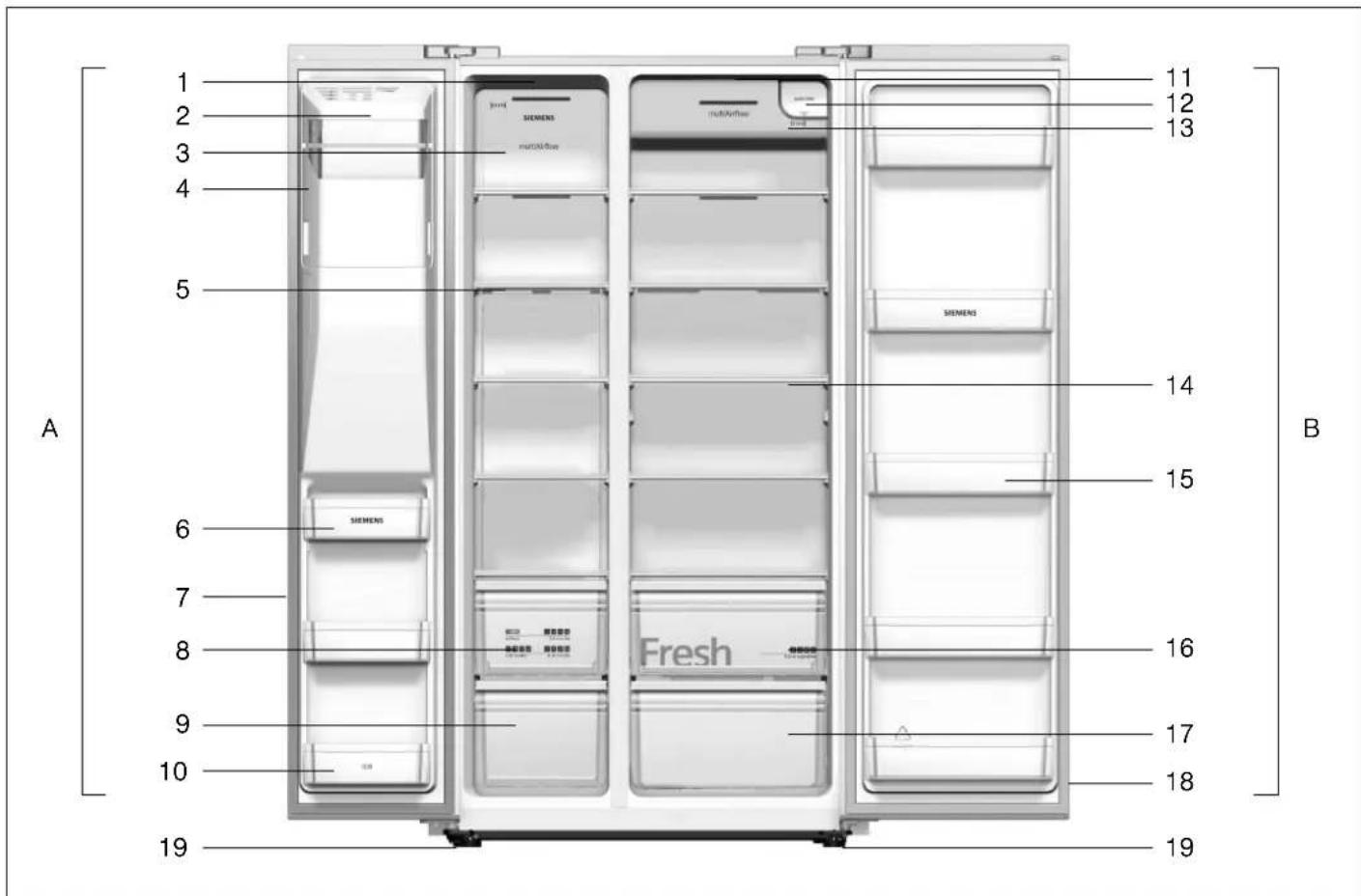

Getting to know your appliance 34

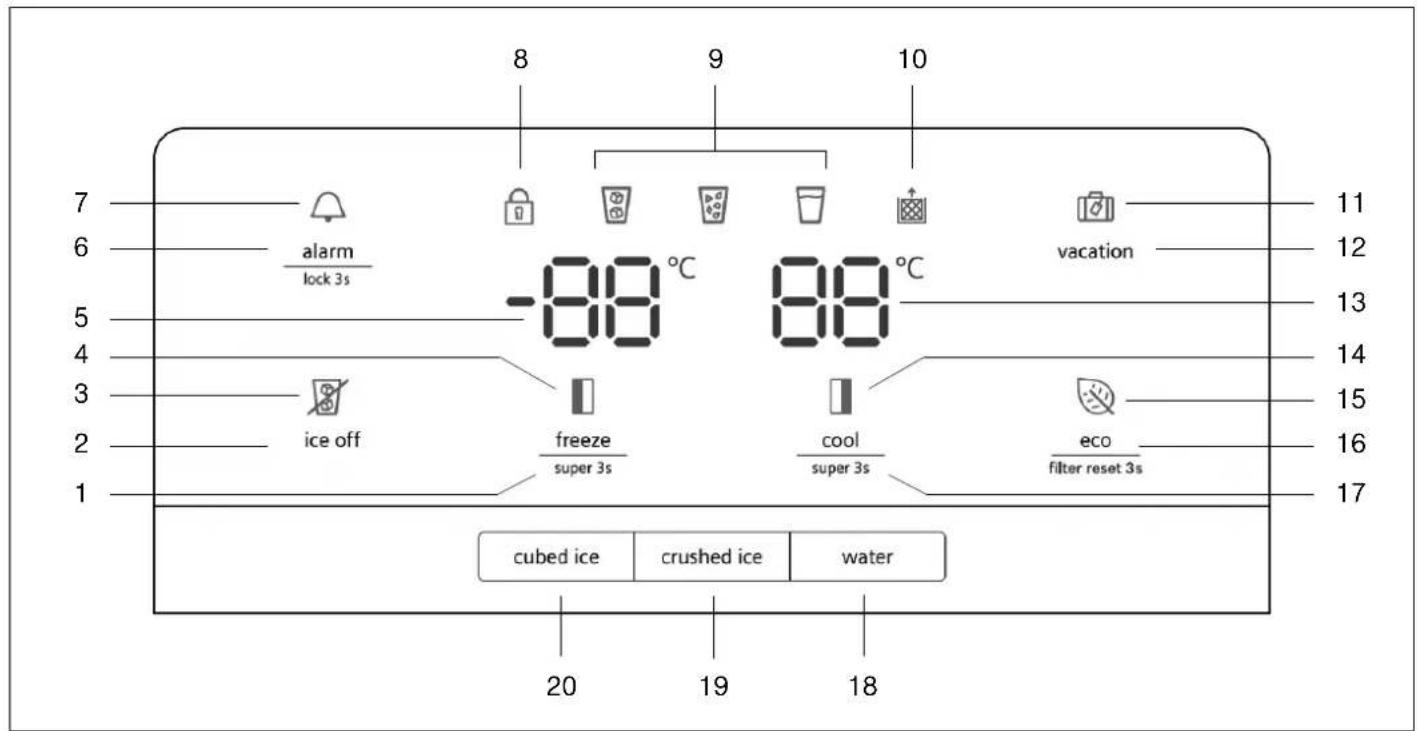

Control and display panel 35

Switching on the appliance 36

Child lock 36

Unlockingthebuttons 36.

Lockingthebuttons 36.

Setting the temperature 36

Freezercompartment 36.

Refrigerator compartment 36

Usable capacity 36

Freezer compartment 37

Purchasing frozen food 37

Drawers 37

Fully utilising the freezer volume 37

Freezingcapacity 37.

Freezing fresh food 37

Packingfrozenfood 37.

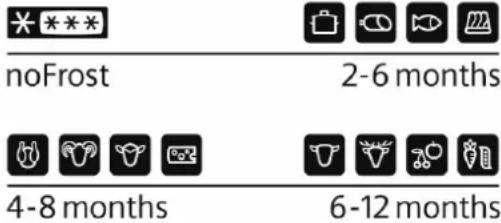

Shelf life of frozen food 38

Freezercalendar 38.

Super freezing 38

Switching on super freezing 38

Switching off super freezing 38

Thawingfroozenfood 38

Refrigerator compartment 39

Storing food 39

Notethechillzonesintherefrigerator

compartment 39

Fruit and vegetables crisper 39

Super cooling 39

Switching on super cooling 39

'Switching off super cooling 39

Ice and water dispenser 40

Dispensingwater40.

Ice maker 40

Dispensing ice 40

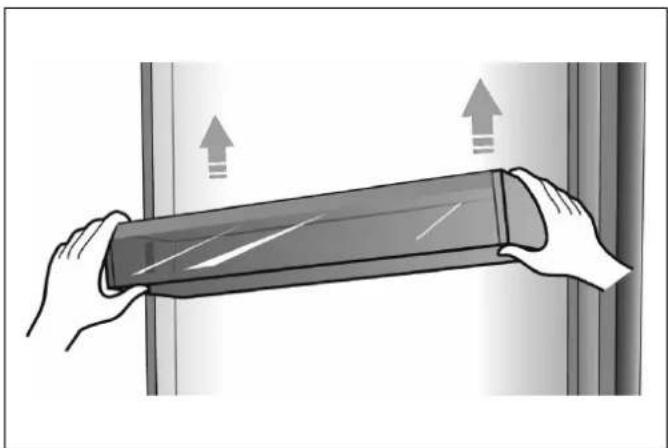

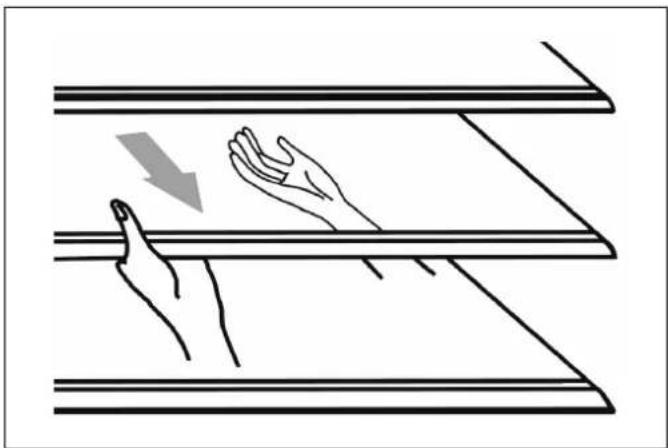

Variableinteriordesign 41.....

Alarm 41

Door alarm 41

Holiday mode 42

Switching on holiday mode 42

Switching off holiday mode 42

Energysavemode 42.....

Switching on energy save mode 42

Switching off energy save mode 42

Switching off and disconnecting the appliance .. 42

Switching off the appliance 42

Disconnecting the appliance 42

Defrosting 43

*Freezercompartment **** 43.

Refrigerator compartment 43

Cleaning the appliance 43

Procedure 43

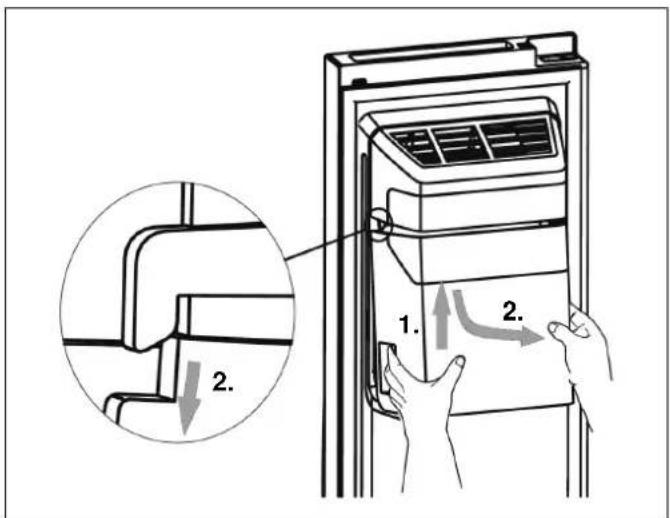

Dispenser 43

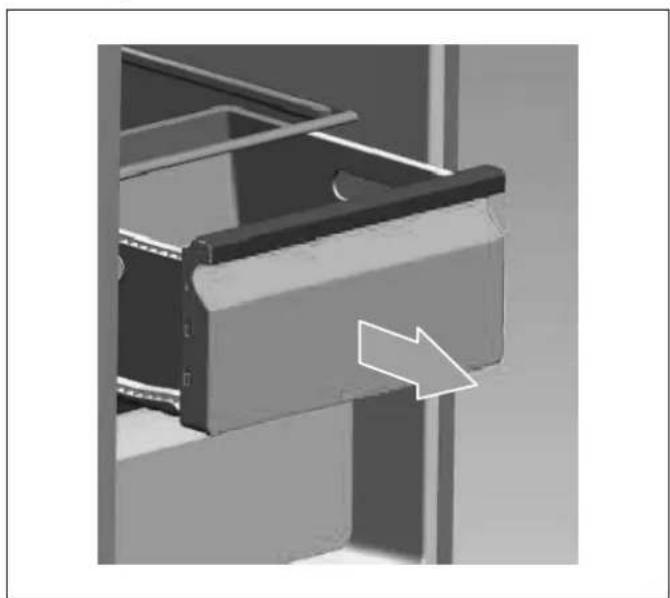

Interior fittings 44

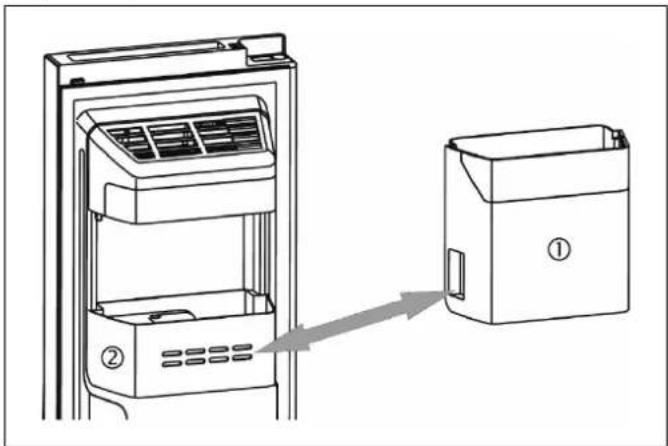

Handling the ice bucket 44

Defrosting 45

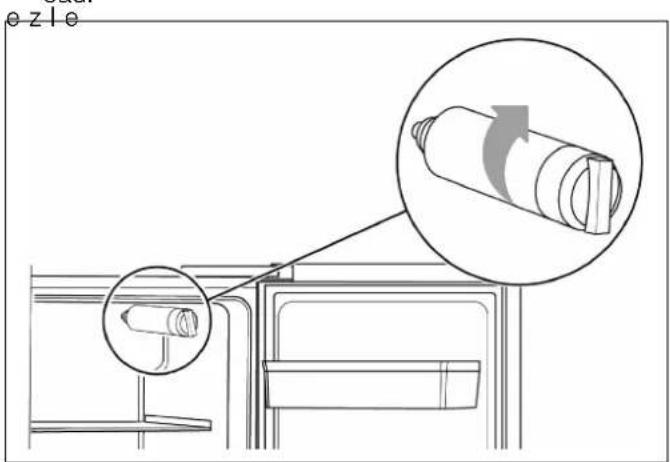

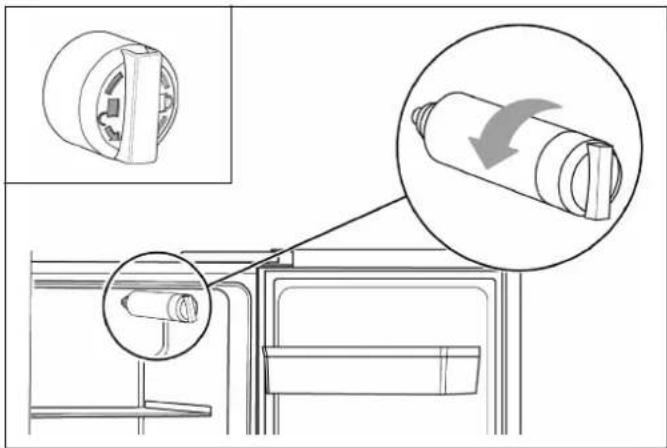

Replacing the water filter 46

Purchasing a new water filter 46

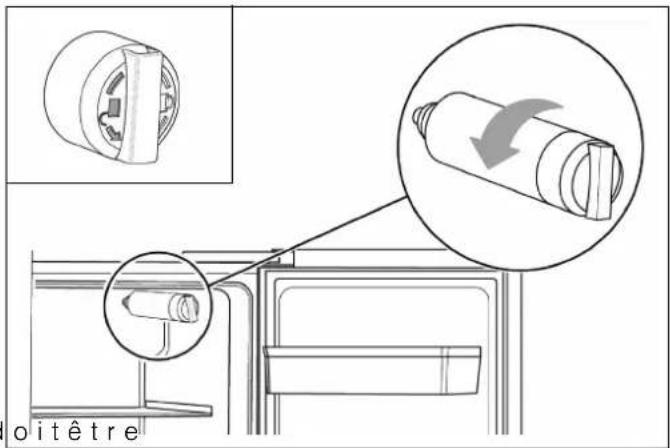

Removing the old water filter 46

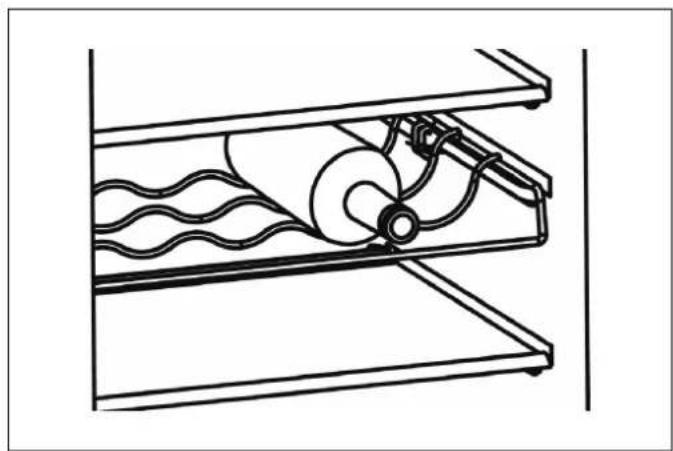

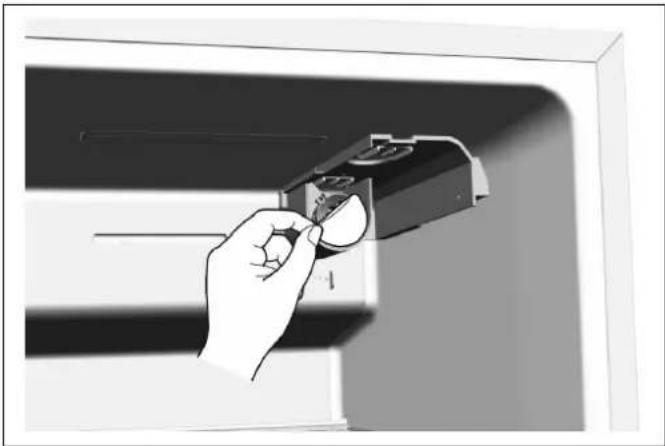

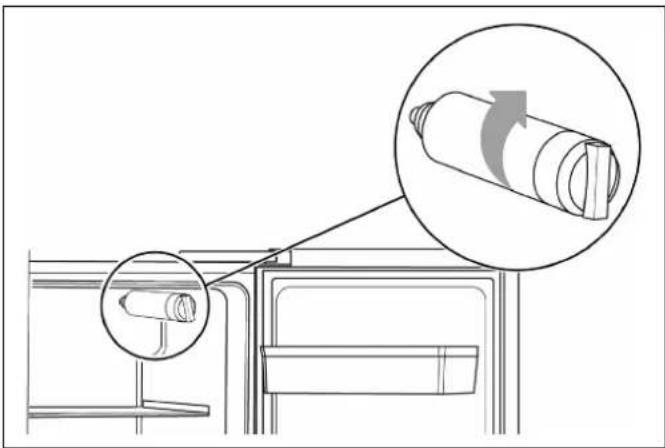

Installing the new water filter 46

Light (LED) 47

Tips for saving energy 47

Operatingnoises 47.....

Quite normal noises 47

Preventingnoises.... 47.....

Eliminating minor faults yourself 48

Customer service 49

Repair order and advice on faults 49

Safetyinstructions

This appliance complies with therelevant safety regulations for electrical appliances and disfitted with noises suppression.

Therefrigerationcircuithasbeenchecked forleaks.

Abouttheseinstructions

• Readandfollowthelstallationinstructions andinstructionsforuse.Theycontainimportantinformationonhowtoinstall,use andmaintaintheappliance.
  ■ ThemanufacturerisnotliableifyoudisregardtheinstructionsandwarningsintheInstallationinstructionsandinstructionsforuse.
  ■ Retainalldocumentsforsubsequentuse orforthenextowner.

Riskofexplosion

■ Neveruseelectricappliancesinsidethe appliance(e.g.heatersorelectricice makers).
■ Donotstoreproductswhichcontain flammablepropellant(e.g.spraycans)or explosivesubstancesintheappliance.
■ Storehigh-percentagealcoholtightly sealedandinuprightposition.
■ Donotuseadditionalmeanstoaccelerate thedefrostingprocessotherthanthose recommendedbythemanufacturer.

Riskofelectricshock

Improperinstallationsandrepairsmayput theuseratconsiderablerisk.

■ Wheninstallingtheappliance,ensure thatthemainscableisnottrappedor damaged.
■ Ifthemainscableisdamaged: immediately disconnecttheappliance from the electricity supply.
■ Donotusemultiplesockets,extension leadsoradapters.

■ Havetheappliancerepairedbythe manufacturer,Customerserviceora similarlyqualifiedpersononly.
■ Useoriginalpartssuppliedbythemanu- factureronly. Themanufacturerguaranteesthatthese partssatisfythesafetyrequirements.

Riskofcoldburns

■ Neverputfrozenfoodstraightfromthe freezercompartmentintoyourmouth.
■ Avoidprolongedcontactofskinwith frozenfood,iceandthetubesinthe freezercompartment.

Riskofinjury

Containerswhichcontaincarbonateddrinks mayburst.Donotstorecontainerswhich containcarbonateddrinksinthefreezer compartment.

Firehazard/Dangerduetorefrigerants

The tubesoftherefrigerationcircuit conveyasmallquantityofanenvironmentally friendlybutflammablerefrigerant(R600a). Itdoesnotdamagetheozonelayerand doesnotcontributetothegreenhouseeffect. Ifrefrigerantescapes,itmayinjureyoureyes orignite.

■ Donotdamagethetubes.

Ifthetubesaredamaged:

• Keepnakedflamesandignitionsources awayfromtheappliance.
  ■ Ventilatetheroom.
  ■ Switchofftheapplianceandpulloutthe mainsplug.
  ■ PleasecontactCustomerservice.

Firehazard

Portable multiple outlets or power supplies may overheat, causing a fire. Never leave portable multiple outlets or portable powers supplies behind the appliance.

en

Avoidingplacingchildrenandvulnerable peopleatrisk

Atriskare:

■ Children,
■ Peoplewhohavelimitedphysical,mental orsensoryabilities,
■ Peoplewhohaveinadequateknowledge concerningsafeoperationoftheappliance.

Measures:

■ Ensurethatchildrenandvulnerablepeople haveunderstoodthehazards.
■ Childrenorvulnerablepeoplemustbe supervisedbyaresponsiblepersonwhen usingtheappliance.
■ Onlychildrenfrom8yearsandabovemay usetheappliance.
■ Supervisechildrenwhiletheapplianceis beingcleanedormaintained.
■ Neverallowchildrentoplaywiththe appliance.

Riskofsuffocation

- Keepchildrenawayfromthepackaging anditsparts.

Generalrequirements

■ This appliance is intended for use in the home and the home environment.
This appliance is intended for use up to a maximum height of 2000 metres above sealevel.

Damage

Topreventdamage:

■ Donotstandorsupportyourselfonthe base,runnersordoors.
- Keepplasticpartsanddoorsealsfreeof oilandgrease.
■ Pullthemainsplug—notthepowercord.

Weight

The appliance is very heavy. The appliance should always be transported and setup by at least 2 persons.

Informationconcerning disposal

Disposalofpackaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friend. Please ask your dealer or inquire at your about current means of disposal.

Disposalofyouroldappliance

Oldappliancesarenotworthlessrubbish!Valuableraw materialscanbereclaimedbyrecyclingoldappliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning use electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guided determinesthe framework for the return and recycling of used appliances as applicable throughout the EU.

Warning

Redundantappliances

1. Pulloutthemainsplug.
2. Cutoff the power cord and discard with themains plug.
3. Donottakeoutthetraysandreceptacles: children are therefore prevented from climbingin!
4. Donotallowchildrentoplaywiththeappliance onceithasspentitsusefullife.Dangerofsuffocation!

Refrigeratorscontainrefrigerantandgasesintheinsulation. Refrigerantandgasesmustbedisposedof professionally.Ensurethattubingoftherefrigerant circuitisnotdamagedpriortoproperdisposal.

Scopeofdelivery

Afterunpackingallparts,checkforanydamagein transit.Ifyouhaveanycomplaints,pleasecontactthe dealerfromwhomyoupurchasedtheapplianceorour Customerservice.

Thedeliveryconsistsofthefollowingparts:

■ Free-standing appliance
■ Bagcontaininginstallationmaterials
■ Waterfilterpackage
■ Interiorfittings(dependingonmodel)
■ Operatinginstructions
■ Customerservicebooklet
■ Warrantyenclosure
■ Informationontheenergyconsumptionandnoises

Installingtheappliance

Transporting

The appliance is heavy. Secure in position during transportation and installation.

Duetotheweight/dimensionsoftheapplianceand tominimisetheriskofinjuryanddamagetotheapplianceatleasttwopersonsarenecessarytoset-upthe appliancesafely.

Removingtheappliancedoors

If the appliance will not fit through the house, the appliance doors can be unscrewed.

Caution!

Only Customerservicemayunscrewtheappliance doors.

Installationlocation

Installtheapplianceinadry,wellventilatedroom.The installationlocationsshouldneitherbeexposedtodirect sunlightnoreaheatsource,e.g.acooker,radiator, etc.lfinstallationnexttoaheatsourcesunavoidable, useasuitableinsulatingplateorobservet minimumdistanceoahatsource:

■ 3cmtoelectricorgascookers.
■ 30cmtoanoilorcoal-firedcooker.

Ifinstallingtheappliancenexttoanotherrefrigeratoror freezer,ensureaminimumlateraldistanceof25mm topreventtheformationofcondensation.

Ifapanelorcupboardisinstalledabovetheappli- ance,ensure that atagapof30mmisleftsoth appliancecanbepulledoutoftherecessifrequired.

The air heated on there are a side of the appliance must be allowed to escape unhindered.

Subsurface

Caution!

The appliance is very heavy.

Theflooroftheinstallationlocationmustnotgiveway; ifrequired,reinforcefloor.

Toensure that the doors can open all the way, observe lateral minimum distances when installing the appliance in acorneror recess

(→ chapter"Installationdimensions").

If the depth of the adjacent kitchen equipment is more than 60 cm, observ a lateral minimum distances in ordert outilis the full door opening angle

(→ chapter"Dooropeningangle").

en

Observeambienttemperature and ventilation

Ambienttemperature

Theclimateclasscanbefoundontheratingplate.The climateclassindicateswithinwhichambienttemperaturestheappliancecanbeoperated.Theratingplate islocatedintherefrigeratorcompartmentattheright side.

ClimateclassPermittedambienttemperature

SN+10°C to 32°C

N+16°C to 32°C

ST+16°C to 38°C

T+16°C to 43°C

Note:

The appliance is fully functional within the room temperature limit so of the indicated climatic class. If an appliance of climatic class Sunisoperated at colder room temperatures, the appliance will not be damaged up to a temperature of +5°C.

Ventilation

Inordertoimproveefficiencyofthecoolingsystem andsaveenergy,itisnecessarytomaintaingoodventilationaroundtheapplianceforthedissipationofheat. Forthisreason,sufficientclearspacesshouldbeavailablearoundtherefrigerator.Suggest:Itisadvisablefor theretobe50-70mmofspacefromthebacktothe wall,atleast100mmfromitstop,atleast100mm fromitssidetothewallandaclearspaceupfront toallowthefreezerdoortoopen130°andthe refrigeratorordoortoopen135°.

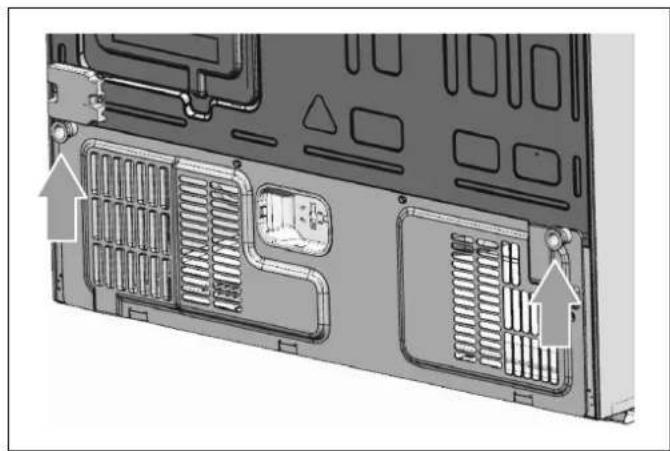

Installingthespacers

Removetwoscrewswithscrewdriverfirst,andtakeout thespacersfromplasticbagandfixittothebackof theappliancethroughthescrewsthen.T thatthereisaminimumdistancebetweentheapplianceandthewall.

Back panel of a computer drive showing ventilation grilles and mounting points (no text or symbols visible)

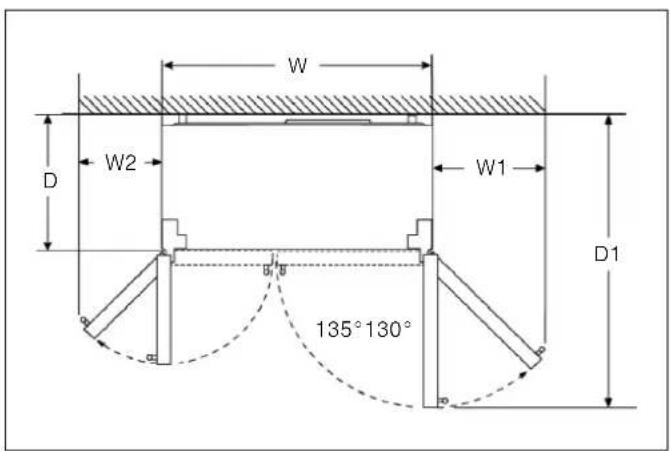

Installation dimensions and door opening angle

W	W1	W2	D	D1
908 mm	418 mm	277 mm	628 mm	1171 mm

Fixingthedoorhandle

Beforeyousetheproduct,pleasecheckthehandles oftheappliance.Ifahandleisloose,youshouldfixit withthehexangularscrewdriverintheclockwise direction,thenitcanbeusednormally.

Simple line drawing of a mechanical lever or bracket with a circular pivot point (no text or symbols)

Aligningtheappliance

Toensure that the appliance functions correctly, it must be set level with aspiritlevel.

■ Forsufficientlevelingandaircirculatinginthelower resectionoftheappliance,thebottomfeetmay needtobeadjusted.
■ To allow the doors to self-close, tilt back the top backwardsatabout15mmor0.5°byturningthe adjustablefeet.
■ Whenever you want to mov the appliance, remembert to turn the feet backup, so that the appliance can roll freely.
■ Therollers, which are not castors, should be only used for forward or backward movement. Moving therefrigerators sideways may damage your floor and therollers.
■ Reinstalltheappliancewhenrelocating.

Aligningthedoors

When you found the doors are not at the same you can use aspannertoadjust the fridgedoor.

Onlythefridgedoorcanbeadjusted.

Toraisethefridgedoor, turnthebolt(1) anticlockwise.

Tolowerthefridgedoor,turnthebolt(1)clockwise.

Onceinposition,lockthenut(2).

Connectingtheappliance

Haveatechnicianinstallandconnecttheappliance accordingtotheenclosedinstallationinstructions.

Donotremovethetransportationprotectiondevices fromtheshelvesandstoragecompartmentsuntilthe appliancehasbeeninstalled.

Alwaysconnectthewaterbeforethepower.

Apartfromstatutorynationalregulations,youshould sticktotheconnectiontermsrelatingtothelocal electricitycompany.

Afterinstallingtheappliance,waitatleast1houruntil theappliancestartsup.Duringtransportationtheoilin thecompressormayhaveflowedintotherefrigeration system.

Beforeswitchingontheapplianceforthefirsttime, cleantheinterioroftheappliance

(→ chapter"Cleaningtheappliance").

Waterconnection

Connecttheappliancetoadomesticwatersupply.The appliancemayonlybeconnectedtoacold-waterline.

-Minimumpressure:2bar

-Maximumpressure:8bar

Contactaplumbingcompanyifyouareunsurehowto checktheexistingwaterpressure.

Installingthewaterfilter

When appliance is delivered, the water filter package is located in a door rack of there refrigerator compartment.

1. Takethewaterfilteroutofthepackaging. The instructionsinthepackagingincludeinformationfor thewaterfilter.Pleasekeepthemforfutureuse.

1. Opentherefrigeratordoortoitsmaximumangle andremovethewaterfiltercapbypullingitout slowly.

Hand inserting a small object into a device inside a cabinet (no text or symbols visible)

3.Removetheprotectorofthewaterfilterbase.

Diagram showing a cylindrical object being inserted into a refrigerator, with an inset close-up of the component (no text or symbols present)

1. Screwinthewaterfilterinclockwisedirectionand makesureitisfirmlyfittedtothewaterfilterbase.

Warning

If not installed correctly, this can result in the appliance is not working properly, or result in water leakages.

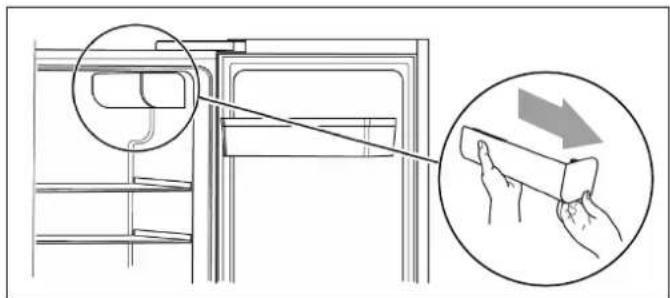

5.Reattachthefiltercoverbygentlyslidingiton.

Installingthewaterhose

Usethesuppliedconnectionhoseforinstallation.

1. Unpack the bag containing installation materials and takeout the twopads.

Technical illustration of two mechanical fasteners with bolt holes and a nut assembly (no text or symbols)

1. Install the twopad sto the hosenuts.

1. Manually connect the hosenuttothetap.

2. Use the spannerto connect the other hosenutto the water filter nut.

Checkingthewaterconnectionforleaks

Warning-Riskofleaksandwaterdamage!

■ Afterturningonthewatervalve,makesurethat thereisnoleakageatallconnectionpointsofthe waterlines.Ifthereisaleakage,turnoffthevalve immediatelyandtightenthewaterconnector.

■ Thewaterliness should not be depressed by heavy things and should not bend too much.

■ Placethewaterhoseinloopsorcoilssothatthe appliancecanbemovedawayfromthewall.

Note: Afterconnection, please flushthelines with several cupsofwater before use. Dispensewater according to the instructions for use. This will last severalsecondsasthereisstillairinthelines and the watertank.

Electricalconnection

Warning-Riskofelectricshock!

Ifthelengthofthemainscableisinadequate,never usemultiplesocketsorextensionleads.Instead, pleasecontactCustomerserviceforalternatives.

The appliance must be connected to a permanently installed socket.

Thesocketmustbeneartheapplianceandalsofreely accessiblefollowinginstallationoftheappliance.

The appliance complies with protection classl. Connect the appliance ceto 220-240V/50Hz alternating current via accurately installed socket with protective conductor. The socket must be protected by a 10Ato 16Afuse or higher.

Forappliancesoperatedinnon-Europeancountries, checkwhethertheindicatedvoltageandcurrenttype matchthevaluesofyouelectricitysupply.Therating plateissituatedinthebottomright-handsideofthe appliance.Themainscablemaybereplacedbya technicianonly.

Warning

Neverconnecttheappliancetoelectronicenergysaver plugs.

Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaics systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. onships or in mountain lodges) which are not connected directly to the national grid.

Gettingtoknowyour appliance

Note:

Duetounceasingmodificationofourproductsyour appliancemaybeslightlydifferentfromthisInstruction manualbutitsfunctionsandusingmethodsremainthe same.

AFreezercompartment

1 FreezerLEDLight

2 | c e -makerfrontcoverassembly

3Windchannelcoverinfreezer

4Icebucketassembly

5Freezershelf

6Freezerdoorrack

7Freezerdoorgasket

8Freezerupperdrawer

9Freezerlowerdrawer

10 Freezerdoorrack(two-starzone)

BRefrigeratorcompartment

11FridgeLEDlight

12Waterfilter(behindcap)

13Windchannelcoverinfridge

14Fridgeshelf

15Fridgedoorrack

16Fruitandvegetablescrisper

17Fridgelowerdrawer

18Fridgedoorgasket

19Adjustablefeet

Controlanddisplaypanel

Thecontrolanddisplaypanelonthedoorconsistsof 2displayareasshowingtemperatures,displaysfor differentmodesand9controlbuttons.

1Button"freeze/super3s"

Tochangetemperatureoffreezer.

2 B u t t o n " i c e o

Toturnicemakeronoroff.

3Display (iceoff)

Illuminated,whenicemakeristurnedoff.

4Display ■ (superfreeze)

Illuminated, when "superfreezing" function isactive.

5Freezercompartmenttemperaturedisplay

6Button"alarm/lock3s"

Toclearapresentdooralarm.

Tolockorunlockthecontrolpanelandthe dispenserfunction(childlock).

7Display (alarm)

Illuminatedincaseofdooralarm.

8Display (childlock)

Illuminated, whenchildlockisactive.

9Displayofdispensermode:

“cubedice”modeactive.

“crushedice”modeactive.

☐ "water"modeactive.

10Display (waterfilter)

Whendisplayisblinking,youneedtoreplace thewaterfilter

(→ chapter "Replacing the water filter").

11Display (vacation)

Illuminated,when"holiday"modeisactive.

f 12Button"vacation"

Toactivateordeactivate"holiday"mode.

13Fridgecompartmenttemperaturedisplay

14Display □ (supercool)

Illuminated, when "supercooling" function is active.

15Display (eco)

Illuminated,when"energysave"modeisactive.

16Button"eco/filterreset3s"

Toturnenergysavemodeonoroff.

Toresetthewaterfilterdisplay,afterhaving replacedthewaterfilter.

17Button"cool/super3s"

Tochangetemperatureofrefrigerator.

18Button"water"

Toactivated dispensermode "water".

19Button"crushedice"

Toactivatedispensermode"crushedice".

20Button"cubedice"

Toactivatedispensermode"cubedice".

Switchingontheappliance

Whentheapplianceispoweredon,thebacklighting ofthedisplaysonthecontrolpanelstartworking. Alldisplayswilllightupfor3secondsandabuzzer sounds.lfnobuttonshavebeenpressedandthe doorsareclosed,thebacklightingwillturnoffafter 60seconds.

The preset temperatures are reached after several hours. Donotputanyfoodintheappliance beforehand.

Thefactoryhasrecommendedthefollowingtemperatures:

■ Freezercompartment:-18°C
■ Refrigeratorcompartment:+4°C

Note:

Childlockisoffwhenapplianceispoweredon.

Childlock

If the display is illuminated, all the buttons are locked and the dispenser function is deactivated.

Unlockingthebuttons

Pressthe"alarm/lock3s"buttonfor3sec unlockthebuttonsandtoactivatethedispenser function.Display 🔒 goesout.

Lockingthebuttons

Pressthe"alarm/lock3s"buttonfor3secondsto lockallthebuttonsanddeactivatethedispenser function.Display 🔔 willbeilluminated. Usable

Settingthetemperature

Freezercompartment

Thefreezercompartmentcanbesetfrom-14°C to -24°C. Werecommendasettingof-18°C.

After unlocked, the freezertemperature setting is activated. Press "freeze/super3s" button to set freezertemperature between -14°C and -24°C as needed.

The control panel will display the corresponding value according to the following sequence.

Refrigeratorcompartment

Therefrigeratorcompartmentcanbesetfrom+2°C to+8°C.Werecommendasettingof+4°C.

Perishable food should not be stored above +4°C.

After unlocked, the fridgetemperaturesetting is activated. Press "cool/super3s" button to set fridge temperature between 8°C and 2°C as needed. The control panel will display the corresponding value according to the following sequence.

Usablecapacity

Informationontheusablecapacitycanbefoundinside yourapplianceontheratingplate ( chapter“Customerservice”).

Freezercompartment

Usethefreezercompartment

■ tostoredeep-frozenfood,
■ tomakeicecubes,
■ tofreezefood.

Caution!

Ensure that bottles are not left in the freezer for longer than needed as freezing may cause the bottlet to break.

Note:

Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become recovered in thick ice. Also: waste of energy duet high power consumption!

Whenthefreezercompartmentdoorisclosed, alow pressure occurs, causing asucking noise. Waittwoto threeminutes until the low pressure has adjusted itself.

Purchasingfrozenfood

■ Packagingmustnotbedamaged.
■ Usebythe"useby"date.
■ Temperatureinthesupermarketfreezermustbe -18°Corlower.
■ Ifpossible, transportdeep-frozenfoodinan insulatedbagandplacequicklyinthefreezer compartment.

Drawers

Thedrawers, mountedontelescopicextensionslides, can be used to store large quantities off from

Whenyouremovethedrawerpullitforwardsandliftoff thesliders.Remembertoremoveallfoodfirst.

Once you have removed the drawer, ensure are pushed backfully.

Fullyutilisingthefreezervolume

If you don't needice, you can switch to the i cemaker and replace the ice bucket by the doorrack (→ chapter "Cleaning the appliance").

Freezingcapacity

Informationaboutthefreezingcapacitycanbefound ontheratingplate.

Freezingfreshfood

Freezefreshandund a m aged food only.

Toretainthebestpossiblenutritionalvalue,flavourand colour,vegetablesshouldbeblanchedbeforefreezing. Aubergines,peppers,zucchiniandasparagusdonot requireblanching.

Literatureonfreezingandblanchingcanbefoundin bookshops.

Note:

Keepfoodwhichistobefrozenawayfromfoodwhichisalreadyfrozen.

■ The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, egg with out shells, dairy product such as cheese, butter and ready meals, side leftovers such as souffles and dessert.
■ The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiledeggs, yoghurt, souredmilk, sour cream, crème fraîche and mayonnaise.

Packingfrozenfood

Topreventfoodfromlosingitsflavourordryingout, placeinairtightcontainers.

1. Placefoodinpackaging.
2. Removeair.
   3.Sealthewrapping.
   4.Labelpackagingwithcontentsanddateoffreezing.

Suitablepackaging:

Clingwrap, tubularfilmmade of polyethylene, aluminium foil, freezer containers.

Theseproductsareavailablefromspecialistoutlets.

Unsuitablepackaging:

Wrappingpaper, greaseproofpaper, cellophane, binlinersandusedshoppingbags.

Itemssuitableforsealingpackagedfood:

Rubberbands, plasticclips, string, cold-resistant adhesivetape, etc.

Bagsandtubularfilmmadeofpolyethylene(PE)can besealedwithafilmheatsealer.

en

Shelflifeoffrozenfood

Storagedurationdependsonthetypeoffood.

Atatemperatureof-18°C:

■ Fish, sausage, readymeals and cakes and pastries: upto 6 months
■ Cheese, poultry and meat: upto 8 months
■ Vegetablesandfruit: upto 12 months

Freezercalendar

Topreventthequalityofthefrozenfoodfromdeteriorating,donotexceedthestorageduration.Thestorage perioddependsonthetypeofproduce.Thefigures nexttothesymbolsindicatethepermittedstorage periodoftheproduceinmonths.

In caseofcommercialyavailablefrozenfoodobserve thedateofmanufactureoruse-bydate.

Superfreezing

Foodshouldbefrozensolidasquicklyaspossiblein ordertoretainvitamins,nutritionalvalue,appearance andflavour.

Theappliancerunsconstantlywhensuperfreezinghas beenswitchedon. Thefreezercompartmenttemperaturesaremuchlowerthaninnormaloperation.

Several hours before placing fresh food in the freezer compartment, switch on superfreezing to prevent an unwanted temperaturerise.

If the freezing capacity according to the rating plate is to be used, switch on superfreezing 24 hours before the fresh products are placed in the freezer compartment.

Smallerquantitiesoffood(upto2kg)canbefrozen withoutsuperfreezing.

Switchingonsuperfreezing

Pressthe "freeze/super3s" button for 3 seconds to switch on "superfreezing".

Display ■ (superfreeze)goesonandthefreezer compartmenttemperaturedisplayshows"-24°C".

Switchingoffsuperfreezing

Toswitchoff"superfreezing",pressthe"freeze/super3s"button.

Ifsuperfreezingisswitchedoff,display ■ (super freeze)goesout.Theapplianceautomaticallyswitches tothetemperaturesetpriortosuperfreezingmode.

Notes

■ Superfreezingautomaticallyswitchesoffafter 52hours.
■ Activationof"energysave"or"holiday"modewill switchoffsuperfreezing.

Thawingfroozenfood

Dependingonthetypeandapplication,selectoneof thefollowingoptions:

■ atroomtemperature
■ intherefrigerator
■ inanelectricoven, with/without fan assisted hot-air
■ inthemicrowave

Caution!

Donotrefreezethawingorthawedfood. Only ready meals (boiledorfried) may be refrozen.

Nolongerstorethefrozenproduceforthemax. storageperiod.

Refrigeratorcompartment

Therefrigeratorcompartmentistheidealstorage locationformeat, sausage, fish, dairyproducts, eggs, readymealsandpastries.

Storingfood

■ Storefresh, undamaged food. The quality and freshness will then be retained for longer.
■ In the case of ready-made products and goods, observethebest-beforedateoruse-bydate specified by themanufacturer.
■ Toretainaroma, colourandfreshness, packor coverfoodwellbeforeplacingintheappliance. Thiswillpreventthetransferofflavoursandthe discolourationofplasticpartsintherefrigerator compartment.
- Allowwarmfoodanddrinkstocooldownbefore placingintheappliance.

Note:

Avoidcontactbetweenfoodandrearpanel. Otherwise theaircirculationwillbeimpaired.

Foodorpackagingcouldfreezetotherearpanel.

Notethechillzonesintherefrigerator compartment

Theaircirculationintherefrigeratorcompartment createsdifferentchillzones:

- Coldestzoneisbetweenthevegetablecontainer andtheglassshelfsituatedabove.

Note:

Storeperishablefood(e.g.fish, sausage, meat) in the coldestzoneabovethevegetablec

■ Warmestzoneisattheverytopofthedo

Note:

Storee.g.hardcheeseandbutterinthewarmest

zone.Cheesecanthencontinuetoreleaseits flavourandthebutterwillstillbeeasytospread.

Fruitandvegetablescrisper

Thecrisper, mountedontelescopicextensionslides, isforstoringvegetablesandfruit.

Whenyouremovethecrisperpullitforwardsandliftoff thesliders.Remembertoremoveallfoodfirst.

Once you have removed the crisper, ensure are pushed backfully.

Notes

■ Fruitsensitivetocold(e.g.pineapple,banana, papayaandcitrusfruit)andvegetablessensitive
b oltiged tocold(e.g.aubergines,cucumbers,zucchini,peppers,tomatoesandpotatoes)shouldbestoredoutsidetherefrigeratorattemperaturesofapprox. +8^ + 12^ andflavour.
■ Condensationmayforminthevegetablecontainer depending on the type and quantity of products stored. Removecondensationwithadrycloth.

Supercooling

Supercoolingsetstherefrigeratortemperatureto the coldesttemperaturesetting.

Switchonsupercoolingmode, e.g.

■ beforeplacinglargequantitiesoffoodinthe refrigeratorcompartment.
■ forthefastcoolingofdrinks.

Switchingonsupercooling

Pressthe"cool/super3s"buttonfor3seconds toswitchon"supercooling".

Display ■ (supercool) goes on and there refrigerator compartment temperature display shows "2°C".

Switchingoffsupercooling

Toswitchoff"supercooling",pressthe"cool/ super3s"button.

If supercooling is switched off, display (supercool) goes out. The appliance automatically switch the temperatures set prior to supercooling mode.

Notes

■ Supercoolingautomaticallyswitchesoffafter 3 hours.
■ Activationof"energysave"or"holiday"modewill switchoffsupercooling.

Iceandwaterdispenser

The following can be dispensed as required:

cooledwater
■ cubedice
crushedice

Youcanchoosethetypeoficeorwaterbytouching the "cubedice", "crushedice" or "water" button.

Warning

■ Donotusefragilereceptaclesford dispensingwater orice-riskofinjuryfrombrokenglass!
- Keepfingersclearofthedischargeopening.Riskof injuryfromcrusherblades!

Note:

Theiceandwaterdispenserwillnotfunctionwhenthe freezerdoorisopenorchildlockisactive.

Dispensingwater

Thewaterfromthedispenseriscooledtoapalatable temperature.Ifyouwouldlikethewatercolder,place icecubesintheglassbeforedispensingthewater.

Illustration of a hand holding a cup inside a digital water dispenser (no text or symbols visible)

1. Pressbutton "water" to activated dispenser mode "water". Display will illuminate, when "water" mode is active.

2. Presstheglassagainstthedispenserlever. Thewaterstopsrunningwhentheglassisremoved fromthelever. Donotimmediatelyremoveyourglassfromunder thedispenserafterdispensingwater.Waitfor2or 3secondstopreventspills.

Note:

Ifnowaterisdispensedoritisdispensedslowly, thewaterfiltermaybecloggedandmayneedtobe replaced

(→ chapter "Replacing the water filter").

Icemaker

Whenthefreezercompartmenthasreacheditsfreezing temperature,waterflowsintotheicemakerandfreezes intoicecubes.Whentheicecubesareready,theyare automaticallydischargedintotheicebucket.

Turningofftheicemaker

Theicemakercanbeturnedofftosavewaterand energy,ifnoiseisneeded.

Pressthe"iceoff"buttontoturnonorofftheicemaker.Display (iceoff)isilluminated,whenthe icemakeristurnedoff.

Note: "iceoff" onlyconcernstheicemaker, notthe dispenser.

Emptyingtheicebucket

If you donot dispenseiceforalong period, icemay clumpintheicebucket. If this occurs, pleaseremove and empty the bucket

(→ chapter"Cleaningtheappliance").

Dispensingice

Illustration of a hand holding a cup over a digital kitchen counter (no text or symbols visible)

1. Press button "cubedice" or "crushedic activatedispensermode" cubedice or "crushed ice". Corresponding display 📋 or 📌llilluminate, when selected mode is active.

2. Pressasuitablereceptacleagainstthedispenser lever. Removethereceptaclefromthedispenserlever whenitisapprox.halffull.Iceinthedischarge maycausethereceptacletooverfloworblockthe discharge. Donotimmediatelyremoveyourglassfromunder thedispenserafterdispensingice.Waitfor2or 3secondstopreventspills.

Notes

■ Afterswitchingoverfromdispensingcubediceto crushedice, the dispensermaystillcontainwhole icecubesorpiecesoficecube. These will be dispensed with the first portion of crushedice.
■ Afterswitchingoverfromdispensingcrushedice to cubedice,asmallamountofcrushedicemay bedispensedwiththefirstportionsofcubedice.
■ Donotdispenseicecontinualymorethanone minuteduringnormalusetoavoidexcessive temperatureontheicecrushermotor.

Variableinteriordesign

Therefrigeratorcompartmentisprovidedwith5glass shelvesandseveraldifferentdoorracks,whichare suitableforthestorageofeggs,cannedliquid,bottled drinksandpackedfood.Theycanbeplacedat differentheightsaccordingtoyourneeds. Beforeeremovingthedoorrackspleaseremoveallfood itemstoavoidspillage.

Diagram showing two hands holding a horizontal panel with a downward arrow indicating motion (no text or symbols)

■ Whenyouremovetheshelves, gently pull them forward until the shelf comes clear of the shelf guides.
■ Whenyoureturntheshelves, makesurethereisno obstaclebehindandgentlypushtheshelfbackinto theposition.

Illustration of hands holding a flexible electronic device with directional arrows indicating movement (no text or symbols)

■ Liftthedoorracksandremove.

Thebottlerack(option)isforstoringbottledwineand drinks.

Note: Please use gently when you remove the

Pure technical line drawing of a mechanical or fluidic component with no text, numbers, or symbols

■ Theshelfcanbetakenouttobecleanedo theshelfspace.

Alarm

Incaseofalarm, display will be on and there will be abuzzingsound.

Note: When buzzersoundsthreetimesandwaterfilter displayisblinking, thewaterfilterneedstobereplaced (→ chapter "Replacing the water filter").

Dooralarm

If the door of the fridge or freezer is open for longer than 2 minutes, the dooralarms switches on.

Incaseofdooralarm,thebuzzerwillsound3times every1 minuteandwillautomaticallystopalarming 10minuteslater.

Tosaveenergy, please avoid keeping the door open for alongtim when using the appliance.

Thedooralarmcanbeclearedbyclosingthedoor.

Withopendoor, the alarm can be cleared by pressing the "alarm/lock3s" button when childlock is not active.

Holidaymode

If you are going away for a long period of time, "holiday" modewillbeyourbestchoice.Itswitchesthe temperatureoftherefrigeratorcompartmentto15°C andthetemperatureofthefreezercompartmentto -18°Ctominimizetheenergyconsumption.

Important: Donotstoreanyfoodinthefridgeduring thistime.

Note: It is also recommended to close the watersupply during the absence.

Switchingonholidaymode

Pressthe "vacation" buttontoswitchonholidaymode. Display (vacation) goes on and there refrigerator compartment temperature display shows "15°C".

Note: Whentheholidaymodeison, theicemaker will automatically turnoff.

Switchingoffholidaymode

Toswitchoff "holidaymode", pressthe "vacation" button.

Ifholidaymodeisswitchedoff, display (vacation) goesout. Thetemperaturesettingwillrevertbackto it'sprevioussetting.

Energysavemode

Energysavemodemayhelpyoutoreducetheenergy consumption. Itsetsthetemperatureoftherefrigerator compartmentto6°Candthetemperatureofthe freezercompartmentto-17°C.

Switchingonenergysavemode

Pressthe"eco/filterreset3s"buttontoswitchonthe energysavemode.

Display 📋 (eco)goeson,whenenergysavemodeis active.

Switchingoffenergysavemode

Toswitchoffenergysavemode, pressthe "eco/filter reset3s" button.

Ifenergysavemodeisswitchedoff,display goesout. Thetemperaturesettingwillrevertbackto it'sprevioussetting.

Switchingoffand disconnectingtheappliance

Switchingofftheappliance

Pulloutmainsplugorswitchoffuse.

Refrigerating units switches off.

Caution!

If the appliance is powered off to long, the ice in the bucket will melt and the water will flow out of the appliance to the floor. To avoid this, you should empty the ice bucket

(→ chapter"Cleaningtheappliance").

Note: Childlock, superfreeze and supercool will not be retained, when appliance is switched off.

Disconnectingtheappliance

If you donot us the appliance for a prolonged period:

1. Take all food out of the appliance.
2. Cutoffthewatersupply.
3. Runofftheremainingdrinkingwater.
4. Pulloutthemainsplug.
5. Removethewaterfilter.

Note:

Before recommissioning the appliance, install a new water filter.

1. Clean the appliance interior and empty the ice bucket

(→ chapter"Cleaningtheappliance").

1. Leavetheappliancedoorsopentopreventodours fromforming.

Defrosting

Freezercompartment

ThefullyautomaticNoFrostsystemensuresthatthe freezercompartmentremainsfreeoffice.Defrostingis nolongerrequired.

Refrigeratorcompartment

Defrostingisactuatedautomatically.

The condensation run through the drain anevaporation panon therearof the appliance.

Cleaningtheappliance

Warning

Nevercleantheappliancewithasteamcle

Caution!

■ Donotuseabrasive, chloride or acidic cleaning agents or solvents.
■ Donotusescouringorabrasivesponges. The metallic surfaces could corrode.
■ Don't uses sharp object store move frost from the refrigerator.
■ Nevercleanshelvesandcontainersinthedish-washer.Thepartsmaybecomedeformed!

Procedure

1. Pulloutthemainsplugorswitchoffthefuse.
2. Takeout the frozen food and store in a cool location.
3. Wait until the layer off frost that thawed.
4. Clean the appliance with as soft cloth, lukewarm water and a little pH-neutral washing-up liquid. Therinsing water must not run into the light.
5. Wipethedoorseal with clear water only and then wiped dry thoroughly.
6. Aftercleaningreconnecttheappliance. Interiorshouldbecompletelydrybeforeconnecting themainsplugandswitchingon.
7. Putthefrozenfoodbackintotheappliance.

Dispenser

■ Donotpullthedispenserleveroutasthiscould damageorbreakthelever'sspring.

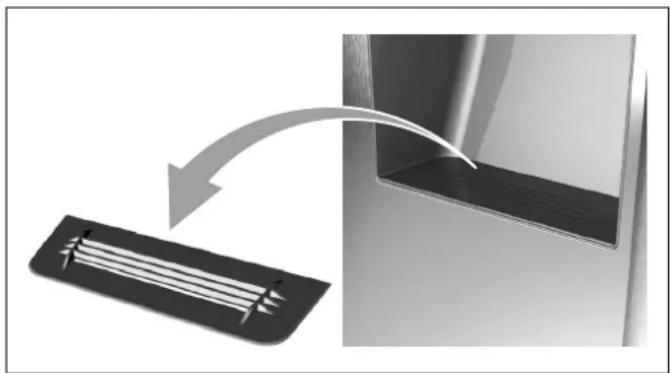

Cleaningwatercollectingtrayandstrainer

Spilledwatercollectsinthewatercollectingtray.

Diagram showing a mechanical component with a curved arrow indicating motion or force, next to a rectangular block (no text or symbols)

■ Tocleanthewatercollectingtrayandthestrainer, thestrainercanbetakenout.

en

Interiorfittings

Tocleantheequipment, allvariablepartsofthe appliancecanbetakenout (→ chapter "Variable interior design").

Note:

Totakeoutandcleanthecontainers,opentedoors fullybeyond90°.

Removingcontainer

Mechanical component with a white arrow indicating direction, no visible text or symbols

■ Pulloutcontaineralltheway, lifttodetachitfrom theholderandtakeout.

Toinsertthedrawer, placeonthetelescopicrailsand pushintotheappliance. Attachthedrawerbypassing itdown.

Handlingtheicebucket

Removingtheicebucket

For cleaning purposes orify you don't nee bucket can be removed.

1.Holdatthehandleandliftuptheicebuck 2.Pullouttheicebucketsslowlytoprevent

Warning

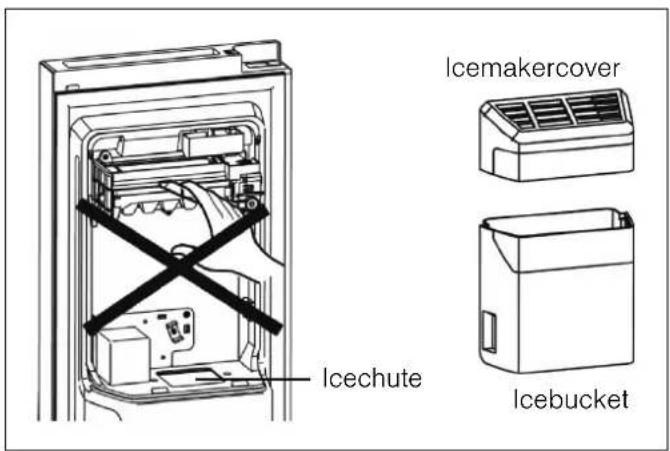

Donotputyourfingers,handsoranyunsuitable objectsintheicechuteoricemaker.Thiscancause personalinjuryormaterialdamage.

Note: There is a water line connection to the Donotdisassemblethewholewatersupplysystemby yourself. It is recommended to be done by qualified person only.

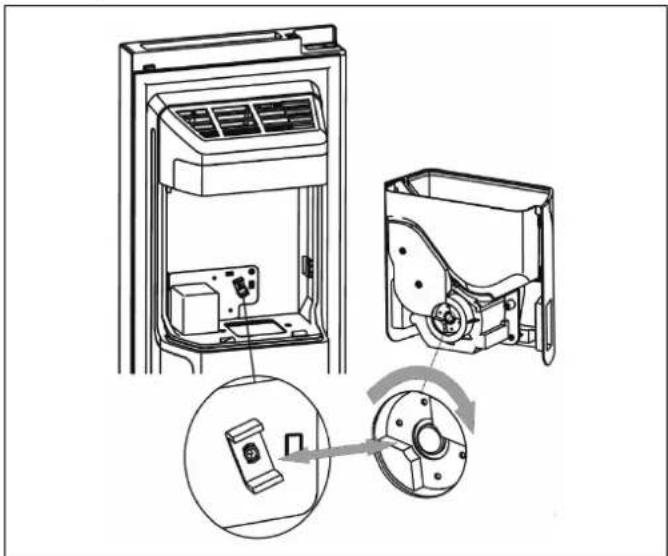

Emptyingandcleaningtheicebucket

Theicebucketmayneedtobeemptied,iftheice cubessticktogetherorificecubeshavenotbeendispensedforaprolongedperiodorwhentheappliance ispoweredoff.

Tocleantheicebucket, washwithamilddetergent, rinsewellanddrythoroughly. Donotuseharshor abrasivecleanersorsolvents.

Replacingtheicebucket

Line drawing of an air conditioner unit with a door panel and a separate cabinet labeled ①, showing airflow direction (no text or symbols beyond labels)

If you don't need dice, you can switch to the icemaker and replace the ice bucket (1) by the doorrack (2) to increase your freezervolume.

Refittingtheicebucket

Technical line drawing of an air conditioner unit with internal components and a close-up view showing the assembly (no text or symbols)

1. Check that the two couplers are at a suitable angle to connect correctly. If necessary, turn the coupler of the ice bucket to match them motor coupler.

1. Hold at the handle and push up the ice buck Ensure that on both sides the ice bucket (B) is wedged into the buckles (A) of the icemaker.

2. Pulldowntheicebucketandensureitisheldfirmly.

Defrosting

Although this appliance automatically defrosts, alayer offrost may occur on the freezer compartment's interior walls if the door is opened frequently or kept open too long.

If the frostistoothick wait until food stocks are low and proceeds as follows:

1. Remove existing food and accessories baskets, unplug the appliance from themains power and leavethedores open. Ventilatetheroomthoroughly to accelerate the thawing process.

2. Whendefrostingiscompleted, cleanyourfreezer asdescribedabove.

Replacingthewaterfilter

In general, you should replace the water filter every 6 month to ensure the highest possible water quality.

Aftertheappliancehasdispensedabout4000litersof water(usualconsumptionwithin6months),thewater filterdisplay ◆ blinks,andthebuzzersounds3times, toremindyouthatyouneedtoreplacethewaterfilter.

Note:

■ Ifnowaterisdispensedoritisdispensedslowly, thewaterfiltermaybecloggedandmayneedtobe replaced. Some areashavelargeamountsoflime in their water, which cause st hewaterfiltertoclog more quickly.

Purchasinganewwaterfilter

Firstofall,youneedtopurchaseanewwaterfilter. Youcanpurchasethenewfilterfromtheretailerwhere youpurchasedyourapplianceorfromtheCustomer service.Pleasecheckthatthenewfilterisofthesame typeasbefore,sothatitcanbeusedcorrectlyinyour appliance.

Removingtheoldwaterfilter

Notes

■ Closethewatervalvebeforeremovingthefilter.
■ Whenyoureplacethefilter,somewatermayleak fromthefilterandlines.Letthewaterflowintoa pan,andwipeupanyleakagethatmayhave occurred.

1. Opentherefrigeratordoortoitsmaximumangle andremovethewaterfiltercapbypullingitout slowly.

1. Screwouttheoldwaterfilterinanticlockwise direction(seesignonthefilter)andremoveit.

Warning

Donotpulloutthewaterfilterwithforce,asthiscan causematerialdamage.

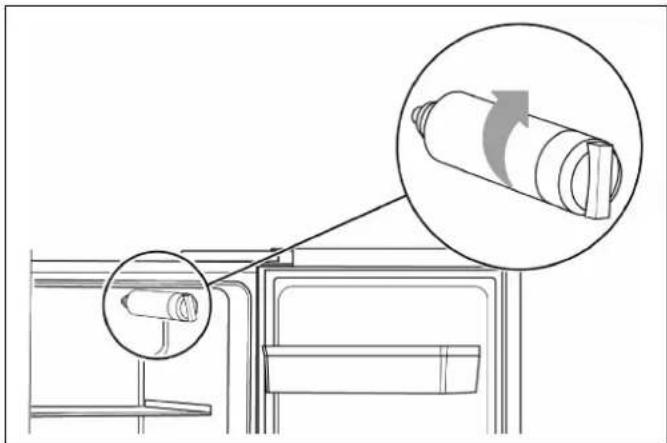

Installingthenewwaterfilter

Diagram showing a mechanical component with an inset close-up of a cylindrical component and a curved arrow indicating rotation (no text or symbols present)

1. Screwinthenewaterfilterinclockwisedirection andmakesureitisfirmlyfittedtothewaterfilter base.

Warning

If not installed correctly, this can result in the appliance is not working properly, or result in water leakages.

1. Reattachthefiltercoverbygentlyslidingiton.
2. After you have installed an new water filter, touch and hold the "eco/filterreset3s" button for 3 seconds to reset the water filter display.

Light(LED)

Your appliance features a maintenance-free LED light.

TheselightsmaybepairedbyCustomerserviceor authorisedtechniciansonly.

Tipsforsavingenergy

• Installtheapplianceinadry,wellventilatedroom! Theapplianceshouldnotbeinstalledindirectsun- lightornearaheatsource(e.g.radiator, Ifrequired,useaninsulatingplate.
  ■ Donotblocktheventilationopeningsinthe appliance.
• Allowwarmfoodanddrinkstocooldownbefore placingintheappliance.
  ■ Thawfrozenfoodintherefrigeratorcompartment andusethelowtemperatureofthefrozenfoodto coolrefrigeratedfood.
  ■ Opentheapplianceasbrieflyaspossible.
  ■ Ensure that the freezer compartment door is always closed properly.
  ■ The arrangement of the fittings does not affect the energy rating of the appliance.
  ■ Theicemakercanbeturnedofftosavewaterand energy,ifnoiceisneeded.

Operatingnoises

Quitenormalnoises

■ Compressorrunningnoises.
■ Airmovementnoisefromthesmallfanmotorin thefridgecompartmentorothercompartments.
■ Gurglingsoundsimilartowaterboiling.
■ Poppingnoiseduringautomaticdefrosting.
- Clickingnoisebeforethecompressorstarts.
■ Noises, when the icemaker dumpsice into the icebucket.
■ Whentouchingthe"water"button,thewaterpump willstartandthereislittlenoisewhenthepumpis working.

Preventingnoises

Theapplianceisnotlevel

Please align the appliance with aspiritlevel. Use the height-adjustable feetor place packing underneath them.

The appliance is not free-standing

Pleasemovetheapplianceawayfromadjacentunitsor appliances.

Containersorstorageareaswobbleorstick

Pleasechecktheremovablepartsandre-insertthem correctlyifrequired.

Bottlesorreceptaclesaretouchingeachother

Movethebottlesorreceptaclesslightlyawayfromeach other.

Eliminatingminorfaults yourself

BeforeyoucallCustomerservice:

Please check whether you can eliminate the faulty yourself based on the following information.

Customerservicewillchargeyouforadviceevenifthe applianceisstillunderguarantee!

FaultPossiblecauseRemedialaction
Appliance is not working	Mains plug has not been inserted properly.	Check whether the power cord is plugged into thepoweroutletproperly.
	Thefusehasbeenswitchedofforisdefective.Checkthefuse;replaceifnecessary.
	Powerfailure.Checkthecircuitofyourpowersupply.
	Theambienttemperatureistoolow.Trysettingthechambertemperaturetoacolder leveltosolvethisproblem.
	Itisnormalthattherefrigeratorisnotoperating duringtheautomaticdefrostcycle,orforashort timeaftertheapplianceisswitchedontoprotect thecompressor.
Odours from the compartments	The interior is dirty.	Clean the interior.
	Somefood,containersorwrappingcauseodours.
The motor runs continuously	It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances:■ Temperaturesettingissetcolderthan necessary.■ Alargequantityofwarmfoodhasrecently beenstoredwithintheappliance.■ The temperature outside the appliance is toohigh.■ Doorsarekeptopentoolongortoooften.■ Afteryourinstallingtheapplianceorithas beenswitchedofforalongtime.
Alayeroffrostoccursinthe compartment	Airoutletsareblocked;insufficientventilation; doornotfullyclosed.	Checkthattheairoutletsarenotblockedby food and ensure food is placed within the appli-ancetoallowsufficientventilation.Ensurethat doorisfullyclosed.Toremovethefrost:→ chapter“Cleaningtheappliance”.
Temperature inside is too warm	You may have left the doors open too long or toofrequently;orthedoorsarekeptopenby someobstacle;ortheapplianceislocatedwith insufficientclearanceatthesides,backortop.	Donotopenthedoorsunnecessarilyorlonger thannecessary;checkclearanceofappliance.
Doors can't be closed easily	Appliance is not tilted to the back about 15 mm. Somethinginsideispreventingthedoorsfrom closing.	Checktiltingandcorrectbyturningtheadjust-ablefeet,ifnecessary.Checkinteriorand removeobstacle.
The light is not working	LED light is automatically switched off due to the doorbeeingkeptopenfortoolong.LEDlightisdamaged.	Close and reopen the door to reactivate the light. HavetheLEDlightbereplaced → chapter“Light(LED)”.

FaultPossiblecauseRemedialaction
WaterdripsonthefloorWaterpanattherearbottomoftheappliancenotproperlylevelledordrainingspoutnotproperlypositionedtothepanorspoutblocked.Waterconnectionisnottight.Iceintheicebucketismelttowater,causedbypowerfailure.	Checkwaterpananddrainingspoutattherear.Checkwaterconnectionandtightenthenuts.Checkicebucketandemptyit,ifnecessary.
DispenseristnotworkingWaterlinenotconnectedorwatervalveclosed.Waterlinecrushedorkinked.WaterfilternotinstalledcorrectlyorcWatertankfrozenduelotoolowtemperatureofrefrigeratorcompartment.Childlockactiveorfreezerdooropen.	Checkthewaterlineandthewatervalve.Checkwaterfilter.Selegtawarmersettingoftherefrigeratorcompartment.Deactivatechildlock.Closefreezerdoor.
IceisnotdispensedAfterinstallation,itwilltakeseveralhoursuntilthefreezerhasreachedit'stemperatureandicecubescanbeproduced.Waterlinenotconnectedorwatervalveineccessary.WaterfilternotinstalledcorrectlyorcIcecubessticktogetherintheicebucketoricestuckinthechute.Icemakerislurnedoff.	Checkifthewaterlineisconnectedandthewatervalveisopen.Checkwaterfilter.Checkicecute.Checkicebucketandemptyit,innecessary.Tugnetheicemaker.

Customerservice

YourlocalCustomerservicecanbefoundinthe telephonedirectoryorintheCustomerserviceindex. PleaseprovideCustomerservicewiththeappliance productnumber(E-Nr.)andproductionnumber (FD-Nr.).

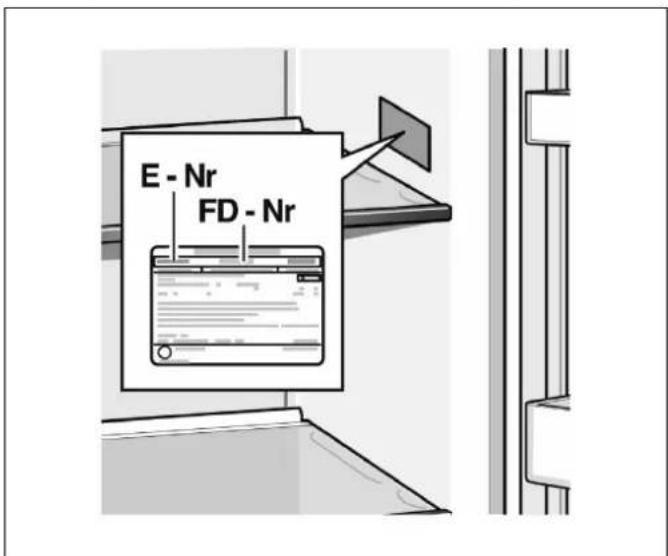

Thesespecificationscanbefoundontheratingplate.

Topreventunnecessarycall-outs,pleaseassist Customerservicebyquotingtheproductandproductionnumbers.Thiswillsaveyouadditionalcosts.

Repairorderandadviceonfaults

Contactinformationforallcountriescanbefoundon theenclosedCustomerservicelist.

GB03448928999Callschargedatlocalormobile rate.

IE 01450 2655

0.03 € per minute at peak. Offpeak0.0088€perminute.

US 8664474363

toll-free

fr

Tabledesmatières

Consignesdesécurité51....

Montagedesécarteurs

Retirezlesdeuxvisàl'aided'untournevis.Retirezles écarteursdusachetetfixez-lesàl'aidedesvissurle dosdel'appareil.Cecipermetderespecterl'écart minimumrequisparrapportaumur.

Back panel of a computer drive showing internal ventilation slots and mounting hardware (no text or symbols visible)

Simple line drawing of a mechanical lever with a fulcrum and pivot point (no text or symbols)

Ajustementdel'appareil

-Pressionminimum:2bars

-Pressionmaximum:8bars

1. Ouvrezlaportedelachambrefroideaussigrand quepossibleetretirezlecouvercledufiltreenletirantlentement.

Hand inserting a small object into a device inside a rack (no text or symbols visible)

3.Enlevezlefilmdeprotectionsurlesocleau.

1. Vissezlefiltreàeaudanslesensdesaig d'unemontreetassurez-vousquelefil vissédanslesocle. alledansun

Miseengarde

1. Replacezlecouvercledufiltreenlepou prudemmentpardessus.

Installationdutuyaud'eau

Utilisezletuyauderaccordementfourni.

Technical illustration of two mechanical fasteners with bolt holes and a nut assembly (no text or symbols)

1. Insérezlesbaguesd'étanchéitésdanslesraccord dutuyau.

Illustration of a hand holding a glass cup over a digital water dispenser (no text or symbols visible)

Illustration of a hand holding a cup over a digital kitchen scale (no text or symbols)

Illustration of two hands holding a horizontal bar with a downward arrow indicating compression or force (no text or symbols)

Illustration of two hands holding a flexible electronic device with directional arrows indicating motion (no text or symbols)

■ Soulevezlessupportsencontre-porte, puisenlevezles.

Lesupportàbouteilles(enoption)sertàstockerduvin etd'autresboissonsenbouteille.

Remarque: Faitesattentionlorsquevousretirezles bouteilles.

Pure technical line drawing of a mechanical or electrical component with no text, numbers, or symbols

Diagram showing a device with a grid-like component and an arrow pointing to a rectangular panel (no text or symbols)

Mechanical component with a white arrow indicating direction, no visible text or symbols

Line drawing of a refrigerator with air conditioner unit and adjacent storage unit (no text or symbols)

Technical line drawing of an air conditioner unit showing internal components and a close-up of the device's internal structure (no text or symbols)

1. Ouvrezlaportedelachambrefroideaussigrand quepossibleetretirezlecouvercleduf tirantlentement.

Diagram of a computer drive rear panel showing ventilation grilles and mounting points (no text or labels)

W	W1	W2	D	D1
908 mm	418 mm	277 mm	628 mm	1171 mm

Simple line drawing of a mechanical lever or bracket with a circular motion indicator (no text or symbols)

Persollevarelaportadelvanofrigorifero, ruotareil dado(1)insensoantiorario.

Perabbassarelaportadelvanofrigorifero, ruotare ildado(1)insensoorario.

Selaportaèlivellatacorrettamente, fissarlaconil dado(2).

it

Hand inserting a small object into a device inside a cabinet (no text or symbols visible)

Diagram showing a mechanical component with an inset close-up of a cylindrical component (no text or symbols present)

1. Ricollocarelacoperturadelfiltro, spingendolacon cautela.

Technical illustration of two mechanical fasteners with bolt holes and a nut assembly (no text or symbols)

1Tasto"freeze/super3s"

Perimpostarelatemperaturadelvano congelatore.

Illustration of a hand holding a cup over a digital kitchen counter (no text or symbols visible)

Line drawing of a hand holding a cup while using a digital water dispenser (no text or symbols)

Illustration of two hands holding a horizontal bar with a downward arrow indicating compression or force (no text or symbols)

Illustration of hands holding a flexible electronic device with directional arrows indicating movement (no text or symbols)

Pure technical line drawing of a mechanical or electrical component with no text, numbers, or symbols

Diagram showing a device with a grid-like component and an arrow pointing to a textured surface (no text or symbols)

Mechanical component with a white arrow indicating direction, no visible text or symbols

Line drawing of a refrigerator with air conditioner unit and adjacent to a paper box labeled ① (no text or symbols on the diagram itself)

Technical line drawing of an air conditioner unit showing internal components and a close-up view of the housing (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component being rotated (no text or symbols present)

1. Ricollocarelacoperturadelfiltro, spingendolacon cautela.
2. Alterminedellacorrettasostituzionedelfiltro ripristinareilrelativoindicatore, premendoiltasto "eco/filterreset3s" pertresecondi.

Illuminazione(LED)

Back panel of a computer drive showing internal ventilation slots and mounting hardware (no text or symbols visible)

Opstellingsmatenendeuropeningshoek

W	W1	W2	D	D1
908 mm	418 mm	277 mm	628 mm	1171 mm

Handgreepbevestigen

Simple line drawing of a mechanical lever or bracket with a circular motion indicator (no text or symbols)

Apparaatuitlijnen

Hand inserting a small object into a device inside a rack (no text or symbols visible)

Technical line drawing of a mechanical component with an inset showing a cylindrical component being rotated (no text or symbols present)

Technical illustration of two mechanical fasteners with bolt holes and a nut assembly (no text or symbols)

1. Do e de a f d i c h t r i n g e n i n d e a a n s l u i t i n g e slang.

3.Sluitdeslangmetdehandopdewaterkraanaan.

1Toets"freeze/super3s"

Brandtbijeendeuralarm.

Illustration of a hand holding a cup over a digital kitchen counter (no text or symbols visible)

Line drawing of a hand holding a cup over a digital water dispenser (no text or symbols)

Illustration of two hands holding a tray with a downward arrow, no text or symbols present

Illustration of two hands holding a flexible electronic device with upward arrows indicating motion or force (no text or symbols)

Pure technical line drawing of a mechanical or electrical component with no text, numbers, or symbols

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

Mechanical component with a white arrow indicating direction, no visible text or symbols

Line drawing of an air conditioner unit with a separate box labeled ①, showing airflow direction (no text or symbols on the diagram itself)

Technical line drawing of an air conditioner unit showing internal components and a close-up of the device's internal structure (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component being inserted (no text or symbols present)

siemens-home.bsh-group.com

8001171563(0012)de, en, fr, it, nl
