TKVFDB1 - Food Processor TELEFUNKEN - Free user manual and instructions

Product type	Multifunction food processor
Brand	Telefunken
Model	TKVFDB1
Power	1000 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Chopper bowl capacity	2 L
Blender bowl capacity	1,75 L
Maximum flour capacity	300 g
Maximum meat capacity	300 g
Maximum juice capacity	0,8 L
Maximum whisk capacity	0,3 L
Number of speeds	Continuous speed variator from MIN to MAX + Pulse position
Included accessories	2L chopper bowl, 1,75L blender bowl, stainless steel blade, mixing blade, emulsifier disc, blade holder, grating blade (coarse) and slicing blade (medium), whisk, citrus juicer (filter and cone), spatula, measuring cup, pusher
Functions	Chopping, blending, mixing, kneading, beating, emulsifying, grating, slicing, juicing citrus fruits
Safety	Safety locking system on bowl and lid
Maximum continuous use time	4 minutes (continuous operation) / 3 minutes (Pulse position)
Recommended rest time	30 seconds between each cycle
Blade material	Stainless steel
Cleaning	Accessories dishwasher safe (low temperature cycle). Wipe motor unit with a damp cloth. Do not immerse.
Country of manufacture	Imported by Vestel France
Environmental standards	WEEE Directive 2012/19/EU, recyclable

Frequently Asked Questions - TKVFDB1 TELEFUNKEN

What is the power of the appliance?

The Telefunken TKVFDB1 food processor has a power of 1000 W at 220-240 V.

How long can I use the appliance continuously?

Do not exceed 4 minutes of continuous operation nor 3 minutes in Pulse mode. Let it rest 30 seconds between each use.

Can I wash the accessories in the dishwasher?

Yes, the bowls, lids, blades and other accessories are dishwasher safe (low temperature cycle). The motor unit should be wiped with a damp cloth.

How to use the citrus juicer?

Attach the drive shaft, place the chopper bowl, insert the juicer filter onto the shaft, place the cone, plug in, place half a citrus fruit and press at speed 1 for 20 seconds.

What blades are provided with the appliance?

The appliance comes with a stainless steel cutting blade for chopping, a mixing blade for mixing/kneading, an emulsifier disc, a medium slicing blade and a coarse grating blade.

What is the maximum capacity for chopping meat?

The maximum capacity for meat or vegetables is 300 g. Cut the ingredients into cubes before placing them in the chopper bowl.

What to do if the appliance does not start?

First check the connection, then the locking of each accessory (bowl and lid must be properly engaged). Make sure the maximum capacity is not exceeded.

Can I prepare dough with the emulsifier disc?

No, the emulsifier disc is designed for liquid or solid sauces (mayonnaise, aïoli). Do not use it for cake batters or heavy doughs.

How to safely clean the blades?

The blades are very sharp. Handle them with care. Wash them in the dishwasher or by hand with a non-abrasive sponge. Never use harsh products or metal scourers.

Where can I find spare parts?

Spare parts are available on the website pieces-detachees.sogedis.fr. You can also contact Vestel France after-sales service.

USER MANUAL TKVFDB1 TELEFUNKEN

SAFETY ADVICES AND WARNINGS

WARNING!

• READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.
• THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR APPLICATIONS SUCH AS:

STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING ENVIRONMENTS;
FARM HOUSES;
BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL TYPE OF ENVIRONMENTS;
BED AND BREAKFAST TYPE ENVIRONMENTS.

• THIS APPLIANCE SHOULD NOT BE USED FOR ANY OTHER PURPOSE OR IN ANY OTHER APPLICATION, SUCH AS FOR NON-DOMESTIC USE OR IN A COMMERCIAL ENVIRONMENT. ANY COMMERCIAL USE, INAPPROPRIATE USE OR FAILURE TO COMPLY WITH THE INSTRUCTIONS, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY AND THE GUARANTEE WILL NOT APPLY.

• AFTER UNPACKING THE APPLIANCE, MAKE SURE IT IS NOT DAMAGED. THE APPLIANCE MUST NOT BE USED IF IT HAS BEEN DROPPED, IF THERE IS VISIBLE SIGNS OF DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALLY IN ANY WAY. IN CASE OF DOUBT, DO NOT USE THE APPLIANCE AND CONTACT YOUR SUPPLIER OR A QUALIFIED TECHNICIAN OR THE NEAREST AUTHORIZED SERVICE CENTER FOR EXAMINATION, REPAIR OR ELECTRICAL OR MECHANICAL ADJUSTMENT.

• REMOVE ALL PACKAGING AND DO NOT LEAVE THE PACKAGING MATERIAL SUCH AS PLASTIC BAGS, POLYSTYRENE AND ELASTIC BANDS IN EASY REACH OF CHILDREN AS THEY MAY CAUSE SERIOUS INJURIES.

• THE USE OF ACCESSORY AND ATTACHMENTS NOT RECOMMENDED OR SOLD BY THE MANUFACTURER MAY CAUSE INJURIES. THE APPLIANCE IS ONLY TO BE USED WITH THE BASE PROVIDED.
• THE APPLIANCE MUST NOT BE LEFT UNATTENDED WHILE IT IS CONNECTED TO THE MAIN SUPPLY.
• THE APPLIANCE MUST BE USED AND RESTED ON A STABLE SURFACE.
  WARNING: RISK OF INJURIES MAY OCCUR FROM MISUSE!
• THIS APPLIANCE SHALL NOT BE USED BY CHILDREN
• CHILDREN FROM 0 TILL 8 YEARS SHALL NOT USE THIS APPLIANCE. THIS APPLIANCE CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED.
• CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN.
• KEEP AWAY THIS APPLIANCE AND ITS ELECTRIC PLUG AWAY FROM CHILDREN WHEN IT IS ENERGIZED OR COOLING DOWN.
• CHILDREN SHALL NOT PLAY WITH THE APPLIANCE.
  DO NOT IMMERSE THE PRODUCT UNDER WATER.

• ENSURE THE BOWL AND THE LID COVER ARE SECURELY LOCKED BEFORE OPERATING THE APPLIANCE.

• LET ALL THE LIQUIDS COOL DOWN BEFORE PUTTING THEM INTO THE MIXING BOWL OR BLENDER.

• DO NOT USE THE COVER TO START OR STOP THE APPLIANCE, ALWAYS USE THE SPEED VARIATOR.
• DO NOT FORCE THE SAFETY LOCKING SYSTEM TO AVOID ANY DAMAGE.
  DO NOT EXCEED THE MAXIMAL MARKING.
• DO NOT OPERATE YOUR APPLIANCE WHEN EMPTY.
  FOR THE DETAILS ON HOW TO CLEAN SURFACES IN CONTACT WITH FOOD, PLEASE SEE SECTION "CLEANING AND MAINTENANCE.
• REGARDING THE INFORMATION FOR OPERATING TIMES AND SETTING, THANKS TO REFER TO THE BELOW PARAGRAPH OF THE MANUAL.

DANGER OF SERIOUS CUTTING INJURIES!

• NEVER USE AND PUT YOUR HANDS INSIDE THE BOWL WHILE THE APPLIANCE IS PLUGGED IN. AVOID AT ALL COST TOUCHING THE SHARP BLADES WHEN THE APPLIANCE IS PLUGGED IN AND OPERATING.
• ALWAYS UNPLUG THE APPLIANCE FROM THE OUTLET WHEN NOT IN USE.
• ALWAYS UNPLUG THE APPLIANCE BEFORE REACHING INTO THE BOWL WITH YOUR FINGERS OR AN OBJECT SUCH AS THE SPATULA.
• ALWAYS UNPLUG THE APPLIANCE BEFORE PUTTING ON OR TAKING OFF ACCESSORIES.

• ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING.

• IF THE BLADES GET STUCKED, ALWAYS UNPLUG THE APPLIANCE BEFORE REMOVIDING THE INGREDIENTS THAT BLOCKING THE BLADES.

• EXTRA CARE SHALL BE TAKEN WHEN HANDLING THE SHARP CUTTING BLADES, EMPTYING THE BOWL, AND DURING THE CLEANING PROCESS.
• KEEP HANDS, LONG HAIR, CLOTHING, SCARF, TIES AS WELL AS SPATULA AND OTHER USTENSILS AWAY FROM THE TOP OF THE APPLIANCE DURING THE OPERATION TO REDUCE THE RISK OF INJURY AND/OR DAMAGE TO THE APPLIANCE.

DANGER OF ELECTROCUTION!

• THIS APPLIANCE MUST BE EARTHED. IF YOU NEED TO USE AN EXTENSION LEAD, IT IS IMPORTANT THAT YOU USE A MODEL FITTED WITH AN EARTH PLUG.
• ENSURE TO CHECK THAT THE VOLTAGE MARKED ON THE RATING PLATE MATCHES TO YOUR LOCAL SUPPLY. IF NOT THE CASE, DO NOT USE THE APPLIANCE AND SEEK FOR EXPERT ADVICE.
• DO NOT LET THE SUPPLY CORD HANG OVER EDGE OF TABLE OR COUNTER.
• NEVER IMMERSE THIS APPLIANCE IN WATER.
• FOR YOUR OWN SAFETY, WE RECOMMEND YOU NEVER USE THE APPLIANCE OUTDOOR AND NEVER LEAVE THE APPLIANCE IN A PLACE THAT IS EXPOSED TO HUMIDITY OR INCLEMENT WEATHER CONDITION.

• NEVER LEAVE APPLIANCE PLUGGED IN WHEN NOT IN USE. THE APPLIANCE MUST NOT BE LEFT UNATTENDED WHILE IT IS CONNECTED TO THE MAIN SUPPLY.

• IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED TECHNICIANS IN ORDER TO AVOID A HAZARD. THE SUPPLY CORD SHOULD BE REGULARLY EXAMINED FOR SIGNS OF DAMAGE AND THE APPLIANCE IS NOT TO BE USED IF THE CORD IS DAMAGED.

• THE APPLIANCE IS NOT INTENDED TO BE OPERATED BY MEANS OF AN EXTERNAL TIMER OR SEPARATE REMOTE-CONTROL SYSTEM.
• NEVER PLUG THE APPLIANCE AND TOUCH THE THERMOSTAT WITH WET HANDS.
• NEVER USE THE APPLIANCE WITH BARE OR WET FEET.
• NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CABLE OR THE APPLIANCE ITSELF.
• THE PLUG MUST BE REMOVED FROM THE SOCKET-OUTLET BEFORE THE BOWL IS FILLED WITH WATER OR LIQUID PREPARATIONS. TO ADD WATER, TURN THE APPLIANCE OFF USING THE SWITCH. NEVER FILL THE APPLIANCE UNDER RUNNING WATER.
• ALWAYS UNPLUG THE APPLIANCE BEFORE ANY CLEANING OPERATION.
• NEVER MOVE THE APPLIANCE WHEN IN USE.

STANDARDS

THIS APPLIANCE IS CONFORMED TO CURRENT DIRECTIVES AND STANDARDS.

TABLE OF CONTENTS

DESCRIPTION 1
SET UP AND USE 2

Before rst use. 2
Using the mixing bowl with its blades 2
Using the blender. 3
Using the beater 4
Using the juicer 5
Using the emulsioning disc 5
Using the slicing blades. 6
Troubleshoong 7

CLEANING AND MAINTENANCE 7
TECHNICAL INFORMATION 8
ENVIRONMENT AND RECYCLING 8

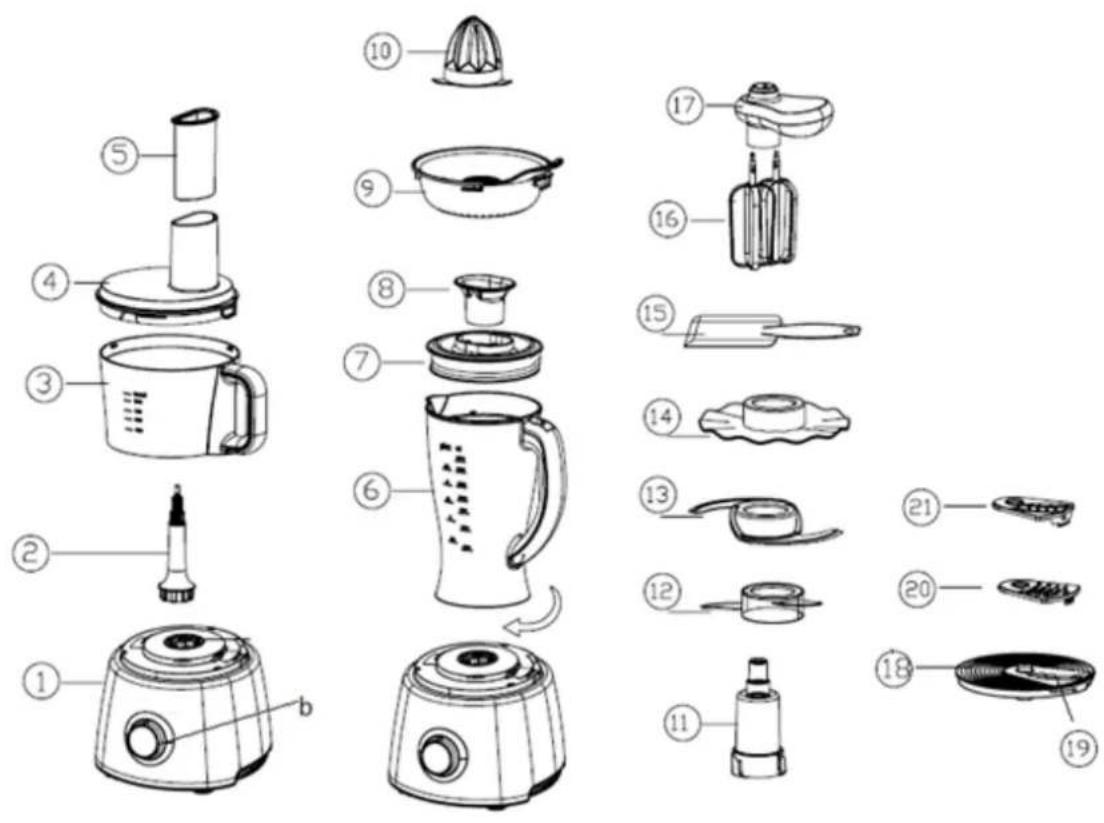

DESCRIPTION

1. Motor body unit

a. Safety lock system
b. Speed variator with Pulse

1. Drive sha A
2. Mixing bowl: 2L
3. Mixing bowl cover
4. Food tube pusher
   6.Blender:1.75L
5. Blender cover
6. Measuring cup

7. Citrus juicer body

8. Citrus juicer runner

9. Drive sha B
10. Mixing plasc blade
11. Cung blade
12. Emulsioning disc
13. Spatula
14. Mixer beater
15. Mixer beater motor
16. Blades holder
17. Medium size disc blades
18. Julienne disc blades
19. French fries disc blades

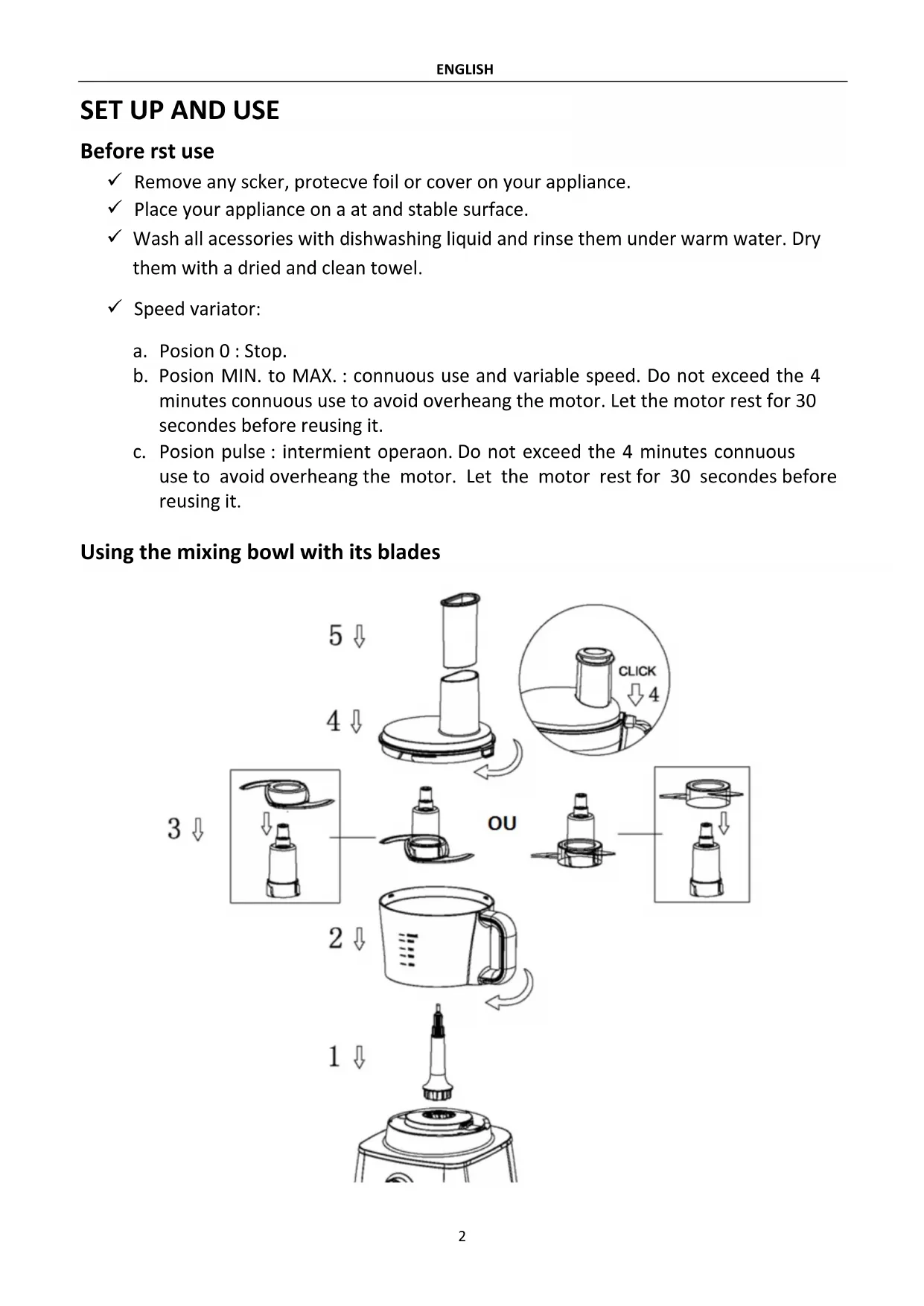

SET UP AND USE

Before rst use

Remove any scker,protecte foil or cover on your appliance.
Place your appliance on a at and stable surface.
Wash all accessories with dishwashing liquid and rinse them under warm water. Dry them with a dried and clean towel.

Speed variator:

a. Posion 0:Stop.
b. Posion MIN. to MAX.: connuous use and variable speed. Do not exceed the 4 minutes connuous use to avoid overheang the motor. Let the motor rest for 30 seconds before reusing it.
c. Posion pulse : intermittent operaoon. Do not exceed the 4 minutes connuous use to avoid overheang the motor. Let the motor rest for 30 seconds before reusing it.

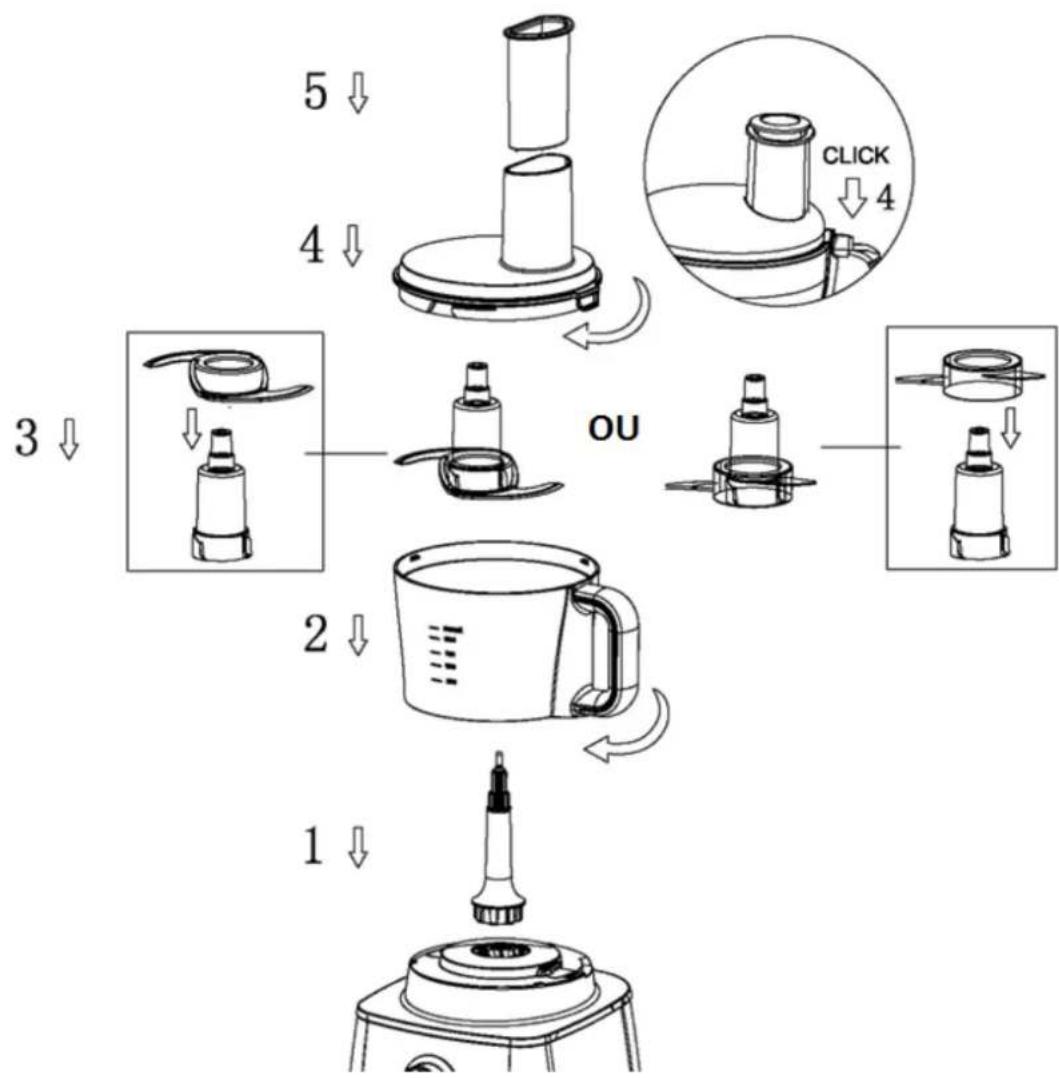

Using the mixing bowl with its blades

1. Set the drive sha A into the body unit.
2. Insert the mixing bowl on the drive sha A and turn clockwise to safely lock it.
3. Two opons following your desired preparaon:

a. Mixing and chopping

Insert the cung blade on the drive sha B then insert the drive sha B inside the mixing bowl.

Add pre-sliced meat into the bowl (max 300 grs):

• Raw or cooked meats, 40 seconds in speed MAX.
• Soup, 20 seconds in speed MAX.
  Vegetables, 20 seconds in speed MIN.

b. Mixing and kneading

Insert the mixing plasc blade on the drive sha B then insert the drive sha B inside the mixing bowl.

Add your preparaon into the bowl as follows:

• Heavy dough (bread), 30 seconds in speed MAX..
  Light dough (cakes), 2 minutes in speed MAX.

IMPORTANT: the max capacity for our is 300gr.

1. Put the cover on the bowl then turn clockwise to lock it.
2. Insert the food tube pusher into its locaon on the bowl cover. You can always add ingredients during your prepping mer by removing the food pusher.
3. Plug your appliance into a power socket.
4. Select your speed based on your recipe.
5. At the end of your preparaon, follow these: stop and unplug your appliance, retrieve the mixing bowl from the body unit and retrieve the bowl cover.

IMPORTANT: Do not exceed the 4 minutes connuous use to avoid overheang the motor. Let the motor rest for 30 seconds before reusing it.

DANGER : Cung injuries ! The mixing blades and cung blades are really sharp ! Be careful when adding an accessory or cleaning. Never exceed the maximal lling capacity of the bowl.

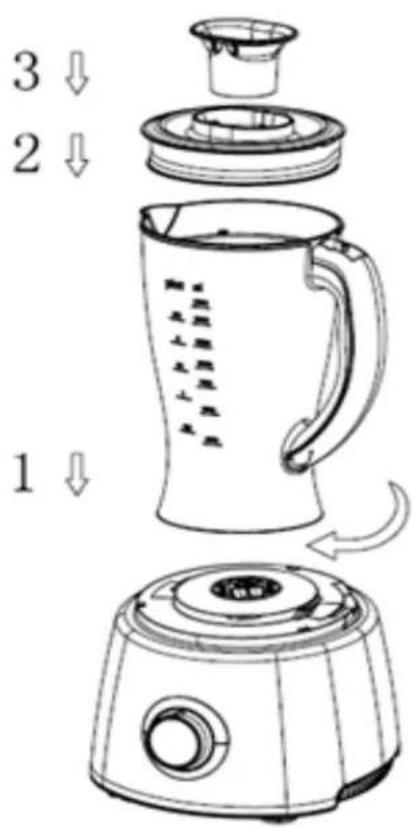

Using the blender

1. Insert the blender into its locaon and urn clockwise to safely lock it. Pour your preparaon inside the blender.
2. Put the cover on the bowl and turn clockwise to safely lock it.
3. Insérez le verre gradué dans l'orice du couvercle. Insert the measuring cup into the cover.
4. Plug the appliance into a power socket.

1. Select your speed based on your recipe:

2. Soup, 20 seconds in speed MAX.

3. Smoothie, 30 seconds in speed MAX.

4. A At the end of your preparaon, follow these: stop and unplug your appliance, retrieve the mixing bowl from the body unit and retrieve the bowl cover.

Note: You can always add ingredients during your prepping mer by removing the measuring cup. Do not forget to stop the appliance while doing so.

IMPORTANT: Do not exceed the 4 minutes connuous use to avoid overheang the motor. Let the motor rest for 30 seconds before reusing it.

DANGER : Cung injuries ! The mixing blades and cung blades are really sharp ! Be careful when adding an accessory or cleaning. Never exceed the maximal lling capacity of the bowl.

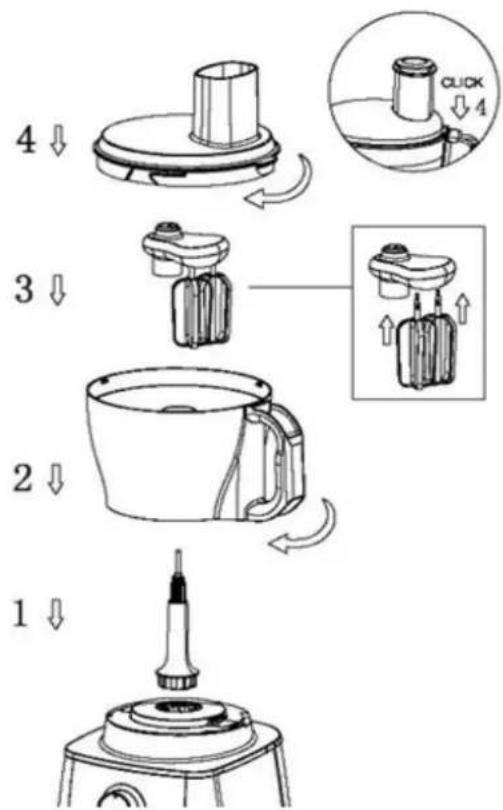

Using the beater

1. Set the drive sha A into the body unit.
2. Insert the mixing bowl on the drive sha A and turn clockwise to safely lock it.
3. Insert the beater into the drive shat inside the bowl. Add your ingredients into the bowl (MAX 0.3L).
4. Put the cover on the mixing bowl and turn clockwise to safely lock it.
5. Plug the appliance into a power socket.

6. Select your speed based on your recipe:

7. White eggs: 40 seconds in speed MAX.

8. Creamy sauce: 30 seconds in speed MAX

9. At the end of your preparaon, follow these: stop and unplug your appliance, retrieve the mixing bowl from the body unit and retrieve the bowl cover.

Note : You can always add ingredients during your

prepping mer by removing food pusher. Do not forget to stop the appliance while doing so.
IMPORTANT: Do not exceed the 4 minutes connuous use to avoid overheang the motor.
Let the motor rest for 30 seconds before reusing it.

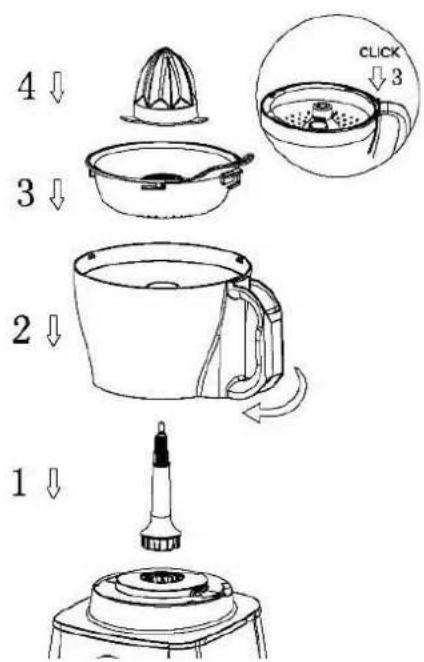

Using the juicer

1. Set the drive sha A into the body unit.
2. Insert the mixing bowl on the drive sha A and turn clockwise to safely lock it.
3. Insert the juicer body into the bowl.
4. Put the juicer runner on top of the juicer body.
5. Plug the appliance into a power socket.
6. Put half of an orange on the runner, select speed MIN and press for 20 seconds.
7. At the end of your preparaon, follow these: stop and unplug your appliance, retrieve the juicer from the bowl and retrieve the bowl from the unit.

Note: you can get 0,8L of juice without emptying the bowl. Think of rinsing the juicer liter every 0.2L.

IMPORTANT: Do not exceed the 4 minutes connuous use to avoid overheang the motor. Let the motor rest for 30 seconds before reusing it.

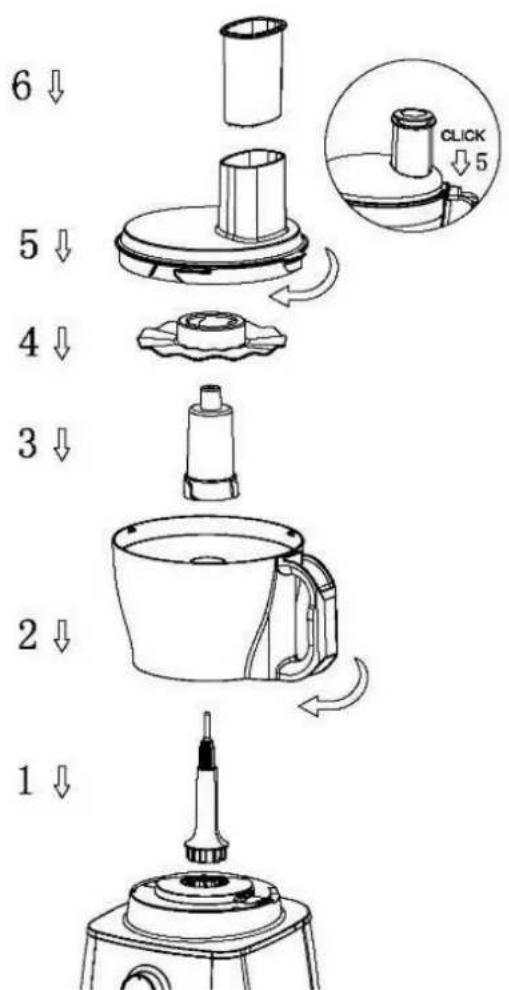

Using the emulsioning disc

1. Set the drive sha A into the body unit.
2. Insert the mixing bowl on the drive sha A and turn clockwise to safely lock it.
3. Insert the drive sha B into the bowl.
4. Add the emulsioning disc on top of the sha B. Then add your ingredients.
5. Put the cover on the mixing bowl and turn clockwise to safely lock it.
6. Insert the food tube pusher into its locaon on the bowl cover. You can always add ingredients during your prepping mer by removing the food pusher.
7. Plug your appliance into a power socket.
8. Select your speed based on your recipe:
9. Liquid sauces, 50 seconds in speed MIN.
   Solid sauces, 2 minutes in speed MAX.
10. At the end of your preparaon, follow these: stop and unplug your appliance, retrieve the mixing bowl from the body unit and retrieve the bowl cover.

Note: You can always add ingredients during your prepping mer by removing food pusher. Do not forget to stop the appliance while doing so.

Never use the emulsioning disc to prepare dough light or heavy as it will damage the disc. IMPORTANT: Do not exceed the 4 minutes connuous use to avoid overheang the motor. Let the motor rest for 30 seconds before reusing it.

Using the slicing blades

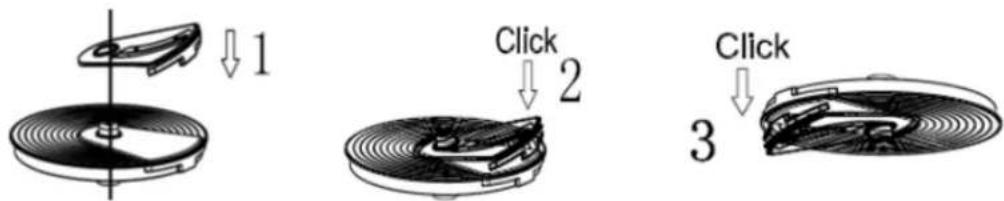

a. Assembling the blades

1. Select your desired blades. Fix the hole at the end of disc into the holder pin.
2. Press down the head of the disc into the holder.
3. Overturn the holder and then press down the head of the disc together with right and le hand pollex

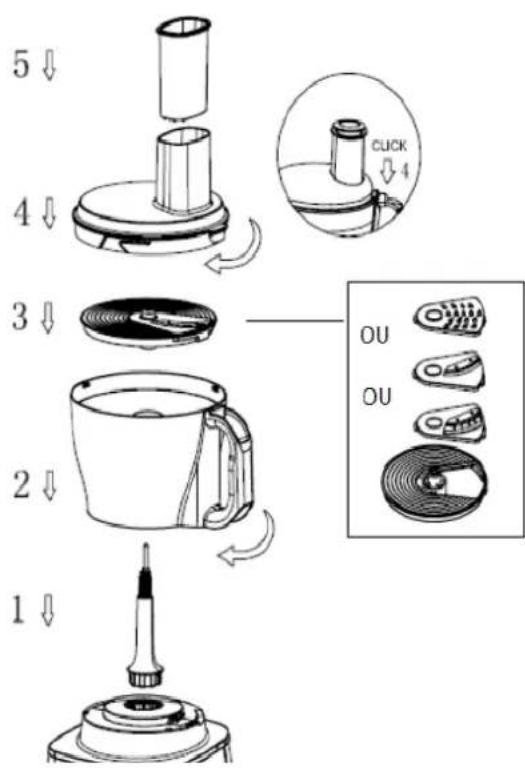

b. Funconing

1. Set the drive sha A into the body unit.
2. Insert the mixing bowl on the drive sha A and turn clockwise to safely lock it.
3. Insert the blade holders into the bowl.
4. Put the cover on the mixing bowl and turn clockwise to safely lock it.
5. Insert the food tube pusher into its locaon on the bowl cover. You can always add ingredients during your prepping mer by removing the food pusher.
6. Plug your appliance into a power socket.
7. Select your speed based on your recipe: for slicing use MIN. speed and for scraping use the MAX. speed.
8. At the end of your preparaon, follow these: stop and unplug your appliance, retrieve the mixing bowl from the body unit and retrieve the bowl cover.

Note: You can always add ingredients during your prepping mer by removing food pusher. Do not forget to stop the appliance while doing so.

IMPORTANT: Do not exceed the 4 minutes connuous use to avoid overheang the motor. Let the motor rest for 30 seconds before reusing it.

DANGER : Cung injuries ! The mixing blades and cung blades are really sharp ! Be careful when adding an accessory or cleaning. Never exceed the maximal lling capacity of the bowl.

Troubleshooting

Your appliance stop working, check:

1. If it's well plugged in into a power socket.
2. That all accessory is safely locked.
3. That you did not exceed the MAX. capacity.

DANGER : Never repair yourself your appliance. Contact your aer sales services or qualified technician.

CLEANING AND MAINTENANCE

1. Aer using your appliance turn it o by seng the speed variator at 0.
2. Unplug your appliance from the power socket.
3. Ensure to always unplug your appliance before any cleaning operaon. Never put the motor unit into the dishwashing or under the water.

Cleaning the body motor unit:

Clean the outer surface with a so cloth (or sponge) on the surfaces of the appliance.
✓ Do not use a hard brush or any others cleaners to avoid scratching or damaging the appliance.

Cleaning the accessories:

• The accessories (bowl, covers, blades etc.) could be put inside a dishwashing machine. Use the low temperature to avoid damaging the accessories.
• For the accessories not compatible with dishwashing machine, you can wash them with a sponge and dishwashing liquid and rinse them.

To take out the heavy, pour hot water with dishwashing liquid into the bowl and let it rest for 30 min. then use a brush to clean it.
✓ Do not use a hard brush or any others cleaners to avoid scratching or damaging the appliance.

TECHNICAL INFORMATION

Product	Food processor
Reference	TKVFDB1
Rated voltage	220V-240V ~ 50Hz/60Hz
Rated power input	1000W

ENVIRONMENT AND RECYCLING

Disposal of old electrical appliances

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected

separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligaon, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for informaon concerning the correct disposal of their old appliance.

Imported by Vestel France, 17 rue de la Couture - 94563 Rungis CEDEX

This manual instruction is also available on the following website:

http://pieces-detachees.sogedis.fr/
