USER MANUAL KE42TS2U SONY

Flat Panel Color TV KE-32TS2U/KE-42TS2U US01COV-UC.p65 03.10.21, 10:09 AM12 (US) WARNING To Reduce the risk of fire or shock hazard, do not expose the TV to rain or moisture. This symbol is intended to alert the user to thepresence of uninsulated “dangerous voltage” withinthe product’s enclosure that may be of sufficientmagnitude to constitute a risk of electric shock topersons.This symbol is intended to alert the user to thepresence of important operating and maintenance(servicing) instructions in the literatureaccompanying the appliance. CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OFPLUG TO WIDE SLOT, FULLY INSERT. CAUTION When using TV games, computers, and similar products with yourTV, keep the brightness and contrast functions at low settings. If afixed (non-moving pattern is left on the screen for long periods oftime at a high brightness or contrast setting, the image can bepermanently imprinted onto the screen. Continuously watching thesame program can cause the imprint of station logos onto the TVscreen. Theses types of imprints are not covered by your warrantybecause they are the result of misuse. Note on Caption Vision This television receiver provides display of television closedcaptioning in accordance with §15.119 of the FCC rules. Notes on Cleaning the TV Clean the TV with a soft dry cloth. Never use strong solvents suchas thinner or benzine, which might damage the finish of the cabinet. Note on use in highlands When used at an altitude of greater than 1900m or 6248 feet (airpressure less than 800hPa), this Plasma Display Panel may generatea low buzzing sound as a result of the difference between the interiorand exterior air pressure of the panels. This is not considered adefect and is not covered under by the Limited Warranty. Thisbuzzing sound is an inherent characteristic of any Plasma DisplayPanel. CAUTION

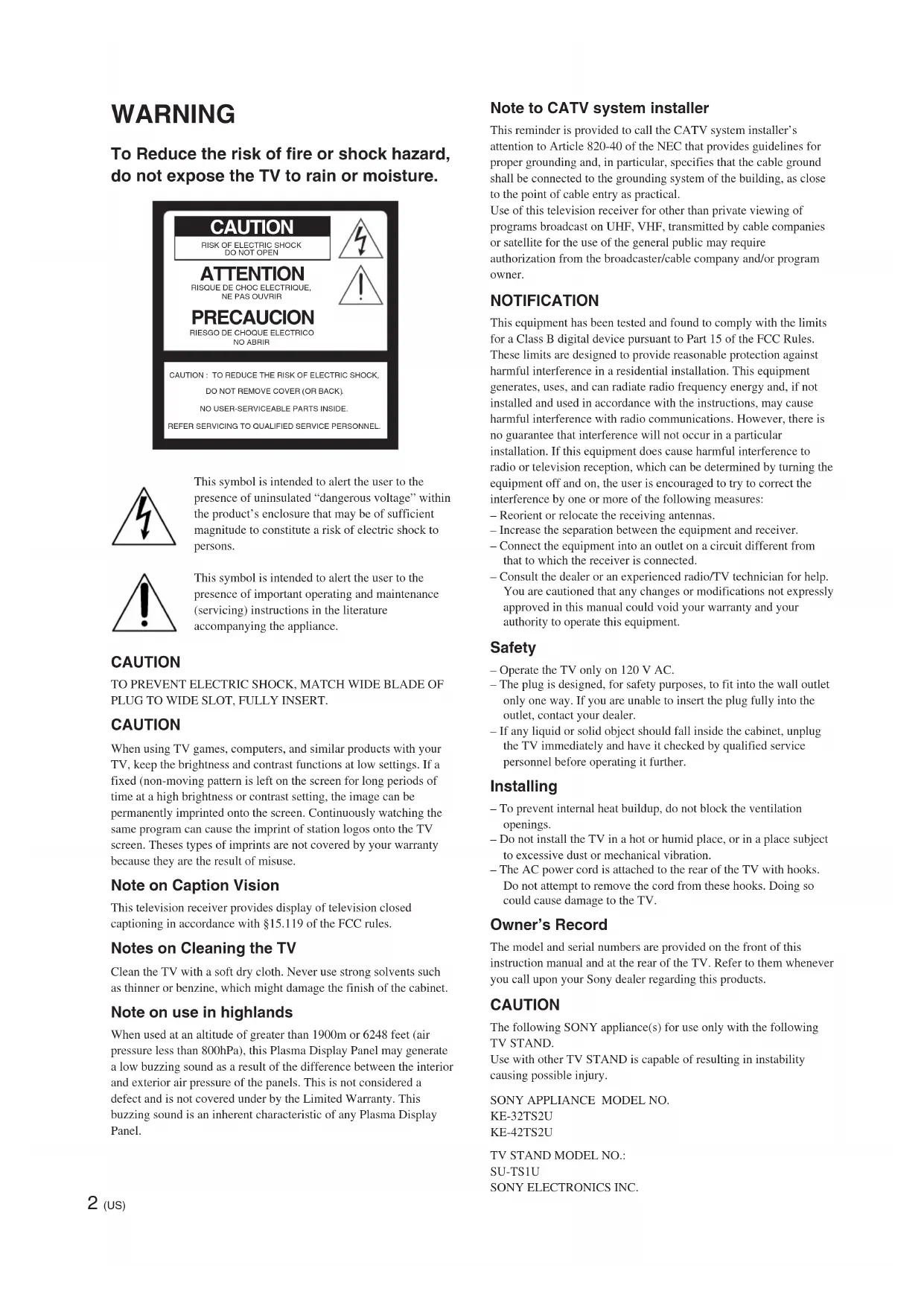

NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.NO ABRIR Note to CATV system installer This reminder is provided to call the CATV system installer’sattention to Article 820-40 of the NEC that provides guidelines forproper grounding and, in particular, specifies that the cable groundshall be connected to the grounding system of the building, as closeto the point of cable entry as practical.Use of this television receiver for other than private viewing ofprograms broadcast on UHF, VHF, transmitted by cable companiesor satellite for the use of the general public may requireauthorization from the broadcaster/cable company and/or programowner. NOTIFICATION This equipment has been tested and found to comply with the limitsfor a Class B digital device pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerates, uses, and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may causeharmful interference with radio communications. However, there isno guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference toradio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:– Reorient or relocate the receiving antennas.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.You are cautioned that any changes or modifications not expresslyapproved in this manual could void your warranty and yourauthority to operate this equipment. Safety – Operate the TV only on 120 V AC.– The plug is designed, for safety purposes, to fit into the wall outletonly one way. If you are unable to insert the plug fully into theoutlet, contact your dealer.– If any liquid or solid object should fall inside the cabinet, unplugthe TV immediately and have it checked by qualified servicepersonnel before operating it further. Installing – To prevent internal heat buildup, do not block the ventilationopenings.– Do not install the TV in a hot or humid place, or in a place subjectto excessive dust or mechanical vibration.– The AC power cord is attached to the rear of the TV with hooks.Do not attempt to remove the cord from these hooks. Doing socould cause damage to the TV. Owner’s Record The model and serial numbers are provided on the front of thisinstruction manual and at the rear of the TV. Refer to them wheneveryou call upon your Sony dealer regarding this products. CAUTION The following SONY appliance(s) for use only with the followingTV STAND.Use with other TV STAND is capable of resulting in instabilitycausing possible injury.SONY APPLIANCE MODEL NO.KE-32TS2UKE-42TS2UTV STAND MODEL NO.:SU-TS1USONY ELECTRONICS INC.(US) 3

Important Safeguards For your protection, please read these instructions completely, and keep thismanual for future reference.Carefully observe and comply with all warnings, cautions and instructionsplaced on the set or described in the operating instructions or servicemanual. WARNING To guard against injury, the following basic safety precautions should beobserved in the installation, use and servicing of the set. Use Power Sources This set should be operated only from the type ofpower source indicated on the serial/modelplate. If you are not sure of the type of electricalpower supplied to your home, consult yourdealer or local power company. For those setsdesigned to operate from battery power, refer tothe operating instructions. Grounding or Polarization This set is equipped with a polarized AC power cord plug (a plug havingone blade wider than the other), or with a three-wire grounding type plug(a plug having a third pin for grounding). Follow the instructions below: For the set with a polarized AC power cord plug This plug will fit into the power outlet only oneway. This is a safety feature. If you are unable toinsert the plug fully into the outlet, try reversingthe plug. If the plug still fails to fit, contact yourelectrician to have a suitable outlet installed. Donot defeat the safety purpose of the polarizedplug by forcing it in. Alternate Warning For the set with a three-wire grounding type AC plug This plug will only fit into a grounding-type poweroutlet. This is a safety feature. If you are unable toinsert the plug into the outlet, contact your electricianto have a suitable outlet installed. Do not defeat thesafety purpose of the grounding plug. Overloading Do not overload wall outlets, extension cords orconvenience receptacles beyond their capacity, since thiscan result in fire or electric shock.Always turn the set off when it is not being used. Whenthe set is left unattended and unused for long periods oftime, unplug it from the wall outlet as a precautionagainst the possibility of an internal malfunction thatcould create a fire hazard.If a snapping or popping sound from a TV set iscontinuous or frequent while the TV is operating, unplugthe TV and consult your dealer or service technician. It isnormal for some TV sets to make occasional snapping orpopping sounds, particularly when being turned on or off. Object and Liquid Entry Never push objects of any kind into the set through thecabinet slots as they may touch dangerous voltagepoints or short out parts that could result in a fire orelectric shock. Never spill liquid of any kind on the set. Cleaning Unplug the set from the wall outlet before cleaningor polishing it. Do not use liquid cleaners or aerosolcleaners. Use a cloth lightly dampened with waterfor cleaning the exterior of the set. Installation Attachments Do not use attachments not recommended by themanufacturer, as they may cause hazards. Water and Moisture Do not use power-line operated sets near water — forexample, near a bathtub, washbowl, kitchen sink, orlaundry tub, in a wet basement, or near a swimming pool, etc. Corrosion Use of this set near the seashore may subject the set to excessive salt,corrosion and internal damage and result in deterioration of the set’sperformance. If the set will be subjected to these conditions, steps should betaken to reduce the humidity and temperature of the area where the set islocated. Accessories Do not place the set on an unstable cart, stand, tableor shelf. The set may fall, causing serious injury to achild or an adult and serious damage to the set. Useonly a cart or stand recommended by Sony for thespecific model of TV. No part of the TV set shouldoverhang any edge of the TV cart or stand; anyoverhanging edge is a safety hazard. An appliance andcart combination should be moved with care. Quickstops, excessive force, and uneven surfaces may cause theappliance and cart combination to overturn. Ventilation The slots and openings in the cabinet and in the back or bottom areprovided for necessary ventilation. To ensure reliable operation of the set,and to protect it from overheating, these slots and openings must never beblocked or covered.s Never cover the slots and openings with a cloth orother materials.s Never block the slots and openings by placing the seton a bed, sofa, rug or other similar surface.s Never place the set in a confined space, such as abookcase or built-in cabinet, unless proper ventilationis provided.s Do not place the set near or over a radiator or heatregister, or where it is exposed to direct sunlight. Power-Cord Protection Do not allow anything to rest on or roll over the powercord, and do not place the set where the power cord issubject to wear or abuse. Carrying This set should only be moved by two or morepeople. If the set needs to be transported, it shouldbe protected to insure that it is not subject toshock, vibration or excessive force. Antennas Outdoor Antenna Grounding If an outdoor antenna is installed, follow the precautions below. An outdoorantenna system should not be located in the vicinity of overhead powerlines or other electric light or power circuits, or where it can come in contactwith such power lines or circuits.WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREMECARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCHPOWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOSTINVARIABLY FATAL.Be sure the antenna system is grounded so as to provide some protectionagainst voltage surges and built-up static charges. Section 810 of theNational Electrical Code (NEC) in USA and Section 54 of the CanadianElectrical Code in Canada provides information with respect to propergrounding of the mast and supporting structure, grounding of the lead-inwire to an antenna discharge unit, size of grounding conductors, location ofantenna discharge unit, connection to grounding electrodes, andrequirements for the grounding electrode.4 (US) Antenna Grounding According to the NEC Refer to section 54-300 of Canadian Electrical Code for Antenna Grounding. Lightning For added protection for this television receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the receiver due to lightning and power-line surges. Image retention An image retention or ghost may appear on screen of the set if it a static image is displayed on the screen for a period of time. To avoid this problem, the “4:3 Default” or “Restore” mode should be used. Refer to the operating instructions if an image retention or ghost appears. Service Damage Requiring Service Unplug the set from the wall outlet and refer servicing to qualified service personnel under the following conditions: s When the power cord or plug is damaged or frayed. s If liquid has been spilled into the set. s If the set has been exposed to rain or water. s If the set has been subject to excessive shock by being dropped, or the cabinet has been damaged. s If the set does not operate normally when following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the set to normal operation. s When the set exhibits a distinct change in performance, it indicates a need for service. Servicing Do not attempt to service the set yourself since opening the cabinet may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Replacement Parts When replacement parts are required, be sure the service technician certifies in writing that he has used replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock or other hazards. Important Safety Instruction

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for

long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Antenna lead-in wire Antenna discharge unit (NEC Section 810-20) Ground clamps Antenna lead-in wire Power service grounding electrode system (NEC Art 250 Part H) Electrical wire equipment Ground clamp NEC: National Electrical Code Safety Check Upon completion of any service or repairs to the set, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the set is in safe operating condition, and to so certify. When the set reaches the end of its useful life, improper disposal could result in a picture tube implosion. Ask a qualified service technician to dispose of the set.(US) 5Table of Contents

• Table of Contents Installing and Connecting the TV Unpacking p. 6
• Inserting Batteries into the Remote Control p. 6
• Preventing the TV from Falling Down p. 6
• Connector Types p. 7
• Identifying Front and Rear Connectors p. 8
• Basic Connections (Connecting Cable TV or Antenna) p. 9
• Connecting directly to cable or an antenna p. 9
• Cable box connections p. 9
• Connecting a VCR and Cable p. 10
• Connecting a Satellite Receiver p. 11
• Connecting a Satellite Receiver with a VCR p. 12
• Connecting an Audio Receiver p. 13
• Connecting a DVD Player with Component Video Connectors p. 14
• Connecting a DVD Player with A/V Connectors p. 15
• Connecting a Digital Satellite Receiver p. 16
• Connecting a Digital TV Receiver p. 17
• Connecting a Sub Woofer p. 18
• Connecting an RGB Equipment p. 19
• Setting the Channels p. 20
• Selecting the On-screen Menu Language p. 22
• Watching the TV Watching the TV p. 23
• Watching with closed caption p. 24
• Enjoying High-quality Pictures and Sounds p. 25
• Selecting the Picture Mode p. 26
• Selecting the Effect Mode p. 27
• Saving the Power Consumption p. 28
• Using the Wide Screen Mode p. 29
• Changing the Wide Screen Mode automatically p. 29
• Changing the Wide Screen Mode manually p. 30
• Changing the Wide Setup p. 30
• Setting the Video Inputs p. 32
• Operating Video Equipment with Your TV Remote Control p. 33
• Programming the remote control p. 33
• Operating optional equipment p. 35
• Using Favorite Channels p. 36
• Setting your favorite channels p. 36
• Watching Favorite Channel p. 37
• Adjusting Your Setup Adjusting the Picture Size/Position p. 38
• Using the Picture Control Mode Option p. 39
• Using the Sound Control Option p. 41
• Selecting Stereo or Bilingual Programs p. 43
• Using the Parental Control Feature p. 43
• Activating the Parental Control feature p. 44
• Selecting a Custom Rating p. 46
• What the Ratings Mean p. 48
• Ratings in the U.S.A p. 48
• Ratings in Canada p. 49
• Adjusting Advanced AV Setting Options p. 51
• Using the Timer Turning Off the TV Automatically p. 54
• Setting the Current Time p. 55
• Controlling Power On/Off Automatically p. 56
• Additional Information Troubleshooting p. 58
• Self-diagnosis function p. 58
• Trouble symptoms and remedies p. 59
• Specifications p. 61
• Index (US) Installing and Connecting the TV Installing and Connecting the p. 626

Bracket (supplied) Preventing the TV from Falling Down Attach the supplied brackets to the rear of the TV, and pass a sturdy cord or chain and attach it to a wall or pillar. Consult your dealer when attaching the brackets, since the screws for the brackets also hold the rear cabinet in a place. 1 Remove one of the screws attached at the rear of the TV. Note Do not remove both screws at the same time as these screwssecure the rear cabinet. Never use the TV with the screwsremoved. 2 Attach the supplied brackets with the screw. Note Be sure to use the screw that attaches the rear cabinet. Adifferent screw may damage the TV and result in electricshock. 3 Repeat steps 1 and 2 to attach the other brackets. Unpacking When you unpack this unit, make sure it includes the following: Cleaning cloth (1)Operating Instructions (1) Inserting Batteries into the Remote Control Insert two size AA batteries (supplied) by matching the + and – on the batteries to the diagram inside the remote control’s battery compartment. Notes• Remove the batteries to avoid damage from possible batteryleakage whenever you anticipate that the remote control willnot be used for an extended period.• Handle the remote control with care. Avoid dropping it,getting it wet, or placing it in direct sunlight, near a heater orwhere the humidity is high.• Your remote control can be programmed to operate most videoequipment. (See “Operating Video Equipment with Your TVRemote Control” on page 33.)Brackets (2)AC power cord (1)Do not removeferrite core.Do not removeferrite cores.75-ohm coaxial cable (1)Remote control (1) andsize AA batteries (2)(US) 7Installing and Connecting the TV

4 Attach a sturdy cord or chain securely to each bracket on the rear of the TV. 5 Attach the cord or chain to a wall or pillar. Side viewTop viewAttach the cordor chain(not supplied)securely.Screw a hook (not supplied) tothe wall or pillar securely. Connector Types You may find it necessary to use some of the following connector types during set up. Supplied 75-ohm coaxial cable Screw-on type S VIDEO cable High quality video cable for enhanced picture quality AUDIO/VIDEO cable VIDEO- Yellow AUDIO (Left) - White AUDIO (Right) - Red Some DVD players are equipped with the following three video connectors: Y - Green

B (CB, Cb or B–Y) - Blue R (CR, Cr or R–Y) - Red CONTROL S cable CONTROL S connections are exclusive to Sony equipment and allow greater control of all Sony equipment. DVI-D single link cable Note The connector pin (A) of the DVI-D single link cable is “-” type.“+” type cannot be used for this connection.Screw into connection.Align guides and push intoconnection.Push into connection.Push into connection.Align guides and pushinto connection. Loosen the screwsbefore connecting.Tighten the screwsafter connecting.8 (US) Installing and Connecting the TV Identifying Front and Rear Connectors TV front panel Rear of TV Under the panelHD VD

VIDEO IN 2(US) 9Installing and Connecting the TV

1 Headphones jack Connects to your headphones. If your headphones do not match the jack, use a suitable plug adaptor (not supplied). 2 VIDEO IN 1, 2 (pages 10 - 12, 15) Connects to the output jacks of your VCR or other video equipment. 3 VIDEO IN 3 (DVI-HDTV connector and AUDIO (R/L) jacks) (page 16) Accommodates a copy-protected digital connection (HDCP*) to other devices (such as digital set-top boxes) that have DVI-HDTV. The DVI-HDTV input terminal is compliant with the EIA-861 standard and is not intended for use with personal computers. See the instruction manual that came with your equipment for details about connecting and using it with the TV.

• High-bandwidth Digital Content Protection 4 AUDIO OUT (page 13) Connects to the input jacks of your audio equipment. 5 VHF/UHF (pages 10 - 12) Connects to your VHF/UHF antenna or cable. 6 VIDEO IN 4 AUDIO (L/R) input jacks (pages 14, 17, 19): Connects to the audio output jacks of your DVD player or RGB equipment. Y/G, P B/B, PR/R, HD, VD input jacks: Connecting a DVD player (page 14) or a Digital TV Receiver (page 17) Connect with component video connectors (Y/

B/CR, Y/B-Y/R-Y or Y/PB/PR) to the Y/G, PB/ B, P R/R jacks on the TV. Connecting an RGB equipment (page 19) Connect the RGB equipment’s video/ synchronized signal output terminal to the Y/G,

B/B, PR/R, HD and VD jacks on the TV. 7 SUB WOOFER (page 18) Connects to the input jack of your sub woofer.

To control other Sony equipment with the TV’s remote control,** connect the CONTROL S IN jack of the equipment to the CONTROL S OUT jack of the TV with the CONTROL S cable. To control the TV with a remote control for another Sony equipment, connect the CONTROL S OUT jack of the equipment to the CONTROL S IN jack on the TV with the CONTROL S cable. ** Only when the TV is turned on, or the STANDBY/SLEEP indicator lights up in red. When the TV is turnedoff (the STANDBY/SLEEP indicator goes off), youcannot use this function. 9 AC IN Connects the supplied AC power cord. 75-ohm coaxialcable (supplied)Rear of TVVHF/UHF Basic Connections (Connecting Cable TV or Antenna) Connecting directly to cable or an antenna VHF only or VHF/UHF or cable Note It is strongly recommended to connect the antenna using a 75-ohm coaxial cable to get optimum picture quality. A 300-ohmtwin lead cable can be easily affected by radio noise and the like,resulting in signal deterioration. If you use a 300-ohm twin leadcable, keep it away as far as possible from the TV. Cable box connections Use this hookup if:

• You subscribe to a cable TV system that uses scrambled or encoded signals requiring a cable box to view all channels, and

• You do not intend to hook up any other audio or video equipment to your TV. 1 Connect the coaxial connector from your cable service to the cable box’s IN jack. 2 Using the supplied 75-ohm coaxial cable, connect the cable box’s OUT jack to the TV’s VHF/UHF jack. Also, set “Cable” to “On” in the (TV Setup) menu (See page 21). Tips
• Your Sony remote control can be programmed to operate yourcable box. (See “Programming the remote control” on page 33).
• To change channels using the cable box, set your TV tochannel 3 or 4 depending on the cable box channel output.Rear of TVVHF/UHF

OUT CableCable box75-ohm coaxialcable (supplied)10 (US) Installing and Connecting the TV Connecting a VCR and Cable Use this hookup if:

• You have cable TV that does not require a cable box. Disconnect all power sources before making any connections. 1 Connect the cable TV cable to the VCR’s IN jack. 2 Using the supplied 75-ohm coaxial cable, connect the VCR’s OUT jack to the TV’s VHF/UHF jack. 3 Using AUDIO and S VIDEO cables, connect the VCR’s Audio and S Video OUT jacks to the TV’s AUDIO and S VIDEO IN jacks. Tip If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow) instead of the SVIDEO cable. When connecting both VIDEO OUT and S VIDEO OUT You can select which jack the TV receives the input signal from on the menu screen. You can set it for each video input (VIDEO IN 1 and VIDEO IN 2) separately. The TV is factory set to receive S VIDEO input signals. 1 Press TV/VIDEO repeatedly until the desired video input appears. 2 Press MENU. 3 Press V/v to select (Custom Setup), then press . 4 Press V/v to select “Auto YC,” then press . 5 To watch the pictures input from the S VIDEO input jack: Press V/v to select “On,” then press

To watch the picture input from the VIDEO input jack: Press V/v to select “Off,” then press

VIDEO IN 2 DVI-HDTV YC-15V/30V (not supplied) VIDEO (yellow) AUDIO-L (white) AUDIO-R (red)

(not supplied) VCR Cable S VIDEO Rear of TV 75-ohm coaxial cable (supplied)(US) 11 Installing and Connecting the TV

Connecting a Satellite Receiver Disconnect all power sources before making any connections. 1 Connect the satellite antenna cable to the satellite receiver’s SATELLITE IN jack. 2 Using AUDIO and S VIDEO cables, connect the satellite receiver’s AUDIO and S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks. 3 Connect the supplied 75-ohm coaxial cable from your cable or antenna to the TV’s VHF/UHF jack. HD VD

OUT PB/BY/G PR/R AUDIO

VHF/UHFAC INAUDIO OUTVIDEO IN 4

SUB WOOFERCONTROL VIDEO AUDIODVI-HDTV AUDIOS VIDEOVIDEO IN 1 VIDEO IN 3VIDEO IN 2 YC-15V/30V (not supplied) VIDEO (yellow) AUDIO-L (white) AUDIO-R (red) VMC-810S/820S (not supplied) Satellite antenna cable S VIDEO Rear of TV Satellite receiver 75-ohm coaxial cable (supplied) Tip If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable (yellow) instead of the S VIDEO cable.12 (US) Installing and Connecting the TV HD VD

OUT PB/BY/G PR/R AUDIO

(not supplied) VCR Satellite antenna cable S VIDEO Rear of TV Satellite receiver 75-ohm coaxial cable (supplied) Cable YC-15V/30V (not supplied) VMC- 810S/820S (not supplied) Connecting a Satellite Receiver with a VCR Disconnect all power sources before making any connections. 1 Connect the satellite antenna cable to the satellite receiver’s SATELLITE IN jack. 2 Connect the CATV cable to the VCR’s VHF/UHF IN jack. 3 Using the supplied 75-ohm coaxial cable, connect the VCR’s OUT jack to the TV’s VHF/UHF jack. 4 Using AUDIO and S VIDEO cables, connect the satellite receiver’s AUDIO and S VIDEO OUT jacks to the VCR’s AUDIO and S VIDEO IN jacks. 5 Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks. Tips

• Be sure your VCR’s video input is set correctly. Consult your VCR’s operating manual for instructions.

• Use TV/VIDEO on the remote to select VIDEO IN 1 to watch satellite TV or the VCR (your VCR must be turned on). Use 0-9 and ENTER or CH +/– on the remote to watch cable TV.

• If your VCR or satellite receiver is not equipped with S VIDEO, use a VIDEO cable (yellow) instead of the S VIDEO cable.(US) 13Installing and Connecting the TV

When using your audio system speakers Set “Speaker” to “Off” on the (Custom Setup) menu. The TV’s sound is not output through the TV’s speakers. Tip The sound signal of an equipment connected to the VIDEO IN 4 jacks is also output throughthe AUDIO OUT jacks. Note that the video signal is not output. Note Even though you change the TV’s volume or other sound settings, the sound of your audiosystem does not change. Connecting an Audio Receiver Disconnect all power sources before making any connections. Using an AUDIO cable, connect the TV’s AUDIO OUT jacks to the audio receiver’s AUDIO IN jacks. HD VD

VIDEO IN 2 AUDIO-L (white) AUDIO-R (red) RK-74A (not supplied) Rear of TV Audio input Audio reciever (Compact AV system DAV-C990, etc)14 (US) Installing and Connecting the TV

Connecting a DVD Player with Component Video Connectors This is the preferred hookup to use if:

• Your DVD player has component (Y, B-Y, R-Y) jacks. Disconnect all power sources before making any connections. 1 Using three separate component video cables, connect the DVD player’s Y, B-Y and R-Y jacks to the Y/G, P B/B and PR/R jacks on the TV. Use the VIDEO IN 4 connections. Tip The Y, B-Y and R-Y jacks on your DVD player are sometimes labeled as Y, CB and CR, or Y, PB and PR. If so, connect the cables to the matching colors. 2 Using an AUDIO cable, connect the DVD player’s AUDIO OUT jacks to the TV’s AUDIO IN jacks. Be sure to use the same row of inputs that you used for the video connection. Note Set “Video 4 Mode” to “Y/PB/ PR” in the (Initial Setup) menu (see page 32). Tips

• To take advantage of the Wide Screen Modes, set the TV’s aspect ratio to 16:9 on your DVD player. For details, refer to the operating instructions supplied with your DVD player.

• Some DVD players are equipped with the three component video connectorsP: Y-Green, P

(CB, Cb or B-Y) -Blue and PR (CR, Cr or R-Y) -Red. VMC-10HG (not supplied) AUDIO-L (white) AUDIO-R (red) DVD player RK-74A (not supplied) Rear of TV

B/B Y/G(US) 15Installing and Connecting the TV

Connecting a DVD Player with A/V Connectors Use this hookup if:

• Your DVD player does not have component (Y, P B, PR) jacks. Tip If your DVD player has video component output connectors, for best picture quality, use theconnection described on page 14. Disconnect all power sources before making any connections. 1 Using an AUDIO cable, connect the DVD player’s AUDIO OUT jacks to the TV’s AUDIO IN jacks. 2 Using an S VIDEO cable, connect the DVD player’s S VIDEO jack to the TV’s S VIDEO jack. Note To watch the pictures input from the S VIDEO input jack, set “Auto YC” to “On” in the (Custom Setup) menu (see page 10). Tips
• To take advantage of the Wide Screen Modes, set the TV’s aspect ratio to 16:9 on yourDVD player. For details, refer to the operating instructions supplied with your DVD player.• Use TV/VIDEO on the remote to switch between the VCR and DVD player inputs. Use 0-9and ENTER or CH +/– on the remote to watch cable TV.• If your DVD player is not equipped with S VIDEO, use a VIDEO cable (yellow) instead ofthe S VIDEO cable.HD VD

VIDEO IN 2 DVI-HDTV YC-15V/30V (not supplied) AUDIO-L (white) AUDIO-R (red) DVD player RK-74A (not supplied) Rear of TV S VIDEO16 (US) Installing and Connecting the TV Connecting a Digital Satellite Receiver Disconnect all power sources before making any connections. 1 Using a DVI-D singe link cable, connect the Digital Satellite Receiver’s DVI-HDTV OUT connector to the TV’s DVI-HDTV IN connector. Note DVI-HDTV connection or component video (Y, PB, PR) connection is necessary to view 480p, 720p, and 1080i formats. Note that this TV displays all format types of picture in a resolution of 852 dots × 1024 lines (KE-32TS2U), or 1024 × 1024 (KE-42TS2U). 2 Using an AUDIO cable, connect the Digital Satellite Receiver’s Audio OUT jacks to the TV’s AUDIO IN jacks. Note The DVI-HDTV connector does not provide audio, so audio cables must be connected toprovide sound.VIDEO OUT(480i)VIDEO OUT(1080i/720p/480p)AUTHORIZEDSERVICES ONLYRGB OUT DVI-HDTV OUT TYPE

(1080i/720p/480p) (1080i/720p/480p) HD VD

VIDEO IN 2 DVI-HDTV DVI-D single link cable(not supplied)AUDIO-L (white)AUDIO-R (red)Digital Satellite Receiver(SAT-HD200)RK-74A (not supplied)Rear of TV(US) 17Installing and Connecting the TV

Connecting a Digital TV Receiver Disconnect all power sources before making any connections. 1 Using three separate component video cables, connect the Digital TV Set-top box’s Y, P B and PR jacks to the Y/G, PB/B and PR/R jacks on the TV. Use the VIDEO IN 4 connection. Note DVI-HDTV connection or component video (Y, PB, PR) connection is necessary to view 480p, 720p, and 1080i formats. Note that this TV displays all format types of picture in a resolution of 852 dots × 1024 lines (KE-32TS2U), or 1024 × 1024 (KE-42TS2U). 2 Using an AUDIO cable, connect the Digital TV Set-top box’s Audio OUT jacks to the TV’s AUDIO IN jacks. Note The Y, PB and PR jacks do not provide audio, so audio cables must be connected to provide sound. Note Select “Video 4 Mode” in the (Initial Setup) menu, then select “Y/PB/PR” or “RGB”depending on the Digital TV Set-top box you connect (see page 32).HD VD

VIDEO IN 2 DVI-HDTV VMC-10HG (not supplied) AUDIO-L (white) AUDIO-R (red) Digital TV Set-top box RK-74A (not supplied) Rear of TV

R/R B/B Y/G18 (US) Installing and Connecting the TV Connecting a Sub Woofer HD VD

SUB WOOFERCONTROL VIDEO AUDIO AUDIOS VIDEOVIDEO IN 1 VIDEO IN 3VIDEO IN 2DVI-HDTV Rear of TV Sub woofer input Monaural audio cable (not supplied) Sub woofer (SA-WD200 etc.) Disconnect all power sources before making any connections. Using a monaural audio cable, connect the TV’s SUB WOOFER jack to the sub woofer’s input jack. SUB WOOFER(US) 19 Installing and Connecting the TV

Connecting an RGB Equipment Disconnect all power sources before making any connections. 1 Using an RGB cable, connect the RGB equipment’s video/synchronized signal output terminal to the Y/G, P B/B, PR/R, HD, and VD jacks on the TV. Use the VIDEO IN 4 connections. 2 Using an AUDIO cable, connect the RGB equipment’s AUDIO OUT jacks to the TV’s AUDIO IN jacks. Be sure to use the same row of inputs that you used for the video connection. Rear of TVHD VD

OUT PB/BY/G PR/R AUDIO

VHF/UHF AC IN AUDIO OUT VIDEO IN 4 SUB WOOFERCONTROL VIDEO AUDIO AUDIOS VIDEO

VIDEO IN 2 DVI-HDTV RGB equipment Note Set “Video 4 Mode” to “RGB” in the (Initial Setup) menu (see page 32).20 (US) Installing and Connecting the TV Setting the Channels After you finish connecting your TV, you can run Auto Program to set up your channels. The Auto Program screen appears when you turn your TV on for the first time after installing it. To change or skip channels, see page 21. Note The Auto Program feature does not apply for an installation thatuses a cable box for all channels.

1 Press Power on the front panel of your TV. The Auto Setup menu appears. 2 Press CH+ on the remote control or on the front panel of your TV to perform Auto Program. To perform Auto Program again 1 Press MENU. 2 Press V/v to select (TV Setup), then press

3 Press V/v to select “Auto Program,” then press

4 Press V/v to select “OK,” then press . “Auto-Channel Set” appears and the TV starts scanning and presetting channels automatically. When all the receivable channels are stored, the lowest numbered channel will be displayed, then the (TV Setup) menu appears. 5 Press MENU to exit the menu screen. To cancel Auto Program While “Auto-Channel Set” appears in step 4, press MENU on the remote.

A uto Setup A uto Program: First please connect cable antenna/ CH+

[(US) 21 Installing and Connecting the TV

To skip channels You can skip unnecessary channels when selecting channels using the CH +/– buttons. 1 Press MENU. 2 Press V/v to select (TV Setup), then press

3 Press V/v to select “Channel Skip/Add,” then press

4 Press V/v to select the channel you want to skip, then press

5 Press V/v to select “Skip,” then press . If you want to re-enter the skipped channel, select “Add.” 6 Press MENU to exit the menu screen. TV SetupChanne l

To watch CATV channels You have to subscribe to a cable TV company. Note that cable TV cannot be received in some areas. This TV receives 1-125 cable TV channels. For details on cable TV subscription, consult your nearest cable TV company. 1 Press MENU. 2 Press V/v to select (TV Setup), then press

3 Press V/v to select “Cable,” then press . 4 Press V/v to select “On,” then press . 5 Perform steps 3 and 4 on page 20. Note You cannot receive and set the CATV channels and UHF channels at the same time. When you have a cable box or satellite receiver connected The Channel Fix feature is useful when you have a cable box or satellite receiver connected. For details, see page 53.22 (US) Installing and Connecting the TV 1 Press MENU. 2 Press V/v to select (Initial Setup), then press

3 Press V/v to select “Language,” then press . 4 Press V/v to select your preferred language, then press

5 Press MENU to exit the menu screen.

STANDBY/ SLEEP 1 Press POWER on the remote. Tip When the STANDBY/SLEEP indicator goes off, pressPOWER on the TV. 2 Select the desired channel using the 0-9 and ENTER buttons. Press 0-9 to select a channel, the channel changes after 2 seconds. Press ENTER to select immediately. Use the CH +/– buttons to scan through the channels. Tip When you press and hold CH + or – the channel numberwill change rapidly. 3 Adjust the volume using the VOL +/– buttons. Other button operations Press ToMUTINGSYSTEM OFFDISPLAY JUMP Tips

• While the STANDBY/SLEEP indicator is lit, the TV turns onautomatically if you press the 0-9 and ENTER buttons or CH+/– buttons on the remote.• You can adjust the volume by referring to the value beside thevolume indication (on screen).mute the sound. Press again or pressVOL + to restore sound.turn off the TV and all other Sonyequipment.display the current channel number.Press again to turn display off.The channel display will automaticallydisappear after a few minutes.To display the channel again, pressagain.jump back and forth between twochannels. The TV alternates between thecurrent channel and the last channelselected using the 0-9 buttons. (Continued)24 (US) Watching the TVCaption Vision : Text3Caption Vision : Text4Caption Vision : CC4Caption Vision : CC3Caption Vision : Text1Caption Vision : Text2Caption Vision : OffCaption Vision : CC1Caption Vision : CC2 Watching with closed caption You can display Caption Vision if the broadcaster offers this service. MUTING POWERVCR/DVDSAT/CABLEVCR/DVDSLEEPSAT/CABLEWIDE MODE DISPLAYFUNCTION SYSTEM OFF

Press repeatedly until the desired Caption Vision appears. Each time you press the button, Caption Vision changes as follows: Select Off CC1 (Capture 1),CC2 (Capture 2),CC3 (Capture 3),CC4 (Capture 4)Text1, Text2,Text3, Text4 Tip You can select Caption Vision on the menu screen. Select“Caption Vision” in the (Custom Setup) menu, then selectthe desired Caption Vision. turn off Caption Vision.display a printed version of thedialogue or sound effects of aprogram. (The mode should beset to CC1 (Capture 1) formost programs.)display network/stationinformation presented usingeither half or the whole screen.(US) 25Watching the TV

Enjoying High-quality Pictures and Sounds To enjoy high-quality pictures and sound, refer to the following and adjust the picture and audio options to best suit the program you are watching. When watching TV Set Picture Mode to “Standard” (page 26) To adjust the picture quality Select “Liv. Rm.” (Living Room) and adjust the options,referring to the following (See page 39).• Adjust “Brightness” and “Contrast” according to the lightconditions in your room.First, adjust the brightness. Note that increasing “Brightness”too much whitens black color. Next, adjust the contrast. If“Contrast” is reduced and there is little difference betweenbright and dark areas, increase “Gamma Correct.” (GammaCorrection).• If antenna reception level is too low, the picture may be noisy.In this case, increase “Noise Reduct.” (Noise Reduction). Ifthe picture is still noisy, decrease “Sharpness” to reduce anynoise.• Set “Cine Motion” to “Off” except when watching movies. Set Sound Mode to “Standard” (page 26) To adjust the sound quality Select “Liv. Rm.” (Living Room) and adjust the options,referring to the following (See pages 27, 41).• Adjust “Treble” and “Bass” to your taste.• Set “Effect” as follows:– When watching news: “Off”– When watching music programs: “Hall”– To add a surround-like effect to mono programs: “Simul.”(Simulated). Note If “Auto Shutoff” is activated (page 53), the TV changes to thestandby mode automatically when there is no broadcast. You canprevent the TV from remaining on even if you fall asleep. When watching movies on videotapes or DVD Set Picture Mode to “Movie” (page 26) To adjust the picture quality Select “Movie” and adjust the options, referring to the following(See page 39).• Set “Cine Motion” to “Auto” for smoothest presentation ofmovies on screen (24 frame per second).• If there is too much noise when watching a rental videotape,increase “Noise Reduct.” (Noise Reduction). If the picture isstill noisy, decrease “Sharpness” to reduce noise.• To enjoy high-level picture quality of DVD, increase“Sharpness” to a degree where the picture appears clear, butnot overly sharp (See page 40). Set Sound Mode to “Movie” (page 26) To adjust the sound quality Select “Movie” and adjust the options, referring to the following(See page 27).• For surround sound, set “Effect” to “TS” (TruSurround) (Seepage 27). Tip Caption Vision is displayed if you activate the Closed Captionfeature (See page 24). Notes on Image Retention If the 1-5 images (below) are displayed for an extendedperiod of time, image retention (afterimage) in areas of thescreen may result due to the characteristics of the PlasmaDisplay Panel. It is possible to reduce image retention byfollowing steps A-C. Situations which can result in burn-in and picture retention 1 Black bars at the top and bottom that appear with wide videosource (Letter box picture)2 Black bars to the left and right that appear with 4:3 videosource (conventional TV broadcast)3 Video game sources4 DVD on-screen menu displays5 On-screen menus, channel numbers, etc., of connectedequipment such as DSS, Cable box, video decks, etc. Precautions to avoid/reduce burn-in and picture retention A Use the automatic orbiting Screen Saver function.B Avoid displaying channel numbers, on-screen menus etc. ofconnected equipment such as DSS, Cable box, video decks,etc. To erase channel numbers, on-screen menus, refer to theuser manual of connected equipment.C Reduce brightness of the picture and/or display video sourcein Wide Zoom or Full Mode.26 (US) Watching the TV Selecting the Picture Mode You can select one of the five different picture modes that best suits the program you are watching. You can also adjust the picture quality for the Liv.Rm. (Living Room), Movie, and AV Pro modes to suit your taste (See page 39). When selecting Picture Mode, see “Enjoying High- quality Pictures and Sounds” on page 25. You can set a different Picture Mode for each picture signal format and store them in memory.

TV/VIDEOPICTURE MODE POWERSAVING PICTURE MODE Press PICTURE MODE repeatedly until the desired mode appears. If you press the button once, the current Picture Mode appears. Each time you press the button, the Picture Mode changes as follows. Vivid Select for enhanced picture contrast and sharpness. Standard Select to display a picture with contrast to suit your room’s lighting conditions. Liv.Rm. (Living Room) Select to display a picture with moderate contrast, which may better suit the living room’s lighting conditions. Adjust the options to your taste (See pages 39, 41). Movie Select to display a finely detailed picture. The sound automatically changes to “TS” (TruSurround) (See page 28). Adjust the options to your taste (See pages 39, 41). AV Pro Use this mode for your own custom settings (See pages 39, 41). PICTURE MODE Picture Mode : Vivid Picture Mode : Standard Picture Mode : Liv.Rm. Picture Mode : Movie Picture Mode : AV Pro ,(US) 27Watching the TV

Selecting the Effect Mode You can select one of the three different Effect modes that best suits the program you are watching. You can select the Effect mode, when watching the picture of connected equipment as well. TruSurround* produces a virtual surround effect, and enables you to enjoy the sound effects of a movie theater. You can set a different Effect mode for each picture signal format and store them in memory.

• TruSurround and the symbol are trademarks of SRSLabs, Inc.TruSurround technology is incorporated under license fromSRS Labs, Inc. Tip You can adjust other sound options. For details, see “Using theSound Control Option” on page 41.MUTING POWERVCR/DVDSAT/CABLEVCR/DVDSLEEP JUMP VOL CHENTERMTS/SAPGUIDETV/SATSAT/CABLEWIDE MODE DISPLAYFUNCTION SYSTEM OFF FAVORITES MENU CODE SET

2, 7 1 Press PICTURE MODE repeatedly to select “Liv.Rm.” (Living Room), “Movie,” or “AV Pro.” Note Effect mode cannot be set for the “Vivid” and “Standard”modes (See page 26). 2 Press MENU. 3 Press V/v to select (Picture/Sound Control), then press

4 Press V/v to select “Adjust Sound,” then press

Picture/Sound Con trol T reble Bass Reset Balance Effect Off Sound ,,,to to set select Adjust

6 Press V/v to select “Hall,” “Simul.” (Simulated), or “TS” (TruSurround), then press

Hall Select for movies and music programs. Simul. (Simulated) Select for normal broadcast. It adds a surround- like effect to mono programs. TS (TruSurround) Select for surround sound (for example, DVD software). It produces a virtual surround effect. 7 Press MENU to exit the menu screen. Saving the Power Consumption You can save the power consumption of the TV. Press POWER SAVING. To cancel the Power Saving mode Press POWER SAVING again. “Power Saving: Standard” appears. Tips

• If you turn off the TV while the Power Saving mode is on, themode stays on next time you turn on the TV.• You can set the Power Saving mode to on using the menuscreen. Select “Power Saving” in the (Custom Setup)menu, then set it to “Standard” or “Reduce.”• If you select “Liv.Rm.” (Living Room), “Movie” or “AV Pro”using the PICTURE MODE button, you can adjust the pictureoption even if the Power Saving mode is set to on (page 39).Note that if you increase “Contrast” or “Brightness,” thepower consumption is not reduced. JUMP VOL CH

ENTERMTS/SAPGUIDETV/SATFAVORITES

Power Saving : Reduce(US) 29Watching the TV

Using the Wide Screen Mode Changing the Wide Screen Mode automatically The Auto Wide Mode lets you watch 4:3 normal broadcasts or other sizes of the picture such as movies in several Wide Screen Modes (16:9 aspect ratio). The following example shows the default settings. (The “Auto Wide” screen mode is set to “Mode2,” and “4:3 Default” is set to “Widezoom.” Widezoom Original PictureAuto WideAuto Wide“Zoom” enlarges the 4:3picture horizontally andvertically to an equalaspect ratio that fills the16:9 screen. Useful forwatching Letterbox Full Original PictureAuto Wide“Subtitle” enlarges thepicture horizontally andvertically to an equalaspect ratio that fills thescreen, while the subtitlearea is compressed to fitAuto WideAuto Wide“Full” stretches the 4:3picture horizontally only,to fill the 16:9 screen.“Normal” returns the 4:3picture to its original size.“Widezoom” enlarges the4:3 picture to fill the 16:9screen, keeping theoriginal image as much as(Continued)• Normal 4:3 aspect ratiopicture• DTV 4:3 aspect ratio picture• 4:3 squeezed video camera orDVD picture• DTV 16:9 aspect ratio picture Subtitle Original Picture• Letter box movies withsubtitles outside the picture(2.35:1 aspect ratio) Normal Original Picture• Normal 4:3 aspect ratiopicture• DTV 4:3 aspect ratio picture Zoom Original Picture• Letterbox movie of a videotape or a DVD disc30 (US) Watching the TV Changing the Wide Screen Mode manually You can change the Wide Screen Mode manually with the WIDE MODE button. When the antenna reception is low, or the picture is too dark, the Auto Wide function may not work properly. In this case, set the Wide Screen Mode manually. Press WIDE MODE repeatedly until the desired Wide Screen Mode appears. Pressing the WIDE MODE button once lets the TV select the best Wide Screen Mode, and the selected Wide Screen Mode appears.* Each time you press the button, Wide Screen Mode changes as follows. For details on Wide Screen Mode, see page 29.

• When “Auto Wide” in the (Screen Control) menu is set to“Mode2,” and the “4:3 Default” is set to “Normal” (page 31),the picture remains 4:3 aspect ratio (“Normal”). Tip Set “Auto Wide” to “Off” when changing the Wide ScreenMode manually (See page 31).MUTING POWERVCR/DVDSAT/CABLEVCR/DVDSLEEPSAT/CABLEWIDE MODE DISPLAYFUNCTION SYSTEM OFF

Changing the Wide Setup Auto Wide setting has two options: “Mode1” and “Mode2.” Auto Wide: “Mode1” Normal broadcast (4:3 aspect ratio) transmits the control signal together with the picture signal. Some video equipment, such as camcorders, transmit the control signal*

as well. In “Mode1,” the TV detects the control signal and displays the picture with its original aspect ratio. Note that black bands may appear near the frame, or part of the picture may not appear, if you select the Wide Screen Mode manually while watching the picture without the control signal. Auto Wide: “Mode2” In “Mode2,” the TV selects the best Wide Screen Mode automatically to fit the wide screen, regardless of the control signal. The factory setting of this TV is:“Auto Wide” is set to “Mode2,” and “4:3 Default” is set to“Widezoom.”

Control signal which returns the picture to its original aspectratio. The following include the control signal.– Pictures from camcorder with specified aspect ratio– Broadcasts with the 4:3 aspect ratio signal(US) 31 Watching the TV

• If you select the Wide Screen Mode manually (page 30), the Wide Screen Mode may not change as noted above.

• If you press the WIDE MODE button (page 30) with Auto Wide set to on, Auto Wide functions noted above. If you press the WIDE MODE button repeatedly, Wide Screen Mode changes as follows (according to the control signal). – If the TV receives a picture with control signal, Wide Screen Mode changes according to the control signal. – If the TV receives a picture without control signal, Auto Wide does not function even if “Auto Wide” is set to “Mode2.” Note that it functions again when you select other channels or inputs, or turn the TV off and on again.

• This TV features superior presentation of movie films by identifying movie signals and processing them accordingly. When Wide Screen Mode changes automatically with Auto Wide set to on

• The TV receives the picture with a control signal and selects the best Wide Screen Mode automatically to fit the wide screen (See page 29).

• While “Auto Wide” is set to “Mode2,” the picture size may change during commercial breaks. This is because the TV selects the best Wide Screen Mode automatically for each program (See page 29). Notes on Wide Screen Mode

• The Wide Screen Mode function of this TV allows for various display options: select the appropriate Wide Screen Mode for the original aspect ratio of the picture you are watching.

• If you change the screen size using the WIDE MODE feature with the TV installed in a public space for commercial use or public purpose, it might be an infringement of copyright.

• If you select “Widezoom” when watching the picture with 4:3 aspect ratio, par of the picture is transformed. You can watch the picture with its original aspect ratio in “Normal” mode.

• The upper and lower parts may not appear or subtitles may not go in the screen according to the size of the original picture. In this case, adjust the size or position (See page 38). How Wide Screen Mode works in Auto Wide “Mode1” and “Mode2” Wide Screen Mode Original picture Auto Wide: “Mode1” Auto Wide: “Mode2” Normal broadcasts Broadcasts with the 4:3 aspect ratio signal*

Letterbox movies with subtitles inside the picture Letterbox movies with subtitles outside the picture Pictures from camcorder or DVD “Zoom” or “Full” software with the 16:9 aspect ratio signal*

Pictures from camcorder or DVD software with the 4:3 aspect ratio signal*

Set it on the menu screen (See below right). When purchasing, it is set to “Widezoom.”

Pictures with control signal (page 30). Wide Screen Mode selected with the WIDE MODE button “Normal” Wide Screen Mode selected with the WIDE MODE button Wide Screen Mode selected with the WIDE MODE button “Normal” ”Widezoom” or “Normal”*

3 Make sure that “Wide Setup” is selected, then press

If not, press V/v to select “Wide Setup,” and then press . 4 Press V/v to select “Auto Wide,” and then press

5 To set “Auto Wide” to “Off”: Press V/v to select “Off,” then press

(Go to step 8.) To set “Auto Wide” to “Mode1”: Press V/v to select “Mode1,” then press

(Go to step 8.) To set “Auto Wide” to “Mode2”: Press V/v to select “Mode2,” then press

7 Press V/v to select “Normal” or “Widezoom,” then press

8 Press MENU to exit the menu screen.32 (US) Watching the TV Setting the Video Inputs You can enjoy images (and sound) from optional video equipment connected to this unit by selecting the appropriate input. For details on connection, see pages 9 through 19. Tip You can select the inputs by using the INPUT button on the TV.Each time you press the button, the input changes as follows: TVtVIDEO1/S VIDEO1*tVIDEO2/S VIDEO2*

1 Press TV/VIDEO repeatedly until the desired video input appears. Each time you press TV/VIDEO, the input changes as follows: Select

• VIDEO IN 1• VIDEO IN 2• VIDEO IN 3• VIDEO IN 4* If a video equipment is connected to S VIDEO input and“Auto YC” in the (Custom Setup) menu is set to “On”(page 10), “S VIDEO1,” or “S VIDEO2” appears. 2 Operate the selected optional equipment. For details, see “Operating Video Equipment with your TV Remote Control” on page 33, or refer to the instructions supplied with each equipment. When connecting optional video equipment to VIDEO IN 4 1 Press MENU. 2 Press V/v to select (Initial Setup), then press

3 Press V/v to select “Video 4 Mode,” then press

4 Press V/v to select “Y/PB/PR” or “RGB,” then press

Operating Video Equipment with Your TV Remote Control Programming the remote control

The remote control is preset to operate Sony brand video equipment. Sony equipmentBeta, ED Beta VCRs8mm VCRVHS VCRDV VCRDVD player If you have video equipment other than Sony brand that you want to control with the TV’s remote control, use the following procedures to program the remote control. Note The equipment must have infrared (IR) remote capability inorder to be used with this remote control. From the “Manufacturer’s codes” listed on page 34, select the three-digit code number for the manufacturer’s code of your equipment. If more than one code number is listed, start with the number listed first. Use the code number to complete the following procedure. 1 Press CODE SET. 2 Press the function button you want to program. To program a cable box or a satellite receiver Press SAT/CABLE (FUNCTION). To program video equipment Press VCR/DVD (FUNCTION). 3 Enter the three-digit manufacturer’s code number using the 0-9 buttons. 4 Press ENTER. 5 To check if the code number works, aim the TV’s remote control at the equipment and press the VCR/DVD and/or SAT/CABLE (POWER) button that corresponds with that equipment. If it responds, the programming is completed. If not, try using the other codes listed for that manufacturer. Tips

• If more than one number is listed, try entering them one byone until you come to the correct code for your equipment.• If you enter a new code number, the code number youpreviously entered at that setting is erased.• In some rare cases, you may not be able to operate yourequipment with the Sony remote control. In this case, use theequipment’s own remote control unit.Programmable code number

Operating optional equipment Operating a VCR

Turn on/offControl a VCRChange channelsRecord Play Stop Fast forwardRewind the tapePauseSearch the pictureforward or backwardPressVCR/DVD (POWER)VCR/DVD (FUNCTION)CH +/–H and z simultaneously

S (press again to resume normalplayback)J or j during playback(release to resume normal playback) FUNCTION buttons (VCR/ DVD, SAT/ CABLE) POWER buttons

Turn on/offControl a DVD player Play Stop PauseStep through differenttracks of an audio discStep through differentchapters of a video discSelect tracks directlyDisplay the menu (Setup)Operate the DVD menu Operating a cable box

Turn on/offSelect cable boxSelect a channelChange channelsGo to previous channel Operating a satellite receiver

S (press again to resume normalplayback)J to step forward or j to stepbackwardCH + to step forward or CH – tostep backward0-9 buttons MENU V, v, B, b,36 (US) Watching the TV Using Favorite Channels You can select programs from a list of favorite channels that you preset. Setting your favorite channels MENU

3 Press V/v to select “Favorite Channel,” then press

4 Press V/v to select the position you want to change, then press

5 Press V/v to select the desired channel, then press

You have now selected a favorite channel for the position selected in step 4. 6 Repeat steps 4 and 5 to program other favorite channels. 7 Press MENU to exit the menu screen.

Watching Favorite Channel

1 Press FAVORITES. The Favorite Channel options appear. 2 Press V/v to select the desired channel, then press

The selected channel will be displayed.38 (US) Adjusting Your Setup 1 Receive the picture you want to adjust, then press MENU. 2 Press V/v to select the (Screen Control), then press

3 Press V/v to select the option you want to adjust. To adjust screen size Press V/v to select “Screen Size,” then press

To adjust screen position Press V/v to select “Screen Shift,” then press

Note The menu screen changes as follows when “MenuFunction” is set to “Return” in the (Initial Setup) menu. MENU

Zoom PixelVSize Size HShiftSh ift Adjust Adjusting the Picture Size/Position You can adjust the size and position of the picture for each Wide Screen Mode (page 29) in the following cases:

• To move the position of the picture in “Widezoom” and “Zoom” modes

• When subtitles may not go in the screen in “Subtitle” mode ”H Size” (Horizontal Size) and “H Shift” (Horizontal Shift) cannot be adjusted in “Widezoom.” MUTING POWER VCR/DVD SAT/CABLE VCR/DVD SLEEP JUMP VOL CH ENTER MTS/SAP GUIDE TV/SAT SAT/CABLE

Adjusting Your Setup(US) 39Adjusting Your Setup

To adjust the “Screen Size” To adjust the “Screen Shift” 5 Press MENU to exit the menu screen. EnlargesverticallyEnlargeshorizontallyShrinksverticallyShrinkshorizontallyMoves up Moves tothe rightMoves tothe leftMoves down Using the Picture Control Mode Option You can precisely set the picture quality with “Liv.Rm.” (Living Room), “Movie,” or “AV Pro” (selected with the PICTURE MODE button). You can set a different picture control option for each picture signal format and store them in memory.

(Continued)40 (US) Adjusting Your Setup 5 Press V/v to select the option you want to adjust, then press

6 Press V/v/B/b to make the desired adjustment, then press

Adjustable options OptionContrastBrightnessColor Hue Sharpness Tip Option adjustments are indicated by a numerical value. Picture/Sound Cont r o lContrast PicturBrightnessColorSharpness Hue Noise Reduct .Cine MotionDynamic,,,to to Low

ENTERPictureAdjustLiv.Rm. Press v/BTo reduce picturecontrastTo darken thepictureTo decrease colorintensityTo decrease thegreen tonesTo soften thepicturePress V/bTo enhance picturecontrastTo brighten thepictureTo increase colorintensityTo increase thegreen tonesTo sharpen thepicture Contrast 204 1 Press PICTURE MODE repeatedly until “Liv.Rm.” (Living Room), “Movie,” or “AV Pro” appears. Note The picture control option cannot be adjusted in “Vivid” or“Standard” modes (See page 26). 2 Press MENU. 3 Press V/v to select (Picture/Sound Control), then press

4 Press V/v to select “Adjust Picture,” then press

Picture/Sound ControlCon trast PicturBrightnessColorSharpness Hue Noise Reduct .Cine MotionDynamic,,,to to Low

,,,to to Cool Mid set selectAdjust

ENTERColor Temp.Color Correct.Gamma Correct.SharpnessNoise Reduct. If you press and hold v, the following options appear. Adjustable options Option Noise Reduct. (Noise Reduction) Cine Motion Dynamic Picture Color Temp. (Color Temperature) Color Correct. (Color Correction) Gamma Correct. (Gamma Correction)

• You cannot adjust “Noise Reduct.” (Noise Reduction) for an equipment connected only to the RGB (Y/G, P B/B, PR/ R) input. **For details on these settings, see page 51. 7 Repeat steps 5 and 6 to adjust other options. 8 Press MENU to exit the menu screen. To reset to the factory settings Select “Reset” in step 5, then press

Description Select to reduce the noise level of equipment connected to the VHF/ UHF, VIDEO IN* jacks. It is most effective on the signal from the VHF/ UHF jack. Obtains a smooth picture movement that approaches the original film-like quality when reproducing movies or other video sources on 24 frame per second films. Select to enhance the picture contrast. Select to give bright colors a red tint (Setting variable from “Cool” to “Warm”). Select to emphasize reds and blues. Select to adjust the balance between bright and dark areas of the picture. Setting Off/Low/ Mid (Middle)/ High Auto/Off On/Off Cool/Neutral/ Warm/ USER1**/ USER2**/ USER3** On/Off High/ Mid (Middle)/ Low Using the Sound Control Option You can precisely adjust the sound settings for “Liv.Rm.” (Living Room), “Movie,” or “AV Pro” (selected with the PICTURE MODE button). You can set a different sound control option for each picture signal format and store them in memory. For details on Effect mode, see page 27. MUTING POWER VCR/DVD SAT/CABLE VCR/DVD SLEEP JUMP VOL CH ENTER MTS/SAP GUIDE TV/SAT SAT/CABLE

(Continued)42 (US) Adjusting Your Setup 6 Press V/v/B/b to make the desired adjustment, then press

OptionTreble Bass BalanceEffect Tip Option adjustments are indicated by a numerical value. 7 Repeat steps 5 and 6 to adjust other options. 8 Press MENU to exit the menu screen. To reset to the factory settings Select “Reset” in step 5, then press

Press v/BTo decrease higher-pitched sounds.To decrease lower-pitched sounds.To emphasize theleft speaker.See page 27.Press V/bTo increase higher-pitched sounds.To increase lower-pitched sounds.To emphasize theright speaker. 1 Press PICTURE MODE repeatedly until “Liv.Rm.” (Living Room), “Movie,” or “AV Pro” appears. Note The sound control option cannot be adjusted in “Vivid” or“Standard” modes (page 26). 2 Press MENU. 3 Press V/v to select (Picture/Sound Control), then press

4 Press V/v to select “Adjust Sound,” then press

5 Press V/v to select the option you want to adjust, then press

Picture/Sound ControlT reble Bass ResetBalanceEffect OffSound,,,to to set selectAdjust

Selecting Stereo or Bilingual Programs You can enjoy stereo, bilingual and mono programs. JUMP

DescriptionSelect for stereo reception whenviewing a program broadcast in stereo.Select to automatically switch the TVto second audio programs when a signalis received. (If no SAP signal ispresent, the TV remains in Stereomode.)Select for mono reception. (Use toreduce noise during weak stereobroadcasts.) Press MTS/SAP repeatedly until the desired sound indication appears. Each time you press the button, the sound indication changes as follows: Sound indicationStereoAuto-SAP Mono Using the Parental Control Feature The TV programs and movies shown on TV are given a rating signal based on the following rating systems. In U.S.A.: U.S. Television Parental Guidelines to rate television programs (U.S. TV ratings), and Motion Picture Association of America (MPAA) Guidelines to rate movies including those shown on TV (movie ratings). In Canada: Canadian English Language ratings to rate television programs in English, and Canadian French Language ratings to rate those in French. To block programs you feel are unsuitable for your children, you need to set the TV for the desired rating systems. Sony’s predetermined ratings are also available. See page 48 for a description of the ratings. The TV’s Parental Control feature functions by receiving the rating signal from your local broadcasting station or cable service provider. (Continued)44 (US) Adjusting Your Setup

Picture/Sound ControlPicture Mode Standard,,,to to enter adj . menuselect ENTERAdjust PictureSoundAdjust 3 Make sure that “Parental Control” is selected, then press

4 Enter a four digit password using the 0-9 buttons. The factory preset password is “0000.” Note Do not enter “4357” corresponding to “HELP” on a phonenumber pad (See page 45). 5 Confirm your password by entering it again. Your password is stored and the Parent menuoptions appear. Tips

• You need to enter the password here for any featureaccess into the Parental Control menu. If you lose yourpassword, see “Tip” on page 45.• If you want to change the password, see page 45. 6 Press V/v to select “Country,” then press .

8 Press V/v to select “Lock,” then press . 9 Press V/v to select a desired rating , then press

If you select “Child,” “Youth,” or “Y.Adult” (Young Adult), the Parental Control is activated automatically. If you want to select the ratings from “Custom,” see “Selecting a Custom Rating” on page 46.

Press MENU to exit the menu screen. Viewing blocked programs You can view a blocked programs by entering the password. 1 Press ENTER to display the “Password” screen. 2 Enter your password using the 0-9 buttons. The Parental Control feature will be canceled (“Lock” set to “Off”) until you turn the TV off. To deactivate the Parental Control feature Set “Lock” to “Off” in the Parental Control menu. To change the password 1 Select “Parental Control” from the (Custom Setup) menu (See page 44). 2 Enter your four digit password using the 0-9 buttons. The “Parental Control” menu appears. 3 Press V/v to select “Change Password,” then press

6 Press MENU to exit the menu screen. Tip If you have forgotten your password, enter the master password“4357” (corresponding to “HELP” on a phone number pad) instep 2. You can then store a new password. Notes

• If you entered “4357” as your password the first time, youcannot store a new password (See step 4 of “Activating theParental Control feature” on page 44).• When you select a Parental Control program and the sindicator is displayed on the screen, you cannot view thatprogram even if you enter “4357.” (See “Viewing blockedprograms” on the left.)46 (US) Adjusting Your Setup 1 Perform the steps 1 to 8 in “Activating the Parental Control feature” on page 44 to display the Parental Lock options. 2 Press V/v to select “Custom,” then press . To select a rating in Canada, go to step 6.

Movie RatingCustom Set upPa rental ControlCustomMo vie Rat i ng Un r a ted Al low Ra ting,,,to to set selectENTERCustom Set upPa rental ControlCustomRa tingRa tingEng lishF renchRa tingU.S.A.,,,to to set selectENTER Selecting a Custom Rating If you want to select the ratings to be blocked from Custom once you have activated the Parental Control feature (page 44), follow the procedure below. For a detailed description of each rating, see “What the Ratings Mean” on page 48. MUTING POWER VCR/DVD SAT/CABLE VCR/DVD SLEEP JUMP VOL CH ENTER MTS/SAP GUIDE TV/SAT SAT/CABLE

Custom Set upPa rental ControlCustomMo vie Rat i ng Un r a ted Al low Ra ting,,,to to set selectENTERIn U.S.A. 3 Make sure that “Movie Rating” is selected, then press

4 Press V/v to select the rating to be blocked, then press

The s indication automatically appears beside the selected rating and all “higher” ratings, indicating that the programs that match the ratings will be blocked. 5 Press B to return to the “Custom” menu. 6 To select a TV rating in U.S.A.: Press V/v to select “TV Rating,” then press

–:TV 14 TV MA TV Ra ting

,,,, to to set selectENTER(US) 47 Adjusting Your Setup

French Rating Custom Set upPa rental ControlCustom TV Y – –:TV Y7–––: TV G ––:TV PG

,,,, to to set selectENTERCustom Set upPa rental ControlCustom

Eng lishRating Custom Set upPa rental ControlCustom

DL S V LSV ,,,, to to set selectENTER Custom Set upPa rental ControlCustom TV Y ––:TV Y7–––: TV G ––:TV PG

set selectENTER To select a TV ratings in Canada: Press V/v to select “English Rating,” “French Rating,” or “U.S.A. Rating,” then press

7 Press V/v to select the TV rating to be blocked, then press

The s indication automatically appears beside the selected rating and all “higher” ratings, indicating that the programs that match the ratings will be blocked. Some U.S.TV ratings have additional content ratings called “extenders.” The extenders are defined as follows: D (sexually suggestive Dialog), FV (Fantasy Violence), L (coarse Language), S (Sexual situations) and V (Violence). By setting the extenders, you can define additional viewing limits. For more details of extenders, see page 49. All of the extenders included in the selected ratings will be blocked. If you wish to allow any of them to be viewed, go to step 8. English Rating Example: TV rating in U.S.A. 8 Press B/b to select the extender to be viewed, then press

“–” appears beside the selected extender, indicating that the programs that match the extender can be viewed. If you re-press , s is displayed to show that the programs that match the extender will be blocked again. 9 Repeat step 8 for other extenders. All programs that match the ratings you select and higher, except for the extenders that were canceled, will be blocked.

Press MENU to exit the menu screen. To block TV programs and/or movies for which a rating is not given (NR and N/A) For a description of the NR and N/A ratings, see page 48. 1 Perform steps 1-2 of “Selecting a Custom Rating” on page 46. 2 Press V/v to select “Unrated,” then press . 3 Press V/v to select “Block,” then press . 4 Press MENU to exit the menu screen. U.S.A. Rating48 (US) Adjusting Your SetupDescriptionIn G-rated films no strongwords are used, the violence isat a minimum, nudity and sexscenes are not present, nor isthere any drug use.This is a film which may needto be monitored first byparents.Parents are alerted to be verycareful about the attendance oftheir under-teenage childrenwhen viewing.This film includes hardlanguage, tough violence,nudity, drug abuse or otherelements of concern. What the Ratings Mean Ratings in the U.S.A. Sony’s predetermined ratings These are original ratings that Sony has predetermined according to the viewer’s age. Each rating allows for viewing of certain programs, as follows. (See the next column for a description of TV and movie ratings.) OptionCHILD:YOUTH:YOUNG ADULT: U.S. movie ratings U.S. movie ratings are for movies (including those shown on TV) rated according to the Motion Picture Association of America (MPAA) Guidelines. OptionG (General Audiences—All Ages Admitted):PG (Parental GuidanceSuggested. Some Material MayNot Be Suitable For Children):PG-13 (Parents StronglyCautioned. Some Material MayBe Inappropriate For ChildrenUnder 13):R (Restricted, Under 17Require Accompanying ParentOr Adult Guardian):DescriptionSuitable for children under theage of 6.Viewable U.S. movie ratings:G, NR, and N/AViewable U.S. TV ratings:TV-Y, TV-G, and TV-NRSuitable for children aged 7and older.Viewable U.S. movie ratings:G, PG, NR, and N/Aviewable U.S. TV ratings: TV-Y, TV-Y7, TV-G, TV-PG, andTV-NRSuitable for children aged 13and older.Viewable U.S. movie ratings:G, PG, PG-13, NR, and N/AViewable U.S. TV ratings:TV-Y, TV-Y7, TV-G, TV-PG,TV-14, and TV-NRDescriptionThis is a film that most parentswould consider not suitable forchildren aged 17 and under.There may be violence, sex,abhorrent behavior, drug abuseor other elements of concern.This is a film that a producerhas not rated, intending to havehis film widely released.This is a film that a producerconsiders outside the scope ofthe MPAA ratings.DescriptionThis program is designed foryoung children aged 2–6 andis appropriate for all children.This program is designed forchildren aged 7 and above.Themes and elements in thisprogram may include mildfantasy violence or slapstickviolence, or may frightenchildren under the age of 7.Most parents would find thisprogram suitable for all ages.It contains little or noviolence, no strong languageand little or no sexual dialogor situations.This program contains somematerial that parents may findunsuitable for youngerchildren.This program contains somematerial that many parentswould find unsuitable forchildren under the age of 14.This program is specificallydesigned to be viewed byadults and therefore may beunsuitable for children underthe age of 17.This is a program broadcastwithout any rating, such asnews, news flashes or sports.OptionNC-17 or X (No One 17 OrUnder Admitted.):NR (Not Rated):N/A (Not Applicable): Note NR and N/A ratings are shown together as “Unrated” in themenu. U.S. TV ratings U.S. TV ratings are for TV programs rated according to the U.S. Television Parental Guidelines. OptionTV-Y (All Children):TV-Y7 (Directed to Older Children):TV-G (General Audience):TV-PG (Parental GuidanceSuggested):TV-14 (Parents StronglyCautioned):TV-MA (Mature AudienceOnly):TV-NR (Not Rated/Unrated): Note The TV-NR rating is shown as “Unrated” in the menu.(US) 49Adjusting Your Setup

About the extenders of U.S. TV ratings TV-Y7, TV-PG, TV-14 and TV-MA ratings have additional content ratings called “extenders” to define additional viewing limits. The extenders are defined as follows: OptionD (sexually suggestiveDialog):FV (Fantasy Violence):L (coarse Language):S (Sexual situations):V (Violence):DescriptionPrograms containingsuggestive dialog, or sexualinnuendoPrograms containing cartoonviolence occurring in TV-Y7programs onlyPrograms containing coarselanguagePrograms containing sexualcontentPrograms containing violenceThere may be some profanity,violence or brief nudity inthese programs.DescriptionSuitable for children under theage of 7.Viewable Canadian EnglishLanguage ratings: C and GViewable Canadian FrenchLanguage ratings: GViewable U.S. TV ratings:TV-Y, TV-G, and TV-NRSuitable for children aged 8and older.Viewable Canadian EnglishLanguage ratings: C, G, C8+and PGViewable Canadian FrenchLanguage ratings: G and 8 ans+ Viewable U.S. TV ratings:TV-Y, TV-Y7, TV-G, TV-PG,and TV-NRSuitable for children aged 14and older.Viewable Canadian EnglishLanguage ratings: C, G, C8+,PG and 14+Viewable Canadian FrenchLanguage ratings: G, 8 ans+,13 ans+Viewable U.S. TV ratings:TV-Y, TV-Y7, TV-G, TV-PG,TV-14, and TV-NR Ratings in Canada Sony’s predetermined ratings These are original ratings that Sony predetermined according to the viewer’s age. Each rating allows you to view the certain programs, as follows. See the next column for a description of each rating. OptionCHILD:YOUTH:YOUNG ADULT: (Continued)50 (US) Adjusting Your Setup Canadian English Language ratings The Canadian English Language Ratings are for TV programs in English broadcast in Canada. Option C (Programming intended for children under age 8): C8+ (Programming generally considered acceptable for children 8 years and over to watch on their own): G (General Audience): PG (Parental Guidance): 14+ (Programming contains themes or content which may not be suitable for viewers under the age of 14): 18+ (Adult): E (Exempt): Note The E (Exempt) rating is not shown in the menu. Description There will be no realistic scenes of violence or no offensive language, nudity or sexual content. Careful attention is paid to themes, which could threaten children’s sense of security and well-being. Violence will not be portrayed as the preferred, acceptable, or only way to resolve conflict; or encourage children to imitate dangerous acts which they may see on television. There will be no profanity, nudity or sexual content. Will contain very little violence, either physical or verbal or emotional. There may by some inoffensive slang, no profanity and no nudity. Programming intended for a general audience but which may not be suitable for younger children. Parents may consider some content inappropriate for unsupervised viewing by children aged 8 –

Parents are strongly cautioned to exercise discretion in permitting viewing by pre- teens and early teens. May contain violence integral to the development of the plot, character or theme, intended for adult audiences. May contain graphic language and explicit portrayals of nudity and/or sex. Exempt programming includes: news, sports documentaries and other information programming: talk shows, music videos, and variety programming. Canadian French Language ratings The Canadian French Language Ratings are for TV programs in French broadcast in Canada. Option G (General): 8 ans+ (8+ General - Not recommended for young children): 13 ans+ (Programming may not suitable for children under the age of 13): 16 ans+ (Programming is not suitable for children under the age of 16): 18 ans+ (Programming restricted to adults): E (Exempt): Note The E (Exempt) rating is not shown in the menu. Description Programming intended for audience of all ages. Contains no violence, or the violence it contains is minimal or is depicted appropriately with humor or caricature or in an unrealistic manner. Programming intended for a broad audience but contains light or occasional violence that could disturb young children. Viewing with an adult is recommended for young children (under the age of 8). Viewing with an adult is strongly recommended for children under 13. Contains frequent scenes of violence or intense violence. Contains constant violence or scenes of extreme violence. Exempt programming.(US) 51 Adjusting Your Setup

Adjusting Advanced AV Setting Options Advanced AV settings can be optimally set on the menu screen.

• Items which appear in yellow are selected.

,,,, to to set select Adjust End ENTER

Setting option “USER1,” “USER2,” and “USER3” of “Color Temp.” (Color Temperature): Select to customize the “Color Temp.”(Color Temperature) by adjusting “Red Gain,” “Green Gain,” and “Blue Gain” (tint) in the range of “-127” – “+126,” and store these 3 settings as the user setting. Name Set: Select to name your original settings. Press V/v/B/b to select the letter, then press . To correct the letter, select B on the screen to go back. If you set “Menu Function” to “Return” in the (Initial Setup) menu (page 53), you can select letters by V/v buttons. Example: when selecting “Contrast” from the setting options (Continued)52 (US) Adjusting Your Setup Menu category Screen Control Custom Setup Menu item Screen Zoom Adjust Pixel Display Screen Saver Color Matrix RGB Mode Sync Mode Setting option Select to enlarge the picture with the center position fixed (only when “Wide Mode” is set to “Full”). Select from “Standard” (normal size), “×2” (doubled), “×3” (tripled), or “×4” (quadrupled). Select to adjust the picture from an RGB equipment. Auto Adjust: Select “OK” to make best possible adjustment for the input signal automatically. Note that it may not be adjusted perfectly depending on the input signal condition or picture pattern. In this case, perform “Auto Adjust” again. Dot Phase: Adjust in the range of “01” – “62” if part of a displayed text or image is not clear. Total H Pixel (Total Horizontal Pixel): Adjust when the letter or picture is not clear as a whole. Reset: Reset to the factory settings. Select “On” to display which input is selected. Select to reduce image retention. Pic. Orbit (Picture Orbit) (To prevent image retention) Move the picture position to reduce image retention. This does not prevent image retention completely if the same picture is displayed for an extended period of time. Orbit: Select “On” or “Off” to set the Pic. Orbit. The factory setting is “On.” A stop-start moving picture goes around the screen edge (one cycle per hour). The picture shifts a little once every one to two minutes. This is because the "Orbit" option is set to "On" to prevent image retention. When the "Orbit" option is set to "Off," note that displaying the same patterned signals or 4.3 aspect ratio pictures for a long time may result in image retention. Select to give the picture a neutral tint, if the output signal from the DVD player connected to the VIDEO IN 4 jacks is 525p (480p), 1125i (1080i), or 750p (720p) signal format. Adjust this only when the picture tint goes out of tune. Select the signal format for each input, then set it to “Y/C b/Cr,” or “Y/Pb/Pr.” When purchasing, all formats are set to “Y/Pb/Pr.” Select if an equipment which outputs the RGB signal is connected to the Y/G, P B/B, PR/R jacks of the VIDEO IN 4 jacks. DTV: Select when a digital tuner with RGB signal is connected. Others: Select when other RGB equipment is connected. Set according to the input signal from the HD jack of the VIDEO IN 4 jacks. H/Comp: Select when the input signal is a horizontal synchronized signal or a composite signal. Video: Select when the input signal is a video signal.(US) 53 Adjusting Your Setup

Menu category Initial Setup Timer/Clock TV Setup Unit Status Menu item Color System Menu Function Auto Shutoff Channel Fix Model Name Serial Number Temperature Fan Setting option Select when the picture from a VCR of other television system is not very good. You can adjust the setting only when the VIDEO input is selected. Select how the MENU button on the remote functions. On/Off: If the MENU button is pressed, the menu screen appears. If the button is pressed again, the menu screen disappears. (factory setting) Return: If the MENU button is pressed, the menu screen appears. If the button is pressed while the menu screen appears, the menu returns to the previous screen. Some menu operation changes. Select to set the TV to change to the standby mode automatically if there is no broadcast or input signal through the connected equipment. Off: “Auto Shutoff” does not function. 5min: Changes to the standby mode after 5 minutes if there is no broadcast or input signal. 10min: Changes to the standby mode after 10 minutes if there is no broadcast or input signal. Select this when you have a cable box or satellite receiver connected. 2-6: Select this to ‘fix’ your TV’s channel setting to 2-6 and use the cable box or satellite receiver to change channels. Select one of these settings if you have connected the equipment to the VHF/UHF jack. Video 1: Select this if you have connected the equipment to the AUDIO and VIDEO IN jacks. Select “Off” to turn off the Channel Fix feature. Notes

• When you select Channel Fix, the Favorite channel cannot be used.

• When you select Channel Fix, you cannot use Channel Skip/Add or Auto Program in the TV Setup menu. To use them, set Channel Fix to “Off.” Model name of this TV. Serial number allocated for each TV If “NG” flashes, follow the procedure in “Self-diagnosis function” (See page 58). If “NG” flashes, follow the procedure in “Self-diagnosis function” (See page 58).54 (US) Using the Timer Using the Timer Turning Off the TV Automatically You can set the TV to turn off automatically after a predetermined period of time (30, 60, 90 or 120 minutes).

TV/VIDEOPICTURE MODE POWERSAVING SLEEP Press SLEEP repeatedly until the desired period of time appears. Each time you press the button, the period of time changes as follows. While the Sleep timer is activated, the STANDBY/SLEEP indicator on the TV lights up in red. To cancel the Sleep timer Press SLEEP repeatedly until “Sleep: Off” appears. Tips

• If you press the SLEEP button while the Sleep timer isactivated, the remaining time appears for a few seconds.• If you turn off and on the TV, the Sleep timer returns to “Off.”• You can set the Sleep timer on the menu screen. Select“Sleep” in the (Timer/Clock) menu, then set the desiredperiod of time. SLEEP Sleep:Off Sleep:30min Sleep:60min Sleep:90min Sleep:120min ,(US) 55Using the Timer

3 Press V/v to select “Clock Set,” then press

4 Set the current time. 1 Press V/v to set the hour, then press

2 Press V/v to set the minute, then press

If you want to set the second to "00," press V/v to set the second, then press . 3 Press or b at the time signal. The clock starts. Tip Pressing and holding the V/v buttons moves the hours orminutes quickly. 5 Press V/v to select “Clock Display,” then press

ENTER Se t ClockOn Timer/Auto Shutoff00:00:00 Setting the Current Time The error range of the built-in clock is ± 30 seconds a month. (Continued)56 (US) Using the Timer Timer/ClockSleepClock Di splaySavingDaylight On

ENTER Se t ClockOn Timer/Auto Shutoff20:03:00DescriptionSelect to compensate fordaylight-saving time inspring. The current timeautomatically moves aheadone hour.Select at the end of daylight-saving time in fall. Thecurrent time moves back onehour.Timer/ClockSleepClock Di splaySavingDaylight

Se t ClockOn Timer/Auto Shutoff ,,to to returnselect pressENTER20:03:00 6 Press V/v to select “On,” then press . To cancel Clock Display, select “Off.” 7 Press MENU to exit the menu screen. Note The clock display will automatically disappear after 5 minutes.To display the clock again, select “On” for the “Clock Display”in the menu screen. Setting the daylight saving The clock adjusts the time for daylight-saving time automatically. 1 Press MENU. 2 Press V/v to select (Timer/Clock), then press

3 Press V/v to select “Daylight Saving,” then press

4 Press V/v to select “On” or “Off,” then press

Daylight-saving setting

Off 5 Press MENU to exit the menu screen. Controlling Power On/ Off Automatically You can turn the TV on and off at a specified time automatically. To use this function, set the clock in advance (page 55). Note When using this function, do not turn off the TV with thePOWER button on the TV as the On Timer function will notwork.MUTING POWER VCR/DVD SAT/CABLE VCR/DVD SLEEP JUMP VOL CH ENTER MTS/SAP GUIDE TV/SAT SAT/CABLE

MENU Picture/Sound ControlPicture Mode Standard,,,to to enter adj . menu select ENTERAdjust PictureSoundAdjust(US) 57Using the Timer DescriptionSelect to set the time to turnoff the TV.Select to set the time to turnon the TV.Select to set the time to turnon and off the TV. Timer/ClockRepeat

3 Press V/v to select “On/Off Timer,” then press

4 Press V/v to select “On,” then press . 5 Press V/v to select “Timer Mode,” then press

6 Press V/v to select “Off,” “On,” or “On/Off,” then press

On/Off 7 To set the time to turn off the TV: Press V/v to select “Off Time,” then press

To set the time to turn on the TV: Press V/v to select “On Time,” then press

8 Set the time. 1 Press V/v to set the hour, then press

2 Press V/v to set the minute, then press

3 Press B. Tip Pressing and holding the V/v buttons moves the hours orminutes quickly. 9 If you select “On/Off” in step 6, repeat steps 7 and 8 to set both “Off Time” and “On Time.”

Press MENU to exit the menu screen. To turn the TV on and off at a specified time everyday After step 4, do the following, then go to step 5. 1 Press V/v to select “Repeat,” then press . 2 Press V/v to select “On,” then press . To cancel, select “Off.” 3 Go to step 5. To cancel On/Off Timer Select “Off” in step 4. Tip You can set the TV to turn off automatically after a certainperiod if there is no broadcast or input signal (Auto Shutoff, seepage 53).Additional Information 58 (US) Troubleshooting If, after reading the following instructions, you have additional questions related to the use of your Sony TV, please call one of the following numbers (English only). Customers in the continental United States contact the Direct Response Center at: 1-800-222-SONY (7669) Customers in Canada contact the Customer Relations Center at: (416) 499-SONY (7669) Self-diagnosis function The TV is equipped with a self-diagnosis function. If there is a problem with your TV, the STANDBY/ SLEEP indicator on the front panel will flash repeatedly. Counting the number of flashes helps you inform qualified Sony personnel of the TV’s condition. Case1: When the picture turns off and the STANDBY/ SLEEP indicator on the front panel flashes 1 Count how many times the STANDBY/SLEEP indicator flashes in total. It flashes at 3 second intervals. If, for example, the indicator flashes twice, stops flashing for 3 seconds, and flashes twice again, that counts as twice. 2 Press POWER on the TV to turn it off, and disconnect the AC power cord, then inform qualified Sony personnel or the above Direct Response Center of the number of flashes. Additional Information Case 2: When the STANDBY/SLEEP indicator on the front panel flashes while the picture is turned on 1 Press MENU on the remote. 2 Press V/v to select (Unit Status), then press

3 Check the indication of “Temperature” and “Fan” columns. If “NG” lights in red, and the STANDBY/ SLEEP indicator flashes, press POWER on the TV to turn off the TV, and disconnect the AC power cord. Case 2-a: If “NG” appears in the “Temperature” column Install the TV in a cool location so that the temperature of the TV fells. If the ventilation openings are blocked The ventilation openings must never be blocked or covered. Install the TV in a well ventilated place to allow adequate air circulation. Make sure that the STANDBY/SLEEP indicator stops flashing. If the STANDBY/SLEEP indicator still flashes, consult your nearest Sony dealer or Direct Response Center (See the left column). Case 2-b: If “NG” appears in the “Fan” column Consult your nearest Sony dealer or Direct Response Center (See the left column). StatusUnitMod e lSer ial Number Name

Problem Possible remedies No picture. Cannot receive any channels. Cannot receive certain channels. The TV turns off automatically. (The TV enters the standby mode.) Some video sources do not appear. “No Sync” appears, or the STANDBY/SLEEP indicator lights up in red. Poor picture. Double images or ghosts. Only snow and noise appear on the screen. Dotted lines or stripes No color. Color is not correct. Dark picture. Some tiny black points and/ or bright points on the screen. The screen flickers when turning on the TV. The picture is too bright. Picture (stripe) noise. Distorted picture and noisy sound. Striped noise during playback/recording of a VCR. The whole screen is green when VIDEO 4 input is selected. The whole screen reddens when VIDEO 4 input is selected.

• Make sure the power cord is connected securely.

• Turn on the power of the TV.

• Check antenna/cable connections.

• Set the channels again (page 20).

• Check that the Sleep timer is activated (page 54).

• Check that the On/Off Timer is activated (page 56).

• Check that Auto Shutoff is activated (page 53).

• Check the connection between the optional video equipment and the TV.

• Press TV/VIDEO on the remote (page 32).

• If you connect the video equipment to the S VIDEO input of the TV, set “Auto YC” in the (Custom Setup) menu to “On” (page 10).

• Check antenna/cable connections.

• Check the antenna location and direction.

• Check if the antenna is broken or bent.

• Check if the antenna has reached the end of its serviceable life. (3-5 years in normal use, 1-2 years at the seaside)

• Keep the TV away from noise sources such as cars, motorcycles, or hair-dryers.

• If you set the POWER SAVING function to “Reduce,” the picture may become dimmer (page 28).

• The picture of a flat panel display is composed of pixels. Tiny black points and/or bright points (pixels) on the screen, this does not indicate a malfunction.

• This is caused by the Plasma Display Panel feature, and does not indicate a malfunction.

• Press PICTURE MODE to select the desired Picture Mode (page 26).

• Make sure that the antenna is connected using the supplied 75-ohm coaxial cable.

• Keep the antenna cable away from other connecting cords.

• Do not use 300-ohm twin lead cables as interference may occur.

• Check if the connected optional equipment are installed in front of the TV or at the side of the TV. When installing optional equipment, leave some space between the optional equipment and TV.

• Video head interference. Keep your VCR away from the TV.

• Leave a space of 30 cm (11

inch) between your VCR and the TV to avoid noise.

• Avoid installing your VCR in front of the TV or at the side of the TV.

• Y, PB/CB, PR/CR signal is applied to the VIDEO IN 4 jacks. Set “Video 4 Mode” to “Y/ PB/PR” in the (Initial Setup) menu.

• RGB signal is applied to the VIDEO IN 4 jacks. Set “Video 4 Mode” to “RGB” in the (Initial Setup) menu. Trouble symptoms and remedies (Continued)Additional Information 60 (US) Problem Possible remedies Moving pictures. The picture moves a little. No sound./Noisy sound. Good picture, no sound. Audio noise. The TV fan noise becomes bigger. Cannot operate the menu. Wide Screen Mode changes automatically. Wide Screen Mode changes automatically while Auto Wide is set to on. Strange sound. The TV cabinet creaks. The TV whirs. The TV ticks. The TV buzzes. Remote control does not operate.

• The"Orbit" option of "Screen Saver" in the (Custom Setup) menu (page 52) is set to "On" by the default. This setting moves the picture position periodically to prevent image retention and this is not a malfunction. If this screen movement bothers you, set "Orbit" to "Off." When the "Orbit" option is set to "Off," note that displaying the same patterned signals or 4.3 aspect ratio pictures for a long time may result in image retention.

• Check the volume control.

• Press MUTING or VOL + so that “Muting” disappears from the screen (page 23).

• Disconnect your headphones.

• Set “Speaker” to “On” in the (Custom Setup) menu (page 13). If it is set to “Off,” sound is not output from the TV’s speakers regardless of the TV’s volume control.

• Make sure that the antenna is connected using the supplied 75-ohm coaxial cable.

• Keep the antenna cable away from other connecting cords.

• Do not use 300-ohm twin lead cables as interference may occur.

• Press MTS/SAP to select “MONO” (page 43).

• Communication problems may occur if the infrared communication equipment (e.g., infrared cordless headphones) is used near the TV. Please use headphones other than infrared cordless headphones. Also, if you use the infrared communication equipment other than infrared cordless headphones, move the infrared transceiver away from the TV until the noise is eliminated, or move the transmitter and receiver of the infrared communication equipment closer together.

• The ventilation holes can accumulate dust over a period of time. The accumulated dust may make the cooling function of the built-in fan less effective. To prevent this, we recommend removing the dust periodically (once a month) using a vacuum cleaner.

• If the item you want to select appears in a pale color, you cannot select it.

• The picture size may change when the program has commercial breaks, because the TV selects the best Wide Screen Mode automatically for each program (See page 29).

• The TV receives the picture with control signal and selects the best Wide Screen Mode automatically to fit the wide screen (See page 29).

• When you change the channel or input, the TV selects the best Wide Screen Mode automatically. If you want to fix the Wide Screen Mode selected with the WIDE MODE button, set “Auto Wide” to “Off” in the (Screen Control) menu (page 31).

• Changes in room temperature sometimes causes the TV cabinet to expand or contract, which can make slight noises. This does not indicate a malfunction.

• The TV’s fan setting is working. This does not indicate a malfunction.

• An electrical circuit inside the TV is activated when the TV is turned on. This does not indicate a malfunction.

• There might be a surge sound when turning on the TV. This does not indicate a malfunction.

• The batteries could be weak. Replace the batteries.

• Check the polarity of the batteries.

• If the STANDBY/SLEEP indicator on the TV does not light in red, press POWER on the TV.

• Point the remote control at the remote control sensor of the TV.

• Install the TV away from fluorescent lights.Additional Information(US) 61

Specifications Television system: American TV standard Channel coverage:

B:0.7 Vp-p, 75 ohms PR:0.7 Vp-p, 75 ohms

G:0.7 Vp-p, 75 ohms, Sync on Green B:0.7 Vp-p, 75 ohms, Sync on Green R:0.7 Vp-p, 75 ohms, Sync on Green

G:0.7 Vp-p, 75 ohms, non Sync on Green B:0.7 Vp-p, 75 ohms, non Sync on Green R:0.7 Vp-p, 75 ohms, non Sync on Green HD:1–5 Vp-p VD:1–5 Vp-p AUDIO (phono jacks): 500 mVrms (100% modulation), Impedance: 47 kilohms SUB WOOFER: phono jack AUDIO OUT (phono jacks): 500 mVrms (100% modulation) Headphones: Stereo minijack CONTROL S IN/OUT: minijacks Speaker: 50 × 130 mm (2 × 5

(KE-42TS2U) Supplied accessories Remote control RM-928Y (1) Batteries size AA (2) 75-ohm coaxial cable (1) AC power cord (1) Brackets (2) Cleaning cloth (1) Operating instructions (1) Optional accessories Note that some optional accessories may be out of stock. Headphones plug adapter Connecting cables VMC-810S/820S, YC-15V/30V,

RK-74A, VMC-10HG, SMF-403

Design and specifications are subject to change without notice.Additional Information 62 (US) Index

OUT PB/BY/G PR/R AUDIO

OUT PB/BY/G PR/R AUDIO

OUT PB/BY/G PR/R AUDIO

(1080i/720p/480p) (1080i/720p/480p) HD VD

OUT PB/BY/G PR/R AUDIO

OUT PB/BY/G PR/R AUDIO

OUT PB/BY/G PR/R AUDIO

OUT PB/BY/G PR/R AUDIO

(1080i/720p/480p) (1080i/720p/480p) HD VD

OUT PB/BY/G PR/R AUDIO
